Larson Electronics 77' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) LED Lamps - 20KW Genset - Auto Retract

Larson Electronics 77' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) LED Lamps - 20KW Genset - Auto Retract

Regular price $321,185.18
Regular price Sale price $321,185.18
Sale Sold out
Customizable
Fast
24/7 Support
  • Total Lumen Output: 1,350,000 lumens with twenty 500-watt LED lights for large-area illumination.
  • Adjustable Mast Height: Hydraulic mast extends from 30 to 77 feet, collapses for compact storage.
  • Extended Runtime: 20KW Kubota generator provides up to 43 hours of continuous operation.
  • Cold Weather Ready: Factory-installed cold weather package with de-icing system and heated components for operation in sub-zero temperatures.
  • Robust Construction: Carbon steel mast with galvanized finish, heavy-duty 4-wheel tandem axle trailer built for rough terrain.
View full details

Products Description

Larson Electronics 77' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) LED Lamps - 20KW Genset - Auto Retract

Description

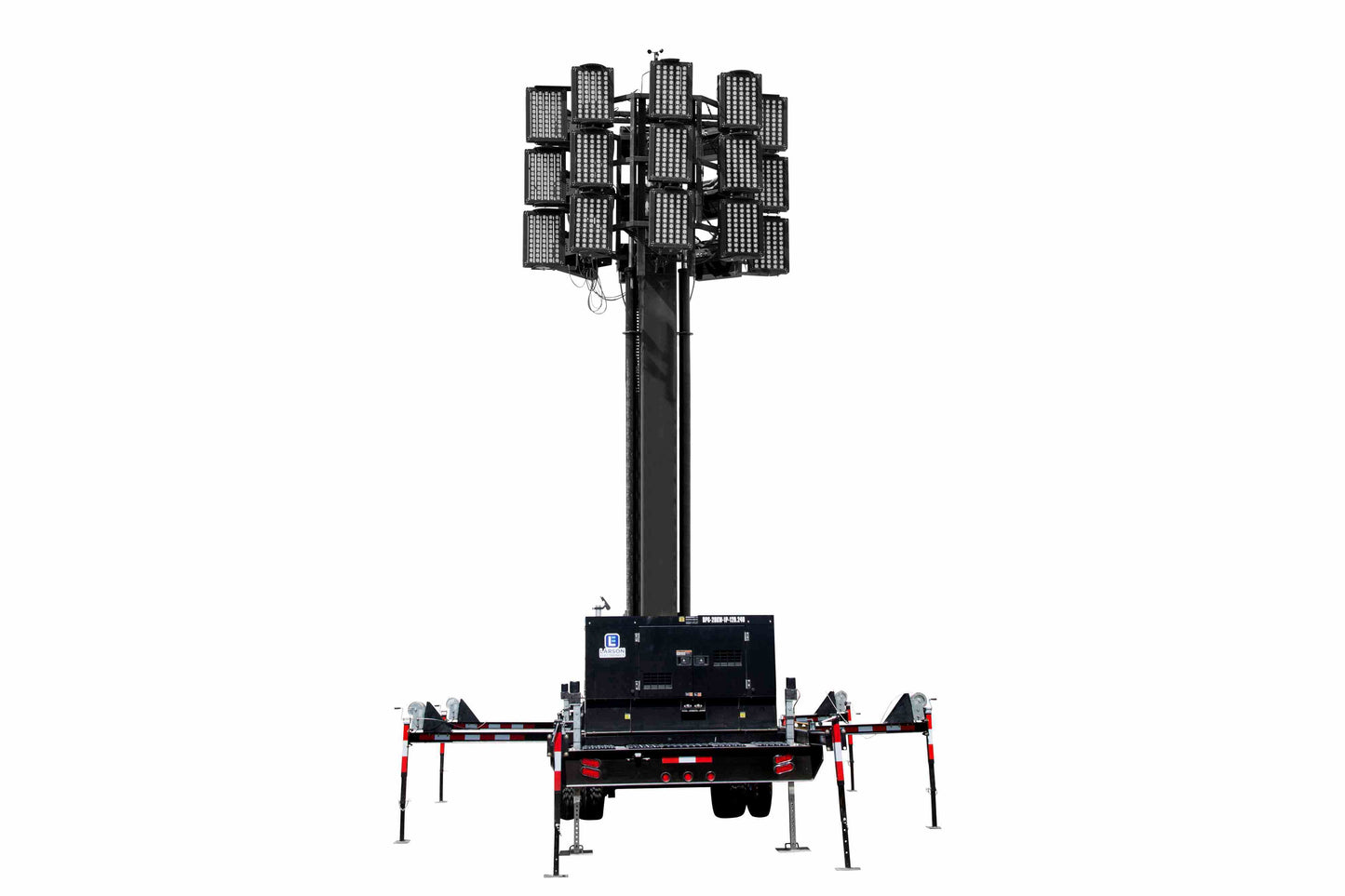

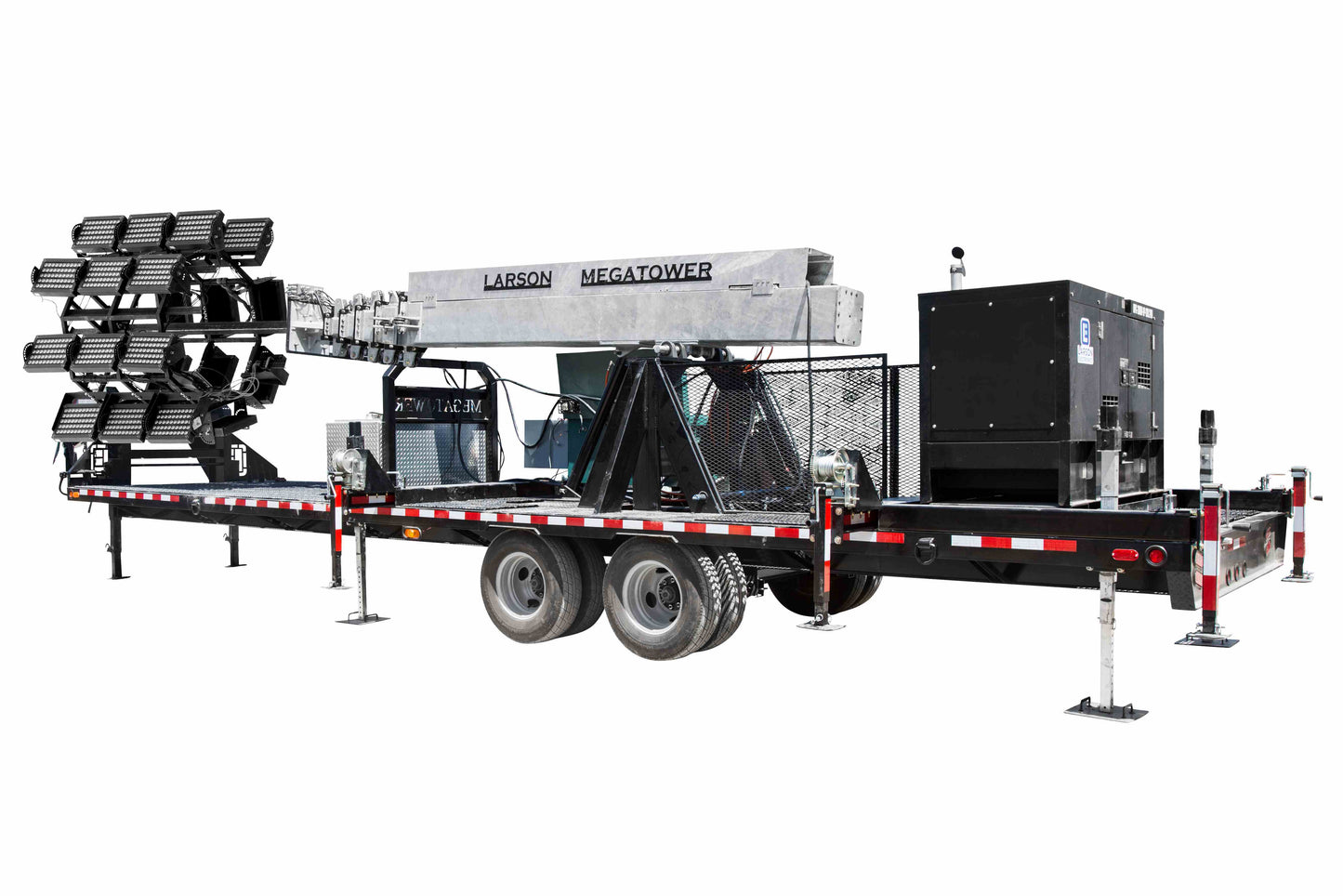

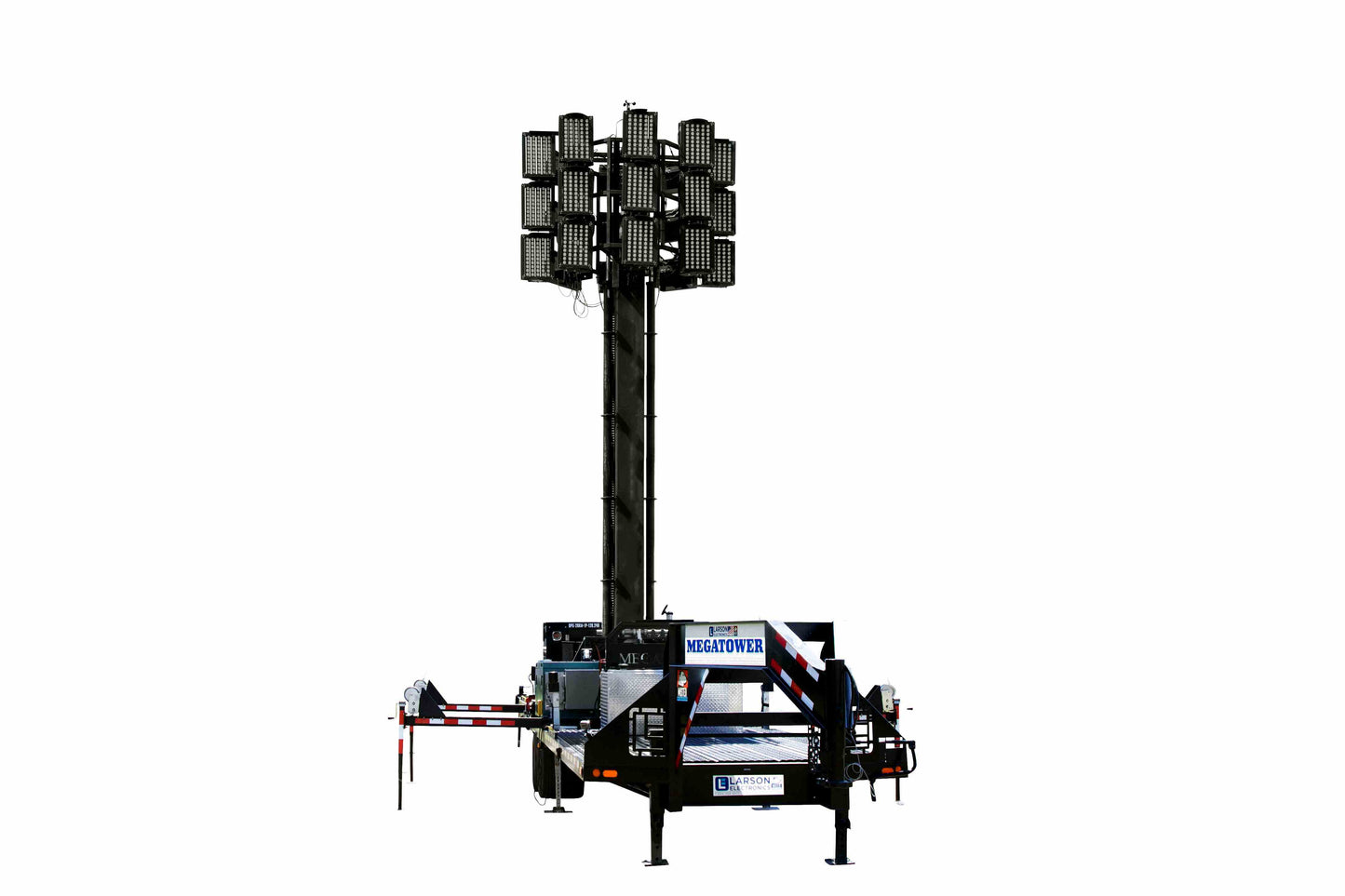

The Larson Electronics WCDE-20-HLM65-20X500LTL-LED-WSM LED Megatower™ is a powerful, towable light tower designed for large-scale, industrial-grade lighting needs. This mobile unit is equipped with a robust 20KW diesel generator by Kubota and 20 high-output 500W LED floodlights, providing a total of 1,350,000 lumens. The hydraulic telescoping mast can elevate these lights to a height of 77 feet, making it ideal for large event illumination, construction sites, and mining operations. Engineered for rough terrains, this Megatower™ is mounted on a dual tandem axle trailer with six stabilizing jacks, ensuring stability during operation even in windy conditions.

This model features a cold weather package to ensure reliable performance in sub-zero temperatures, along with an advanced auto-retract system for safe operation in high winds. Each LED light head is adjustable, allowing operators to achieve customized illumination. Built with Larson Electronics’ durable, IP67-rated LED fixtures and a resilient steel frame, this lighting system is an ideal choice for demanding work environments where high performance and durability are paramount.

Key Features

  • Superior Illumination: Generates a total of 1,350,000 lumens with high-efficiency LED lights.
  • Extended Height: Hydraulic mast reaches up to 77 feet, providing broad coverage from an elevated vantage.
  • Durability and Reliability: IP67-rated LED lights, carbon steel mast, and 6-point stabilizing system for stability on rugged terrain.
  • Cold Weather Ready: Comes with a full cold weather package for operation in extreme temperatures.
  • Energy-Efficient LED Technology: High lumens-per-watt output with lower heat emission than traditional lighting.

Detailed Specifications

Genset Specs

Specification Details
Genset 20KW
Engine Perkins, 28.9 HP, liquid-cooled
Voltage 120/240V Single Phase
Fuel Tank Capacity 110 gallons with anti-splash baffles
Noise Level 68 dB at 23 feet
Cold Weather Package Included (battery blanket, fuel heater, coolant heater)

Light Mast Specs

Specification Details
Tower Length 30' (collapsed) to 77' (fully extended)
Materials Galvanized Carbon Steel
Operation Hydraulic (upright and extension)
Safety Wind speed monitoring with auto-retract feature

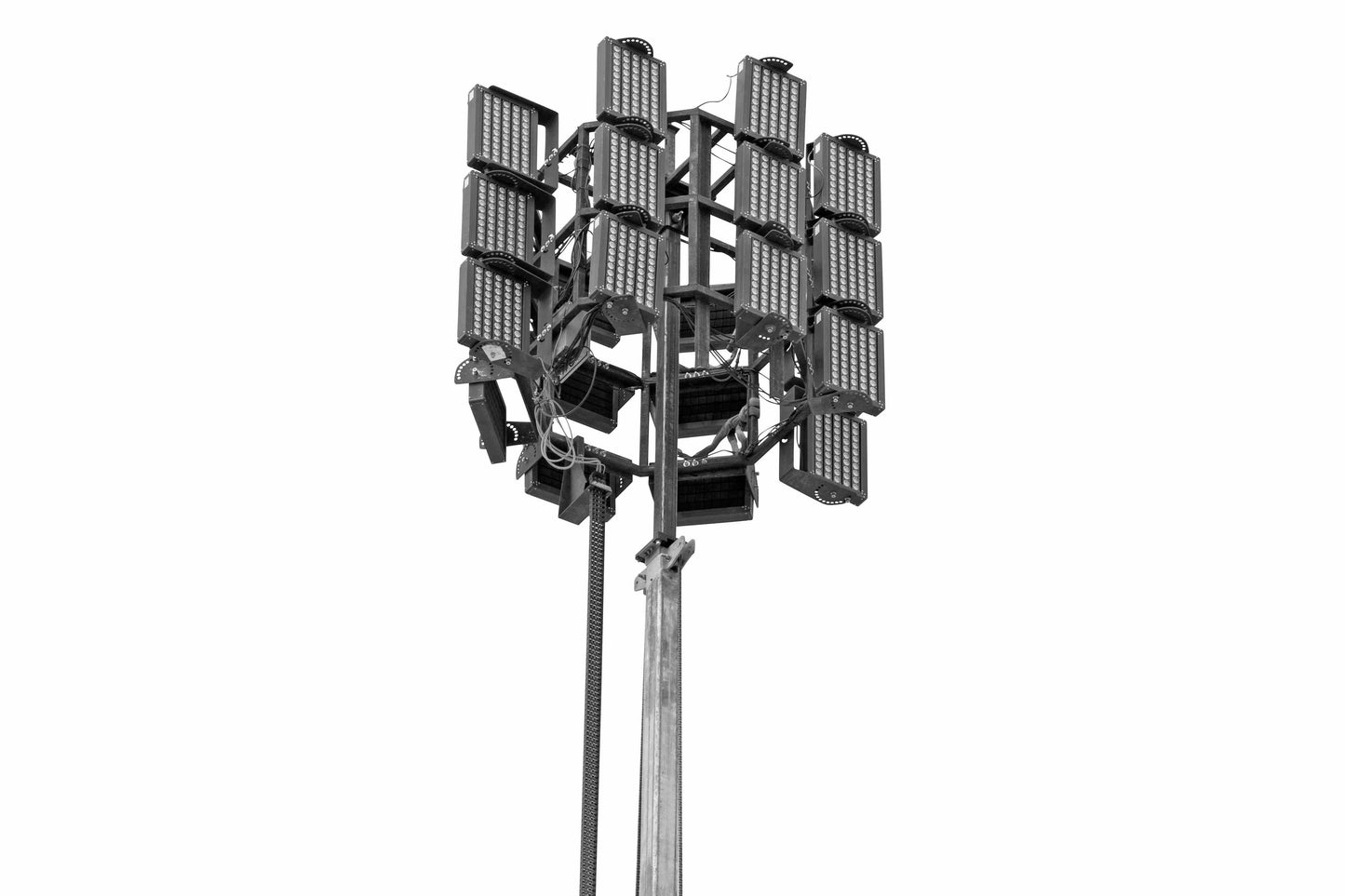

Light Head Specs

Specification Details
Lamp Type LED
Total Wattage 10,000W (500W per lamp)
Total Lumens 1,350,000 lumens (67,500 per lamp)
Beam Pattern Flood Beam
Color Temperature 5000K
Efficiency 135 lumens per watt
Waterproof Rating IP67

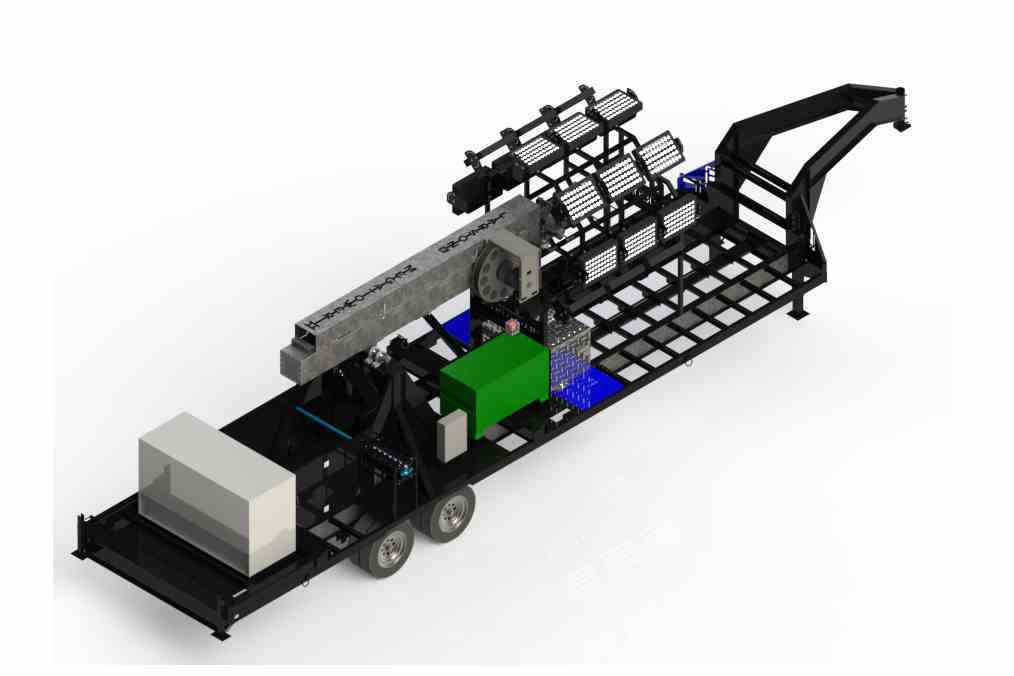

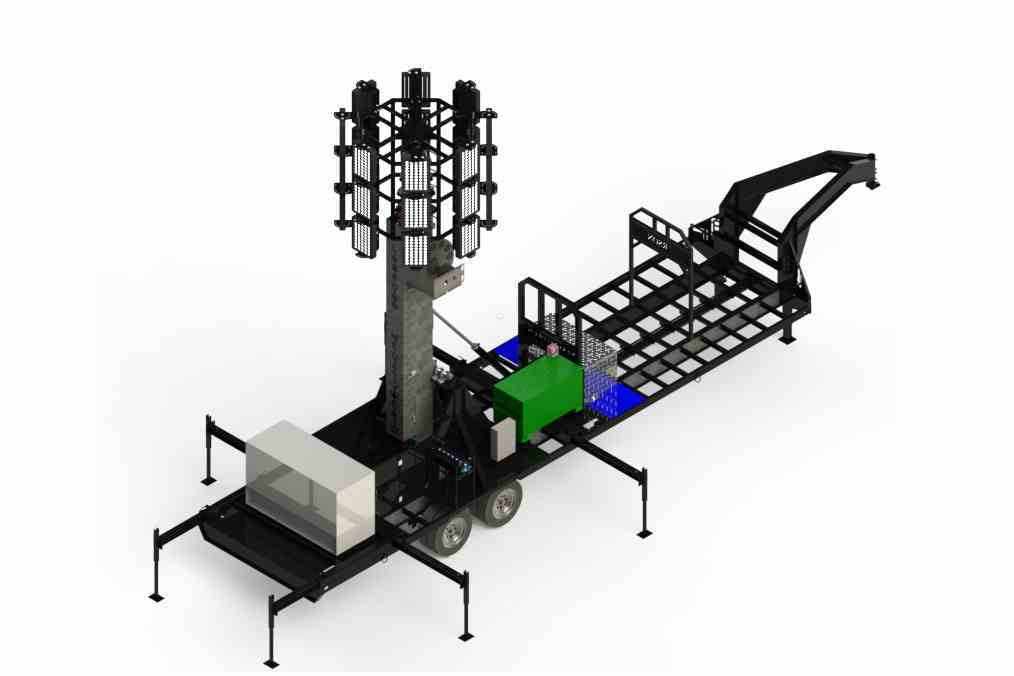

Trailer Specs

Specification Details
Dimensions 33'L x 8'W Trailer Bed
Height (Transport) 8'6"
Hitch Type Gooseneck with 12" I-beam construction
Axles (2) 10,000 lbs dual tandem with electric brakes
Outriggers (6) 7,000 lbs jacks with 12' x 12" x 12" I-beams
Wheels and Tires (8) P235/80R16 tires with steel rims

This structure provides clarity and ease of navigation, optimizing for both customer readability and search engines. Let me know if you need any further customization for this product listing!
