Larson Electronics 85' Self-contained Megatower™ on Skid Mount - (16) 500W LED Fixtures - 11KW Genset, 110 Gallon Tank
Description
The SMDE-11-HLM85-16X500LTL-LED LED Light Plant by Larson Electronics is a high-performance, self-contained LED light tower package mounted on a robust skid system, designed for heavy-duty, high-intensity illumination needs. This unit is powered by an 11KW Kubota diesel generator that energizes sixteen 500-watt LED lights, producing a total of 1,080,000 lumens, making it ideal for large-scale events, construction, industrial operations, and mining applications.
Key Features
- Lumens Output: 1,080,000 lumens total (67,500 lumens per light head) for wide-area illumination.

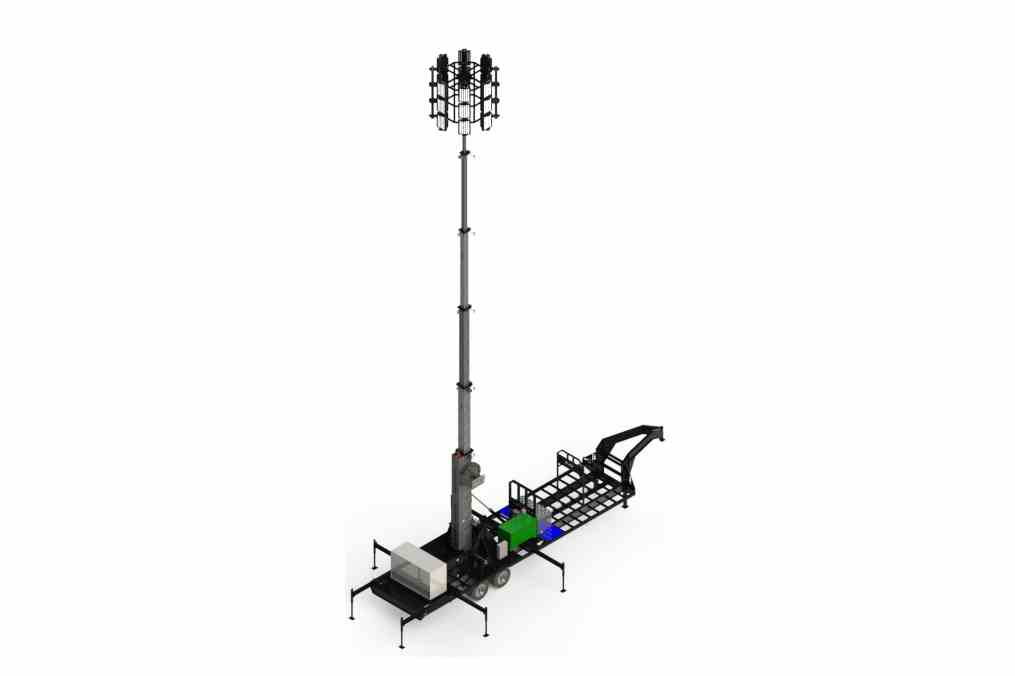

- Mast Height: Telescoping hydraulic mast extends from 22 to 85 feet, with a maximum total height of 94 feet when including the 9-foot light head assembly.
- Generator and Runtime: Powered by a Kubota GL11000TM genset, allowing up to 43 hours of continuous operation on a single tank (110 gallons).
- Cold Weather Package: De-icing system, heated hydraulic lines, battery blanket, and in-tank fuel heater for enhanced operation in harsh climates.
- Durable Construction: Skid-mounted steel frame with industrial-grade paint, designed for stability and transport across rugged terrain with crane pickeyes for air transport.
- Environmental and Safety Benefits: IP67-rated LED lights for water and dust resistance, with cooler operation and 100% recyclability, reducing hazards associated with traditional lighting.
Detailed Specifications
| Category | Feature | Specification |
|---|---|---|
| Lighting | Lamp Type | CREE LED, 8,000W total |
| Color Temperature | 5000K | |
| Efficiency | 135 lumens per watt, with 70% lumen retention after 80,000 hours | |
| Generator | Engine Type | Kubota D722 16.3 HP, liquid-cooled diesel engine |
| Voltage | 120/240V Single Phase | |
| Fuel Capacity | 110 gallons with anti-splash baffles for extended runtime and reduced refueling needs | |
| Sound Level | 68 dB at full load, 23 feet away | |
| Skid Mount | Dimensions | 21 feet long × 8 feet wide, skid-mounted for compact storage and easy transport |

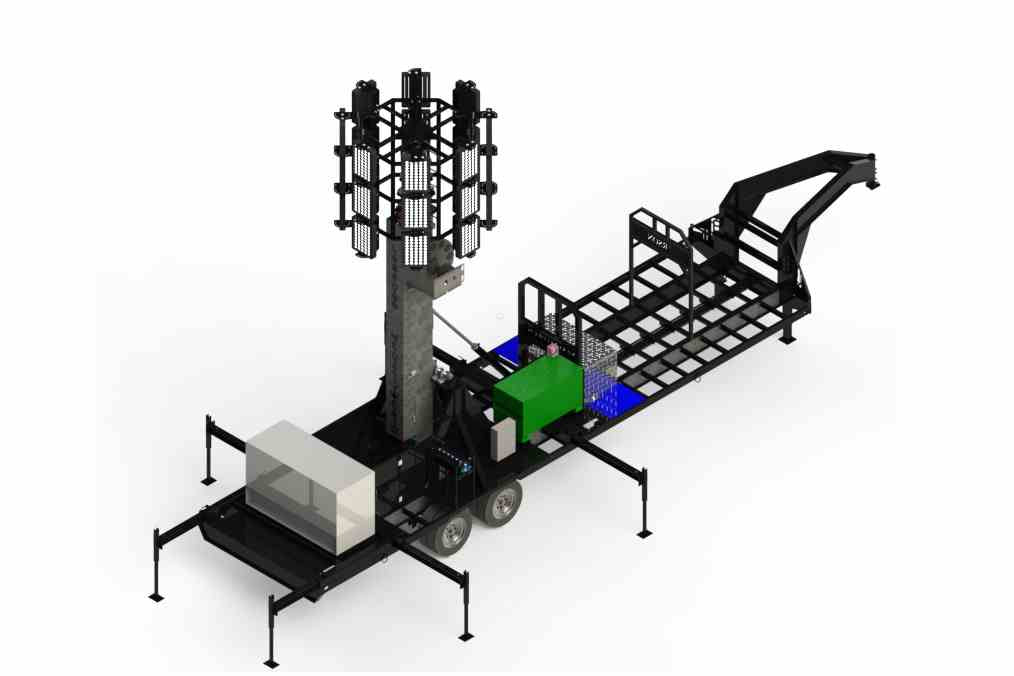

| Outriggers | 6-point, 6-foot I-beam extendable outriggers with 10,000 lb manual leveling jacks for enhanced stability | |
| Transport Compatibility | Crane lift pickeyes for transport to remote locations |
Durability and Heat Management
Equipped with high-transmission PMMA optics and optimized heat sinks for effective heat dissipation, the LED heads are designed to handle extreme environments, including temperature ranges from -40°C to +85°C. The IP67-rated construction protects against dust, water, and environmental exposure, making it reliable for rugged job sites.
Applications
Ideal for construction sites, outdoor events, job sites, and other large-scale lighting needs, this tower provides a self-contained, reliable alternative to traditional lighting systems. Its modular design and skid mount make it highly versatile and adaptable for transport and setup in remote or challenging locations.
Quick Summary
| Feature | Specification |
|---|---|
| Mast Range | 22 to 85 feet with hydraulic deployment, 94 feet with light head assembly |
| Fuel Efficiency | 43 hours of continuous operation |
| Wind Resistance | Stabilizes in winds up to 125 mph when lowered |
| Maintenance | 3,000-hour external oil pump service intervals |
| Modular LED Banks | Independent LED banks for flexible control, with a breaker-controlled system for each lamp head |

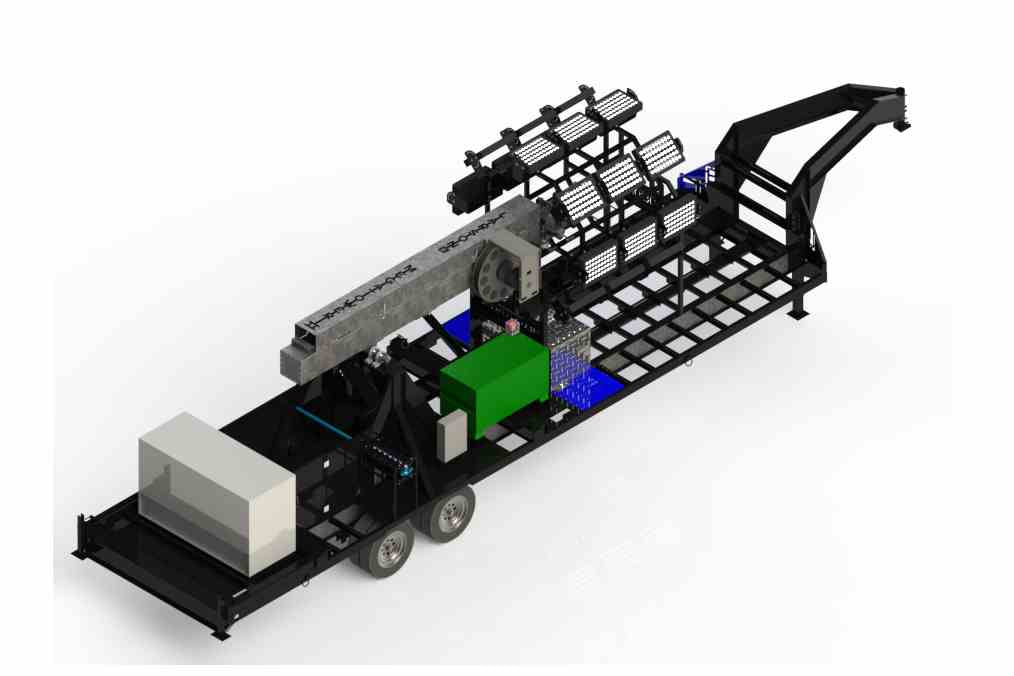

| Compact Transport Height | Fits under 13 feet for easy transport and storage |
