Product Description
Loflin Fabrication | Brush Cutter | 42" Width | 80CC – 120CC Direct Drive & Piston Motor | 3 To 10 Tons | For Mini Excavators
DESCRIPTION

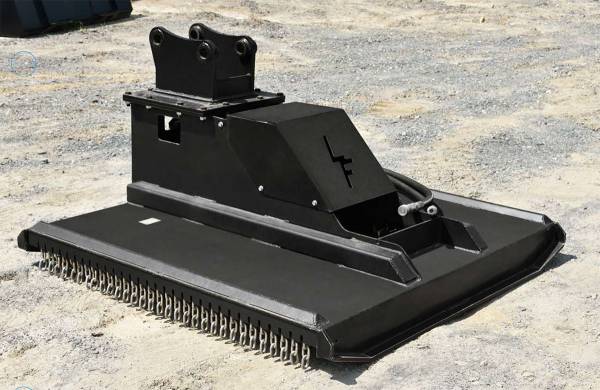

The Loflin Fabrication Mini Excavator Brush Cutter is engineered to deliver exceptional cutting performance, durability, and efficiency, making it the perfect tool for land clearing, forestry work, and site preparation. Designed for heavy-duty applications, this brush cutter effortlessly handles thick vegetation, brush, and small trees with precision and power.
Equipped with a proprietary direct-drive system, this attachment eliminates the need for gears, reducing maintenance while maximizing power transfer. Its bi-directional cutting capability allows operators to work efficiently in both directions of rotation, ensuring a seamless and controlled operation.
The Geroller-style hydraulic motor, available in varying displacements, provides optimal tip speed for clean and consistent cutting. Reinforced with a powder-coated finish, the brush cutter is built to withstand tough job site conditions while maintaining superior longevity.
With oversized tapered roller bearings, wire-protected grease seals, and a robust iron housing, this attachment guarantees long-lasting performance in demanding environments. The motor and drive assembly are fully enclosed, providing added protection against debris and impact damage.
This brush cutter comes job-site ready, equipped with Parker brand hoses, fittings, and couplers for smooth installation. Designed for both low and high-flow machines, it provides seamless compatibility with excavators, making it an essential addition for professionals seeking efficiency, reliability, and power.
Key Features
- 42” Cutting Width Ideal for wider clearing paths while maintaining precision control.
- Multiple Motor Options Choose from 80cc, 100cc, 120cc Geroller motors or a heavy-duty 80cc piston motor.
- Direct Drive System Fewer moving parts, no gears, and lower maintenance.
- Bi-Directional Operation Hydraulically reversible blades increase cutting versatility.
- Heavy-Duty Construction 1-piece cast iron housing, heat-treated forged steel axle, and reinforced steel deck.
- No-Leak Design Grease-packed roller bearings with wire-protected lower seal.
- Optimized Cutting Performance Geroller motors with pressure relief valves deliver ideal blade speed and torque.
- Easy Maintenance Uses common rotary cutter blades, bolts, and nuts.
- Fully Enclosed Motor Assembly Protects components from dust, dirt, and debris.
- Jobsite-Ready Outfitted with Parker brand hoses, fittings, and couplers.
- Powder-Coated Finish Long-lasting corrosion resistance.
- Low and High Flow Compatibility Adapts to a wide range of mini excavators.

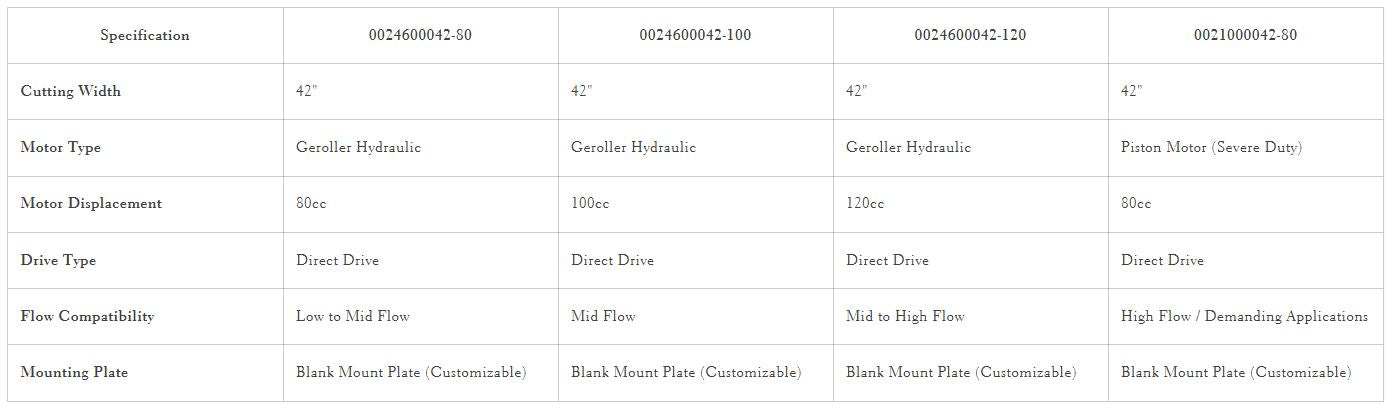

Detailed Specifications
Geroller Hydraulic Motor Models
| Specification | 0024600042-80 | 0024600042-100 | 0024600042-120 |
|---|---|---|---|
| Cutting Width | 42" | 42" | 42" |
| Motor Type | Geroller Hydraulic | Geroller Hydraulic | Geroller Hydraulic |
| Motor Displacement | 80cc | 100cc | 120cc |
| Drive Type | Direct Drive | Direct Drive | Direct Drive |
| Flow Compatibility | Low to Mid Flow | Mid Flow | Mid to High Flow |
| Mounting Plate | Blank Mount Plate (Customizable) | Blank Mount Plate (Customizable) | Blank Mount Plate (Customizable) |
Piston Motor Severe Duty) Model
| Specification | 0021000042-80 |
|---|---|
| Cutting Width | 42" |
| Motor Type | Piston Motor (Severe Duty) |
| Motor Displacement | 80cc |
| Drive Type | Direct Drive |
| Flow Compatibility | High Flow / Demanding Applications |
| Mounting Plate | Blank Mount Plate (Customizable) |
