MAXX Hydraulic Adjustable Pallet Forks For Skid Steer

MAXX Hydraulic Adjustable Pallet Forks For Skid Steer

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Hydraulic Tine Adjustment: Equipped with two hydraulic cylinders to easily adjust the tines, saving time and eliminating manual labor.
  • Customizable Mounts: Designed to fit wheel loaders or telehandlers, with options for direct pinning or popular quick coupler systems.
  • Variety of Sizes: Tines available in multiple lengths (48", 60", 72", 84", 96") and a wide range of carriage widths for different applications.
  • Additional Hydraulic Circuit Requirement: Requires an extra hydraulic circuit for operation, enhancing tine adjustment efficiency.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Products Description

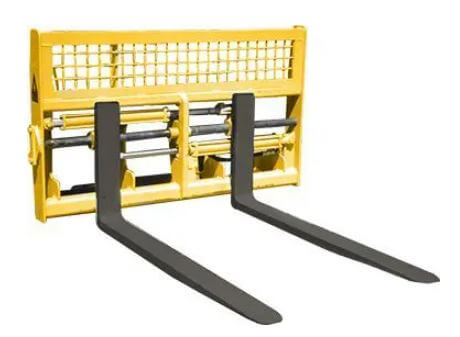

MAXX Hydraulic Adjustable Pallet Forks For Skid Steer

DESCRIPTION

 Maxx Hydraulic Adjustable Pallet Forks offer practical solutions for material handling operations. Designed for loading, moving, and handling non-standard pallets and materials, these forks feature two hydraulic cylinders that adjust the tines with ease, eliminating manual adjustments and saving time. This feature also reduces the risk of injuries such as pinched fingers and strained backs, making the Maxx Pallet Forks an essential addition to any industrial or agricultural operation.

Key Features

  • Hydraulic Adjustment: Two hydraulic cylinders enable smooth tine adjustments without manual labor.
  • Versatility: Available for Wheel Loaders or Telehandlers, with compatibility for direct pinning or popular quick coupler systems.
  • Safety and Efficiency: Hydraulic adjustment reduces risk of injury and increases productivity.
  • Durable Construction: Available in various tine lengths and carriage widths, making it suitable for different loader classes.

Detailed Specifications

Model

Tine

 Length

Carriage

Width

Loader Class &

Weight (lbs.)

DX-FK-PTHT-48inx60in-WL-50 48 inches 60 inches Class 50, 1,600 lbs.
DX-FK-PTHT-48inx72in-WL-50 48 inches 72 inches Class 50, 1,780 lbs.
DX-FK-PTHT-48inx84in-WL-50 48 inches 84 inches Class 50, 1,990 lbs.
DX-FK-PTHT-60inx84in-WL-50 60 inches 84 inches Class 50, 2,140 lbs.
DX-FK-PTHT-72inx84in-WL-50 72 inches 84 inches Class 50, 2,300 lbs.
DX-FK-PTHT-48inx96in-WL-50 48 inches 96 inches Class 50, 2,200 lbs.
DX-FK-PTHT-60inx96in-WL-50 60 inches 96 inches Class 50, 2,400 lbs.
DX-FK-PTHT-72inx96in-WL-50 72 inches 96 inches Class 50, 2,650 lbs.
DX-FK-PTHT-48inx72in-WL-60 48 inches 72 inches Class 60, 1,750 lbs.
DX-FK-PTHT-60inx72in-WL-60 60 inches 72 inches Class 60, 1,845 lbs.
DX-FK-PTHT-48inx84in-WL-60 48 inches 84 inches Class 60, 2,160 lbs.
DX-FK-PTHT-60inx84in-WL-60 60 inches 84 inches Class 60, 2,350 lbs.
DX-FK-PTHT-72inx84in-WL-60 72 inches 84 inches Class 60, 2,580 lbs.
DX-FK-PTHT-60inx96in-WL-60 60 inches 96 inches Class 60, 2,500 lbs.
DX-FK-PTHT-48inx96in-WL-60 48 inches 96 inches Class 60, 2,700 lbs.
DX-FK-PTHT-72inx96in-WL-60 72 inches 96 inches Class 60, 2,850 lbs.
DX-FK-PTHT-60inx84in-WL-70 60 inches 84 inches Class 70, 2,932 lbs.
DX-FK-PTHT-72inx84in-WL-70 72 inches 84 inches Class 70, 3,132 lbs.
DX-FK-PTHT-72inx96in-WL-70 72 inches 96 inches Class 70, 3,232 lbs.
DX-FK-PTHT-84inx96in-WL-70 84 inches 96 inches Class 70, 3,350 lbs.
DX-FK-PTHT-60inx96in-WL-70 60 inches 96 inches Class 70, 3,032 lbs.
DX-FK-PTHT-72inx96in-WL-80 72 inches 96 inches Class 80, 3,030 lbs.
DX-FK-PTHT-84inx96in-WL-80 84 inches 96 inches Class 80, 3,350 lbs.
DX-FK-PTHT-72inx84in-WL-80 72 inches 84 inches Class 80, 3,200 lbs.
