MAZIO DEMOLITION TOOLS PRIMARY CRUSHERS | RS-200 TO RS-11000 MODELS | BLADE CLAPING FORCE 75-810 TON | FOR EXCAVATORS

MAZIO DEMOLITION TOOLS PRIMARY CRUSHERS | RS-200 TO RS-11000 MODELS | BLADE CLAPING FORCE 75-810 TON | FOR EXCAVATORS

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote
  • Available in models RS-200 to RS-11000
  • Blade clamping force ranges from 75 to 810 tons
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

MAZIO DEMOLITION TOOLS MP MECHANICAL PULVERIZERS | MP SERIES MP-20 TO MP-95 MODELS | FOR EXCAVATORS

DESCRIPTION

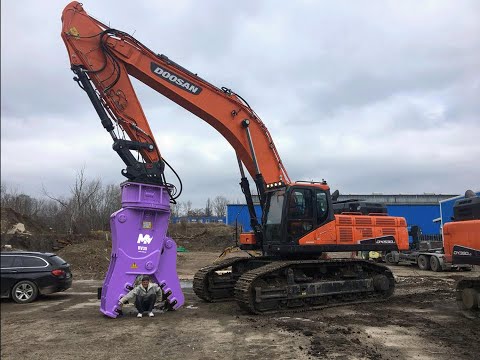

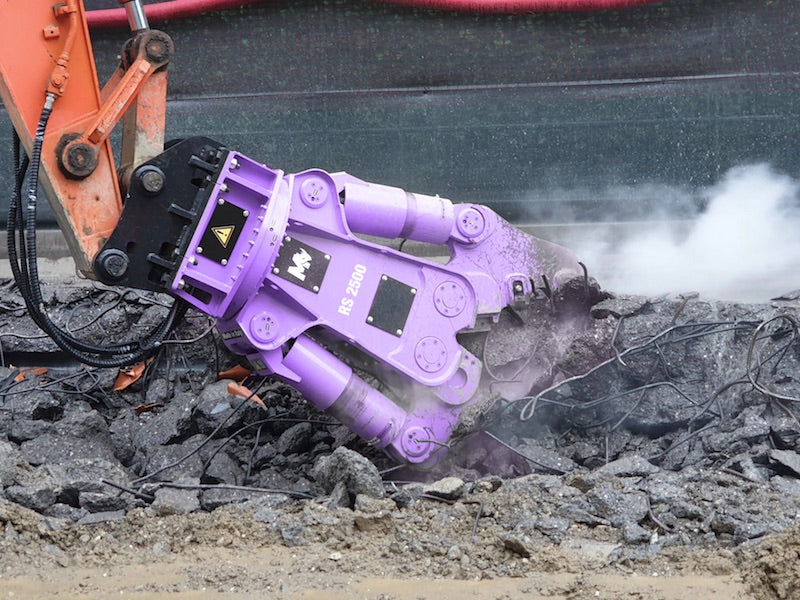

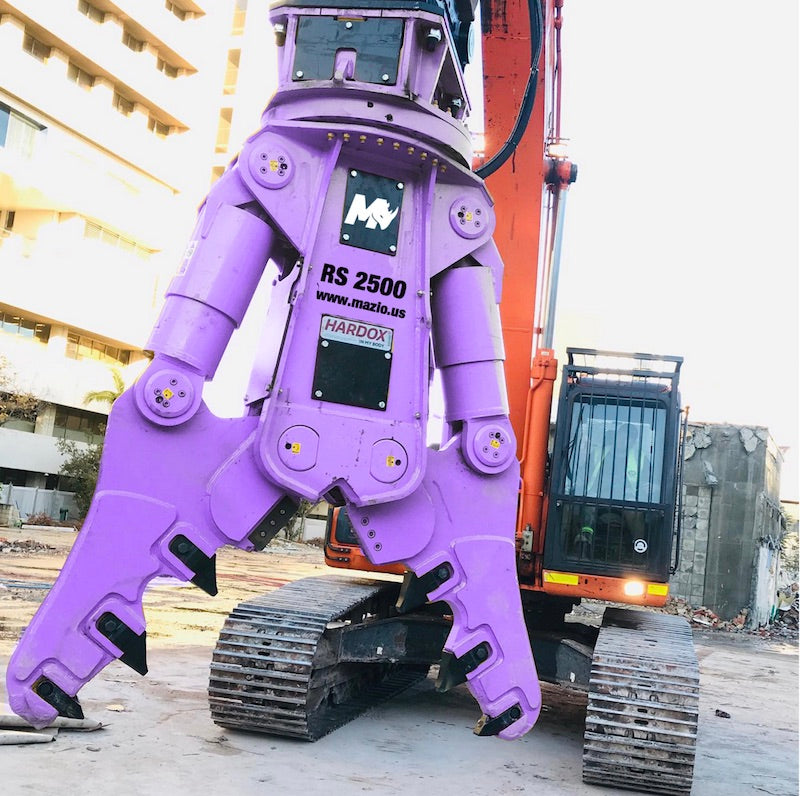

The Mazio RS Series Crushers are designed for primary demolition work and are suitable for excavators. They come in various models, including RS-200 to RS-11000, with blade clamping forces ranging from 75 to 810 tons. These crushers are built to handle tough demolition tasks, crushing concrete while reducing noise and vibrations.

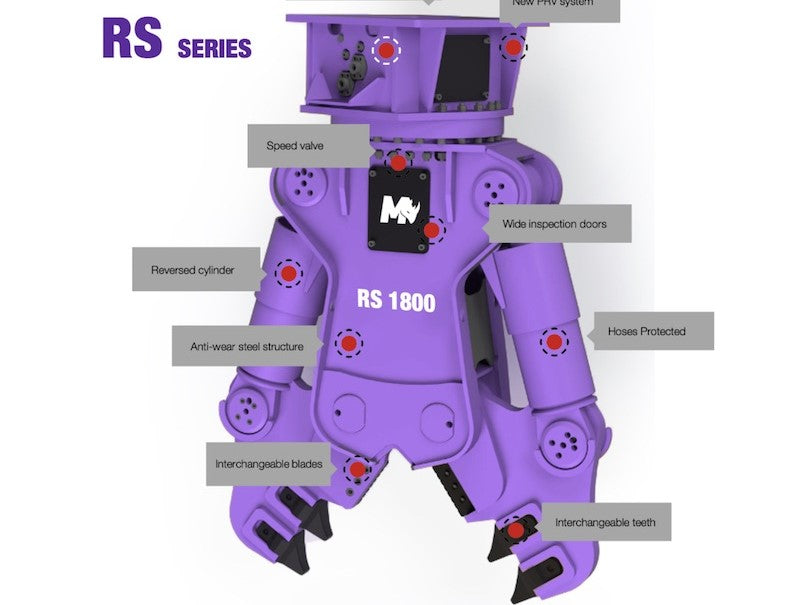

Key Characteristics

  • New PVR System
  • Wide Inspection Doors
  • Hoses Protected
  • Interchangeable Teeth & Blades

Key Features

  • Designed for primary demolition tasks
  • Efficient in demolishing concrete
  • Reduces noise and vibrations
  • Engineered with a focus on raw material choice
  • Available in models RS-200 to RS-11000
  • Blade clamping force ranges from 75 to 810 tons
  • Suitable for use with excavators

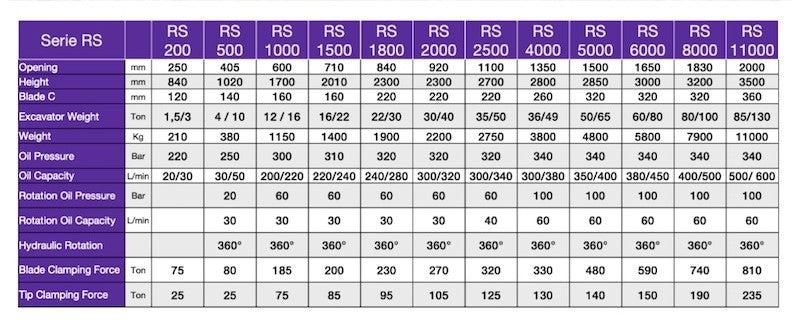

Detailed Specifications

RS-200 & RS-500

Attribute RS-200 RS-500
Opening (mm/in) 250 / 12.2 405 / 15.9
Height (mm/in) 840 / 33.1 1020 / 40.2
Blade C (mm/in) 120 / 4.7 140 / 5.5
Excavator Weight (Ton) 1.5/3 4/10
Weight (Kg) 210 380
Oil Pressure (Bar) 220 250
Oil Capacity (L/min) 20/30 30/50
Rotation Oil Pressure (Bar) - 20
Rotation Oil Capacity (L/min) - 30
Blade Clamping Force (Ton) 75 80
Tip Clamping Force (Ton) 25 25

RS-1000 & RS-1500

Attribute RS-1000 RS-1500
Opening (mm/in) 600 / 23.6 710 / 28.0
Height (mm/in) 1700 / 66.9 2010 / 79.1
Blade C (mm/in) 160 / 6.3 160 / 6.3
Excavator Weight (Ton) 12/16 16/22
Weight (Kg) 1150 1400
Oil Pressure (Bar) 300 310
Oil Capacity (L/min) 200/220 220/240
Rotation Oil Pressure (Bar) 60 60
Rotation Oil Capacity (L/min) 30 30
Blade Clamping Force (Ton) 185 200
Tip Clamping Force (Ton) 75 85

RS-1800 & RS-2000

Attribute RS-1800 RS-2000
Opening (mm/in) 840 / 33.1 920 / 36.2
Height (mm/in) 2300 / 90.6 2300 / 90.6
Blade C (mm/in) 220 / 8.7 220 / 8.7
Excavator Weight (Ton) 22/30 30/40
Weight (Kg) 1900 2200
Oil Pressure (Bar) 320 320
Oil Capacity (L/min) 240/280 300/320
Rotation Oil Pressure (Bar) 60 60
Rotation Oil Capacity (L/min) 30 30
Blade Clamping Force (Ton) 230 270
Tip Clamping Force (Ton) 95 105

RS-2500 & RS-4000

Attribute RS-2500 RS-4000
Opening (mm/in) 1100 / 43.3 1350 / 53.1
Height (mm/in) 2700 / 106.3 2800 / 110.2
Blade C (mm/in) 220 / 8.7 260 / 10.2
Excavator Weight (Ton) 35/50 36/49
Weight (Kg) 2750 3800
Oil Pressure (Bar) 320 300
Oil Capacity (L/min) 300/340 340/380
Rotation Oil Pressure (Bar) 60 100
Rotation Oil Capacity (L/min) 30 60
Blade Clamping Force (Ton) 320 330
Tip Clamping Force (Ton) 125 160

RS-5000 & RS-6000

Attribute RS-5000 RS-6000
Opening (mm/in) 1500 / 59.1 1650 / 65.0
Height (mm/in) 2850 / 112.2 3000 / 118.1
Blade C (mm/in) 320 / 12.6 320 / 12.6
Excavator Weight (Ton) 50/65 60/80
Weight (Kg) 4800 5800
Oil Pressure (Bar) 340 340
Oil Capacity (L/min) 350/400 380/450
Rotation Oil Pressure (Bar) 100 100
Rotation Oil Capacity (L/min) 60 60
Blade Clamping Force (Ton) 480 590
Tip Clamping Force (Ton) 140 150

RS-8000 & RS-11000

Attribute RS-8000 RS-11000
Opening (mm/in) 1830 / 72.0 2000 / 78.7
Height (mm/in) 3200 / 126.0 3500 / 137.8
Blade C (mm/in) 320 / 12.6 360 / 14.2
Excavator Weight (Ton) 80/100 85/130
Weight (Kg) 7900 11000
Oil Pressure (Bar) 340 340
Oil Capacity (L/min) 400/500 500/600
Rotation Oil Pressure (Bar) 100 100
Rotation Oil Capacity (L/min) 60 60
Blade Clamping Force (Ton) 740 810
Tip Clamping Force (Ton) 190 235
