Product Description

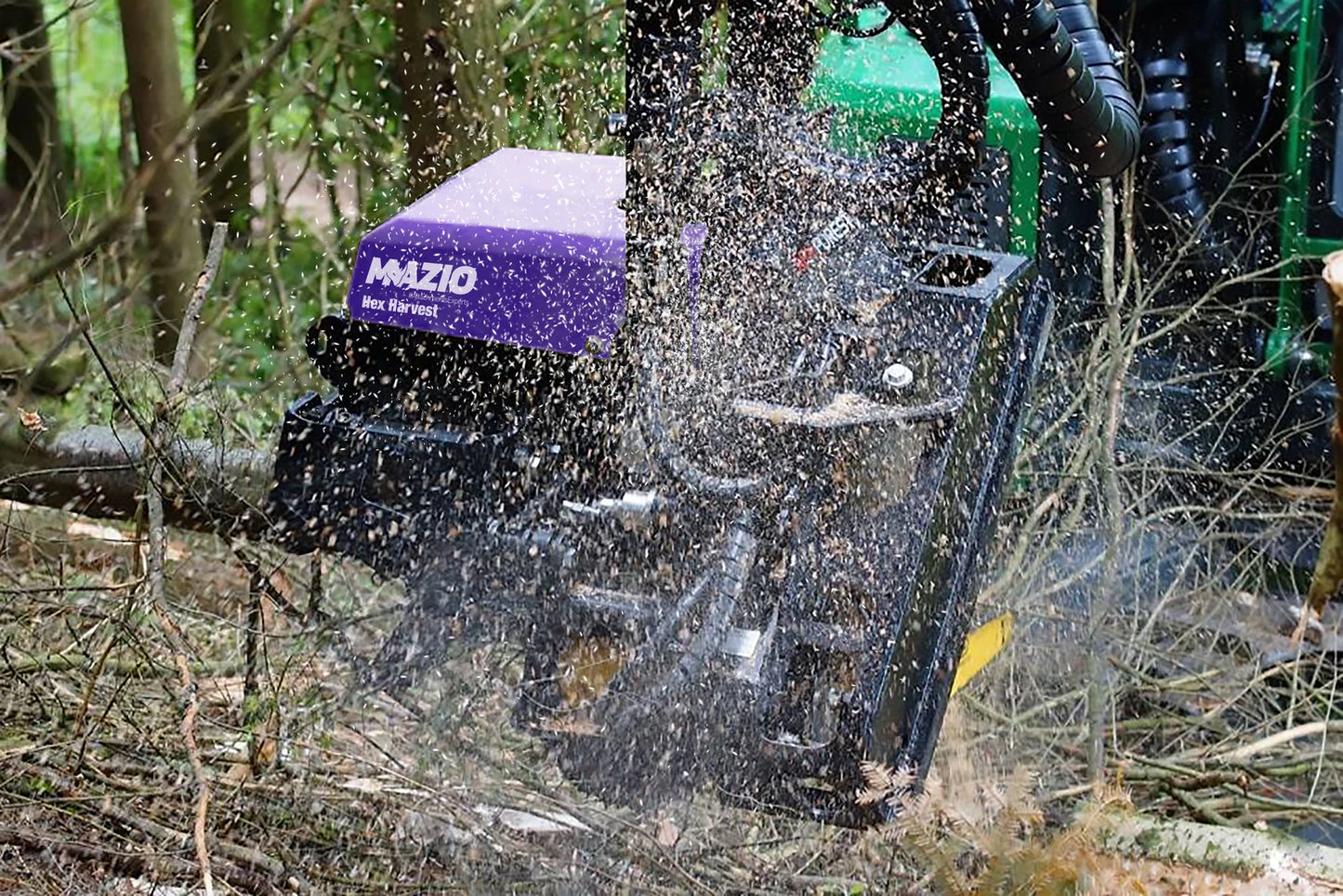

Mazio Forestry Tools HEX Harvester Head | Hydraulic System Flow 66 GPM | Machine Size 15-25 Ton | For Harvester

DESCRIPTION

The Mazio Forestry Tools HEX Harvester Head is designed for harvesters in the 15-25 ton range. This harvester head ensures top performance in demanding forestry tasks, providing both efficiency and ease of maintenance.

Key Characteristics:

• Hydraulic System Flow: 66 GPM (approximately 250 l/min)
• Machine Size: 15-25 Ton
• Felling Diameter Max: 75 cm (29.5 in)
• Optimum Tree Diameter: 30 – 45 cm (12-18 in)
• This equipment is built to handle rigorous tasks while maintaining high efficiency and ease of maintenance.

Key Features

High Quality / Productivity:

• Feeding speeds up to 6m/s
• Timber-friendly steel rollers
• Three-rollers feeding system
• Non-sliding feeding system
• Proportional pressure on roller arms and knives to reduce fiber damage

High Delimbing Performance:

• High-strength steel knives
• Accurate delimbing

Service & Product Support:

• Centrally placed hydraulics
• Easy access

Detailed Specifications

Dimensions & Delimbing:

• Max Front Knives Opening: 650 mm (25.6 in)
• Max Back Knives Opening: 700 mm (27.6 in)
• Max Rollers Opening: 660 mm (26 in)
• Delimbing Knives: 3 - 4 pcs
• Fixed Knives: 1 pc
• Delimbing Diameter (tip to tip): 50 - 450 mm (2 - 18 in)
• Height (HEX Harvest): 1380 mm (54 in)
• Width (HEX Harvest): 1330 mm (52.4 in)
• Weight (without rotator and link): 1350 kg (2970 lbs)

Rotator:

• Indexator AV17S

Felling/Cutting:

• Max Felling/Cutting Diameter: 750 mm (29.5 in)
• Saw Bar Length: 75/82 cm (29 - 32 in)
• Saw Output: 45 kW
• Saw Chain Tensioning: Automatic
• Chain Pitch: 0.404"
• Chain Oil Tank Volume: 14 liters (3.7 gal)

Recommended Base Machine Size:

• Purpose-built or excavator, from 15-25 ton (33000 - 55000 lbs)

Hydraulic System:

• Needed Engine Power: 80 kW (107 hp)
• Flow Required for Optimal Production: 250 l/min (66 gpm)

Feeding System:

• Hydraulic Motors: 4 pcs
• Rollers: 3 pcs
• Feeding Force: 25 kN (5.6 lbf)
• Feeding Speed: 0-6 m/sec (0-19.7 ft/s)
