Mazio Forestry Tools HEX S-Harvester Head | Hydraulic System Flow 45-80 | Machine Size 5-10 Ton | For Excavators

Mazio Forestry Tools HEX S-Harvester Head | Hydraulic System Flow 45-80 | Machine Size 5-10 Ton | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote.
  • Compact & Versatile – Purpose‑built for 5–10 ton excavators, ideal for light to mid‑range forestry operations
  • Hydraulic Efficiency – Operates with 45–80 L/min flow, ensuring smooth cutting and feeding performance
  • High Cutting Capacity – Fells trees up to 400 mm diameter with a 35–40 cm saw bar and 0.404" chain pitch
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio Forestry Tools HEX S-Harvester Head | Hydraulic System Flow 45-80 | Machine Size 5-10 Ton | For Excavators

DESCRIPTION

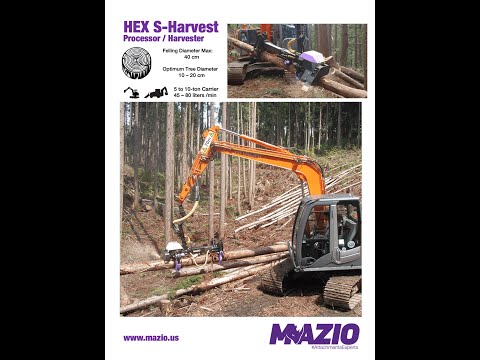

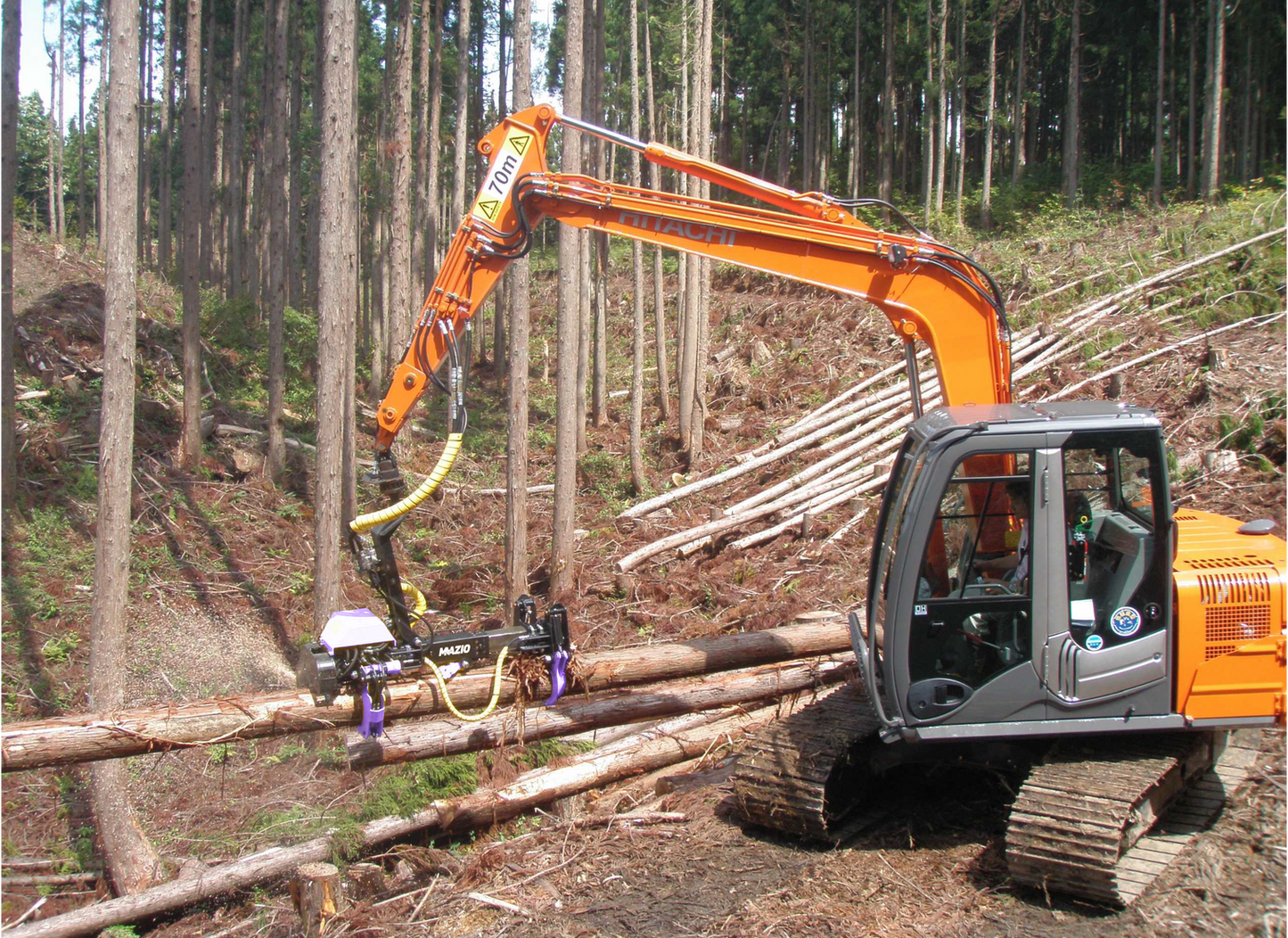

The Mazio Forestry Tools HEX S Harvester Head is a high-performance attachment engineered for excavators in the 5-10 ton range. Its versatile design makes it an ideal solution for forestry operations, including delimbing, feeding, and felling tasks. Equipped with advanced hydraulic systems and durable materials, this harvester head is built to handle tough forestry challenges with efficiency and precision.

The HEX S Harvester Head features a high-strength feeding system with proportional pressure on roller arms and knives to minimize fiber damage. Its automatic saw chain tensioning and durable construction ensure reliability and ease of use, making it a must-have for forestry professionals.

Key Features

  • Compact Width – 100 mm (3.9 in) frame for maneuverability in tight forestry conditions
  • Efficient Delimbing – Knives open up to 360 mm, handling stems up to 300 mm diameter
  • Strong Grip – Arms open to 430 mm for secure tree handling
  • High Cutting Capacity – Fells trees up to 400 mm diameter with a 35–40 cm saw bar
  • Automatic Chain Tensioning – Reduces downtime and ensures consistent cutting performance
  • Hydraulic Efficiency – Operates with 45–80 L/min flow, adaptable to mid‑sized carriers
  • Feeding Power – 22 kN feeding force with speeds up to 1.2 m/s for smooth processing
  • Lightweight Build – At 350 kg, optimized for 8–14 ton class machines without overloading
  • Durable Rotator – Vane‑type rotator ensures precise positioning and safe handling
  • Versatile Applications – Ideal for delimbing, felling, cross‑cutting, and forestry maintenance

Detailed Specifications

Delimbing & Dimensions

Feature Specification
Max Delimbing Knives Opening 360 mm
Max Delimbing Diameter 300 mm
Max Grip Arms Opening 430 mm
Height (HEX Harvest) 165 mm
Width (HEX Harvest) 100 mm / 3.9 in
Weight (without rotator & link) 350 kg


Rotator

Feature Specification
Type Vane Type
Weight 350 kg


Cutting System

Feature Specification
Max Felling Diameter 400 mm
Saw Bar Length 35–40 cm
Chain Pitch 0.404"
Chain Tensioning Automatic


Hydraulic System

Feature Specification
Flow Required 45–80 L/min


Feeding System

Feature Specification
Feeding Force 22 kN
Feeding Speed 0–1.2 m/s
Hydraulic Motors 1
Rollers 1
