Product Description
MB Crusher Shafts Screener | Model MB-HDS533 | Overall Width 134" | Machine Size 50–80 Tons | For Excavators
DESCRIPTION

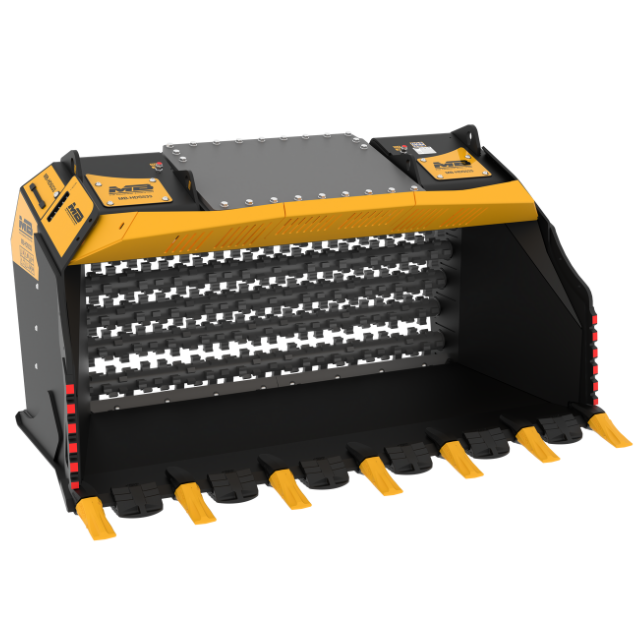

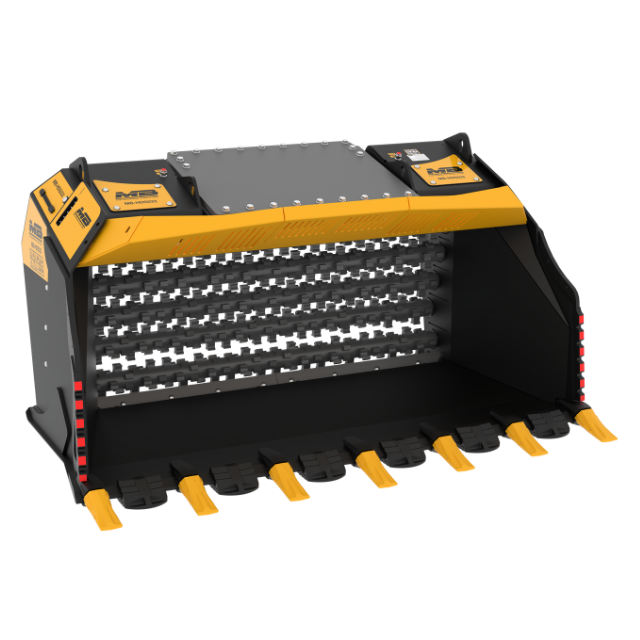

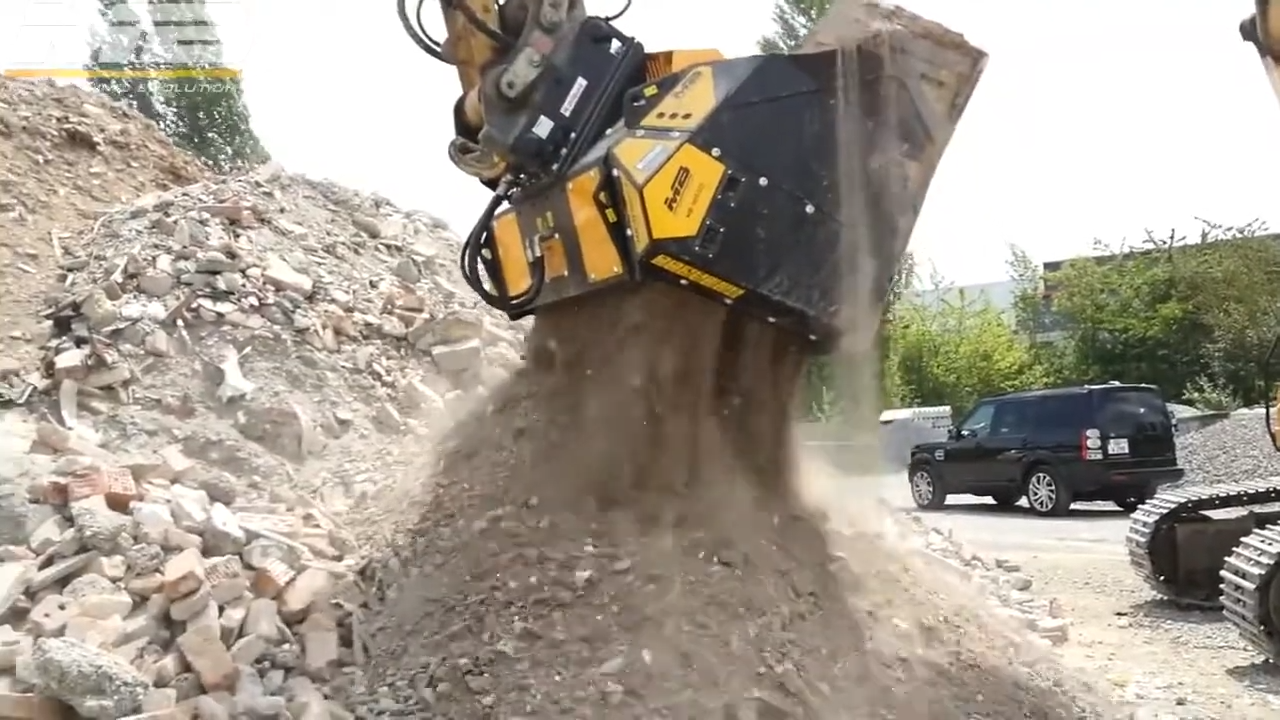

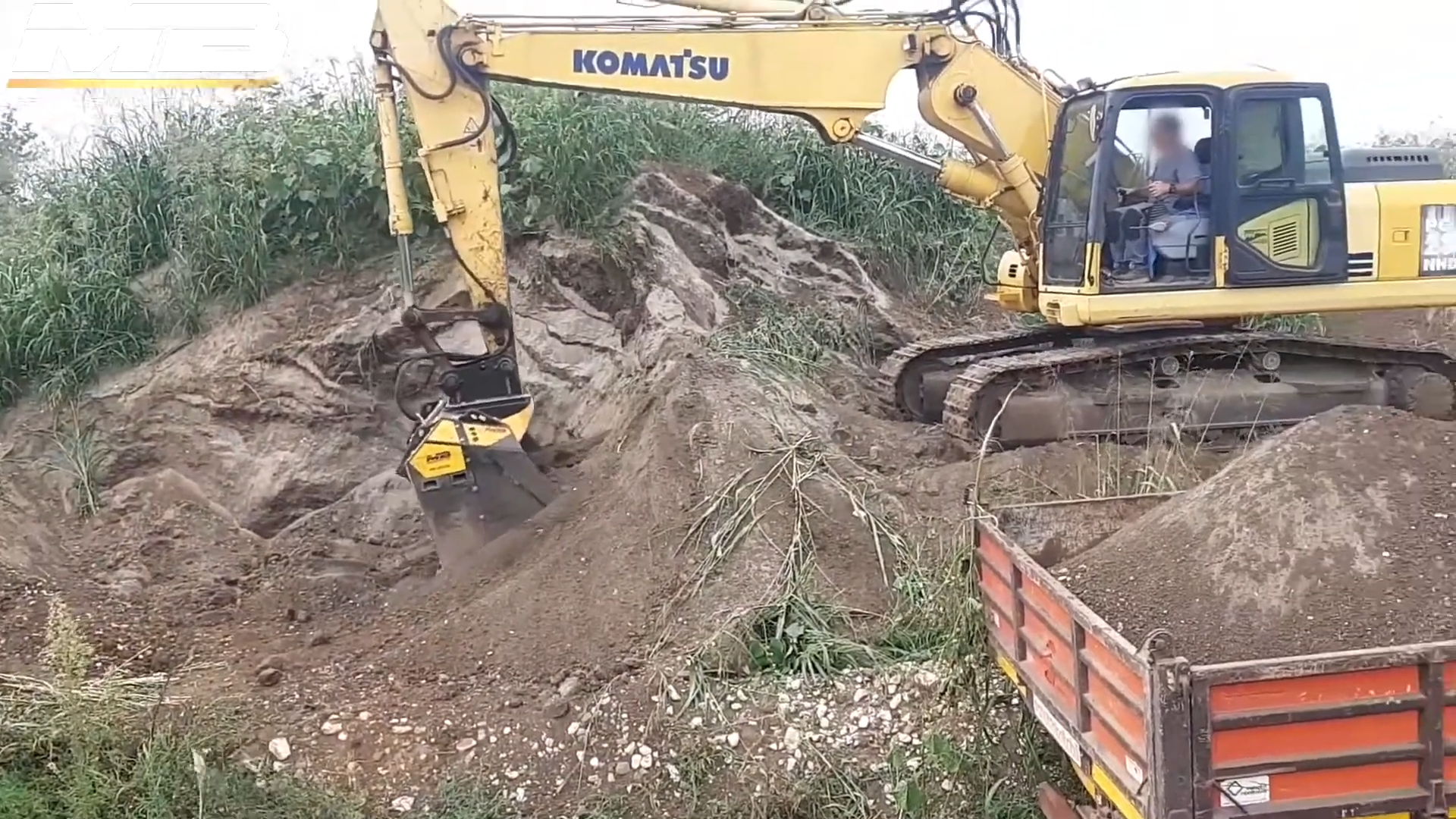

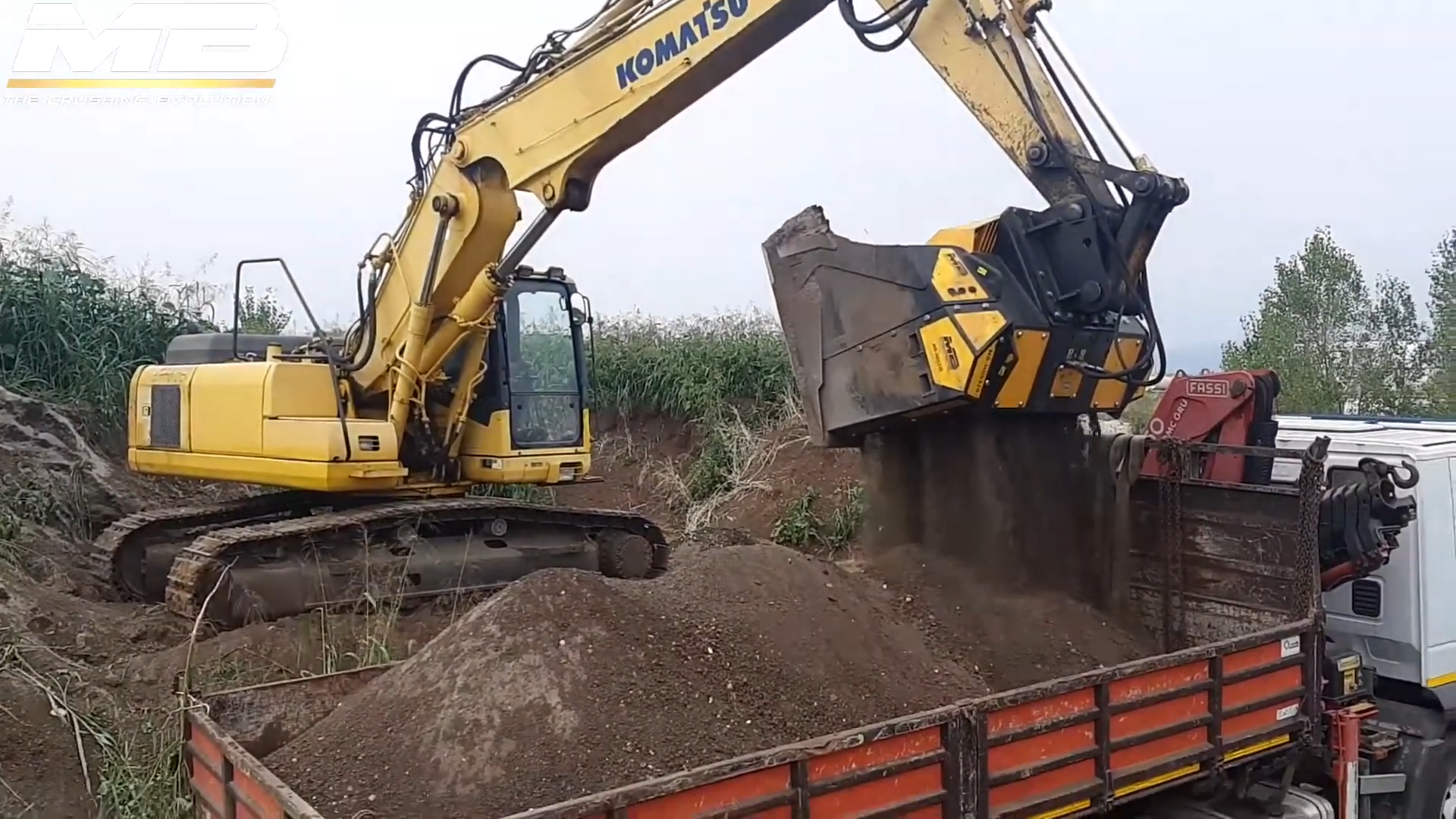

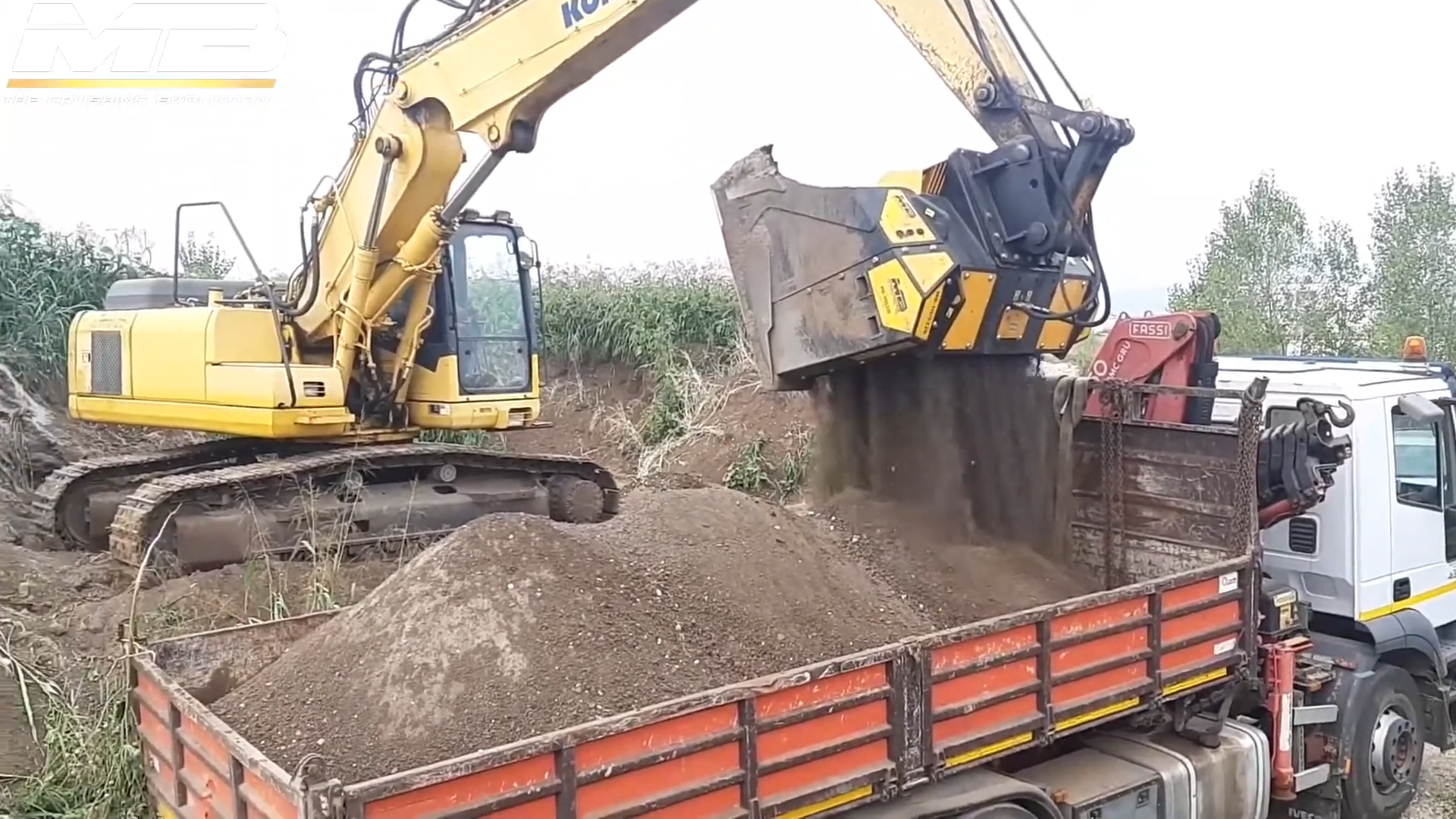

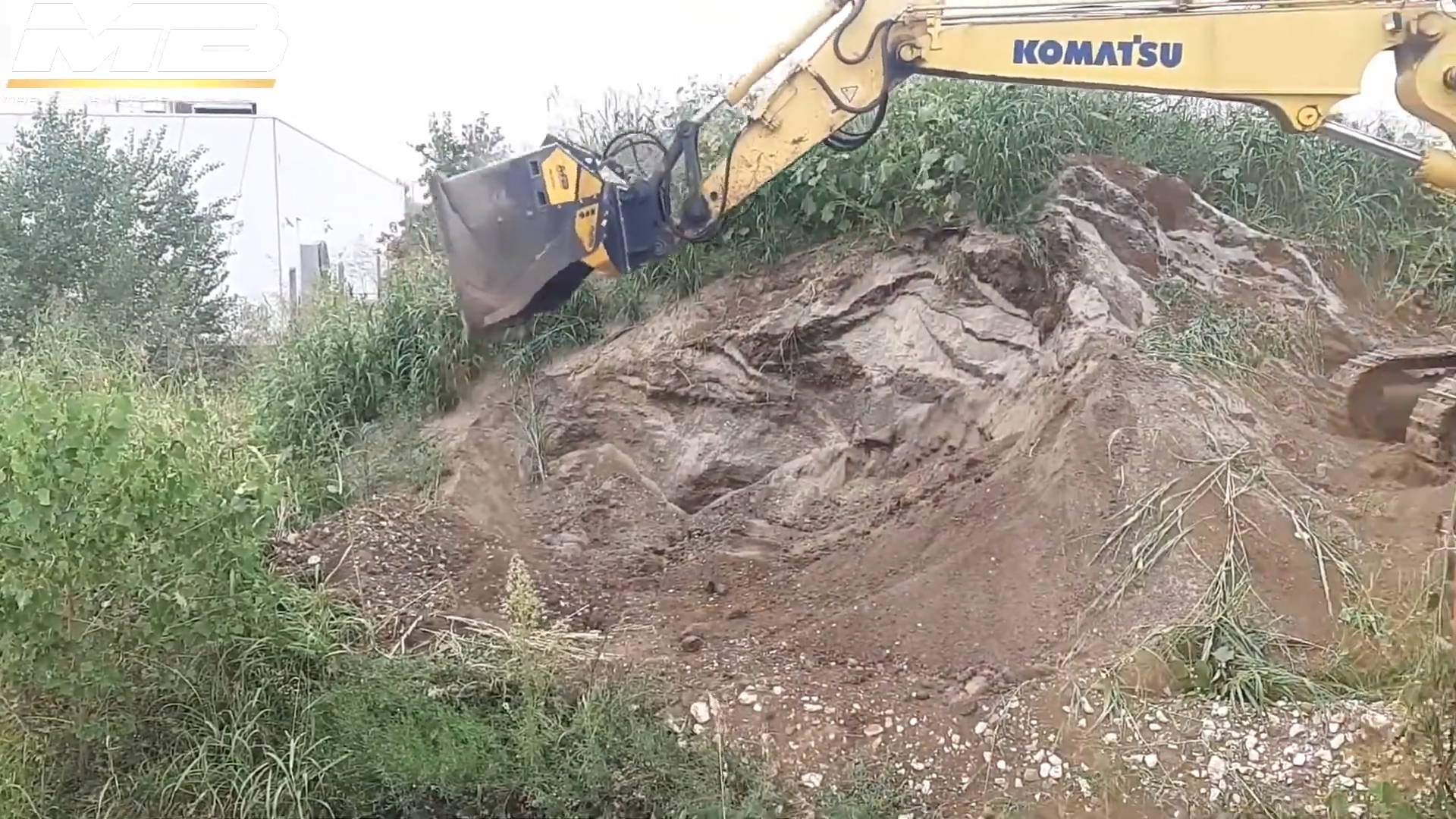

The MB-HDS533 Shafts Screener is a high-capacity material processing attachment, designed for excavators ranging from 50–80 tons (110,200–176,300 lb). Engineered for sorting, aerating, and mixing various materials, this screener is an essential tool for construction, excavation, and recycling operations. With interchangeable shaft kits, operators can easily adapt to different materials, ensuring efficiency and productivity across demanding work environments.
Key Features
- Optimized for Excavators: Designed for 50–80 ton machines, ensuring seamless integration with heavy-duty excavators.
- High Load Capacity: Up to 4.97 cubic yards, allowing for efficient material processing.
- Interchangeable Shaft Kits: Supports coal, soil, glass, compost, and other material applications.
- Heavy-Duty Construction: Built with premium materials like Hardox®, ensuring superior wear resistance.
- Smart Hydraulic System: Operates at 3,626–4,351 PSI with an oil flow rate of 61–66 gal/min for maximum performance.
- Plug-and-Play Compatibility: Quick coupling design allows effortless installation and removal.
- Multi-Industry Usage: Ideal for quarries, mines, roadwork, pipeline projects, and urban excavations.
Detailed Specifications
| Specification | Deatils |
|---|---|
| Recommended Excavator | 50 – 80 ton |
| Load Capacity | 4.97 cubic yards |
| Hydraulic Pressure | 3,626 – 4,351 PSI |
| Back Pressure | < 290 PSI |
| Oil Flow Rate | 61 – 66 gal/min |
| Width (A) | 134 in |
| Height (B) | 84 in |
| Depth (C) | 70 in |
| Shaft Kit | RM Mixer Kit – Multi-Material Applications |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

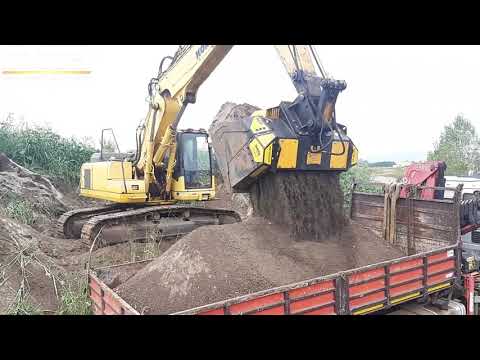

Videos
