MB Crushers

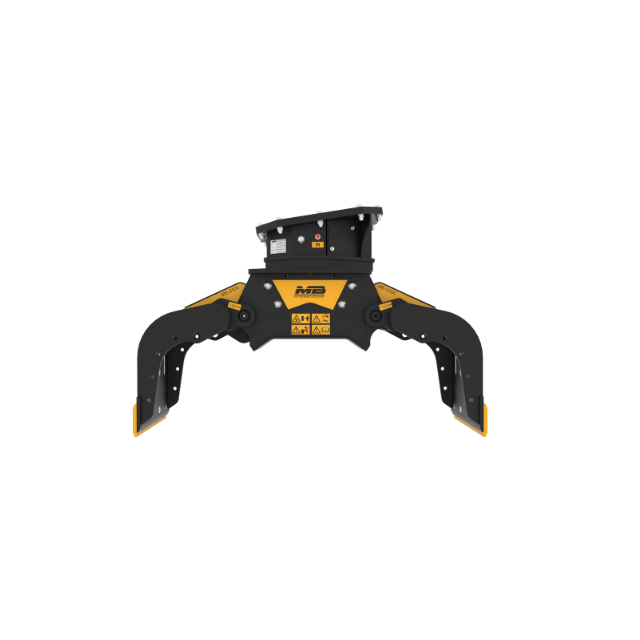

MB Crushers Sorting Grapple | Model MB-G500 S4 | Width 31.5" | Machine Size 5-7 Tons | For Excavators

MB Crushers Sorting Grapple | Model MB-G500 S4 | Width 31.5" | Machine Size 5-7 Tons | For Excavators

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Compact and Lightweight: Designed for excavators weighing between 11,200 and 15,700 lbs.
  • High Efficiency: Load capacity of 0.24 cubic yards for handling logs, stones, and debris & Width 31.5" Machine Size 5-7 Tons For Excavators
  • 360° Hydraulic Rotation: Facilitates precise movement and material sorting.
  • Rugged Construction: Wear parts made from Hardox steel for durability in tough applications.
  • Enhanced Safety: Load-holding valve ensures safe handling of materials during operations.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

MB Crushers Sorting Grapple | Model MB-G500 S4 | Width 31.5" | Machine Size 5-7 Tons | For Excavators

DESCRIPTION

Extremely compact and precise, the new MB-G400 sorting grapple for mini-excavators from 11,200lb to 15,700lb is designed to facilitate work on the construction site, in all areas of application. In fact, it is the ideal attachment for moving logs, stones, debris, piles; placing stones for dry stone walls, clearing fields of brushwood...   Its claw opening is very wide, allowing it to move and handle even large materials; its  load-holding valve guarantees maximum safety; the silent block allows work even in areas where noise needs to be kept under control; wear parts are made of Hardox; it is suitable for the installation of an electrical kit for two-hose function, which allows the grapple to rotate 360° even with excavators that only have a two-hose auxiliary set up; the interchangeable blades can be turned upside down to extend their life. The  MB-G400 is available in two variants, with or without a rotation turret.

The MB Crushers MB-G500 S4 Sorting Grapple is an extremely compact and precise attachment designed to enhance efficiency on construction sites and in landscaping projects. Ideal for excavators in the 11,200 to 15,700 lb range, this grapple is built for a variety of applications, including handling logs, placing stones, clearing debris, and even creating dry stone walls. With a wide claw opening, robust hydraulic performance, and interchangeable, reversible blades for extended service life, the MB-G500 is a versatile and durable solution for handling and moving materials. Additionally, the grapple is available in variants with or without a rotation turret, catering to different job site requirements.

Key Features

  • Interchangeable and Reversible Blades: Maximizes service life and adaptability to various tasks.
  • 360° Rotation Turret (Optional): Perfect for excavators with limited auxiliary hose setups.
  • Wear-Resistant Materials: Constructed from Hardox steel for reliability in demanding environments.
  • Compact Design: Weighs only 926 lbs, ensuring easy maneuverability and minimal impact on excavators.
  • Noise Reduction: Equipped with a silent block for quieter operation in noise-sensitive areas.

Applications

  • Pipeline and Trenches: Efficiently handles and moves materials in trenching and pipeline projects.
  • Urban Job Sites: Compact size and quiet operation make it ideal for urban and noise-restricted environments.
  • Demolitions: Clears and organizes debris effectively.
  • Tunnels and Enclosed Spaces: Maneuvers easily in tight or confined spaces.
  • Road Works: Assists in road maintenance and construction tasks.
  • Forestry Maintenance: Handles logs and brushwood with precision.
  • Landscaping and Agriculture: Perfect for clearing and managing soil, rocks, and organic materials.

Detailed Specifications

Feature Specification
Model MB-G500 S4
Weight 926 lbs (0.42 tons)
Load Capacity 0.24 cubic yards
Hydraulic Rotation 360°
Flow Direction 4–7 gal/min (15–26 l/min)
Pressure (Rotation) 2,321–2,901 PSI (160–200 bar)
Pressure (Open/Close) 2,611–3,626 PSI (180–250 bar)
Oil Flow (Open/Close) 8–10 gal/min (30–38 l/min)
Excavator Compatibility 11,200–15,700 lbs (5–7 tons)
Width 31.5 in (800 mm)
