Product Description

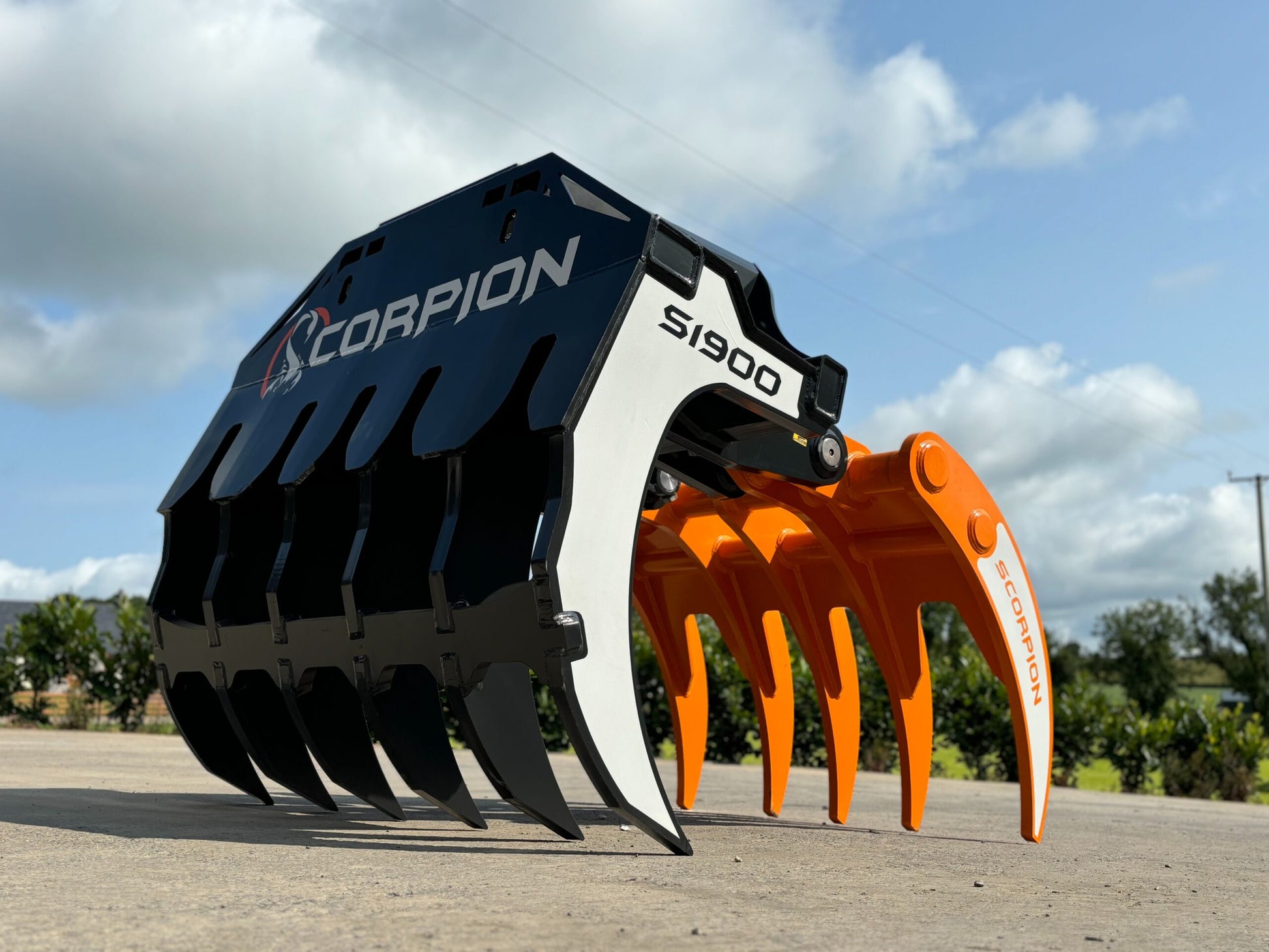

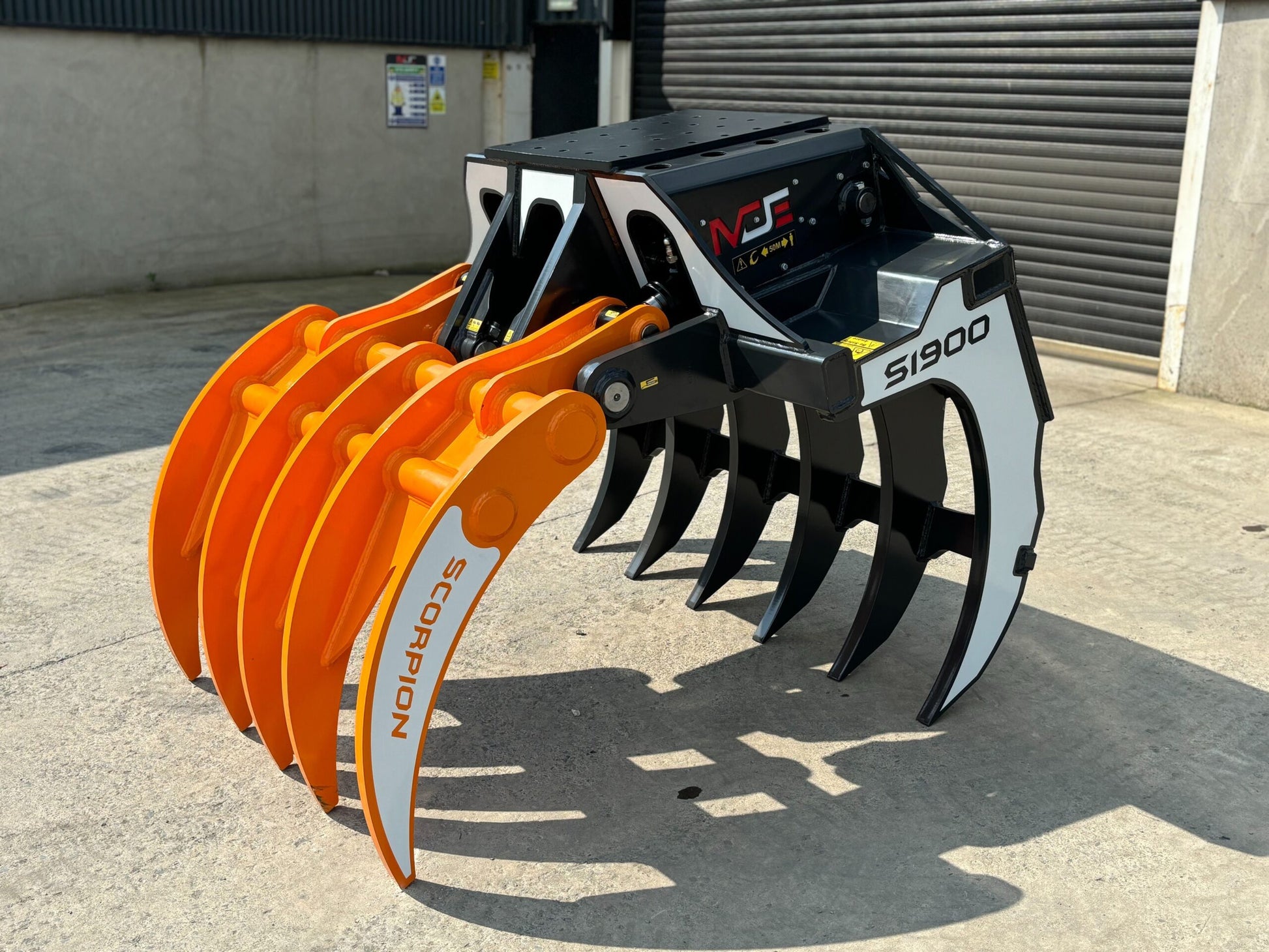

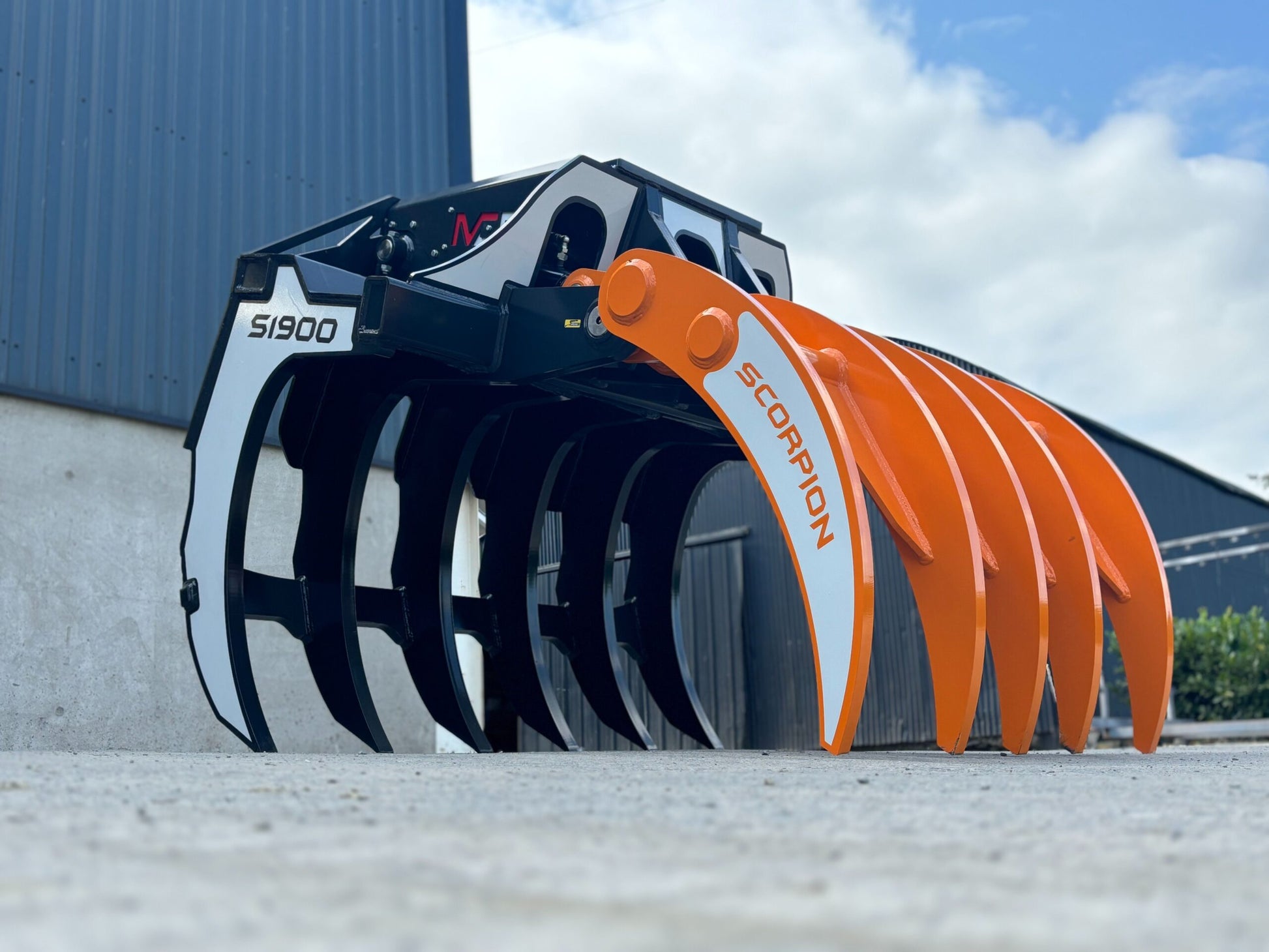

MDE Machinery | Scorpion Grapple | Model S500 To S1900 | Width 26.4" To 75" Inches | Machine Size 1.5 - 55 Tons | For Excavators
DESCRIPTION

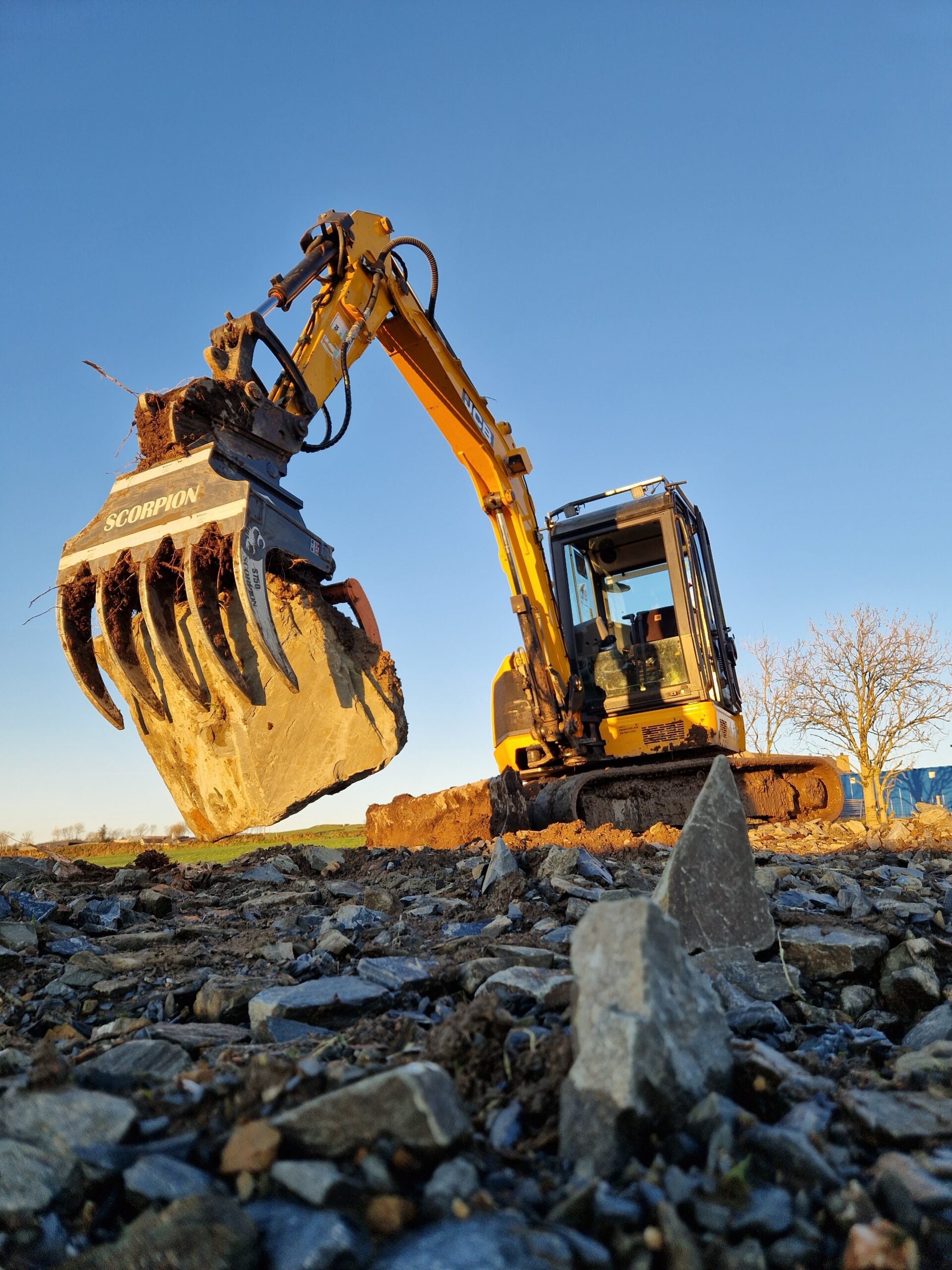

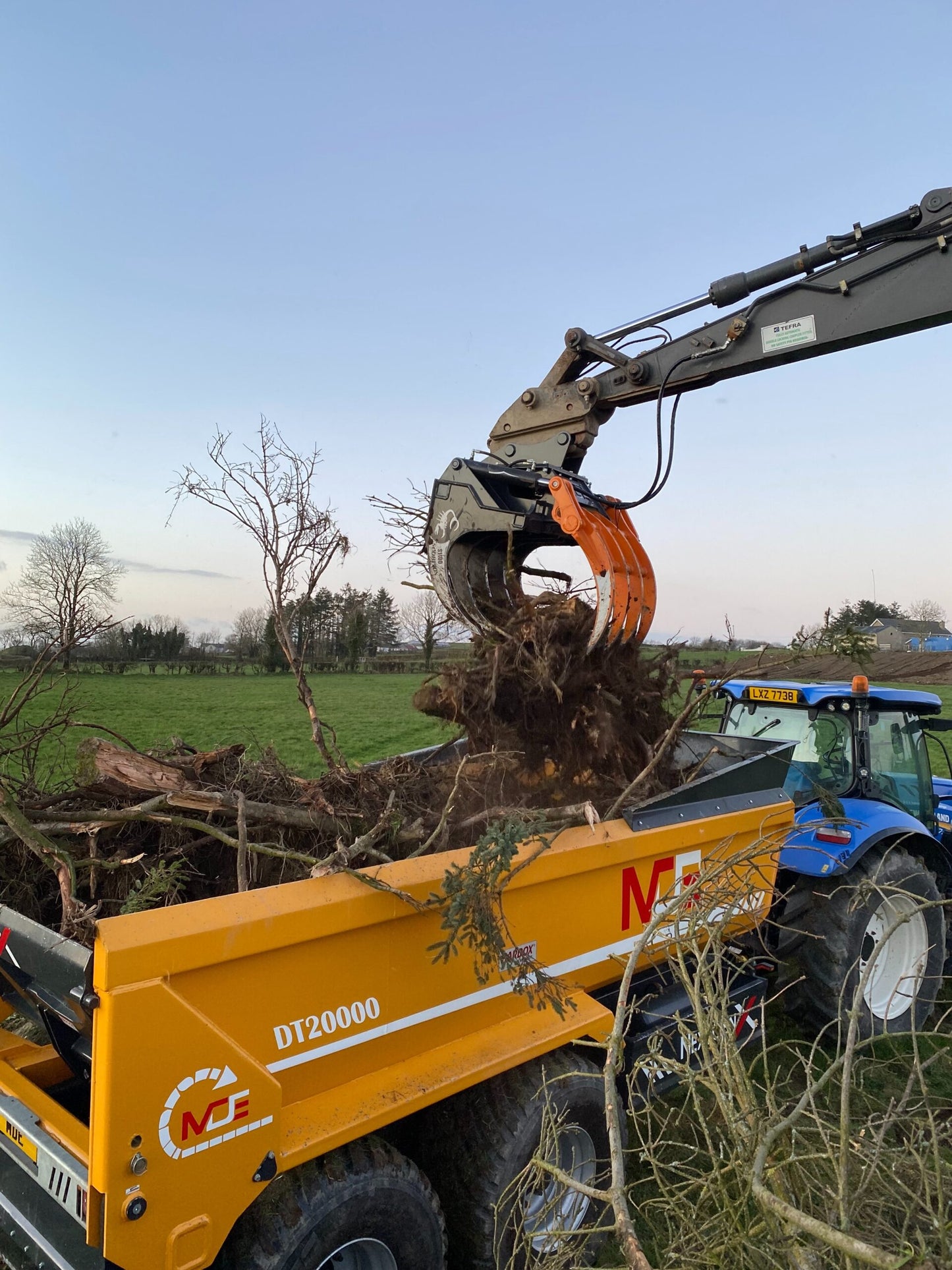

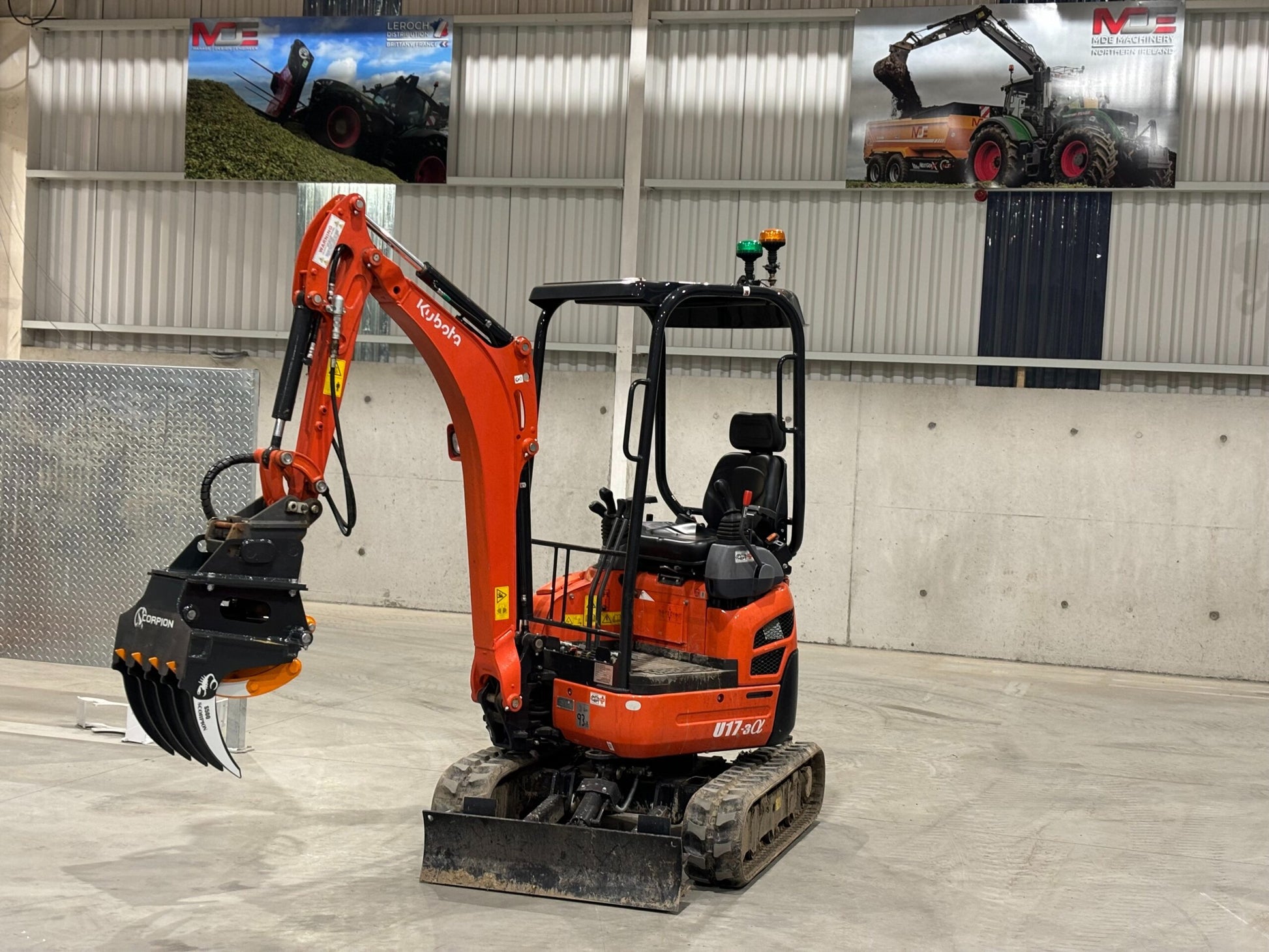

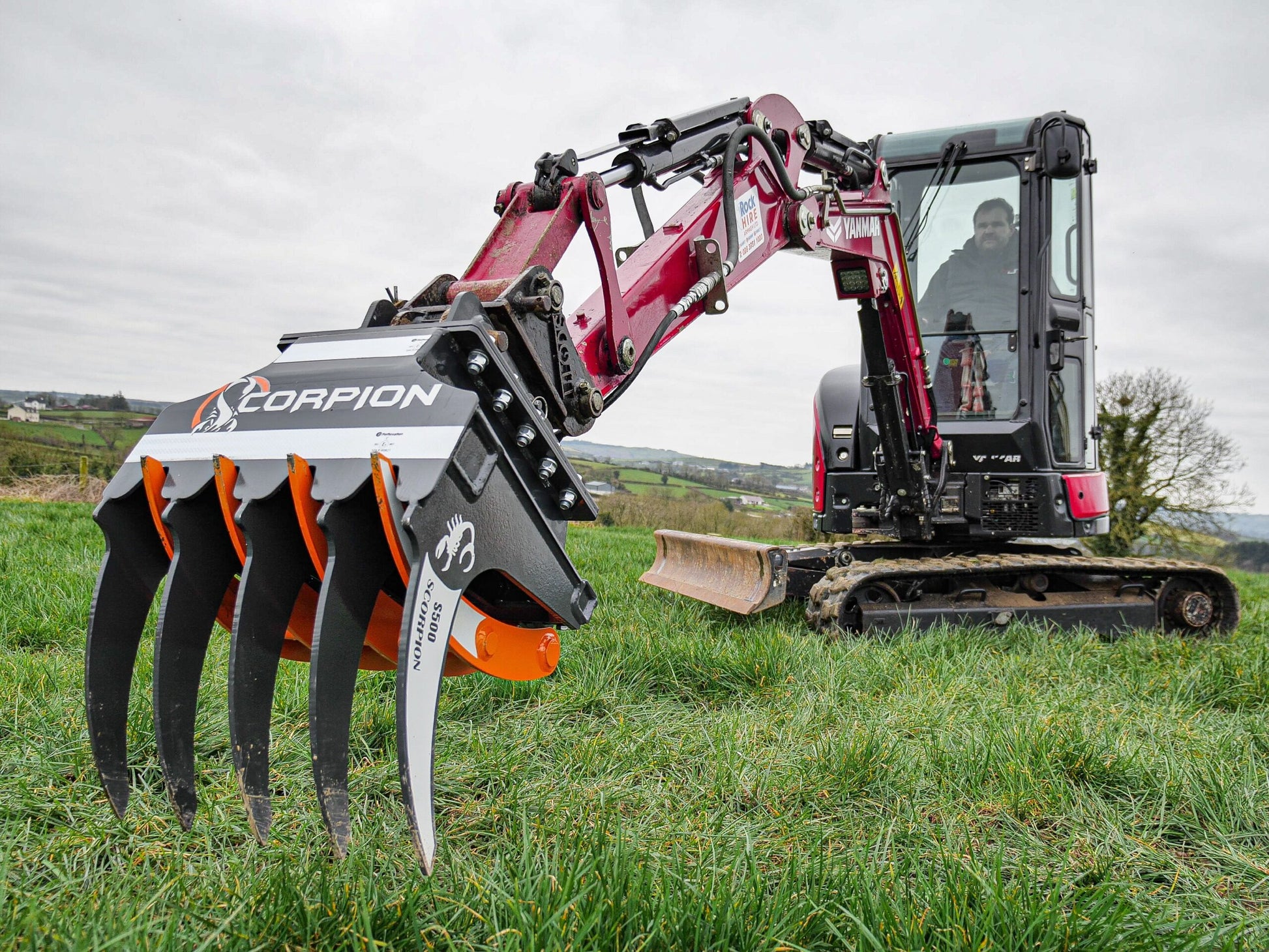

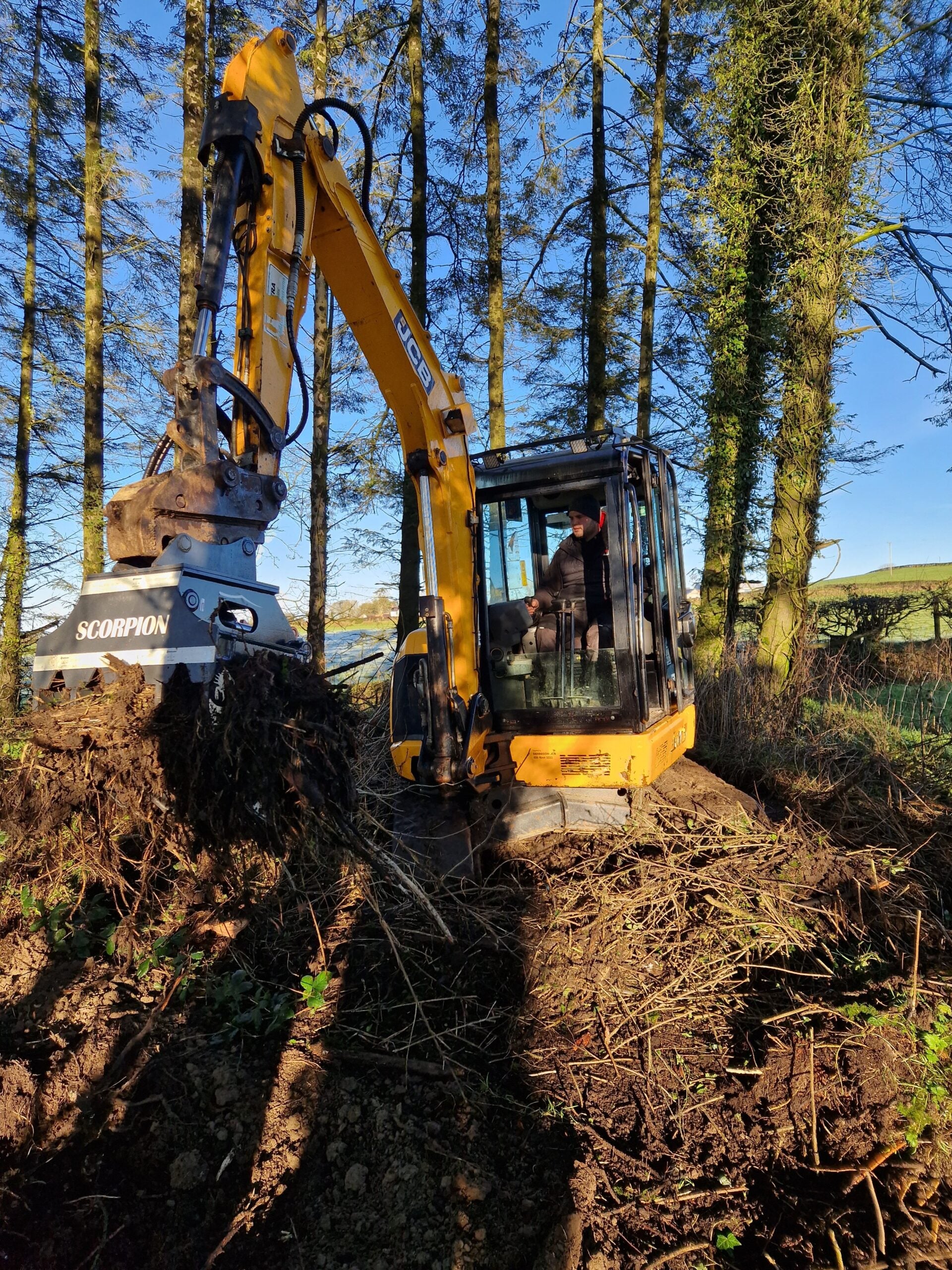

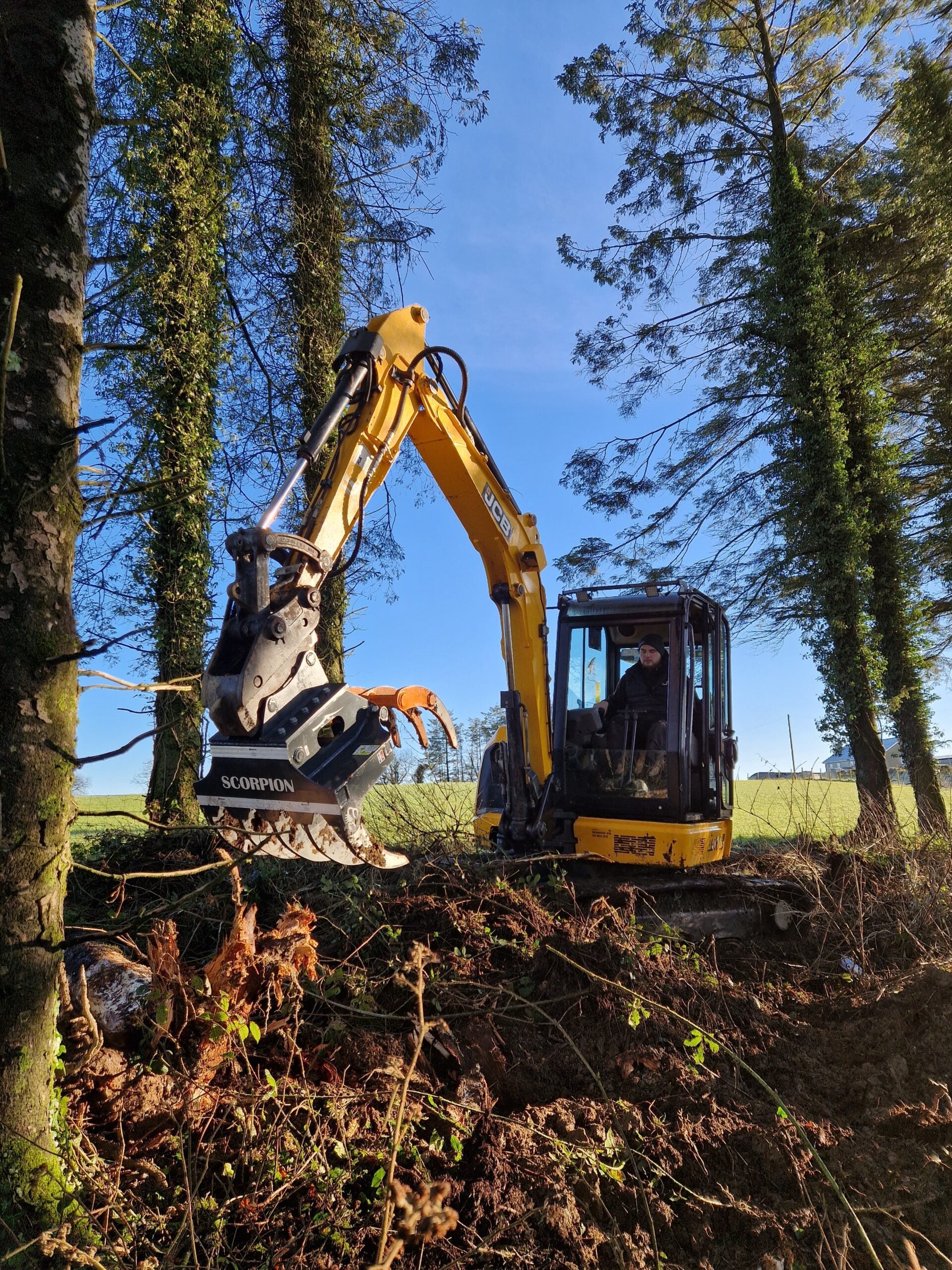

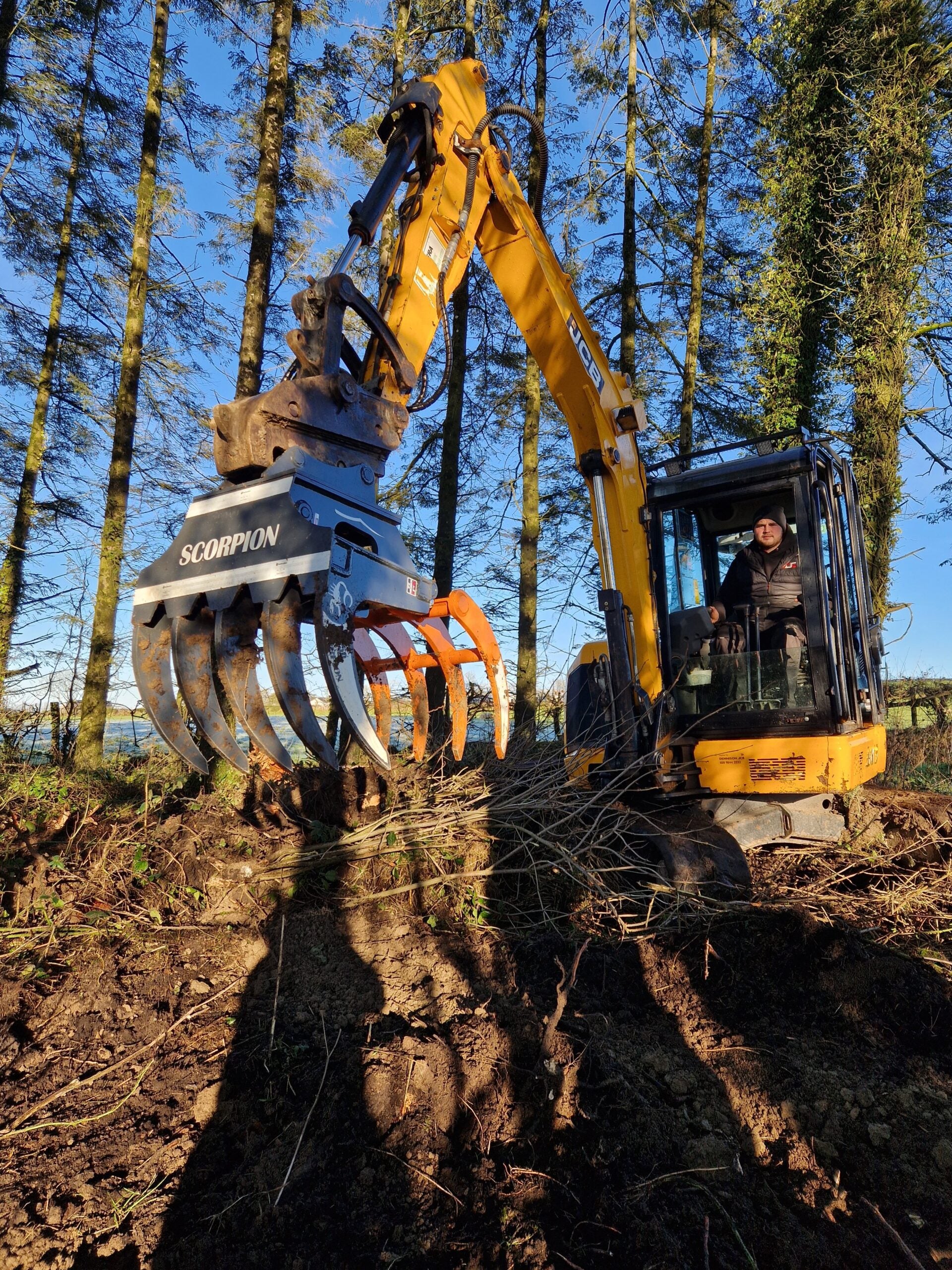

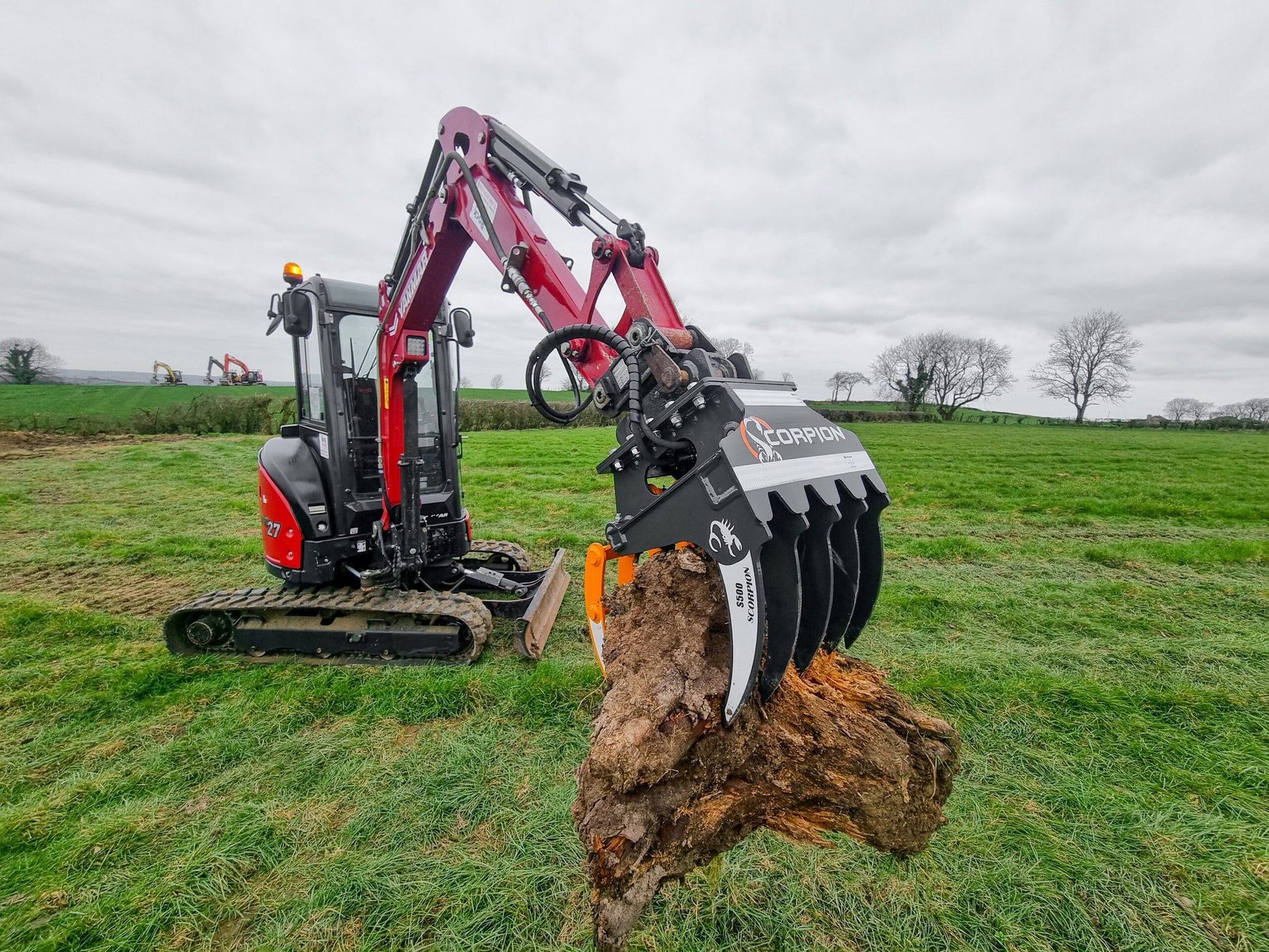

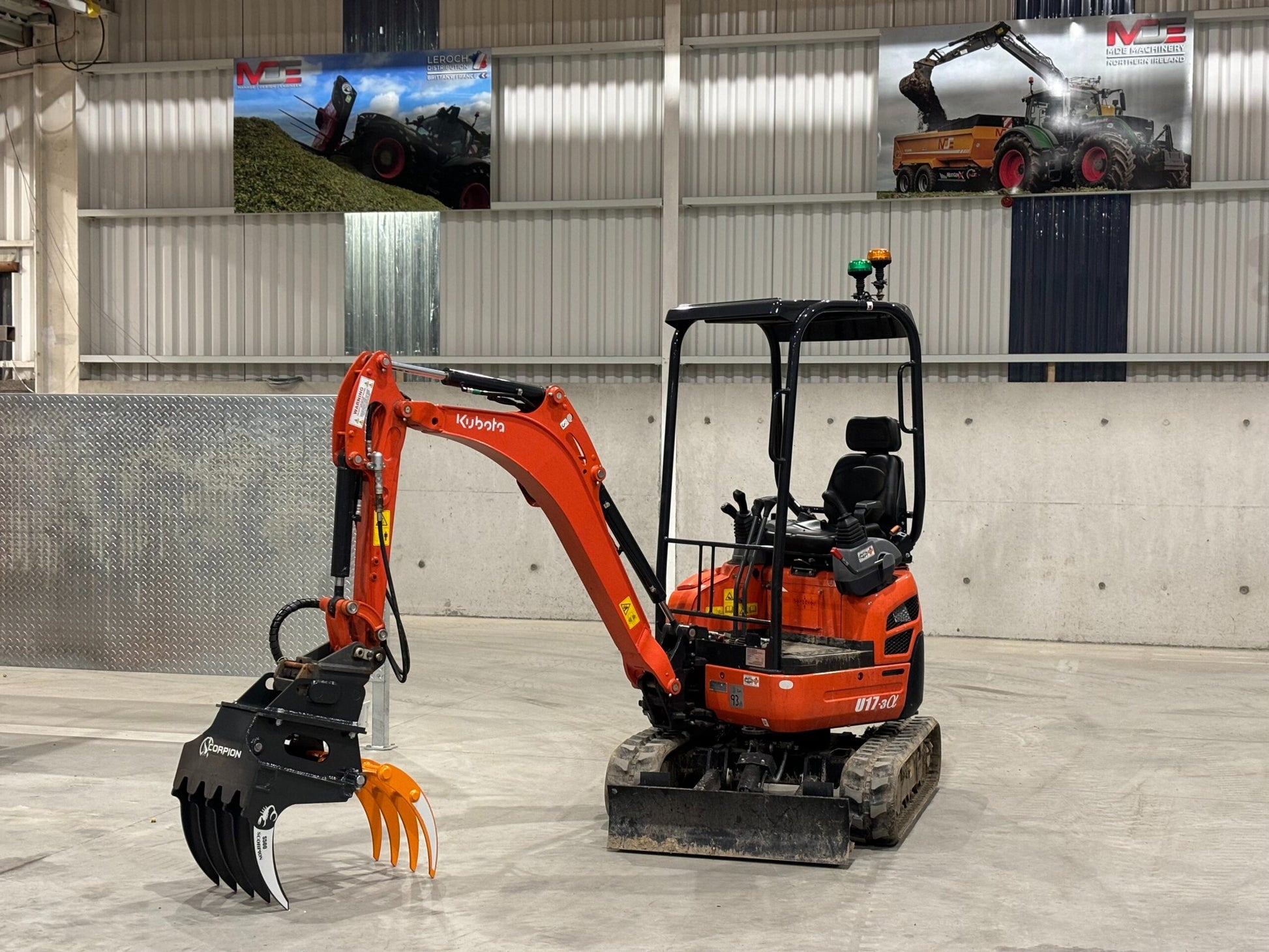

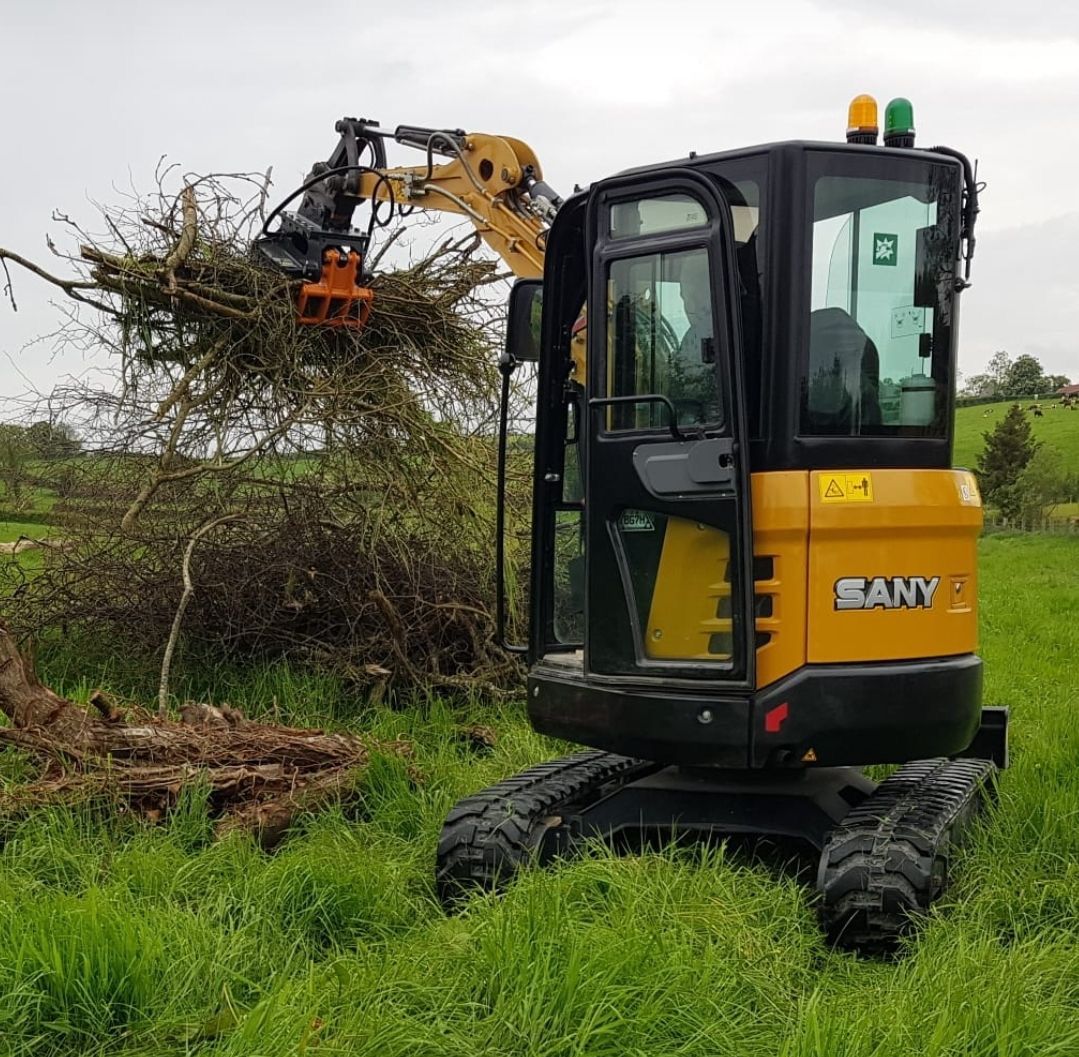

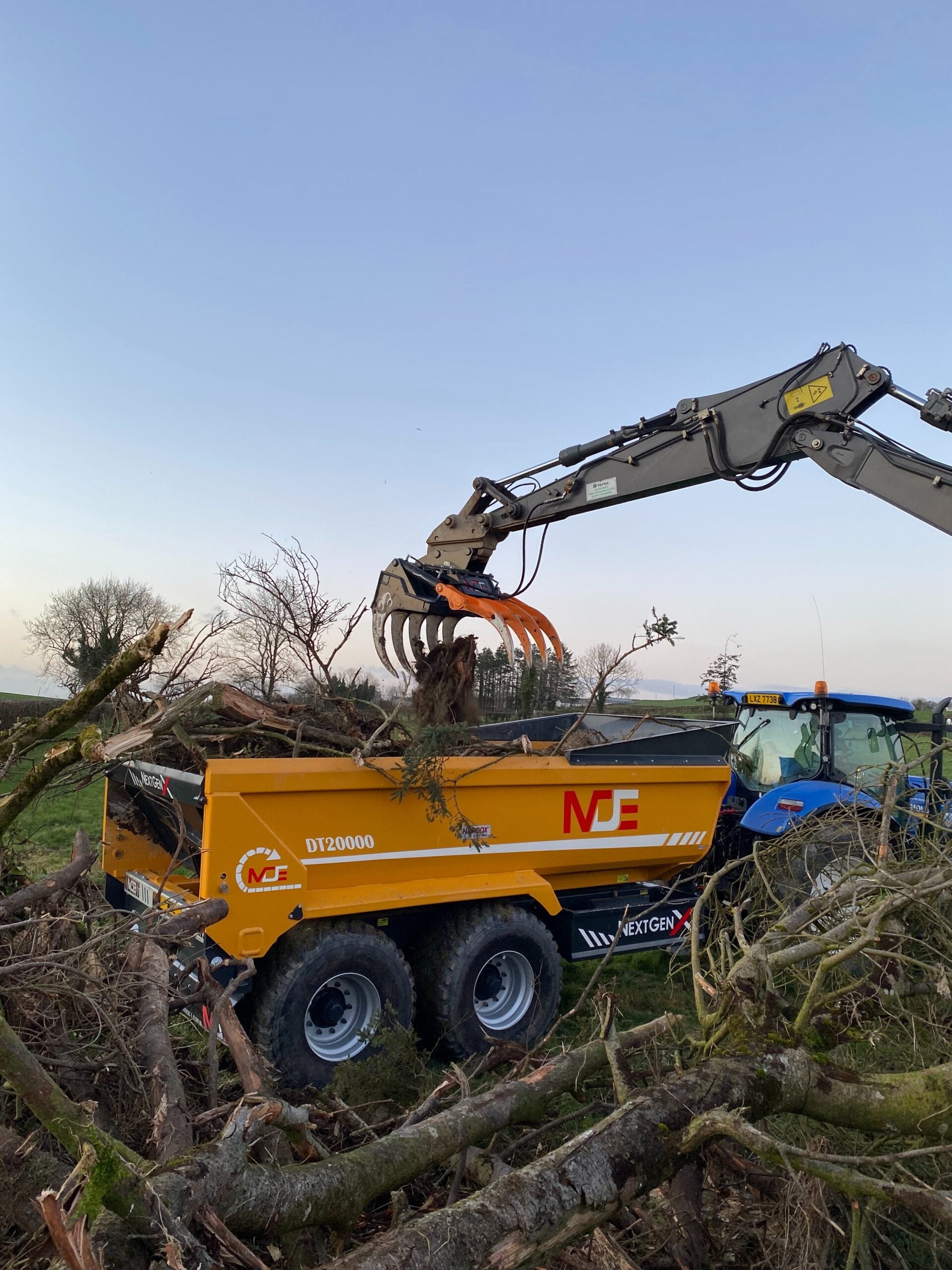

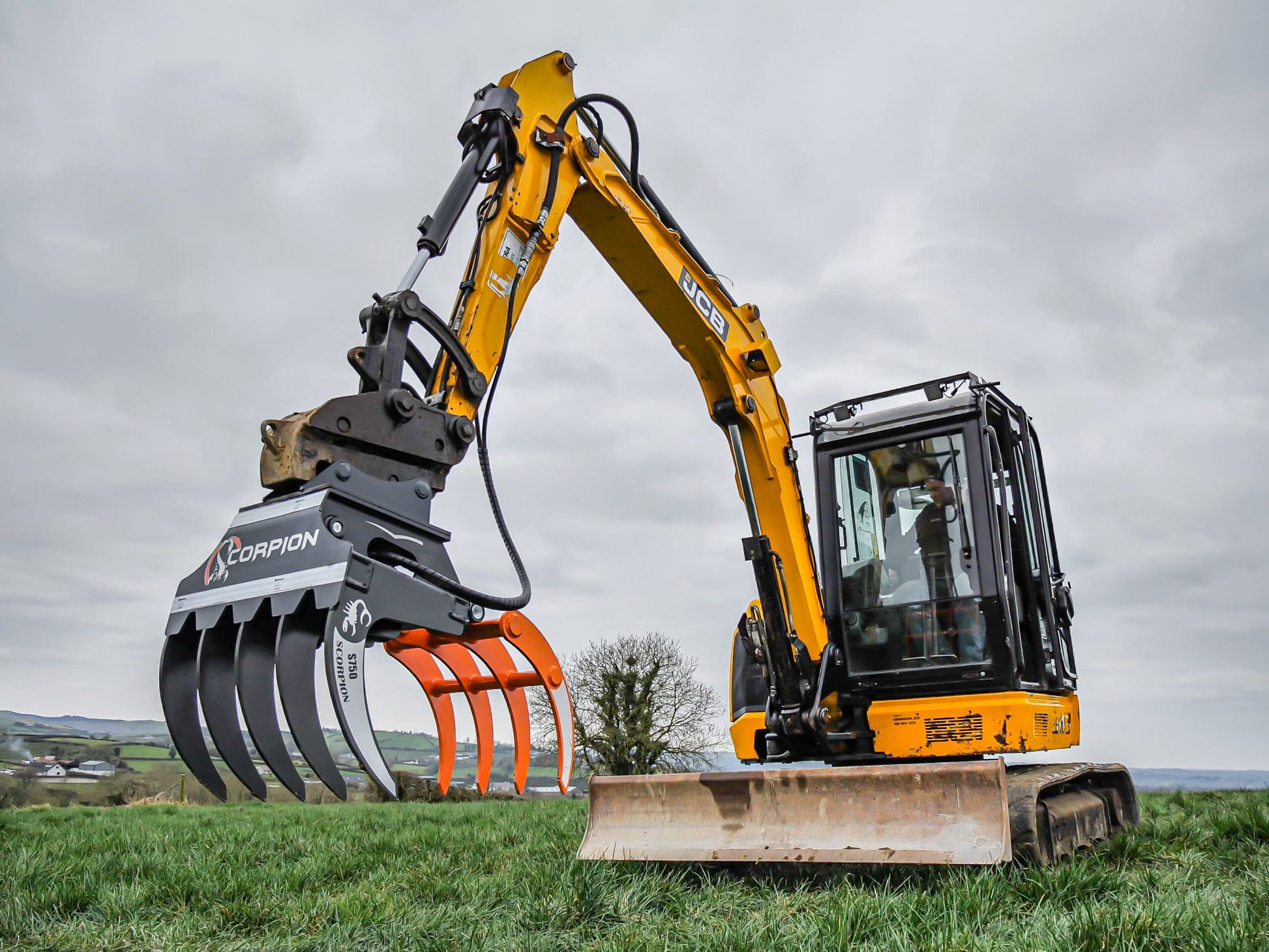

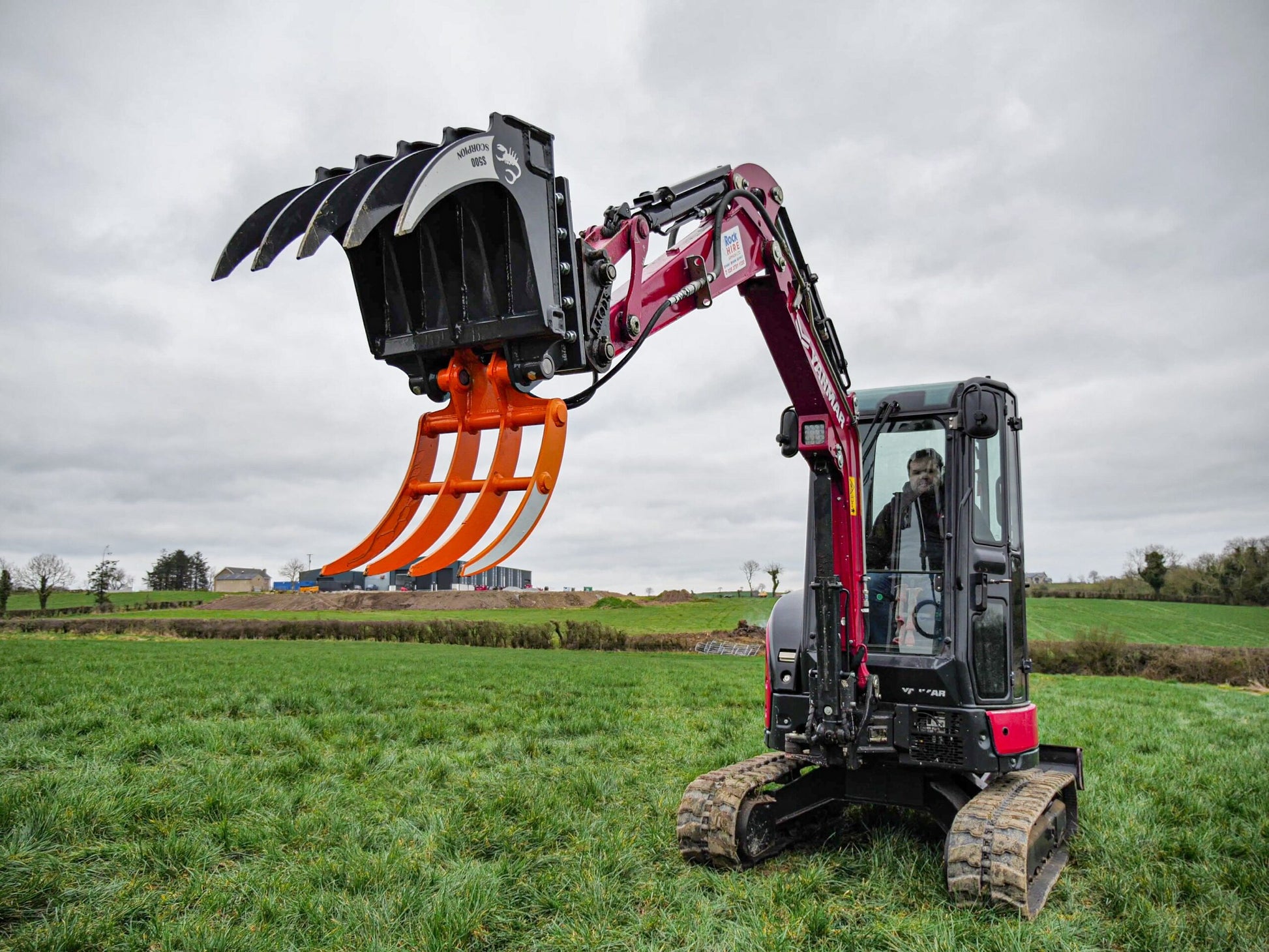

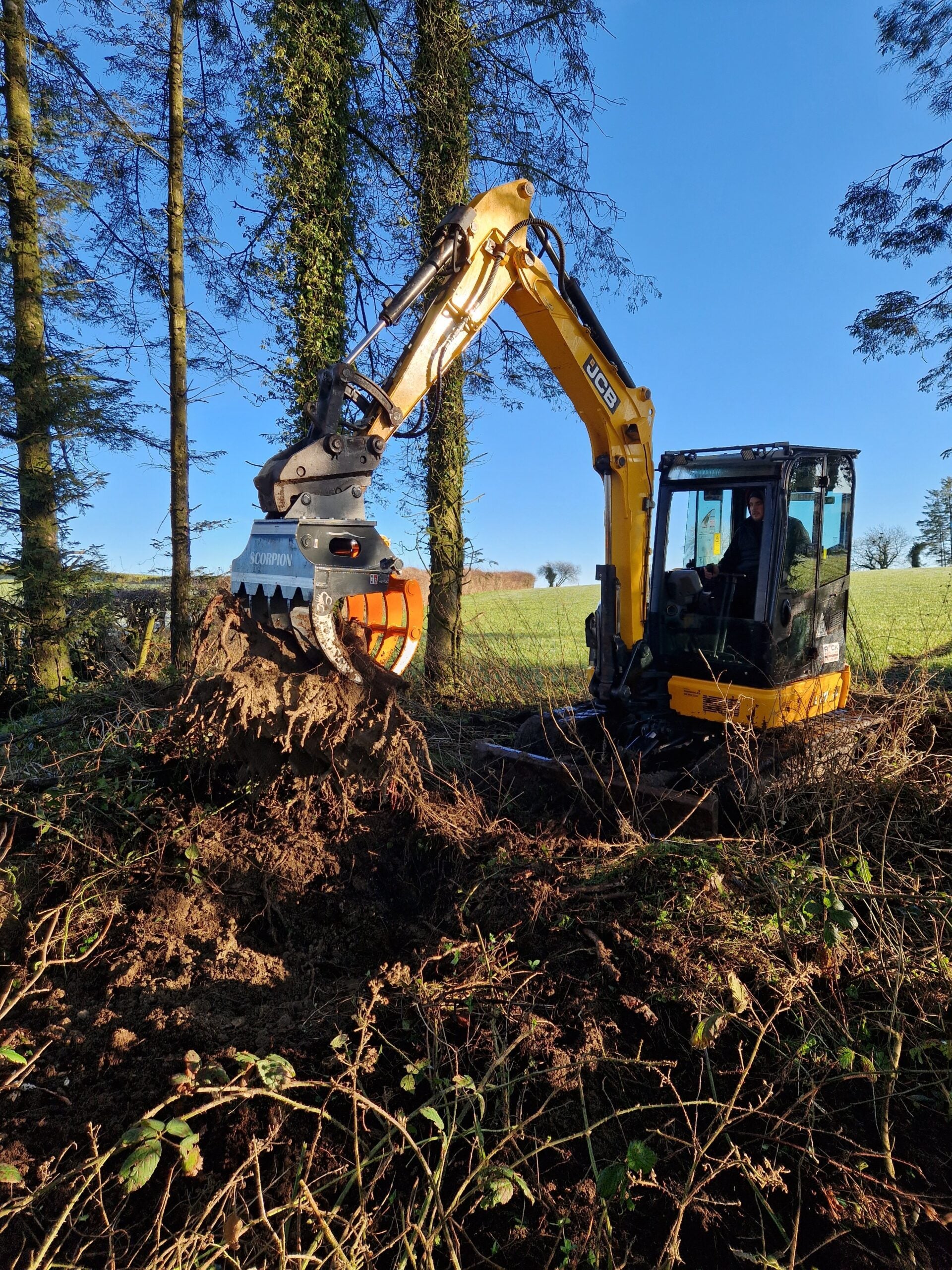

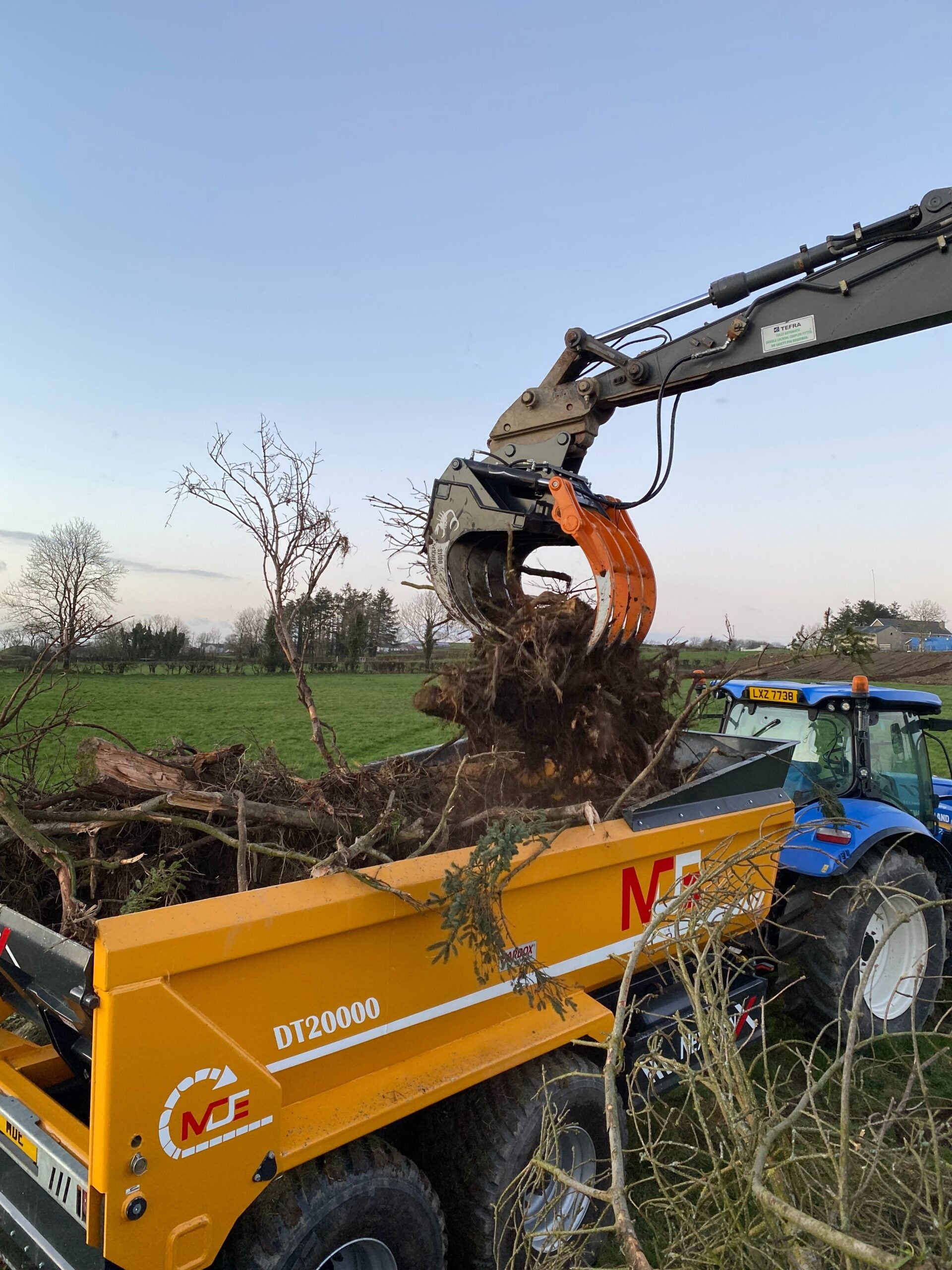

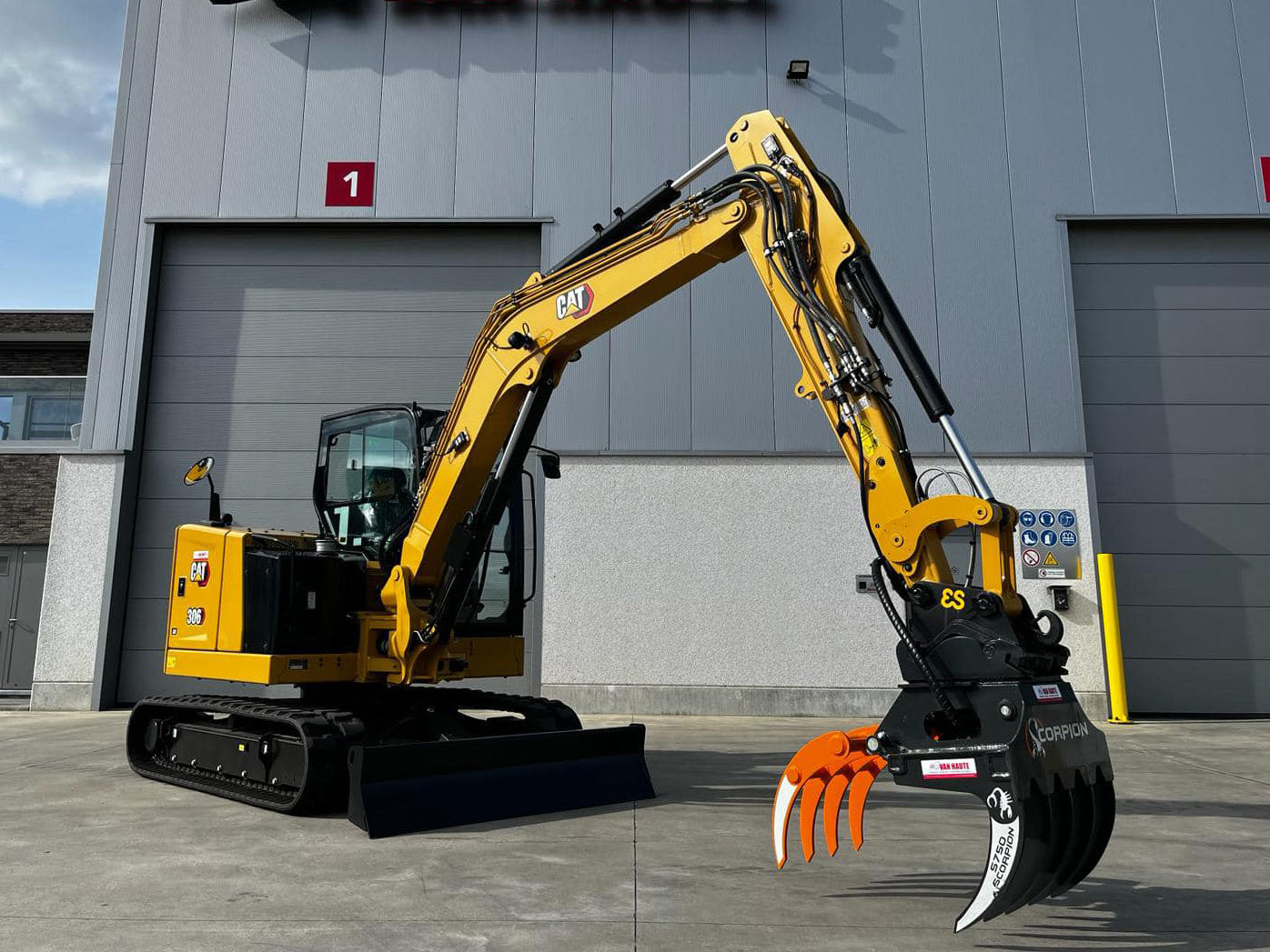

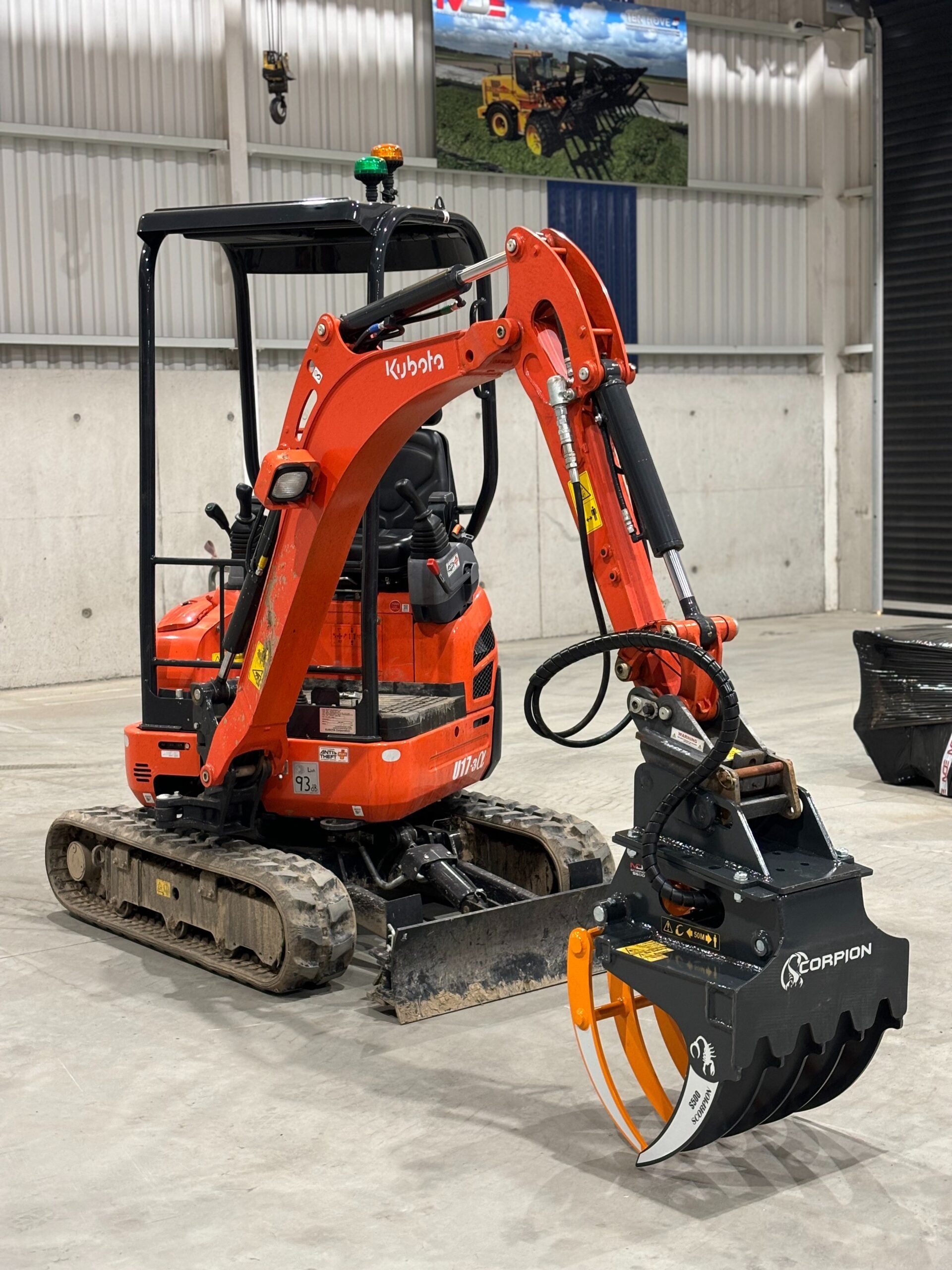

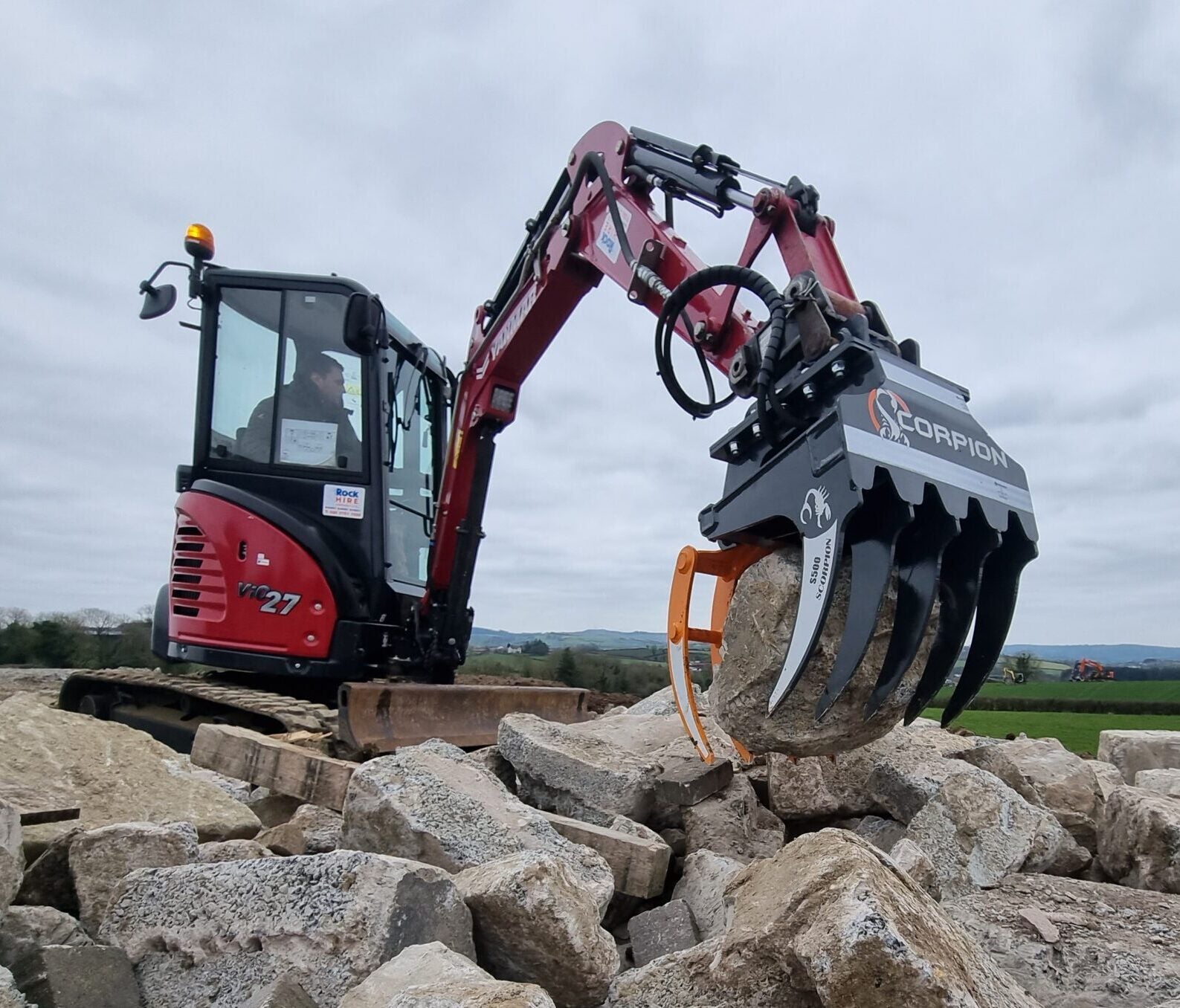

The Scorpion S500 Excavator Grab is the ultimate tool for small-scale excavator operations. Whether you're handling garden work, landscaping, feeding mulchers, or loading trailers, the S500 offers a reliable and efficient solution. Engineered by MDE, this grab attachment combines durability with easy-to-use functionality, making it an indispensable asset for operators working with compact excavators (1.5t - 4t).

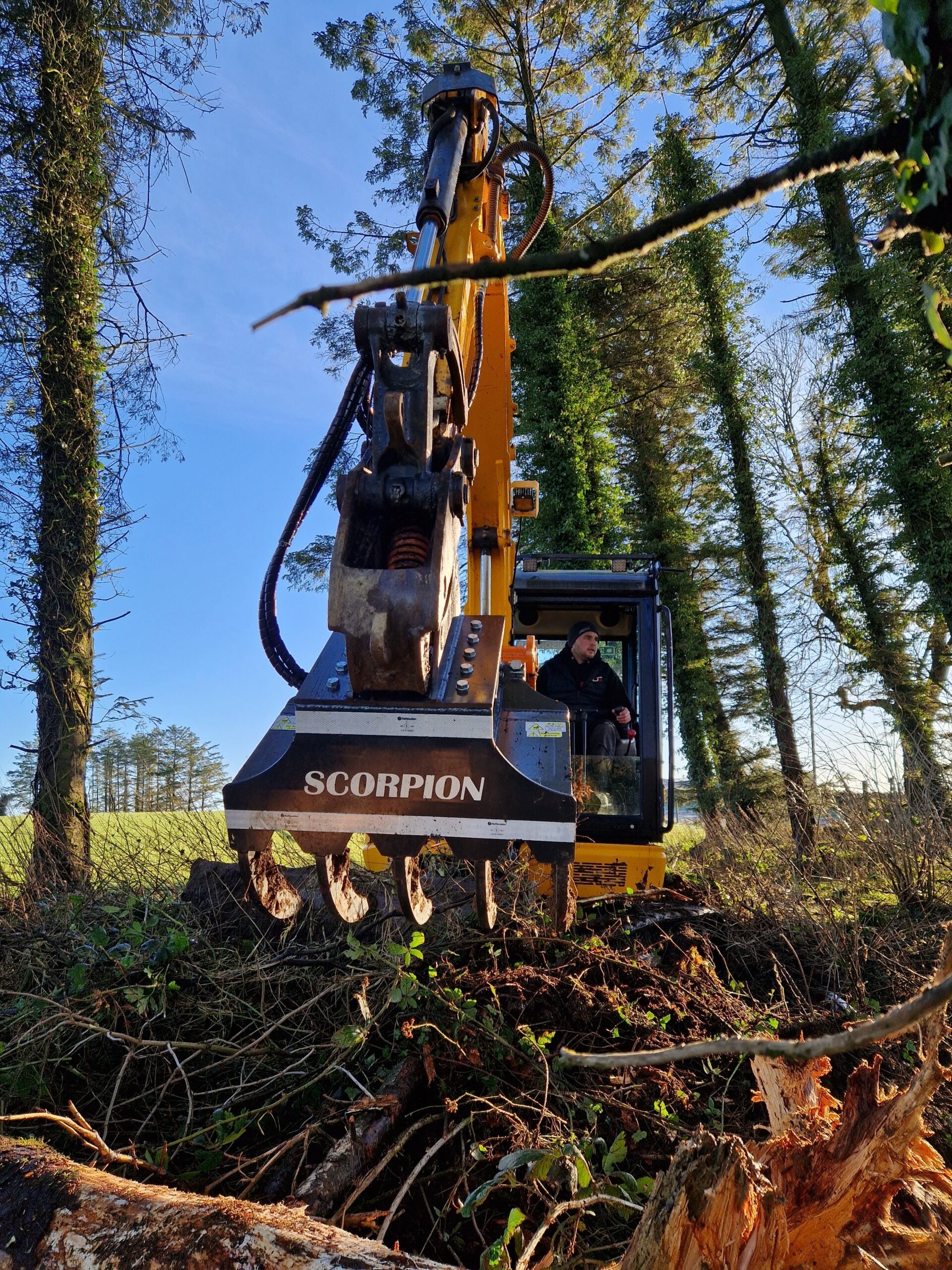

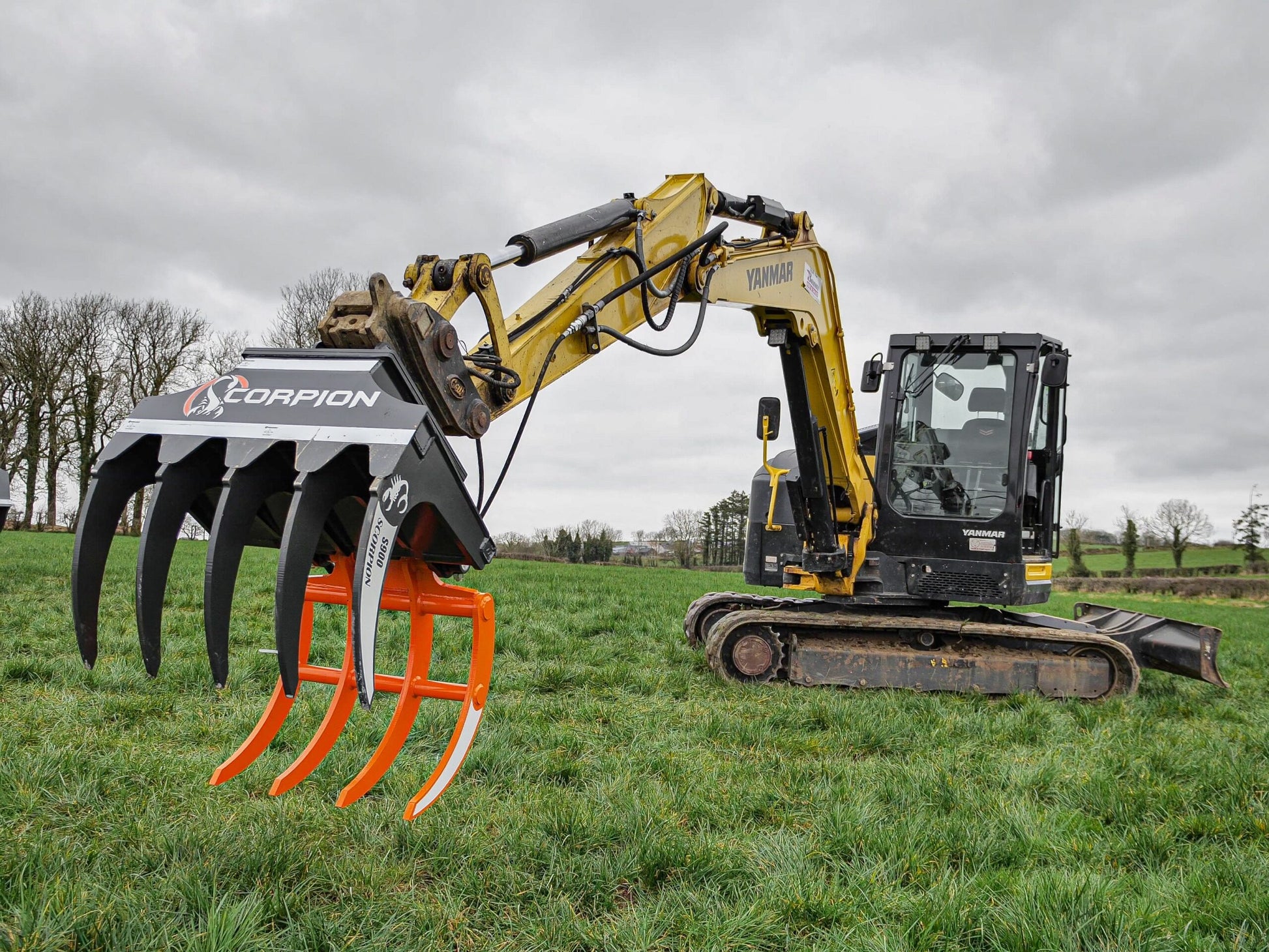

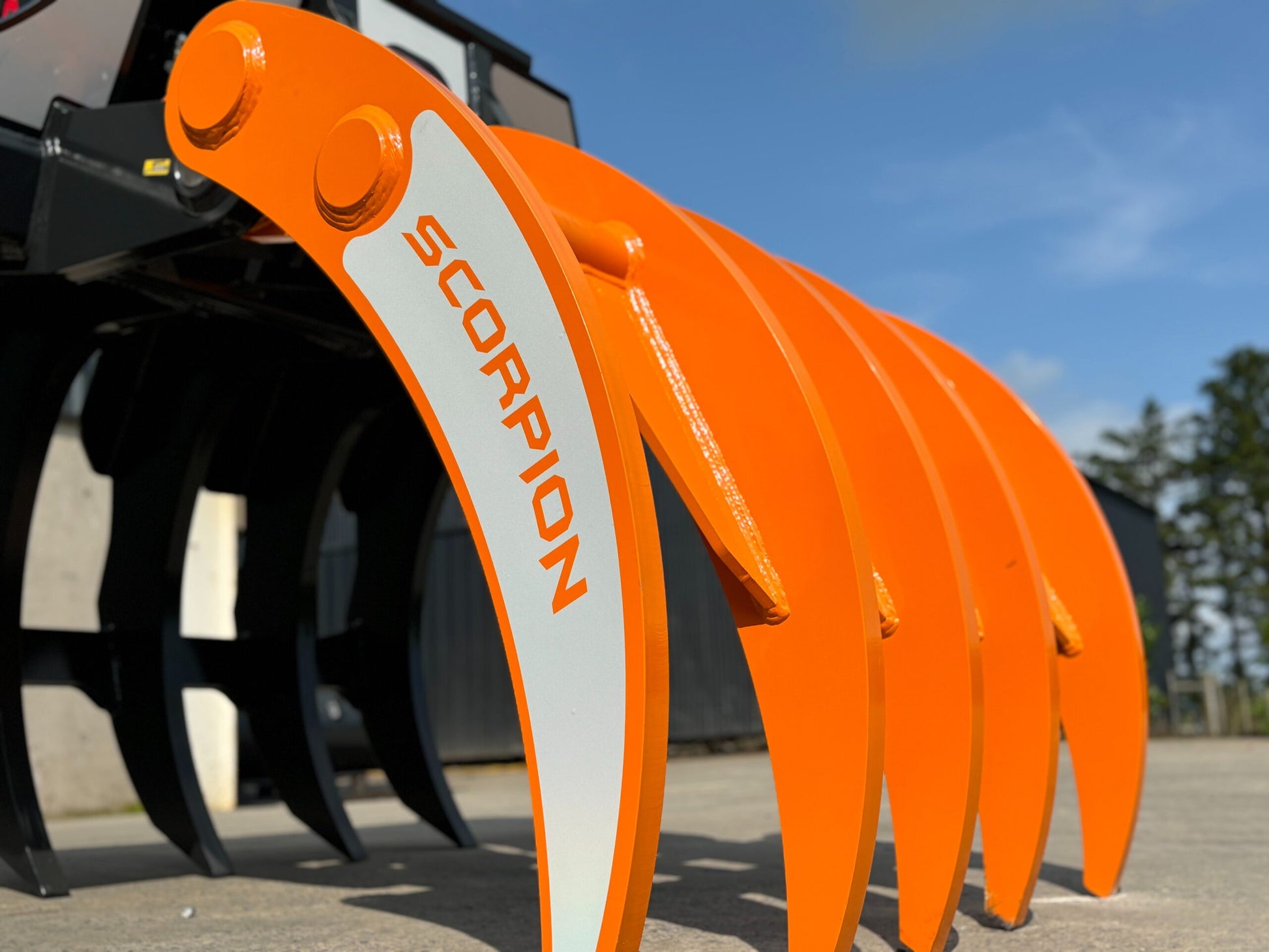

The S500 is the smallest in the Scorpion range, but don’t let its size fool you – it packs a punch when it comes to performance. Featuring Hardox® wear-resistant steel, this grab is designed to handle tough conditions, delivering long-lasting strength and reliability. Its unique design features a fixed position for one grapple, allowing operators to use it like a bucket, while the other grapple moves to clamp and pick up materials. The bolt-on hitch allows for seamless attachment changes across multiple machines.
With a strong and versatile build, the Scorpion S500 is ideal for those working in confined spaces or small-scale operations, where precision, control, and durability are critical.
Key Features
- Hardox® Steel Construction: Built to withstand extreme wear and tear, ensuring longevity and maximum uptime.

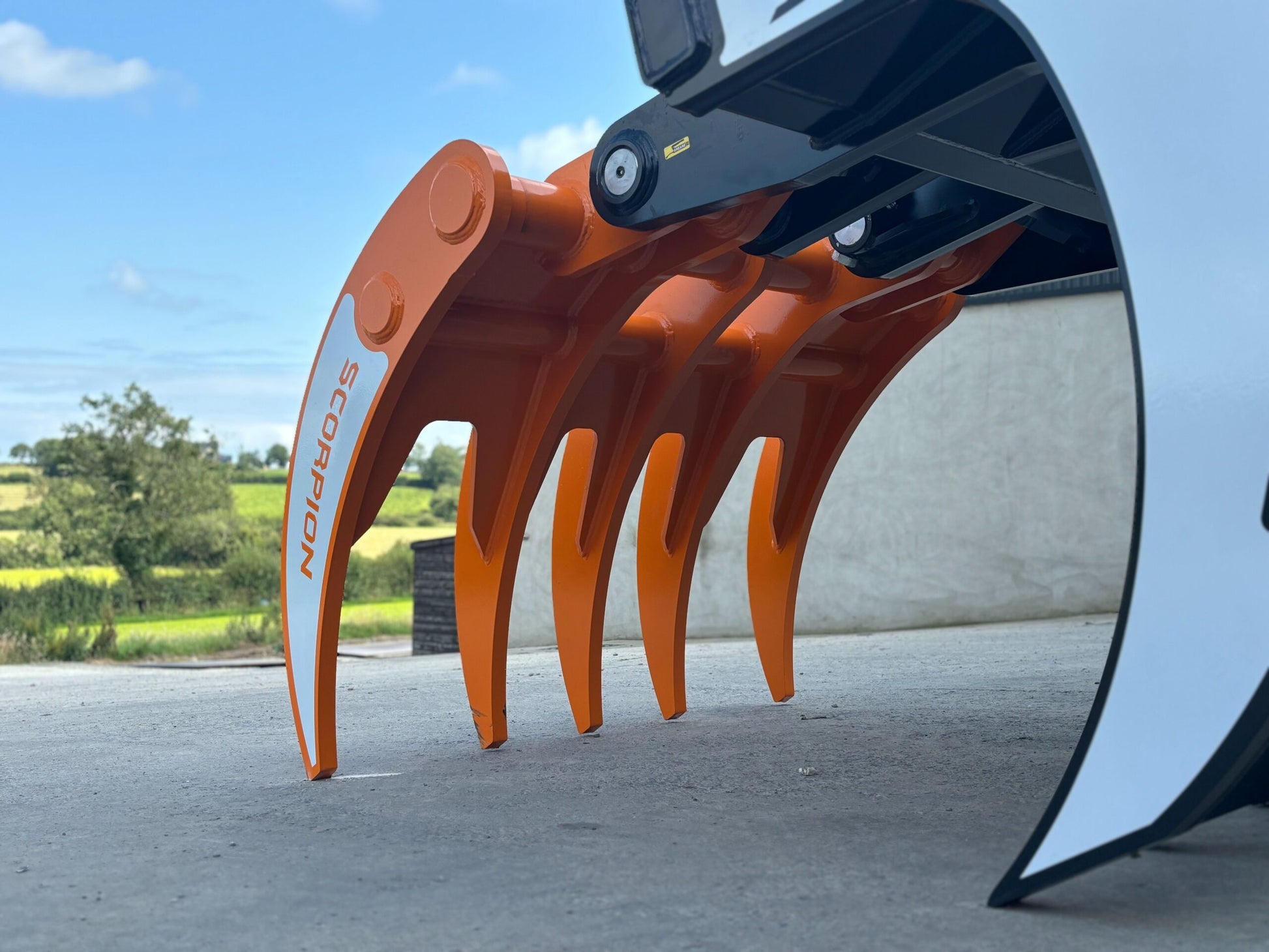

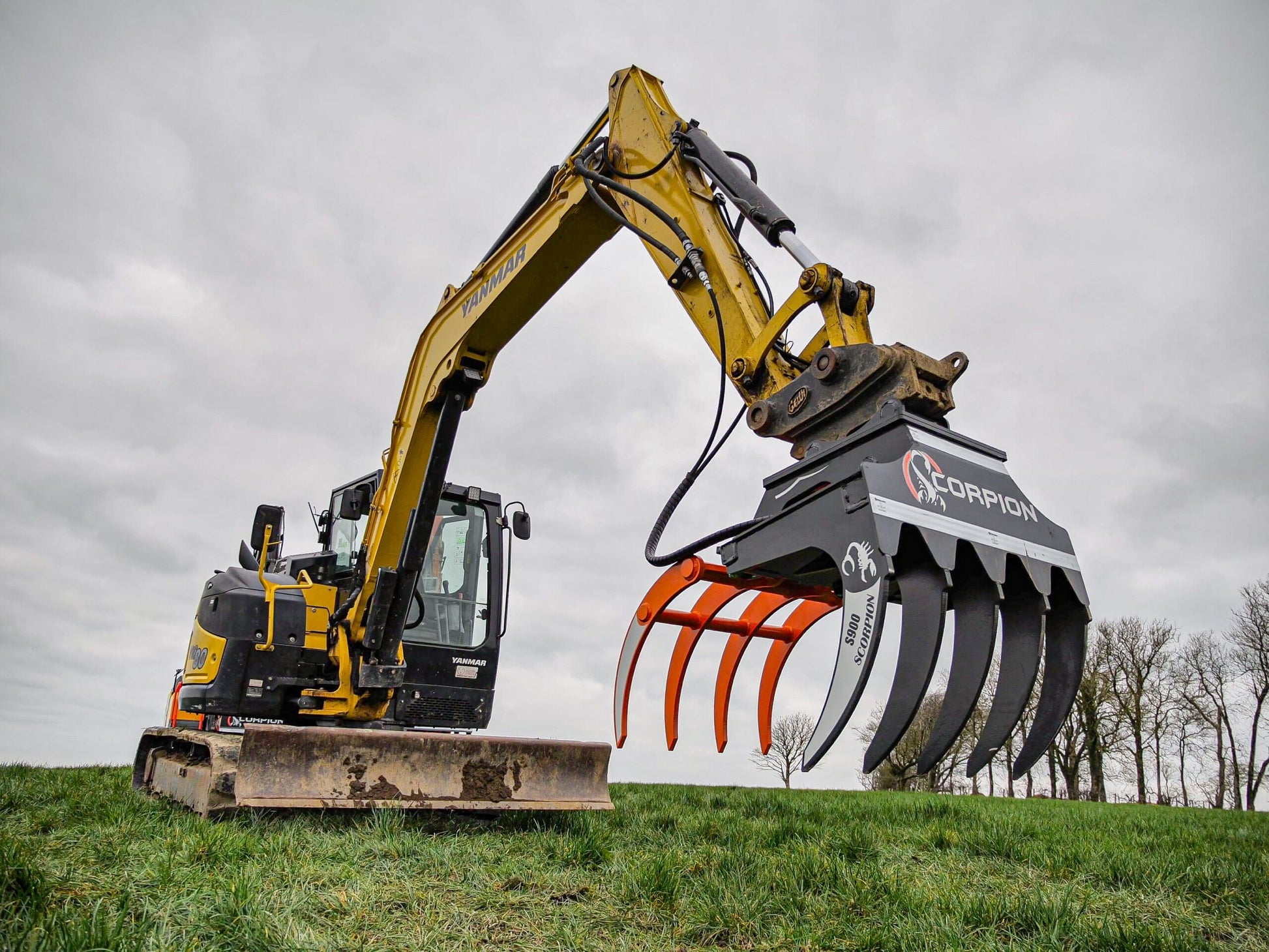

- Precise Control: The fixed-position grapple combined with a moving jaw provides excellent control for both material handling and land raking.

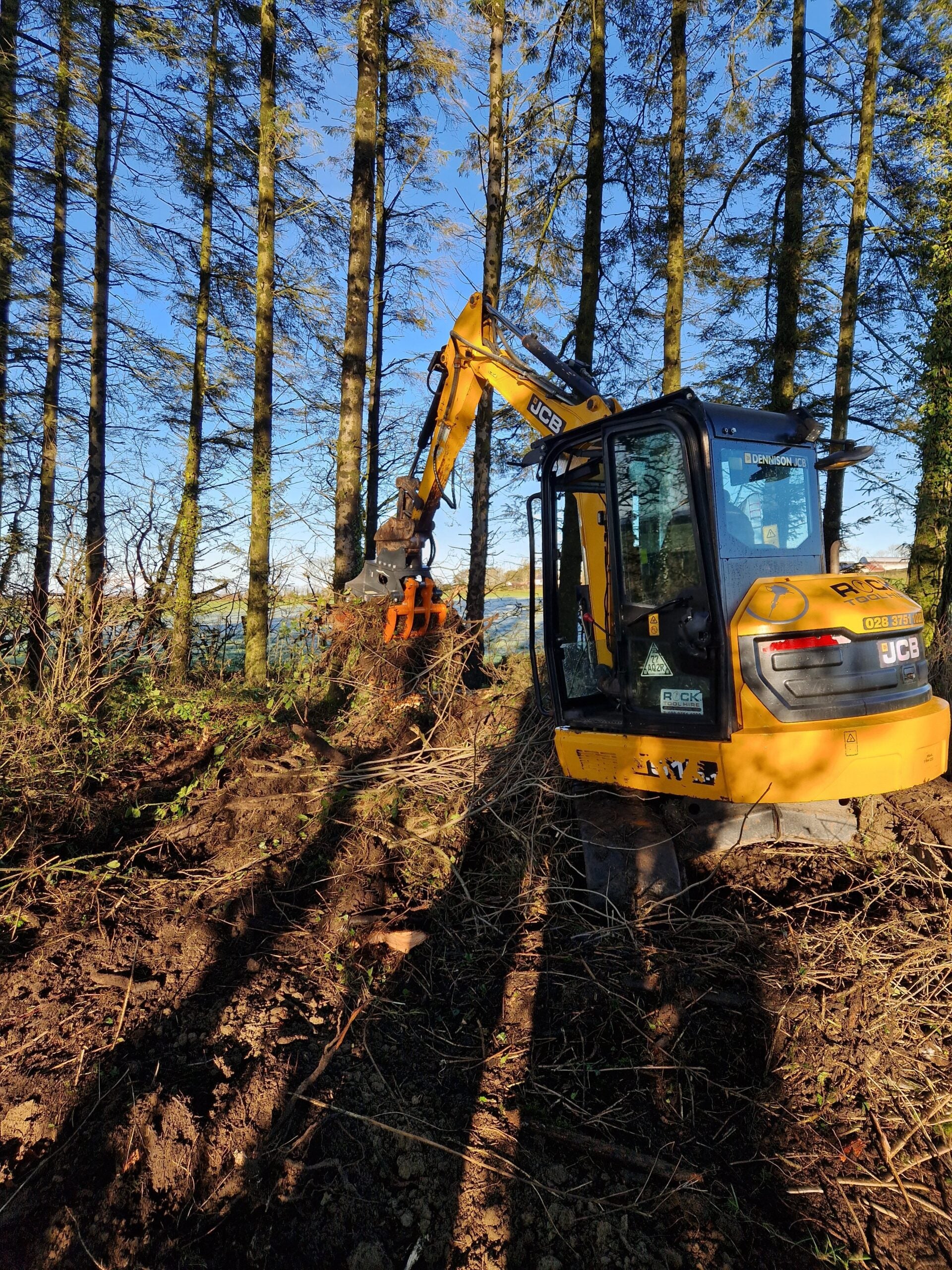

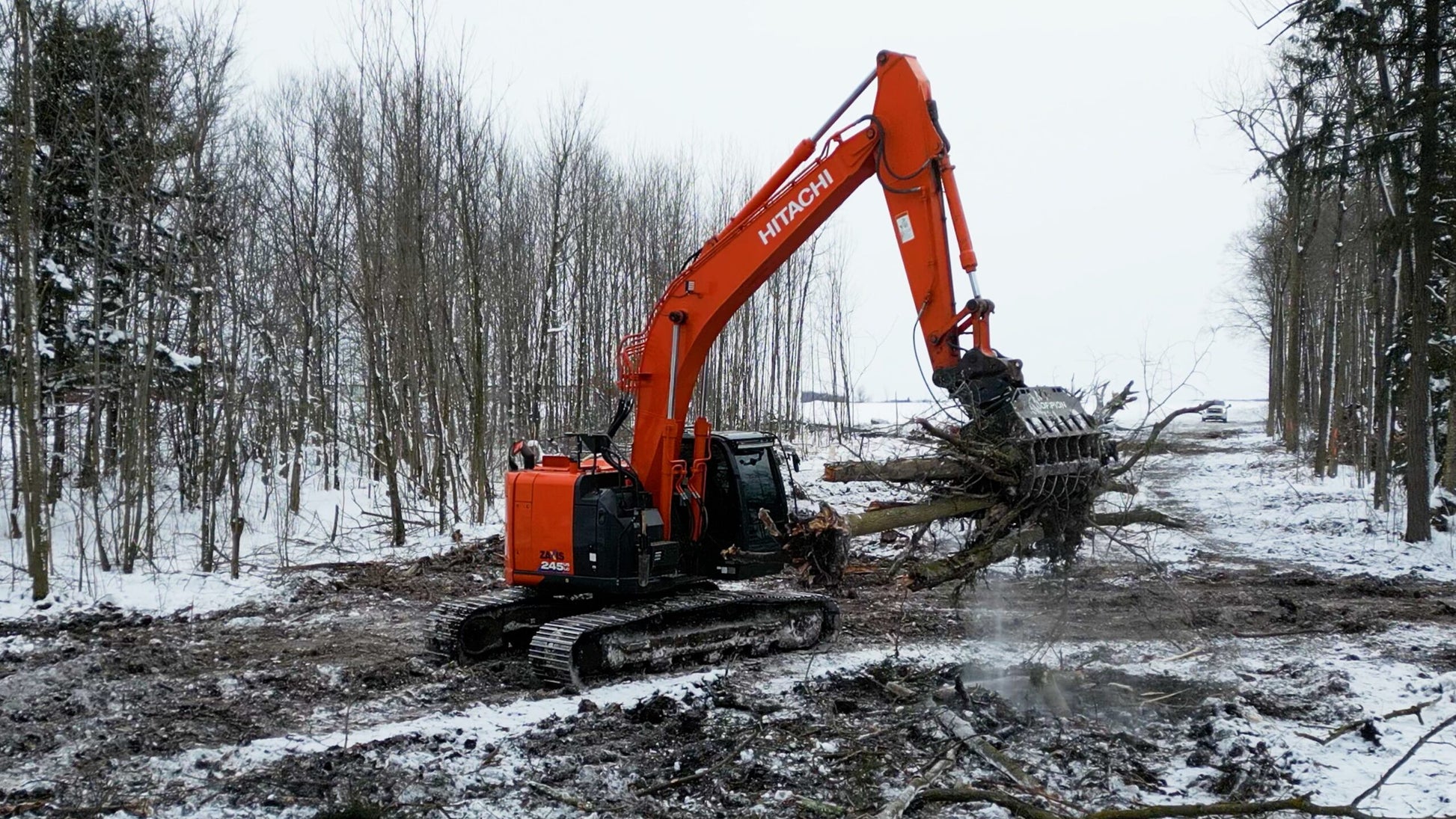

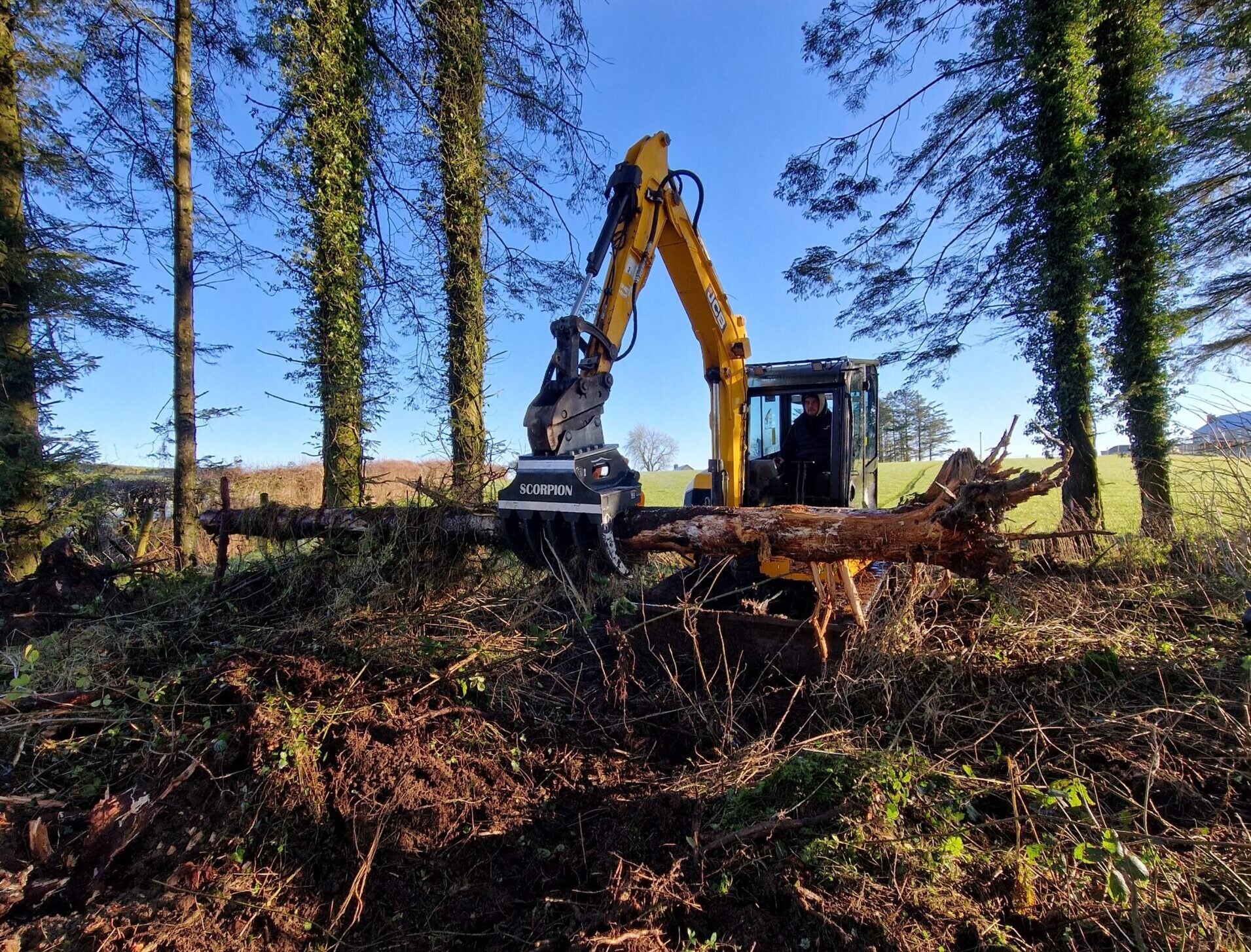

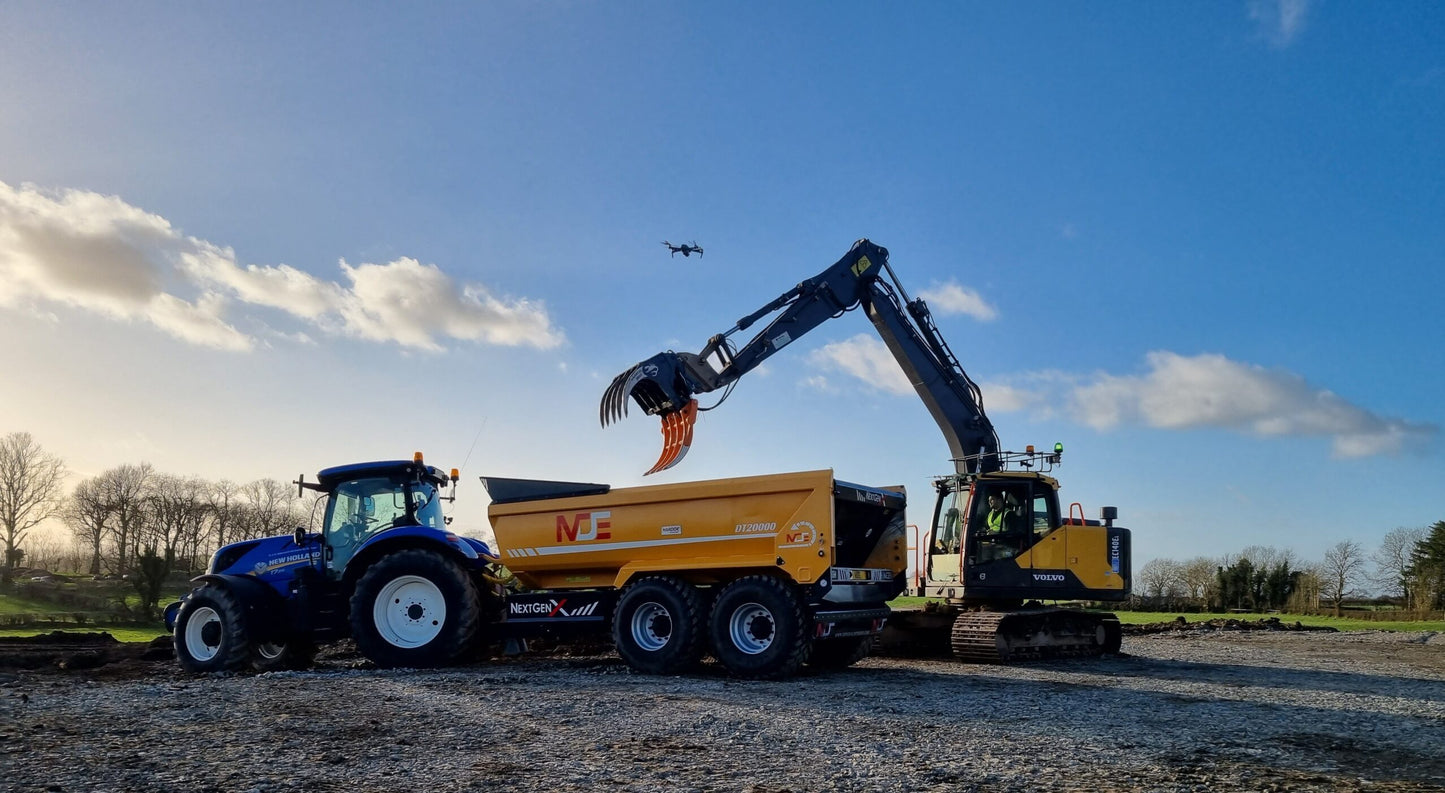

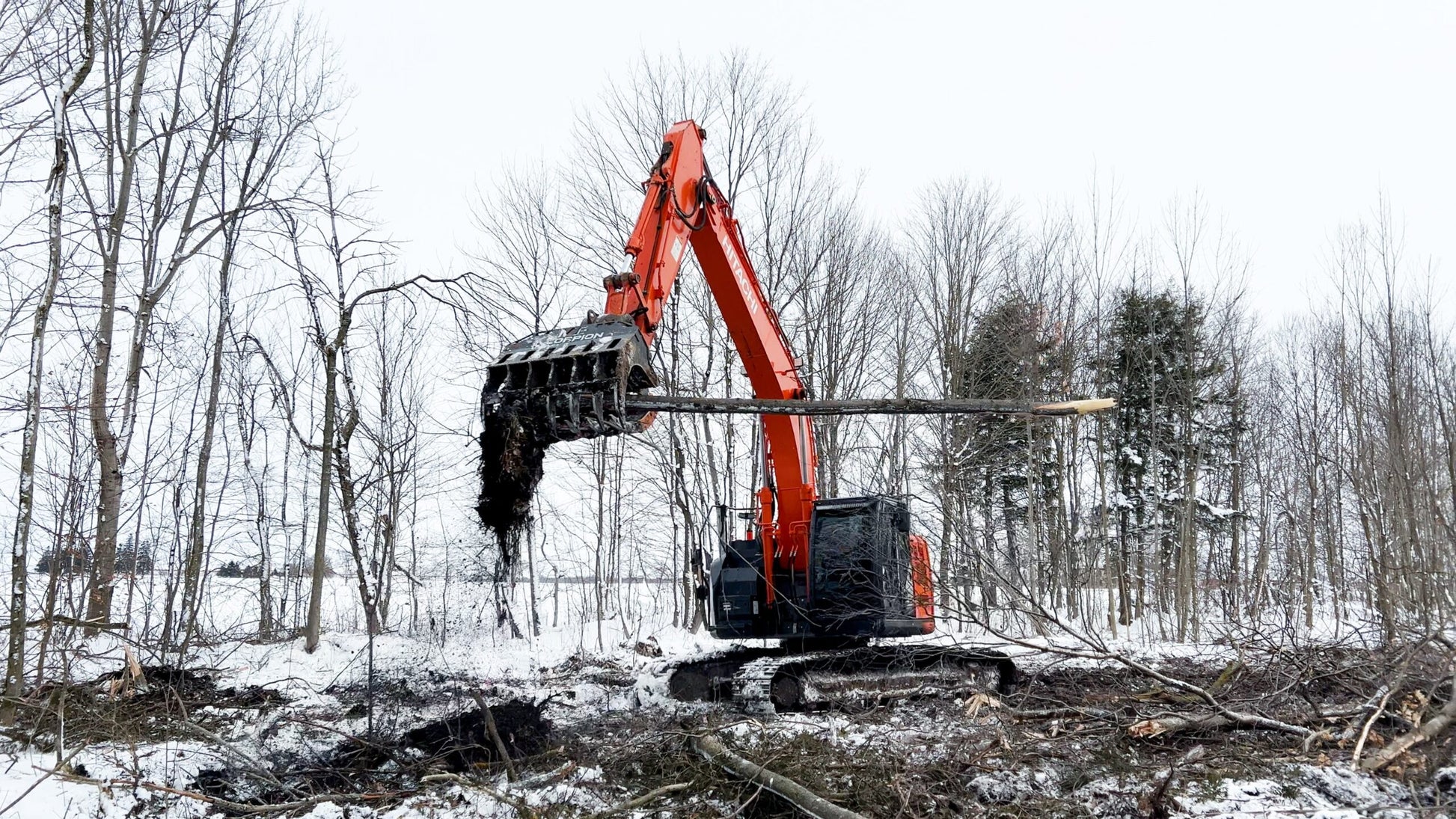

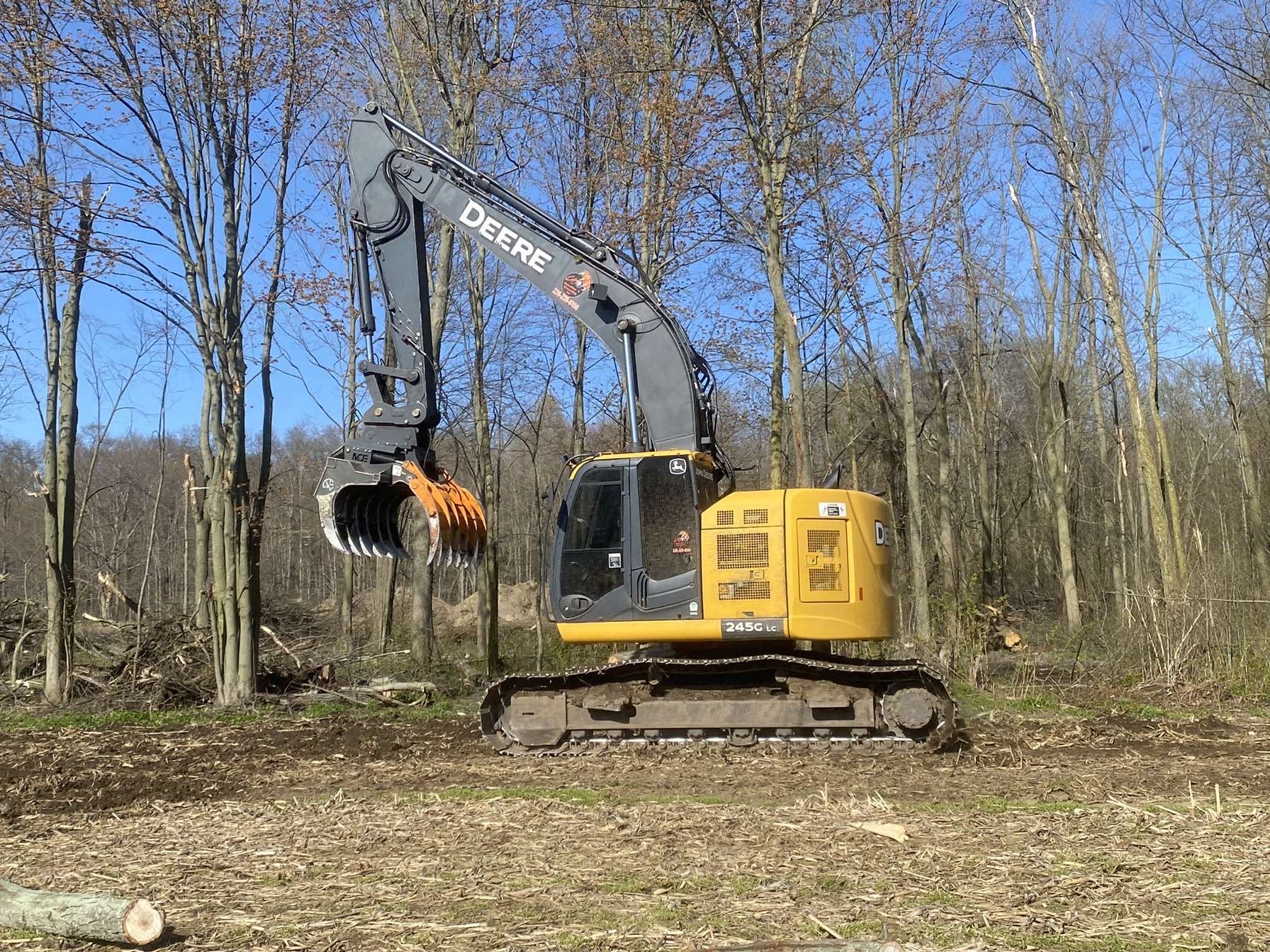

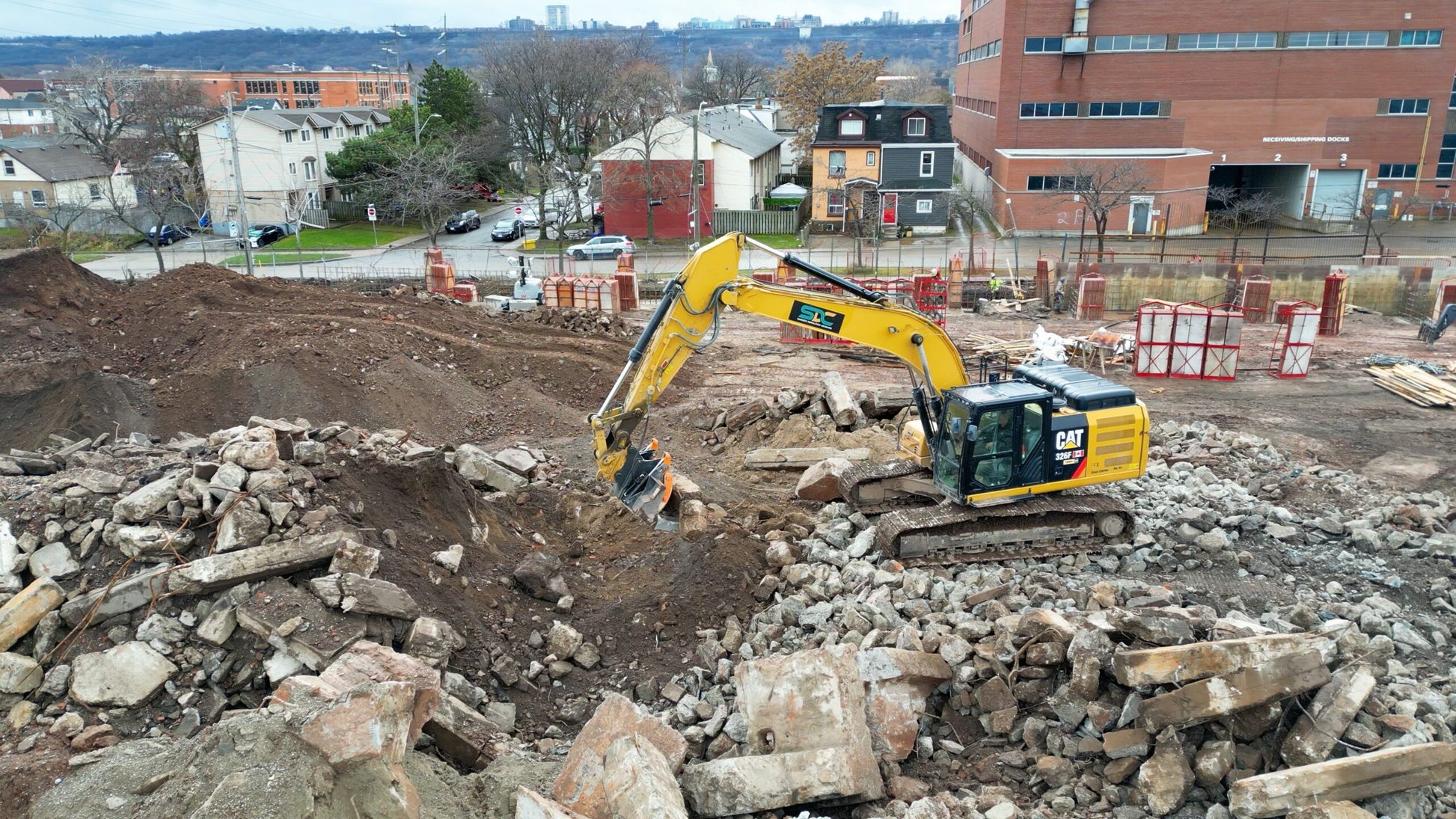

- Multi-Functional: Ideal for a wide range of applications including landscaping, forestry, construction, and waste management.

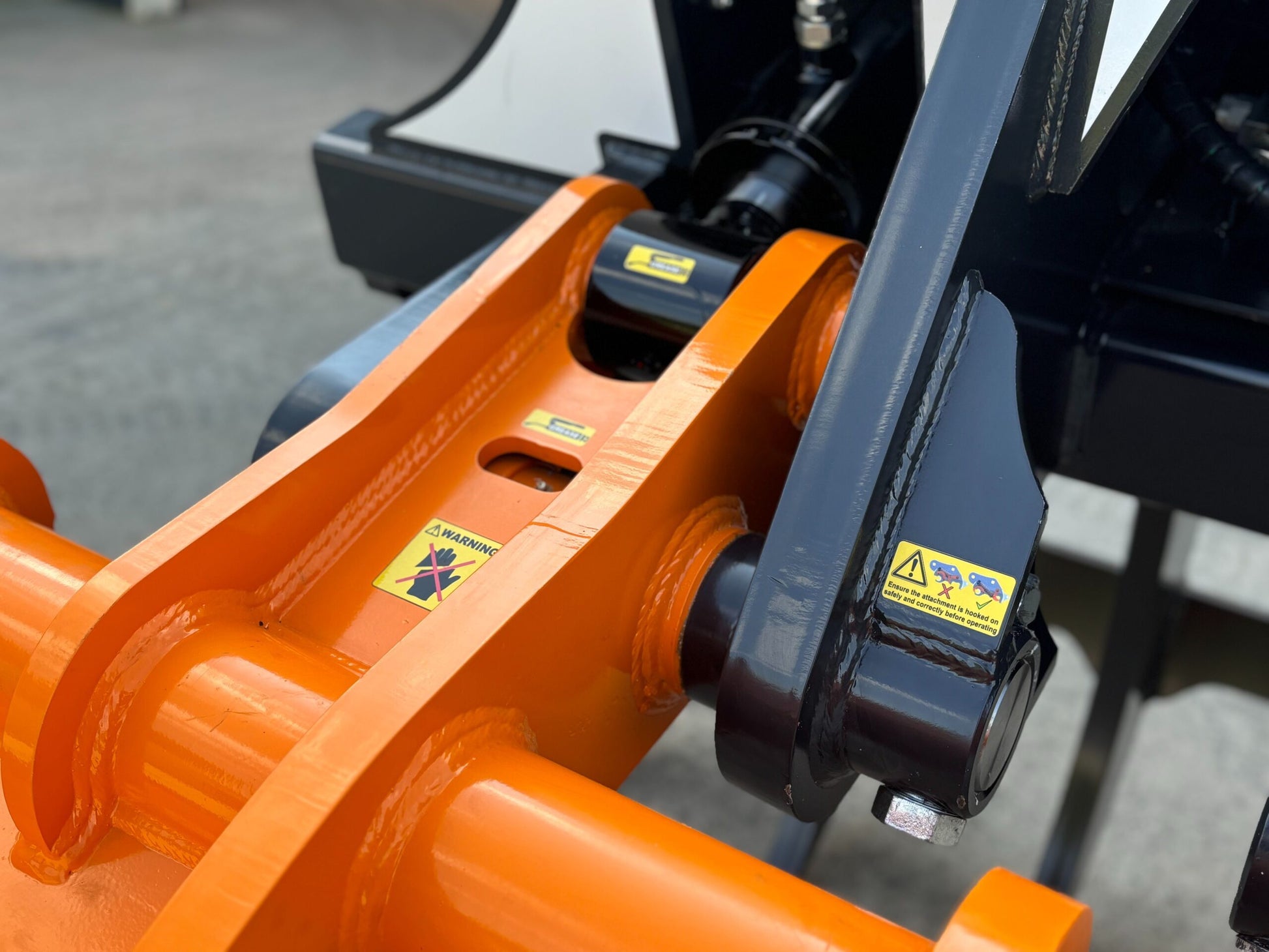

- Bolt-On Hitch: Quickly switch the grab between machines, enhancing flexibility and minimizing downtime.

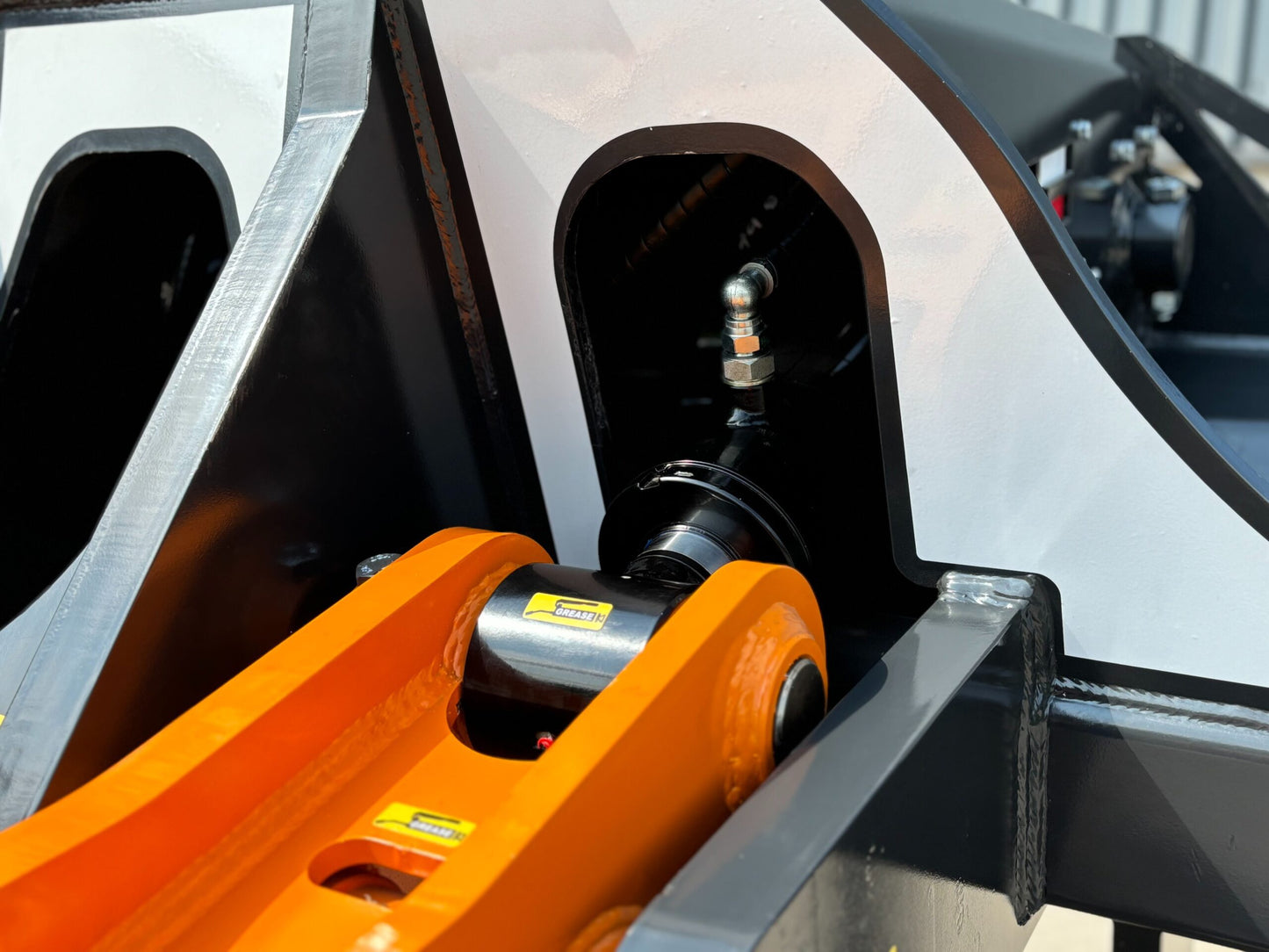

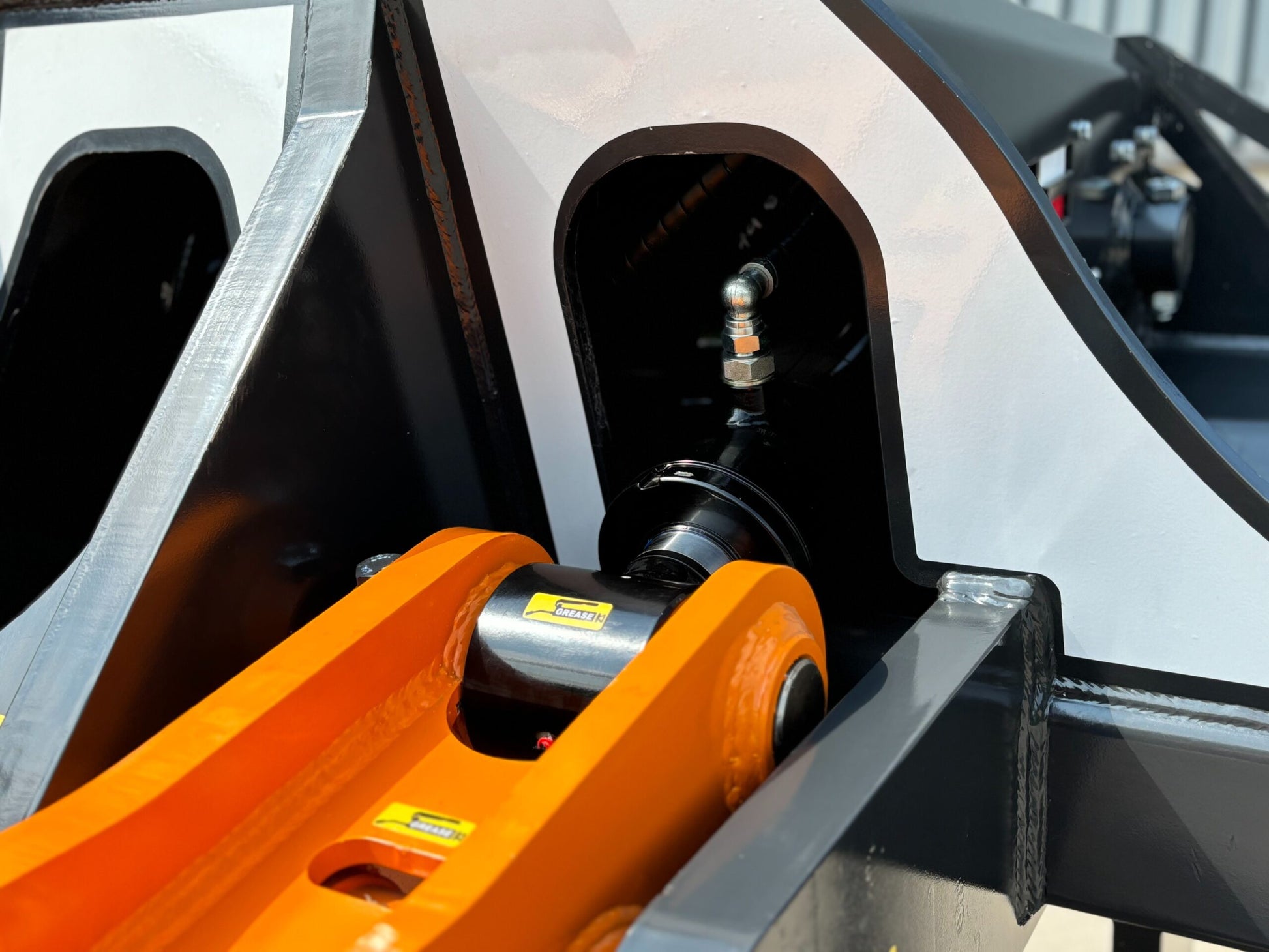

- Powerful Hydraulic Performance: Features twin hydraulic cylinders (depending on the model) for unmatched clamping force and smooth operation.

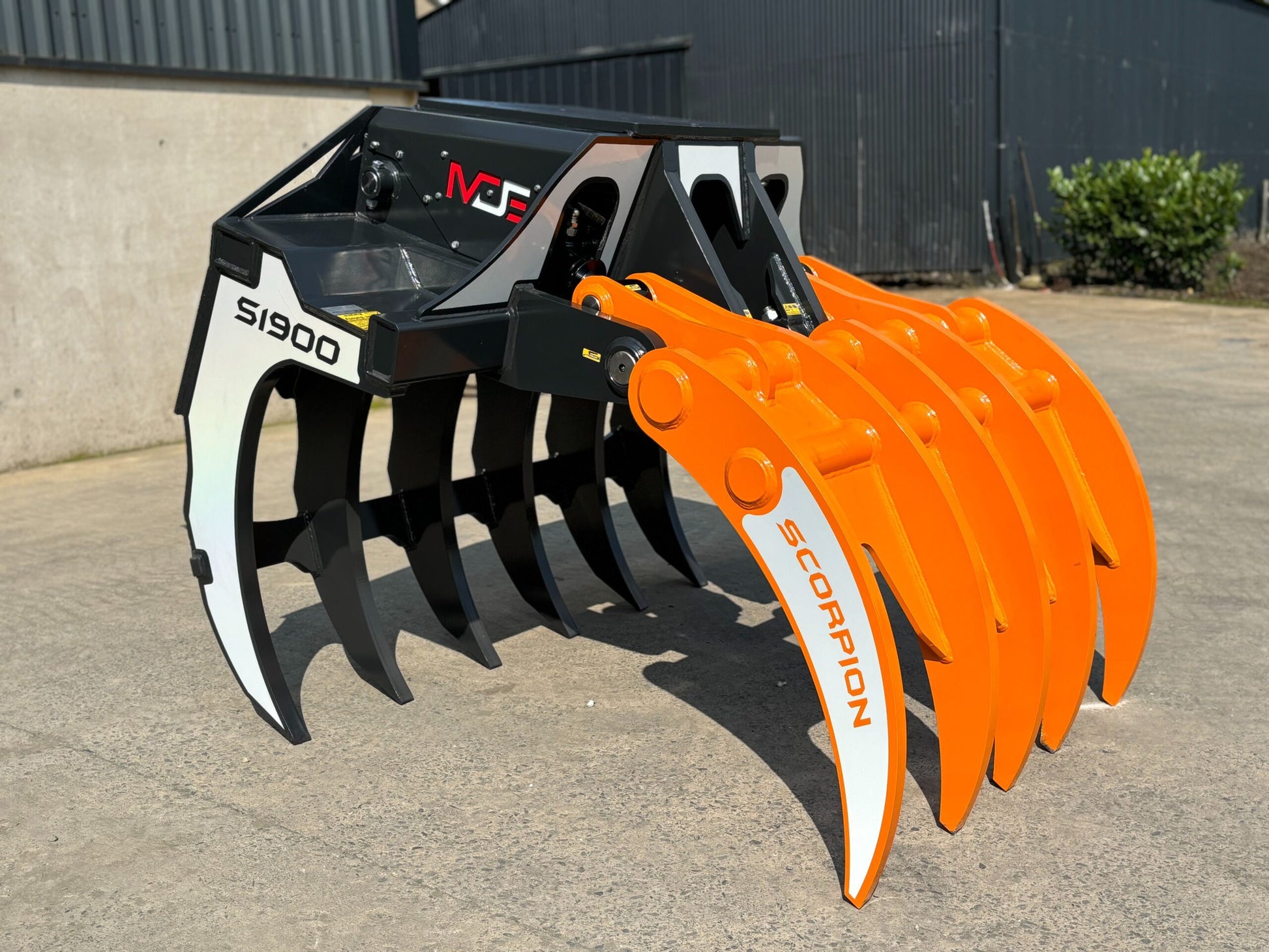

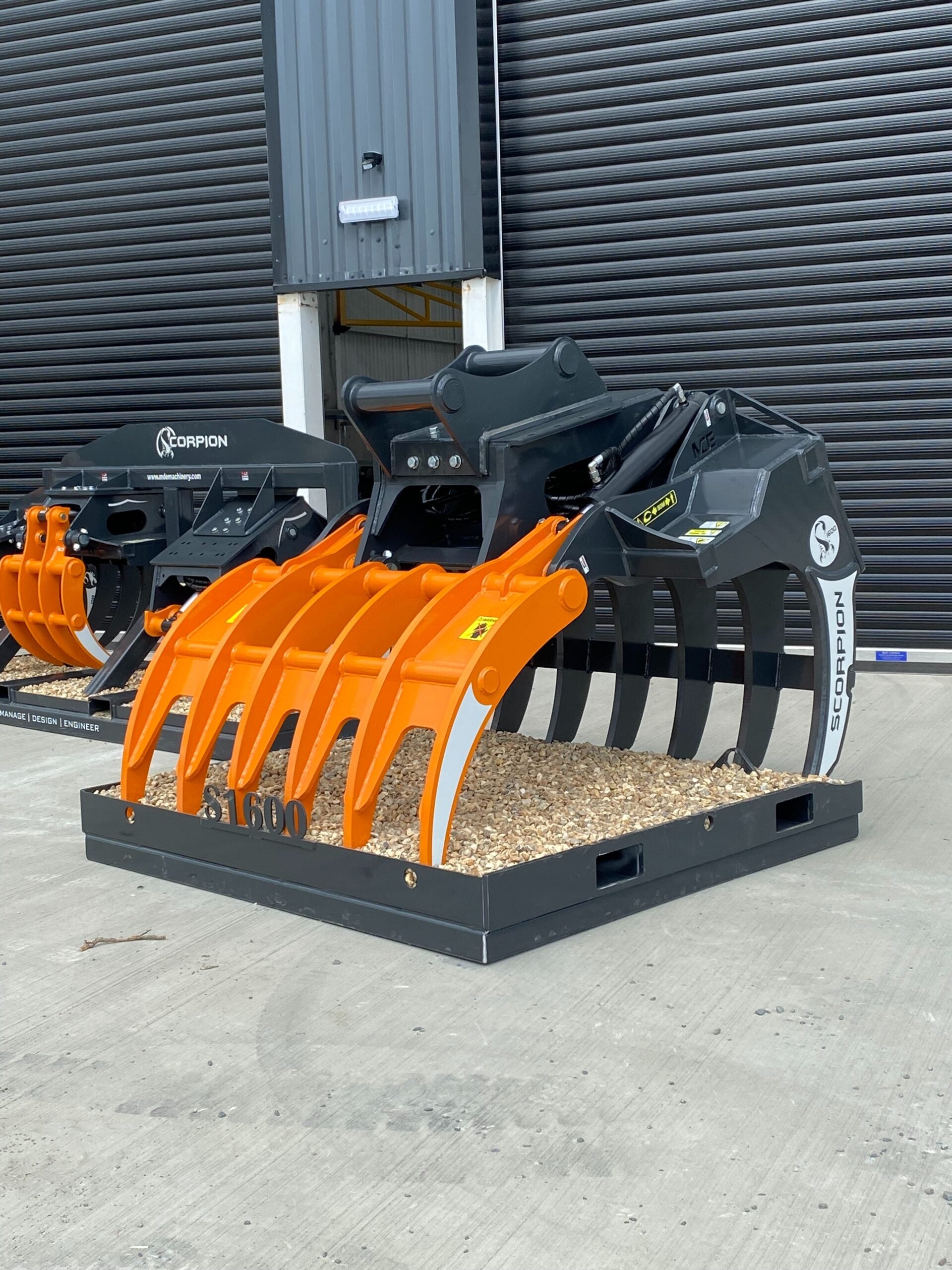

- Variety of Sizes: Available in a range of sizes (S500 to S1900) to fit excavators from 1.5t to 50t, providing a solution for any project.

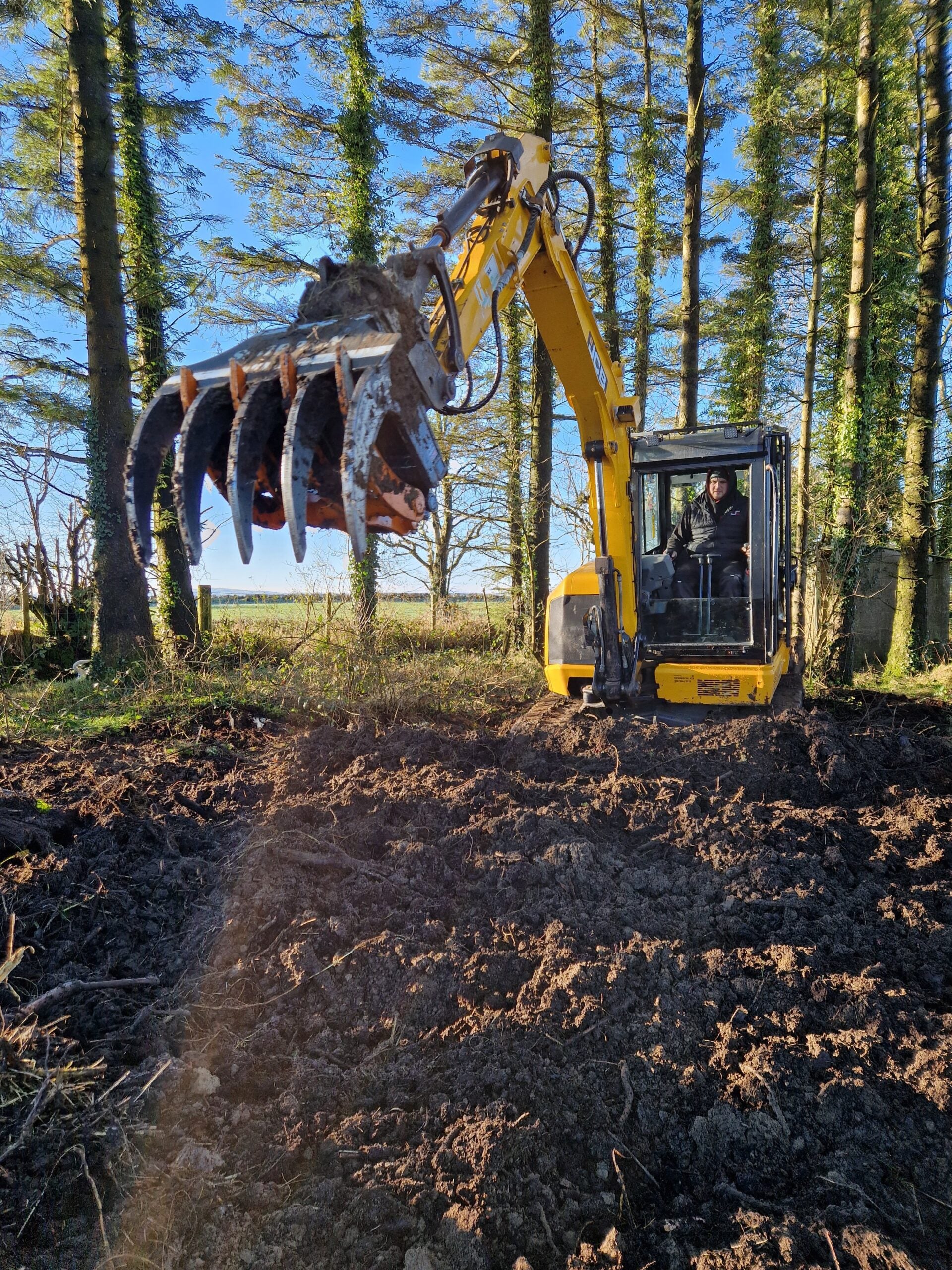

- Feathering Capability: The moving jaw can be closed tightly for feathering through material, acting as a land rake.
Detailed Specifications
| Specification | S500 | S750 | S900 | S1100 | S1600 | S1900 |
|---|---|---|---|---|---|---|
| Excavator Size | 1.5t - 4t (3,306lbs - 8,818lbs) | 4t - 7t (8,818lbs - 15,432lbs) | 8t - 10t (17,637lbs - 22,046lbs) | 12t - 18t (26,455lbs - 39,683lbs) | 16t - 30t (35,274lbs - 66,138lbs) | 30t - 50t (66,138lbs - 110,231lbs) |
| Width | 500mm (19 ¾ inch) | 750mm (29 ½ inch) | 900mm (35 ½ inch) | 1100mm (43 ¼ inch) | 1600mm (63 inch) | 1900mm (74 ¾ inch) |

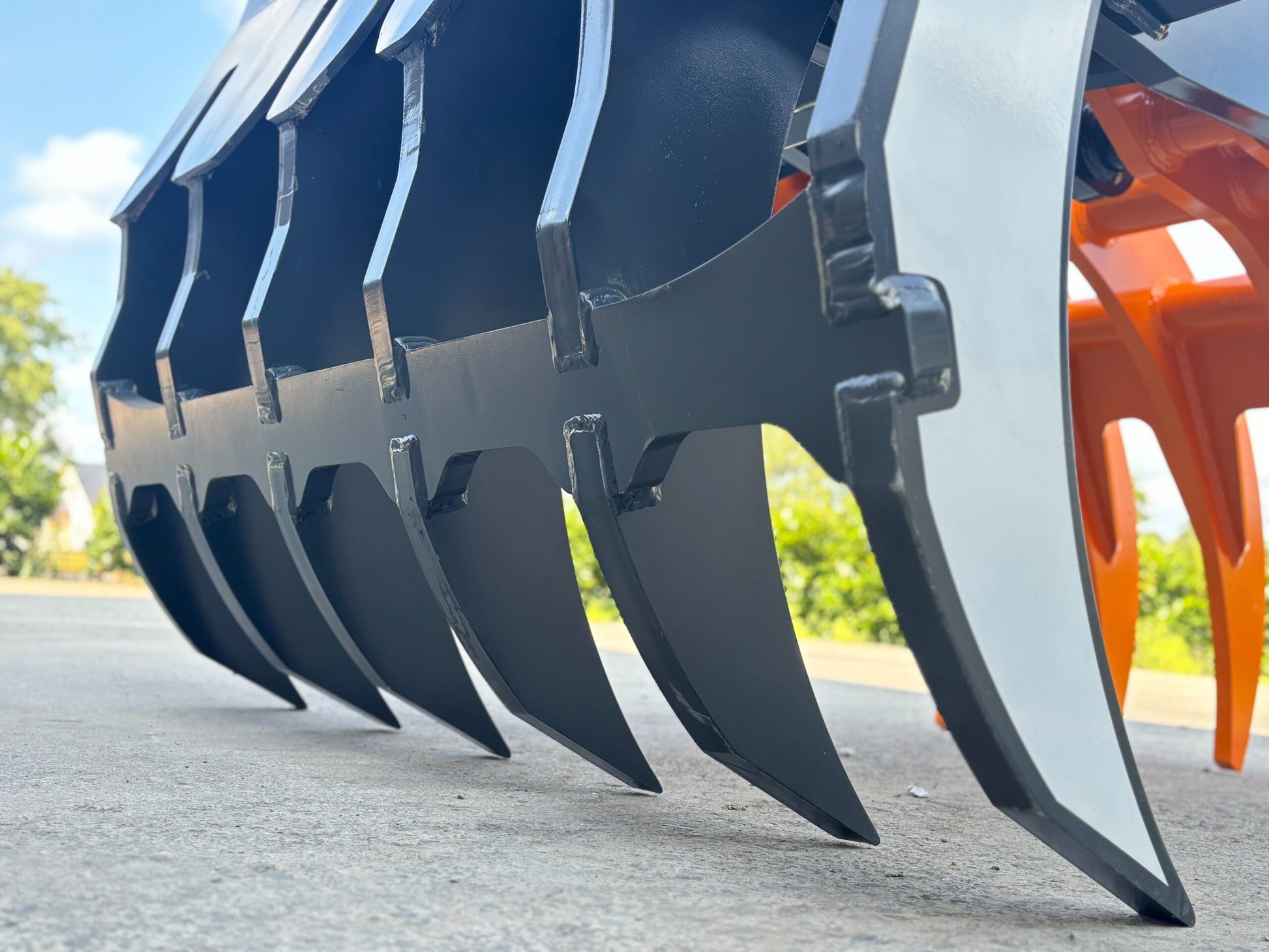

| Teeth Thickness | 10mm (⅜ inch) | 15mm (⅝ inch) | 20mm (¾ inch) | 30mm (1 ⅛ inch) | 30mm (1 ⅛ inch) | 50mm (2 inch) |
| Teeth Separation | 112mm (4 ⅜ inch) | 160mm (6 ¼ inch) | 200mm (7 ⅞ inch) | 230mm (9 inch) | 230mm (9 inch) | 310mm (12 ¼ inch) |
| Teeth Depth | 400mm (15 ⅜ inch) | 460mm (18 inch) | 560mm (22 inch) | 720mm (28 ⅜ inch) | 810mm (31 ⅞ inch) | 1000mm (39 ⅜ inch) |
| Grapple Opening | 670mm (26 ⅜ inch) | 780mm (30 ¾ inch) | 930mm (36 ⅝ inch) | 1300mm (51 ⅛ inch) | 1390mm (54 ¾ inch) | 1560mm (61 ⅜ inch) |
| Weight | 140kg (308lbs) | 240kg (529lbs) | 390kg (859lbs) | 900kg (1,984lbs) | 1487kg (3,278lbs) | 2800kg (6,172lbs) |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

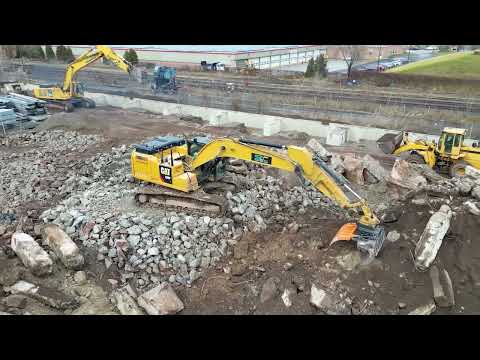

Videos
