Product Description

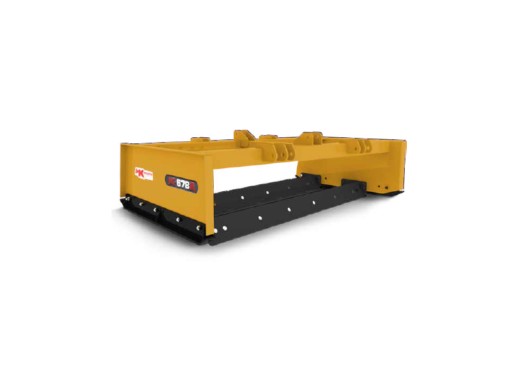

MK Martin | Angled Grader Leveler | Models GL578A To GL878A | Width 60" To 96" | 9° Fixed Blade Angle | 3-Point Hitch Mount | For Tractors
DESCRIPTION
Take control of rough terrain, potholes, and hard-packed driveways with the MK Martin Angled Grader Leveler your go-to solution for fast, effective, and professional-grade land leveling. Built tough for acreage owners, landscapers, and contractors, this tractor land leveler features a dual-blade system that simultaneously cuts, grades, and fills in a single pass.
Whether you're maintaining gravel driveways, regrading laneways, or smoothing out yards, the rigid-mounted angled cutting blades (fixed at 9°) dig into uneven surfaces with precision. The 3-point hitch (3PH) mount ensures quick compatibility with compact and utility tractors, giving you the flexibility to level and finish surfaces without extra passes.
Engineered with abrasion-resistant skid shoes and reversible hardened cutting edges, the GL series combines long-lasting durability with field-proven performance. Available in working widths from 60" to 96", there’s a model to suit your needs, equipment, and terrain. Optional Skid Steer Mount available for even more versatility.
Key Features
- Dual Angled Cutting Blades (Fixed 9°) Two blades work in tandem to cut high spots and fill low areas, reducing the number of passes and saving time.
- 3-Point Hitch Compatibility Standard Category 1 & 2 3PH mount easily attaches to your compact or utility tractor.
- Built-In Flow-Over Design Material naturally redistributes as you move, eliminating the need to raise the leveler for dumping.
- Reversible Hardened Edges 1/2" thick cutting edges are reversible for extended wear life and cleaner cuts.
- AR400 Bolt-On Skid Shoes Glide across any surface while protecting both your implement and the ground underneath.
- Optional Skid Steer Mount Available adapter provides maximum flexibility for contractors using skid loaders.
- Ideal for Driveways, Laneways & Lots Built to tackle gravel roads, dirt pads, pasture paths, and compacted work sites.
Detailed Specifications
| Specification | GL578A | GL678A |
|---|---|---|
| Working Width | 60" | 72" |
| Overall Width | 65" | 77" |
| Weight (lbs) | 568 | 632 |
| Skid Shoes | 3/8" x 2" (Reversible) | 3/8" x 2" (Reversible) |
| Mouldboard Thickness | 1/4" | 1/4" |
| Cutting Edge | 1" to -0.5" Reversible Hardened | 1" to -0.5" Reversible Hardened |
| Blade Angle | 9° (Fixed) | 9° (Fixed) |
| Specification | GL778A | GL878A |
|---|---|---|
| Working Width | 84" | 96" |
| Overall Width | 89" | 101" |
| Weight (lbs) | 697 | 761 |
| Skid Shoes | 3/8" x 2" (Reversible) | 3/8" x 2" (Reversible) |
| Mouldboard Thickness | 1/4" | 1/4" |
| Cutting Edge | 1" to -0.5" Reversible Hardened | 1" to -0.5" Reversible Hardened |
| Blade Angle | 9° (Fixed) | 9° (Fixed) |
