Product Description
MK Martin | Gravity Box | Model MK 3200 | Width 96" | 320 To 450 Bushels Capacity| 14 GA Steel Hopper | Horsepower 120 – 150+ HP | For Tractors
DESCRIPTION

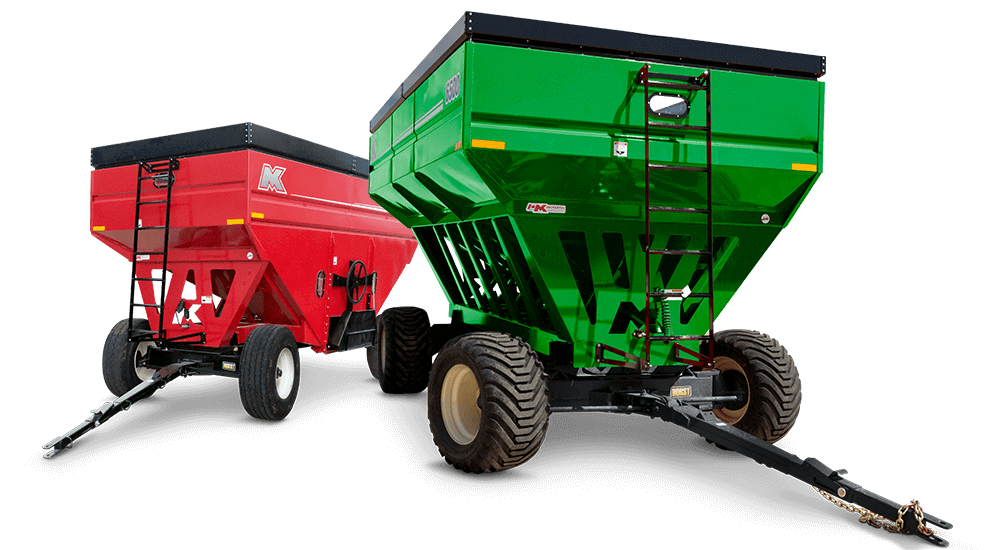

When it comes to reliable grain hauling, the MK Martin MK 3200 Gravity Box delivers unmatched performance and ease of use for farms of all sizes. Built with durable 14-gauge steel and mounted on proven Horst Wagon running gear, this gravity box provides smooth, consistent unloading for your harvested crops. Its smart design and rugged construction ensure your grain gets where it needs to go efficiently, safely, and without hassle.
The MK 3200 offers three capacity options (320, 375, and 450 bushels), making it the perfect solution whether you're managing smaller loads or looking to maximize payload. Equipped with a wide unloading door and adjustable metering system, you maintain full control over the flow of material, reducing spills and downtime. Climbing in to inspect or load is safer and easier with the front ladder’s angled design. Optional accessories like the Grain Shield Tarp Kit and road lights add extra protection and safety for your operation.
Perfect for farmers who demand rugged durability, operational efficiency, and adaptability, the MK Martin MK 3200 Gravity Box is built to keep your harvest moving smoothly season after season.
Key Features
- Versatile Capacities (320 - 450 bushels): Tailor your grain hauling with three different sizes for maximum operational flexibility.
- Heavy-Duty 14 GA Hopper Construction: Robust steel walls ensure durability and longevity under harsh farming conditions.
- Wide Unloading Door with Metering: Achieve smooth, controlled grain flow and reduce unloading time.
- Proven Horst Wagon Running Gear: Reliable 275 Horst wagon with 425/22.5 tires provides superior stability and towing performance.
- Angled Front Ladder: Easy, safe access for inspection and loading without strain.
- Optional Grain Shield Tarp Kit: Protects grain from weather and wind with a quick, ratchet-free locking system.
- Built-In Road Lights: Enhance safety during transport on public roads.
- Sight Windows: Conveniently monitor grain levels without opening the box.
- Optional Extensions Available: Increase capacity easily with extension kits, reducing trips and boosting efficiency.
Detailed Specifications
| Feature | MK 3200 (320 Bushels) | MK 3200 (375 Bushels) | MK 3200 (450 Bushels) |
|---|---|---|---|
| Capacity (Bushels) | 320 | 375 | 450 |
| Hopper Construction | 14 GA Steel | 14 GA Steel | 14 GA Steel |
| Under Structure | 3" x 6" x .188" Rectangular Tube | 3" x 6" x .188" Rectangular Tube | 3" x 6" x .188" Rectangular Tube |
| Unloading Door Width | 45" | 45" | 45" |
| Chute Height | 17"–20" | 17"–20" | 17"–20" |
| Box Length | 158" | 158" | 158" |
| Box Width | 96" | 96" | 96" |
| Height (Less Wagon) | 78" | 78" | 78" |
| Height (With Wagon & Tires) | 102" | 102" | 102" |
| Weight (LBS) | 1,980 | 2,130 | 2,270 |
| Wheel Base | 112" | 112" | 112" |
| Suggested Wagon | 275 Horst Wagon - 425/22.5 Tires | 275 Horst Wagon - 425/22.5 Tires | 275 Horst Wagon - 425/22.5 Tires |
