Orsi

Orsi Hitch Mulcher 3Pt | Model SSF Series | Working Width 60" To 78" | Horsepower 100-110 HP | For Tractors

Orsi Hitch Mulcher 3Pt | Model SSF Series | Working Width 60" To 78" | Horsepower 100-110 HP | For Tractors

Regular price $16,266.00
Regular price Sale price $16,266.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • High Cutting Capacity: Mulches trees and shrubs up to 9 inches in diameter.
  • Durable Construction: Built entirely with Swedish Hardox steel, ensuring resistance to wear and maximum longevity.

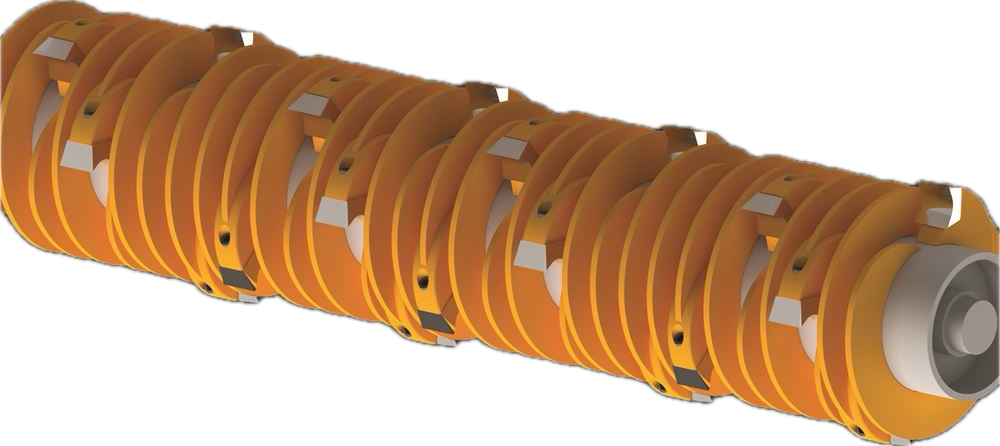

  • Advanced Rotor Technology: Incorporates Flanges Tool Limiter (FTL) for reduced power demand and consistent cutting efficiency.
View full details

Product Description

Orsi Hitch Mulcher 3Pt | Model SSF Series | Working Width 60" To 78" | Horsepower 100-110 HP | For Tractors

DESCRIPTION

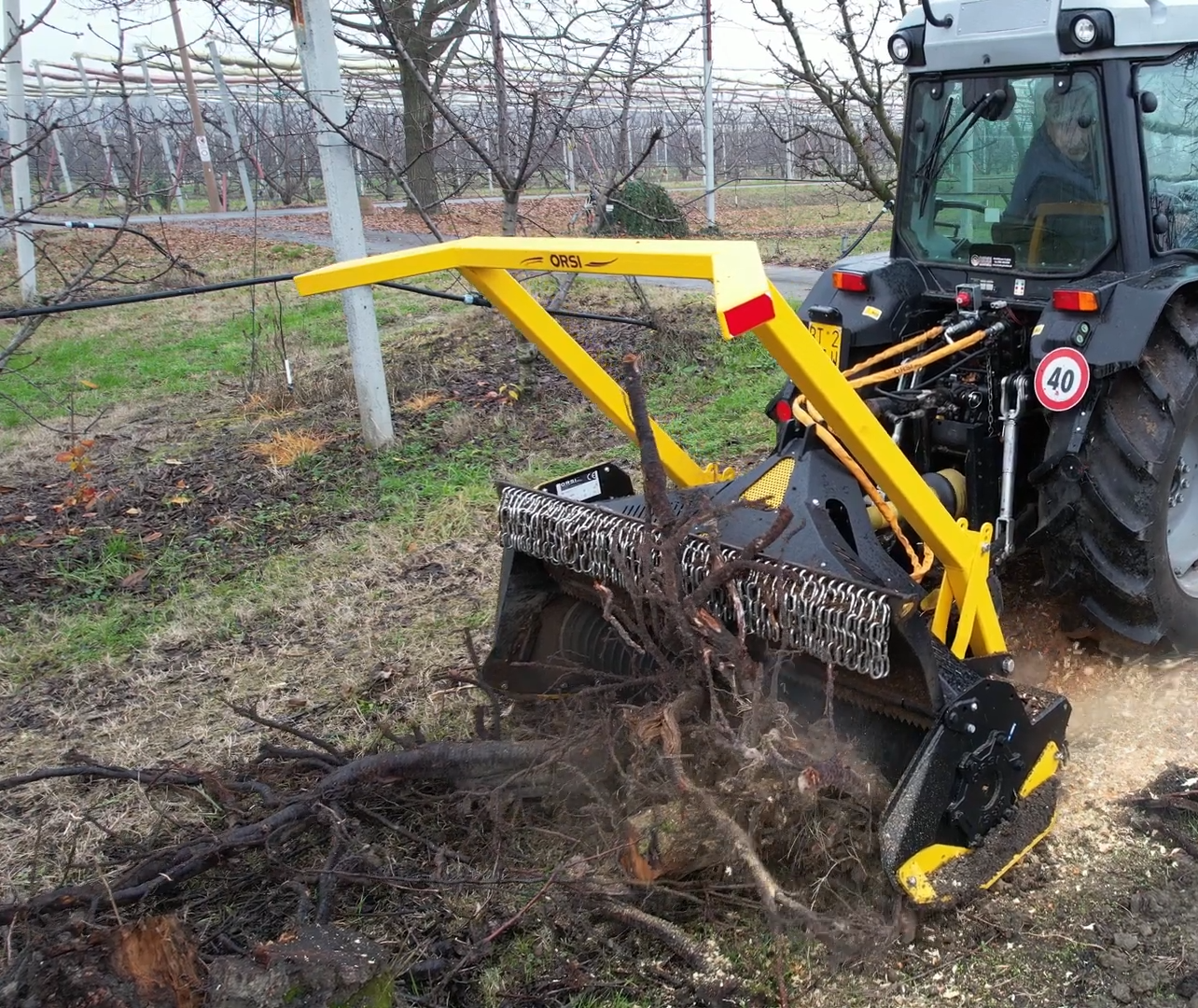

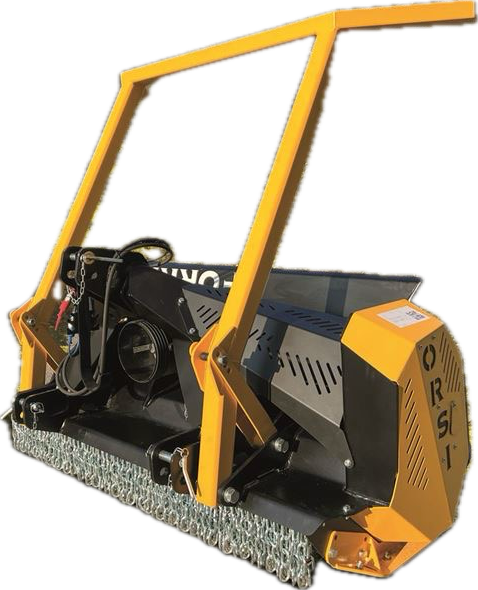

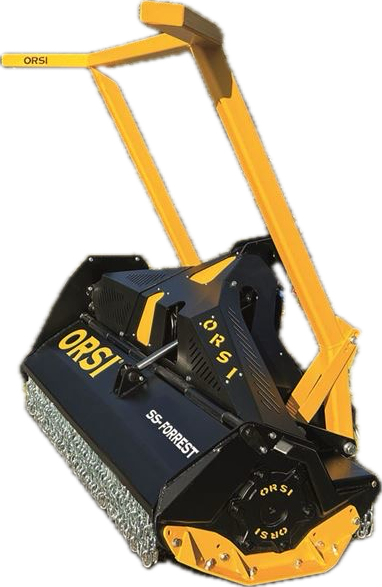

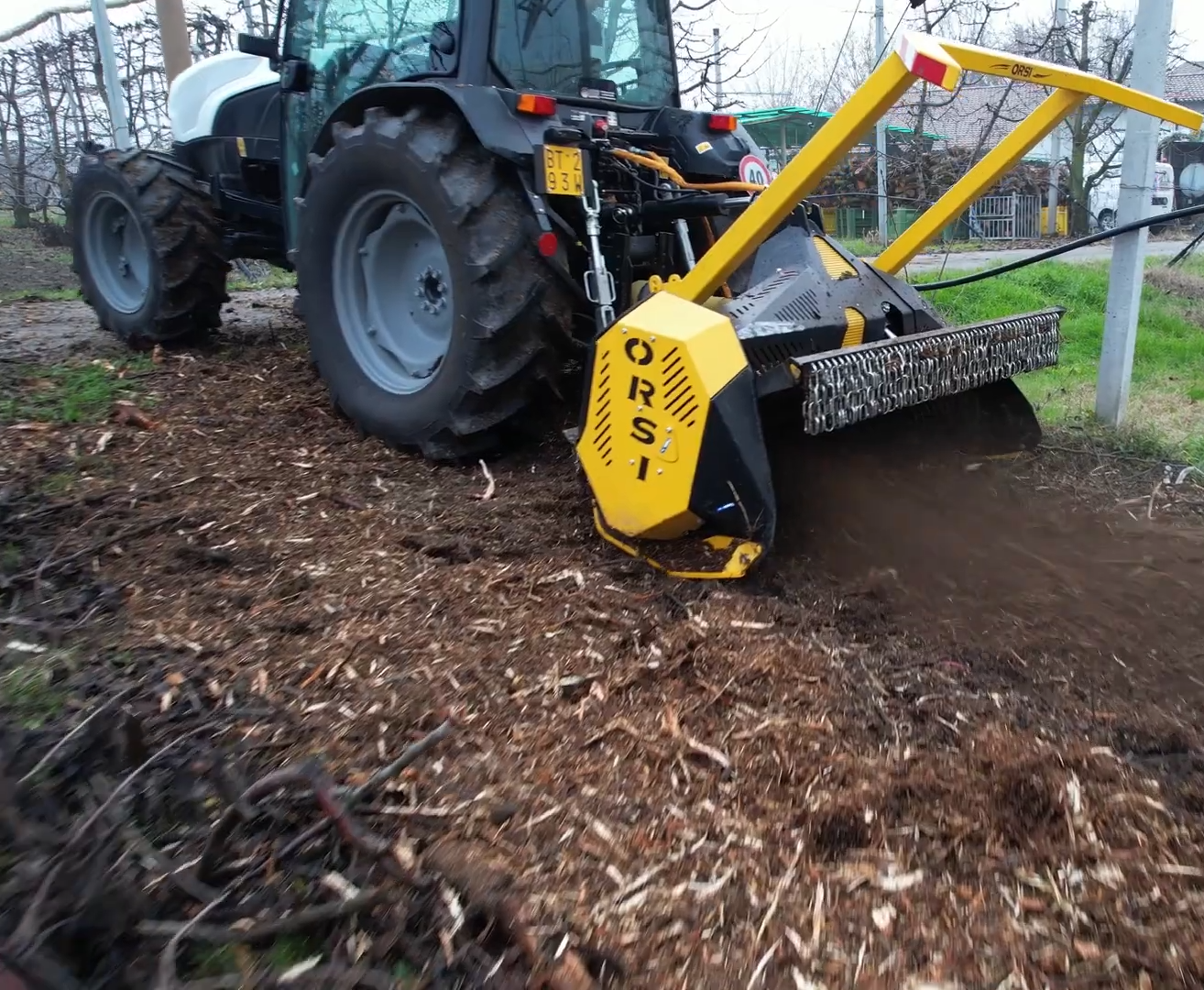

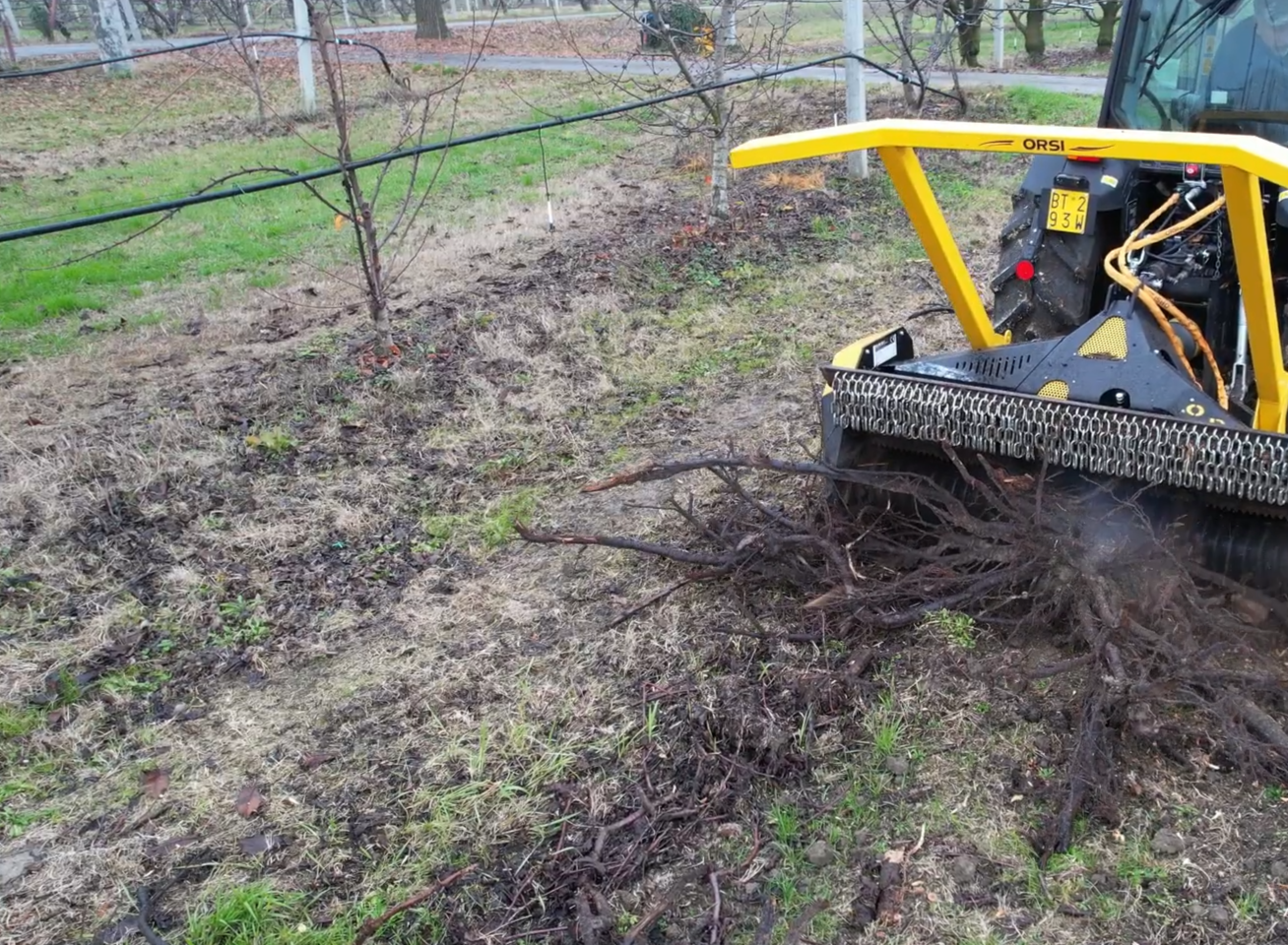

The ORSI MULCHER TRACTOR 3PT HITCH attachments are forestry mulchers designed for tractors used in the construction industry. These attachments are constructed using 100% Swedish Hardox steel and feature robust T17 teeth or two-sided carbide teeth for enhanced performance. They are capable of mulching trees and shrubs up to 9" in diameter. The innovative Flanges Tool Limiter (FTL) technology reduces power demand and ensures maximum performance by limiting the depth of the cutting tools. The attachments come equipped with adjustable support slides, four rows of counter-knives for fine and homogeneous shredding, and a hydraulically adjustable hood. The double row of screwed chains and mechanically adjustable arch provide additional safety and efficiency by limiting the escape of shredded material and aiding in the feeding of material into the rotor. The hydraulic rear tailgate, adjustable skids, and reflectors enhance the usability and safety of the attachments.

Key Features

  • Maximum Horsepower Compatibility:
    • SSF150 Series: Designed for tractors with up to 100 HP.
    • SSF175 and SSF200 Series: Handles tractors up to 110 HP for more demanding tasks.
  • High Cutting Capacity: Mulches trees and shrubs up to 9 inches in diameter.
  • Durable Construction: Built entirely with Swedish Hardox steel, ensuring resistance to wear and maximum longevity.
  • Advanced Rotor Technology: Incorporates Flanges Tool Limiter (FTL) for reduced power demand and consistent cutting efficiency.
  • Efficient Shredding: Features four rows of counter-knives inside the frame for fine and homogeneous material shredding.
  • Adjustability Features: Hydraulic rear tailgate for improved material control. Adjustable skids to cater to various operating heights. Mechanically adjustable arch for feeding materials into the rotor effectively.
  • Enhanced Safety: Double row of screwed chains prevents debris from escaping. Reflectors for better visibility during operation. Oscillating bearings with a double column of balls for rotor stability.
  • Transmission System: Equipped with an automatic belt tensioner to maintain optimal performance.
  • PTO Speed: Standard 540 rpm, with a rotor speed of 2531 rpm for efficient mulching.

Detailed Specifications

ORSI Mulcher Tractor 3PT Hitch Attachments

Feature SSF150FTLPTO SSF150FTLPTOCB SSF175FTLPTO SSF175FTLPTOCB SSF200FTLPTO SSF200FTLPTOCB
Machine Size Min 65 HP, Max 100 HP Min 65 HP, Max 100 HP Min 65 HP, Max 110 HP Min 65 HP, Max 110 HP Min 70 HP, Max 110 HP Min 70 HP, Max 110 HP
Working Width 60 inches 60 inches 69 inches 69 inches 78 inches 78 inches
Cutting Capacity Up to 9 inches in diameter Up to 9 inches in diameter Up to 9 inches in diameter Up to 9 inches in diameter Up to 9 inches in diameter Up to 9 inches in diameter
Rotor Teeth Type T17 Teeth Two-Sided Carbide Teeth T17 Teeth Two-Sided Carbide Teeth T17 Teeth Two-Sided Carbide Teeth
Material Swedish Hardox Steel Swedish Hardox Steel Swedish Hardox Steel Swedish Hardox Steel Swedish Hardox Steel Swedish Hardox Steel
Rotor Technology Flanges Tool Limiter (FTL) Flanges Tool Limiter (FTL) Flanges Tool Limiter (FTL) Flanges Tool Limiter (FTL) Flanges Tool Limiter (FTL) Flanges Tool Limiter (FTL)
Safety Features Double Row Screwed Chains, Reflectors Double Row Screwed Chains, Reflectors Double Row Screwed Chains, Reflectors Double Row Screwed Chains, Reflectors Double Row Screwed Chains, Reflectors Double Row Screwed Chains, Reflectors
Shredding Efficiency 4 Counter-Knives 4 Counter-Knives 4 Counter-Knives 4 Counter-Knives 4 Counter-Knives 4 Counter-Knives
Transmission Automatic Belt Tensioner Automatic Belt Tensioner Automatic Belt Tensioner Automatic Belt Tensioner Automatic Belt Tensioner Automatic Belt Tensioner
Adjustability Hydraulic Rear Tailgate, Adjustable Skids, Mechanical Arch Hydraulic Rear Tailgate, Adjustable Skids, Mechanical Arch Hydraulic Rear Tailgate, Adjustable Skids, Mechanical Arch Hydraulic Rear Tailgate, Adjustable Skids, Mechanical Arch Hydraulic Rear Tailgate, Adjustable Skids, Mechanical Arch Hydraulic Rear Tailgate, Adjustable Skids, Mechanical Arch
PTO Speed 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm 540 rpm
Rotor Speed 2531 rpm 2531 rpm 2531 rpm 2531 rpm 2531 rpm 2531 rpm


Key Differences Between Models

  • Attachment Working Width:
    • SSF150 Models: Feature a working width of 60 inches, ideal for smaller applications.
    • SSF175 Models: Provide a wider working width of 69 inches.
    • SSF200 Models: Offer the largest working width of 78 inches, suited for large-scale mulching tasks.
  • Horsepower Compatibility:
    • SSF150 Models: Designed for tractors with a maximum of 100 HP.
    • SSF175 and SSF200 Models: Accommodate tractors with a maximum of 110 HP, suitable for more demanding conditions.
  • Teeth Type:
    • All models come with T17 teeth in their standard versions and Two-Sided Carbide Teeth in their "CB" versions, providing flexibility based on cutting requirements.
  • Application Range:
    • The SSF200 Models are best suited for heavier-duty tasks due to their extended width and higher horsepower capacity, while the SSF150 Models are designed for medium-duty tasks with smaller tractors.

Manual & Documents

Product Brochure

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
