Product Description
PH Outdoors G3 3' G5 5' G8 8' G10 10' RTP Genesis No Till Drills 3pt / Pull Type | Model G-Series 3'-10' | For Tractor / ATV/UTV
Included Options:
Suitcase Weight kits are available for all G5, G8 & G10 Units.
They are $175/each 70lb weight!
DESCRIPTION

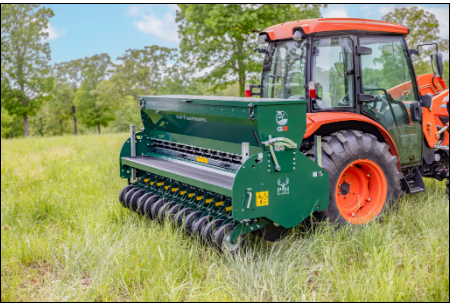

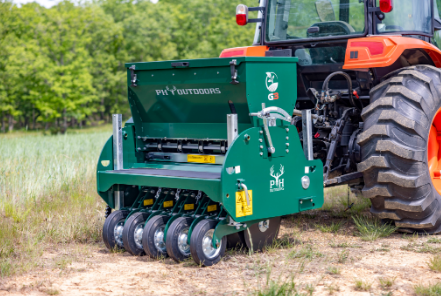

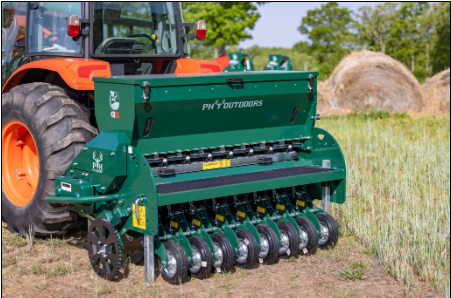

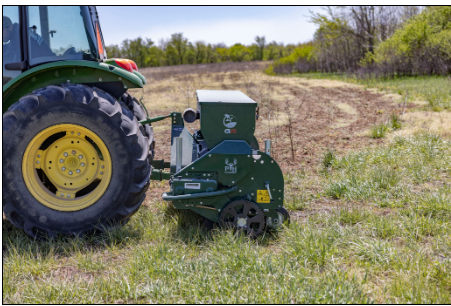

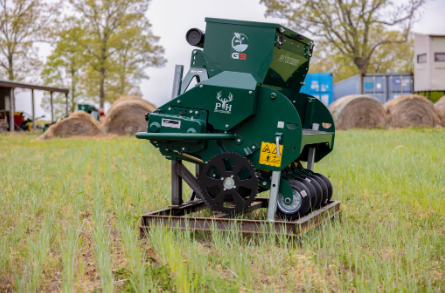

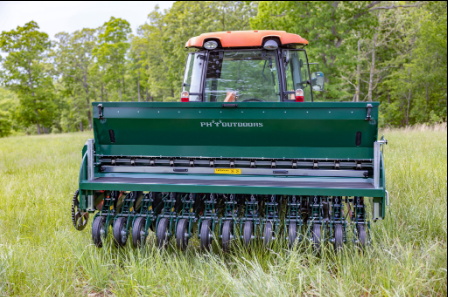

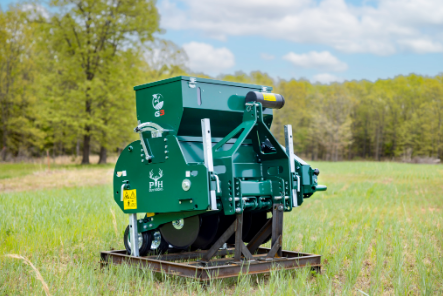

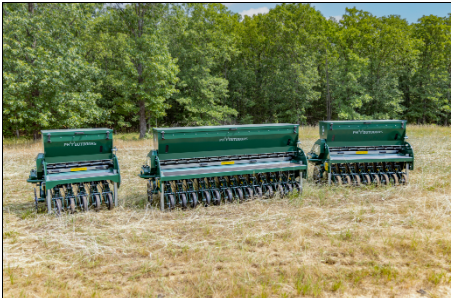

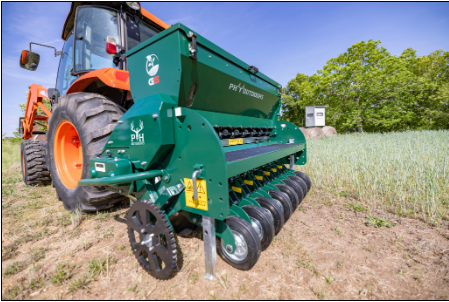

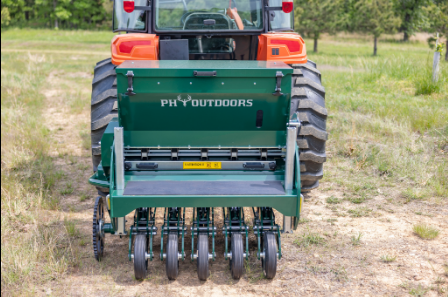

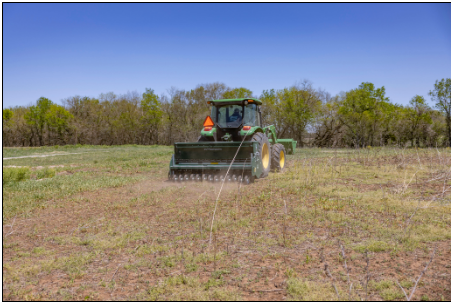

The PH Outdoors RTP Genesis No-Till Drills - G-Series provides a complete solution for efficient, large-scale planting across various terrain types. From the compact G3 for UTVs to the powerful G10 for large tractors, each model is designed for optimal performance in creating food plots, enhancing soil health, and minimizing tillage. The G-Series drills are compatible with both 3-point and pull-type tractor attachments, making them versatile for different setups.

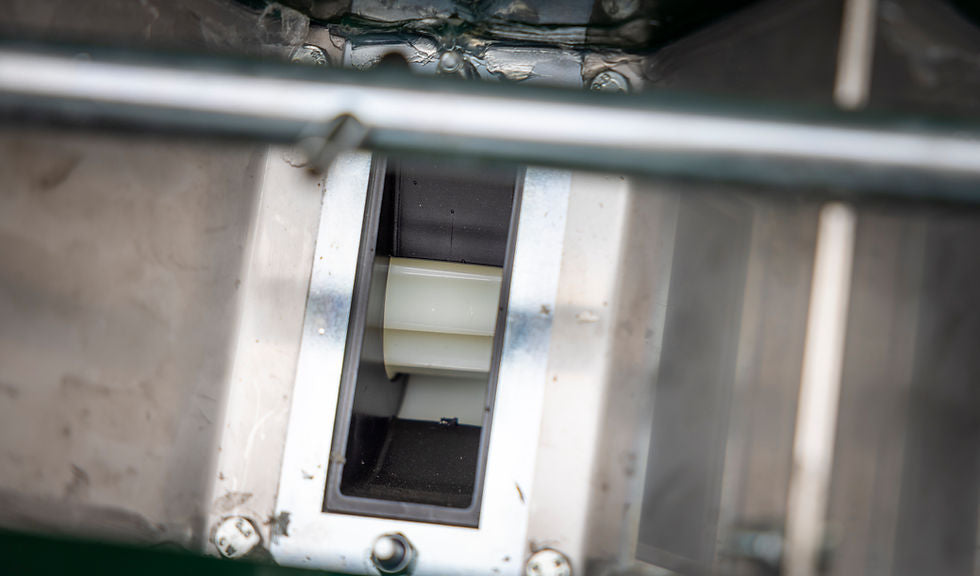

Equipped with an infinitely variable gearbox, steel drive wheels, and a digital acreage counter, these drills ensure precision, efficiency, and ease of use. The white seed metering element provides easy visibility for maintenance, and depth adjustment pins make field adjustments quick and tool-free. Optional accessories, including hydraulic kits and suitcase weights, further enhance the performance and adaptability of these drills for professional habitat management and agricultural applications.
Key Features

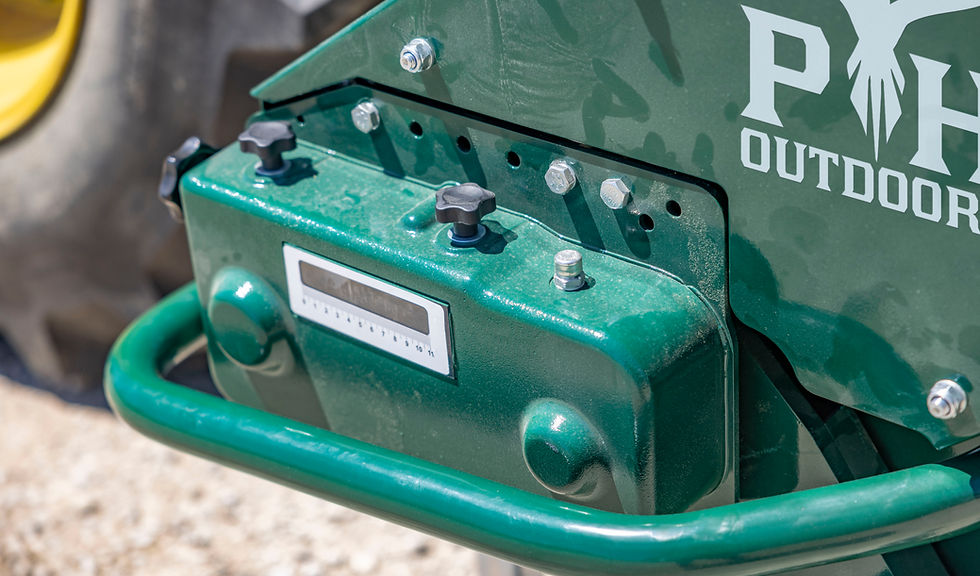

- Precision Seeding: Infinitely variable gearbox allows precise seeding rates for diverse seed types.

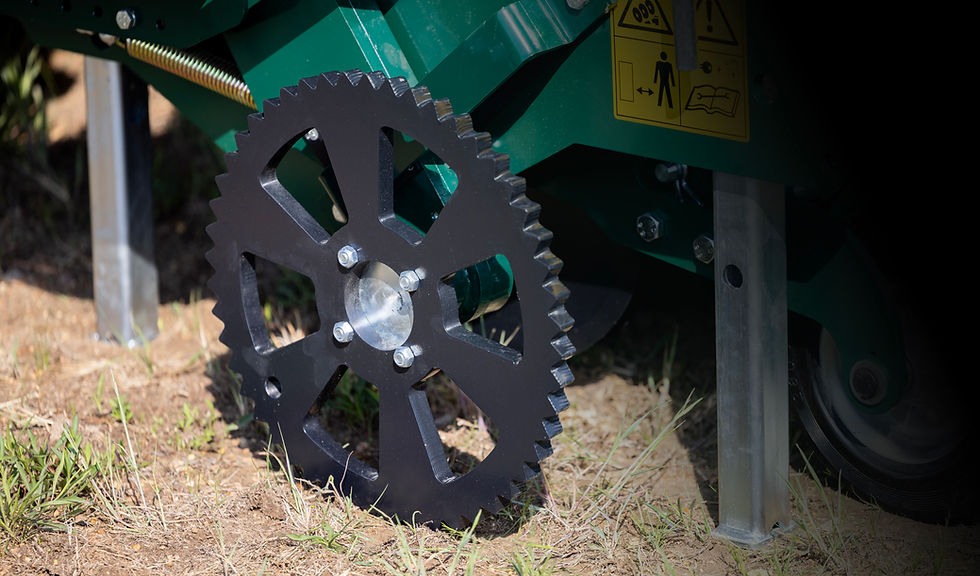

- Sturdy Steel Drive Wheel: Prevents slipping for consistent performance in various ground conditions.

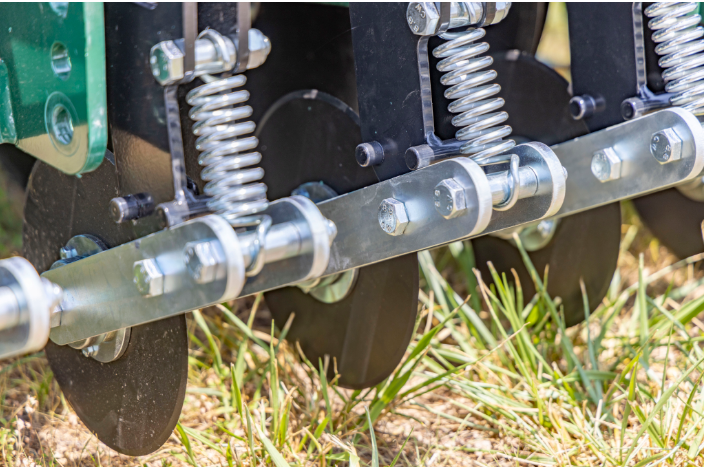

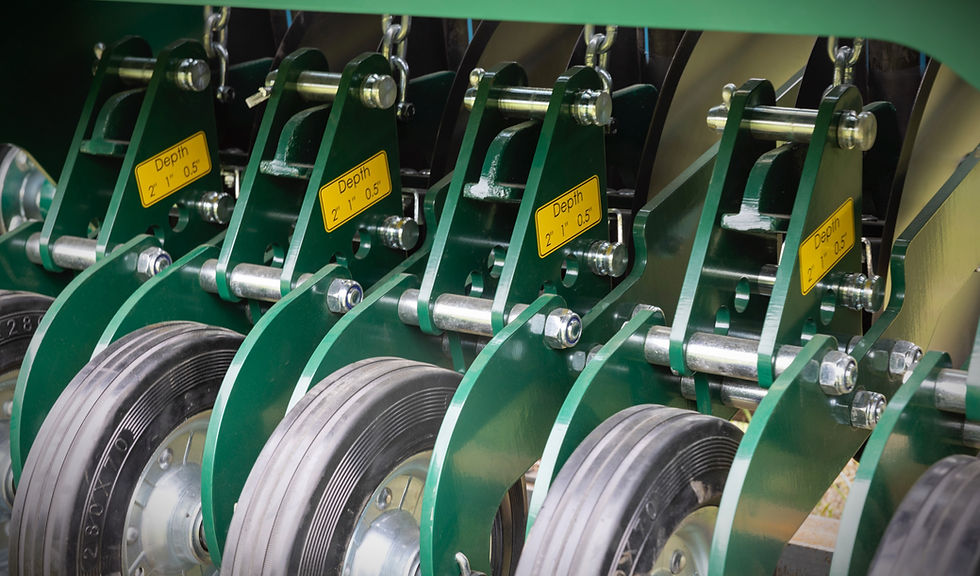

- User-Friendly Design: Depth adjustment pins and bolt-on elements for simple maintenance.

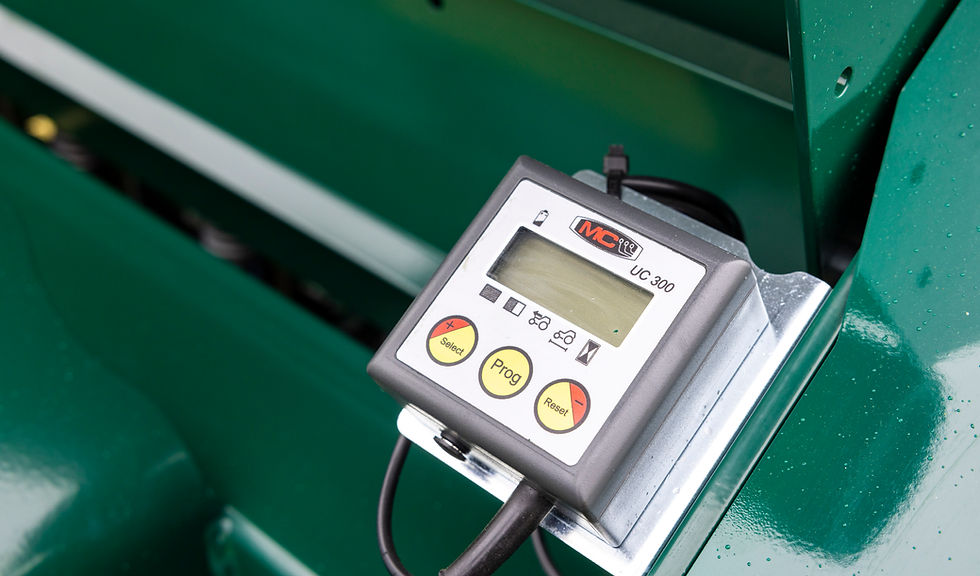

- Digital Acreage Counter: Track individual plot coverage, total acreage, and lifetime acreage.
- Flexible Setup: Available for 3-point or pull-type attachment with optional weight bar for added stability.
G-Series Accessories
Weights
Our weights can be added to the G5, G8 and G10 if you have ground conditions that require more depth to get the proper planting depth.

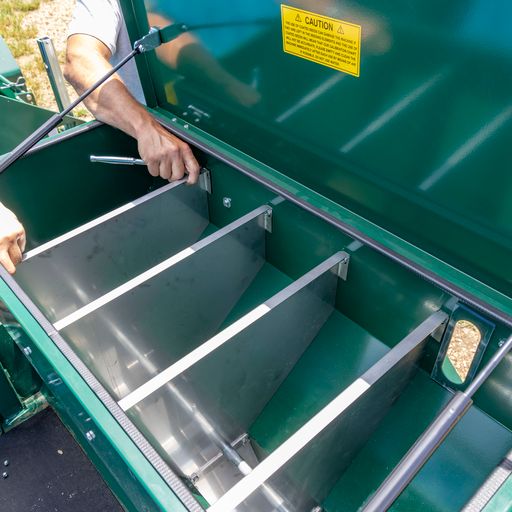

Hopper Dividers
Hoppers dividers are an exclusive accessory for the G-Series. They can be used to plant different row spacings, plant different seeds in different rows, or used to make sure seed stays above each seeding element if planting hill sides.
Front Cutters
Front Cutters can be added to your G-Series No Till Drill if you encounter tough ground conditions that make it hard to achieve your required depth.
Wheel Kit
Wheels kits are available for every size G-Series. These can be used if your tractor does not have the lift capacity, or in the case of the G3, can be used with a UTV.

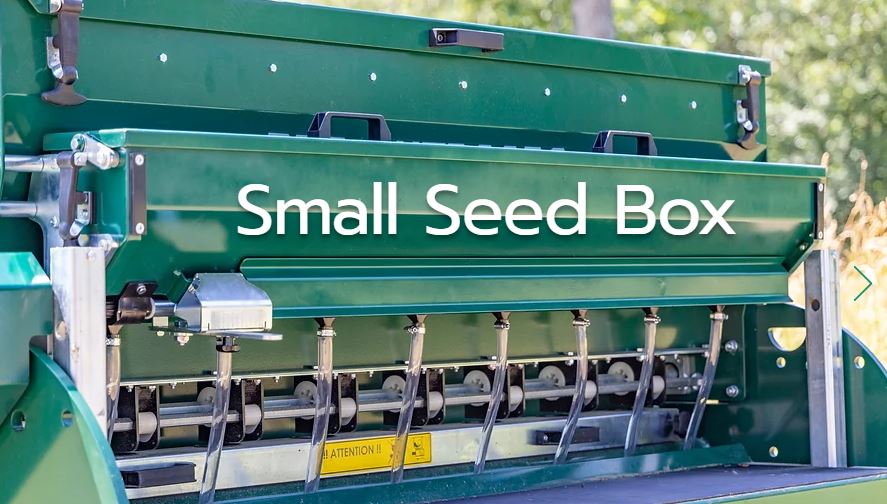

Small Seed Box
Although the main seed box on the G-Series can handle all seed sizes, the small seed box is an option if you want to seed at very low rates, and drop the seed right in front of the packing wheel, making it easier to plant shallower.
Seed Row Cover Plate
The Seed Row Cover Plate can be used to block off planting rows to achieve spacings, such as 15", 22.5", and 30".
Hydraulic Kit (G3 Only)
The Hydraulic Kit can be added to a G3 with Wheel kit if the machine is being used with a UTV.
Shallow Seed Bushing Kit
The Shallow Seed Bushing Kit is available to better control the seed depth of small seeds in some ground conditions.
Detailed Specifications
| Model | G3 | G5 | G8 | G10 |
|---|---|---|---|---|
| Working Width | 3' | 5' | 8' | 10' |
| Planting Rows | 5 | 9 | 13 | 16 |
| Row Spacing | 7.5" | 7.5" | 7.5" | 7.5" |
| Capacity | 4.8 Bushels | 6.5 Bushels | 12 Bushels | 15.3 Bushels |
| Acreage Per Hour | 2.8 Acres | 4.5 Acres | 7 Acres | 9 Acres |
| Weight | 1,265 lbs | 1,825 lbs | 2,668 lbs | 4,761 lbs |
|
Calibration Multiplier |
129 | 80 | 50 | 41 |
| Required HP | 30hp Tractor / 800cc UTV | 50hp | 65hp | 120hp |
|
Weight Bar Capacity |
Optional | Optional | 1,540 lbs | 1,860 lbs |
Manuals & Documents
G3 Parts Manual
G5 Parts Manual
G8 Parts Manual
G10 Parts Manual
G-Series Calibration Manual
Operators Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

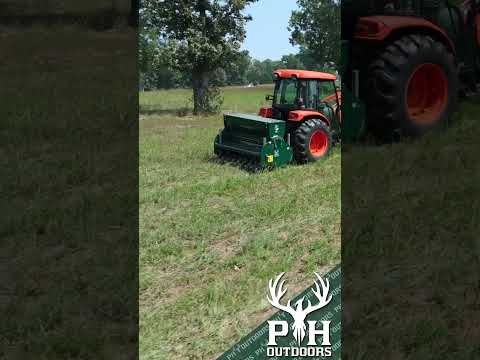

Videos
