Platinum Finishing Paint Booth Systems

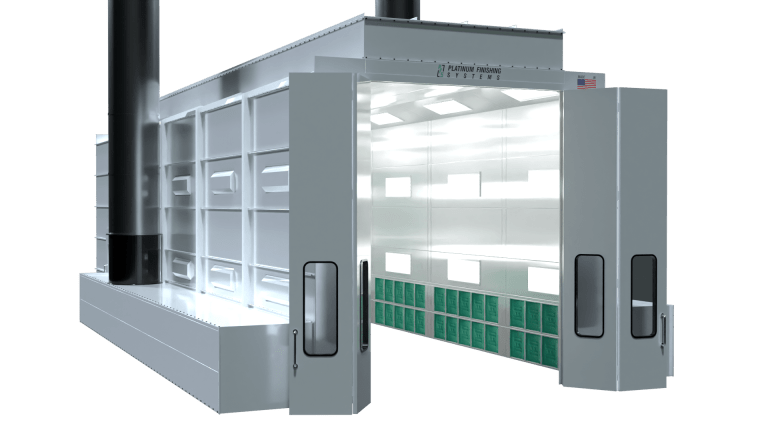

Platinum Finishing Paint Booth Systems Industrial Size Platinum Edition Truck Side Down Draft Paint Booth

Platinum Finishing Paint Booth Systems Industrial Size Platinum Edition Truck Side Down Draft Paint Booth

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Efficient Side Downdraft Design: Draws air downward and exhausts it through side vents, ideal for spaces without a pit.
  • Certified Safety Standards: Meets NFPA-33, OSHA, and ETL requirements, ensuring compliance and safe operations.
  • Robust Construction: Made from 18-gauge galvanized prime steel for durability and corrosion resistance.
  • Customizable Features: Options for powder coating, height extensions, upgraded LED lighting, and more.
  • Versatile Application: Perfect for cars, trucks, vans, specialty vehicles, and large parts.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Platinum Finishing Paint Booth Systems Industrial Size Platinum Edition Truck Side Down Draft Paint Booth

Included Options:

  • Tri-fold Doors
  • Upgraded LED lighting
  • Double Wall insulated panels
  • Viewing windows
  • Filtration systems
  • Cooling systems (on applicable models)
  • Heating systems (on applicable models)
  • Humidity Controls (on applicable models)
  • Motor upgrades
  • Roof height extensions
  • Powder coating

DESCRIPTION

Our Side Downdraft paint booth is the ideal solution for those unable to install a pit. The airflow in this booth is directed downward, and the air is then exhausted through the sides of the booth.

Standard Industrial Side Down Draft Paint Package Included:

Industrial Booths are equipped with the following:

Our booths meet the rigorous safety standards outlined in NFPA-33, the highest-level safety code in the USA for the spray application of flammable or combustible materials.

These models have undergone thorough testing and hold certification as ETL-Certified Booths by Intertek/ETL (Edison Testing Labs). They are also recognized by OSHA (Occupational Safety & Health Administration) as NRTLs (Nationally Recognized Testing Laboratories). This certification is often required by local authorities to ensure safe operation and regulatory compliance.

Rest assured, ETL certification is included with your purchase!

ETL Certification included with your purchase

Key Features

  • Efficient Side Downdraft Design: Draws air downward and exhausts it through side vents, ideal for spaces without a pit.
  • Certified Safety Standards: Meets NFPA-33, OSHA, and ETL requirements, ensuring compliance and safe operations.
  • Robust Construction: Made from 18-gauge galvanized prime steel for durability and corrosion resistance.
  • Customizable Features: Options for powder coating, height extensions, upgraded LED lighting, and more.
  • Versatile Application: Perfect for cars, trucks, vans, specialty vehicles, and large parts.
  • Easy-to-follow assembly instructions for quick installation.
  • UL-approved components for optimal safety.
  • Customizable to suit specific needs.
  • Doors: 15’ high x 11’ wide, with filtered front doors and a personnel entry door.
  • Filters: 20” x 20” fiberglass and blanket-type filters for superior air filtration.
  • Panels: Precision-machined, air-tight galvanized steel fastened with 5/16" bolts.
  • Lighting: LED or T8 four-tube light fixtures (ETL-listed).
  • Fans: Tube axial fans with spark-resistant blades, motor sizes vary based on booth dimensions.
  • Compliance: Meets NFPA-33 and OSHA guidelines.
  • Optional features: Powder coating, heaters, height extensions, and more.
  • Assembly instructions.
  • UL approved components.
  • We can customize to meet your requirements
  • Doors: 15' high x 11' wide entrance doors with filtered front doors & Personnel Door.
  • Filters: 20" x 20" Fiber Glass and Blanket Type filters
  • Panels: Air-tight, 18 gauge galvanized prime steel fastened with 5/16" bolts.
  • Lighting: LED Lighting or T8 Lighting four tube 4’Light fixtures ETL listed
  • Fans: Tube Axial Fans with non-sparking blades Motor Sizes Vary with booth size.
  • Meets NFPA 33 & OSHA 1910 guidelines (check your local codes for local permit requirements)
  • Optional: Powder coating, height extensions, LED lighting.
  • All quality components proudly made in the USA!
  • Optional Heater 1.0MBTU burner with spray, bake and cool downs

Why Choose PFS Truck Side Down Draft Booths?

The Industrial Side Downdraft paint booth is a highly effective and popular configuration. It draws intake air through the filtered ceiling and exhausts it from the sides of the booth. This versatile booth is suitable for cars, trucks, vans, parts, and more. Tri-fold doors are available for accommodating larger items.

PFS designs and manufactures all paint booth models in-house, ensuring efficiency and compliance with industry standards. Whether you’re using solvent-based, waterborne, or a combination of coatings, PFS offers comprehensive solutions. We can create a custom booth tailored to your specific needs and requirements, all while exceeding NFPA, OSHA, and ETL requirements.

  • ETL listed manufacturer
  • Best pricing in the industry
  • Lowest lead times in the industry
  • Fully customizable paint booths
  • Certified in all US states
  • Exceed all local and national  codes
  • Modular paint booths can be expanded
  • National service and installation

Design and Construction

At PFS, all our paint booths are crafted from durable 18GA galvanized steel and precision-machined using CNC equipment. This ensures a perfect fit and finish, accompanied by straightforward assembly instructions. Our booths feature a hassle-free assembly process with nut, bolt, and self-tapper components for easy installation.

Moreover, our paint booths undergo a powder coating process, making them resistant to corrosion and UV damage. This not only enhances durability but also results in a brilliant white finish, improving visibility both inside and outside the booth.

Quality Products

All our spray booths are proudly crafted in-house at our Santa Rosa, CA facility. We oversee every step of the manufacturing process, guaranteeing the industry’s finest spray booth quality at competitive prices. Each element of your booth is meticulously designed and tailored to precise specifications.

What’s more, we hold ETL listings and approvals across all jurisdictions, streamlining the approval process and ensuring a faster return on investment (ROI).

Air Filtration

PFS employs a cutting-edge “high-velocity” exhaust system, which is enhanced by fiberglass exhaust filters to create a pristine, dust-free environment. Every booth we ship comes equipped with standard 20×20 heavy-duty fiberglass exhaust filters and tacky intake filters.

Fans and Motors

PFS fan and motor packages are sourced from the renowned U.S. manufacturer Grainger’s. These packages are proudly U.S. manufactured and boast AMCA certification, spark-resistant aluminum blades, and high-efficiency 3-phase and 1-phase motors with 208/230/460v compatibility.

Our belt-driven tube axial fans feature a streamlined belt tunnel that draws in outside air to ventilate the drive compartment efficiently. The steel housing undergoes an iron phosphate process for rust protection and is finished with a durable acrylic epoxy paint. The factory-installed cast-iron sheave is directly assembled on the fan shaft. When you order the complete fan with drive package, motors and belts are packed separately.

Rest assured, these fan and motor packages are engineered for exceptional longevity, surpassing any other combination in the market.

Parts and Accessories

PFS paint booths are shipped complete with all essential components, including nuts, bolts, gaskets, caulking, tempered glass for light covers, detailed instruction manuals, assembly drawings, wiring diagrams, parts manuals, and a comprehensive parts list that outlines every included item.

Made in the USA

At PFS, we take pride in our in-house manufacturing of paint booths and enclosures, ensuring top-notch quality and competitive pricing. We are committed to ongoing innovation and design enhancements to meet local and national codes and requirements. Contact us today to discuss a custom solution for your next project!

Detailed Specifications

Feature Details
Construction Material 18-gauge galvanized prime steel
Dimensions Customizable based on your needs
Door Dimensions 15' high x 11' wide with tempered glass windows and personnel access door
Air Filtration 20" x 20" fiberglass and blanket-type filters
Lighting LED or T8 four-tube light fixtures (ETL-listed)
Fan Type Tube axial fans with spark-resistant aluminum blades
Compliance Standards NFPA-33, OSHA 1910, ETL certification
Optional Features Powder coating, LED lighting upgrades, height extensions, heaters, etc.

In Package

  • Side Downdraft Paint Booth panels and structural components.
  • Tube axial fans with motors and belts (shipped separately for easy installation).
  • 20” x 20” heavy-duty fiberglass exhaust filters and tacky intake filters.
  • LED or T8 light fixtures with tempered glass covers.
  • Comprehensive assembly instructions and wiring diagrams.
  • Nuts, bolts, gaskets, caulking, and other required hardware.
