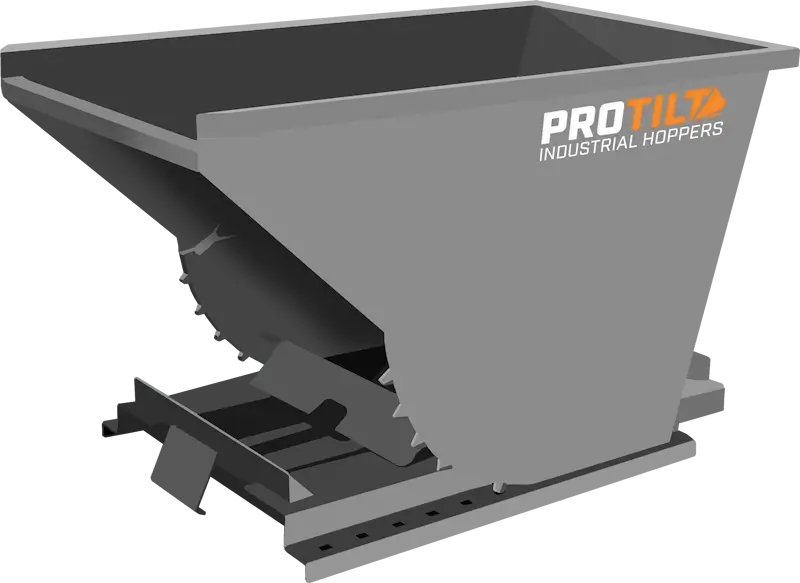

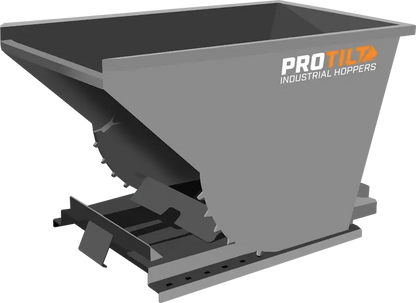

The PROTILT Heavy-Duty Self-Dumping & Bump Release Hopper is designed for demanding industrial material handling applications requiring increased strength, capacity, and durability. Constructed with rugged 7-gauge steel walls and a heavy-duty reinforced body, these hoppers are built to withstand continuous use in manufacturing facilities, warehouses, recycling centers, construction sites, and scrap handling operations.
The precision-balanced PROTILT dumping mechanism ensures smooth, controlled unloading, while the bolt-on Bump-N-Dump release system provides reliable automatic discharge and easy field maintenance. Finished with a durable gray powder-coated surface, these hoppers deliver long-lasting performance in harsh industrial environments.
Key Features
7-Gauge Steel Construction: Heavy-duty steel walls provide superior structural strength for demanding applications.
PROTILT Dumping Mechanism: Precision-balanced design ensures smooth, controlled, and efficient material discharge.
Automatic Reset Function: Hopper returns to the locked position after dumping for improved productivity.
Multiple Capacity Options: Available from 1 to 6 cubic yard capacities for various material handling requirements.
Industrial Duty Performance: Ideal for manufacturing plants, warehouses, recycling facilities, foundries, and construction operations.
Technical Feature Keys
Heavy-Duty Steel Walls: 7-gauge steel construction maximizes durability and impact resistance.
Precision-Balanced Dumping: Engineered center of gravity promotes safe and controlled discharge.
Bolt-On Bump-N-Dump System: Serviceable design simplifies maintenance and component replacement.
7,000 lb Capacity Rating: Designed for high-volume industrial material handling operations.
Automatic Self-Dumping Action: Improves operational efficiency while reducing manual labor.
Forklift Compatible: Integrated fork pockets enable fast transportation and unloading.
Powder-Coated Protection: Durable finish extends equipment life in harsh working environments.
Reinforced Structural Frame: Built to withstand continuous industrial use.
Large Volume Configurations: Capacities range from 1 to 6 cubic yards.
Multi-Industry Application: Suitable for scrap, waste, recyclables, and bulk material collection.
Detailed Specifications
Model
Volume Capacity
Width
Height
Length
Weight Capacity
Approx. Weight
Hookup
1 Yard HD Self-Dumping Hopper
1 Cubic Yard
38 in
41 in
64 in
7,000 lbs
685 lbs
Fork Pockets
2 Yard HD Self-Dumping Hopper
2 Cubic Yards
61 in
46 in
70 in
7,000 lbs
915 lbs
Fork Pockets
3 Yard HD Self-Dumping Hopper
3 Cubic Yards
66 in
55 in
75 in
7,000 lbs
1,100 lbs
Fork Pockets
4 Yard HD Self-Dumping Hopper
4 Cubic Yards
87 in
55 in
75 in
7,000 lbs
1,330 lbs
Fork Pockets
5 Yard HD Self-Dumping Hopper
5 Cubic Yards
107 in
55 in
75 in
7,000 lbs
1,500 lbs
Fork Pockets
6 Yard HD Self-Dumping Hopper
6 Cubic Yards
124 in
57 in
79 in
7,000 lbs
1,650 lbs
Fork Pockets
