Product Description
Rinieri Orchard Shredder | TRL-B Series | Working Width 50"-88" inches | Horsepower 35-100 HP | For Tractors
DESCRIPTION

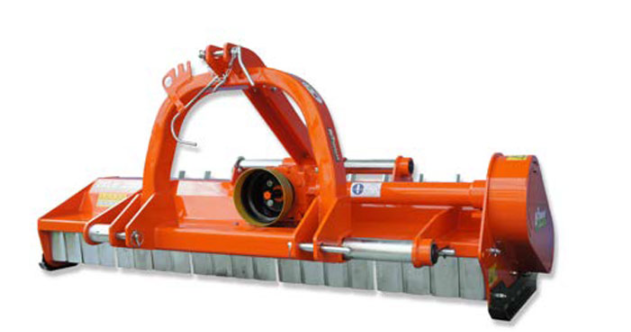

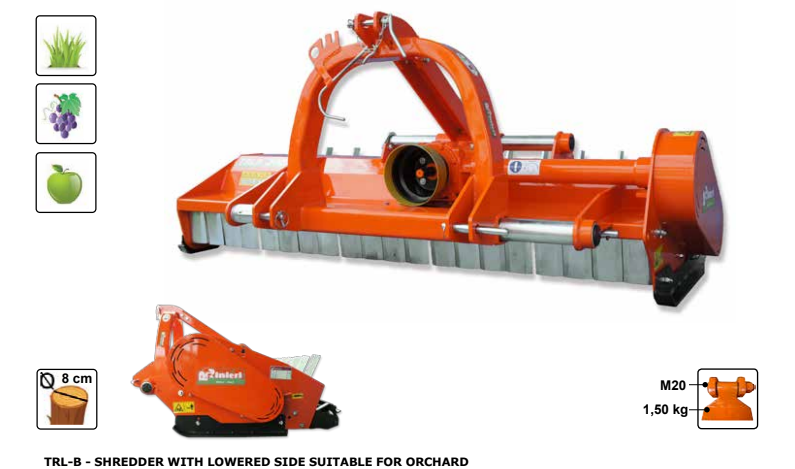

The Orchard Shredder TRL-B is a robust shredder designed for efficient branch pruning in orchards, capable of handling branches up to 8 cm (3.1 inches) in diameter. Equipped with heavy-duty 1.5 kg hammers, the TRL-B is ideal for cleaning under trees and working in orchards. It features lowered sides for better access in tight areas and comes with a Cat. 1-2 three-point hitch with manual side shifting for easy tractor attachment. The shredder is available in five different models, with working widths ranging from 125 to 225 cm, making it adaptable for various orchard sizes.
Key Features
- Effective Pruning: Designed for shredding branches up to 8 cm in diameter using 1.5 kg hammers.
- Lowered Side Design: Ideal for working under trees and in orchards with low-hanging branches.
- Sturdy Hitch: 3-point hitch CAT.1-2 with manual side shift for easy attachment to tractors.
- Durable Construction: Features a double body with shear teeth, brush rakes, and a rear roller for smooth operation.
- Safety Features: Equipped with front steel aprons, adjustable side skids, and a freewheel gearbox for safe operation.

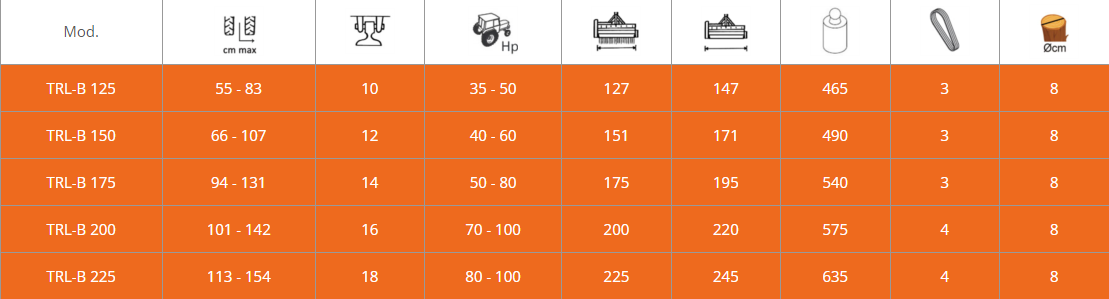

Detailed Specification
| Model | Displacement from Centre (cm) | Hammer Number (n°) | Required Horsepower (HP) | Working Width (cm) | Machine Width (cm) | Machine Weight (kg) | Belt Number (n°) | Cutting Power (cm) |
|---|---|---|---|---|---|---|---|---|
| TRL-B 125 | 55 - 83 | 10 | 35 - 50 | 127 | 147 | 465 | 3 | 8 |
| TRL-B 150 | 66 - 107 | 12 | 40 - 60 | 151 | 171 | 490 | 3 | 8 |
| TRL-B 175 | 94 - 131 | 14 | 50 - 80 | 175 | 195 | 540 | 3 | 8 |
| TRL-B 200 | 101 - 142 | 16 | 70 - 100 | 200 | 220 | 575 | 4 | 8 |
| TRL-B 225 | 113 - 154 | 18 | 80 - 100 | 225 | 245 | 635 | 4 | 8 |
