Roller Chopper Inline Triple Drum Renovator Pasture Aerator 8', 10' & 12' w/ 30", 36" & 42" Drum For Tractor Or Dozer
Roller Chopper Inline Triple Drum Renovator Pasture Aerator 8', 10' & 12' w/ 30", 36" & 42" Drum For Tractor Or Dozer
Roller Chopper Inline Triple Drum Renovator Pasture Aerator 8', 10' & 12' w/ 30", 36" & 42" Drum For Tractor Or Dozer
DESCRIPTION
Ideal for larger properties.
Tandem Drum unit was built to help tackle larger properties. Brush, shrubs, and smaller trees are no match for the Tandem unit. It can tackle any job by itself, making the need to rent or buy other equipment a thing of the past. In the same way that you can upgrade a Single Drum Renovator, the same upgrades are also available on our Tandem units with different seeder options available. Our Tandem units can be fully customized to fit your needs.
Our Tandem Drum units were built to tackle larger properties allowing you to cover twice the ground in half the time! Our units are equipped with Hardox 500 steel blades with a standard thickness of 1/2" x 6" x 8" - with an upgrade to 3/4" x 6" x 8" available. Drums come with 1/2" thickness with a 3" axle in 4140 steel extended throughout the drum. Drum sizes include 30", 36" and 42" options. All units include a heavy duty frame with a sprial blade design and come equipped with a swivel or tongue hitch. We offer triple drum unit configurations as well.
All of our units are customizable with additions available, including seeder packages and custom colors.
What is land renovation and why do I need it?
The main purpose of land renovation is to ensure that your land will be as prosperous and healthy as possible. Several factors, including your livestock, equipment, and weather conditions, can hinder your ability to maintain a healthy soil bed. The nutrients in the soil bed sustains your land’s vegetation, bringing your land to life. So, it is vital to keep this soil healthy and protected from the depletion of these nutrients.
The land renovator is designed to aerate, de-compact, create seed beds and control brush and weeds. This allows the soil to have better air flow, a soft soil structure ideal for water retention and root development and provides the proper conditions for the seeds to germinate. The Roller Chopper unit helps to prevent the spread of invasive species by keeping your land clear of cover that would otherwise allow them to make a home.

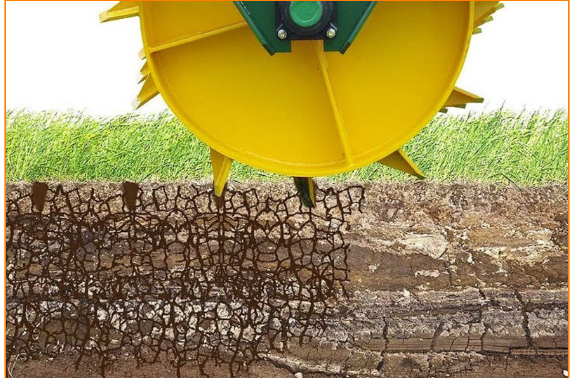

Soil compaction results in the loss of crops, grazing grass, hay, or foliage. When soil becomes compacted it creates “dry pan,“ a hard rock-like layer under the top soil that inhibits water saturation and stops the roots from receiving nutrients, water and oxygen. Dry pan also creates a barrier that stops seeds from rooting down far enough to become an established root. This results in the plant not being able to grow at all or dying quickly. Roller Chopper helps crack the dry pan allowing water, organic matter, and air to penetrate deeper, creating more stable and healthy seed beds for your crops.
SPECIFICATIONS
Drum size | HP |
# OF BLADES |
Total Width |
Empty Weight |
Filled Weight |
Empty Weight L |
Filled Weight L |
Axle |
30" X 8' |
120 RT OR 75 D |
128 |
9'6" | 14,685lbs | 18,850.2lbs | 19,758lbs | 24,030lbs |
3" |
30" x10' |
140 RT OR 90 D |
160 |
11'10" | 16,821lbs | 22,695lbs | 22,027.5lbs | 27,901.5lbs |
3" |
30" X 12' |
160 RT OR 100 D |
192 |
13'10" | 19,090.5lbs | 26,539.8lbs | 22,962lbs | 30,411.3lbs |
3" |
36" X 8' |
140 RT OR 90 D |
160 |
9'6" | 15,686.25lbs | 19,197.3lbs | 23,496lbs | 27,007.05lbs |
3" |
36" X 10' |
160 RT OR 100 D |
200 |
11'10" | 19,224lbs | 28,435.5lbs |
24,697.5lbs | 33,909lbs |
3" |
36 " x 12' |
180 RT OR 120D |
240 |
13'10" | 20,879.4lbs | 32,013.3lbs |
29,637lbs | 40,770.9lbs |
3" |
42" X 8' |
180 RT OR 100 D |
192 |
9'6" | 17,622lbs | 27,501lbs |
24,030lbs | 33,909lbs |
3" |
42" X 10' |
200 RT OR 120 D |
240 |
11'10" | 21,093lbs | 34,042.5lbs |
35,644.5lbs | 39,649.5lbs |
3" |
42" X 12' |
240 RT OR 145 D |
288 |
13'10" | 25,365lbs | 41,198.1lbs |
30,037.5lbs | 45,870.6lbs |
3" |
All Units come with option of Hydraulic Lifts. All Lift Systems have 4 wheels & 2 cylinders.
Tractor HP Requirements are calculated for a rubber tire tractor or caterpillar
UPGRADES
If you would like to further upgrade your Tandem Drum here are some Options:
- ¾” Blades – Upgraded from the Standard ½” Blades: ($16.00/each)
How To Get An Upgraded Quote:
-Option 1:
“Contact Us to make sure you are getting the best upgrades possible. These machines are complex so let us help you get exactly what you need!
-Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Click on the Chat button box that is in the bottom right of your screen
Step 3. Please tell us which Upgraded options you are looking for and the machine you plan to haul it with!
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
