Shakespeare

Shakespeare 390 23' Single Side Band Antenna NOT UPS SHIPPABLE [390]

Shakespeare 390 23' Single Side Band Antenna NOT UPS SHIPPABLE [390]

Regular price $349.99 USD
Regular price Sale price $349.99 USD
Sale Sold out
Shipping calculated at checkout.

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

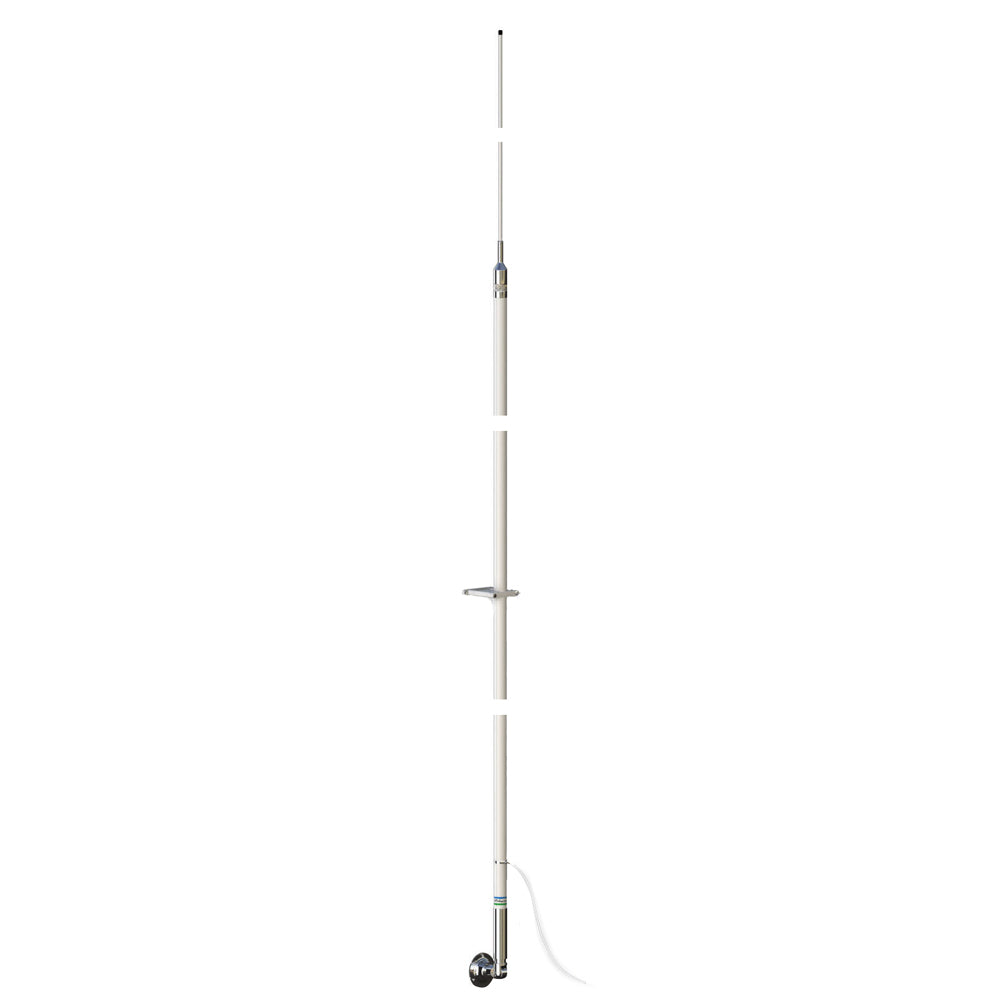

Shakespeare Style 390 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.

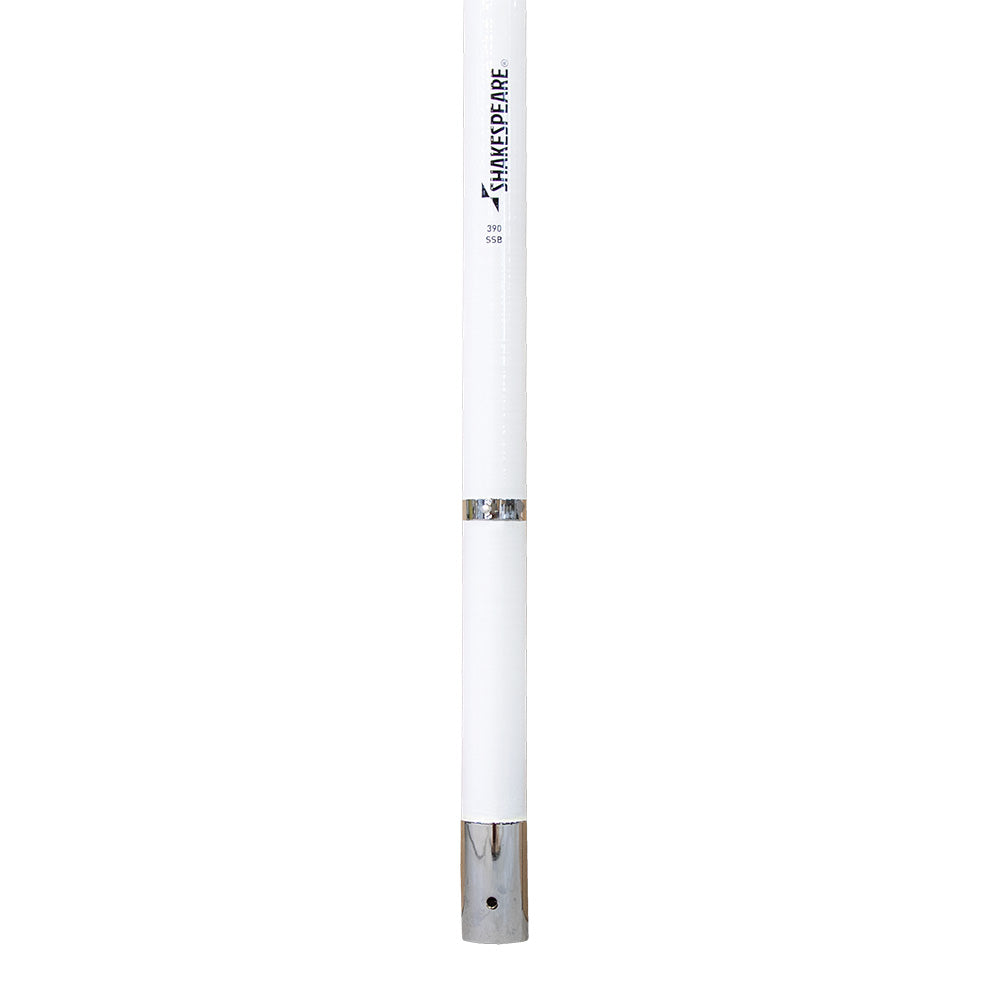

  • Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
  • Side feed termination band
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

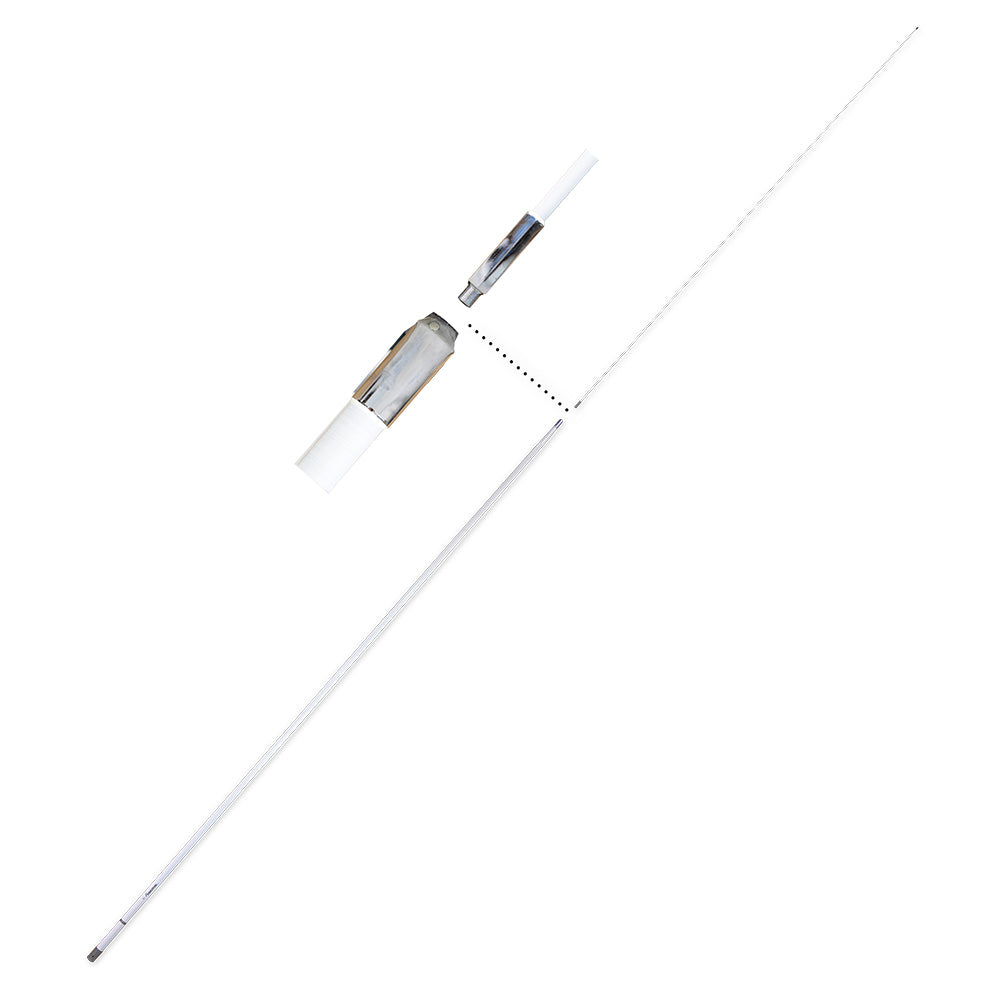

  • Two sections: Base 162"; Tip 112"
  • Shakespeare Limited Warranty: 2 years


Technical Specifications:


Frequency: 2-30 MHz HF band with tuner
Bandwidth: Resonant frequency 10.8 MHz
SWR: N/A
Impedance: (Ohms): N/A
Gain: N/A
Max Input (Watts): 1000
DC Ground: N/A
Termination: Side Termination
Height (feet): 23
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: SSB
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 144"
  • Box Dimensions: 3"H x 3"W x 168"L WT: 20 lbs
  • UPC: 719441600013

Quick Guide (pdf)
View full details
