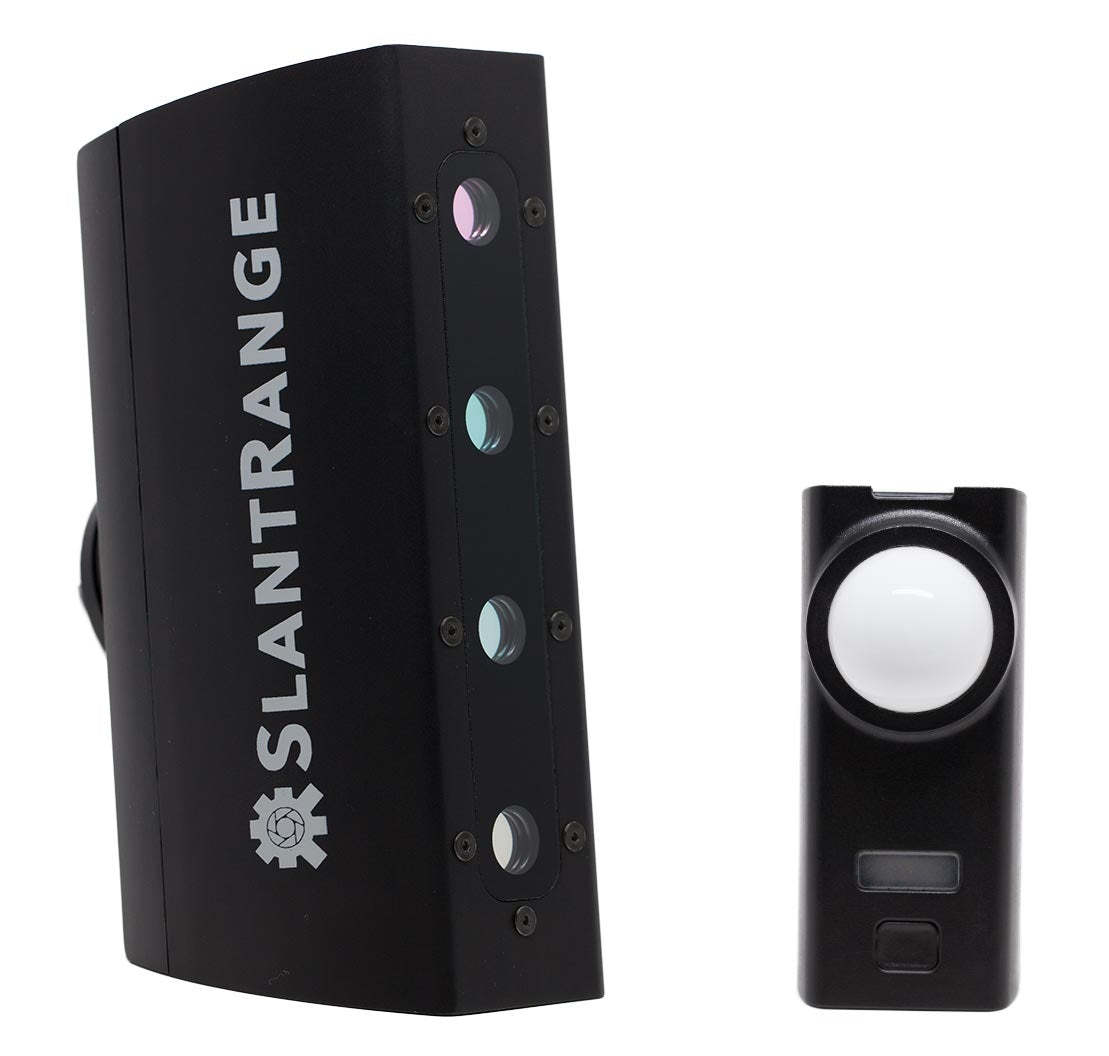

SlantRange 3PX Powered By DJI SkyPort
DESCRIPTION
The SlantRange 3PX Multispectral Imaging System, powered by DJI Skyport, is a cutting-edge solution for precision agriculture and environmental monitoring. Designed for seamless integration with the DJI Matrice 200 drone, the 3PX features quick installation via DJI’s gimbal mount and instant configuration through flight control apps like DroneDeploy and Flight Plan for DJI.
With its advanced multispectral capabilities, the 3PX delivers critical vegetation insights such as NDVI, GNDVI, chlorophyll index, and weed coverage, making it an essential tool for efficient crop management. The system’s Qualcomm Snapdragon processor ensures high-speed data analysis, while its onboard memory stores up to four hours of data for extensive surveys.
Key Features
- Seamless DJI Integration: Quick and easy installation via DJI Skyport, compatible with the DJI Matrice 200.
- In-Flight Data Access: Real-time sensor data, including sunlight measurements, sensor status, and memory usage.
- Powerful Analytics: Provides layers like NDVI, GNDVI, stress mapping, yield potential, and more for precision agriculture.
- High-Efficiency Surveys: Covers up to 1,000 acres per hour at 120m AGL with only 20% image overlap.
- Compact & Reliable: Lightweight design with advanced Qualcomm Snapdragon processing for robust field performance.
INTEGRATION IS A SNAP!
DJI’s M200 is a robust drone platform designed for heavy industrial and commercial use. That means sensor payloads often need to be reconfigured from mission to mission depending on data requirements.
3PX, with its new SKYPORT connector, allows for quick-and-easy installation on the DJI gimbal mount, providing the same seamless integration you get from DJI’s own cameras.
Once connected, the 3PX is automatically detected and configured through your flight control app.
RELIABLE NEW IN-FLIGHT DATA
The 3PX SKYPORT integration also enables in-flight sensor data to be delivered direct to your flight controller. Currently compatible with DroneDeploy and Flight Plan for DJI, you can now configure your mission and sensor together and then monitor in-flight status, all from the same app.
Access to important in-flight data ensures that you’re getting the quality measurements you need to get, including 3PX sensor state, real-time sunlight measurements, image counter, and memory card status, with more to come soon!
Detailed Specifications
| Attribute | Details |
|---|---|
| Spectral Channels (Vegetation Sensor) | 4 |
| Spectral Channels (Ambient Illumination Sensor) | 4 |
| Processor Type | Qualcomm Snapdragon 801 |
| Processor Speed | Quad-Core 2.26GHz |
| On-Board RAM | 2 GB |
| Detector Type | Si CMOS |
| Available Spectral Range | 410 - 950 nm |
| Band Positions | Selectable |
| Shutter Type | Global |
| Positioning & Pointing | Integrated GPS/IMU with Extended Kalman Filter |
| GSD @ 120 m AGL | 4.8 cm |
| Recommended Image Overlap | 20% (SlantView Analytics only) |
| Linear Coverage Rate @ 120 m AGL, 20 m/s | 1,000 Acres/Hour |
| 160 Acre Survey @ 120 m AGL, 20 m/s (fixed wing) | 17 Minutes |
| 160 Acre Survey @ 120 m AGL, 12 m/s (multi-rotor) | 25 Minutes |
| Available Information Layers | Population Density, Population Size Distributions, Emergence Fraction, Weed Coverage, Stress, Vegetation Fraction, Chlorophyll Index, Yield Potential, GNDVI, RNDVI, Red Edge NDVI, Color, User-Defined Smart Detection |
| On Board Data Storage (Removable) | 64 GB (4 hours) |
| Output Formats | KML, SHP, GeoTIFF |
| Size (Vegetation Sensor) | 14.6 x 6.9 x 5.7 cm |
| Size (Ambient Illumination Sensor) | 8.1 x 3.5 x 1.7 cm |
| Weight | 425 g |
| Power | 11 W via DJI SKYPORT |
| Patents | 9,470,579 9,791,316 |
In Package
- SlantRange 3PX Vegetation Sensor.
- Ambient Illumination Sensor.
- Pre-installed DJI Skyport connector for seamless integration.
- User guide for setup, installation, and operation.
