Product Description
Steelwrist Multi Grapples | Model MGX-2 To MGX-26 | Width 10" To 29" inches | Machine Weight 6.6-17.6 Tons | For Excavators
Description

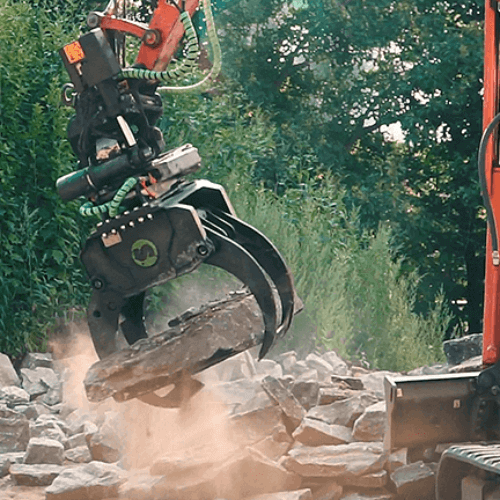

The Steelwrist Multi Grapple is a versatile and strong tool designed for general construction tasks. It's perfect for heavy lifting, stone laying, sorting, timber loading, waste wood handling, and light demolition. Despite its light weight, the multi grapple boasts robust strength and a compact design.
Key Features
- Versatile Applications: Ideal for general construction, heavy lifting, stone laying, sorting, timber loading, waste wood handling, and light demolition.
- Optimized for Tiltrotators: Enables tilt and rotation of the work tool, allowing precise control over material handling and reducing the need for frequent repositioning of the excavator.
- Compact and Robust Construction: Made with Hardox 500 wear plates for unmatched lightness and strength. Features a large grip width and fully closing by-passing arms for secure gripping of thin objects.
- Enhanced Hydraulic Design: Equipped with shock relief and load holding valves for safe and robust operation.
- 6 Degree Angle Bracket: Ensures level alignment with the tiltrotator rotation plane.
- Modular Design for SQ/Open-S Upgrade: Available with an interface following the symmetrical standard (S standard). Can be upgraded from S-type (from S50) to SQ-type for high-performing automatic oil connection technology.
Detailed Specifications
| Feature | FG20-5 / FG20-7 | FG25-5 / FG25-7 | FG32-5 / FG32-7 |
|---|---|---|---|
| Bracket | S40, S45, S50, S60, SQ50, SQ60-4, SQ60-5 | S40, S45, S50, S60, SQ50, SQ60-4, SQ60-5 | S50, S60, S70, SQ60-4, SQ60-5, SQ65, SQ70, SQ70/55 |
| Machine Weight [lb] | 13,200–26,400 | 22,000–35,200 | 26,400–39,600 |
| Weight from [lb] | 219 / 532 | 407 / 966 | 630 / 1496 |
| Width [inch] | 19.84 | 26.46 | 27.48 |
| Height, Max Open [inch] | 27 | 27.56 | 34 |
| Height, Tip to Tip [inch] | 32.17 | 34.53 | 40.67 |
| Gripper Reach [inch] | 54.68 | 61.10 | 71.77 |
| Gripper Reach, Smallest Obj. [inch] | 0.39 | 0.59 | 0.79 |
| Gripper Force [kNm] | 0.2 | 0.25 | 0.32 |
| Lifting Capacity [lb] | 6,600,000 | 13,200,000 | 15,400,000 |
| Feature | FG40-5 / FG40-7 | MGX2 | MGX8 |
|---|---|---|---|
| Bracket | S50, S60, S70, SQ60-4, SQ60-5, SQ65, SQ70, SQ70/55 | S30 | S40, S45, SQ45, S50, SQ50 |
| Machine Weight [lb] | 35,200–57,200 | 0–4,400 | 6,600–17,600 |
| Weight from [lb] | 724 / 1727 | 117 | 438 |
| Width [inch] | 29.68 | 10.16 | 21.22 |
| Height, Max Open [inch] | 34 | 22.64 | 25.31 |
| Height, Tip to Tip [inch] | 42.83 | 25 | 29.88 |
| Gripper Reach [inch] | 77 | 42 | 56.65 |
| Gripper Reach, Smallest Obj. [inch] | 1 | 3.23 | 3.86 |
| Gripper Force [kNm] | 0.4 | 6.5 | 10 |
| Lifting Capacity [lb] | 17,600,000 | 2,200,000 | 6,600,000 |
| Max Breakout Torque [kNm] | – | 28 | 70 |
| Oil Flow [gal/min] | – | 3 | 7 |
| Max Pressure [bar] | – | 250 | 250 |
| Feature | MGX14 | MGX20 | MGX26 |
|---|---|---|---|
| Bracket | S45, SQ45, S50, SQ50, S60, SQ60 | S60, SQ60 | S70, SQ70 |
| Machine Weight [lb] | 13,200–30,800 | 26,400–44,000 | 39,600–57,200 |
| Weight from [lb] | 675 | 1074 | 1331 |
| Width [inch] | 23.58 | 26.65 | 29.41 |
| Length [inch] | 37.76 | 42.68 | 46.81 |
| Height [inch] | 20 | 22.32 | 24.25 |
| Height, Max Open [inch] | 28.39 | 31.81 | 34.76 |
| Height, Tip to Tip [inch] | 33.74 | 37.64 | 41.14 |
| Gripper Reach [inch] | 63.35 | 71.61 | 79.84 |
| Gripper Reach, Smallest Obj. [inch] | 4.21 | 4.69 | 5.31 |
| Gripper Force [kNm] | 17 | 21 | 25 |
| Gripper Area [m²] | 0.27 | 0.36 | 0.45 |
| Lifting Capacity [lb] | 13,200,000 | 17,600,000 | 22,000,000 |
| Oil Flow [gal/min] | 12 | 17 | 24 |
| Max Pressure [bar] | 250 | 250 | 250 |
