Product Description
Steelwrist Tilt- and Rotor Coupler | Model Tilt Couplers TCX | Machine Weight Up-To 4,400 Lbs | For Excavators
Description

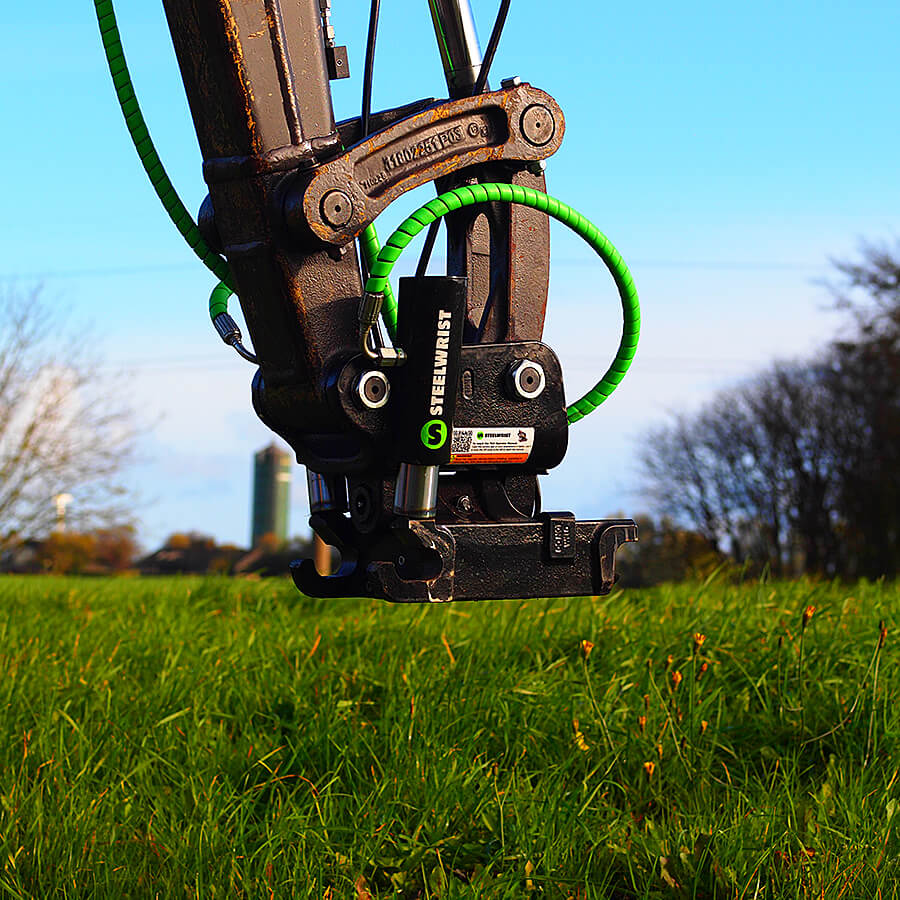

The TCX tilt coupler is designed for excavators below two tonnes and offers the user a tilt function and an integrated quick coupler for changing between work tools. TCX is available as Direct mounted with a S30 coupler with either manual snap-on or hydraulic locking.
The fully cast and compact body has a low weight. The fact that the TCX tilt coupler is free from welding, has large pin contact surfaces and optimized material thickness, creates an extremely robust design which will ensure a longer life time.
Key Features
- Tilt Function for Small Excavators: Designed specifically for excavators below two tonnes, offering enhanced versatility.
- Integrated Quick Coupler: Allows for easy switching between work tools, available with manual snap-on or hydraulic locking with S30 coupler.
- Compact and Durable Design: Fully cast body free from welding, with large pin contact surfaces and optimized material thickness for robustness and longevity.
- Front Pin Hook Safety: Ensures safe work tool changes, minimizing the risk of accidental drops.
- Wide Tilt Angle: Provides up to a 30° tilt angle in each direction, enhancing flexibility in operations.
- Optimized Tool Range: Compatible with a variety of work tools, making it versatile for different tasks.
Detailed Specifications
| Tilt couplers | TCX |
|---|---|
| Tilt couplers TCX | S30 |
| Machine weight [lb] | 0-4400 |
| Weight from [lb] | 62 |
| Building height [inch] | 6.38 |
| Max tilt angle [inch] | ±30° |
| Max width dipper arm [inch] | 5 |
| Pin diameter [inch] | 1-1.38 |
| Pin distance [cc-measure] [inch] | 3.35-7 |
| Tilt Torque [kNm] | 1,9 |
| Holding Torque [kNm] | 1,9 |
| Lifting hook [lb] | 0,75 |
| Oil Flow [gallons/min] | 1-3 |
| Max Pressure Separate AUX [bar] | 175 |
