Regular price $179.99
/
Shipping calculated at checkout.


THE CHOICE IS YOURS

See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 9sv fishfinder with transducer.

A new way to see what’s under the water.

Clear, Colorful Sonar:
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9” fishfinder.

Built-In Sonar:

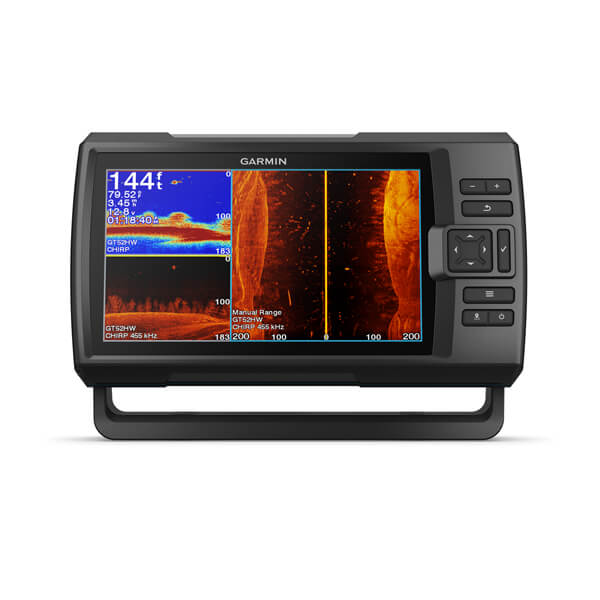

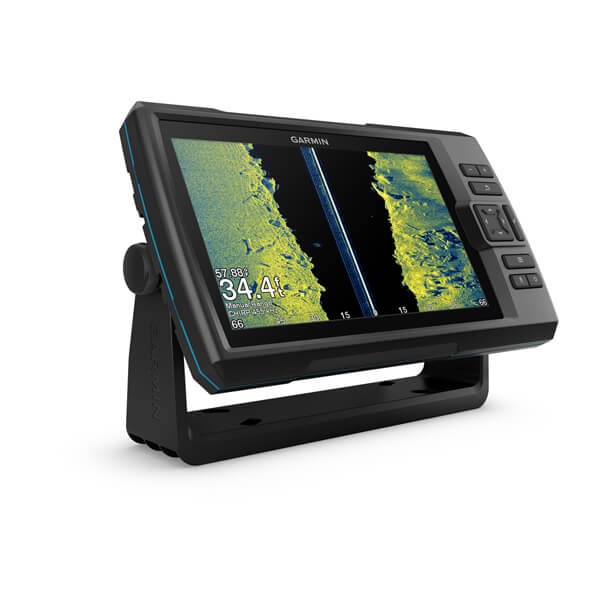

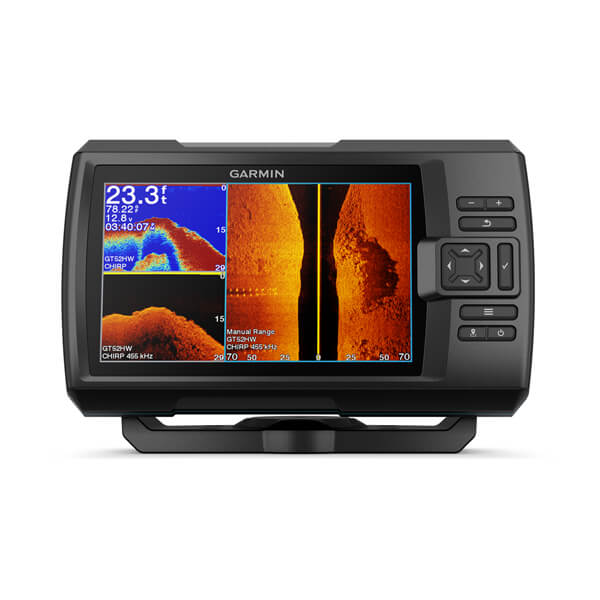

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

Waypoint Marking:

To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High-Sensitivity GPS:

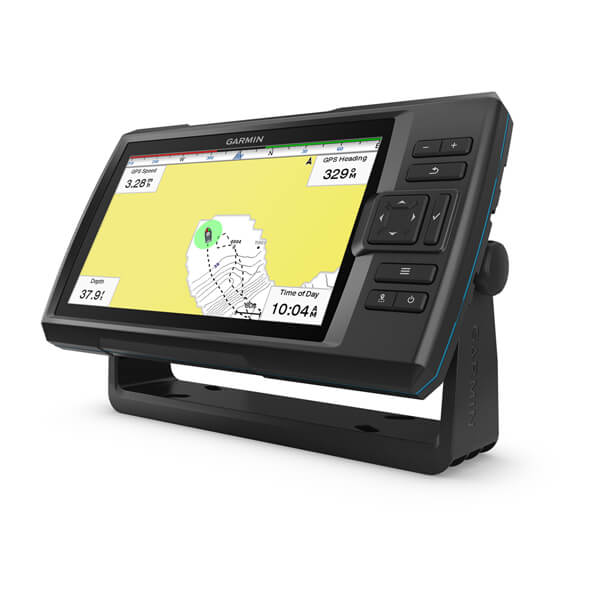

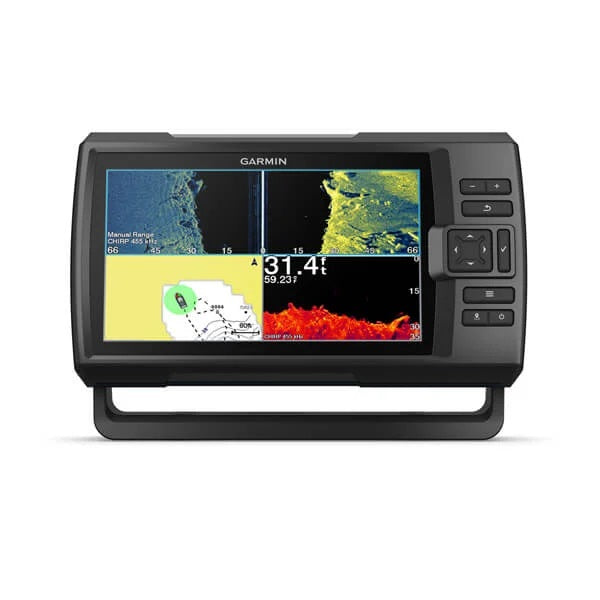

Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours:

Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1’ contours2.

WI-FI Connectivity:

Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

Included Hardware:

The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Specification

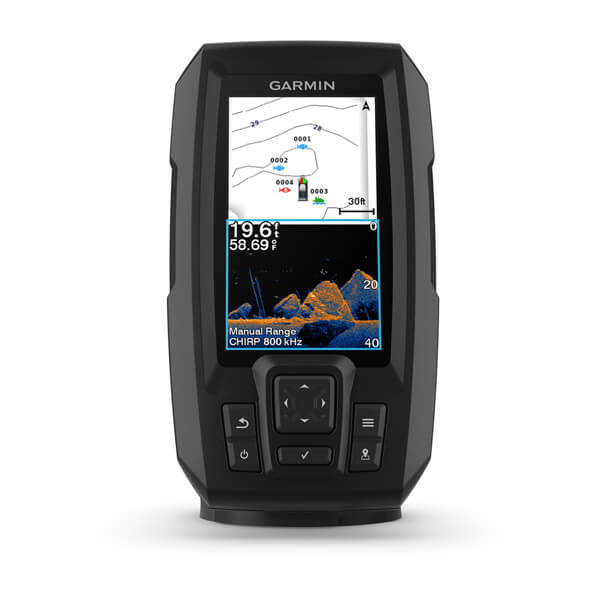

STRIKER™ Vivid 4cv:

General:
  • PHYSICAL DIMENSIONS 3.9'' x 6.9'' x 1.8'' (9.8 x 17.4 x 4.5 cm)
  • DISPLAY RESOLUTION 272 X 480 pixels
  • DISPLAY TYPE QSVGA
  • WEIGHT 0.7 lbs (0.3 kg)
  • WATER RATING IPX7
  • TRANSMIT POWER 300 W (RMS)
Sonar Features & Specifications:
  • DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
  • DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
  • FREQUENCIES SUPPORTED
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVü 260/455/800 kHz
  • BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
  • WATER TEMPERATURE LOG AND GRAPH
Fishfinder Features:

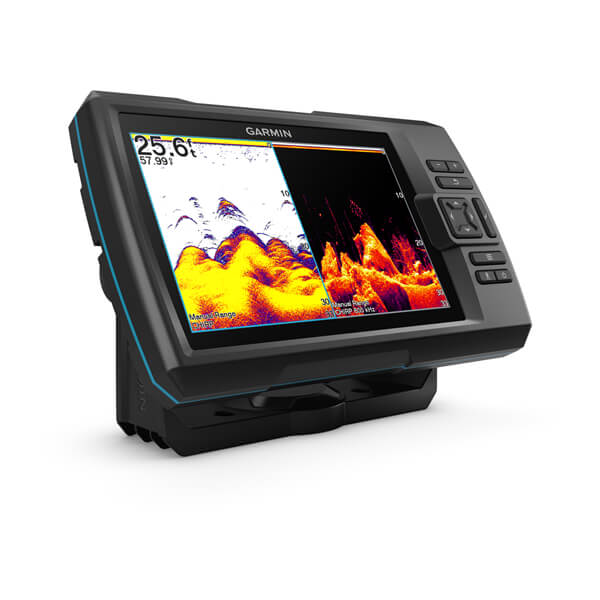

  • SPLIT-SCREEN ZOOM
  • ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
  • FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
  • AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
  • ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
  • A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
  • WATER TEMPERATURE SENSOR INCLUDED
  • Additional
Additional:

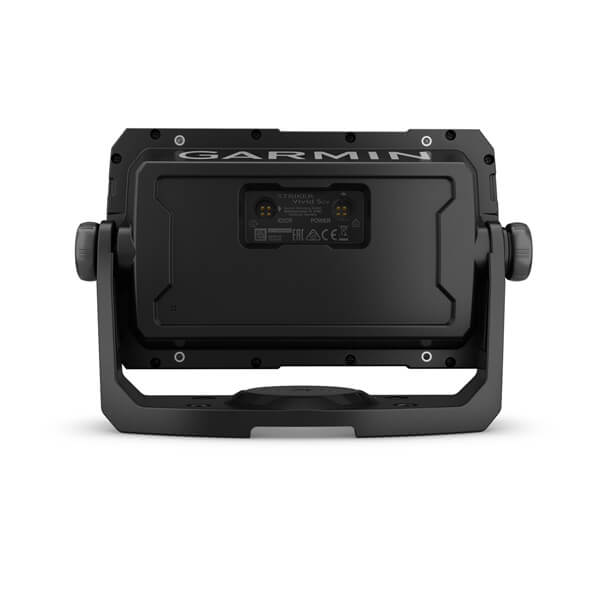

  • One 4-pin transducer port
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.40A
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100

STRIKER™ Vivid 5cv:

General:
  • PHYSICAL DIMENSIONS 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)
  • DISPLAY RESOLUTION 800 x 480 pixels
  • DISPLAY TYPE WVGA color
  • WEIGHT 1.0 lb (0.5 kg)
  • WATER RATING IPX7
  • TRANSMIT POWER 500 W (RMS)
Sonar Features & Specifications:
  • DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
  • DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
  • FREQUENCIES SUPPORTED
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVü 260/455/800 kHz
  • BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
  • WATER TEMPERATURE LOG AND GRAPH
Fishfinder Features:
  • SPLIT-SCREEN ZOOM
  • ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
  • FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
  • AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
  • ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
  • A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
  • WATER TEMPERATURE SENSOR INCLUDED
  • Additional

Additional:

  • One 4-pin transducer port
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.40A
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100

STRIKER™ Vivid 7cv:

General:
  • PHYSICAL DIMENSIONS 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
  • DISPLAY RESOLUTION 800 x 480 pixels
  • DISPLAY TYPE WVGA color
  • WEIGHT 1.7 lbs (0.8 kg)
  • WATER RATING IPX7
  • TRANSMIT POWER 500 W (RMS)
Sonar Features & Specifications:
  • DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
  • DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
  • FREQUENCIES SUPPORTED
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVü 260/455/800 kHz
  • BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
  • WATER TEMPERATURE LOG AND GRAPH
Fishfinder Features:
  • SPLIT-SCREEN ZOOM
  • ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
  • FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
  • AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
  • ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
  • A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
  • WATER TEMPERATURE SENSOR INCLUDED
  • Additional
Additional:
  • One 4-pin transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.55A
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100

STRIKER™ Vivid 7sv:

General:
  • PHYSICAL DIMENSIONS 9.3” x 5.5” x 2.3” (23.5 x 14.0 x 5.8 cm)
  • DISPLAY RESOLUTION 800 x 480 pixels
  • DISPLAY TYPE WVGA color
  • WEIGHT 1.7 lbs (0.8 kg)
  • WATER RATING IPX7
  • TRANSMIT POWER 500 W (RMS)
Sonar Features & Specifications:
  • DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
  • DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
  • FREQUENCIES SUPPORTED
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVü and SideVü 260/455/800 kHz
  • BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
  • WATER TEMPERATURE LOG AND GRAPH
Fishfinder Features:
  • SPLIT-SCREEN ZOOM
  • ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
  • FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
  • AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
  • ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
  • A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
  • WATER TEMPERATURE SENSOR INCLUDED
Additional:

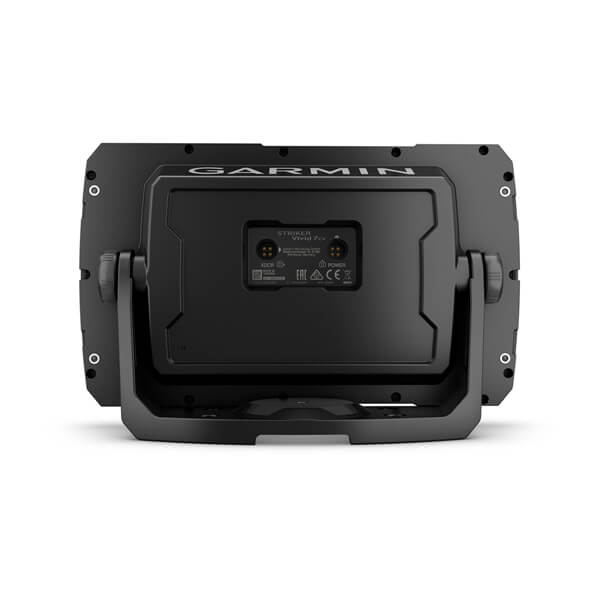

  • One 4-pin transducer port
  • One 4-pin SideVü transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.67A
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100

STRIKER™ Vivid 9sv:

General:
  • PHYSICAL DIMENSIONS 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
  • DISPLAY RESOLUTION 800 x 480 pixels
  • DISPLAY TYPE WVGA color
  • WEIGHT 2.4 lbs (1.1 kg)
  • WATER RATING IPX7
  • TRANSMIT POWER 500 W (RMS)
Sonar Features & Specifications:
  • DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
  • DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
  • FREQUENCIES SUPPORTED
  • Traditional: 50/77/200 kHz
  • CHIRP (mid and high)
  • ClearVü and SideVü 260/455/800 kHz
  • BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
  • WATER TEMPERATURE LOG AND GRAPH
Fishfinder Features:
  • SPLIT-SCREEN ZOOM
  • ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS)
  • FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS)
  • AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS)
  • ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS)
  • A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM)
  • WATER TEMPERATURE SENSOR INCLUDED
Additional:
  • One 4-pin transducer port
  • One 4-pin SideVü transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.75A
  • Waypoints: 5,000
  • Track Log: 50,000 points; 50 saved tracks
  • Routes: 100
