Product Description
Sveaverken | F200 Auto Steer System | GNSS Guidance | 2.5cm Accuracy | 9 To 36 V Power Supply | Horsepower 60 To 500 HP | For Tractors
DESCRIPTION

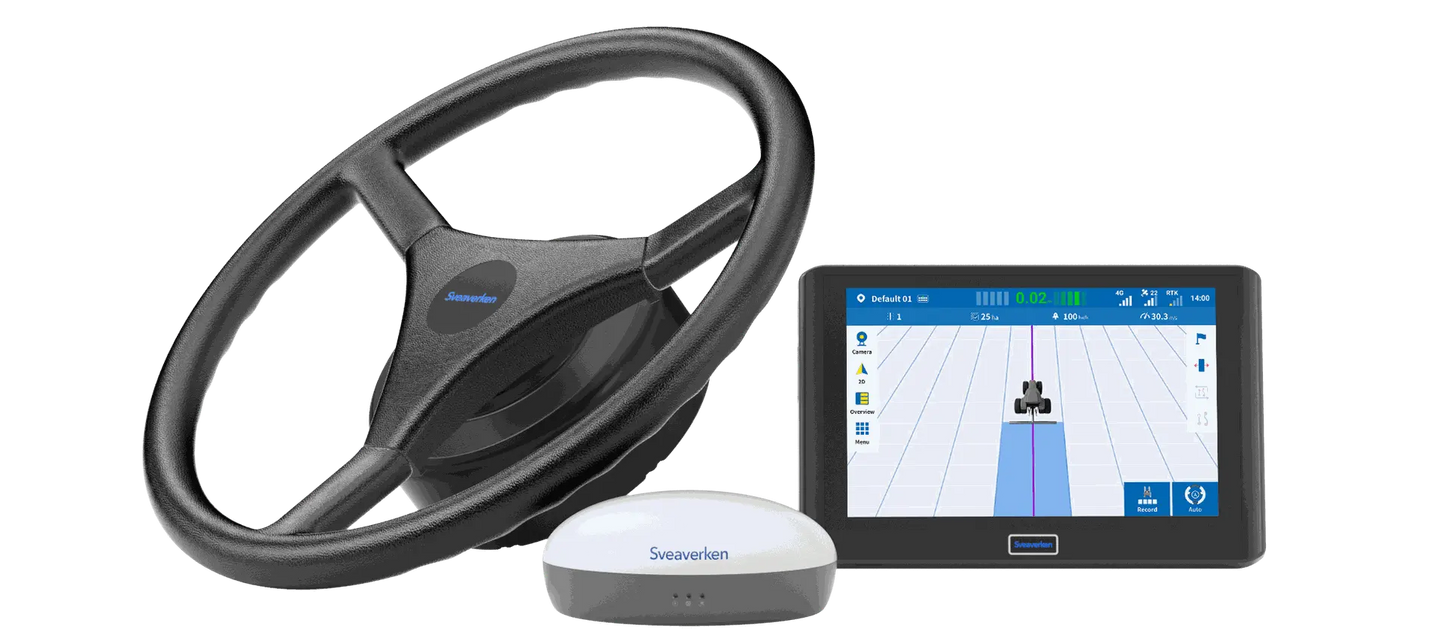

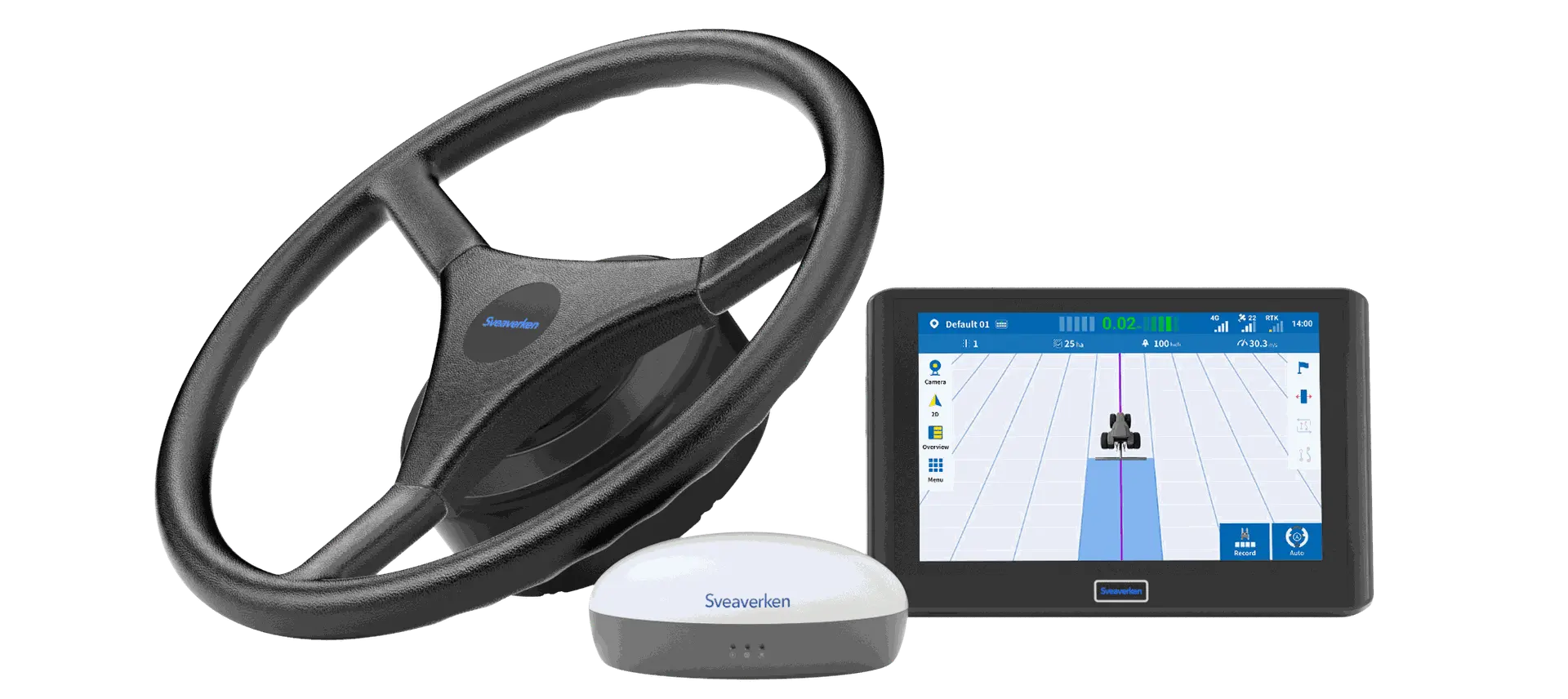

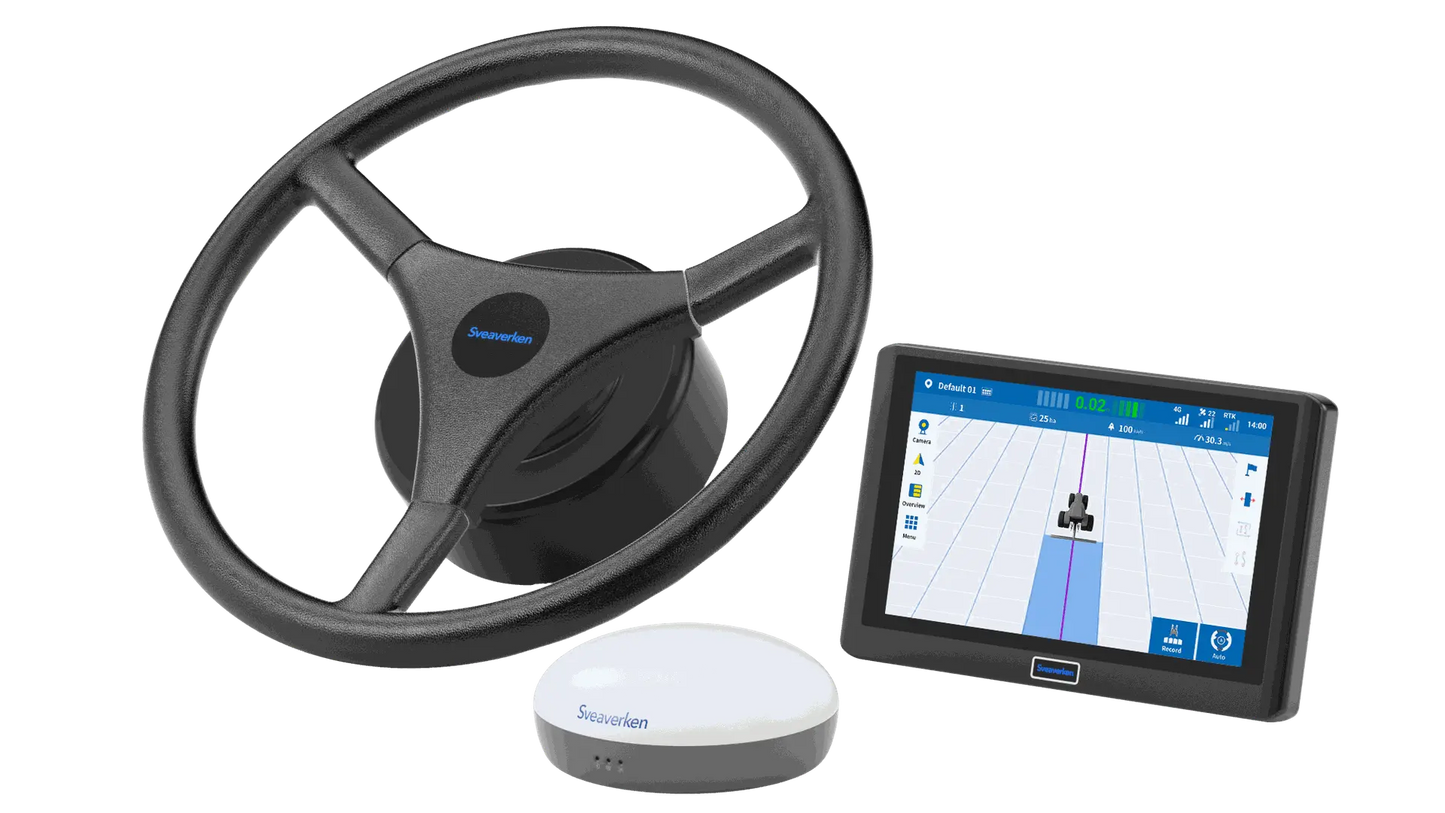

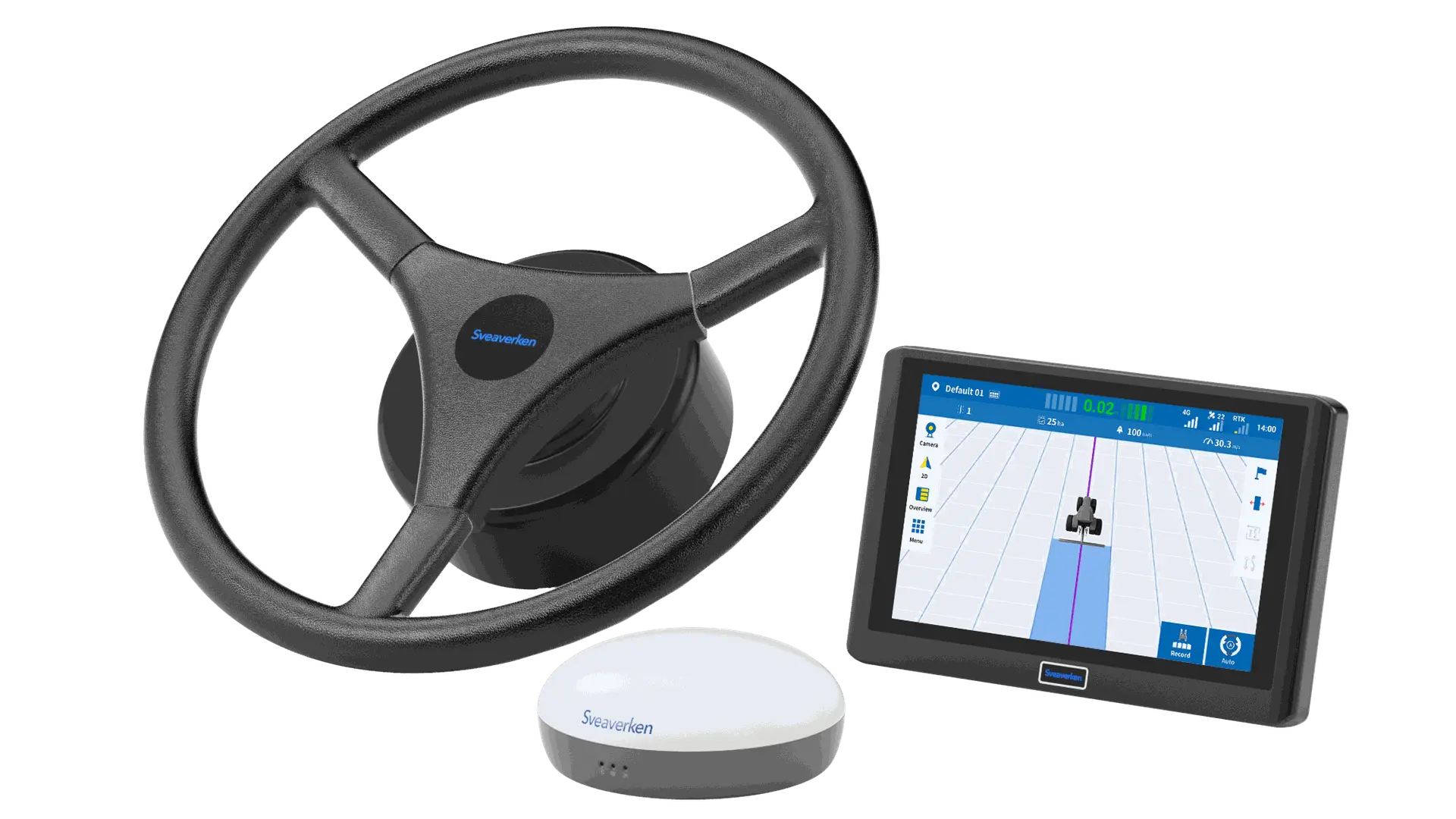

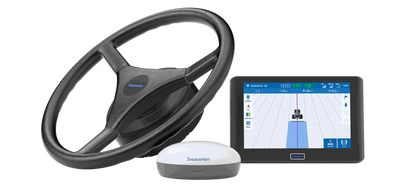

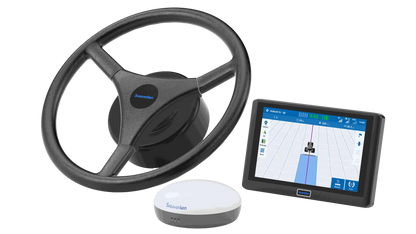

Meet the Sveaverken F200 Auto Steer System a next-generation precision agriculture solution engineered to give farmers complete control, unmatched steering accuracy, and smarter field efficiency. Built as a powerful upgrade to the popular F100, the F200 is packed with upgraded hardware, cutting-edge GNSS technology, ISOBUS compatibility, and seamless third-party map integration.

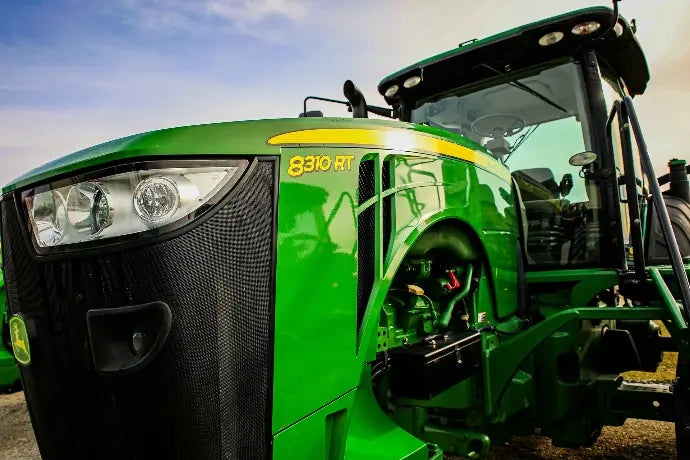

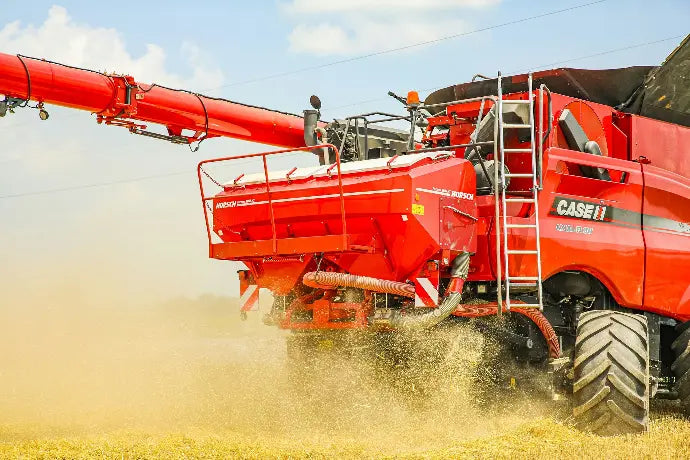

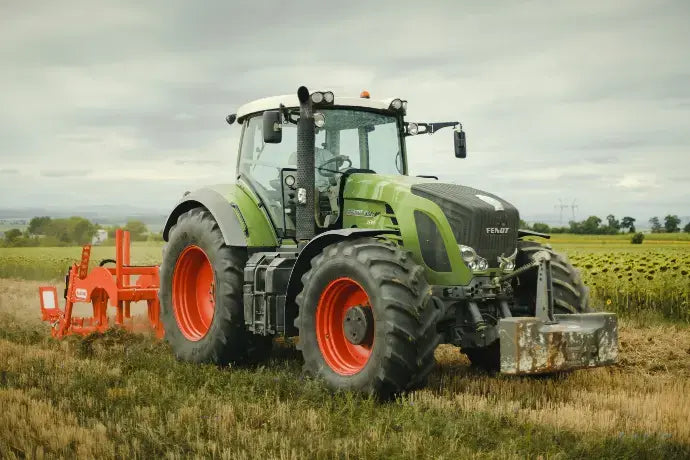

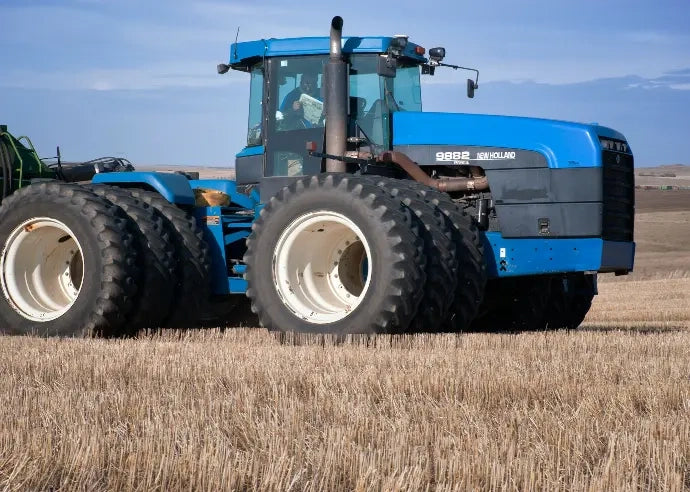

Whether you're seeding, spraying, or harvesting, the F200 keeps your vehicle locked onto a 2.5 cm-accurate path, across any terrain even slopes up to 20°. Designed for ease of use, it installs in under an hour and works across a wide variety of tractor brands like John Deere, CASE IH, Fendt, New Holland, and more.
If you're a modern farmer looking to reduce input waste, maximize yield, and elevate your field operations, the Sveaverken F200 is the ultimate plug-and-play autosteering solution that grows with your needs.
Key Features
- 2.5cm RTK-Level Steering Accuracy Maintain ultra-precise alignment for , spraying, and harvesting tasks.
- Works with 60–500 HP Tractors & Utility Vehicles Wide compatibility for farming operations of any scale.

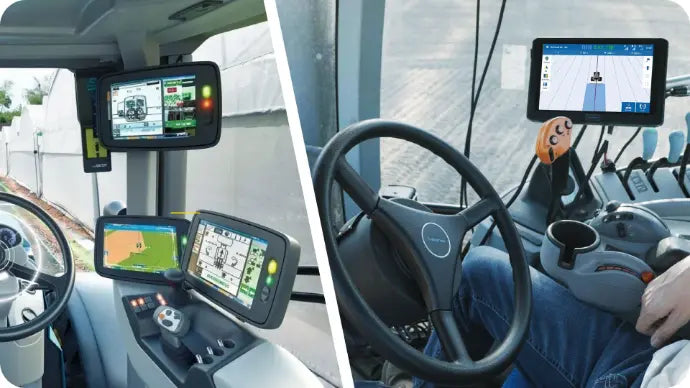

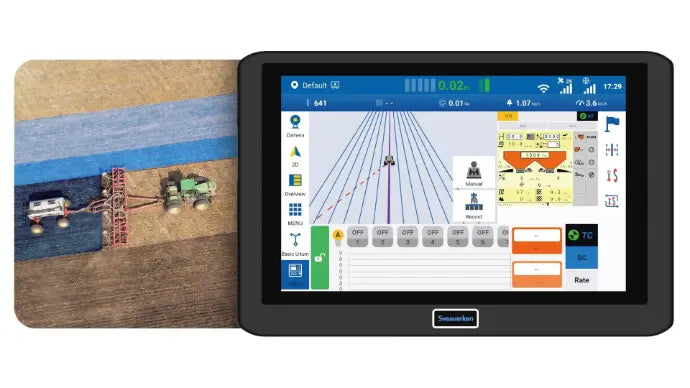

- ISOBUS-Ready System Easily control and monitor all your ISOBUS-compatible implements on a single screen.

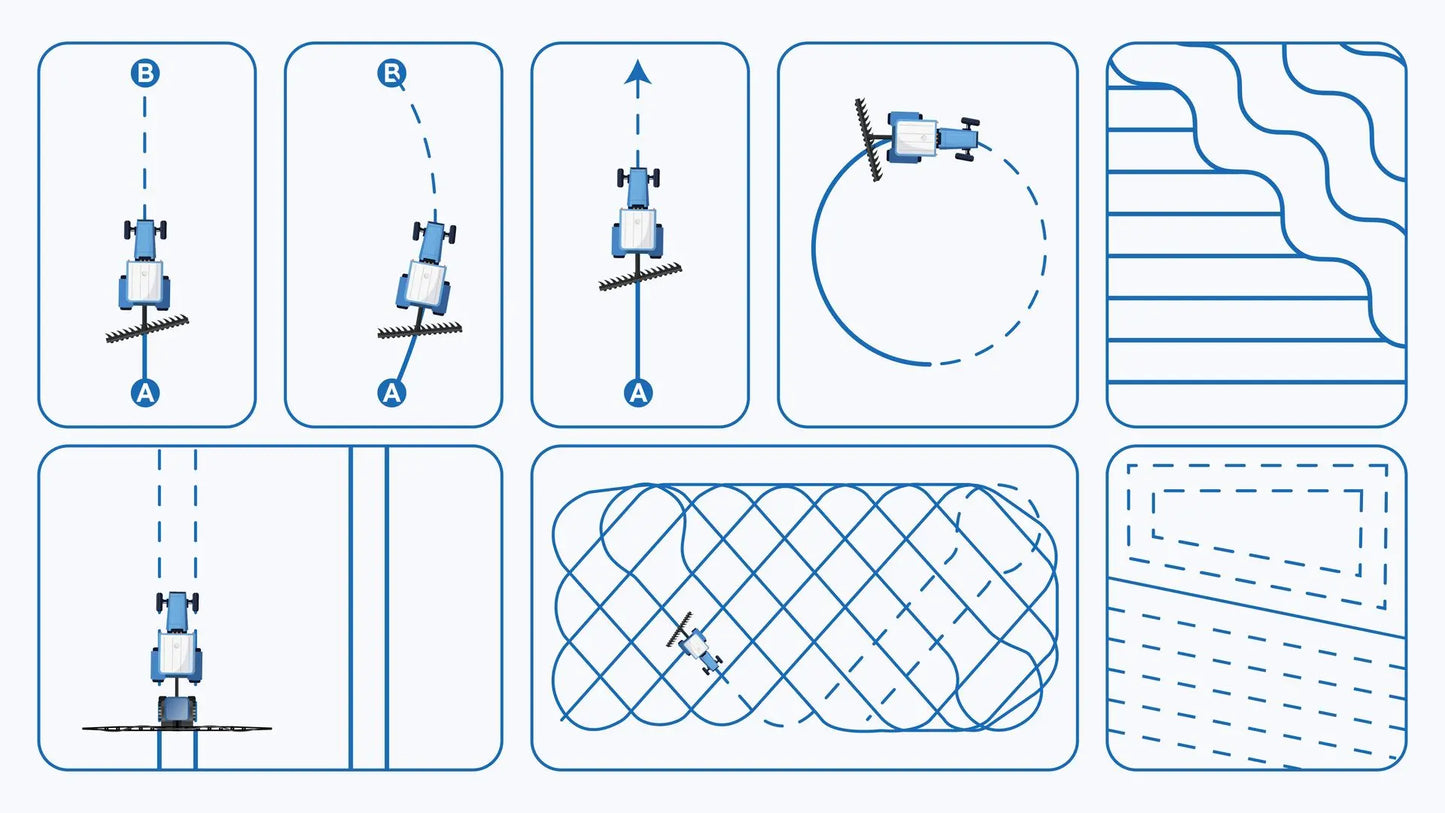

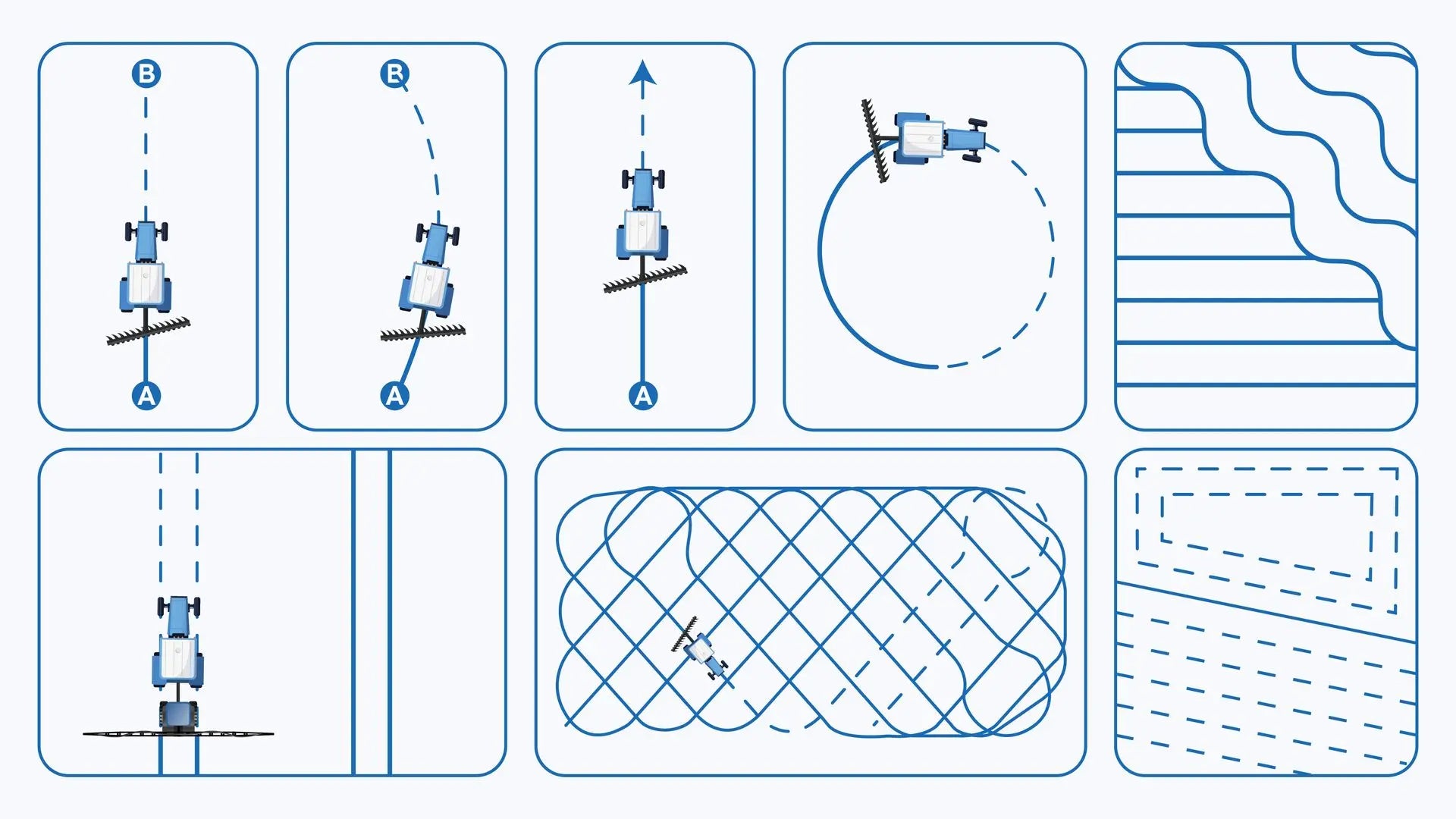

- Real-Time Path Planning & Auto Guidance Supports straight, curved, headland, and U-turn paths to cover every field shape efficiently.
- Modular, Fast Installation Installs in under 60 minutes with minimal tools and no cab clutter.
- Supports Multiple GNSS Corrections Compatible with GPS, GLONASS, BDS, and Galileo for reliable positioning worldwide.
- 20° Terrain Compensation Keeps steering accuracy even on rolling hills and uneven fields.
- Smart Speed Range: 0.1–26 km/h Ideal for both low-speed operations like planting and high-speed applications like spraying.

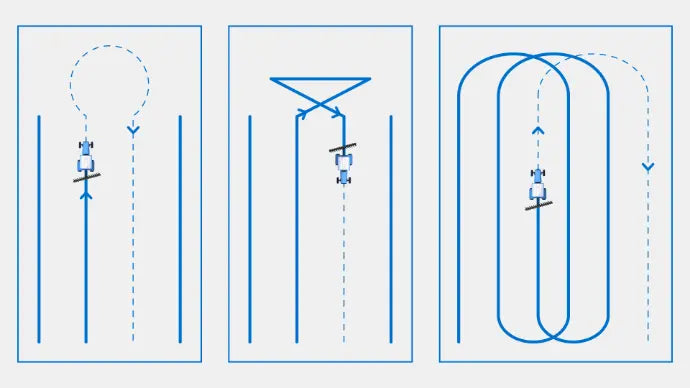

- Auto U-Turn at Row Ends Automate headland turns for hands-free operation and reduced fatigue.

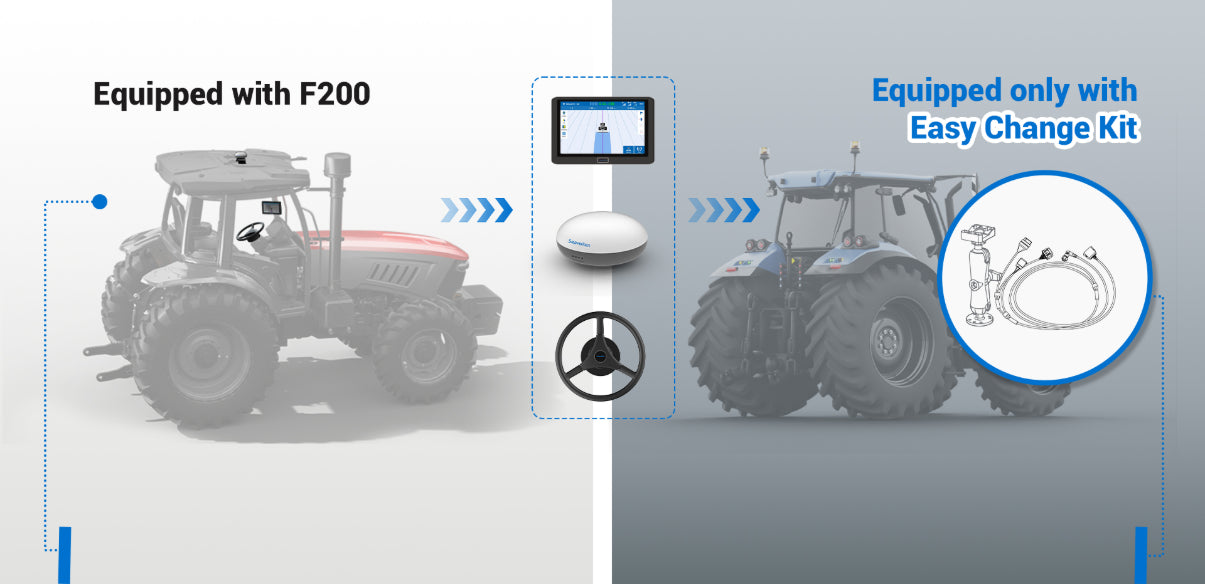

- Easy Vehicle Change Kit Transfer the system between machines quickly and cost-effectively.

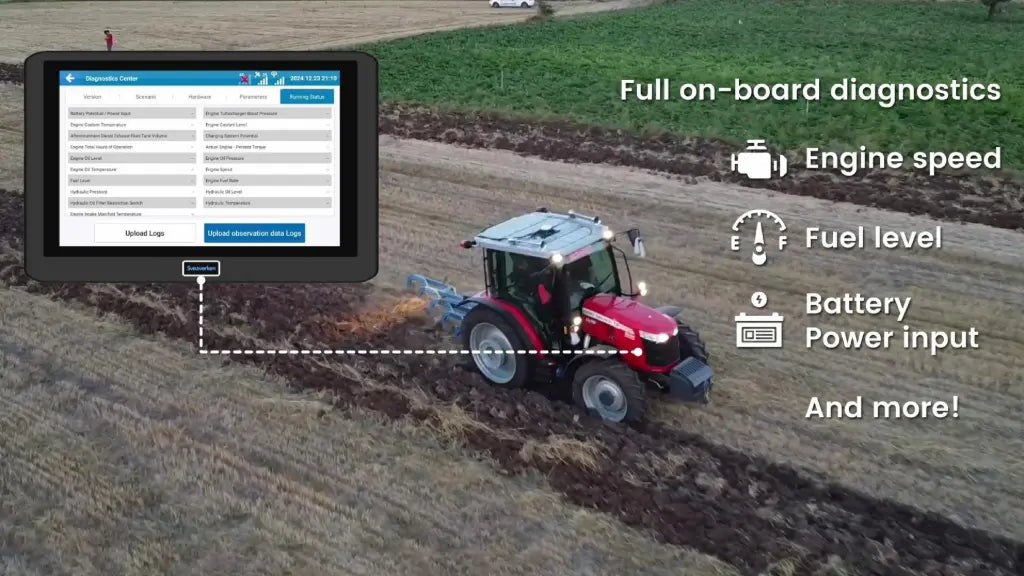

- WiFi OBD Module Monitor real-time engine data like RPM, temperature, and oil pressure.

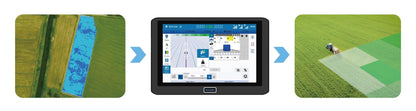

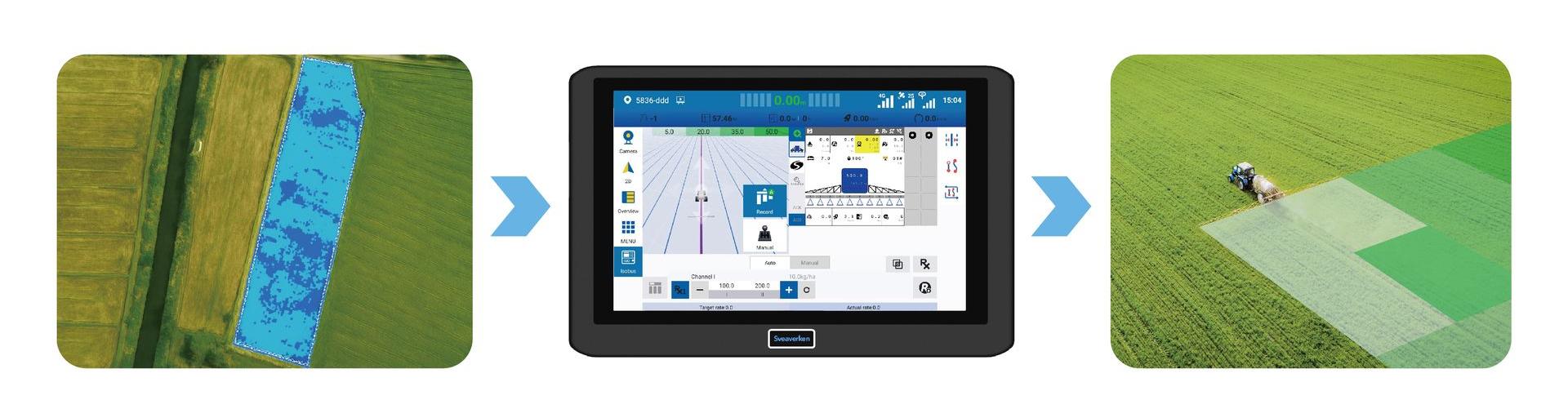

- Prescription Map & Section Control Apply seeds, fertilizers, or chemicals with pinpoint precision.

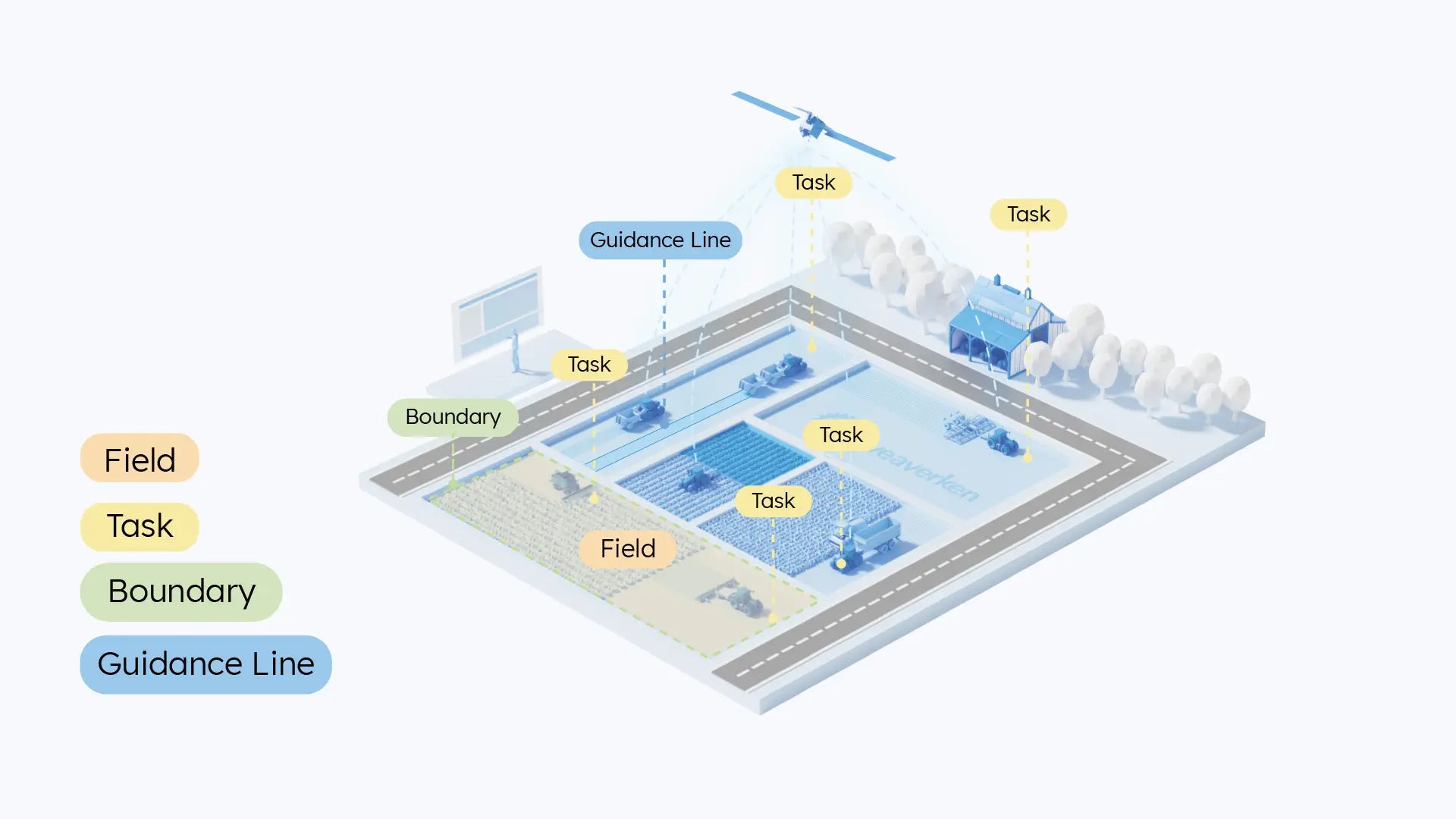

- Digital Field Profiles & Sync with FMS Store field boundaries, task history, and planning data across your fleet.
- Dust & Waterproof Design (IP65/IP67 Rated) Built for harsh, demanding environments.

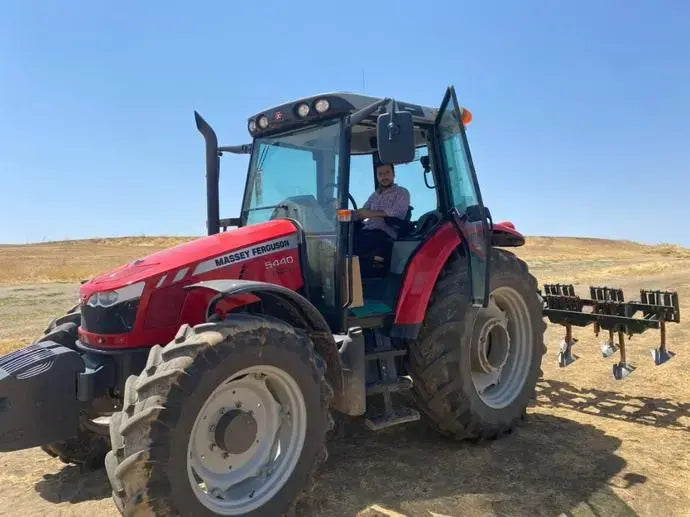

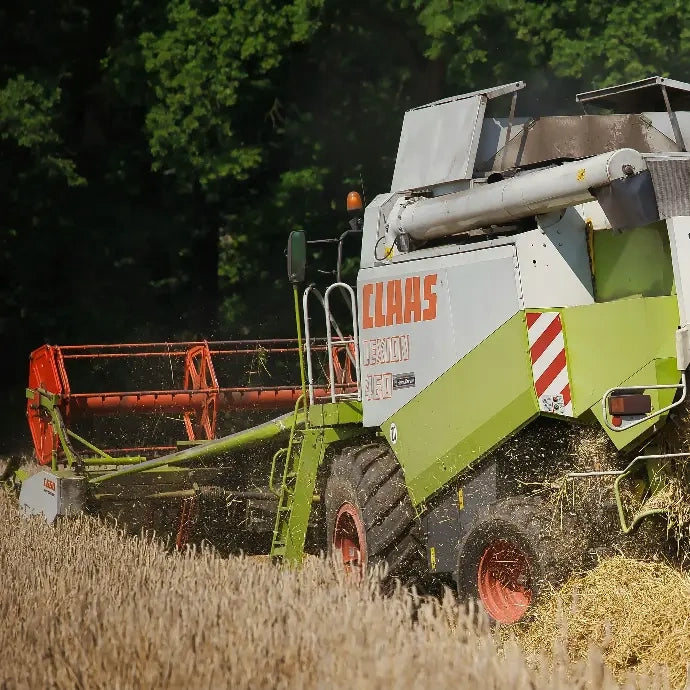

- Multi-Brand Compatibility Seamlessly integrates with John Deere, Massey Ferguson, CLAAS, and more.
Detailed Specifications
| Component | Details |
|---|---|
| System Type | Auto Steer Guidance System |
| Power Compatibility | 9 To 36V DC (Tractors, UTVs, ATVs) |
| Horsepower Range | 60 To 500 HP |
| Steering Accuracy | 2.5 cm |
| Speed Range | 0.1 To 26 km/h |
| Terrain Compensation | Up to 20° inclines |
| GNSS Support | GPS L1/L2, GLONASS L1/L2, BDS B1I/B2I, Galileo E1/E5b |
| ISOBUS Compatibility | Yes |
| Control Terminal Size | 275 × 180 × 40 mm |
| Display Screen | 10.1” LED, 1280 × 800, >500 nits |
| Terminal RAM | 4 GB |
| Receiver Size | 162 × 67 mm |
| Electric Steering Wheel | 410 mm diameter, 12/24V, up to 20 N·m torque |
| Waterproof Rating | IP65 (Control Terminal & Steering); IP67 (Receiver) |
| Operating Temp. Range | -20°C to 70°C |
| Storage Temp. Range | -40°C to 85°C |
| Auto U-Turn Function | Included |
| Field Management | Digital boundaries, task history, FMS sync |
| Vehicle Compatibility | John Deere, CLAAS, Fendt, CASE IH, New Holland, Massey Ferguson, and more |
| Installation Time | Less than 1 hour |
