The ultimate choice for stationary emergency power, the Taylor Power TD100 combines power, durability, and cutting-edge technology. It is EPA-certified and engineered to meet diverse power requirements with top-tier efficiency and flexibility.

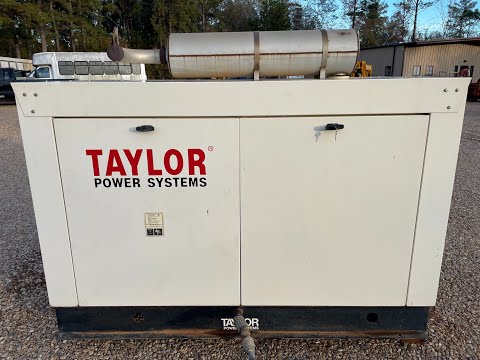

Taylor Power System Standby-Diesel Generators | Model TD-100 | Horsepower 149 HP | Power Output 100kW (125kVA) | Open & Enclosed Unit
Taylor Power System Standby-Diesel Generators | Model TD-100 | Horsepower 149 HP | Power Output 100kW (125kVA) | Open & Enclosed Unit
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Request A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Taylor Power System Standby-Diesel Generators | Model TD-100 | Horsepower 149 HP | Power Output 100kW (125kVA) | Open & Enclosed Unit
DESCRIPTION
Key Features
-
Power Output Flexibility:
- Ratings of 100/125 kW/kVA for robust performance.
- Supports single-phase and three-phase applications with multiple voltage options, such as 277/480V, 120/208V, and 120/240V.
-
High-Efficiency Alternators:
- Stamford PMG Alternator: High voltage regulation (up to 1% for single-phase and 0.5% for three-phase).
- Marathon PMG Alternator: Excellent performance with <0.25% voltage regulation.
-
Reliable EPA Tier 3 Perkins Engine:
- Turbocharged 4-cycle vertical inline engine with 148.74 HP at 1800 RPM for dependable operation.
- Isochronous governor ensures precise speed regulation (±0.25%).
-
Advanced Control Panels:
- Options for DeepSea 7310 MKII or Basler DGC2020 controllers with Modbus RTU support for enhanced usability.
- Programmable inputs and outputs for greater operational control.
-
Fuel-Efficient:
- Direct fuel injection and a consumption rate of 7.34 gal/hr at 100% load, ensuring optimized use of low-sulfur diesel fuel.
-
Noise-Reduction:
- Open unit noise level: 105.5 dBA (1 meter).
- Sound-attenuated enclosure reduces the noise to 74.8 dBA (7 meters).
-
Heavy-Duty Construction:
- Powder-coated steel base with vibration isolators for long-term durability.
- Radiator airflows of 7699.0 CFM provide optimal cooling.
| Control Panels | Feature | Description |
 |
DeepSea 7310 MKII | Simultaneous Use of RS232 & RS485 Modbus RTU Support Fully Configurable Using USB, RS232 & RS485 IP65 Rating 6 Programmable Inputs & 8 Outputs UL & cUL Listed and CE Certified |
 |
Basler DGC2020 | SAE J1939 Engine ECU Communications 4 Programmable Inputs & 10 Outputs Modbus Communications With RS485 UL Recognized, CSA & CE Certified IP 54 Front Panel Rating NFPA 110 Level 1 Compatible Manual Override Keyswitch DGC2020HD Variant Available |
 |
Taylor Analog | Automatic CANBUS Engine Control Gauge Zeroing on Shutdown Auto-Off-Manual Control Switch Oil Pressure, Water Temperature, Battery Voltage and RPM Gauges AC Voltage, Frequency, Percent of Load, and Run-Time Metering LED Status Lights |
Detailed Specifications
| Feature | Details |
|---|---|
| Engine | Perkins 1104D-E44TAG2 (4.4L, Turbocharged) |
| Horsepower | 148.74 HP at 1800 RPM |
| Power Output | 100/125 kW/kVA |
| Voltage Options | 277/480V, 120/208V, 120/240V |
| Alternator Options | Stamford or Marathon PMG |
| Voltage Regulation | Stamford: 1.0% (single-phase), 0.5% (three-phase); Marathon: <0.25% |
| Fuel Consumption | 7.34 gal/hr (100% load), 5.82 gal/hr (75% load) |
| Sound Level | 74.8 dBA (enclosed unit at 7 meters) |
| Dimensions (Open Unit) | 81"L x 36"W x 57"H |
| Weight (Open Unit) | 2,350 lbs |
| Dimensions (Enclosed Unit) | 102"L x 46"W x 64"H |
| Weight (Enclosed Unit) | 3,200 lbs |
 |

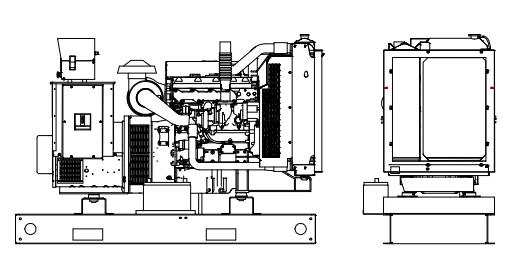

Open Unit | Overall Size: 81”L x 36”W x 57”H Approximate Weight: 2,350 lbs. |
 |

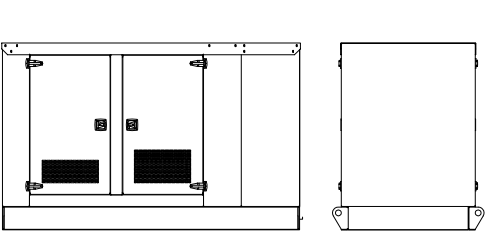

Standard Enclosed Unit | Overall Size: 102”L x 46”W x 64”H Approximate Weight: 3,200 lbs. |
