Product Description

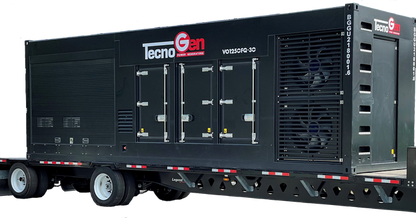

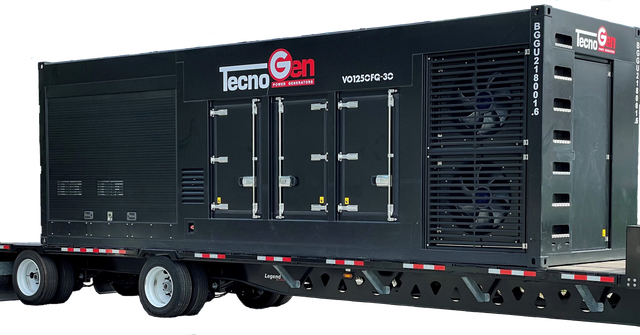

TecnoGen Mega Silent Series 1,104kW 1250kVA VO1250FQ-30 Generator
DESCRIPITON
TecnoGen’s 1250kVA generator uses the Volvo engine coupled to an industry standard Leroy Somer alternator producing 1,104kW of prime power.
Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 65dBA rating.
The internal fuel capacity is 1109 gallons allowing for a run time of up to 20 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.
Key Features
- Power Output: Provides 1,104 kW of prime power and 1,250 kVA capacity for large-scale operations.
- Low Noise Operation: Operates at 65 dBA at 23 feet, making it ideal for noise-sensitive environments.
- Fuel Capacity & Runtime: With a 1,109-gallon fuel tank, the generator offers up to 20 hours of runtime at 75% load.
- Advanced Control System: Deep Sea DSE8610 controller ensures seamless control and monitoring.
- High Efficiency: VSi technology maximizes cooling efficiency, reducing fuel consumption.
- Durable Construction: Equipped with a Volvo engine and Leroy Somer alternator, ensuring reliable performance in demanding conditions.
Detailed Specifications
General Specifications
Specification | Details |
---|---|
Prime Power | 1,104 kW |
Standby Power | 1,214 kW |
Sound Level @ 23' | 65 dBA |
Controller | Deep Sea DSE8610 |
Alternator | Leroy Somer LSA 47.2L9 |
Engine Model | Volvo TWD1683GE |
EPA Level | Tier 4 Final |
Horsepower | 744 |
Fuel Capacity | 1,109 gallons |
Run Time @ 75% Load | 20 hours |
Generator Specifications
Specification | Details |
---|---|
RPM | 1,800 |
Voltage 3PH | 480/277V, 208/120V |
Frequency | 60 Hz |
System Voltage | 24V |
Amps (480V, P.F. 0.8) | 1,505 |
Amps (208V, P.F. 0.8) | 3,474 |
Engine Specifications
Specification | Details |
---|---|
Make | Volvo |
Model | TWD1683GE |
No. Cylinders | 6 |
Gross HP | 744 |
External Fuel Valve | Yes |
Fuel Containment | 110% |
Fuel Consumption
Load (%) | Consumption (gal/h) |
---|---|
75% Load | 56.06 |
Run Time @ 75% Load | 20 hours |
DEF Specifications
Specification | Details |
---|---|
DEF Tank Capacity | 84 gallons |
Dimensions and Weight
Specification | Details |
---|---|
Length (Skid) | 359 inches |
Width (Skid) | 96 inches |
Height (Skid) | 114 inches |
Dry Weight (Skid) | 42,064 lbs |
Wet Weight (Skid) | 50,350 lbs |
In Package
- TecnoGen Mega Silent 1,104 kW 1250 kVA Generator
- Stainless Steel Camlocks
- Deep Sea Controller
- 1109-Gallon Internal Fuel Tank
- Battery Charger
- Block Heater
- Triple Sealed Doors & 2″ Thick Insulation
- Optional Trailer or Skid Mounted Configuration
