Name: TecnoGen Mega Silent Series 137kW 170kVA FP170FQ Generator
Brand: TecnoGen
Price: 163139.4 USD
Availability: InStock

TecnoGen Mega Silent Series 137kW 170kVA FP170FQ Generator

DESCRIPTION

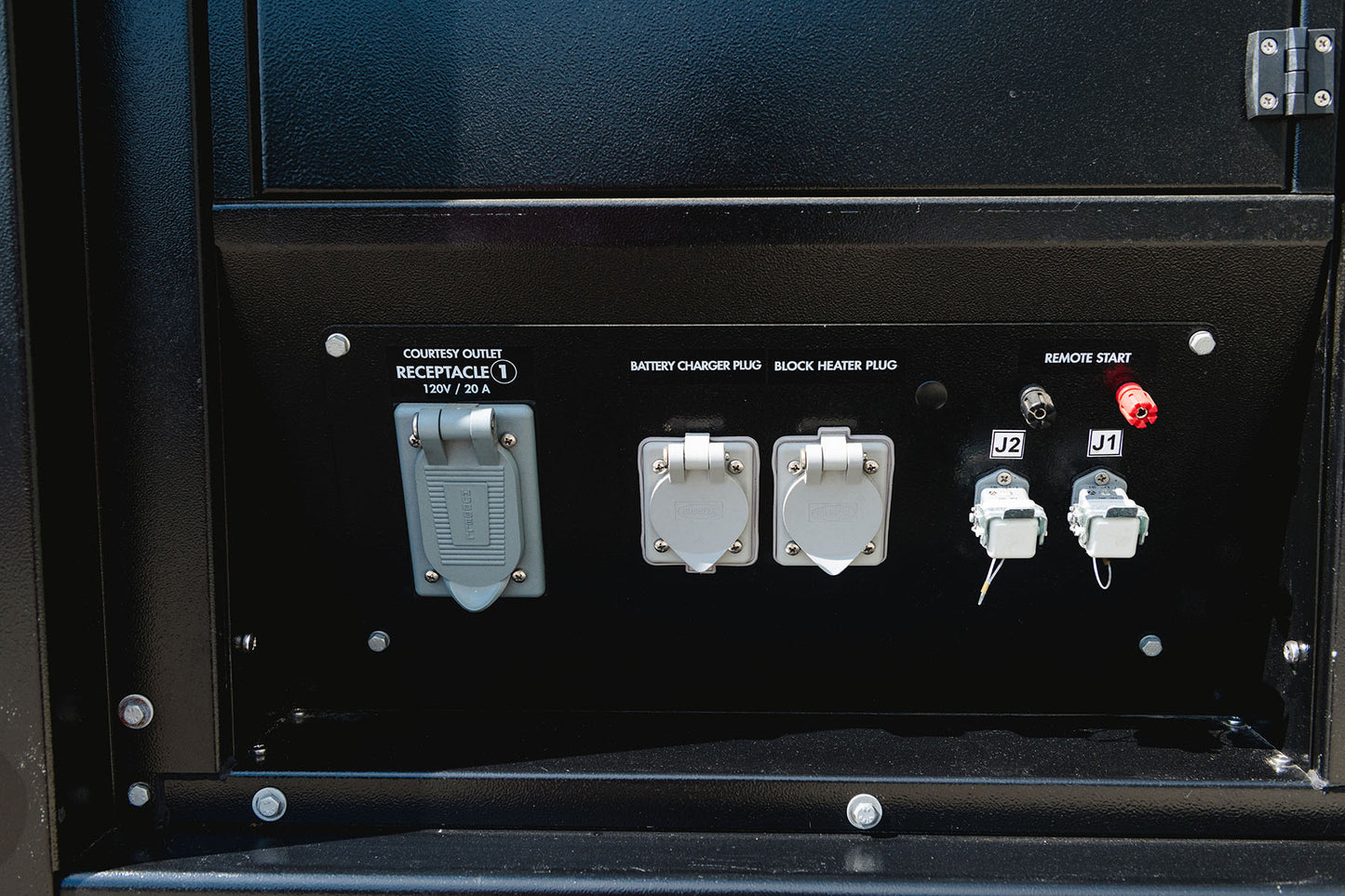

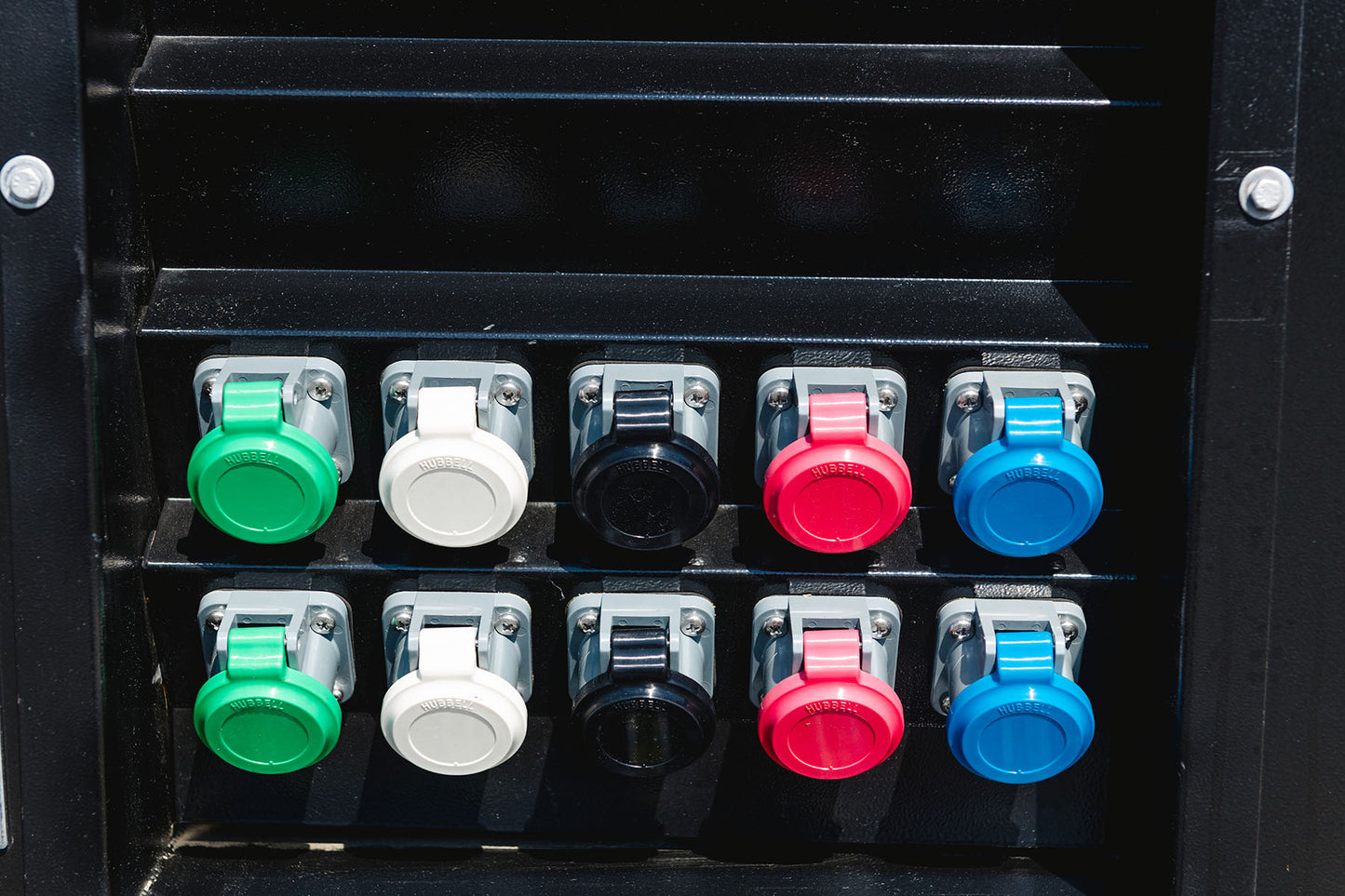

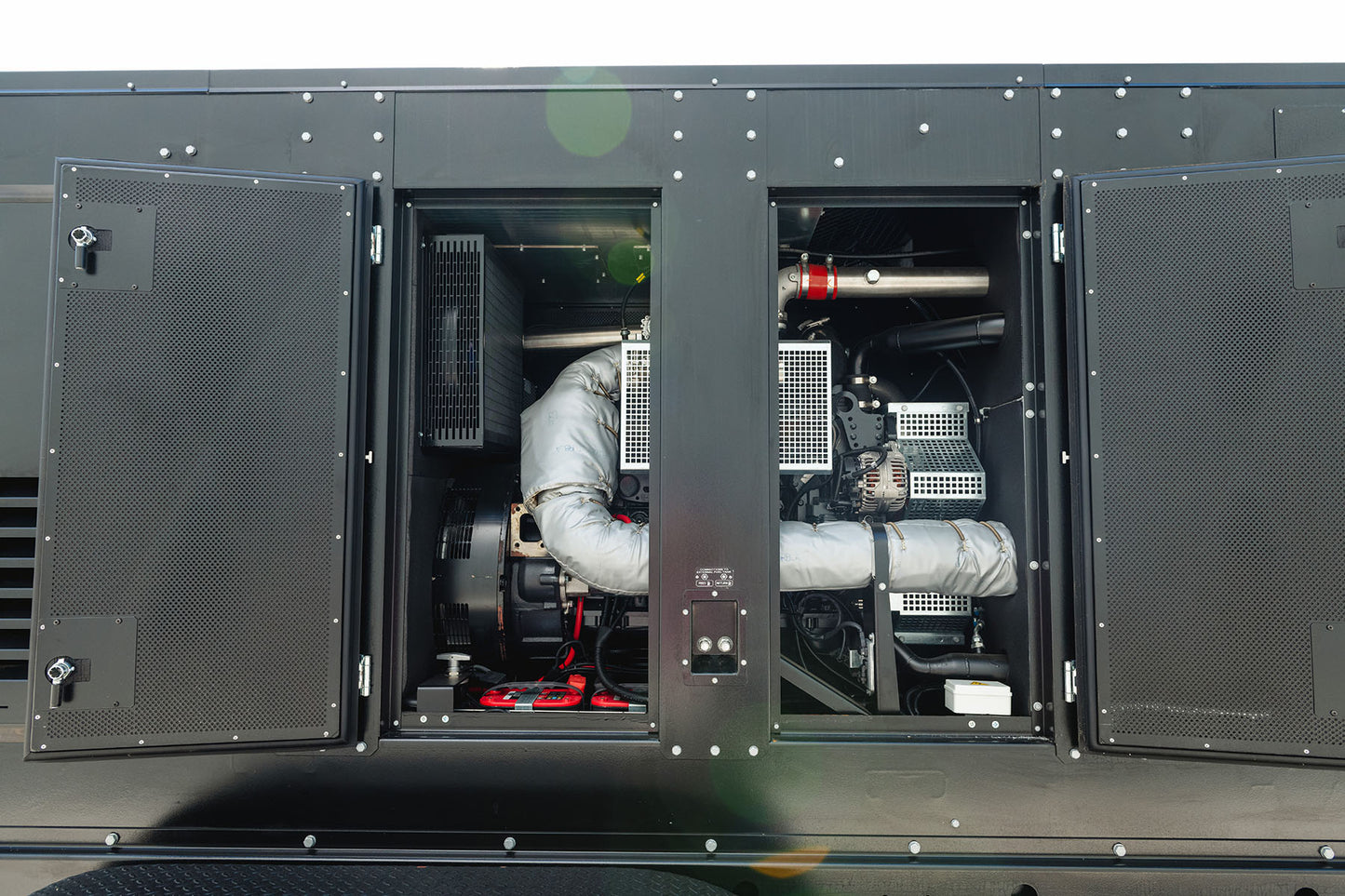

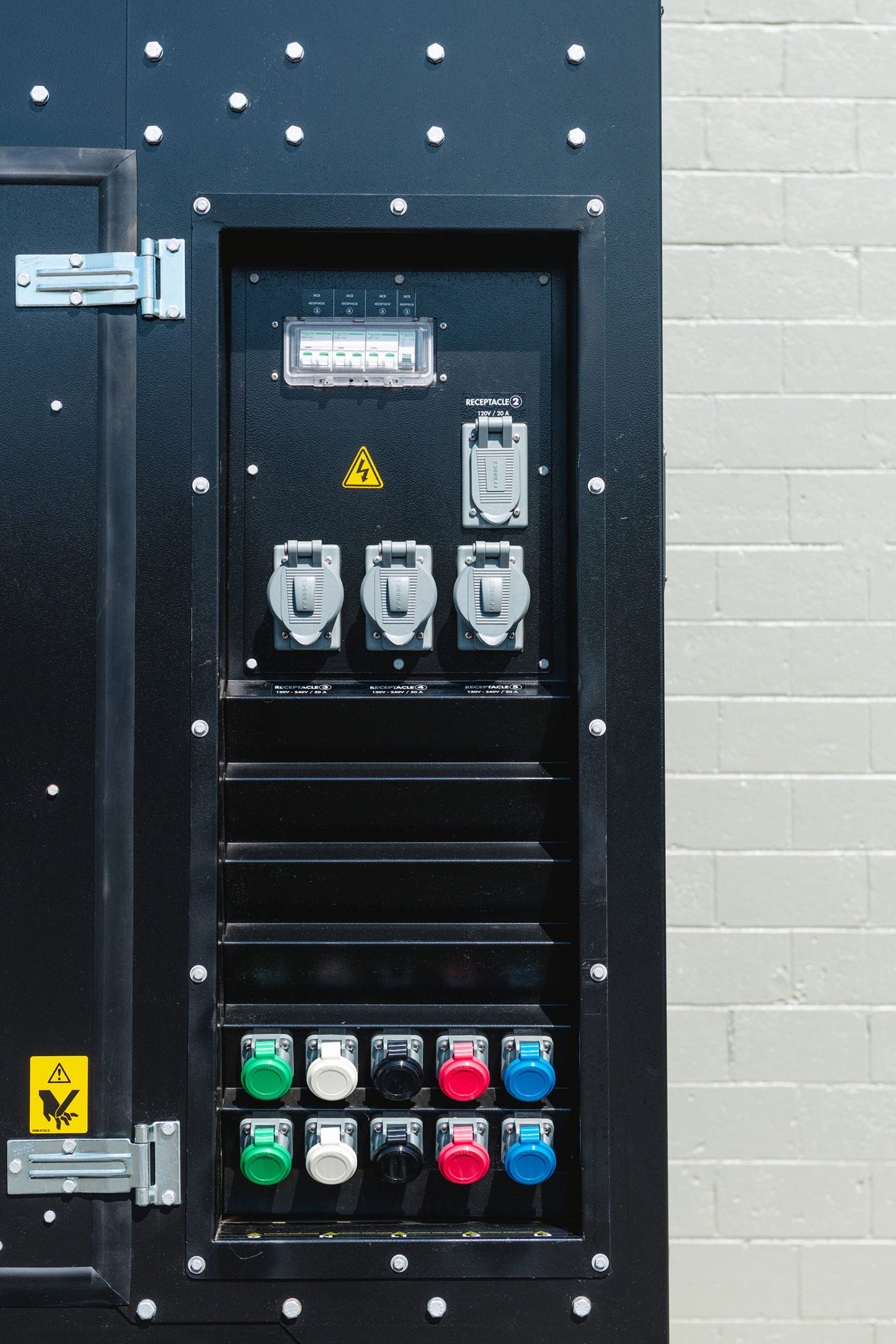

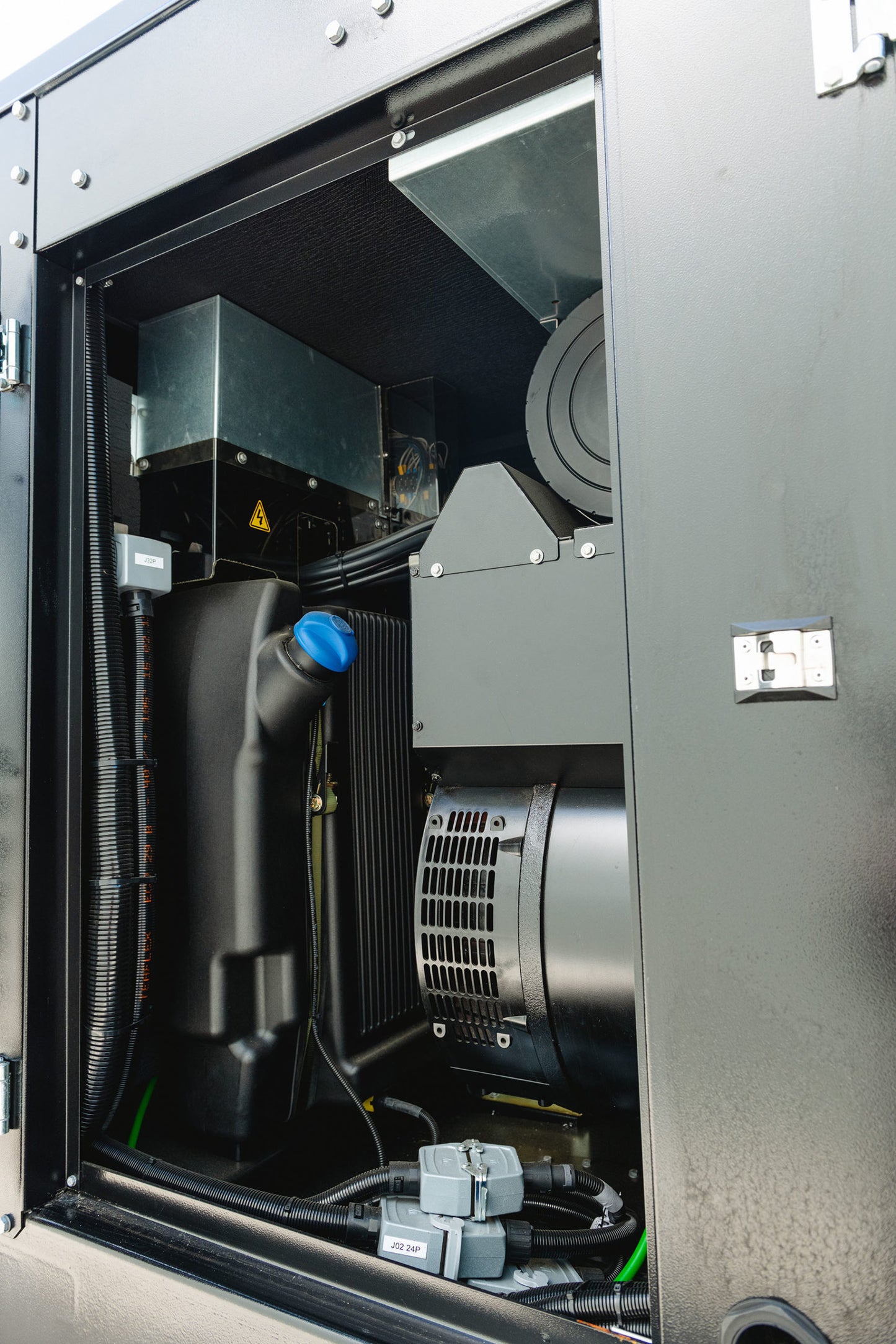

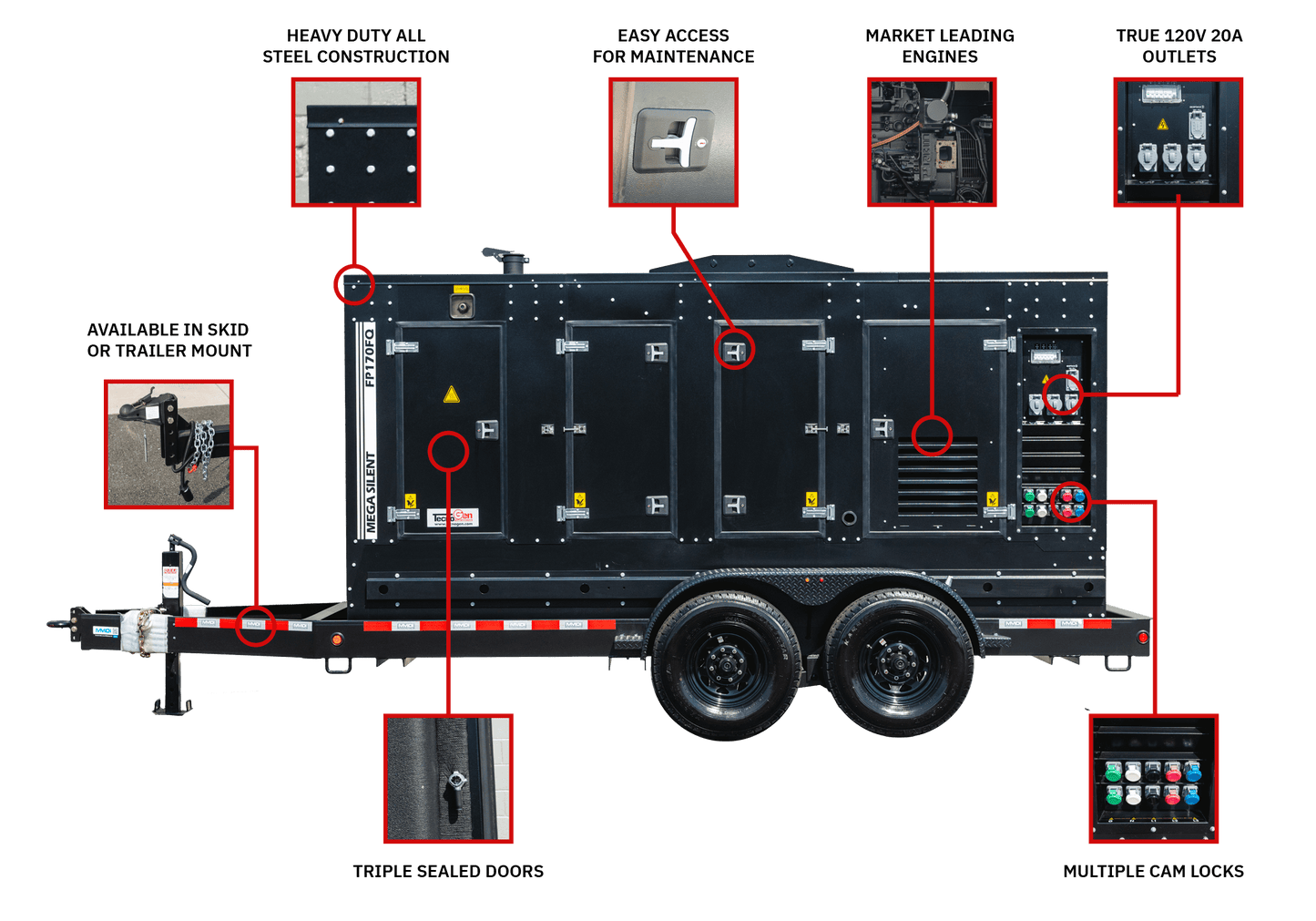

TecnoGen’s 170kVA generator uses the FPT engine coupled to an industry standard Leroy Somer alternator producing 137kW of prime power. Standard features include camlocks, block heater and battery charger. The Deep Sea controller makes retrieving vital stats like fuel levels and start logs easy. The tripled sealed doors and 2″ thick insulation throughout gives this gen a 58dBA rating.

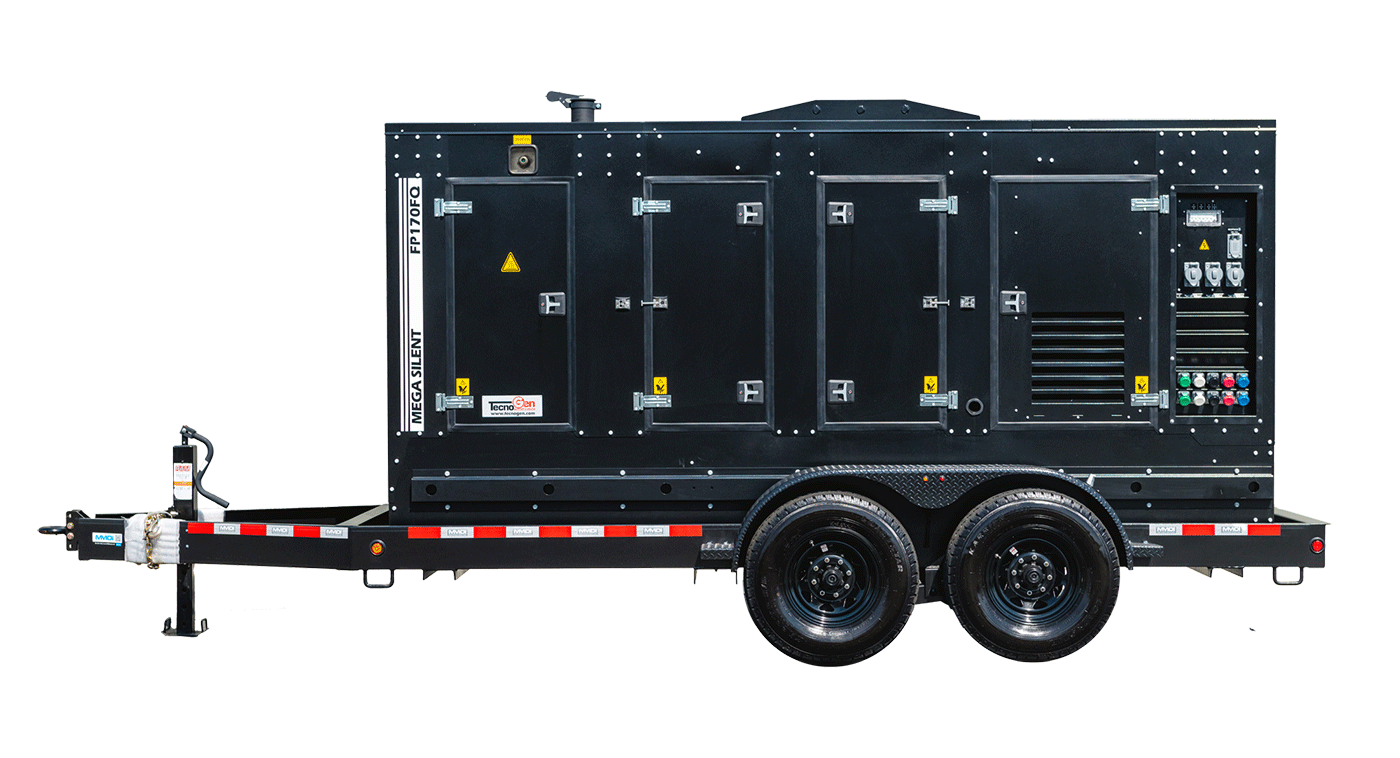

The internal fuel capacity is 231 gallons allowing for a run time of up to 32 hours @ 75% load. The convenient external fuel hook-up allows for quick connect to an additional fuel cell if needed. The TecnoGen Mega Silent series is built for the entertainment world. Available on trailer or skid mounted.

Prime Power: 137 kW
Standby Power: 151 kW
Fuel Capacity: 231 Gallons
Run Time: Up to 32 Hours at 75% load
Sound Level: 58 dBA @ 23 feet
Dimensions: 166" L x 47" W x 83" H
Weight: 11,212 lbs

General Specifications

Specification	Details
Prime Power	137 kW
Standby Power	151 kW
Noise Level @ 23'	58 dBA

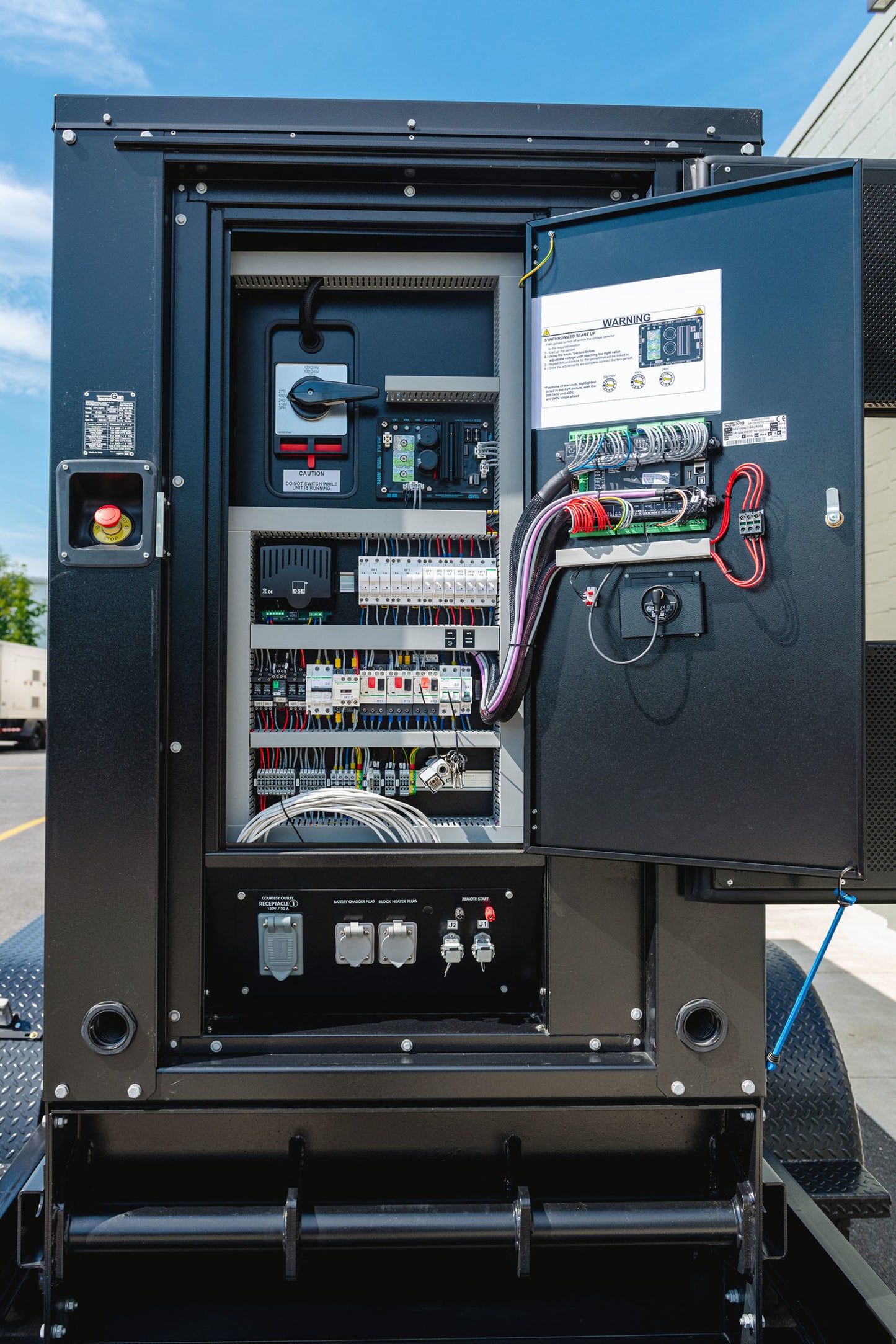

Controller	Deep Sea DSE8610

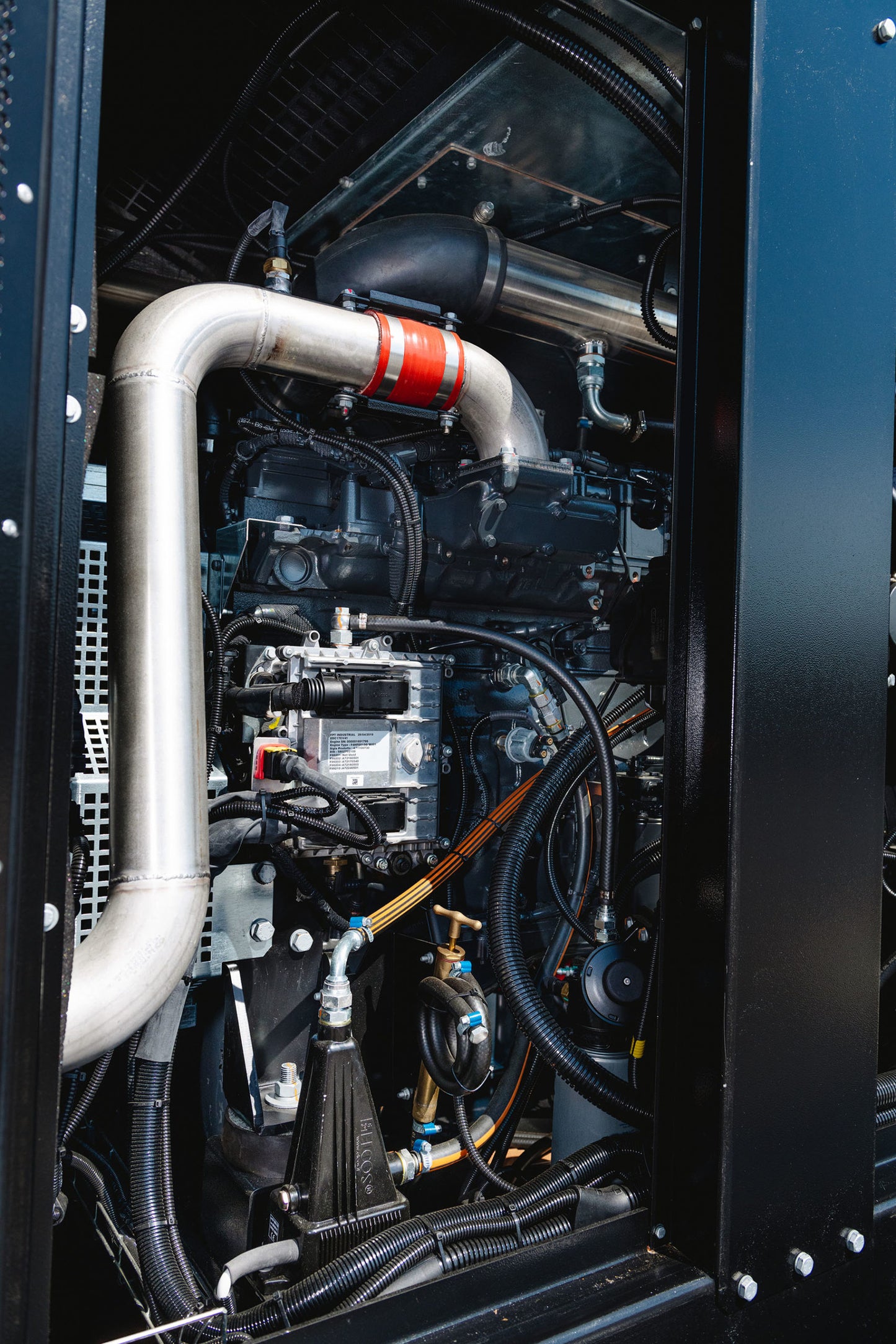

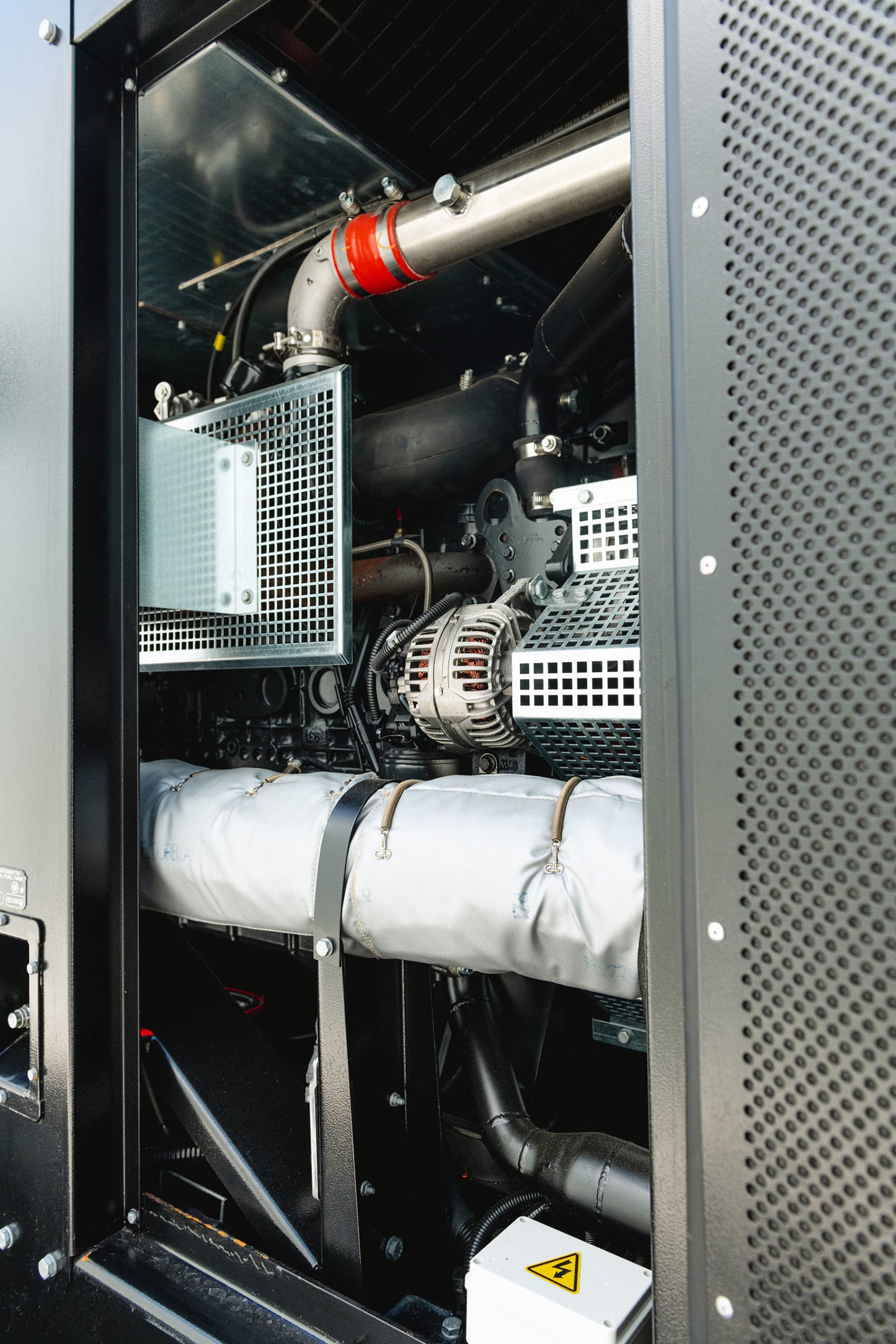

Engine Model	FPT NEF 67
Alternator Model	Leroy Somer LSA 46.3S2
Fuel Consumption (75%)	7.28 gal/h

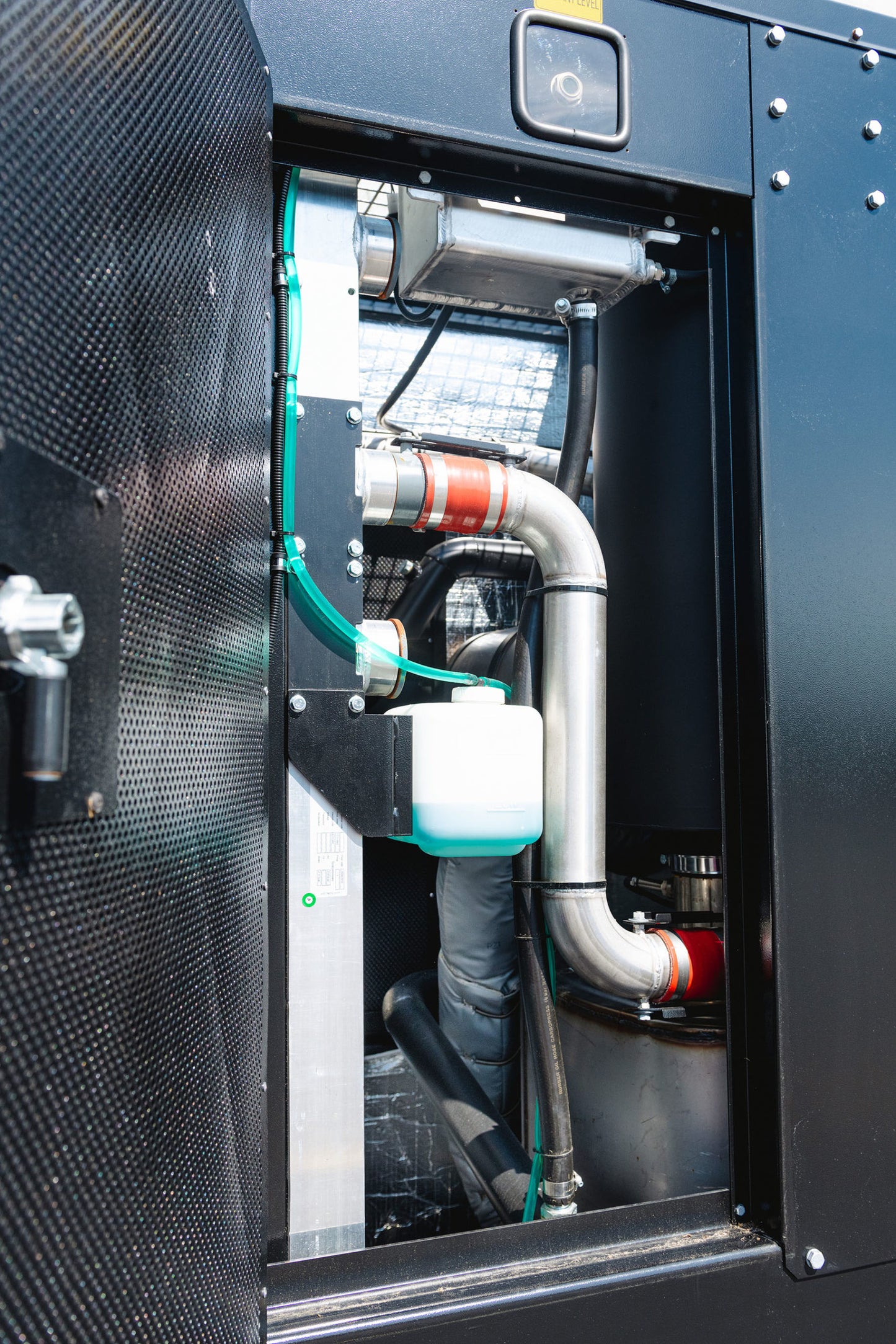

DEF Tank Capacity	20 gallons

Electrical Specifications

Voltage	Amps
Single Phase 120V	500 x 2
Single Phase 240V	500
Three Phase 208V	476
Three Phase 240V	412
Three Phase 480V	206

Engine Specifications

Specification	Details
Engine Make	FPT
Engine Model	NEF 67
Horsepower	204 HP
Cylinders	6
EPA Compliance	Tier 4F

Fuel Specifications

Specification	Details
Fuel Capacity	231 gallons
Run Time (75% Load)	32 hours

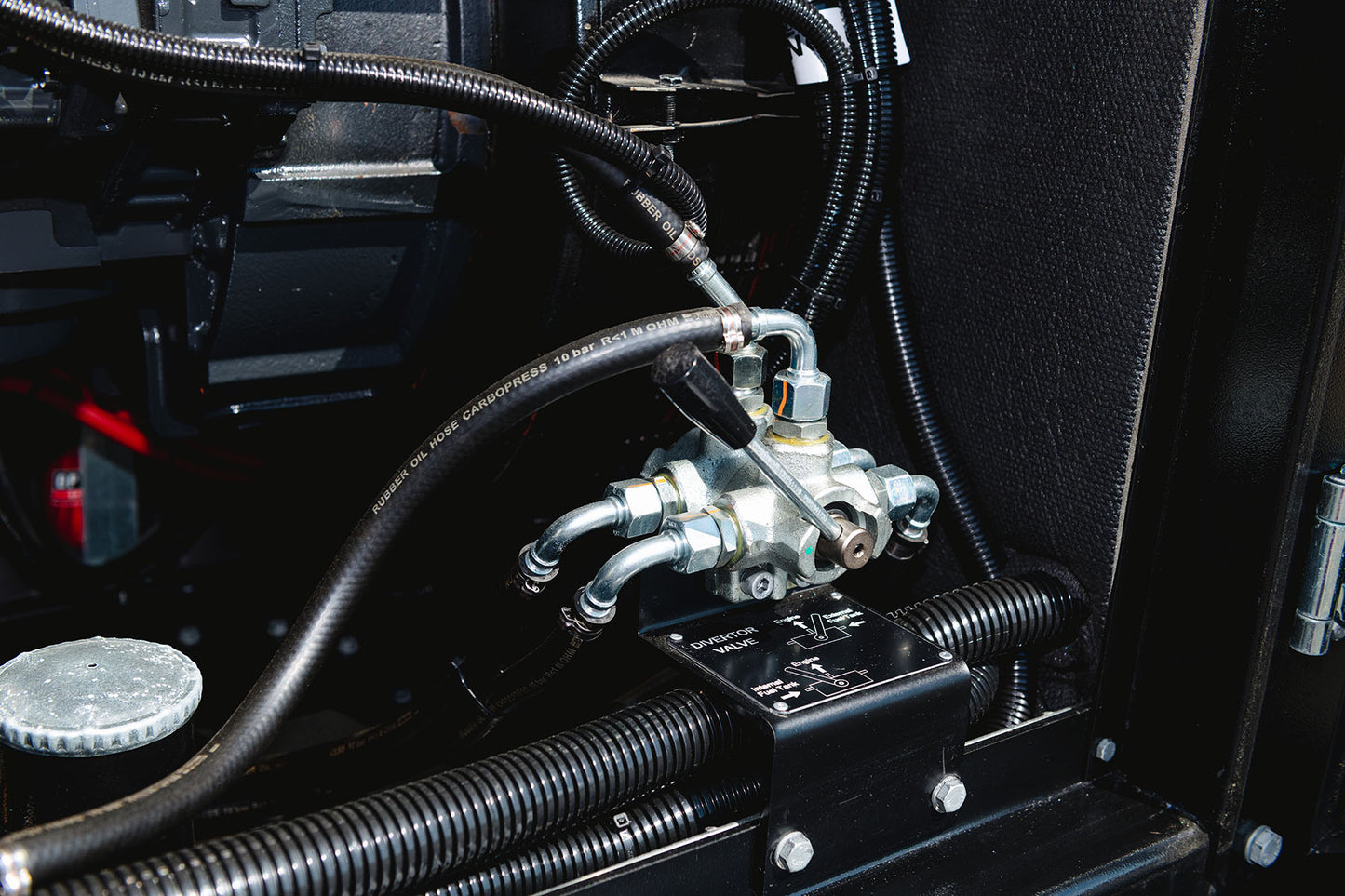

External Fuel Valve	Yes

Dimensions and Weight

Specification	Skid Without Trailer
Length	166 in.
Width	47 in.
Height	83 in.
Dry Weight	9,430 lbs
Wet Weight	11,212 lbs

In Package

TecnoGen Mega Silent Generator
FPT NEF 67 Engine
Leroy Somer Alternator
Deep Sea DSE8610 Controller
Installation and Maintenance Manual

MEGA SILENT SERIES

By using patented VSi technology to adjust the fans to cool only as necessary to maintain proper temperature, TecnoGen creates one of the most fuel efficient generators on the market, not to mention the quietest!

CUSTOMER FOCUSED

With TecnoGen, you’ll always get a commitment to superior service, fast turnaround times and real 24/7 support.

FOR THE ENTERTAINMENT WORLD

Perfect for the entertainment, events and movie sectors, TecnoGen designed the Mega Silent Series paying specific attention to low noise level, operating temperature and low fuel consumption.
