Titan Attachment Heavy-Duty Root Grapple Rake | Working Width 60"-84" inches | Horsepower 60-90 HP | For Tractors

Titan Attachment Heavy-Duty Root Grapple Rake | Working Width 60"-84" inches | Horsepower 60-90 HP | For Tractors

Regular price $4,538.99
Regular price Sale price $4,538.99
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Working Width 60"-84" inches & Horsepower 60-90 HP For Tractors.
  • Heavy-Duty Steel Construction: Built with 0.5-inch thick steel sides and reinforced teeth for maximum durability.
  • Twin 3,000 PSI Hydraulic Cylinders: Delivers exceptional gripping power for heavy loads up to 3,500 lbs.
  • Replaceable Bucket Teeth: Easily swap out worn or damaged teeth to extend the attachment’s lifespan.
View full details

Product Description

Titan Attachment Heavy-Duty Root Grapple Rake | Working Width 60"-84" inches | Horsepower 60-90 HP | For Tractors

DESCRIPTION

The HD Root Grapple Rake is built to simplify heavy lifting and land management. Its extra-wide rake design allows you to push, grip, and transport large loads effortlessly, while the twin 3,000 PSI hydraulic cylinders provide a secure hold on awkwardly shaped materials. Compatible with John Deere Series 2, 3, and 4 tractors, this grapple rake is perfect for demanding tasks like uprooting stumps, moving boulders, or clearing brush. The replaceable bucket teeth ensure longevity, and the powder-coated green finish resists rust and wear, even in harsh conditions.

Key Features

  • Heavy-Duty Steel Construction: Built with 0.5-inch thick steel sides and reinforced teeth for maximum durability.
  • Twin 3,000 PSI Hydraulic Cylinders: Delivers exceptional gripping power for heavy loads up to 3,500 lbs.
  • Replaceable Bucket Teeth: Easily swap out worn or damaged teeth to extend the attachment’s lifespan.
  • Extra-Wide Rake Design: Ideal for pushing and gripping large volumes of debris, logs, or rocks.
  • John Deere Compatibility: Designed for Series 2, 3, and 4 tractors with hook-and-pin mounting systems.
  • Greaseable Pins and Bushings: Low-maintenance design ensures smooth operation and longevity.
  • Powder-Coated Finish: Green coating protects against corrosion and adds a professional look.
  • Included Accessories: Comes with hoses, Pioneer-style couplers, and bucket teeth for immediate use.

Additional Information

  • Wide Compatibility: Top pin set fits John Deere loader models including 210, 200cx, 300x, 400cx, 430, and more.
  • Protection Built In: Includes greaseable pins, bushings, and hydraulic covers to safeguard components during heavy use.

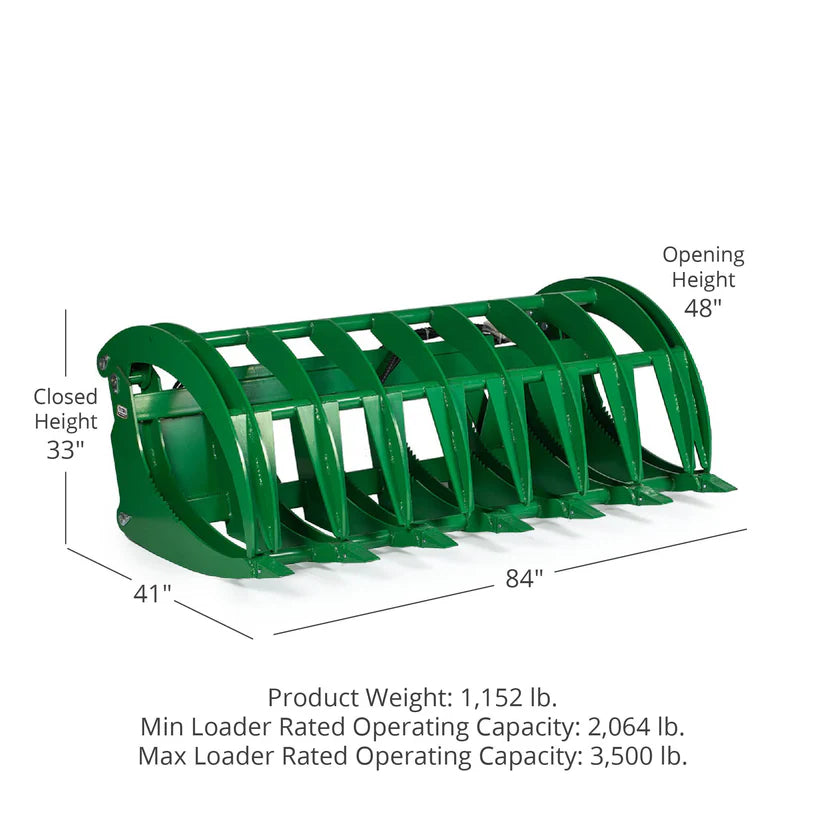

Detailed Specifications

Feature 60" Model 72" Model 84" Model
Recommended Tractor Series Series 2, 3, 4 Series 4 Series 4
Overall Length 60 inches 72 inches 84 inches
Opening Height 48 inches 48 inches 48 inches
Closed Height 33 inches 33 inches 33 inches
Overall Width 41 inches 41 inches 41 inches
Teeth Length 24 inches 24 inches 24 inches
Bottom Teeth Length 20 inches 20 inches 20 inches
Side Thickness 0.5 inches 0.5 inches 0.5 inches
Min Loader Capacity 1,652 lb. 1,874 lb. 2,064 lb.
Max Loader Capacity 3,500 lb. 3,500 lb. 3,500 lb.
Product Weight 924 lb. 1,080 lb. 1,152 lb.
Finish Powder-coated green Powder-coated green Powder-coated green
Horsepower  40-60 HP 50-75 HP 60-90 HP
