Titan Attachments

Titan Attachments Crane Jib Attachment | 3-Ton Swivel Hook | 46.25" Width | Oil Flow Range Flow 4–15 GPM | For Skid Steers

Titan Attachments Crane Jib Attachment | 3-Ton Swivel Hook | 46.25" Width | Oil Flow Range Flow 4–15 GPM | For Skid Steers

$2,667.99
$2,667.99
Sale Sold out
Customizable
Fast
24/7 Support

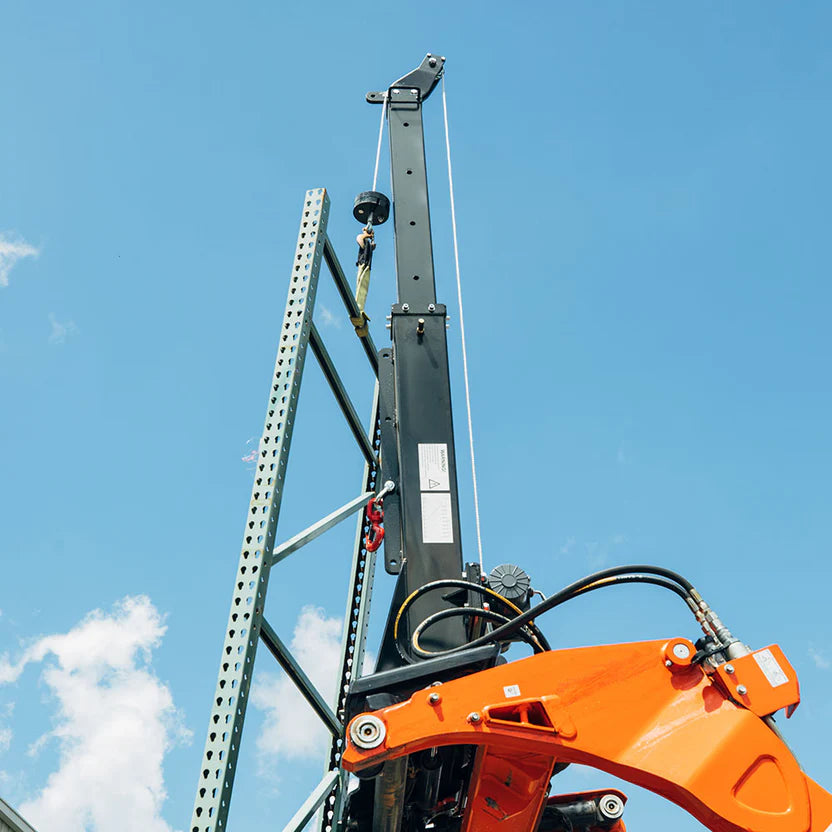

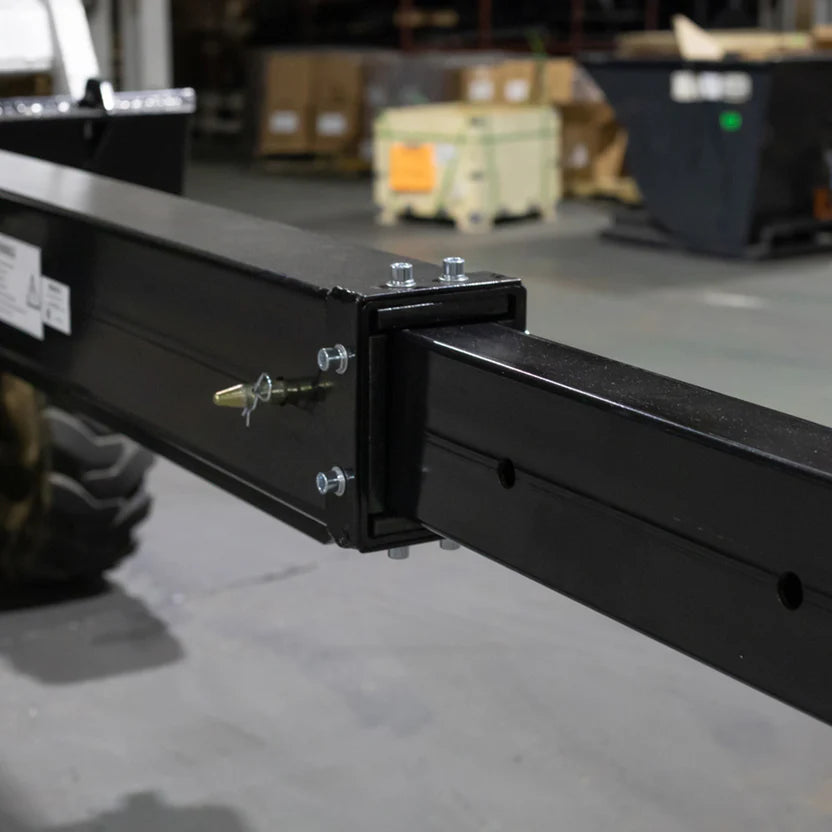

  • Extendable Boom – Telescopic reach up to 120" for handling awkward or high loads.

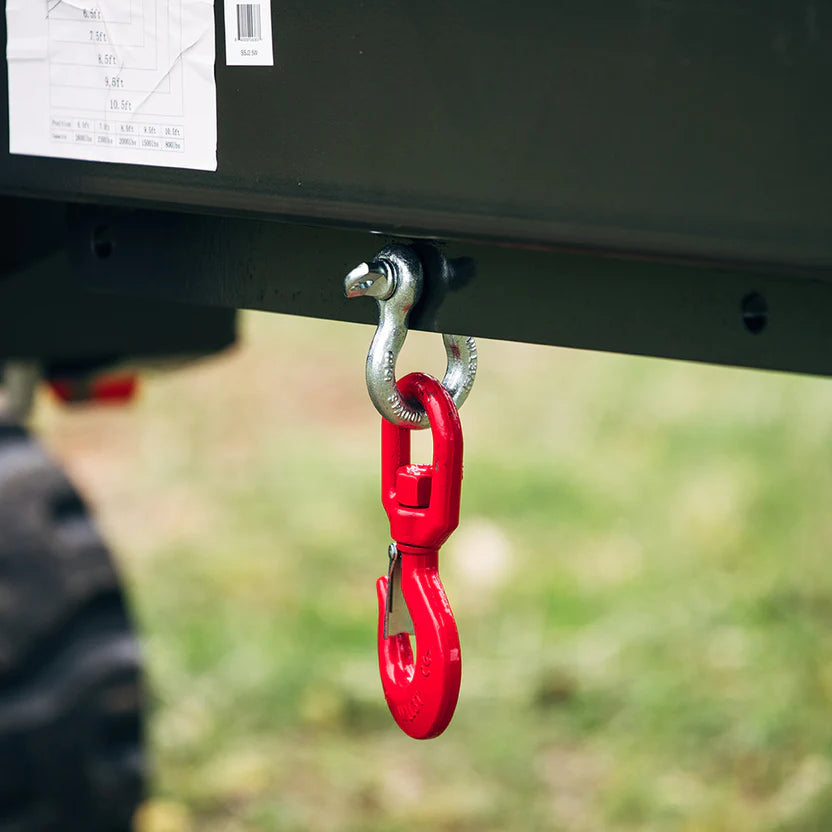

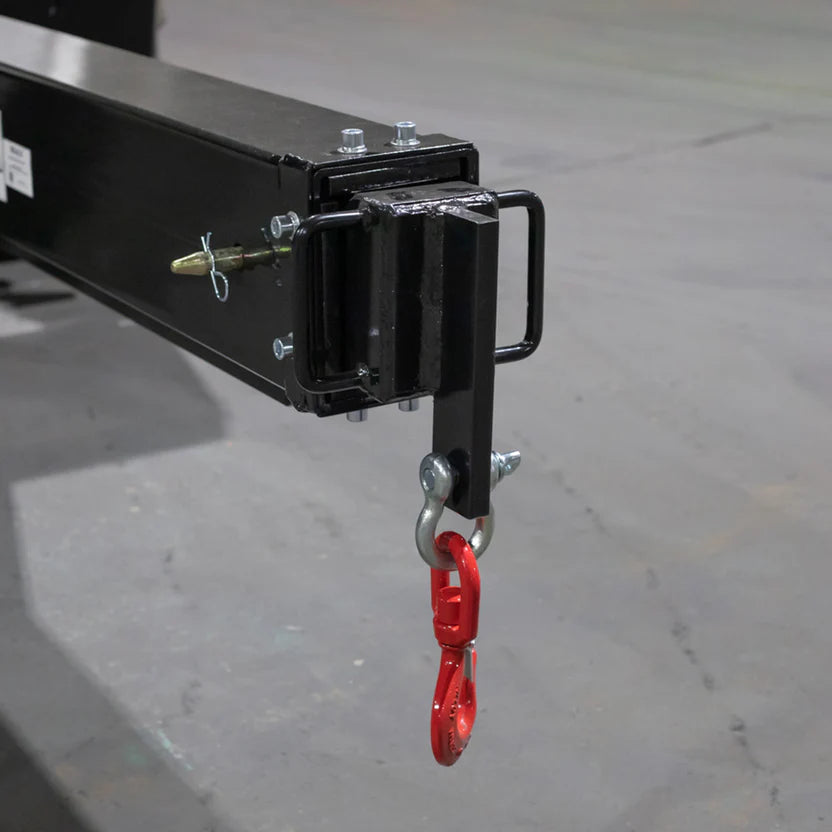

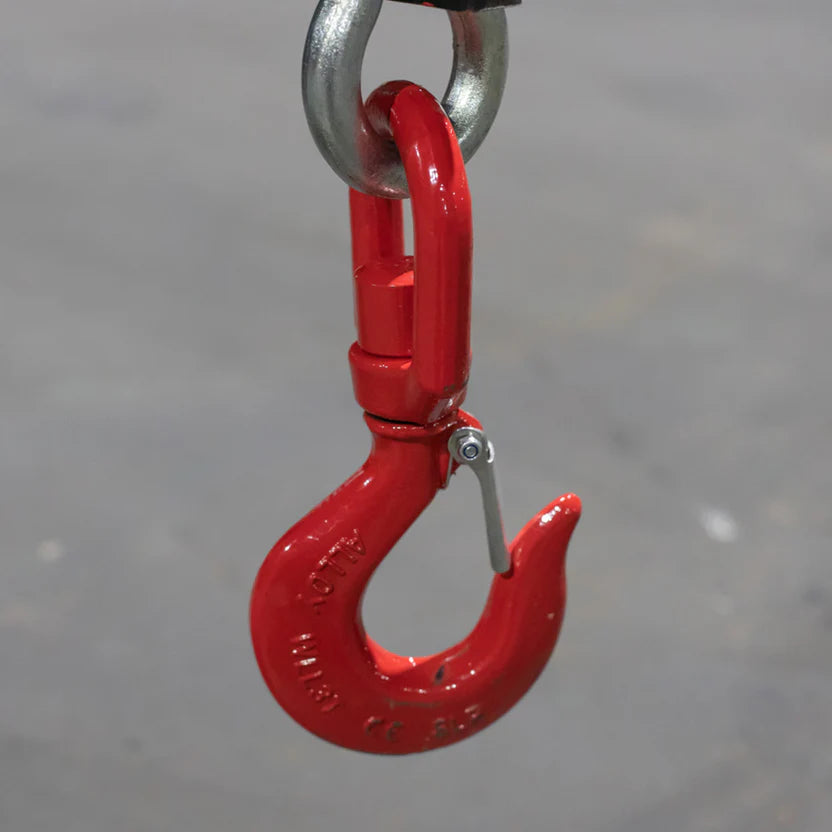

  • 3-Ton Swivel Hook – Includes multiple hook positions (6.5–10.5 FT) for precise lift control.

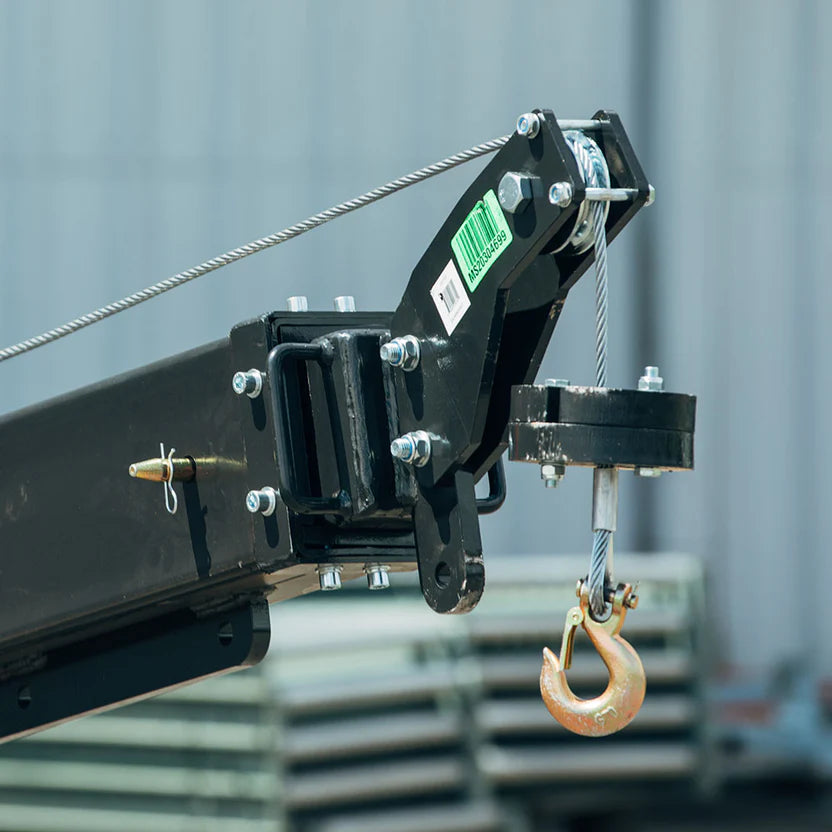

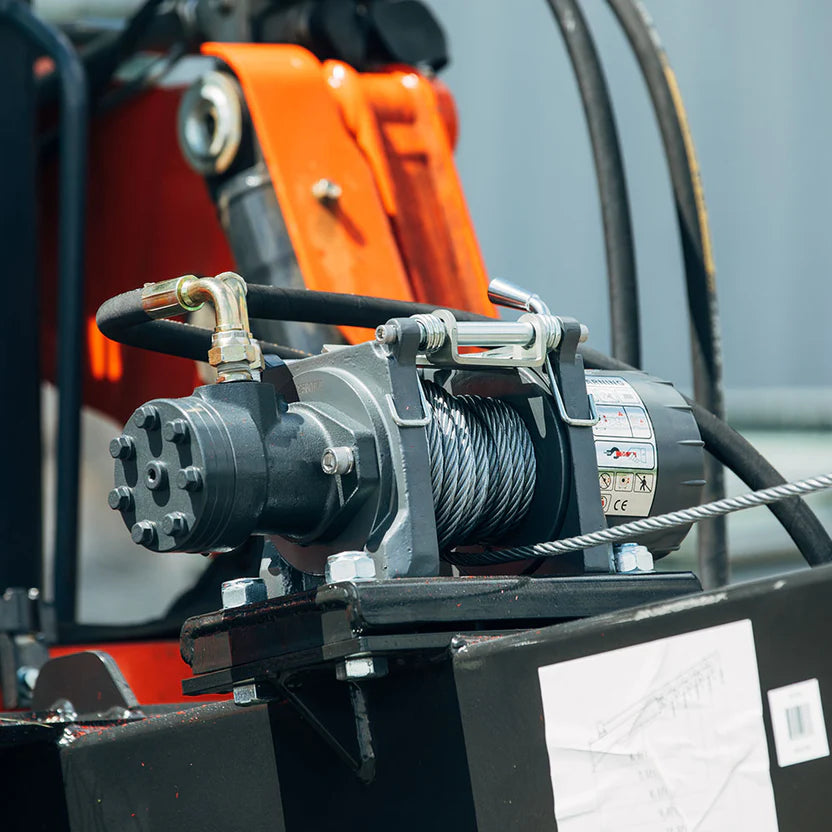

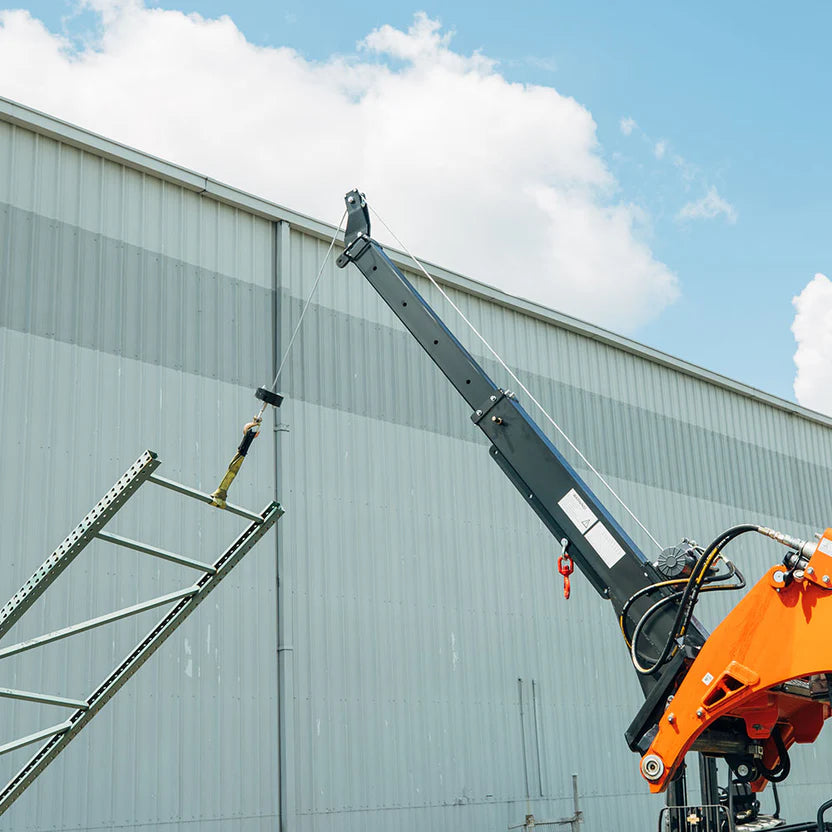

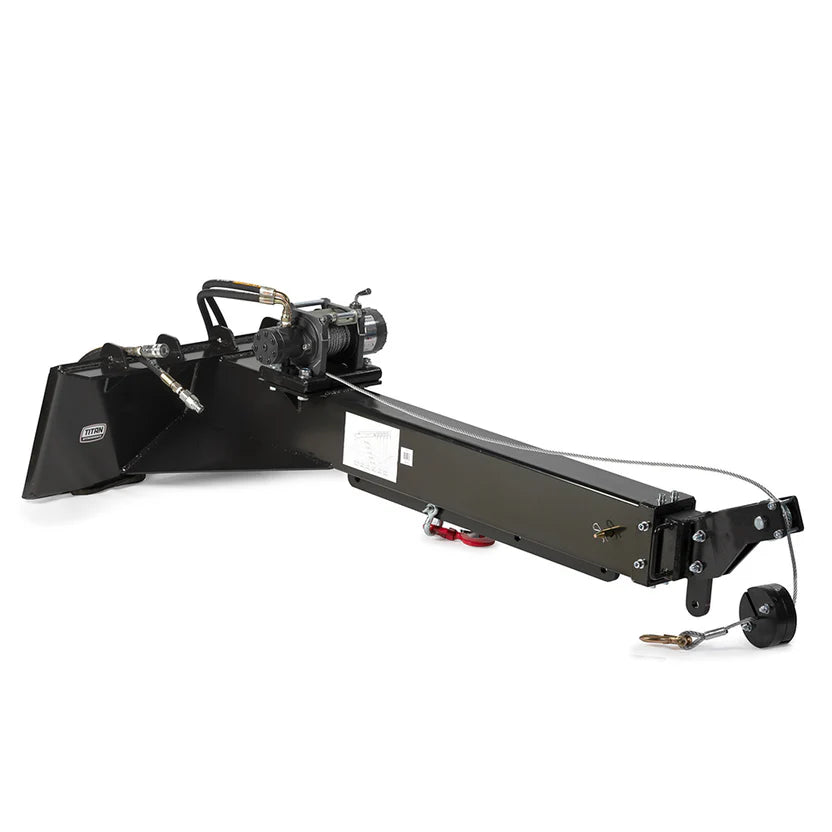

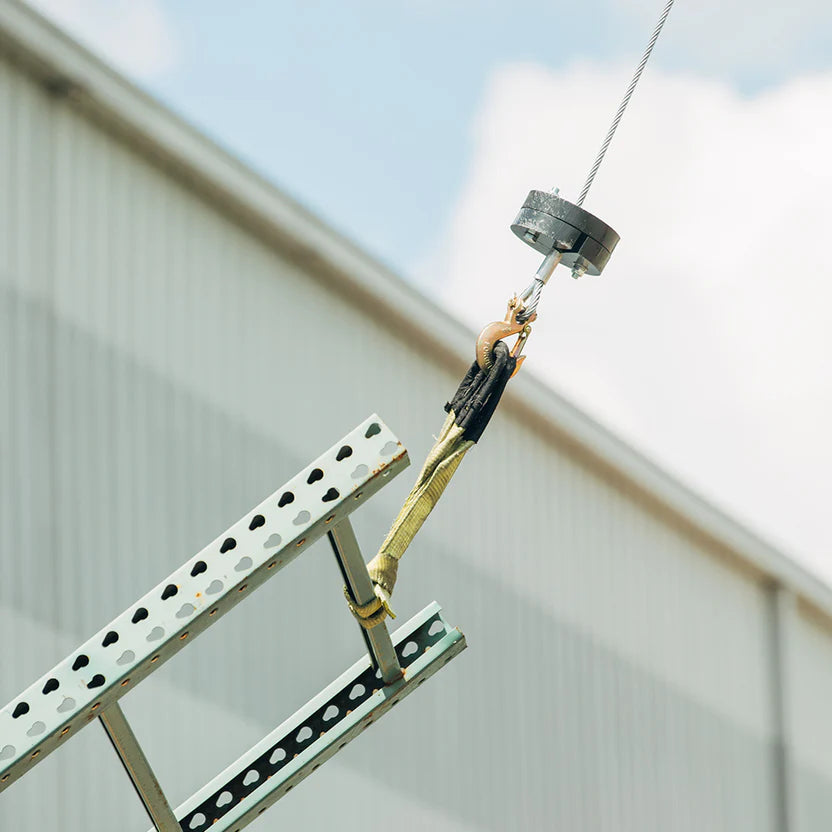

  • Hydraulic Winch Option – Offers uninterrupted lifting with 30 FT cable and 3-ton capacity.
View full details

Product Description

Titan Attachments Crane Jib Attachment | 3-Ton Swivel Hook | 46.25" Width | Oil Flow Range  Flow 4–15 GPM | For Skid Steers

DESCRIPTION

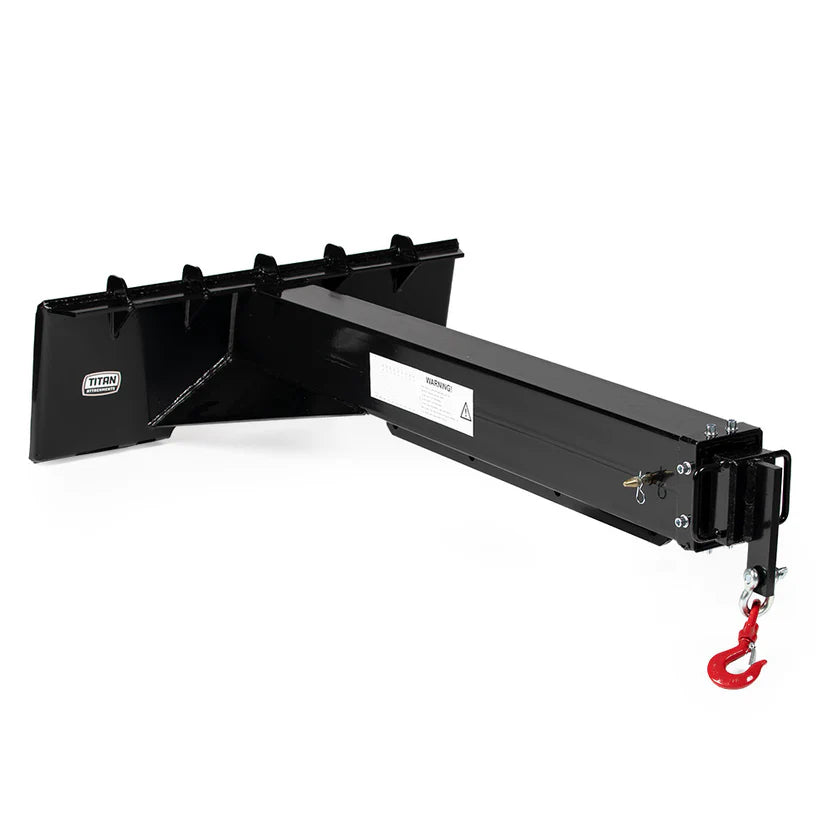

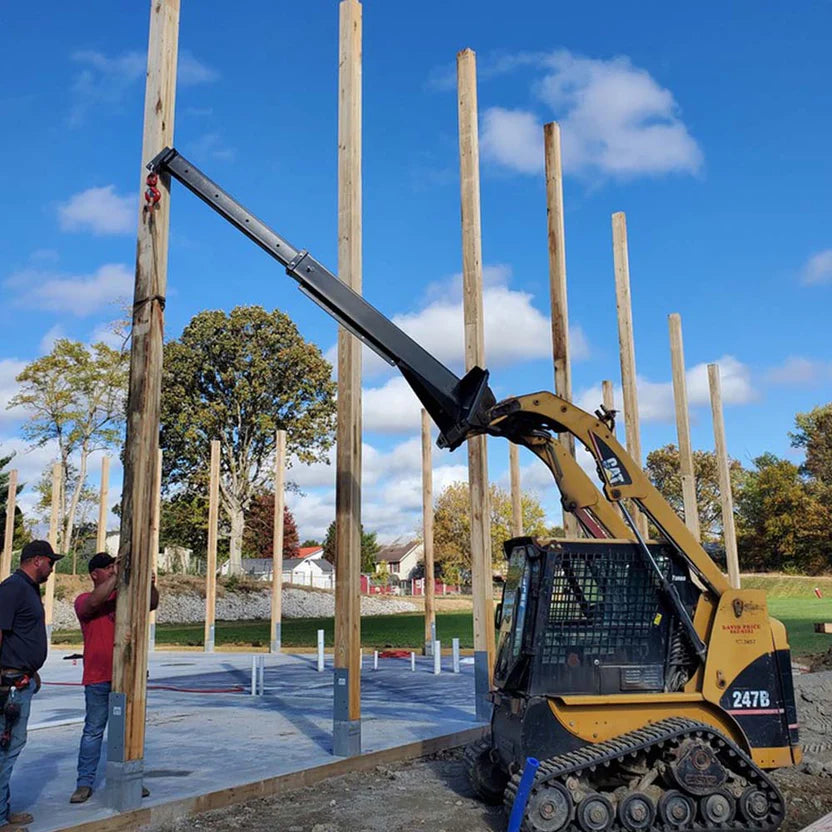

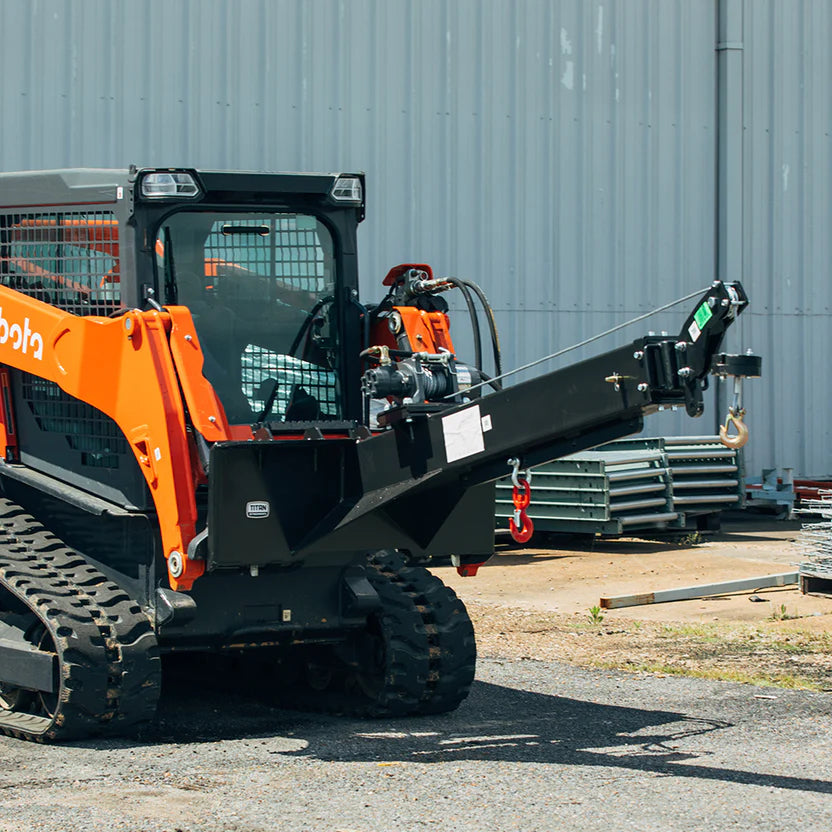

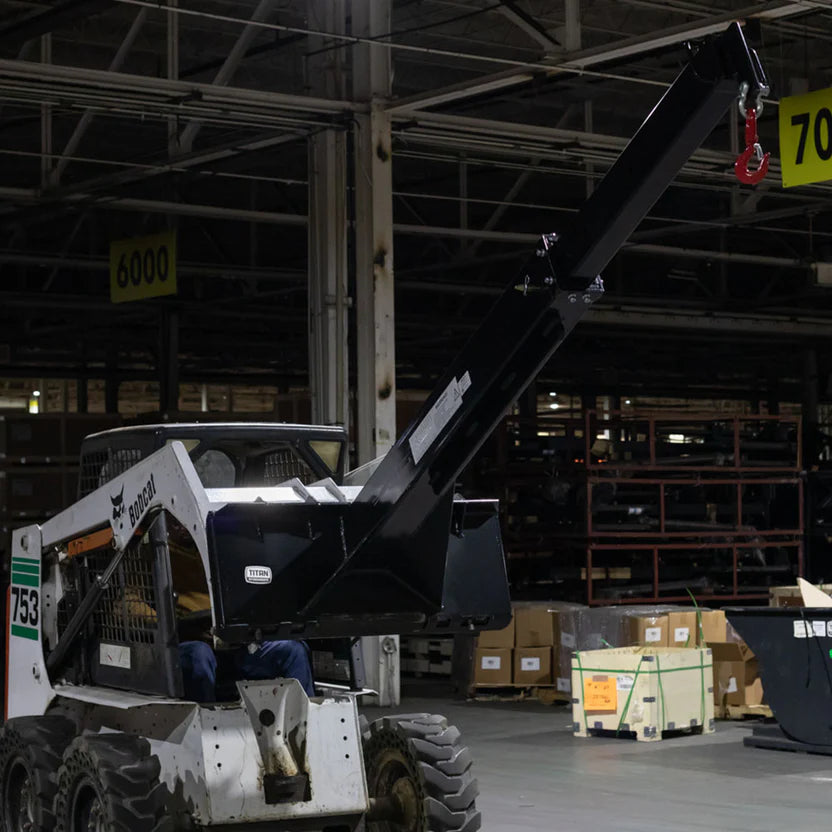

Maximize your skid steer’s versatility with the Adjustable Skid Steer Crane Jib, engineered to transform any SSQA-equipped machine into a mobile lifting powerhouse. This robust attachment features a telescoping boom with multiple stop positions and a swivel hook rated for up to 3 tons, enabling efficient lifting of heavy materials in confined or high-reach areas.

Crafted from 0.5" thick powder-coated steel, the jib offers both manual and optional hydraulic configurations. The optional winch model includes a 30 FT cable and precise hydraulic control, designed for lifting loads safely and smoothly with minimal machine repositioning. With SSQA compatibility, quick connection and removal is effortless, making this a must-have tool for construction, maintenance, and farm operations.

Key Features

  • Extendable Boom – Telescopic reach up to 120" for handling awkward or high loads.
  • 3-Ton Swivel Hook – Includes multiple hook positions (6.5–10.5 FT) for precise lift control.
  • Hydraulic Winch Option – Offers uninterrupted lifting with 30 FT cable and 3-ton capacity.

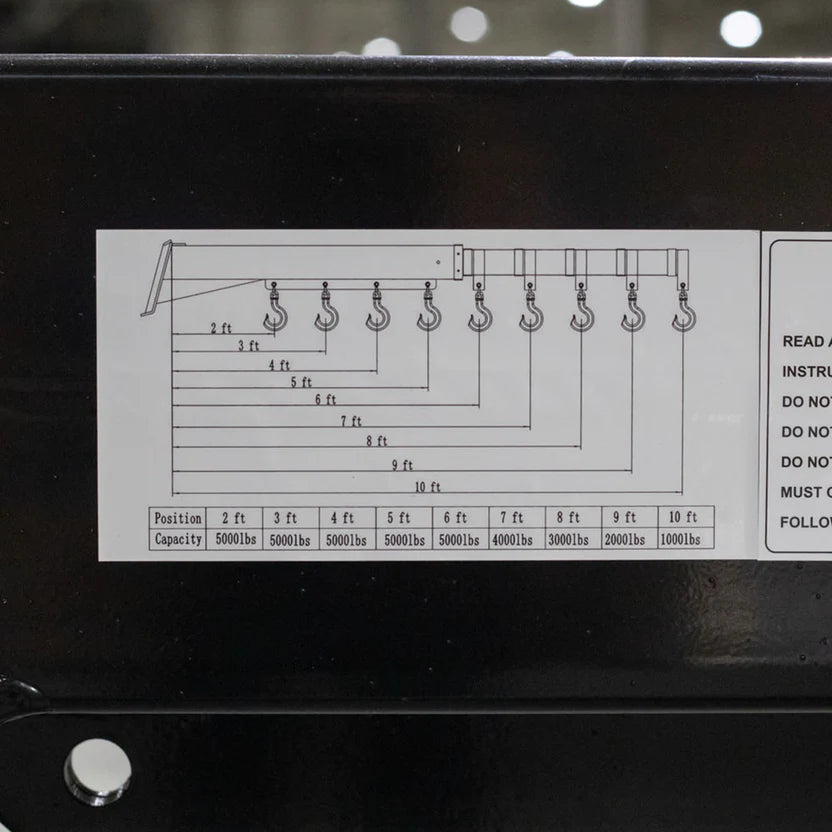

  • Weight Capacity Adjusts with Boom – Up to 5,000 lb at 6 FT (jib only), 2,600 lb at 6.5 FT with winch.

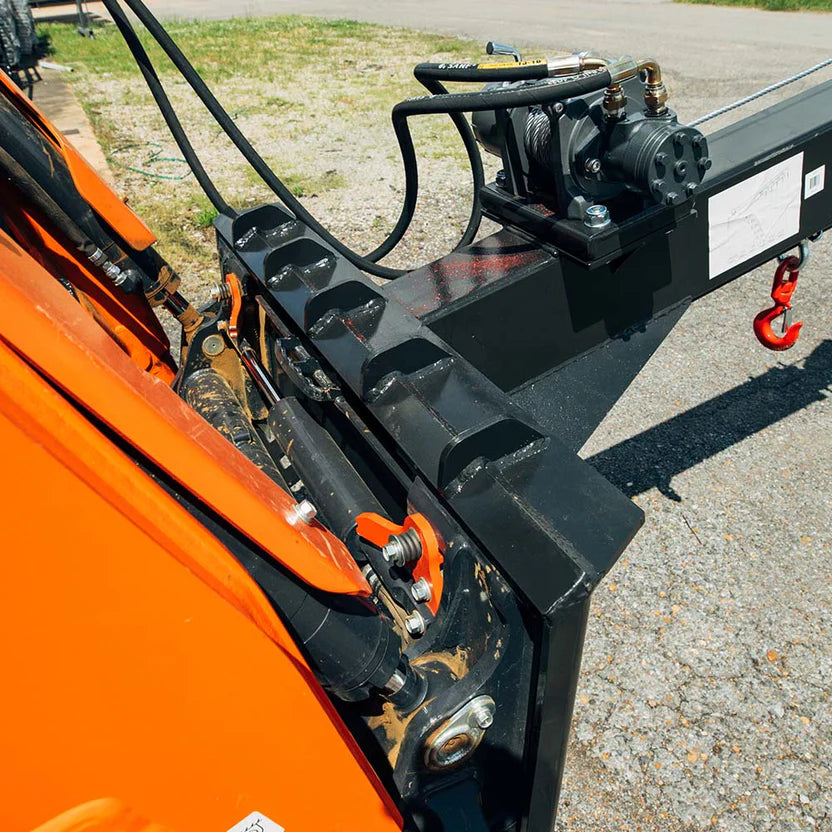

  • SSQA Quick Attach – Fits New Holland, Bobcat, Kubota, John Deere & other major skid steers.
  • Powder-Coated Steel Frame – Rugged 0.5" thick construction resists rust and wear.
  • Hydraulic Flow: 4–15 GPM – Optimized for standard skid steer hydraulic systems.
  • Includes Hydraulic Hoses & Flat-Faced Couplers – Simple, plug-and-go installation.

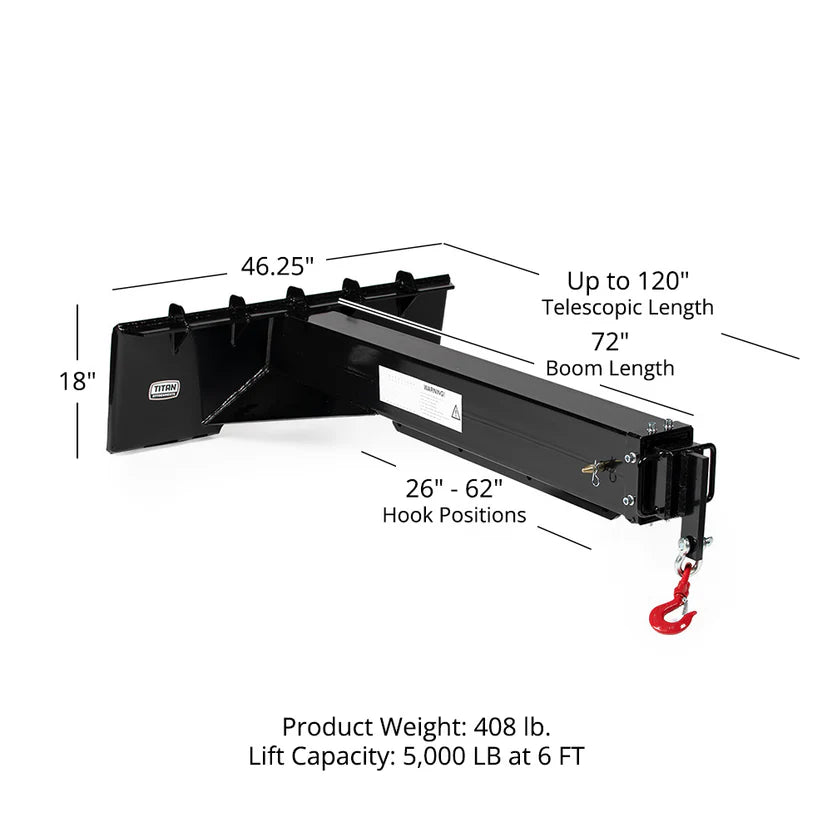

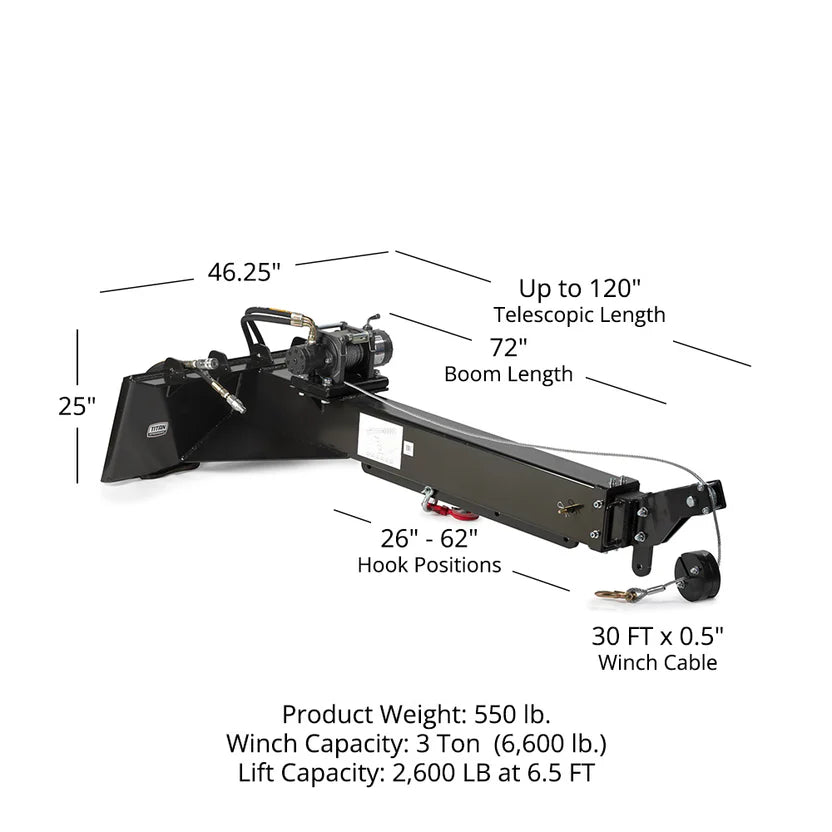

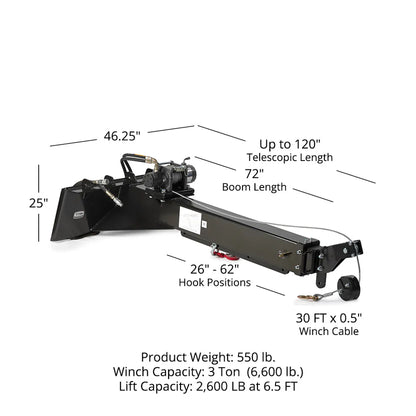

Detailed Specifications

Attribute Jib Only With Hydraulic Winch
Overall Height 18 in 25 in
Overall Width 46.25 in 46.25 in
Boom Length 72 in 72 in
Telescopic Length Up to 120 in Up to 120 in
Hook Positions 26", 38", 50", 62" 26", 38", 50", 62"
Hook Extension Range 6 FT 6.5–10.5 FT
Hook Size 8" × 3" – 4" 8" × 3" – 4"
Winch Cable Length N/A 30 FT
Winch Cable Diameter N/A 0.5 in
Lift Capacity 5,000 lb at 6 FT 2,600 lb at 6.5 FT
Winch Capacity N/A 3 Ton (6,600 lb)
Hydraulic Flow Requirement N/A 4–15 GPM
Material Powder-Coated 0.5" Thick Steel Powder-Coated 0.5" Thick Steel
Finish Black Black
Mount Type Universal SSQA Universal SSQA
Included Components N/A Hydraulic Hoses & Couplers
Product Weight 408 lb 550 lb
