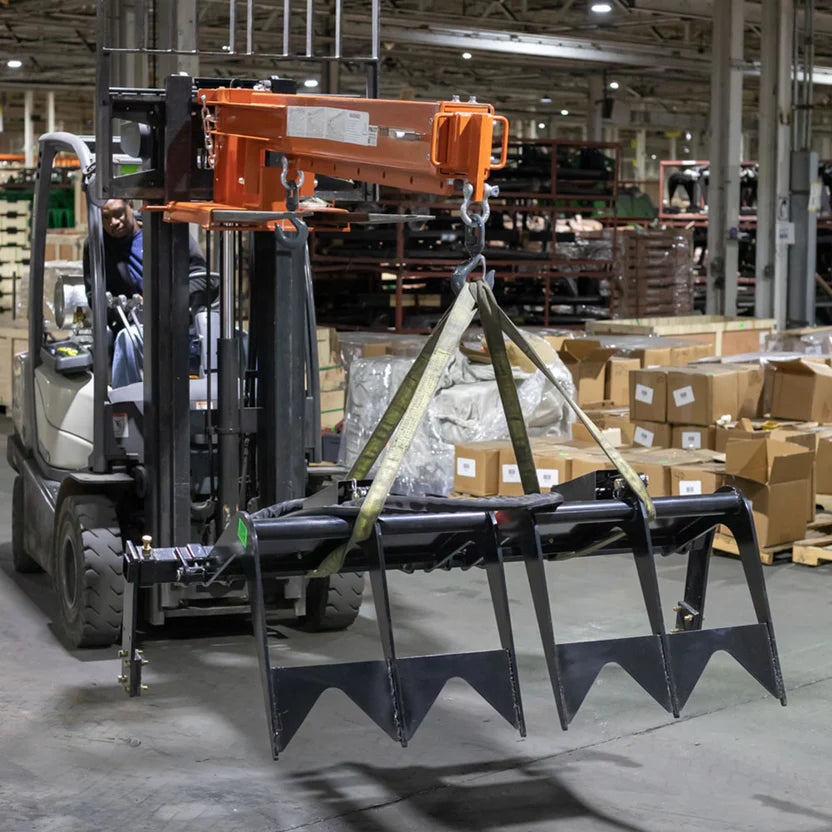

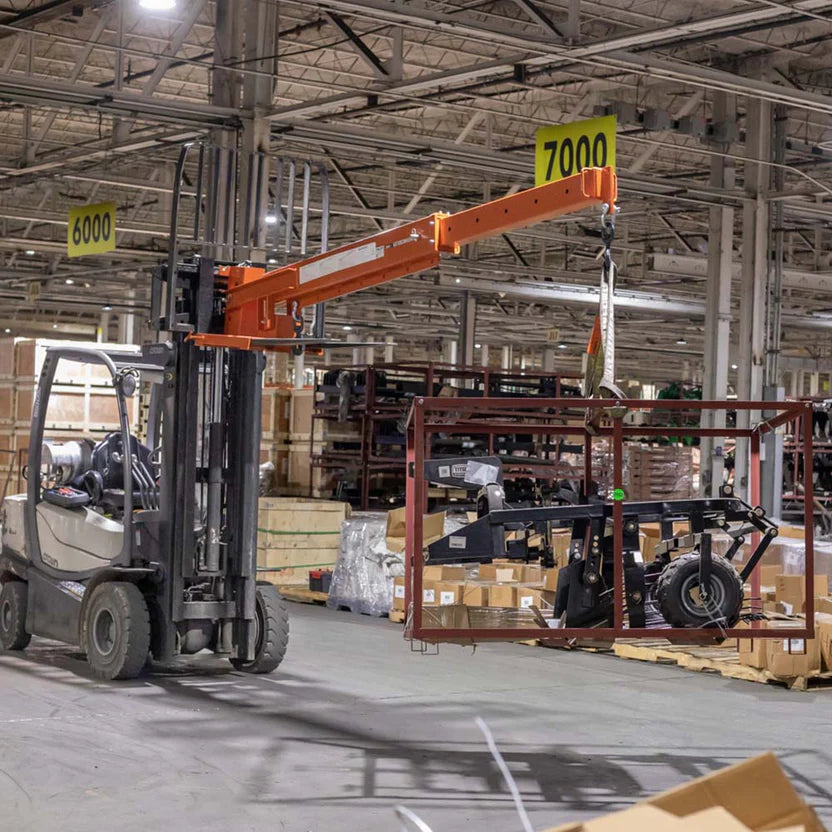

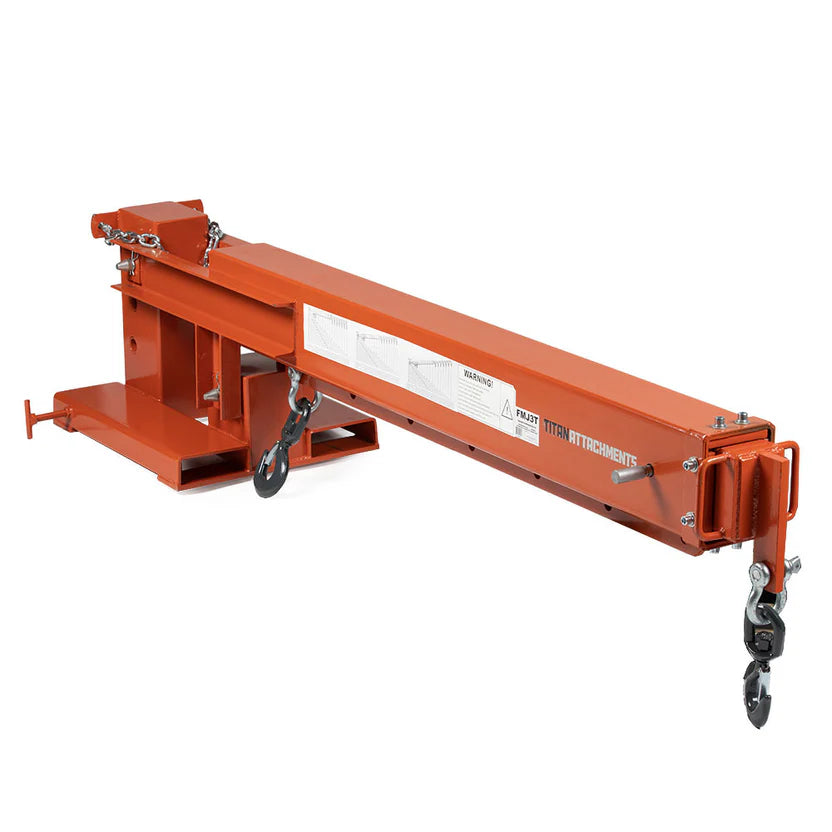

Transform your forklift or skid steer into a mobile lifting powerhouse with the Fork-Mounted Adjustable Hoist Pivoting Jib Boom Crane. Built for heavy-duty construction, industrial lifting, and precision placement, this attachment handles up to 6,600 lbs (3 tons) and features a telescoping boom that extends from 84" to 138" with multiple stop positions for reaching tight or elevated areas. The pivoting boom swings up to 45 degrees, allowing you to position loads without repositioning your machine. The fork-mounted design fits forks up to 2" thick and 6" wide, secured by a lock pin shaft and buckle system for safe operation. For enhanced lifting control, the optional electric winch includes both wired (30 ft) and wireless remote controllers, delivering over 100 lifts per charge. With hook points spaced every 9" from 30" to 138", you can fine-tune load placement with ease. Whether you're lifting beams, HVAC units, pallets, or bulky materials, this jib boom crane delivers unmatched versatility and control—all from the seat of your machine.
Key Features
Fork-Mounted Design Compatible with skid steers and forklifts using forks up to 2" thick × 6" wide.

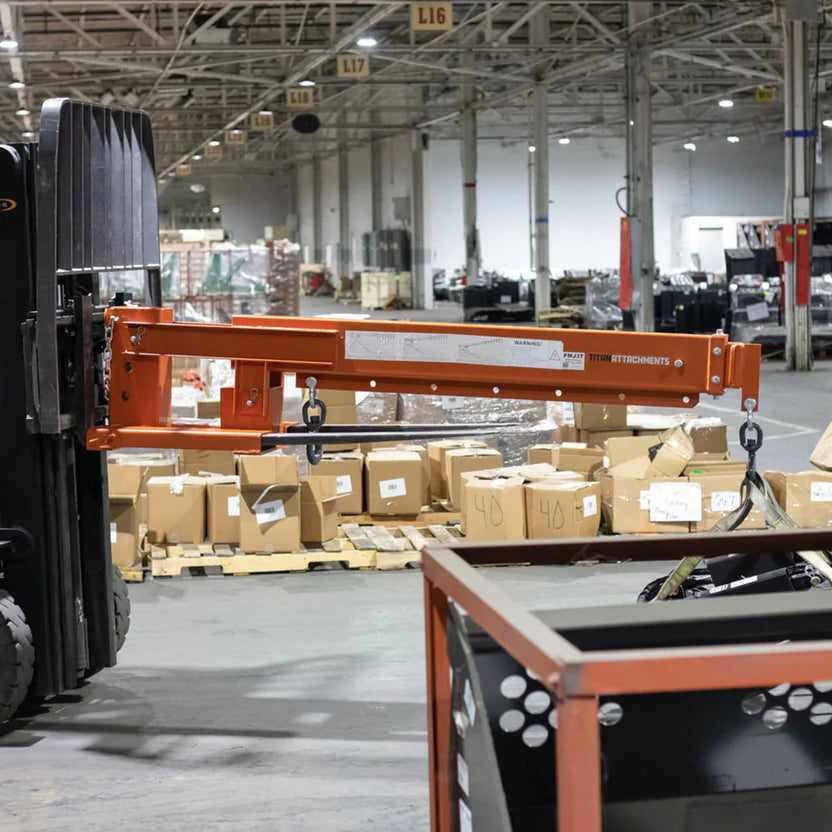

Telescoping Boom (84"–138") Manually adjustable with multiple stop positions for extended reach.

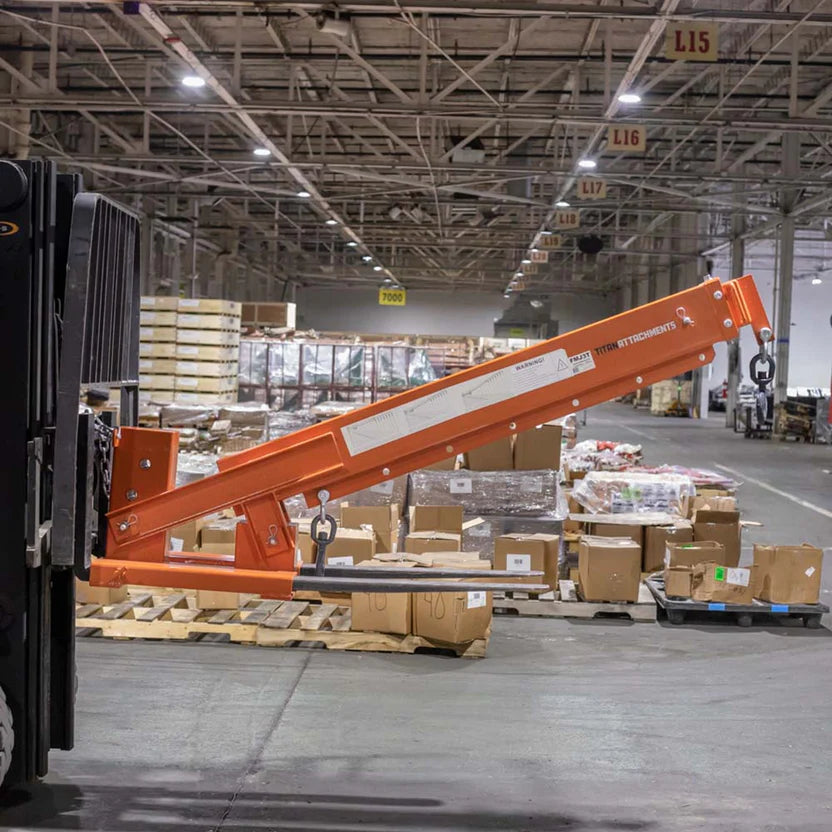

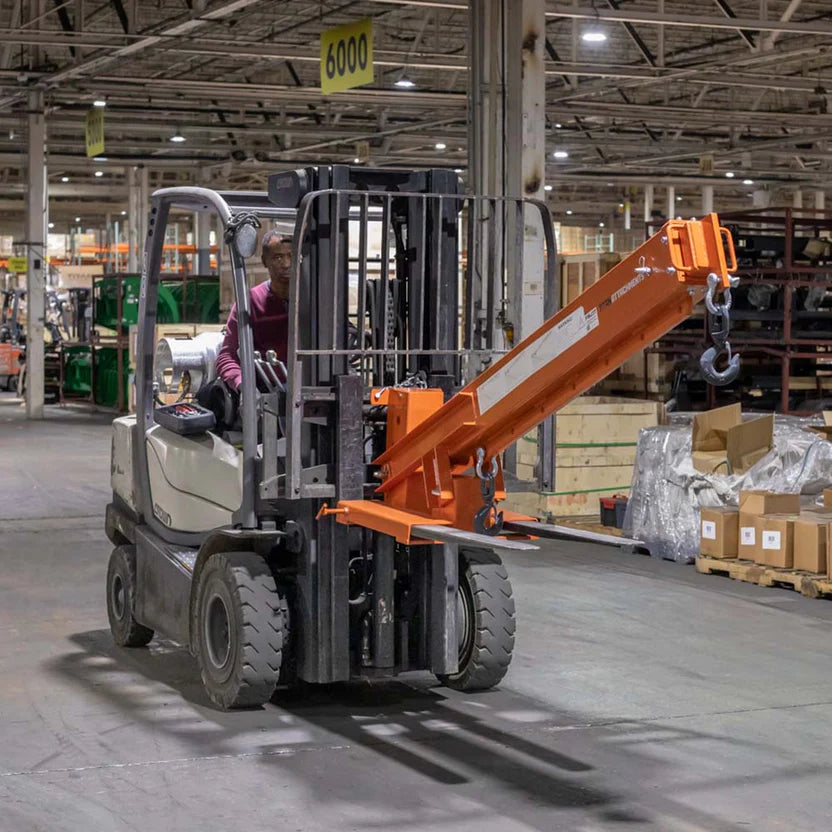

45° Pivoting Capability Allows precise load placement without repositioning your equipment.
Dual 3-Ton Swivel Hooks Secure heavy loads with flexible hook positioning.
Optional Electric Winch Includes wired and wireless controllers; over 100 lifts per charge.

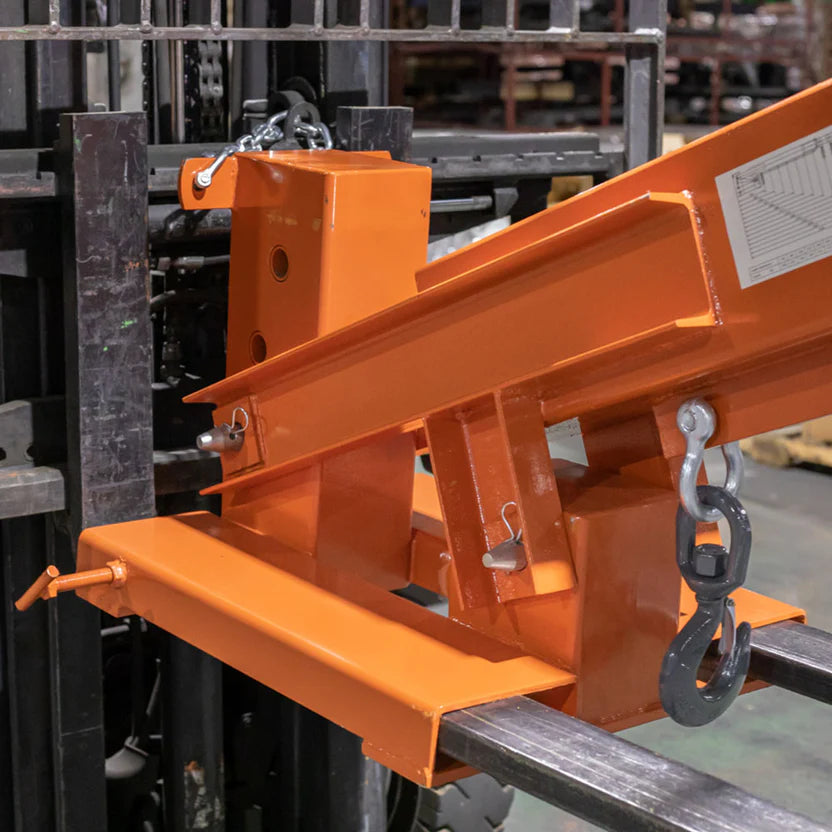

Lock Pin Shaft & Buckle System Ensures secure attachment to fork blades.
Hook Points Every 9" From 30" to 138" for fine-tuned load control.
Heavy-Duty Steel Construction (0.5" Thick) Powder-coated for rust resistance and long-term durability.
12V Power Requirement Use machine adapter or external battery in waterproof case (battery not included).
Detailed Specifications
Specification
Details
Overall Height
20.5 in
Overall Width
20.75 in
Boom Length
89.5 in
Telescoping Length
Up to 138 in
Pivot Range
0° to 45°
Hook Positions
30 in – 138 in (9" increments)
Hook Size
8 in × 3 in – 4 in
Fork Pocket Size
6.75 in × 2.25 in
Fork Pocket Spacing
13.5 in Center-to-Center
Lift Capacity
6,600 lb (3 Ton)
Product Weight
450 lb
Material
0.5 in Thick Steel
Finish
Powder-Coated Orange/Charcoal
Winch Control Options
Wired (30 ft) & Wireless
Power Requirement
12V Battery (not included)
Compatibility
Skid Steers & Forklifts
Applications
Construction, Industrial Lifting, Material Placement
Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
Please reach out to us for any specific warranty information needed about products and parts you can’t find!
