Product Description
Titan Attachments | Transplanter Tree Spade | For Tractor
DESCRIPTION

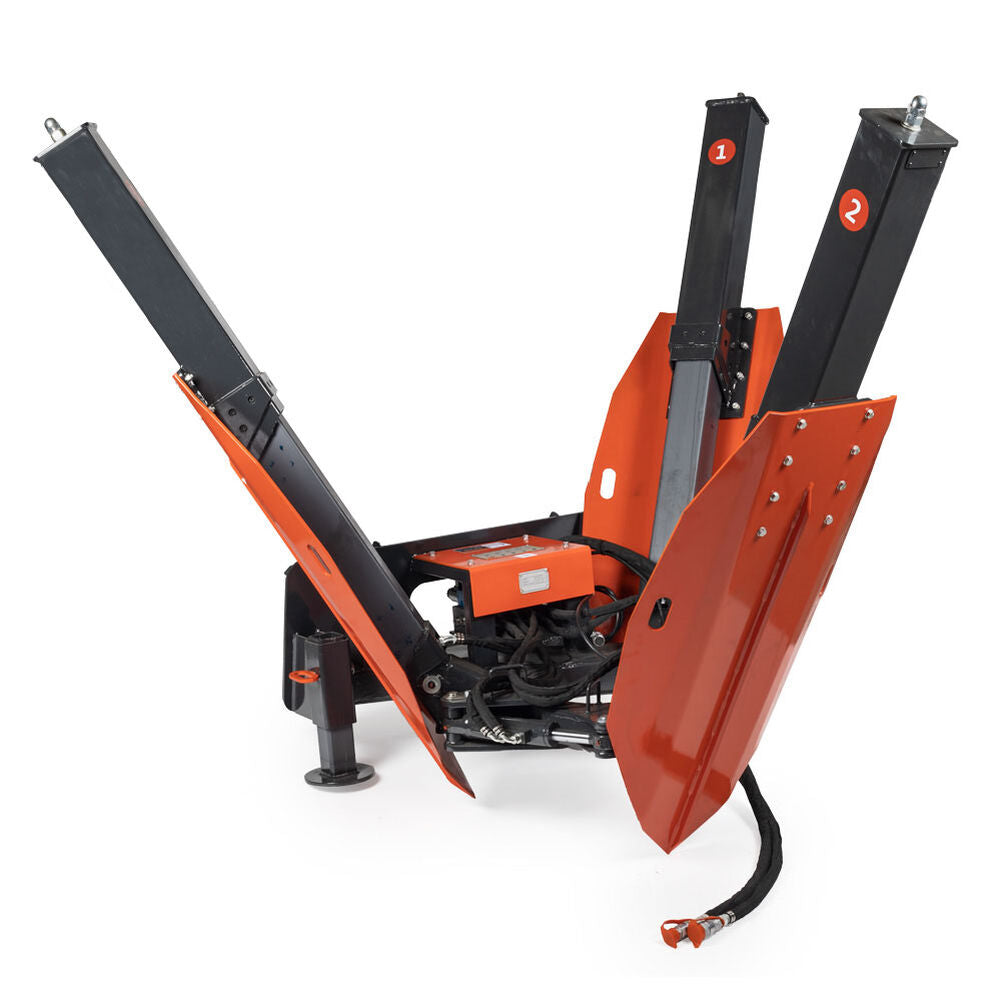

Transform your skid steer loader into a powerful transplanter with the Tree Spade Attachment. Designed for rapid and efficient lifting of trees and shrubs, this attachment features a robust three-blade frame capable of handling evergreens with a trunk diameter of up to 4 inches and a root ball diameter of 34.6 inches. The 29.4-inch digging depth allows for deep root extraction, making it ideal for large landscaping projects.

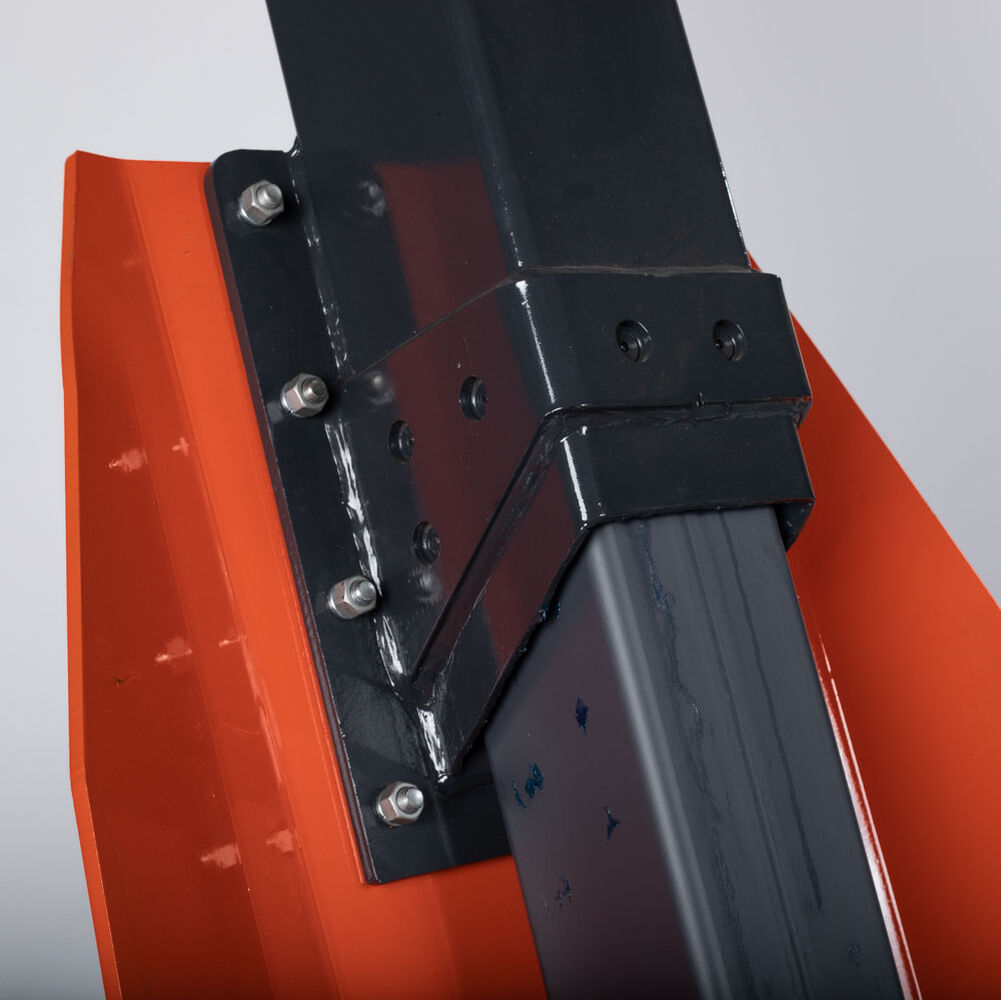

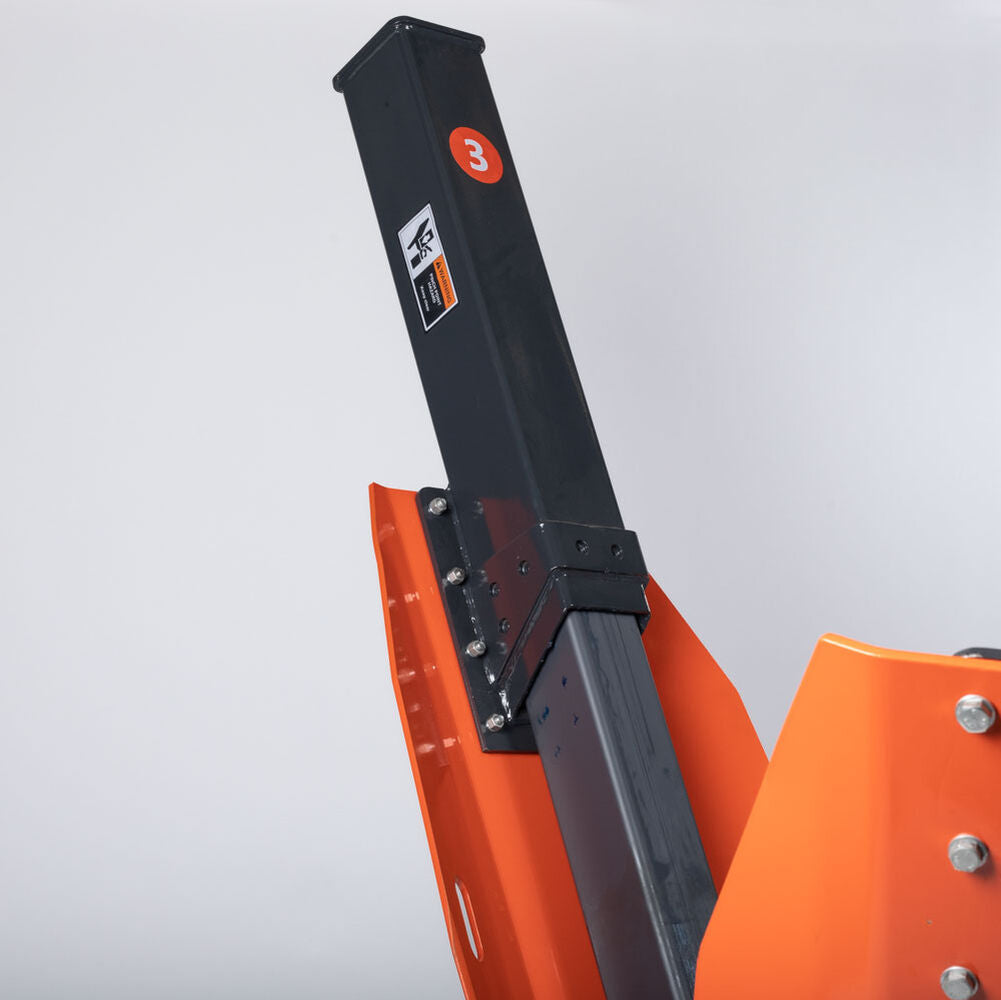

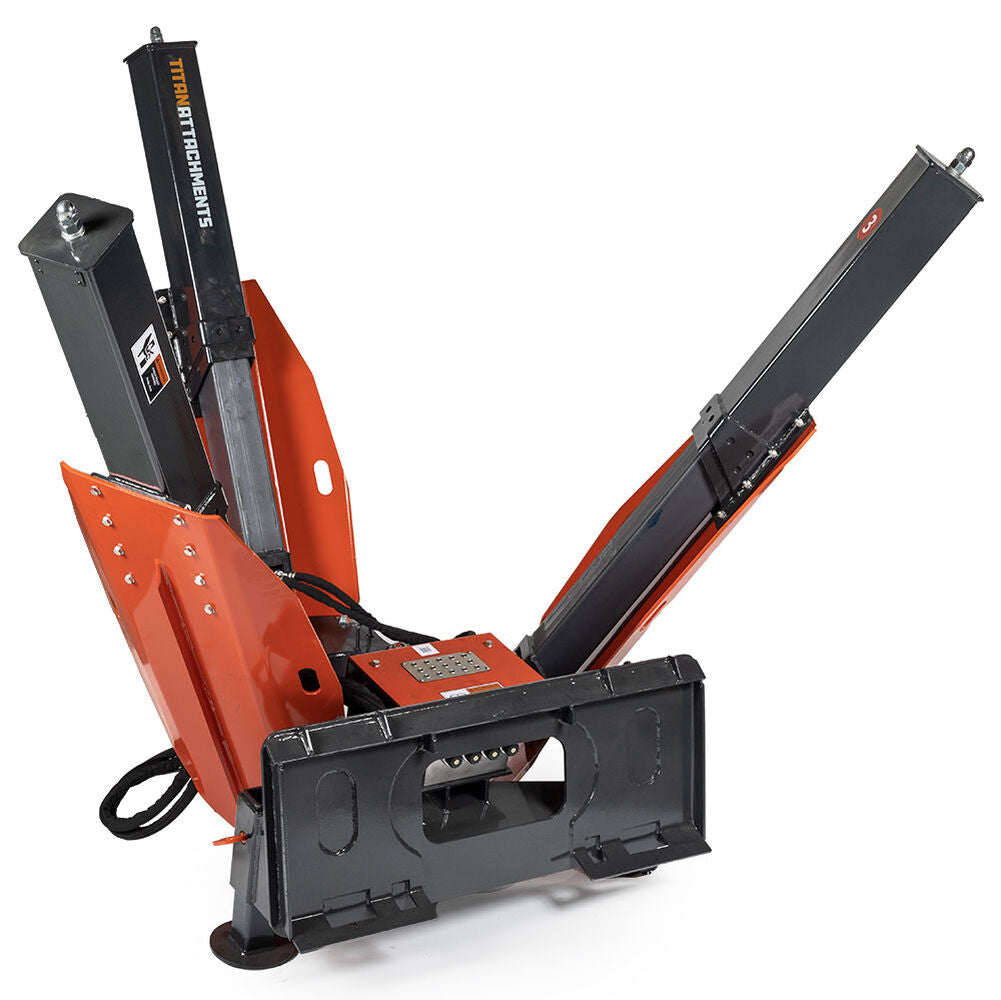

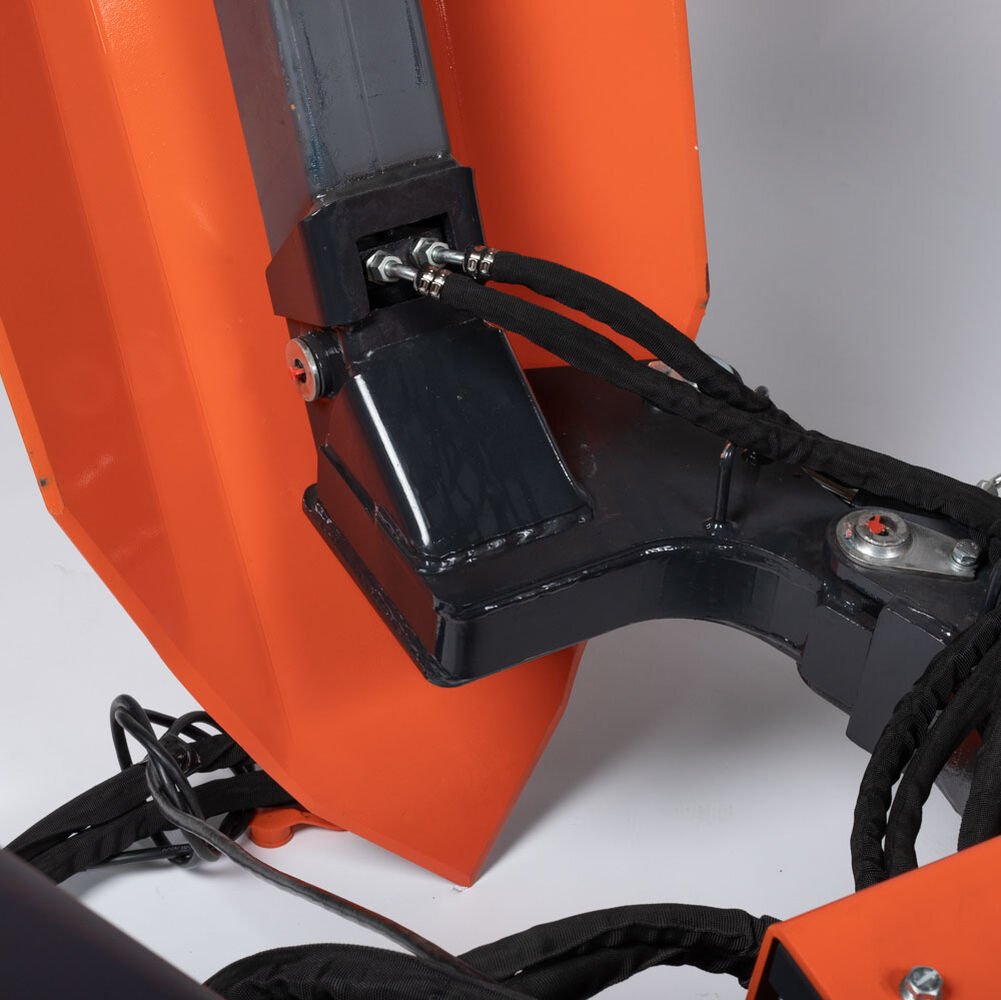

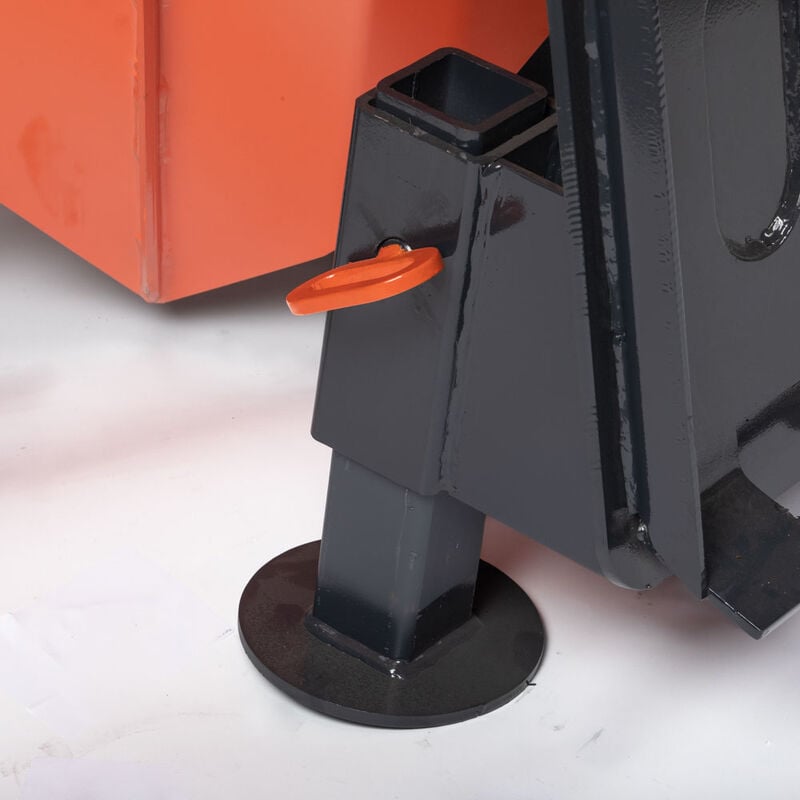

Equipped with a Universal Skid Steer Quick Tach Mounting System, this tree spade can be easily attached and removed from your skid steer. The 30-degree blade angle and overlapping blades ensure clean cuts through roots, minimizing damage to the tree during the transplanting process. Adjustable legs provide control over the digging depth, while the wide gate opening allows for easy engagement with trees.

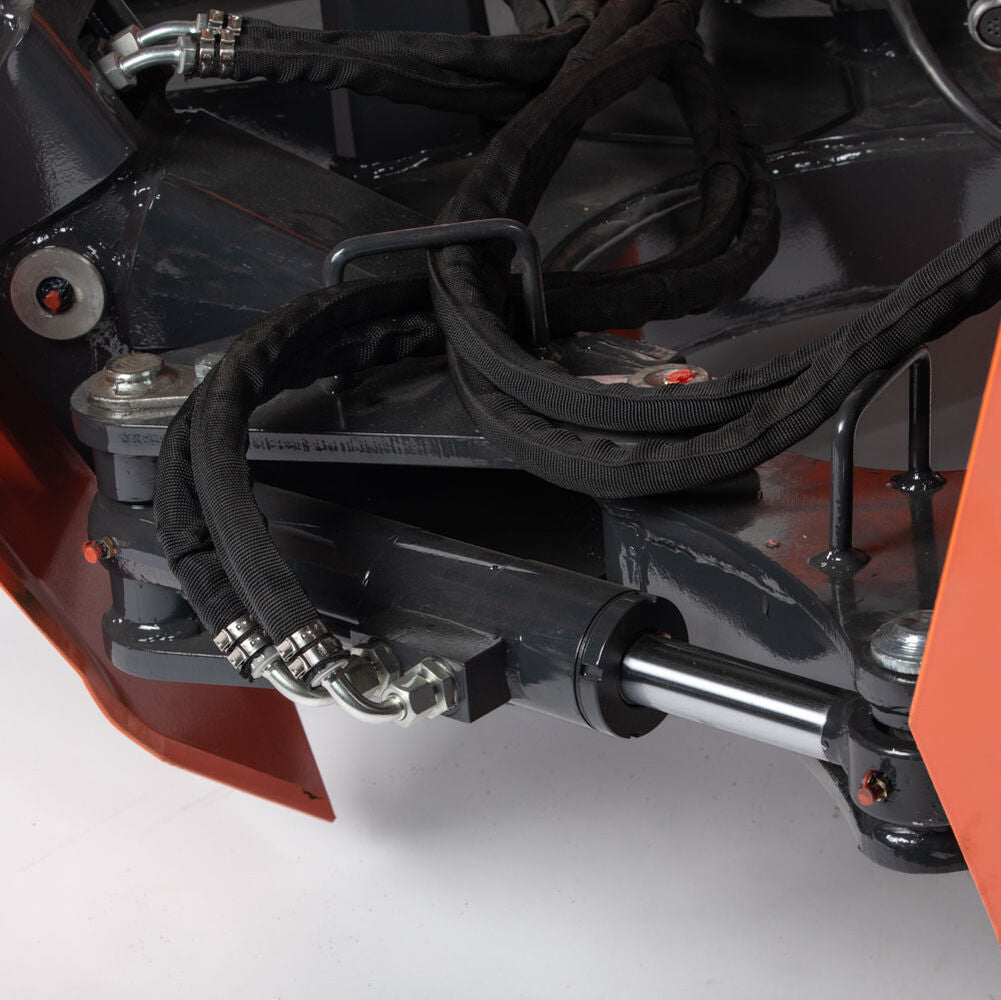

To operate this implement, a 12V power source connection is required. The tree spade comes fully equipped with four hydraulic cylinders, hoses, couplers, and a controller, making it ready to tackle your landscaping needs.
Key Features
- Heavy-Duty Performance: Designed to handle significant workloads with ease.
- Versatile Applications: Perfect for moving large foliage, shrubs, and more.
- Durable Construction: Made from high-quality steel with a powder-coated finish for long-lasting use.
Detailed specification

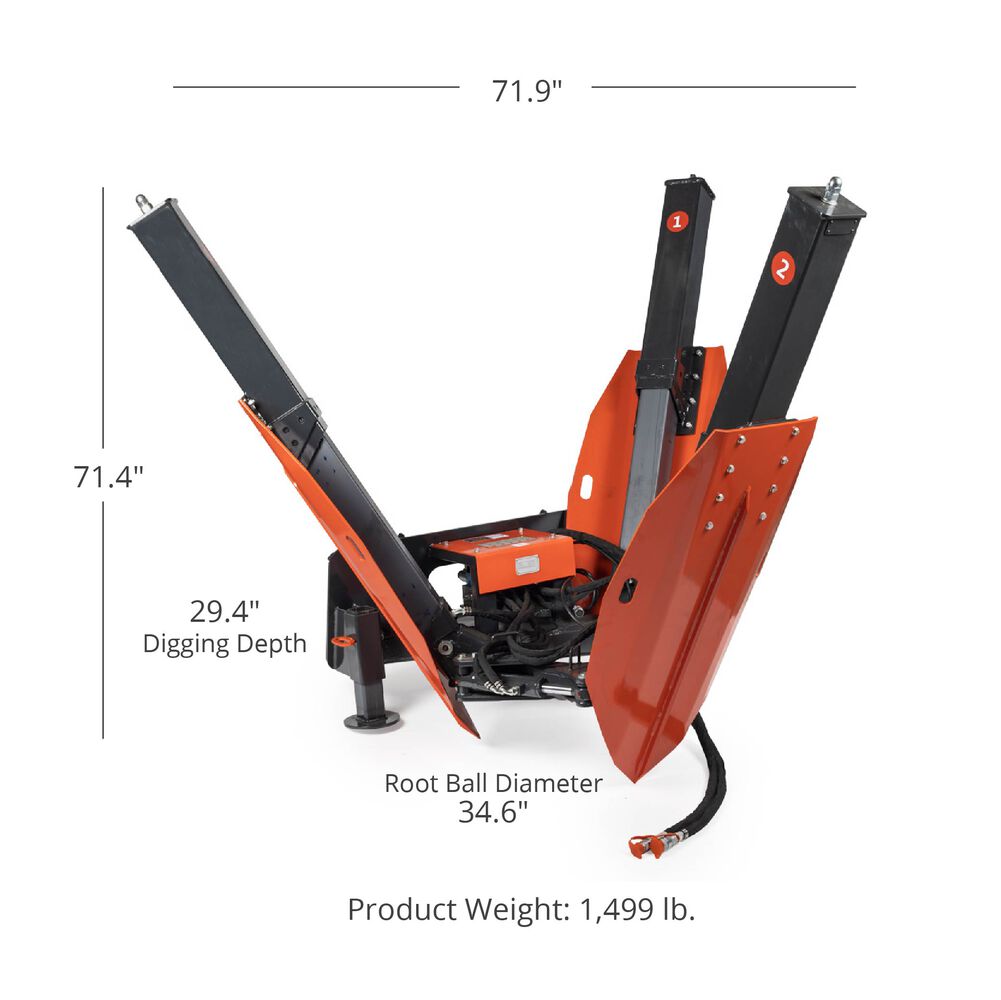

| Specification | Details |
|---|---|
| Overall Height | 71.4 in. |
| Overall Length | 71.9 in. |
| Overall Width | 70 in. |
| Digging Depth | 29.4 in. |
| Cutting Blade Angle | 30 Degrees |
| Tree Size (Evergreen) | Up to 4 in. |
| Tree Size (Hardwood) | Up to 3 in. |
| Root Ball Diameter | 34.6 in. |
| Blade Thickness | 3/8 in. |
| Hydraulic Flow | 5.2 - 17.7 GPM |
| Hydraulic Pressure | Up to 3,045 PSI |
| Finish | Powder-Coated Charcoal/Orange |
| Material | Steel |
| Product Weight | 1,499 lb. |
In Package:
- Tree Spade Attachment

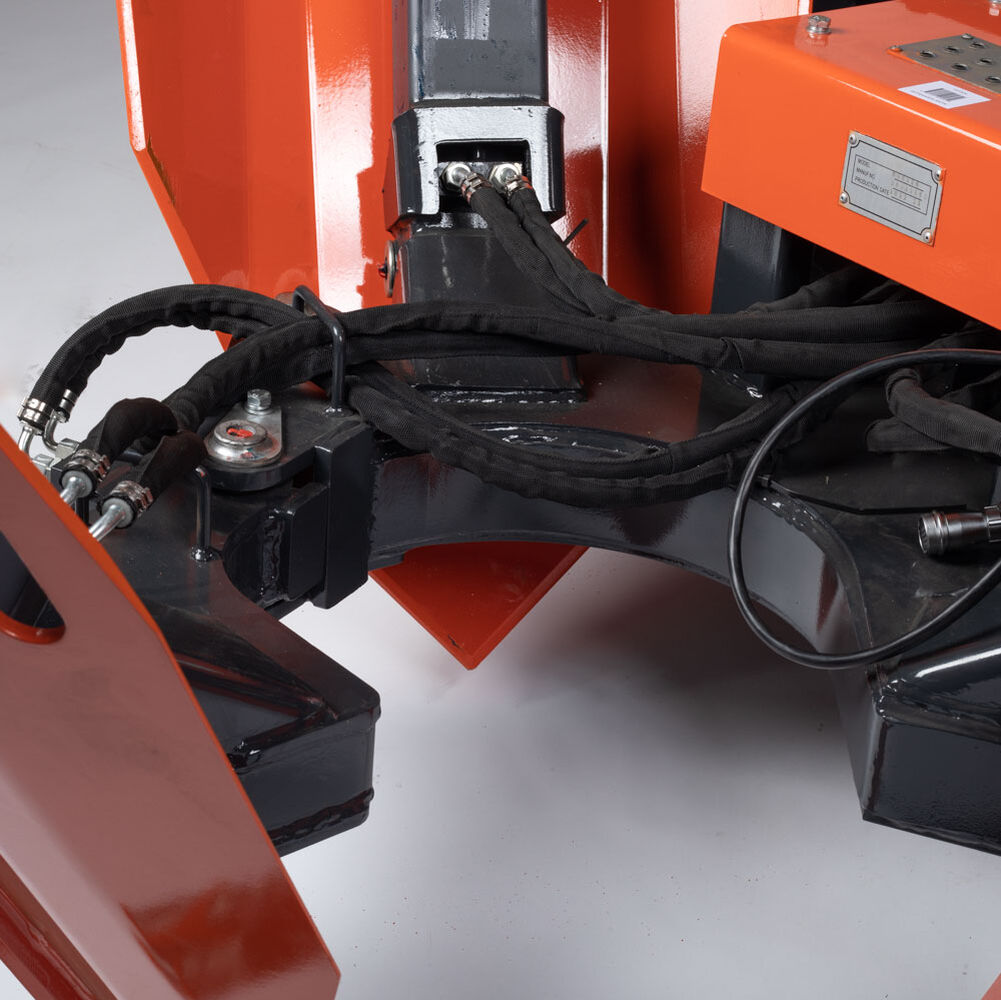

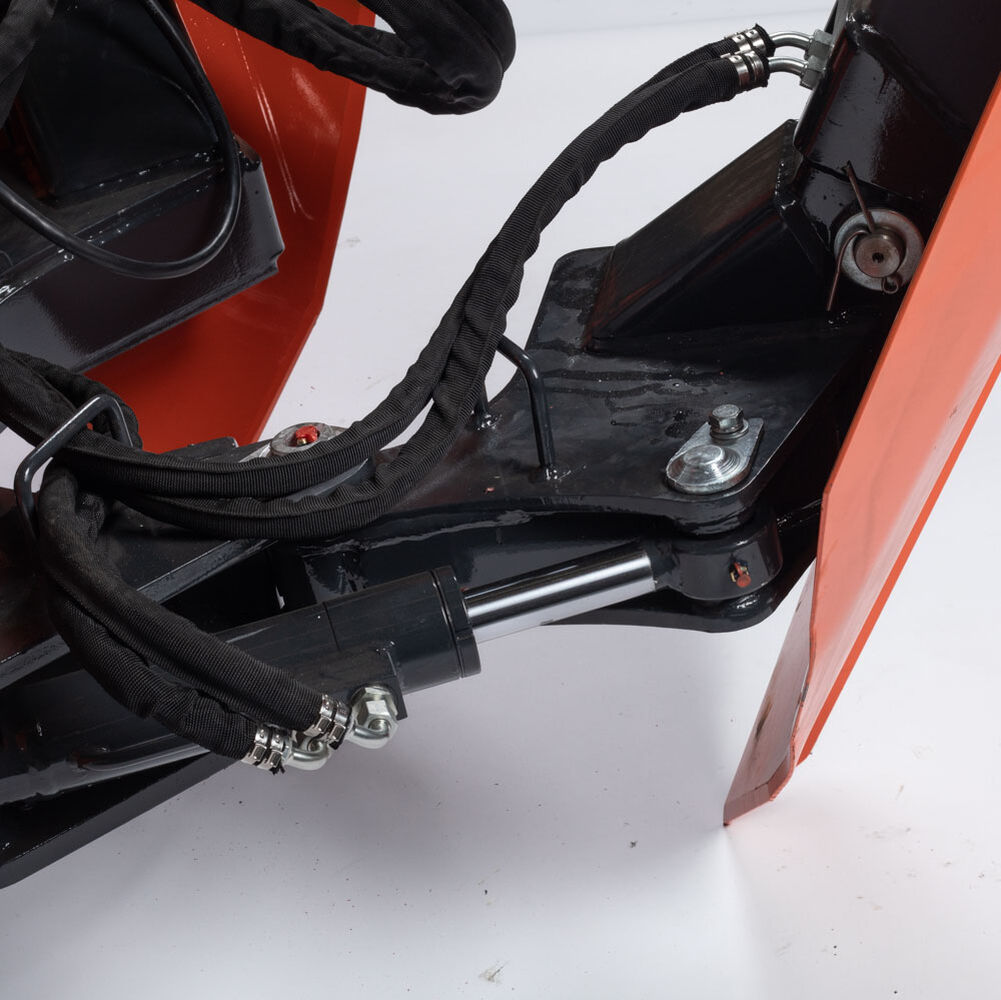

- Four Hydraulic Cylinders
- Hydraulic Hoses and Couplers

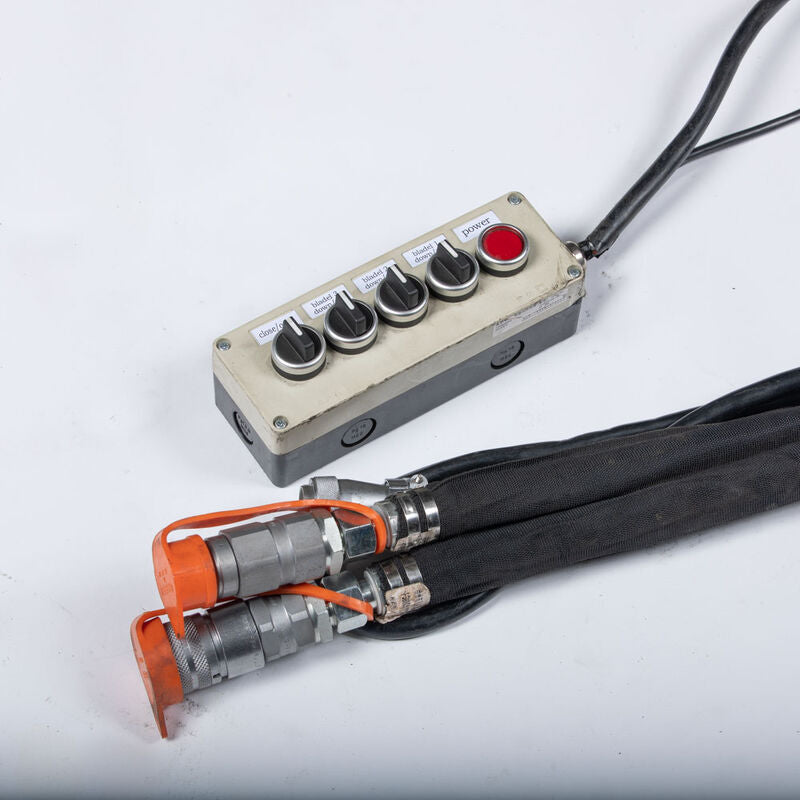

- Controller
