Product Description

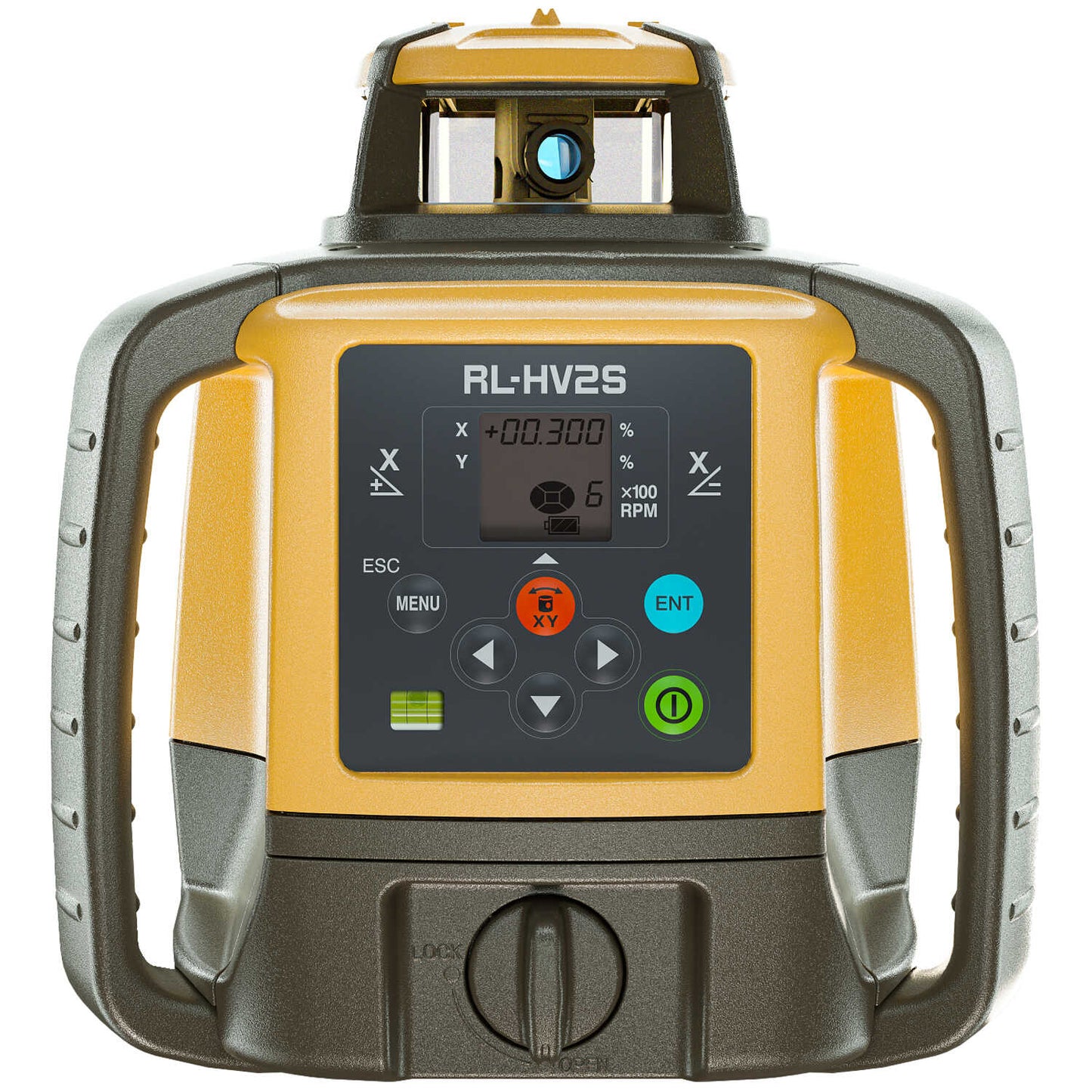

Topcon Laser Level Topcon® RL-HV2S Dual-Slope Laser Level with Rechargeable Ni-MH Battery
DESCRIPTION
This versatile laser level can be used for horizontal, multi-slope, and vertical laser applications. Turn the RL-HV2S on its side for use in layout and alignment jobs. An operating radius of over 2,600 feet (800 meters) makes the laser perfect for even the biggest projects. The RL-HV2S offers horizontal and vertical accuracy of ±10" and utilizes a 635nm visible laser diode. Use the front control panel with display to easily access the laser level’s functions. In addition, the Bluetooth Laser Manager (App download) allows for convenient wireless remote control using your smartphone to adjust slope and check calibration. The App is compatible with iOS and Android. The laser level features a numeric dual grade setting range of ±5% and a dual handle design. IP66-rated against water and dust. Available with 4 D dry cell alkaline batteries or a rechargeable Ni-MH battery pack. Package includes RL-HV2S laser, laser sensor, sensor holder, battery holder, batteries, charger (if using rechargeable battery pack), and carrying case.
The Topcon RL-HV2S Dual-Slope Laser Level with Rechargeable Ni-MH Battery and LS-100D Laser Sensor is a powerful and versatile tool designed for construction and surveying professionals. Its 2,600 ft operating range and ±10 arc second accuracy make it perfect for complex projects requiring high precision.
This laser level supports horizontal, vertical, and multi-slope applications and can be turned on its side for layout and alignment tasks. The Bluetooth Laser Manager app (compatible with iOS and Android) allows for wireless adjustments and calibration, simplifying operation and increasing efficiency.
Featuring a dual grade setting range of ±5%, the RL-HV2S is ideal for precision slope adjustments. Its visible 635 nm laser diode ensures clear visibility, while the dual-handle design provides convenient portability. The IP66-rated housing offers protection against dust and water, ensuring reliable operation in challenging job site conditions.
The rechargeable Ni-MH battery pack provides up to 65 hours of operation, making this laser level a long-lasting and efficient choice.
Key Features
- Multi-Functionality: Horizontal, vertical, and slope settings for various applications.
- Long-Range Operation: Covers a 2,600 ft diameter for large projects.
- Precision Accuracy: ±10 arc seconds for reliable leveling and grading.
- Wireless Control: Bluetooth-enabled Laser Manager app for easy slope adjustment and calibration.
- Durable and Weatherproof: IP66-rated housing resists water and dust for all-weather performance.
- Dual Grade Setting: ±5% numeric grade settings for precise slope adjustments.
Detailed Specifications
| Feature | Details |
|---|---|
| Accuracy | Horizontal ±10˝; Vertical ±10˝ |
| Correction Range | Horizontal ±5°; Vertical ±5° |
| Grade Setting Range | Dual: ±5% |
| Working Range (Diameter) | 2,600 ft (800 m) |
| Rotation Speed | 300/600 RPM (adjustable) |
| Light Source | Visible laser diode, 635 nm |
| Laser Output | 2.4 mW |
| Laser Class | CDRH Class IIIa, IEC Class 3R |
| Battery Life | 65 hours (Rechargeable Ni-MH) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Dimensions | 8.5˝H x 7.7˝W x 7˝L |
| Water/Dust Rating | IP66 |
In Package
- Topcon RL-HV2S Dual-Slope Laser Level
- LS-100D Laser Sensor
- Sensor Holder
- Rechargeable Ni-MH Battery Pack
- Battery Charger
- Carrying Case
