TTA M6E-G200 16 Liter AGRICULTURAL DRONE SPRAYER
Obstacle avoidance Easier flying Easier maintenance BIG payload
Intelligent Agriculture is the trend all over the world. And the intelligent drone act has an important role in this world plan.
TTA Agriculture spraying drone can replace the traditional pesticide sprayer and its speed is 40times of the traditional sprayer. It will save 90% water and 30%-40% pesticide. Small droplet diameter makes the pesticide more well-distributed and improves the effect. At the same time, it will make the people far away from the pesticide and reduce the pesticide remaining in the crop.
Make life more healthy, make the world more efficient.–TTA
Features of M6E-G200 Agricultural UAV

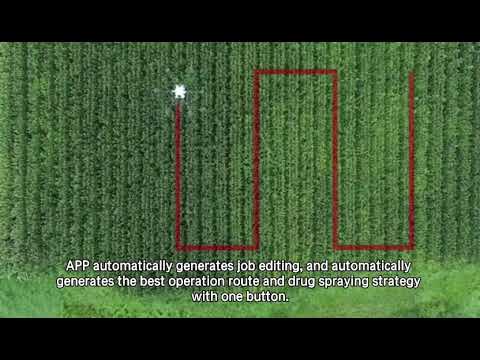

Automatic spraying mode
Mode 1: Find your crop field and set a waypoint from the GCS GoogleMap, the route will automatically appear. The start point, the final point, and the working direction can all be set.
Mode 2: Import Kml file directly, and the route will automatically appear. The start point, the final point, and the working direction can all be set.
Mode 3: Only need to set the A and B points and give the drone a direction order then the drone will fly and spray automatically.
Highly Integrated Remote Controller (optional)
Built-in 5.5-inch Android tablet, equipped with Qualcomm Snapdragon 625
10000mAh battery, Max endurance of up to 20 hours, support rapid-charge
Advanced technology brings higher video transmission resolution, lower latency, longer valid distance, and stronger anti-interference ability.
RTK accurate positioning system
Accuracy:
Horizontal: ±1cm + 1ppm Vertical:±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage to neighbor crops and pollution.
One base station supports multiple drones working at the same time.
Spraying syste: Double water pumps generate bigger pressure , max 4L/min adjustable flow rate. Bigger inlet for you to fill in the chemical faster and no leaking. Advanced flow meter makes the error of precise spraying within 2%.
Obstacle Avoidance Sensor: Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect and fly pass obstacles to avoid unexpected crash and lose. The GCS presents the distance from the obstacles at the same time.
Terrain the following module To make the drone has the ability to work on undulating crop field and make the spraying work much easier.
FPV camera: Real-time video monitoring let you know detail information about drones and your crop situation! Dual LED light. Support night flight!
Cloud service / Background management platform
For better management not only your drones but your spraying records!
Support real-time monitoring of everything drone situation.
It will collect all the drone data including sprayed area, spraying location, spraying log, etc.
Precheck and After-check
You can review the detailed performance of the drone by flight log playback function and also can view the flight route! This allows you to check your drone in detail before flying and check the mission records after the flight.
Specifications
Model | M6E-G200 |
Tank Volume | 16L |
Work Efficiency | 2.7-4Acre/10min |
Flying | |
Full payload Flying Time | 10-13min |
Empty payload Flying Time | ≥20min |
Flying Speed | 0-10m/s |
Flying Height | 3500m |
Landing approach | Vertical take-off and landing |
Anti-wind | <12m/s |
Positioning | GPS&RTK |
Spraying | |
Spray droplet diameter | 80-200μm |
Quantity of Nozzles | 4pcs |
Recommend Spray Speed | 4-6m/s |
Spray Width | 4-6M |
Spray Height | 2-4M above crop |
Spraying Area |
32-48 hectares per day |
In The Box
G200 Base Kit
- 1x TTA G200 BASE KIT
- 2x Advanced Flight Batteries (req. 1)
- 1x 2-channel Smart Charger
- 1x Long-Range RC w. Bluetooth & All-Day-Battery
- 1x Agri-Assistant Smart Spray App
- 1x Front Rear & Terrain Sensing
- 1x Full GPS Autopilot w. SafetySuite
- 1x See-and-Spray Live Video System
- 1x LED Lighting Kit
- 1x Adjustable Spraying Package (incl: nozzle choices hoses clamps integration)
- 1x SmartSpray with Dual Pump Automation
- 1x Integrated Flow Rate Sensor
- 1x 16L Liquid Spray Tank (wide-neck filter screen)
- 1x Ultra-Portable Transport Carton(s)
- 1x Assembly & Maintenance Tools
- 1x Operator's e-manual
- 1x Shipping (lower 48 states or $350 credit)
- INCLUDES HSE EXCLUSIVE BENEFITS
- U.S. Based Drone Experts
- U.S. Based Technical Support
- 24/7 Online Support Portal
G200 Productivity Kit
- 1x TTA G200 PRODUCTIVITY KIT
- 4x Advanced Flight Batteries (req. 1)
- 2x 2-channel Smart Charger
- 1x Long-Range RC w. Bluetooth & All-Day-Battery
- 1x Agri-Assistant Smart Spray App
- 1x Front Rear & Terrain Sensing
- 1x Full GPS Autopilot w. SafetySuite
- 1x See-and-Spray Live Video System
- 1x LED Lighting Kit
- 1x Adjustable Spraying Package (incl: nozzle choices hoses clamps integration)
- 1x SmartSpray with Dual Pump Automation
- 1x Integrated Flow Rate Sensor
- 1x 16L Liquid Spray Tank (wide-neck filter screen)
- 1x Ultra-Portable Transport Carton(s)
- 1x Assembly & Maintenance Tools
- 1x Operator's e-manual
- 1x Shipping (lower 48 states or $350 credit)
- 1x Virtual Training
- INCLUDES HSE EXCLUSIVE BENEFITS
- U.S. Based Drone Experts
- U.S. Based Technical Support
- 24/7 Online Support Portal
G200 Productivity MAX Kit
- 1x TTA G200 PRODUCTIVITY MAX KIT (U.S. ONLY)
- 4x Advanced Flight Batteries (req. 1)
- 2x 2-channel Smart Charger
- 1x Long-Range RC w. Bluetooth & All-Day-Battery
- 1x Agri-Assistant Smart Spray App
- 1x Front Rear & Terrain Sensing
- 1x Full GPS Autopilot w. SafetySuite
- 1x See-and-Spray Live Video System
- 1x LED Lighting Kit
- 1x Adjustable Spraying Package (incl: nozzle choices hoses clamps integration)
- 1x SmartSpray with Dual Pump Automation
- 1x Integrated Flow Rate Sensor
- 1x 16L Liquid Spray Tank (wide-neck filter screen)
- 1x Ultra-Portable Transport Carton(s)
- 1x G200 Spare & Wear Parts Kit
- 1x Drone Protection Plan covers up to $20k hardware 24-Months $600 deductible
- 1x 2-Day PRO Flight Training (in-person Florida)
- 1x Assembly & Maintenance Tools
- 1x Operator's e-manual
- 1x Shipping (lower 48 states or $350 credit)
- INCLUDES HSE EXCLUSIVE BENEFITS
- U.S. Based Drone Experts
- U.S. Based Technical Support
- 24/7 Online Support Portal
