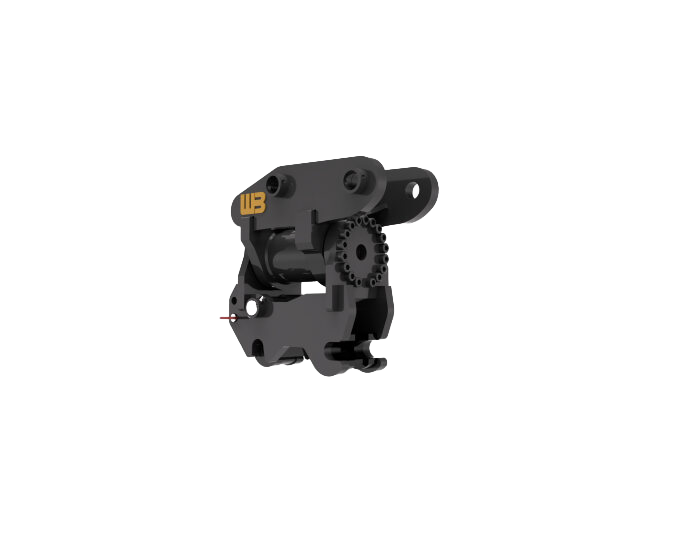

Werk-Brau Spring Loaded Tilt Coupler | Model TSC140, TSC180, TSC240, TSC250 & TSC350 | OEM Fit | Variable Width | 12–35 Tons | Excavators & Backhoes

Werk-Brau Spring Loaded Tilt Coupler | Model TSC140, TSC180, TSC240, TSC250 & TSC350 | OEM Fit | Variable Width | 12–35 Tons | Excavators & Backhoes

$1.00
$1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Excavator Size: 12–35 Metric Tons Compatibility.
  • Coupler Weight: 680–1,500 lbs.
  • Tilt Range: Up to 180° Maximum Tilt.
  • Hydraulic Requirement: Two Hydraulic Lines Required.
  • For Excavators, Mini-Excavators, and Backhoes.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Spring Loaded Tilt Coupler | Model TSC140, TSC180, TSC240, TSC250 & TSC350 | OEM Fit | Variable Width | 12–35 Tons | Excavators & Backhoes


DESCRIPTION

The Werk-Brau Spring Loaded Tilt Coupler delivers reliable attachment control with a compact, heavy-duty design engineered for demanding excavation applications. Built to O.E.M. specifications, this hydraulic tilt coupler is available for a wide range of excavators, mini-excavators, and backhoes, providing a precise fit for compatible machines. Its precision-built actuator and triple-sealed actuator design support dependable operation while requiring minimal maintenance. The spring-loaded manual locking mechanism provides secure attachment engagement without relying on gravity, while the simple unlock procedure helps reduce the risk of accidental release. With up to 180° of tilt, operators gain greater bucket positioning flexibility for grading, trenching, shaping, and other earthmoving tasks. Requiring only two hydraulic lines and no greasing or lubrication, this coupler helps simplify installation, operation, and routine maintenance.

Key Features

  • Compact Heavy-Duty Design The compact construction combines practical size with rugged performance, making the Spring Loaded Tilt Coupler well suited for demanding excavation, grading, trenching, and material-handling applications where attachment control and maneuverability are important.
  • OEM-Specification Compatibility OEM-fit engineering allows Werk-Brau to manufacture the coupler for compatible excavators, mini-excavators, and backhoes according to original equipment specifications for accurate machine and attachment integration.
  • Up to 180° Tilt Range Up to 180° of tilt provides exceptional bucket positioning flexibility, helping operators perform grading, slope shaping, trench work, cleanup, and other applications requiring controlled attachment movement.
  • Triple-Sealed Actuator The triple-sealed actuator is designed for dependable operation in demanding jobsite environments, helping protect the actuator assembly and support consistent hydraulic tilt-coupler performance during regular use.
  • Precision-Built Actuator Precision actuator construction helps deliver controlled and reliable coupler operation, supporting smooth attachment positioning while contributing to the trouble-free performance expected from a professional excavator attachment system.
  • Gravity-Independent Safety System Safety system without gravity dependence provides a locking approach that does not rely on gravity to maintain its safety function, supporting secure attachment operation when the coupler is correctly installed and used.
  • Spring-Loaded Locking Mechanism Spring-loaded manual locking provides a straightforward mechanical locking arrangement designed to secure compatible attachments while maintaining a practical, easy-to-use coupler design.
  • Accidental-Release Protection Simple unlock procedure helps reduce the likelihood of unintended release during normal operation by requiring a deliberate unlocking process, supporting safer attachment changes when proper operating procedures are followed.
  • No Greasing Required Maintenance-free lubrication design eliminates the need for routine greasing or lubrication of the coupler mechanism, helping reduce maintenance tasks and keeping attachment preparation simple.
  • Two Hydraulic Lines Only two hydraulic lines are required for operation, helping simplify hydraulic connection requirements and making installation more straightforward on compatible hydraulic excavator systems.
  • 12–35 Ton Excavator Range Multiple excavator classes are supported through different coupler configurations, with documented models covering approximately 12 to 35 metric tons depending on the selected model and machine specifications.
  • Multiple Coupler Configurations Model-specific configurations allow the attachment to be matched to different excavator sizes and OEM pin arrangements, helping ensure the correct coupler is selected for the intended machine.
  • Heavy-Duty Excavation Use Professional jobsite performance makes the coupler suitable for demanding applications such as excavation, grading, trenching, bucket positioning, earthmoving, and general construction work.
  • Broad Machine Compatibility Excavator and backhoe compatibility gives contractors flexibility when selecting an attachment solution, with Werk-Brau manufacturing options for compatible makes and models according to OEM specifications.
  • Simplified Attachment Operation Easy hydraulic operation combines two-line hydraulic requirements, controlled tilting, and a practical locking system to provide an attachment solution designed for efficient everyday excavation work.

Detailed Specifications

Specification TSC140 TSC180
Brand Werk-Brau Werk-Brau
Product Type Spring Loaded Tilt Coupler Spring Loaded Tilt Coupler
Part Number TSC140 TSC180
Excavator Class 12 MT 15 MT
Approx. Machine Weight 24,000–33,000 lbs 33,000–42,000 lbs
Machine Weight in Tons 12 metric tons 15 metric tons
Coupler Style Spring Loaded Spring Loaded
Fit-Up Dedicated Dedicated
Pin Diameter TBD / Dedicated fit TBD / Dedicated fit
Pin Spread Dedicated / model-specific Dedicated / model-specific
Coupler Weight 680 lbs 840 lbs
Tilt Range Up to 180° Up to 180°
Actuator Precision-built actuator Precision-built actuator
Actuator Sealing Triple sealed Triple sealed
Locking Mechanism Spring-loaded manual locking Spring-loaded manual locking
Safety System Does not rely on gravity Does not rely on gravity
Hydraulic Lines 2 2
Lubrication No greasing/lubrication required No greasing/lubrication required
Overall Dimensions Model/OEM fit-up specific Model/OEM fit-up specific
Width Model/OEM fit-up specific Model/OEM fit-up specific
Compatible Machines Excavators, mini-excavators & backhoes Excavators, mini-excavators & backhoes
OEM Compatibility Manufactured to OEM specifications Manufactured to OEM specifications
Primary Application Excavation, grading, trenching, earthmoving Excavation, grading, trenching, earthmoving



Specification TSC240 TSC250
Brand Werk-Brau Werk-Brau
Product Type Spring Loaded Tilt Coupler Spring Loaded Tilt Coupler
Part Number TSC240 TSC250
Excavator Class 20 MT 25–30 MT
Approx. Machine Weight 42,000–50,000 lbs 50,000–68,000 lbs
Machine Weight in Tons 20 metric tons 25–30 metric tons
Coupler Style Spring Loaded Spring Loaded
Fit-Up Dedicated Dedicated
Pin Diameter 80 mm* TBD / Dedicated fit
Pin Spread Dedicated / model-specific Dedicated / model-specific
Coupler Weight 1,250 lbs 1,320 lbs
Tilt Range Up to 180° Up to 180°
Actuator Precision-built actuator Precision-built actuator
Actuator Sealing Triple sealed Triple sealed
Locking Mechanism Spring-loaded manual locking Spring-loaded manual locking
Safety System Does not rely on gravity Does not rely on gravity
Hydraulic Lines 2 2
Lubrication No greasing/lubrication required No greasing/lubrication required
Overall Dimensions Model/OEM fit-up specific Model/OEM fit-up specific
Width Model/OEM fit-up specific Model/OEM fit-up specific
Compatible Machines Excavators, mini-excavators & backhoes Excavators, mini-excavators & backhoes
OEM Compatibility Manufactured to OEM specifications Manufactured to OEM specifications
Primary Application Excavation, grading, trenching, earthmoving Excavation, grading, trenching, earthmoving



Specification TSC350
Brand Werk-Brau
Product Type Spring Loaded Tilt Coupler
Part Number TSC350
Excavator Class 35 MT
Approx. Machine Weight 68,500–82,000 lbs
Machine Weight in Tons 35 metric tons
Coupler Style Spring Loaded
Fit-Up Dedicated
Pin Diameter TBD / Dedicated fit
Pin Spread Dedicated / model-specific
Coupler Weight 1,500 lbs
Tilt Range Up to 180°
Actuator Precision-built actuator
Actuator Sealing Triple sealed
Locking Mechanism Spring-loaded manual locking
Safety System Does not rely on gravity
Hydraulic Lines 2
Lubrication No greasing/lubrication required
Overall Dimensions Model/OEM fit-up specific
Width Model/OEM fit-up specific
Compatible Machines Excavators, mini-excavators & backhoes
OEM Compatibility Manufactured to OEM specifications
Primary Application Excavation, grading, trenching, earthmoving
