Werk-Brau

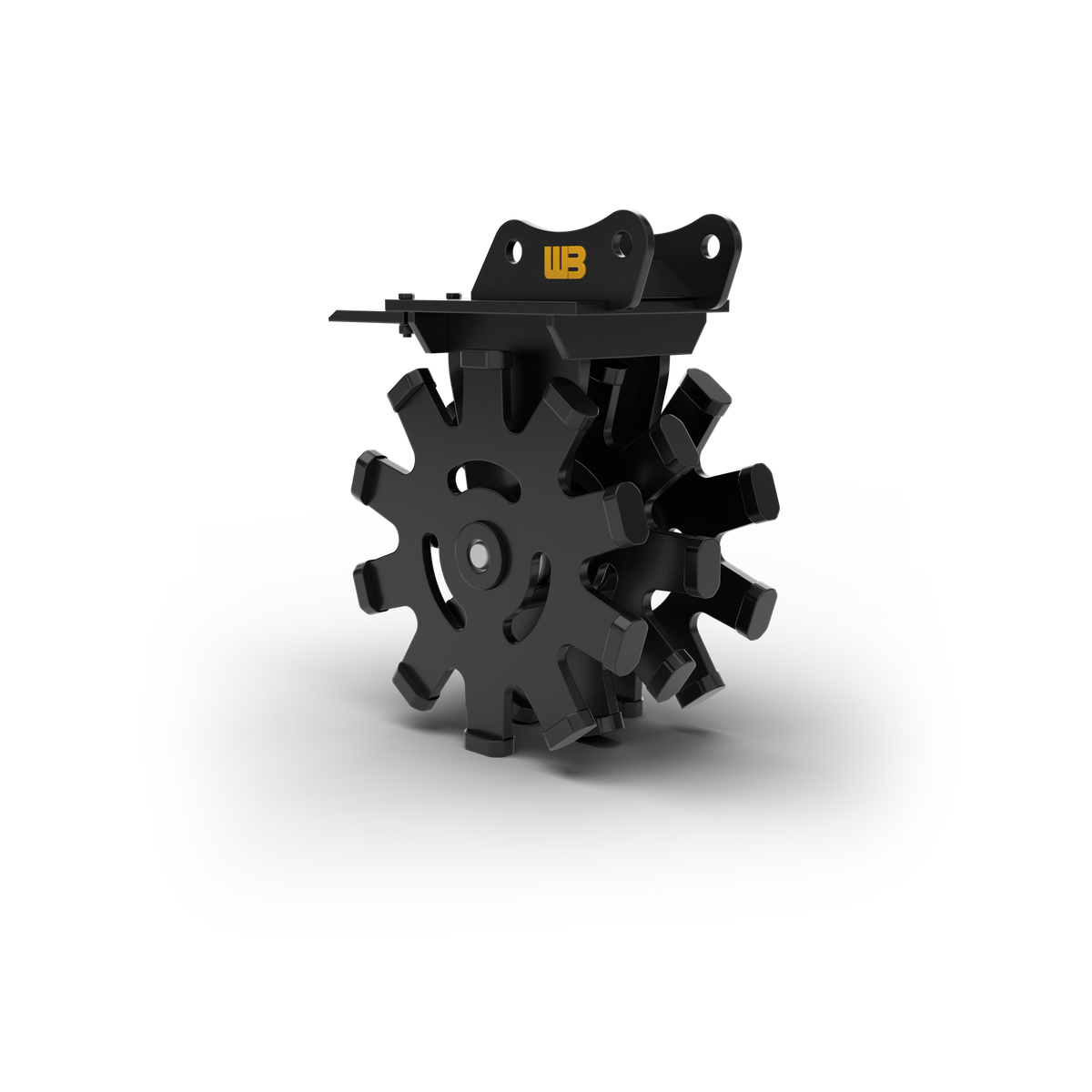

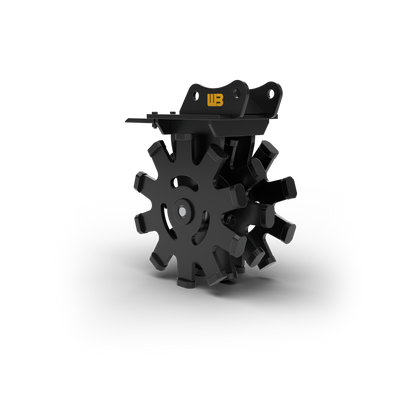

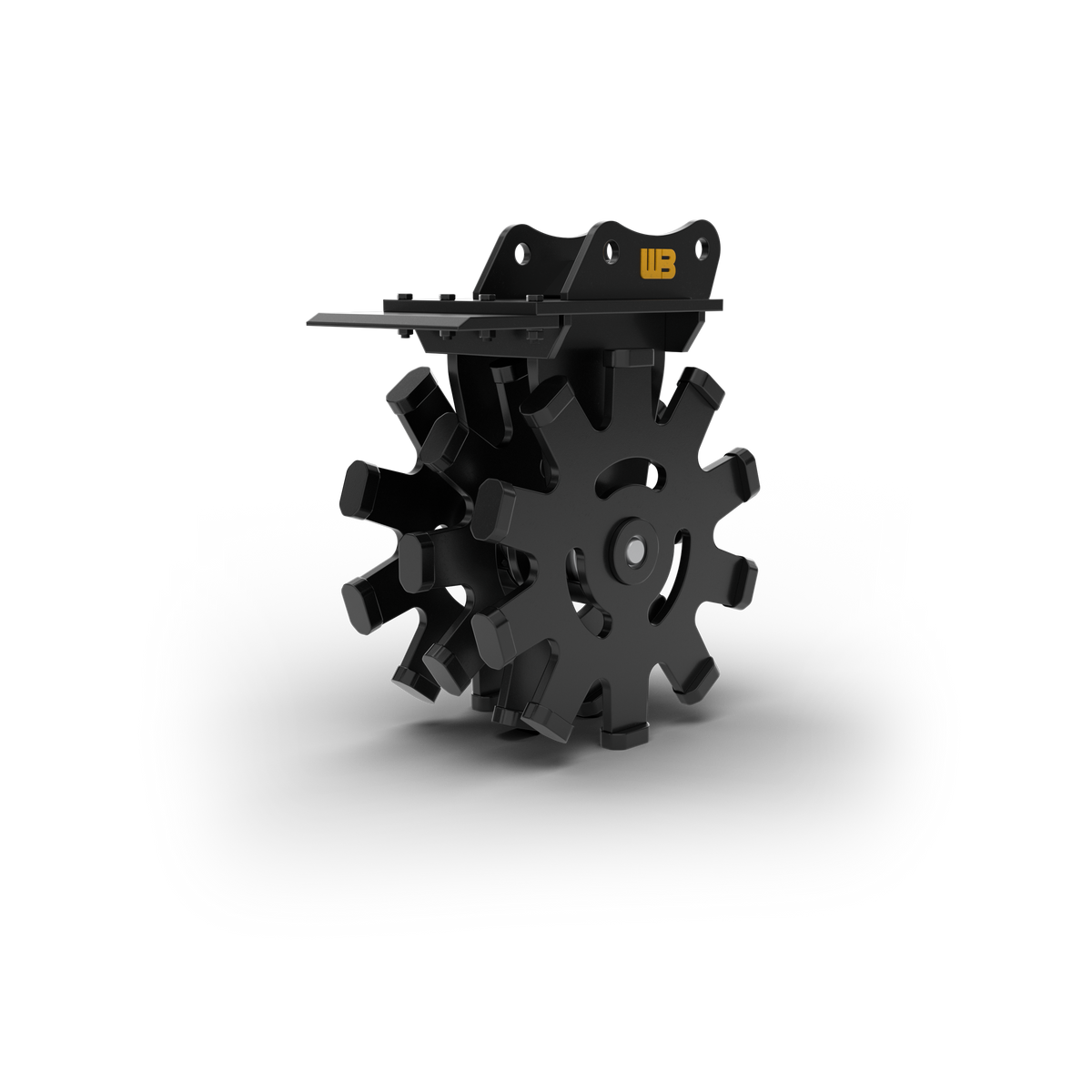

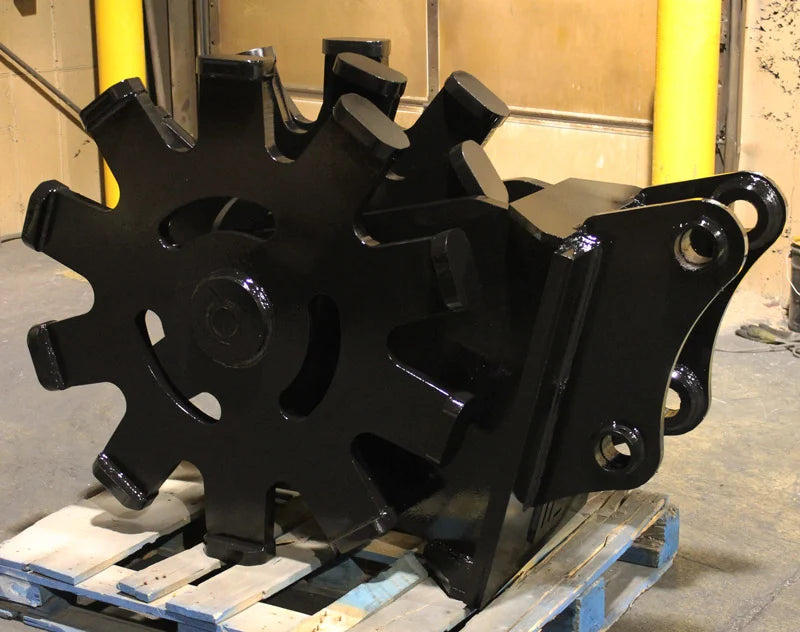

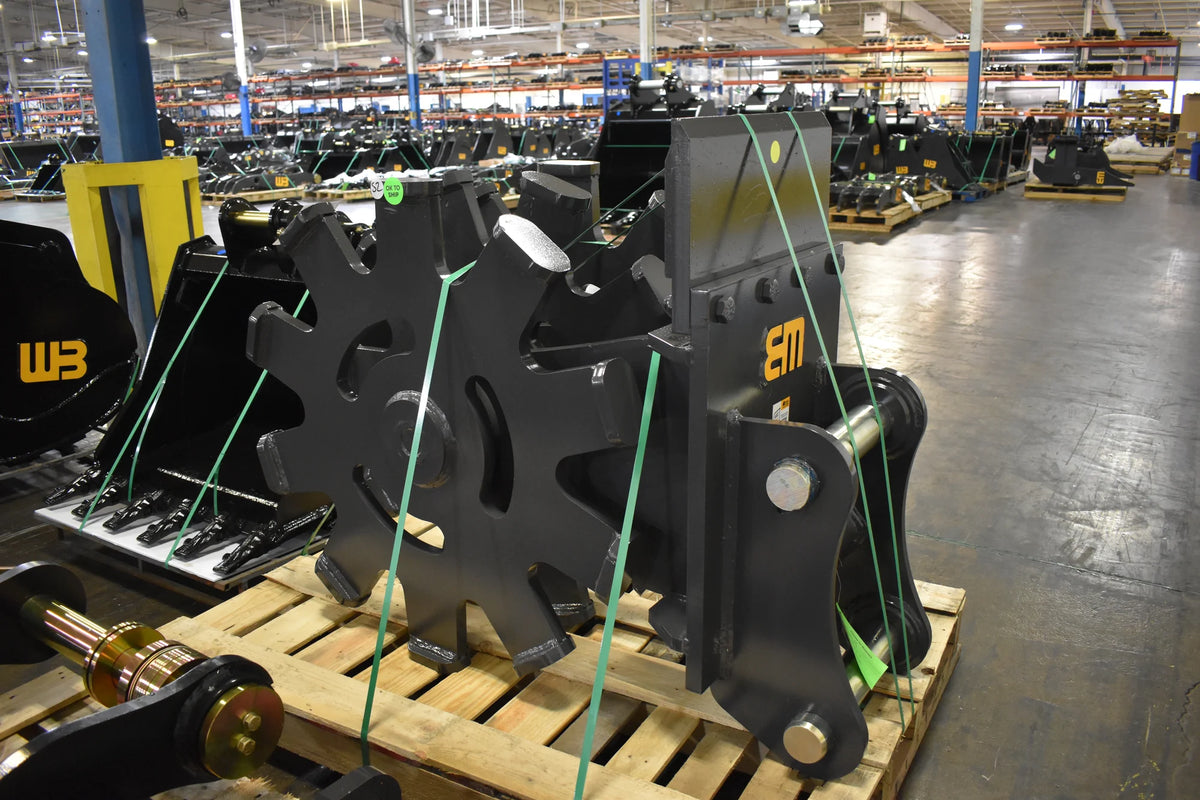

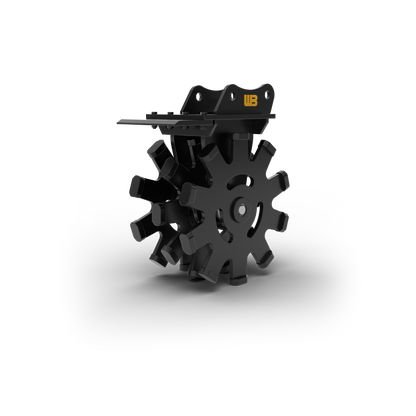

Werk-Brau Wheel Compactor | Model WBC & WCBH Series | Width12"–36" | 05–25 Tons | For Excavator

Werk-Brau Wheel Compactor | Model WBC & WCBH Series | Width12"–36" | 05–25 Tons | For Excavator

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Working Width: 12–36" for various trench widths.
  • Wheel Diameter: 22–42" for efficient material compaction.
  • Attachment Weight: 375–3,750 lbs for excavator applications.
  • Machine Compatibility: 05–25 ton excavators, depending model.
  • Intended Use: Trench backfilling and confined-area compaction.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Werk-Brau Wheel Compactor | Model WBC & WCBH Series | Width12"–36" | 05–25 Tons | For Excavator

DESCRIPTION

Werk-Brau Wheel Compactors are engineered for efficient trench compaction during backfilling, helping operators achieve consistent, reliable compaction while reducing the need for personnel to work inside potentially hazardous trenches. Built from high-strength steel, these excavator attachments feature staggered compaction pads for even material consolidation and heavy-duty sealed bearings designed for long service life in demanding conditions. Replaceable wheels, bearings, and components help simplify maintenance and extend attachment usability. Hardened bushings at pivot points and integrated cleaner bars help prevent material buildup between wheels. Designed to mount directly to an excavator stick using a standard coupler or pin-up connection, Werk-Brau Wheel Compactors are available in multiple widths and configurations to accommodate different trench sizes and excavator classes.

Key Features

  • Efficient Trench Compaction Designed specifically for compacting fill material during trench backfilling, helping achieve more consistent compaction results in confined work areas.
  • Staggered Compaction Pads Engineered with staggered wheel pads to provide even material compaction across the trench and support consistent jobsite performance.
  • High-Strength Steel Construction Heavy-duty steel construction provides a robust attachment solution for demanding excavation, backfilling, and compaction applications.
  • Direct Excavator Mounting Mounts directly to the excavator stick through a standard coupler or pin-up connection for practical installation and attachment compatibility.
  • Reduced Trench Exposure Helps eliminate the need for unsafe manual compaction work inside trenches by allowing operators to compact material from the excavator.
  • Heavy-Duty Sealed Bearings Durable sealed bearings are designed to withstand demanding operating conditions while supporting smooth wheel rotation and extended service life.
  • Replaceable Compaction Wheels Individual wheels can be replaced when required, helping simplify maintenance and extend the useful life of the wheel compactor.
  • Multiple Working Widths Available in 12", 15", 18", 20", 24", and 36" configurations to accommodate different trench widths and excavation requirements.
  • Cleaner Bar Design Integrated cleaner bars help prevent material buildup between the compaction wheels for more reliable operation.
  • Hardened Pivot Bushings Hardened bushings are incorporated into the pivot points to support durability under repetitive attachment movement and heavy-duty use.
  • Excavator Attachment Solution Purpose-built for excavators and available across multiple machine classes for trenching, utility, construction, and backfilling applications.
  • Confined-Area Performance The compaction wheel profile is engineered for effective compaction in trenches and other restricted work areas where conventional equipment may be difficult to use.
  • Quick-Coupler Adaptable Designed for easy adaptation to compatible quick-coupling attachment systems, helping streamline equipment changes on the jobsite.
  • Expandable Wheel Options Additional wheels and different width configurations are available for applications requiring specialized compaction coverage.
  • Multiple Excavator Classes WBC and WCBH models cover a range of excavator machine classes, providing attachment options for both mini and full-size excavators.

Detailed Specifications

Specification WBC0512-2 WBC0518-2
Brand Werk-Brau Werk-Brau
Product Type Wheel Compactor Wheel Compactor
Series WBC Series WBC Series
Machine Type Mini Excavator Mini Excavator
Machine Class 05, 76, 1, 15 & 2* 05, 76, 1, 15 & 2*
Part Number WBC0512-2 WBC0518-2
Working Width 12" 18"
Number of Wheels 2 3
Wheel Diameter 22" 22"
Attachment Weight 375 lb 550 lb
Primary Application Trench Compaction Trench Compaction
Compaction Type Wheel Compaction Wheel Compaction
Wheel Design Staggered Pads Staggered Pads
Construction High-Strength Steel High-Strength Steel
Bearing Type Heavy-Duty Sealed Bearings Heavy-Duty Sealed Bearings
Wheels Replaceable Replaceable
Pivot Bushings Hardened Hardened
Cleaner Bars Included Included
Mounting Coupler or Pin-Up Coupler or Pin-Up
Coupler Adaptability Quick-Coupling Compatible Quick-Coupling Compatible



Specification WBC0524-2 WCBH18-2
Brand Werk-Brau Werk-Brau
Product Type Wheel Compactor Wheel Compactor
Series WBC Series WCBH Series
Machine Type Mini Excavator Mini Excavator
Machine Class 05, 76, 1, 15 & 2* 3, 4, 5 & U2*
Part Number WBC0524-2 WCBH18-2
Working Width 24" 18"
Number of Wheels 4 3
Wheel Diameter 22" 28"
Attachment Weight 725 lb 1,000 lb
Primary Application Trench Compaction Trench Compaction
Compaction Type Wheel Compaction Wheel Compaction
Wheel Design Staggered Pads Staggered Pads
Construction High-Strength Steel High-Strength Steel
Bearing Type Heavy-Duty Sealed Bearings Heavy-Duty Sealed Bearings
Wheels Replaceable Replaceable
Pivot Bushings Hardened Hardened
Cleaner Bars Included Included
Mounting Coupler or Pin-Up Coupler or Pin-Up
Coupler Adaptability Quick-Coupling Compatible Quick-Coupling Compatible



Specification WCBH24-2 WBC218-2
Brand Werk-Brau Werk-Brau
Product Type Wheel Compactor Wheel Compactor
Series WCBH Series WBC Series
Machine Type Mini Excavator Full-Size Excavator
Machine Class 3, 4, 5 & U2* 12, 15, 20 & 25*
Part Number WCBH24-2 WBC218-2
Working Width 24" 18"
Number of Wheels 3 3
Wheel Diameter 28" 42"
Attachment Weight 1,100 lb 2,250 lb
Primary Application Trench Compaction Trench Compaction
Compaction Type Wheel Compaction Wheel Compaction
Wheel Design Staggered Pads Staggered Pads
Construction High-Strength Steel High-Strength Steel
Bearing Type Heavy-Duty Sealed Bearings Heavy-Duty Sealed Bearings
Wheels Replaceable Replaceable
Pivot Bushings Hardened Hardened
Cleaner Bars Included Included
Mounting Coupler or Pin-Up Coupler or Pin-Up
Coupler Adaptability Quick-Coupling Compatible Quick-Coupling Compatible



Specification WBC224-2 WBC236-2
Brand Werk-Brau Werk-Brau
Product Type Wheel Compactor Wheel Compactor
Series WBC Series WBC Series
Machine Type Full-Size Excavator Full-Size Excavator
Machine Class 12, 15, 20 & 25* 12, 15, 20 & 25*
Part Number WBC224-2 WBC236-2
Working Width 24" 36"
Number of Wheels 3 4
Wheel Diameter 42" 42"
Attachment Weight 2,500 lb 3,750 lb
Primary Application Trench Compaction Trench Compaction
Compaction Type Wheel Compaction Wheel Compaction
Wheel Design Staggered Pads Staggered Pads
Construction High-Strength Steel High-Strength Steel
Bearing Type Heavy-Duty Sealed Bearings Heavy-Duty Sealed Bearings
Wheels Replaceable Replaceable
Pivot Bushings Hardened Hardened
Cleaner Bars Included Included
Mounting Coupler or Pin-Up Coupler or Pin-Up
Coupler Adaptability Quick-Coupling Compatible Quick-Coupling Compatible
