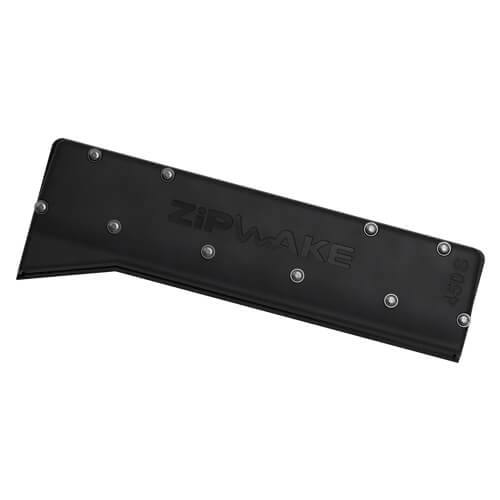

Zipwake Interceptor 450 S Chine Port | 17.72" (450mm) | Model IT450-S Chine Port
Zipwake Interceptor 450 S Chine Port | 17.72" (450mm) | Model IT450-S Chine Port
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Zipwake Interceptor 450 S Chine Port | 17.72" (450mm) | Model IT450-S Chine Port
DESCRIPTION
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.
Key Features
-
Zipwake is a fully automatic and active trim control system
-
Dynamically eliminates uncomfortable and dangerous boat pitch and roll
-
Automatically minimizes wave resistance and saves fuel
-
Built-in quality, simplicity and easy expansion, yet affordable
-
5-10 times faster than conventional trim tabs
-
Built-in GPS, 3D-Gyro and 3D- Accelerometer
Short Facts:
- Outboard Mount
- Modular Design
- Fast Actuation
-
Calibration Free
Chractristics
- True outboard mount
- Modular design
- Fast actuation
- Submersible servo units
- Brushless 12-24V DC servo
- Calibration free
- High-precision positioning
- Durable and accessible
- Integrated mounting plate
- Thru hull fitting options - Above waterline - Concealed behind interceptor
- No corrosive materials
- Straight, V-shaped, Chine and Intermediate models
Detailed Specifications
| Specification | IT450-S Chine Port |
|---|---|
| Model | IT450-S Chine Port |
| Length | 450 mm (18 in) |
| Weight | 2.9 kg (6.4 lbs) |
| Max Boat Speed | 60 knots |
| Blade Stroke | 30 mm (1.2 in) |
| Blade Rate | 20 mm/s (0.8 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Length | 3 m (10 ft), extendable up to 6 m (20 ft) |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 14.5 mm (0.57 in) |
| Supply Voltage | 12-32 V DC |
| Power Consumption | 25 W max |
| Operating Temperature | 0° to +40°C (+32° to +104°F) |
| Storage Temperature | -40° to +90°C (-40° to +194°F) |
| Waterproof Rating | IP68, 5 m (16 ft) |
| Compliance | CE, FCC |
Manuals & Documents
Product Manual
