Product Description

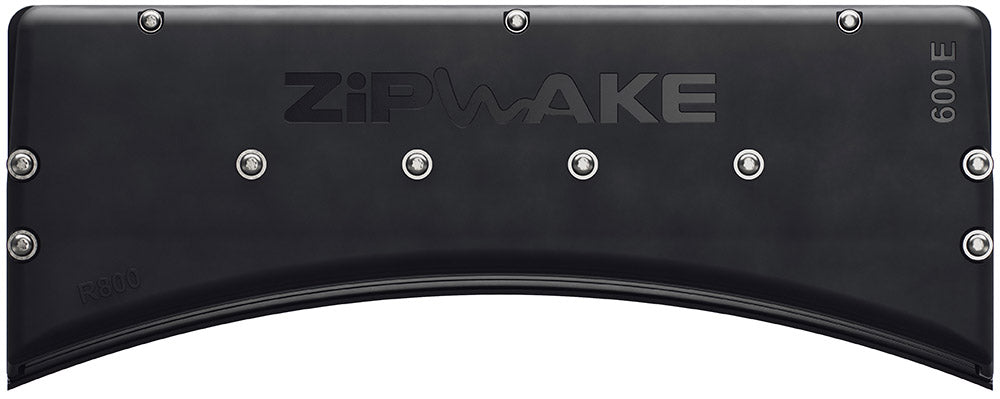

Zipwake Interceptor 600 E Tunnel R800 Series E
DESCRIPTION
Tunnel-shaped interceptors provide the perfect lift-force solution for hulls with propeller tunnels. In contrast to straight interceptors, the tunnel interceptor’s constant radius curvature allows mounting above the propeller tunnel to fully or partially use the otherwise unutilized part of the beam for lift generation.
Tunnel-shaped interceptos provide the perfect lift-force solution for hulls with propeller tunnels. In contrast to straight interceptors, the tunnel interceptor’s constant radius curvature allows mounting above the propeller tunnel to fully or partially use the otherwise unutilized part of the beam for lift generation.
The three tunnel models with different radii, R500, R600 and R800, make sure that most large boat propeller tunnels can be covered with negligible deviation between hull and interceptor curvature. Tunnel interceptors can be included in new installations, or retro-fitted to systems already installed.
True outboard mount, modular design and fast actuation, Integrated mounting plate and no corrosive materials, Thru-hull fitting options either above waterline or concealed behind interceptor,Submersible servo units are brushless 12-24V DC servo motor, high-precision positioning, calibration free, durable and accessible
Key Features
- Custom Fit Options: Three radius models (R500, R600, R800) ensure compatibility with different hull designs.
- Enhanced Lift Efficiency: Generates lift in previously unutilized areas, optimizing hull performance.
- Quick Adjustments: Fast blade actuation for real-time stabilization.
- Reliable and Durable: IP65+ ingress protection and corrosion-free materials ensure longevity.
- Versatile Installation: Can be installed on new systems or retrofitted to existing setups.
- Maintenance-Free Operation: Auto-cleaning feature prevents fouling and ensures consistent performance.
Short Facts:
- Outboard Mount
- Modular Design
- Fast Actuation
-
Calibration Free
Chractristics
- True outboard mount
- Modular design
- Fast actuation
- Straight, tunnel and chine models
- Integrated mounting plate
- Thru hull fitting options - Above waterline - Concealed behind interceptor
- Submersible servo units
- Brushless 12-24V DC servo motor
- Durable and accessible
- Calibration free
- Auto Cleaning - Selectable periodic cleaning cycle - Prevents fouling inside the interceptor
- No corrosive materials
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | Interceptor 600 E Tunnel R800 |
| Max Boat Speed | 50 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Blade Rate | 40 mm/s (1.6 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Material | PUR |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable to 20' (6 m) |
| Voltage | 12-32 VDC |
| Power Consumption | 25 W max |
| Ingress Protection | IP68 |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Approximate Ship Weight | 18 lbs |
