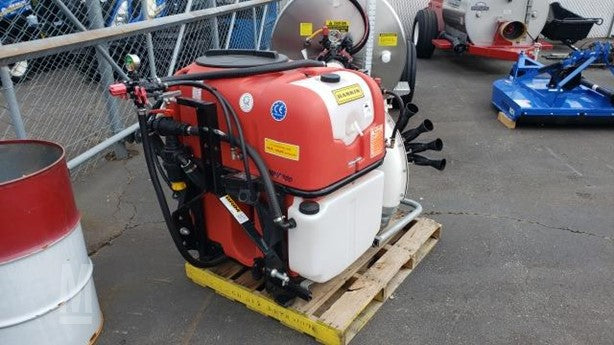

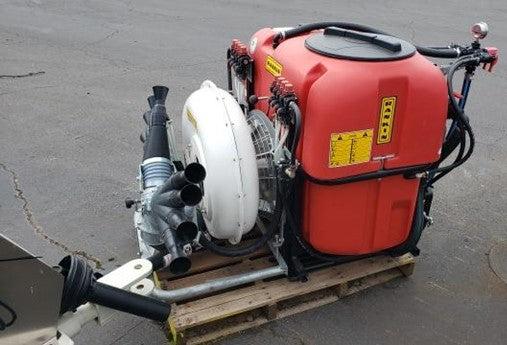

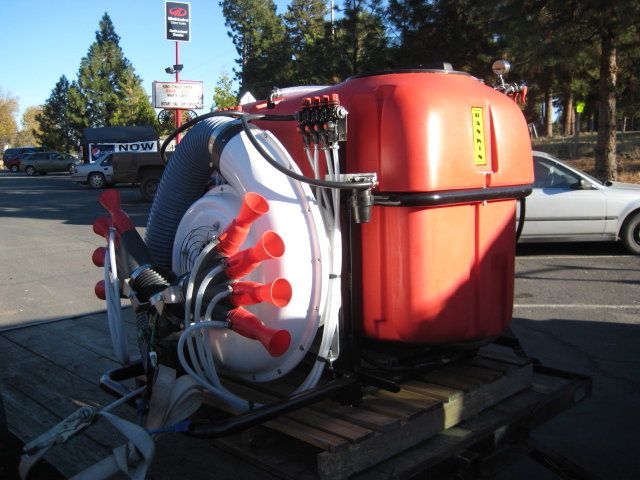

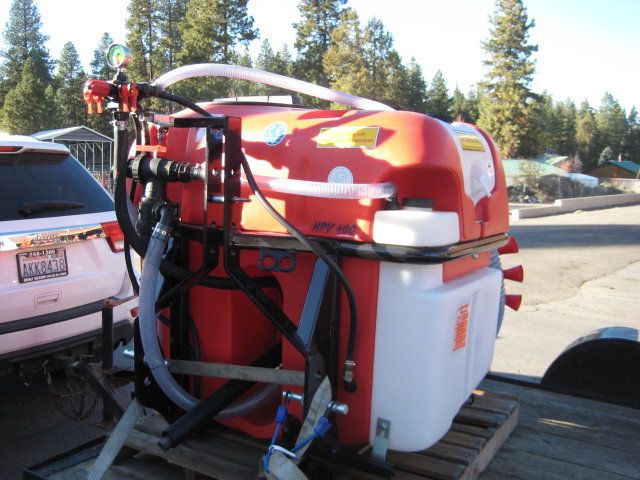

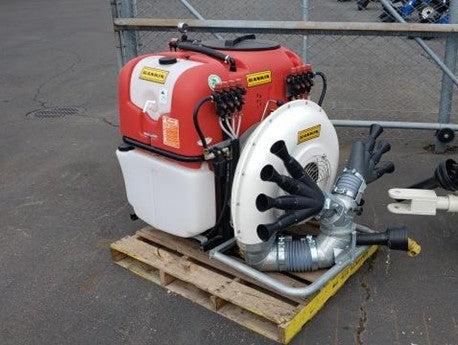

Rankin 3-Point Tractor Venturi Sprayer Model NPV400 | 100 Gallon Capacity | 60-125 HP For Tractor

Rankin 3-Point Tractor Venturi Sprayer Model NPV400 | 100 Gallon Capacity | 60-125 HP For Tractor

Regular price $10,098.00
Regular price Sale price $10,098.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Tank Capacity: 100 Gallons — Adequate capacity for medium-sized spraying tasks
  • Horsepower Requirement: 60–125 HP — Compatible with medium to large tractors for reliable performance
  • Low Maintenance 35 GPM Centrifugal Pump: Efficient and reliable pumping system requiring minimal upkeep.
  • High Performance 15" Aluminum Turbine Fan: Ensures thorough and consistent coverage of crops.
  • 8 Nozzle Venturi Distribution Head: Provides efficient and precise application of chemicals.
View full details

Product Description

Rankin 3-Point Tractor Venturi Sprayer Model NPV400 | 100 Gallon Capacity  | 60-125 HP For Tractor

Included Options:

  • Customizable Colors
  • Additional Nozzles for Specific Applications
  • Optional Accessories for Spraying Expansion

DESCRIPTION

The Rankin VENTURI SPRAYERS NPV Series Model NPV400 is a state-of-the-art, 3-point mounted mist blower designed for small to medium-sized vineyards, orchards, and berry fields. Equipped with advanced Venturi distribution technology, this sprayer delivers precision spraying while reducing chemical waste and environmental impact.

With its 100-gallon reinforced polyethylene tank and 35 GPM centrifugal pump, the NPV400 ensures efficient and reliable spraying performance. The 15-inch aluminum turbine fan provides thorough crop coverage, while the pressure regulator valve with manual controls allows for precise spraying pressure adjustments.

Designed for ease of use and durability, the hot galvanized steel fan housing ensures long-lasting operation, while the Venturi 8-nozzle distribution head delivers uniform spray coverage. The low volume technology optimizes water and chemical use, ensuring up to 200 gallons per acre coverage with minimal waste.

Key Features

  • Reinforced Polyethylene Tanks: Built to be gentle on plants, the smooth lines of the tank prevent damage while offering durability for extended use.
  • Low Maintenance Centrifugal Pump: The 35 GPM centrifugal pump ensures efficient operation with minimal upkeep, delivering consistent performance for your spraying needs.
  • One Speed Gearbox with Neutral: Simplifies operations by allowing you to turn off the fan during non-spraying tasks, making it easier to switch between spraying and other activities.
  • High-Performance Turbine Fan: The 15" aluminum turbine fan ensures consistent coverage of crops, ensuring every part of the plant receives proper treatment.
  • Pressure Regulator Valve: The manual pressure regulator valve enables precise control of the spraying pressure, giving you flexibility based on your crop and spraying needs.
  • Venturi Distribution System: Equipped with an 8-nozzle Venturi distribution head, this system provides efficient and precise chemical application, reducing waste and maximizing effectiveness.
  • Low Volume Spraying Technology: Reduces the need for excess water, allowing for longer spraying times and more efficient chemical use. This system minimizes water and chemical waste while maintaining effective crop protection.
  • Clean Water Tanks: Separate tanks for hand washing and flushing chemicals provide additional safety and convenience, ensuring that operators can easily clean their hands and flush residue from the system.

Detailed Specifications

Feature Details
Model NPV400
SKU RAN-NPV400
Working Width 48" (4 Feet; 122 cm)
Maximum Capacity 100 gallons (379 liters)
Horsepower Required 60 - 125 HP (44.7 - 93.2 KW)
Pump Capacity 35 GPM @ 28-70 PSI
Weight 375 lbs
Fan Size 15" Aluminum Turbine
Nozzles 8 Venturi Distribution Nozzles
Hitch Connection Category 1/2, 3-Point Hitch
Color Red (Other Colors Available/Optional)
