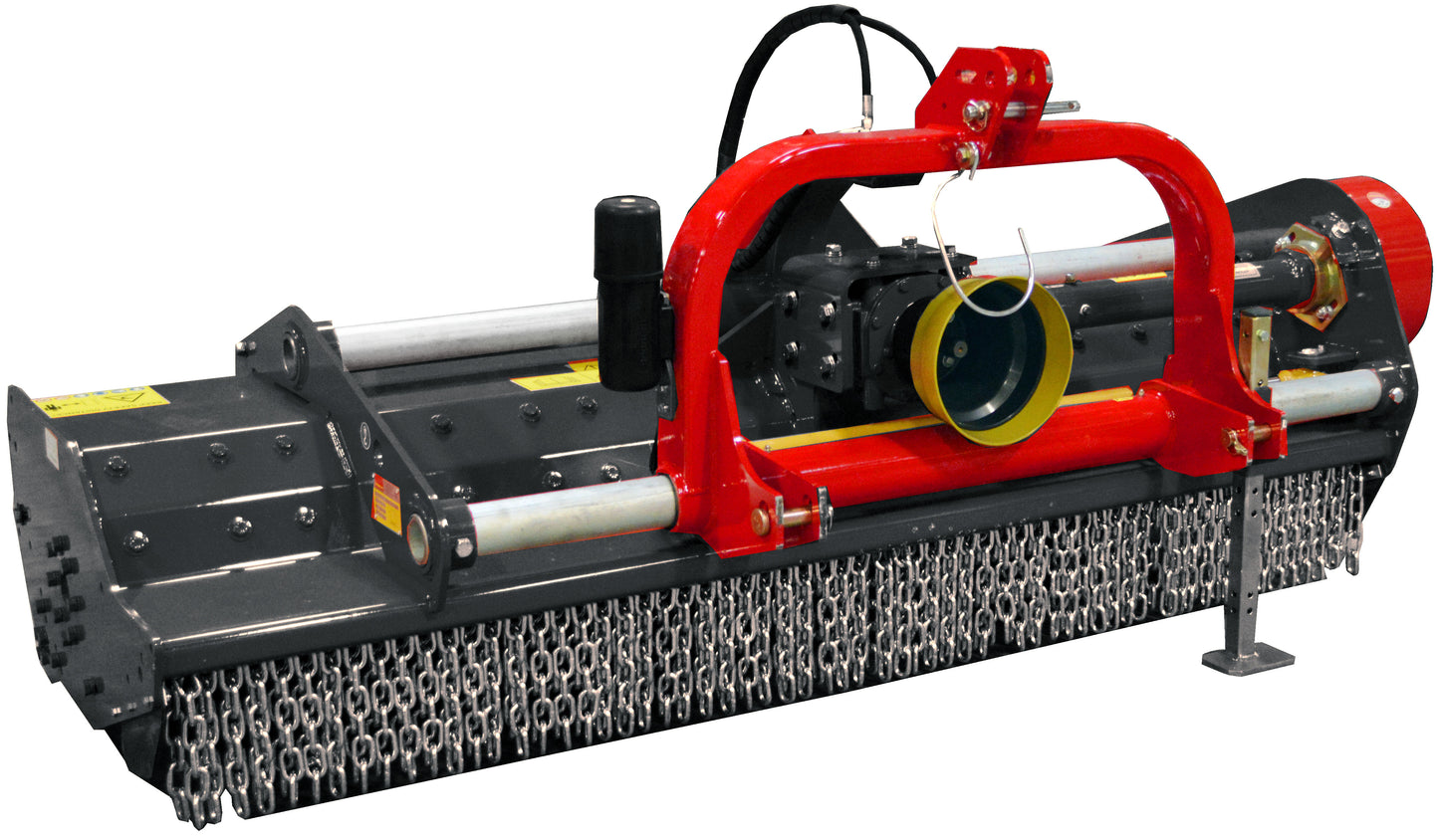

Rankin S9C Series Flail Mower/Shredder Model S9C-300 | 118" Working Width | 90 HP For Tractor

Rankin S9C Series Flail Mower/Shredder Model S9C-300 | 118" Working Width | 90 HP For Tractor

Regular price $20,735.00
Regular price Sale price $20,735.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Low Profile Belt Housing and Gearbox: Provides excellent clearance, ideal for orchards and vineyards.
  • Three Rows Forged Bolt-On Re-Cutter Bars: Ensures thorough shredding and mulching of tough vegetation.
  • 150 HP Gearbox with Over-Running Clutch: Delivers robust power and reliable performance under severe conditions.
  • Hydraulic Linear Sideshift: Allows up to 22" offset for versatile mowing and shredding.
  • Double Self-Aligning Rotor Bearings: Guarantees smooth and reliable operation, reducing maintenance needs.
View full details

Product Description

Rankin S9C Series Flail Mower/Shredder Model S9C-300 | 118" Working Width | 90 HP For Tractor

Included Options:

  • Replacement Hammer Knives: For continued effective shredding.
  • Optional Rake Teeth Attachment: Enhances the machine’s ability to pick up more material.
  • Additional Rear Tires: For increased stability in challenging terrains.

DESCRIPTION

The Rankin S9C Series Flail Mowers/Shredders are expertly engineered for the toughest conditions, making them ideal for mulching prunings and mowing heavy grass. The 118" S9C-300 model boasts a 2000 RPM rotor equipped with 3 lb. drop-forged hammer knives, capable of efficiently mowing grass and shredding brush up to 4" in diameter. With an adjustable rear hatch, operators can quickly discharge grass for faster tractor speeds or close the hatch for finer shredding of brush. The hydraulic sideshift hitch allows for easy adjustment between center mount and offset, ensuring stability and adaptability in various agricultural environments.

Key Features

  • Low Profile Belt Housing and Gearbox: Offers excellent clearance for use in orchards and vineyards.
  • Three Rows Forged Bolt-On Re-Cutter Bars: Ensures thorough shredding and mulching of vegetation.
  • Bolt-On Hardox Internal Wearplate: Adds durability and enhances the mower’s lifespan.
  • 150 HP Gearbox with Over-Running Clutch: Delivers reliable power and high performance.
  • 5 Belt Drive, Rated for 4" Material: Robust enough to handle tough and dense vegetation.
  • Hydraulic Linear Sideshift: Provides up to 22" offset for flexible and efficient operation.
  • Close Coupled Design: Increases tractor stability during use.
  • Adjustable Rear Hatch: Allows easy transition between fast grass discharge and finer brush shredding.
  • High Tensile Steel Hood: Offers durability and protection in demanding environments.
  • Double Self-Aligning Rotor Bearings: Ensures smooth and reliable performance.
  • Safety Protection: Equipped with front double row chains and a rear rubber flap for enhanced safety.

Benefits

  • Versatile Performance: Efficiently handles a wide range of mowing and shredding tasks.
  • Robust Construction: Designed to withstand harsh conditions and heavy use.
  • Enhanced Safety: Equipped with protective features like chain guards and rubber shielding for safe operation.
  • Efficient Operation: Capable of processing thick and dense vegetation quickly and effectively.

Applications

  • Orchards: Perfect for keeping rows clean and mulched.
  • Vineyards: Ideal for managing heavy grass and prunings.
  • Agricultural Fields: Efficient in handling dense cover crops and brush.
  • Landscaping: Suitable for heavy-duty mowing and shredding tasks.

Detailed Specifications

Feature Details
SKU RAN-S9C-300
Weight 2670 lbs
Identifier RAN-3519
Model S9C-300
Width - Overall 124" (315 cm)
Width - Working 118" (300 cm)
Horsepower Recommended Minimum 90 HP (67.11 KW)
Blade(s) / Teeth 30 Hammers
Maximum Cutting Diameter 4" (10 cm)
Hitch Connection Type Category 2, 3-Point Hitch
Color Orange
Manufacturer Rankin Equipment

In Package

  • Rankin S9C Flail Shredder Unit
  • 150 HP Gearbox with Over-Running Clutch
  • 3 lb. Drop-Forged Hammer Knives
  • Hydraulic Linear Sideshift Mechanism
  • Adjustable Rear Hatch
  • Bolt-On Hardox Internal Wearplate
  • Double Self-Aligning Rotor Bearings
  • Front Double Row Chains and Rear Rubber Flap for Safety
  • Assembly Instructions
