Rankin

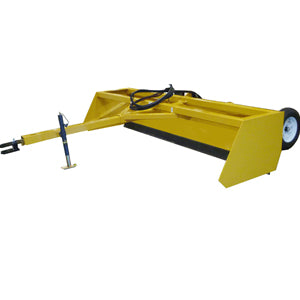

Rankin RDS Series Drag Scraper/ Box Blade Model DS-12 | 144" Working Width | 175 HP For Tractor

Rankin RDS Series Drag Scraper/ Box Blade Model DS-12 | 144" Working Width | 175 HP For Tractor

Regular price $8,927.00
Regular price Sale price $8,927.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Working Width: 144″ — Extremely wide coverage for maximum efficiency in soil leveling and debris removal
  • Horsepower Requirement: 175 HP — Compatible with large tractors for powerful, dependable operation
  • Swivel Tongue: 4" x 4" x 3/8" for enhanced durability and flexibility.
  • Side Plates: 3/8" thick with 2" angle supports for added strength.
  • Axle: 4" x 4" square axle with hardened greaseable pins for reliability.
  • Cutting Edge: 1/2” x 6” bolt-on, reversible, and replaceable for extended use.
View full details

Product Description

Rankin RDS Series Drag Scraper/ Box Blade Model DS-12| 144" Working Width |  175 HP For Tractor

Included Options:

  • Additional Hydraulic Cylinders: Upgrade with two 3" x 8" double-acting hydraulic cylinders for enhanced lift and tilt functionality.
  • Tire Options: Choose from a variety of tire sizes and types to best suit your operational needs (tires sold separately).
  • Custom Paint Colors: Available in custom colors upon request (standard color is yellow).
  • Extended Skid Shoes: Optional extended skid shoes for additional wear protection on rough terrain.
  • Custom Hitch Configurations: Available for specific tractor models or applications, ensuring optimal compatibility.

Benefits

  • Heavy-Duty Construction: Engineered to handle tough conditions with durable materials and replaceable components, ensuring longevity and reliability.
  • Enhanced Control: The tilt axle and swivel tongue allow for precise control and superior maneuverability, making the scraper easier to operate in various terrains.
  • Versatile Use: Suitable for land leveling, grading, and construction tasks, making it an essential tool for a wide range of applications.
  • Long-Lasting Components: Replaceable skid shoes and reversible cutting edge minimize wear and tear, reducing maintenance costs and downtime.

DESCRIPTION

The Rankin RDS Series Drag Scraper Model DS-12 is a high-performance and heavy-duty solution for demanding land leveling, grading, and construction applications. Built for durability and efficiency, this 12-foot scraper is ideal for large-scale projects, with a robust 4" x 4" axle, hardened greaseable pins, and 3/8" thick side plates with 2" angle supports for added strength.

Designed for tractors with up to 175 HP, the DS-12 comes equipped with a tilt axle, allowing for better control and precision during operation. The moldboard is 1/4" thick, ensuring effective scraping, while the 1/2" x 6" cutting edge is reversible and replaceable, further enhancing the longevity of the scraper. Skid shoes provide additional protection, and the swivel tongue increases flexibility and maneuverability for a wide range of grading and leveling tasks.

Key Features

  • Swivel Tongue: 4" x 4" x 3/8" for enhanced durability and flexibility.
  • Side Plates: 3/8" thick with 2" angle supports for extra strength and stability.
  • Axle: 4" x 4" square axle with hardened greaseable pins for reliable performance.
  • Tilt Axle: Standard equipment for improved control and precision during operation.
  • Moldboard: 1/4" thick for effective scraping and grading.
  • Cutting Edge: 1/2” x 6” bolt-on, reversible, and replaceable for extended use.
  • Skid Shoes: 3/8" x 2-1/2" replaceable skid plates on side panels for added protection and longevity.
  • Wheel Configuration: Furnished with 15" wheels (less tires).

Detailed Specifications

Specification Details
Model DS-12
Weight 2000 lbs
Overall Width 144" (12 Feet; 366 cm)
Working Width 144" (12 Feet; 366 cm)
Capacity, Maximum 3-3/4 Cubic Yards
Horsepower Recommended Up to 175 HP (130.5 KW)
Axle 4" x 4" square axle
Moldboard Thickness 1/4"
Cutting Edge 1/2" x 6", bolt-on, reversible, replaceable
Skid Shoes 3/8" x 2-1/2", replaceable
Color Yellow (Other Colors Available/Optional)
Hydraulic Cylinders Required Two 3" x 8" double-acting for lift and tilt
Hoses Suitable for 16' and 18' lengths

In Package

  • Rankin RDS Series Drag Scraper Model DS-12
  • 15" wheels (less tires)
  • Tilt axle for enhanced control
  • Replaceable skid shoes and cutting edge
  • Assembly instructions

Manual & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

Videos

Shipping

General Shipping Info:

  • Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
  • Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
  • Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx).
  • Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
