2012 Ranco High-Capacity Vacuum Tank Trailer | Model 130 BBL VAC | Capacity 5460 Gallons | USED
Ripping It is Partnered with Western Truck to provide the best pricing and service for Ranco.
DESCRIPTION
The Ranco 130 BBL VAC Trailer is a high-capacity vacuum tank engineered for oilfield fluid transport under non-DOT specifications. With a 5460-gallon single-compartment capacity (plus 2% overfill), this trailer is built for durability, safety, and operational efficiency. Its ¼" steel shell, ASME-style heads, and dual internal baffles ensure structural integrity, while the chemical-resistant epoxy liner protects against corrosive fluids. Equipped with dual 4" butterfly valves, multiple manways, and a wedge sump, it offers fast discharge and easy cleanout. The trailer rides on dual 22,500 lb axles with spring suspension and includes full DOT lighting, a driver-side safety walkway, and a sealed toolbox for field-ready performance.
Key Features
- USED & Reliable: Tested durability for heavy-duty performance.
- 5460-Gallon Capacity (130 BBL) + 2% Overfill Single-compartment tank optimized for oilfield fluid containment and transport.
- ¼" Steel Shell with ASME-Style Heads Non-code domed heads and submerged-arc welds ensure strength and long-term reliability.
- Dual Internal Baffles with Reinforcement Rings Reduces fluid surge and enhances structural stability during transit.
- Chemical-Resistant Epoxy Interior Liner 100% solids epoxy coating (10–15 mil DFT) protects against corrosive fluids and abrasive materials.

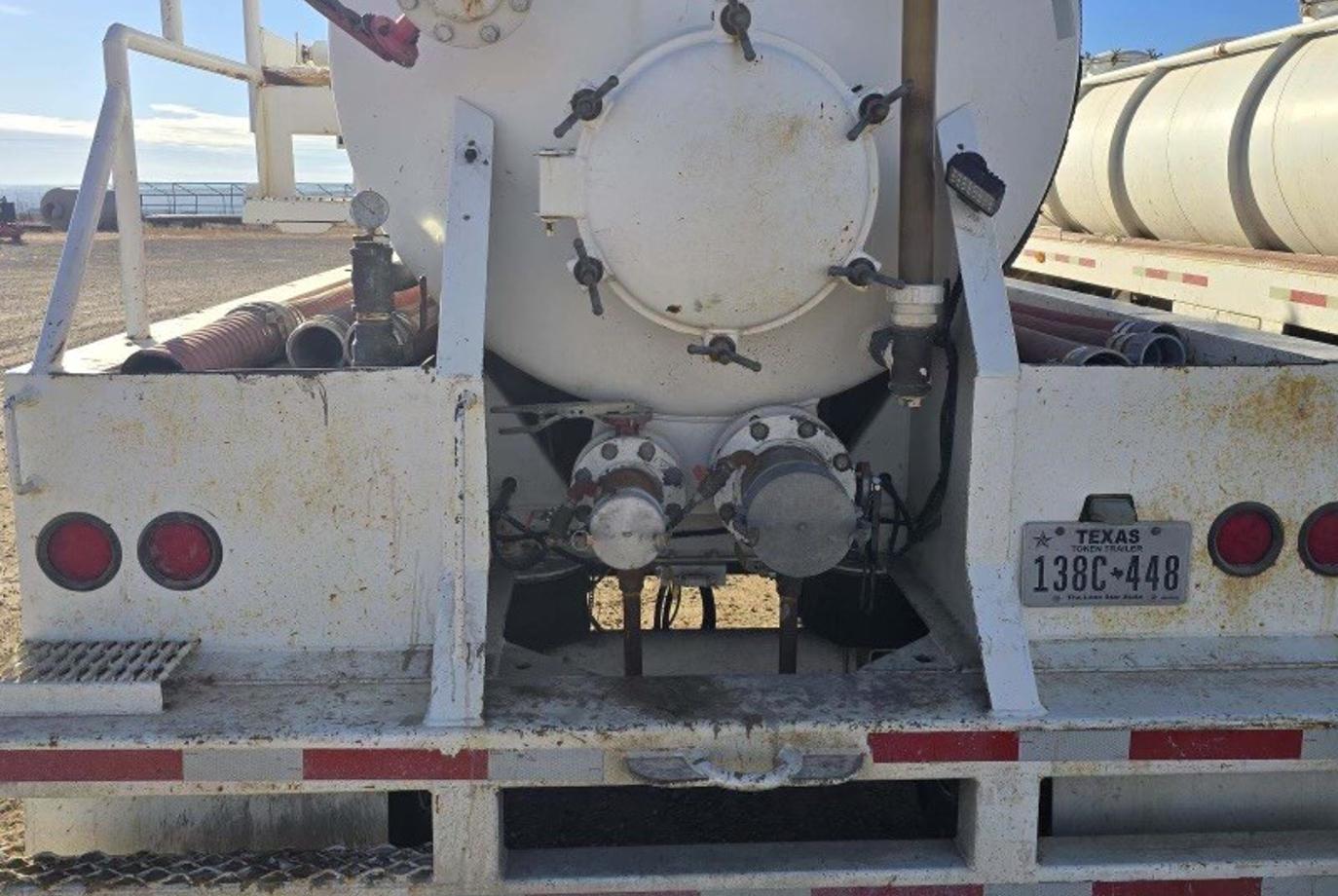

- Dual 4" Rear Butterfly Valves with Wedge Sump Efficient discharge system with ball-type shutoffs and secondary drain tank.
- Five Domed Manways with Swing Bolts Four top-mounted and one rear manway (21") for inspection, access, and maintenance.
- Sight Glass System with Cleanout Tees 2" fittings on both heads and 1½" rear sight tube with top/bottom ball valves.

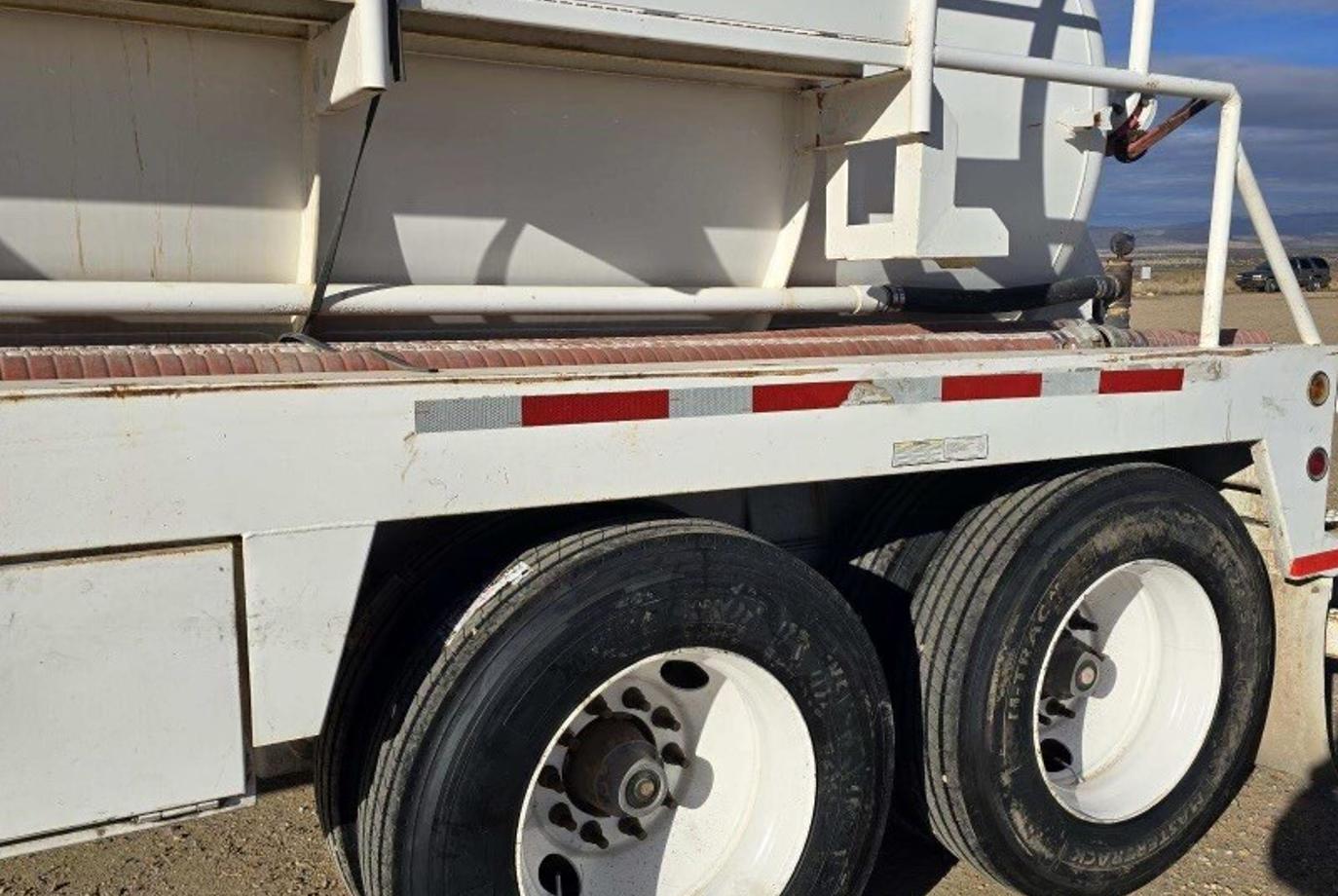

- Spring Suspension with Dual 22,500 lb Axles 8-leaf low-arch springs and outboard drums; 16½" x 7" brakes with ABS and auto slack adjusters.
- Driver-Side Safety Walkway with Ladder Formed supports, handrails, and ladder for secure top access and inspection.
- Full DOT Lighting & Rear Work Lights Sealed harness with junction box, dual rear work lights with integral switches.
- Exterior Coating System White metal grit blast (SP-10), epoxy primer, and polyurethane topcoat (4–6 mil DFT).
- Heavy-Duty Landing Gear & Adjustable Coupler Two-speed lift legs and bolt-on coupler for flexible tractor compatibility.
- Steel Disc Wheels with 11.00 x 24.5 Radial Tires 10-hole hub-piloted wheels for durability and off-road readiness.
- Integrated Tool Box & Anti-Sail Mud Flaps 18" x 18" x 36" sealed storage box and rear protection for hoses and gear.
Detailed Specifications
| Category | Specification |
|---|---|
| Type | Vacuum Tank Trailer (Non-DOT Spec) |
| Capacity | 5460 gallons + 2% |
| Commodity | Unspecified oilfield fluids |
| Compartment | Single |
| Design Pressure | 15 PSI internal, 22 inHg external, 23 PSIG hydrostatic |
| Shell | ¼" plate x 60" O.D. |
| Heads | ¼" plate, ASME shape (non-code) |
| Baffles | Two ¼" flat flanged & dished with reinforcement rings |
| Stiffeners | Eight 3/8" x 2½" rolled rings (external) |
| Welds | Internal root, external submerged-arc |
| Manways | Four top, one rear; 21" domed with swing bolts |
| Interior Coating | Epoxy liner, 10–15 mil DFT |
| Exterior Coating | Epoxy primer + polyurethane topcoat, 4–6 mil DFT |
| Outlet Valves | Two 4" butterfly valves with wedge sump |
| Reliefs | 1½" vacuum, 2" pressure (top front), 2" blowdown (rear) |
| Shutoff Valves | Ball type primary (front), 12-gal secondary (driver side) |
| Sight Glass | 2" fittings (front/rear), 1½" rear tube with cleanouts |
| Suspension | Standard spring, 8-leaf low arch |
| Axles | Two 22,500 lb round with outboard drums |
| Wheels | 10-hole steel disc, hub-piloted |
| Tires | 11.00 x 24.5 radial |
| Brakes | 16½" x 7", spring parking, ABS both axles |
| Lighting | Full DOT sealed lights, rear work lights with switches |
| Walkway | Driver’s side with handrails and ladder |
| Fenders | Full-length formed hose pan (10GA) with ¼" reinforcement |
| Upper Coupler | Bolt-on adjustable |
| Landing Legs | Two-speed, heavy-duty |
| Bumper | 4" x 8" tube with tow eye |
| Tool Box | 18" x 18" x 36", sealed door, driver’s side |
| Mud Flaps | Anti-sail |
