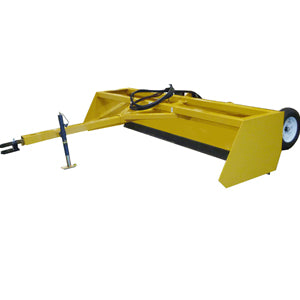

Rankin RDS Series Drag Scraper / Box Blade Model DS-8 | 84" Working Width | 75 HP For Tractor
Included Options:
Additional cutting edge kits
Extended warranty
Custom paint colors
Benefits
Heavy-Duty Construction: Built for high-performance use in challenging conditions, ensuring long-lasting durability.
Enhanced Control: The tilt axle and swivel tongue offer superior maneuverability and precision in grading and leveling.
Long-Lasting Components: Replaceable cutting edges and skid shoes prolong the lifespan of the scraper, reducing maintenance costs.
Versatile Use: Ideal for a variety of applications including land leveling, grading, and construction tasks.
DESCRIPTION
The Rankin RDS Series Drag Scraper Model DS-8 is engineered to deliver superior performance in land leveling, grading, and construction tasks. Built with a robust design, the DS-8 ensures durability and reliability in demanding environments. This drag scraper features a 4" x 4" x 3/8" swivel tongue, 3/8" side plates with 2" angle supports, and a 4" x 4" axle with hardened greaseable pins, making it a solid choice for a variety of applications. The DS-8 is compatible with tractors of at least 75 HP, offering a maximumcapacity of 2-1/2 cubic yards for efficient material handling.
Key Features
Swivel Tongue: 4" x 4" x 3/8" for enhanced durability and flexibility in operation.
Side Plates: 3/8" thick with 2" angle supports provide extra strength and stability for tough tasks.
Axle: 4" x 4" square axle with hardened greaseable pins ensures reliable performance and long-lasting use.
Tilt Axle: Standard equipment for improved control and precision during operation, making it easier to handle on uneven terrains.
Moldboard: 1/4" thick for efficient scraping and grading.
Cutting Edge: 1/2" x 6" bolt-on, reversible, and replaceable cutting edge for extended use and easy maintenance.
Skid Shoes: 3/8" x 2-1/2" replaceable skid plates on side panels for added protection and longevity.
Wheel Configuration: Furnished with 15" wheels (tires not included), providing smooth operation.
Detailed Specifications
Feature
Details
SKU
RAN-DS-8
Weight
1625 lbs
Model
DS-8
Horsepower Recommended
75 HP Minimum (55.9 KW)
Capacity, Maximum
2-1/2 Cubic Yards
Width - Overall
84" (7 Feet; 213 cm)
Width - Working
84" (7 Feet; 213 cm)
Axle
4" x 4" square axle
Moldboard
1/4" thick
Cutting Edge
1/2" x 6" bolt-on, reversible, replaceable
Skid Shoes
3/8" x 2-1/2" replaceable skid plates on sides
Color
Yellow (Other Colors Available/Optional)
Manufacturer
Rankin Equipment
In Package
Rankin RDS Series Drag Scraper Model DS-8
15" wheels (tires not included)
User Manual
Manual & Documents
General Warranty Info:
Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
Please reach out to us for any specific warranty information needed about products and parts you can’t find!
