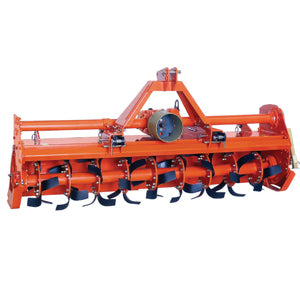

Rankin 3-Point Tractor Rotary Tiller Model SPR-235 | 91" Working Width | 80 HP For Tractor
Rankin 3-Point Tractor Rotary Tiller Model SPR-235 | 91" Working Width | 80 HP For Tractor
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Rankin 3-Point Tractor Rotary Tiller Model SPR-235 | 91" Working Width | 80 HP For Tractor
Included Options:
- Custom Colors Available: Reach out for additional details.
- Optional Spare Parts: Extra blades and skid shoes available for purchase.
Benefits
- Deep Soil Penetration: Achieve up to 8" tillage depth for optimal soil preparation, enhancing crop yield potential.
- Flexible Speed Options: Offers 4 speeds at 540 RPM and 2 speeds at 1000 RPM to adapt to different soil conditions.
- Durable Construction: Built with high-quality materials, including a gear-driven rotor shaft for long-lasting use.
- Safety and Protection: The slip clutch on the drive shaft prevents damage during overload, ensuring the longevity of your equipment.
- User-Friendly Design: Features adjustable skid shoes, a parking stand, and minimal assembly for ease of use and storage.
DESCRIPTION
The Rankin SPR-235 Rotary Tiller is built for large-scale agricultural operations, ensuring efficient and effective soil preparation. Designed with a 91-inch working width, this heavy-duty tiller delivers deep tillage to improve aeration, nutrient distribution, and soil structure for enhanced crop growth.
With multiple speed settings (4 speeds at 540 RPM and 2 speeds at 1000 RPM), the SPR-235 offers flexibility for different soil types and working conditions. Its gear-driven system ensures consistent power transfer, while the slip clutch-protected PTO shaft protects against mechanical overloads.
Equipped with 54 blades across 9 flanges, this tiller provides maximum soil pulverization, improving moisture retention and seedbed conditions. The adjustable skid shoes help regulate tillage depth, ensuring uniform field preparation.
Whether you're breaking compacted ground, incorporating soil amendments, or preparing a seedbed for planting, the Rankin SPR-235 is a reliable, heavy-duty rotary tiller designed for high-performance farming.
Key Features
- 8" Maximum Tillage Depth: Provides deep soil penetration for thorough seedbed preparation.
- 4 Speeds (540 RPM) / 2 Speeds (1000 RPM): Versatile speed settings adapt to different soil types and tractor specifications.
- Drive Shaft with Slip Clutch: Protects the machine from overloads and ensures smooth operation.
- 6 Blades per Flange: Efficiently mixes and tills soil for enhanced productivity.
- Gear Drive: Delivers consistent and reliable power transmission.
- Some Assembly Required: Easy assembly for quick setup and immediate use.
Detailed Specifications
| Feature | Details |
|---|---|
| SKU | RAN-SPR-235 |
| Weight | 1427 lbs |
| Identifier | RAN-3578 |
| Model | SPR-235 |
| Horsepower Recommended | 80 HP Minimum (59.7 KW) |
| Width - Overall | 101" (257 cm) |
| Width - Working | 91" (231.14 cm) |
| Tines / Rods | 54 Total - 6 Blades per Flange; 9 Flanges |
| Tilling Depth | Up to 8" (20 cm) |
| Unit Drive Type | 540 RPM Rear Tractor PTO |
| PTO Shaft | Included, with Heavy Duty Slip Clutch Protection |
| Rotor Shaft Drive Type | Gear Driven |
| Skid Shoes | Adjustable and Replaceable, Included |
| Parking Stand | Included Standard |
| Hitch Connection Type | Category 2, 3-Point Hitch |
| Color | Orange |
| Manufacturer | Rankin Equipment |
In Package
- Rankin SPR-235 Rotary Tiller
- PTO Shaft with Slip Clutch Protection
- Adjustable Skid Shoes
- Parking Stand
- Assembly Instructions
Manual & Documents
General Warranty Info
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
