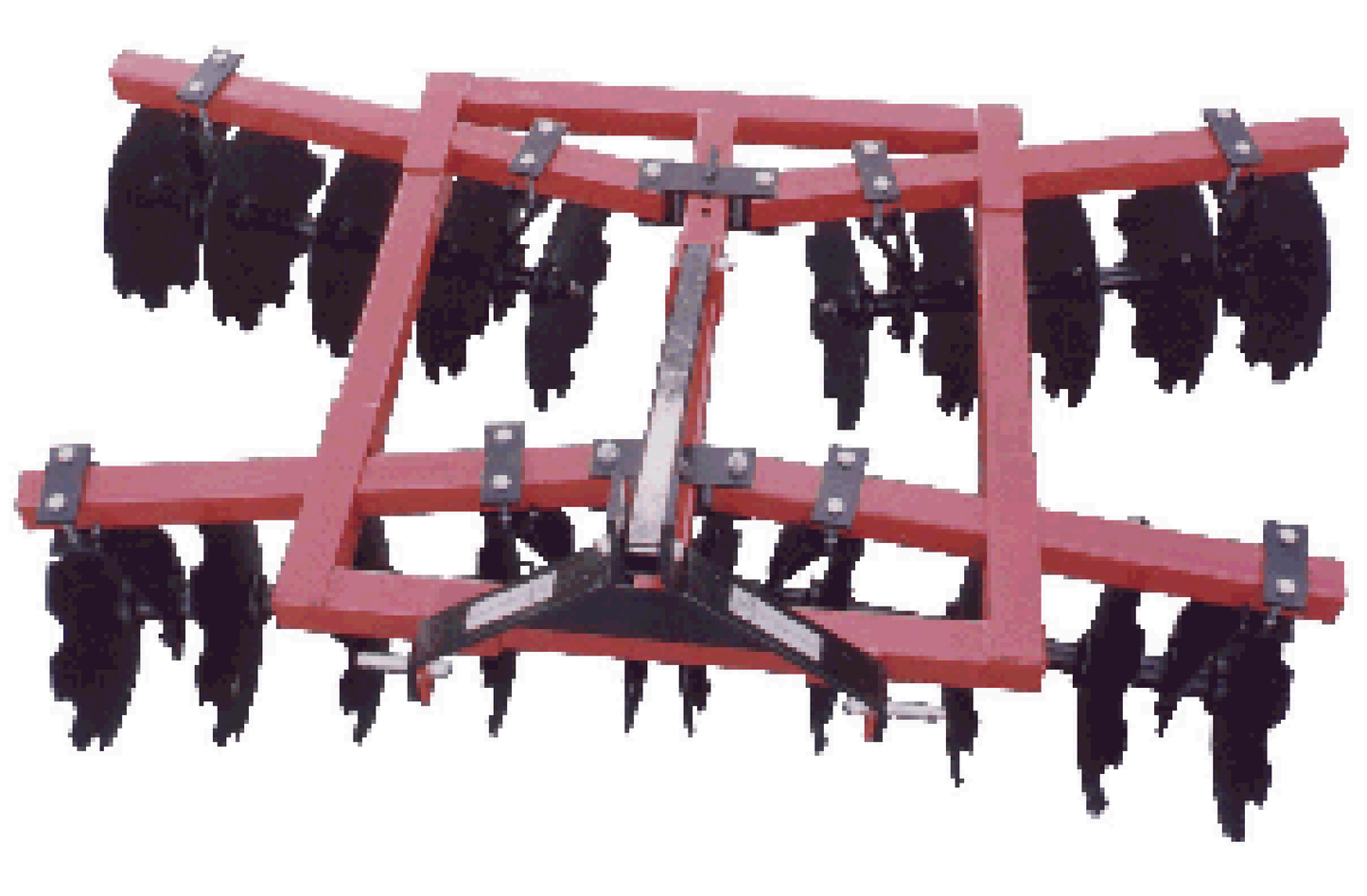

A & B EagleLine Equipment | 3-Point Flexible Hitch Disc Harrow with 22" Blades | Model FHH-COF-RR Series | Width 8'2" to 11'4" | Horsepower 30-45 HP | For Tractors
A & B EagleLine Equipment | 3-Point Flexible Hitch Disc Harrow with 22" Blades | Model FHH-COF-RR Series | Width 8'2" to 11'4" | Horsepower 30-45 HP | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
A & B EagleLine Equipment | 3-Point Flexible Hitch Disc Harrow with 22" Blades | Model FHH-COF-RR Series | Width 8'2" to 11'4" | Horsepower 30-45 HP | For Tractors
DESCRIPTION
When it comes to preparing your fields with precision and efficiency, the A & B EagleLine Equipment 3-Point Flexible Hitch Disc Harrow stands out as a trusted partner for any farmer or land professional. Designed with rugged durability and smart engineering, this flexible hitch disc harrow offers superior soil penetration and smooth field finish, even across uneven terrain.
Equipped with sharp 22" cut-out front blades and smooth plain rear blades, this harrow breaks up clods, levels the ground, and prepares seedbeds with ease. The flexible hitch design allows the harrow to effortlessly float over bumps and dips, ensuring consistent soil contact and thorough tillage.
Whether you're using an 8’2” or up to an 11’4” wide model, this disc harrow fits Cat II three-point hitches and is ideal for tractors in the 30-45 horsepower range. Installation is straightforward simply attach the disc gangs and A-frame, and you’re ready to work.
Perfect for seedbed preparation, residue management, and weed control, this harrow combines robust construction, ease of use, and adaptable performance for small to mid-sized farms. Trust A & B EagleLine Equipment to power your productivity with this reliable flexible hitch disc harrow.
Key Features
- Flexible Hitch Design: Allows the disc harrow to float and adapt to uneven terrain for a consistent tillage depth and smooth finish.
- 22" Cut-Out Front Blades & Plain Rear Blades: Optimized blade configuration for effective soil penetration, clod breaking, and leveling.
- 3-Point Hitch Compatibility: Fits Category II tractor hitch with replaceable lift arm pins for secure attachment and easy maintenance.
- Single-Pin Adjustment: Quickly modify the angle of front or rear disc gangs up to 18° to customize tillage aggressiveness.
- Disc Spacing: 8" to 9" disc spacing (model-dependent) balances soil turnover and residue management.
- Heavy-Duty Construction: Greaseable bearings and robust steel frame ensure long-lasting durability under tough field conditions.
- Wide Model Range: Available in widths from 8’2” to 11’4” to suit various tractor sizes and acreage needs.
- Recommended for 30-45 HP Tractors: Optimized for small to medium horsepower tractors, ensuring efficient operation without overloading.
- Ready to Use: Pre-assembled disc gangs and A-frame streamline setup, saving you time and effort.
- Lightweight Yet Sturdy: Weighs between 1,217 to 1,589 lbs depending on width, making transport and maneuvering easier on the farm.
Detailed Specifications
| Specification | FHH202299-COF-RR | FHH242288-COF-RR | FHH242299-COF-RR |
|---|---|---|---|
| Working Width | 8'2" | 8'8" | 9'8" |
| No. of Discs | 20 | 24 | 24 |
| Disc Spacing | 9" | 8" | 9" |
| Hitch Category | Cat II (CAT 1) | Cat II (CAT 2) | Cat II (CAT 2) |
| Recommended HP | 30-40 HP | 30-40 HP | 30-40 HP |
| Weight (lbs) | 1,217 | 1,249 | 1,403 |
| Lift Arm Pins | CAT 1 | CAT 2 | CAT 2 |
| Gang Angle Adjustment | Up to 18° | Up to 18° | Up to 18° |
| Specification | FHH282288-COF-RR | FHH282299-COF-RR | FHH322288-COF-RR |
|---|---|---|---|
| Working Width | 10' | 11'3" | 11'4" |
| No. of Discs | 28 | 28 | 32 |
| Disc Spacing | 8" | 9" | 8" |
| Hitch Category | Cat II (CAT 1) | Cat II (CAT 2) | Cat II (CAT 1) |
| Recommended HP | 30-40 HP | 40-45 HP | 30-35 HP |
| Weight (lbs) | 1,249 | 1,589 | 1,496 |
| Lift Arm Pins | CAT 1 | CAT 2 | CAT 1 |
| Gang Angle Adjustment | Up to 18° | Up to 18° | Up to 18° |
