Product Description

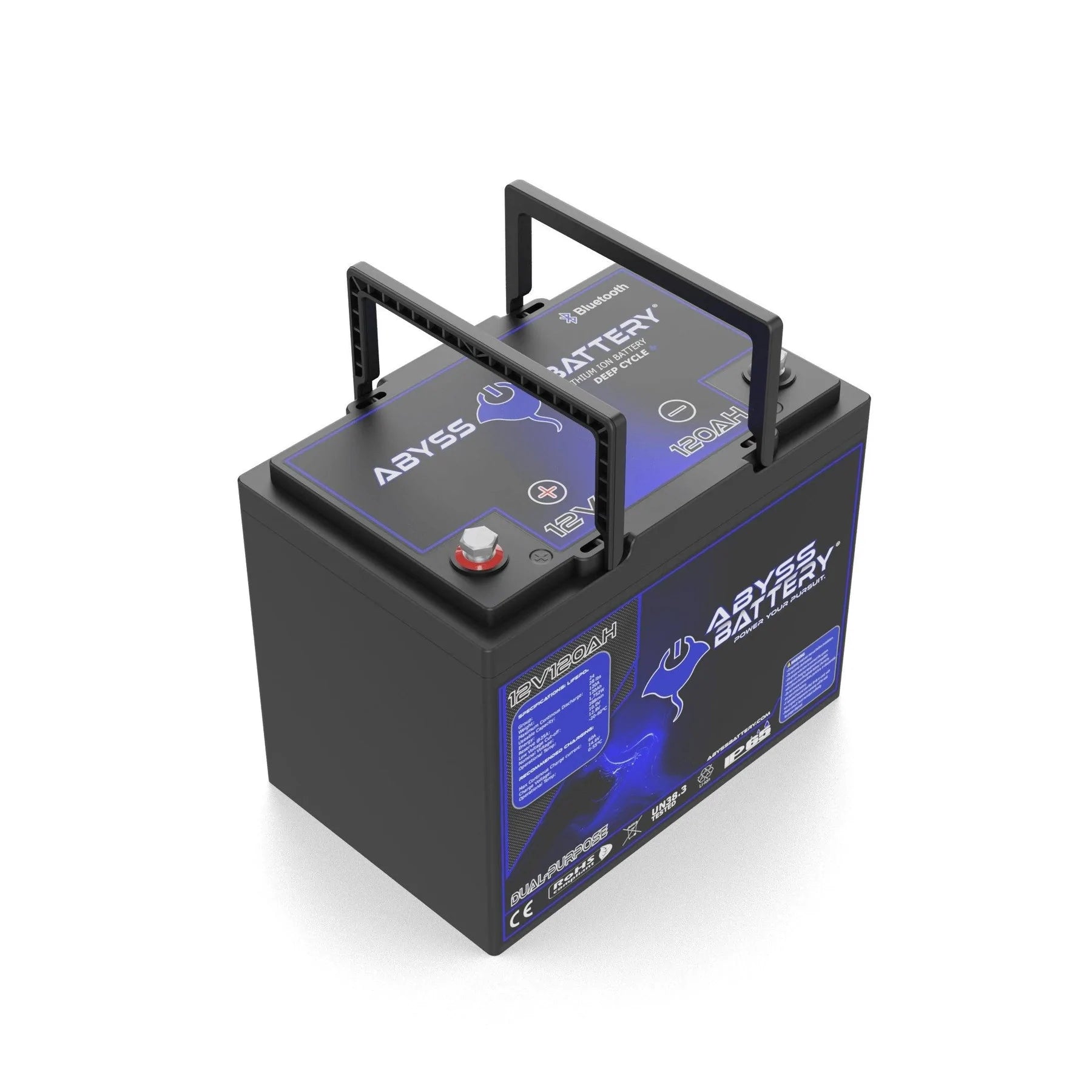

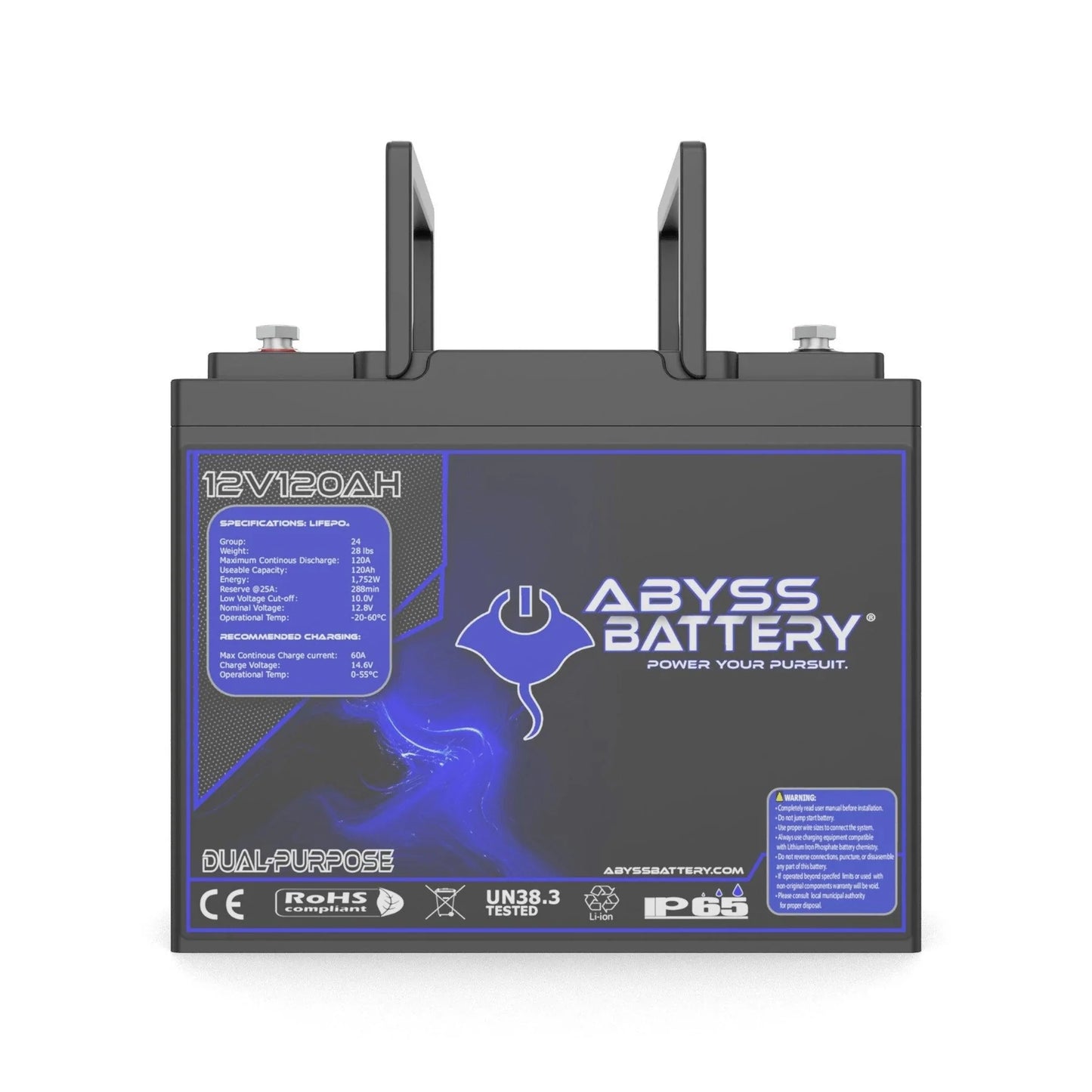

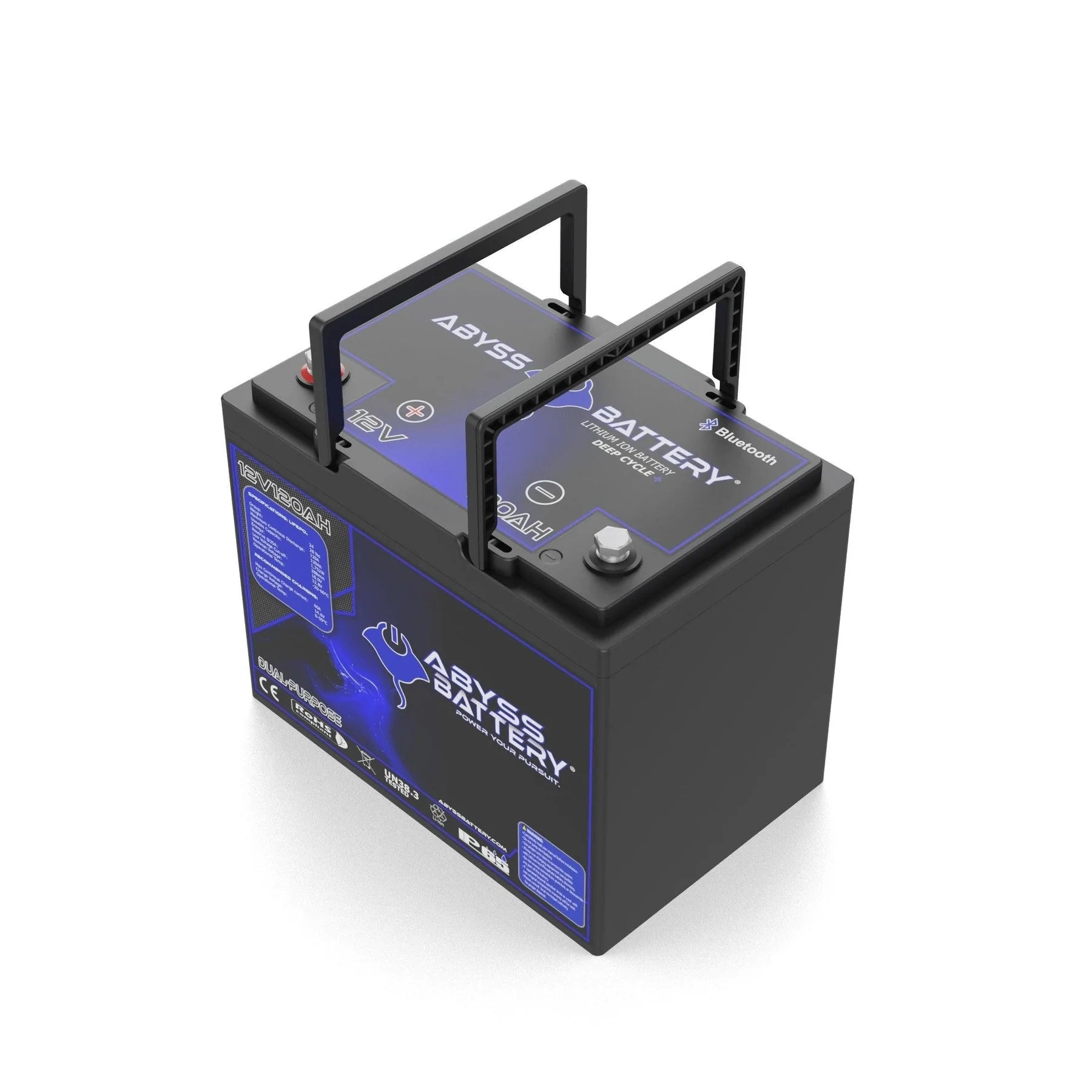

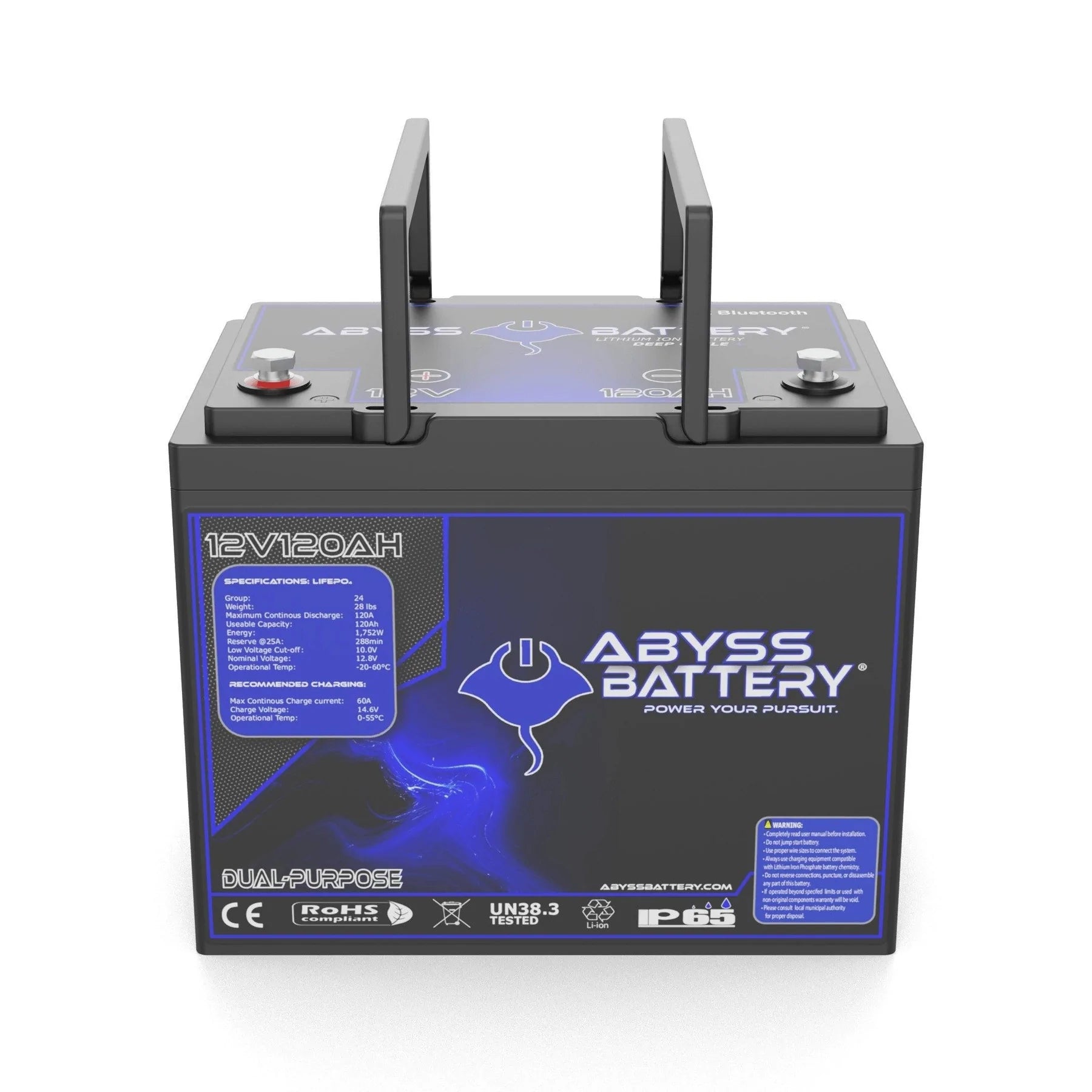

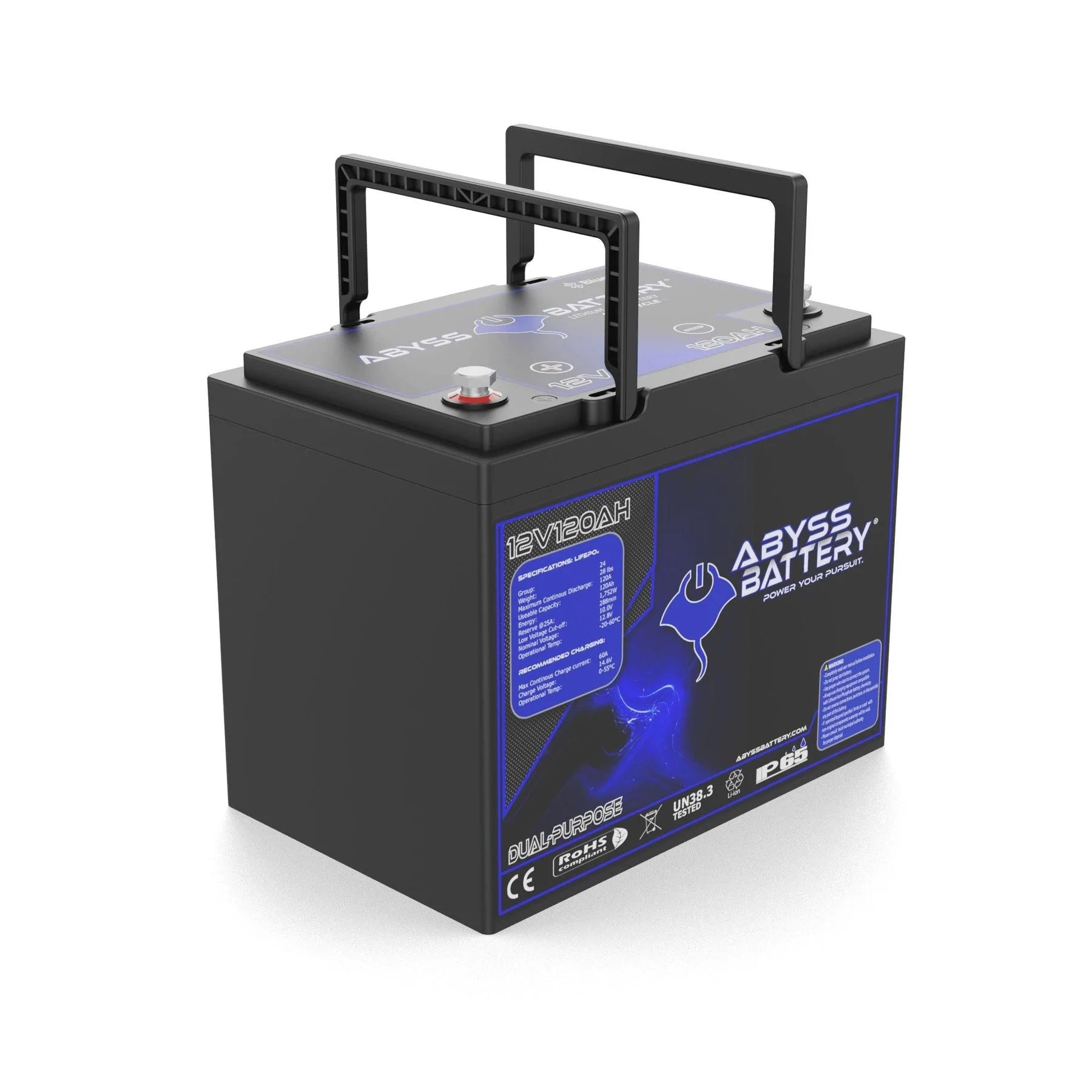

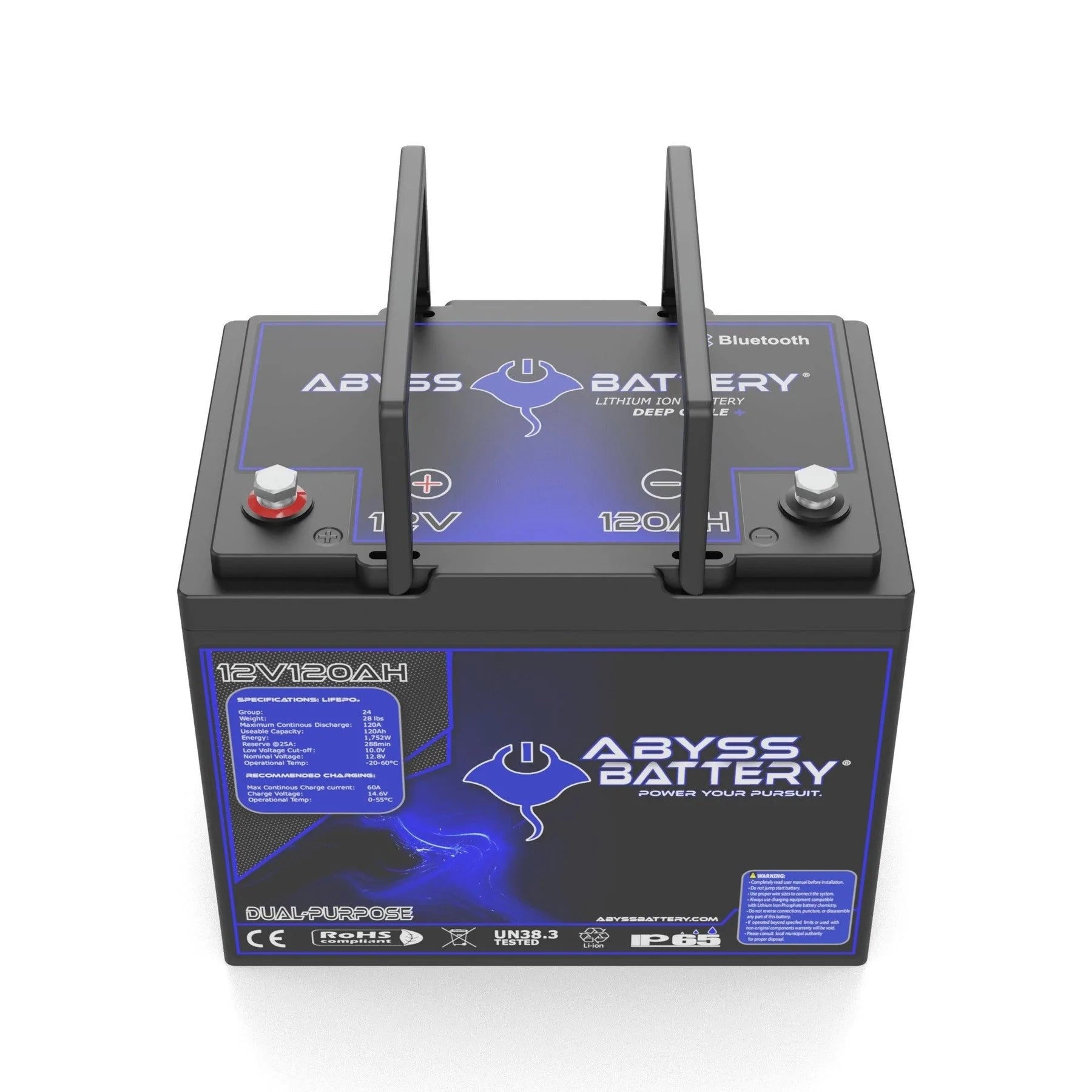

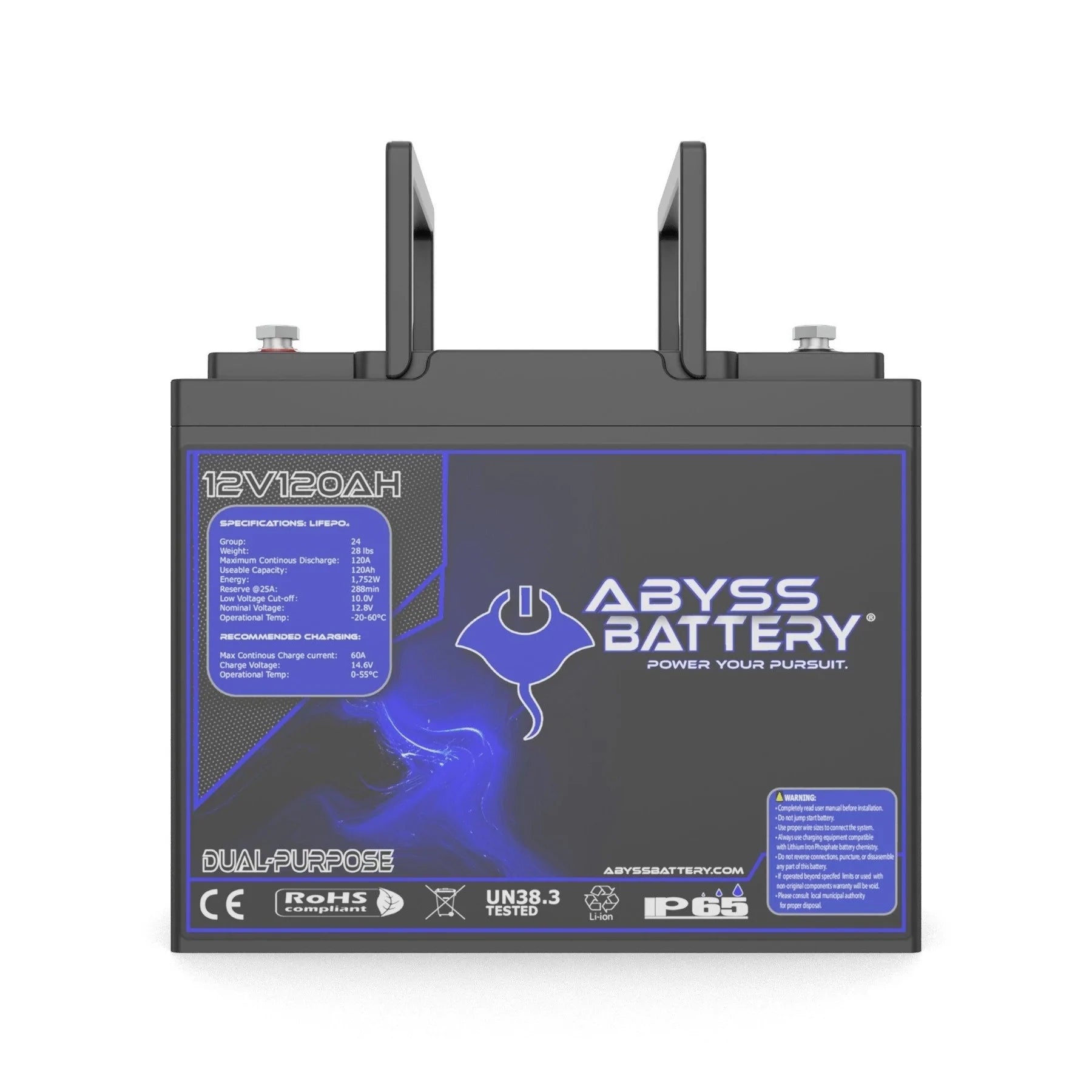

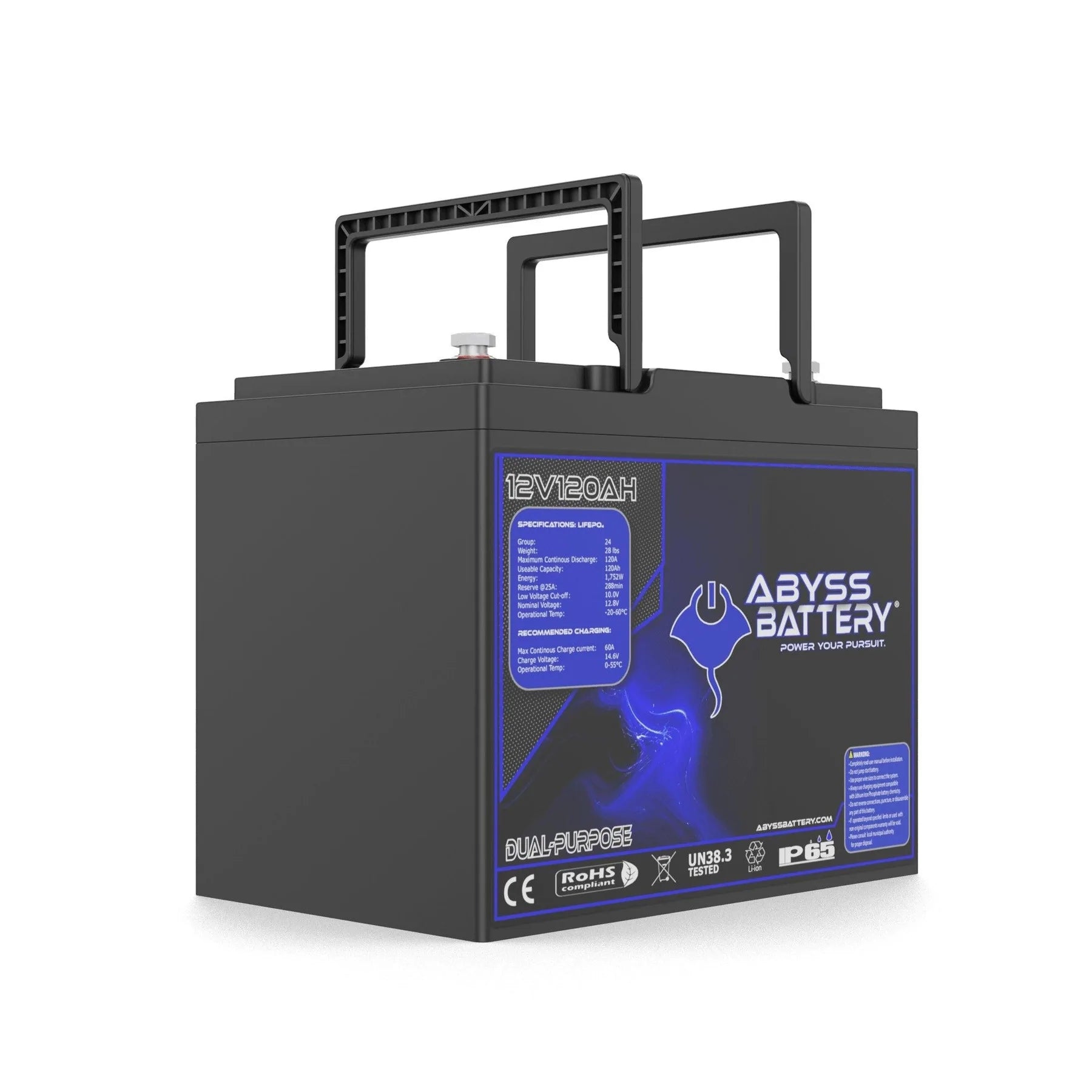

Abyss® | Dual Purpose Lithium Marine Battery | Model AB-12V120-BT | Group 24 | Voltage 12V 120Ah | 1500A Peak CCA | Bluetooth BMS | IP65 Waterproof
DESCRIPTION
When you're offshore, miles from the marina, trust isn’t optional it’s essential. That’s why the ABYSS® 12V 120Ah Dual Purpose Lithium Marine Battery is engineered for boaters who demand unwavering reliability, rapid starting power, and deep cycle performance all in one rugged unit.
Crafted with advanced LiFePO4 (Lithium Iron Phosphate) technology, this Group 24 battery delivers exceptional energy density, superior safety, and unmatched longevity. With an astonishing 1500A peak cold cranking amps (CCA) and 120Ah of deep-cycle capacity, it's the ideal dual-purpose power source for starting Mercury outboards, running trolling motors, powering fish finders, chill plates, Seakeepers, and marine audio systems all with a single, compact battery.
Thanks to Bluetooth® smart monitoring, real-time battery diagnostics are just a tap away on your iOS or Android device. And when the temperatures drop, you’re covered a built-in self-heating system ensures cold-weather charging is automatic and effortless.
Whether you’re navigating choppy seas, drifting with the current, or anchored at your favorite fishing spot, ABYSS® keeps your power steady, your systems running, and your adventures uninterrupted.
Key Features
- Dual Purpose Design Starting & Deep Cycle Delivers 1500A CCA for high-load engine starts plus 120Ah for continuous power to trolling motors, electronics, and more.
- Bluetooth® Smart Battery Monitoring Check battery health, charge status, temperature, and cycle count via the free Abyss app on iOS or Android.
- Built-In Cold Weather Heating System Automatically warms battery for safe charging in freezing conditions no blankets or external kits required.
- Faster Charging & Longer Runtime Efficient LiFePO4 chemistry charges faster and lasts longer than AGM or lead-acid alternatives.
- Marine-Grade Safety Standards Built to exceed ABYC® and UN38.3 standards for marine lithium batteries resistant to vibration, impact, saltwater, and corrosion.
- Rugged, Lightweight Construction Compact Group 24 ABS casing with IP65 protection makes installation easy and durable even in wet environments.
- High Cycle Life & Stability Up to 6000 cycles at 80% depth of discharge, meaning years of dependable performance on and off the water.
Detailed Specifications
| Category | Specification |
|---|---|
| Brand | ABYSS® |
| Model | 12V 120Ah Dual Purpose Lithium Marine Battery |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Voltage | 12.8V |
| Capacity | 120Ah |
| Cold Cranking Amps (CCA) | 1500A (Peak) |
| Continuous Discharge | 120A |
| Peak Discharge Current | 800A (300ms) |
| Cycle Life | 3000 @ 100% DOD / 6000 @ 80% DOD |
| Parallel Capability | Up to 6 Batteries |
| Series Capability | Up to 4 Batteries |
| Charging Voltage | 14.4V ± 0.2V |
| Standard Charge Current | 24A |
| Max Charge Current | 60A |
| Discharge Cut-Off Voltage | 10V |
| Self Discharge Rate | <3% per month |
| Bluetooth® Monitoring | Yes – iOS / Android Compatible |
| Built-in Heating | Yes – Internal Heating for Cold-Weather Charging |
| Operating Temp (Charging) | 32°F to 131°F (0°C to 55°C) |
| Operating Temp (Discharging) | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | 23°F to 113°F (-5°C to 45°C) |
| Weight | 25 lbs (11.5 kg) |
| Dimensions | 10.2" x 6.69" x 8.18" (260×170×208 mm) |
| Battery Group Size | Group 24 |
| Terminal Type | M8 |
| Casing Material | ABS – Black Plastic |
| IP Rating | IP65 – Dust and Water Resistant |
| Certifications | UL1642, IEC62619, IEC62133, UN38.3, CE, RoHS |
Manuals & Documents
ABYSS BATTERY® USER MANUAL
LITHIUM CHARGER USER MANUAL
DC-DC CHARGER USER MANUAL
MULTI BANK CHARGER USER MANUAL
REEL BATTERY USER MANUAL
BLUETOOTH® APP QUICK GUIDE
