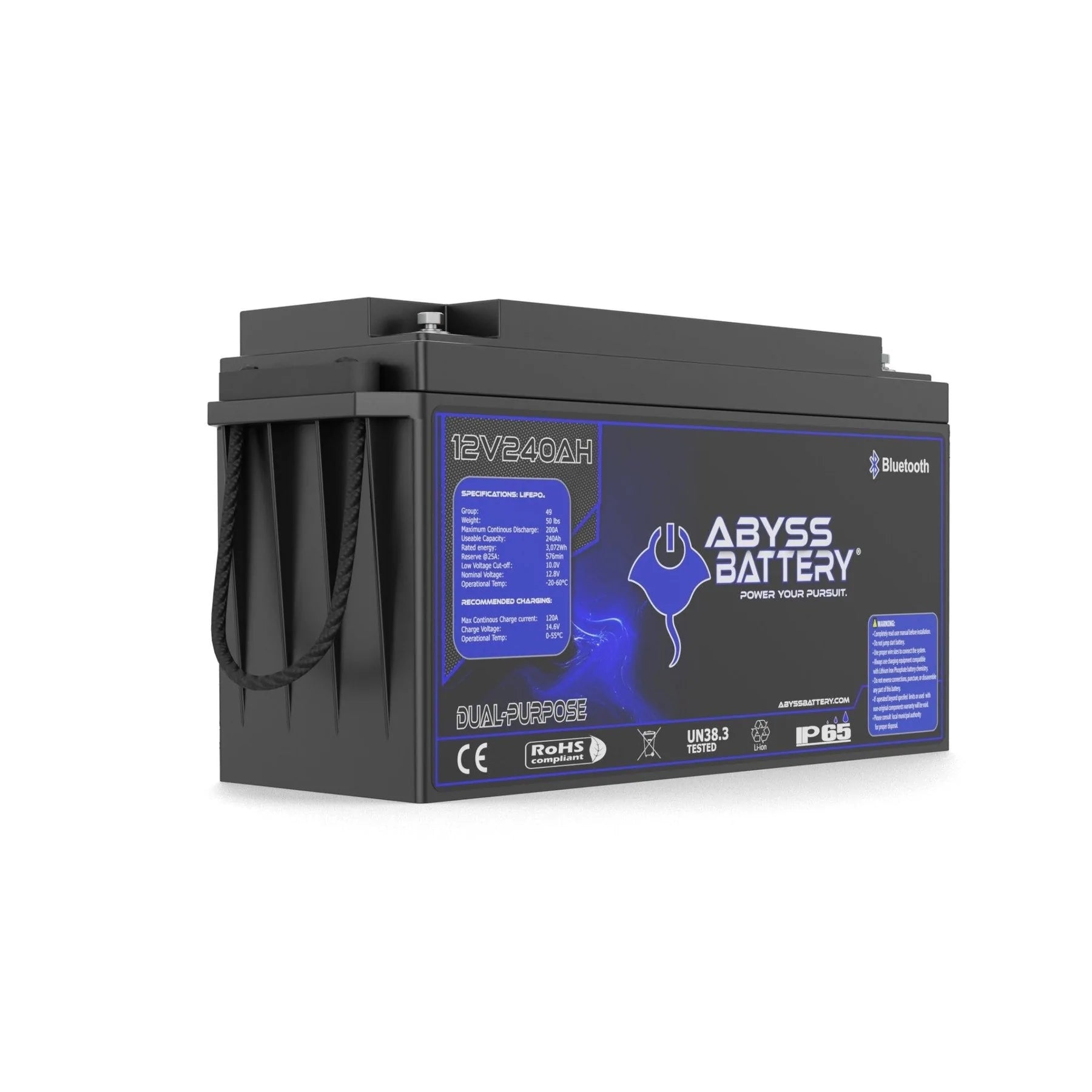

Abyss® | Dual Purpose Lithium Marine Battery | Model AB-12V240-BT | Group 49 | 12V 240Ah | 200A BMS | Bluetooth | Built-In Heating | IP65 Waterproof
Abyss® | Dual Purpose Lithium Marine Battery | Model AB-12V240-BT | Group 49 | 12V 240Ah | 200A BMS | Bluetooth | Built-In Heating | IP65 Waterproof
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

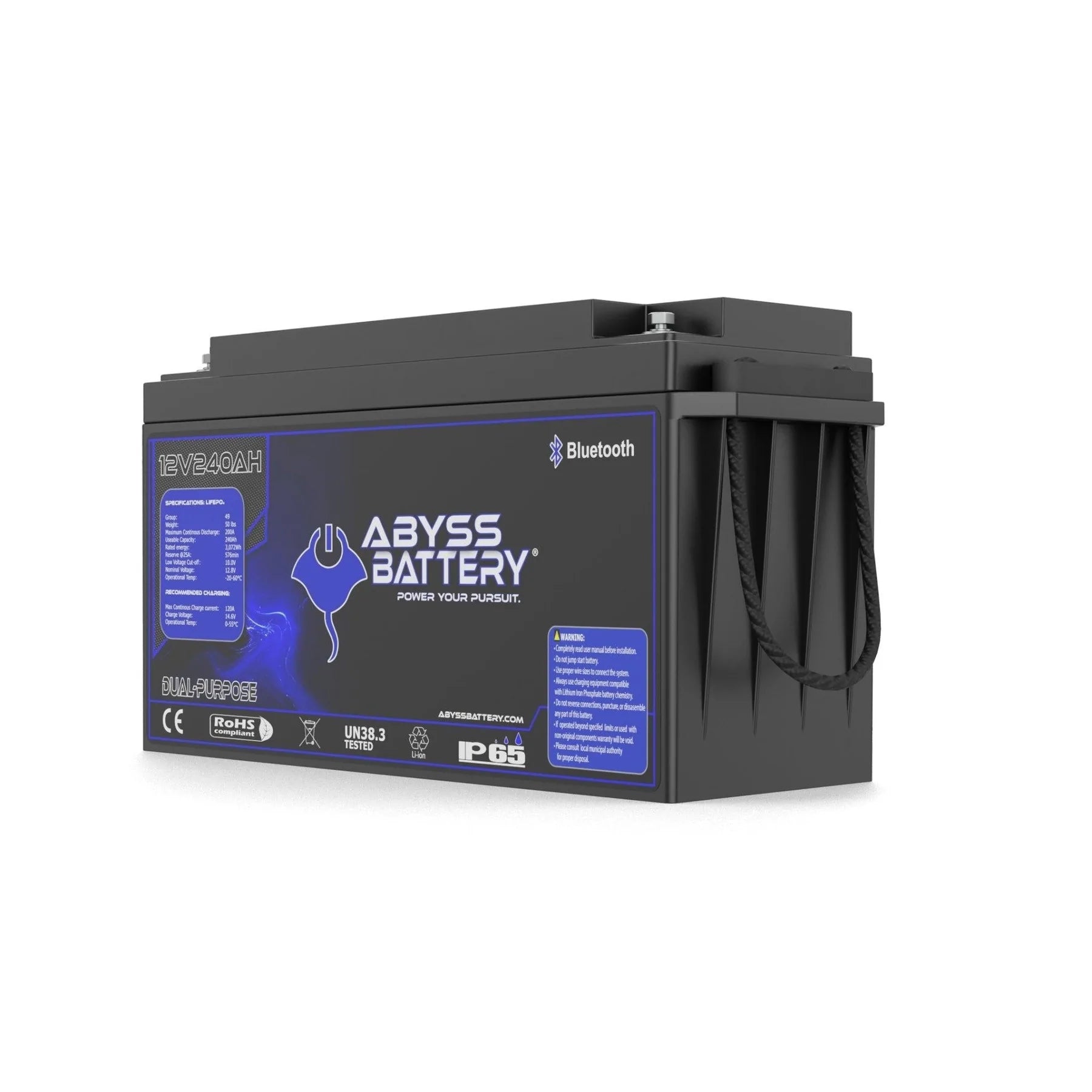

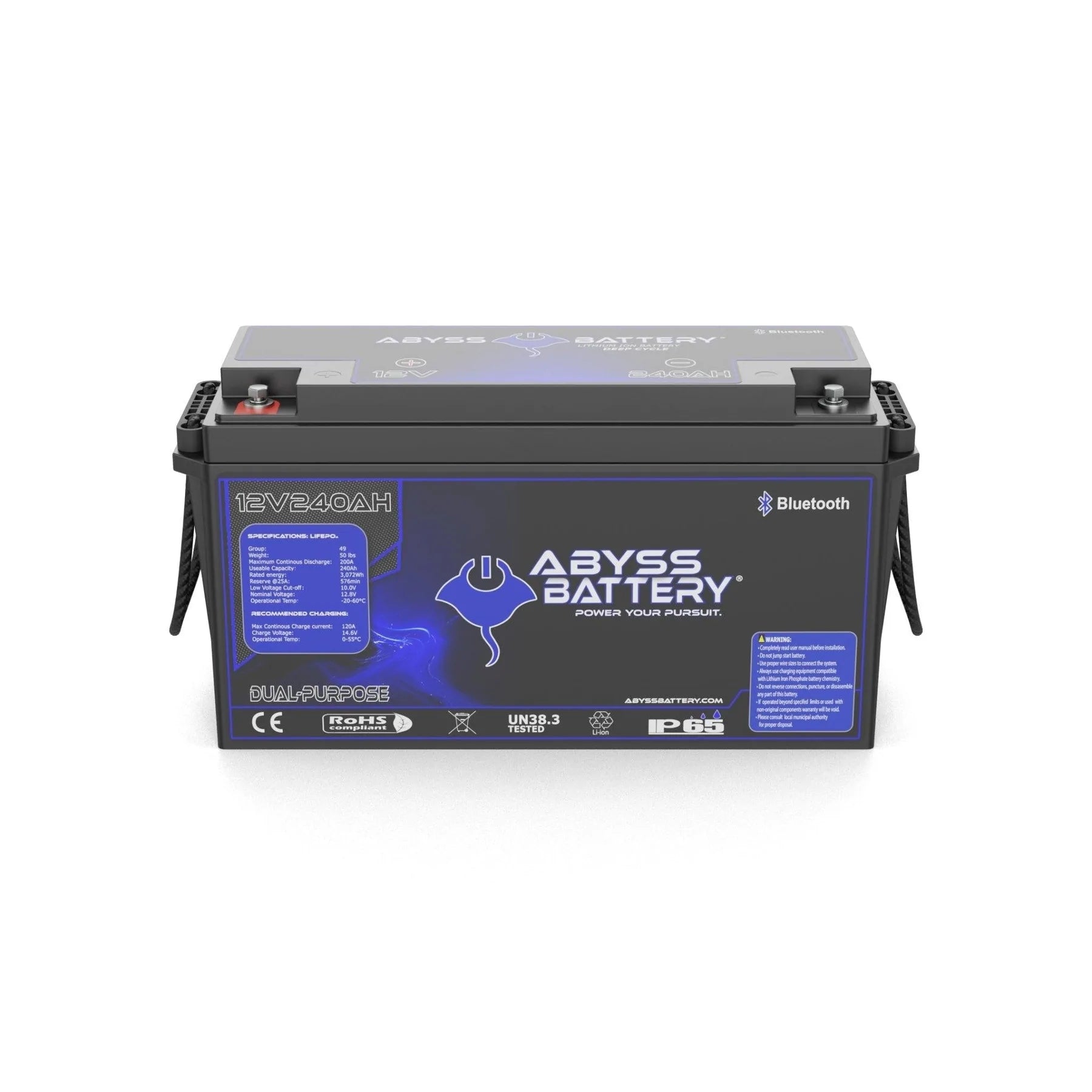

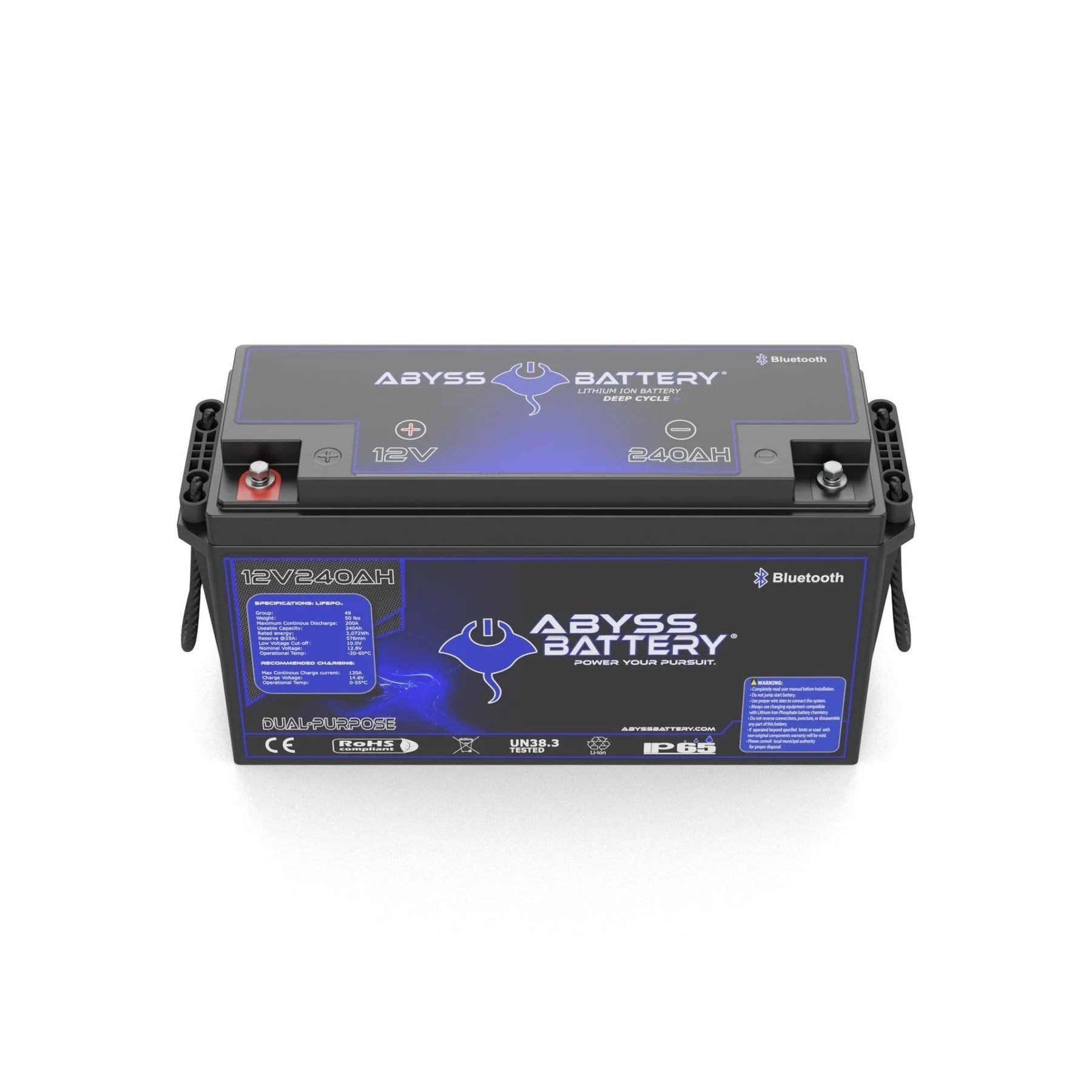

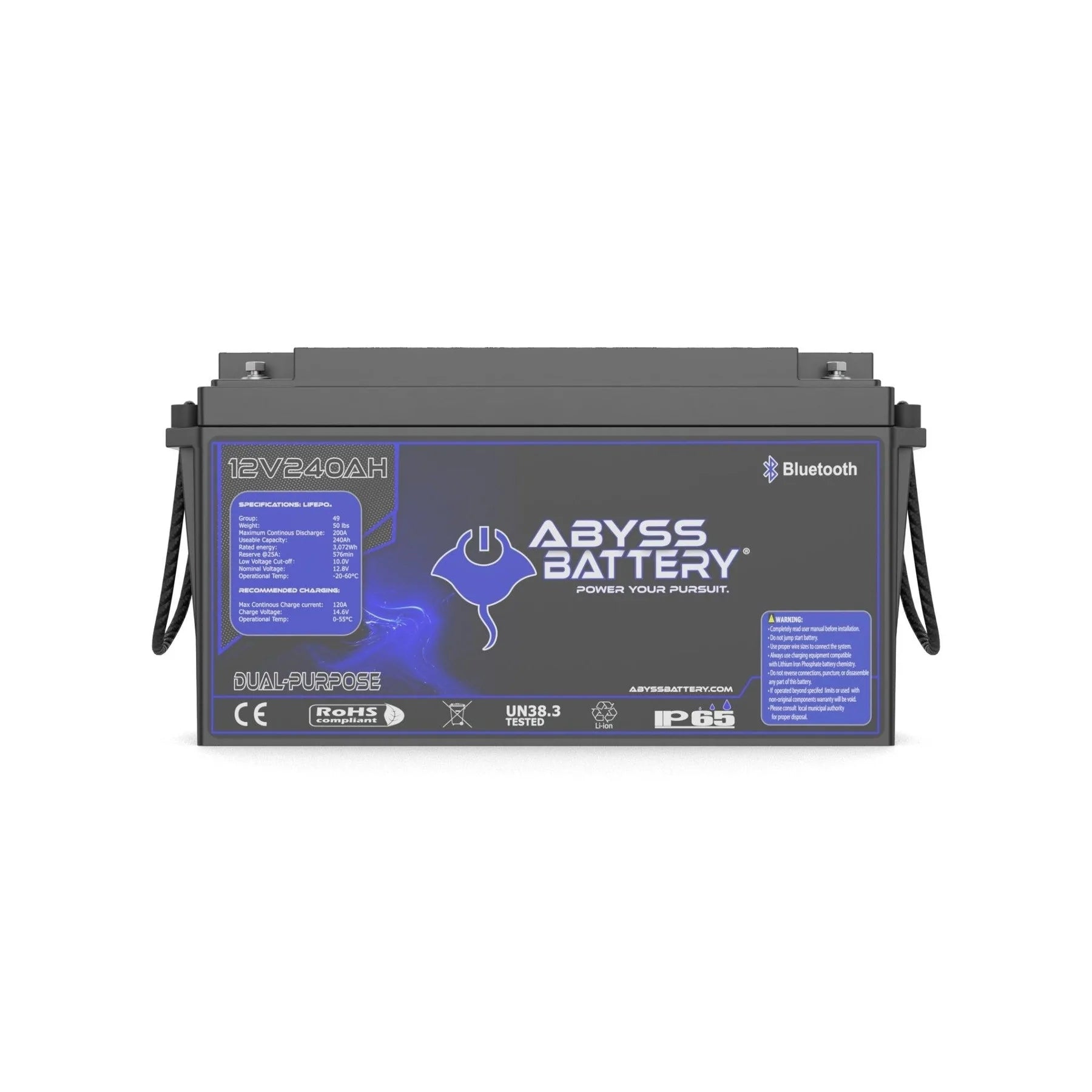

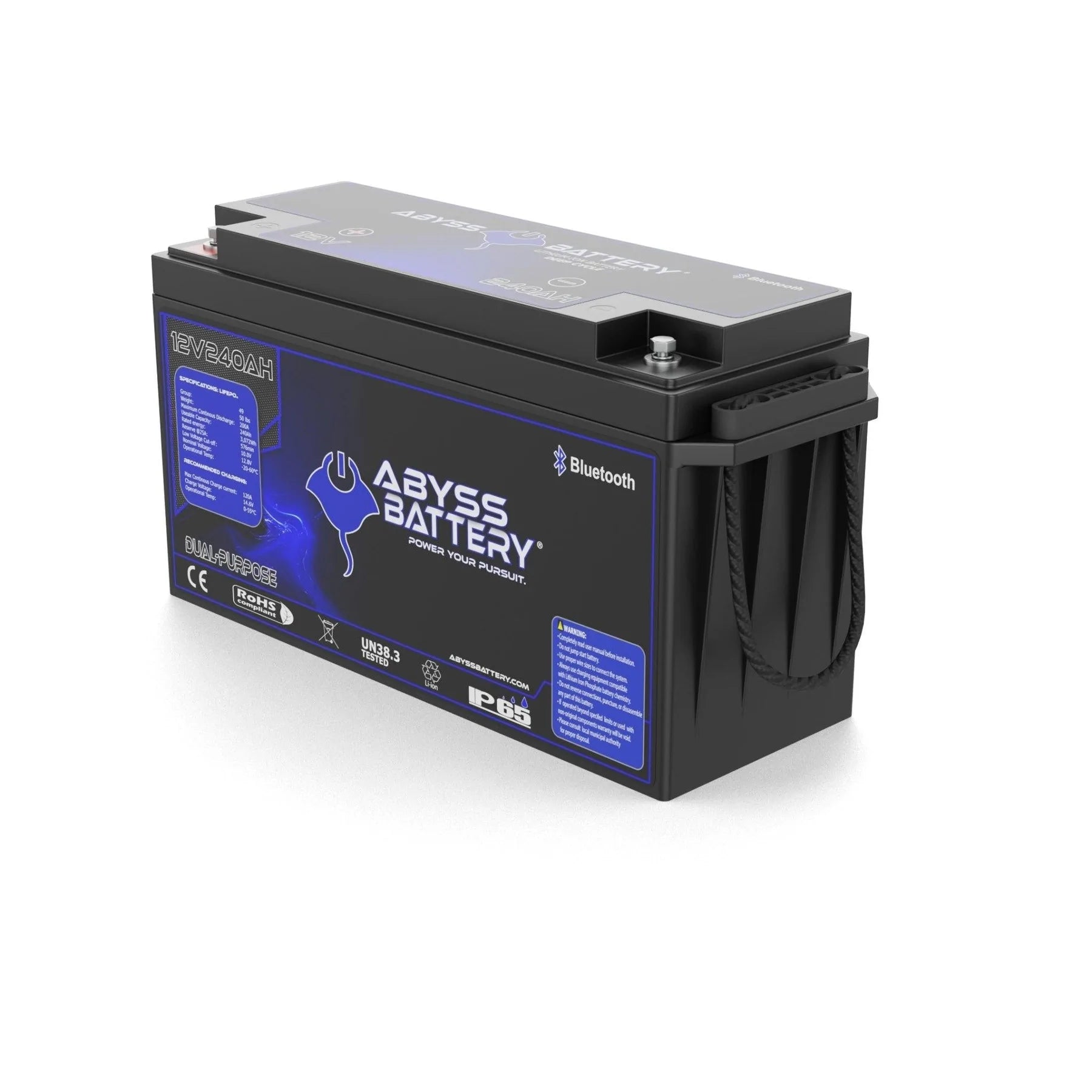

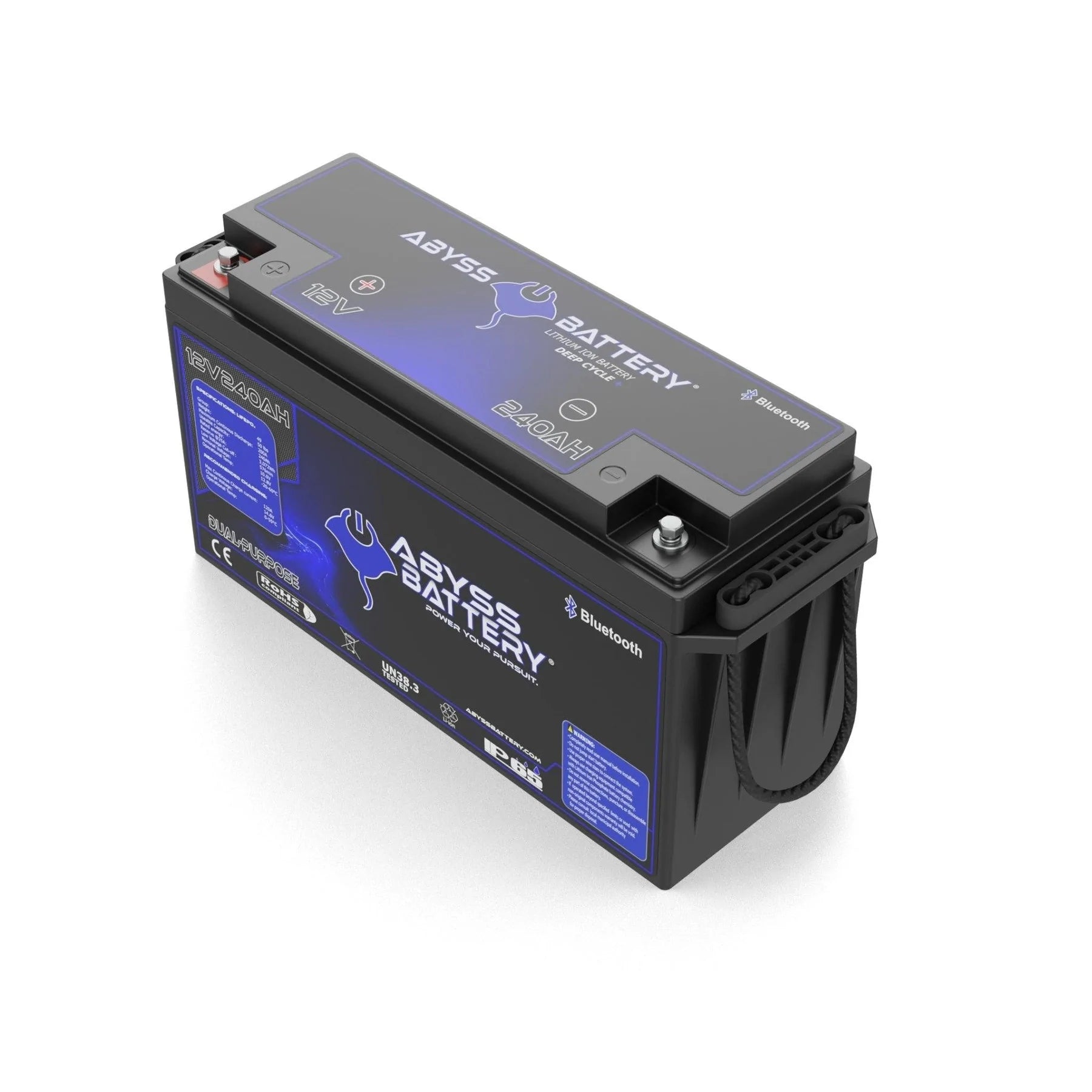

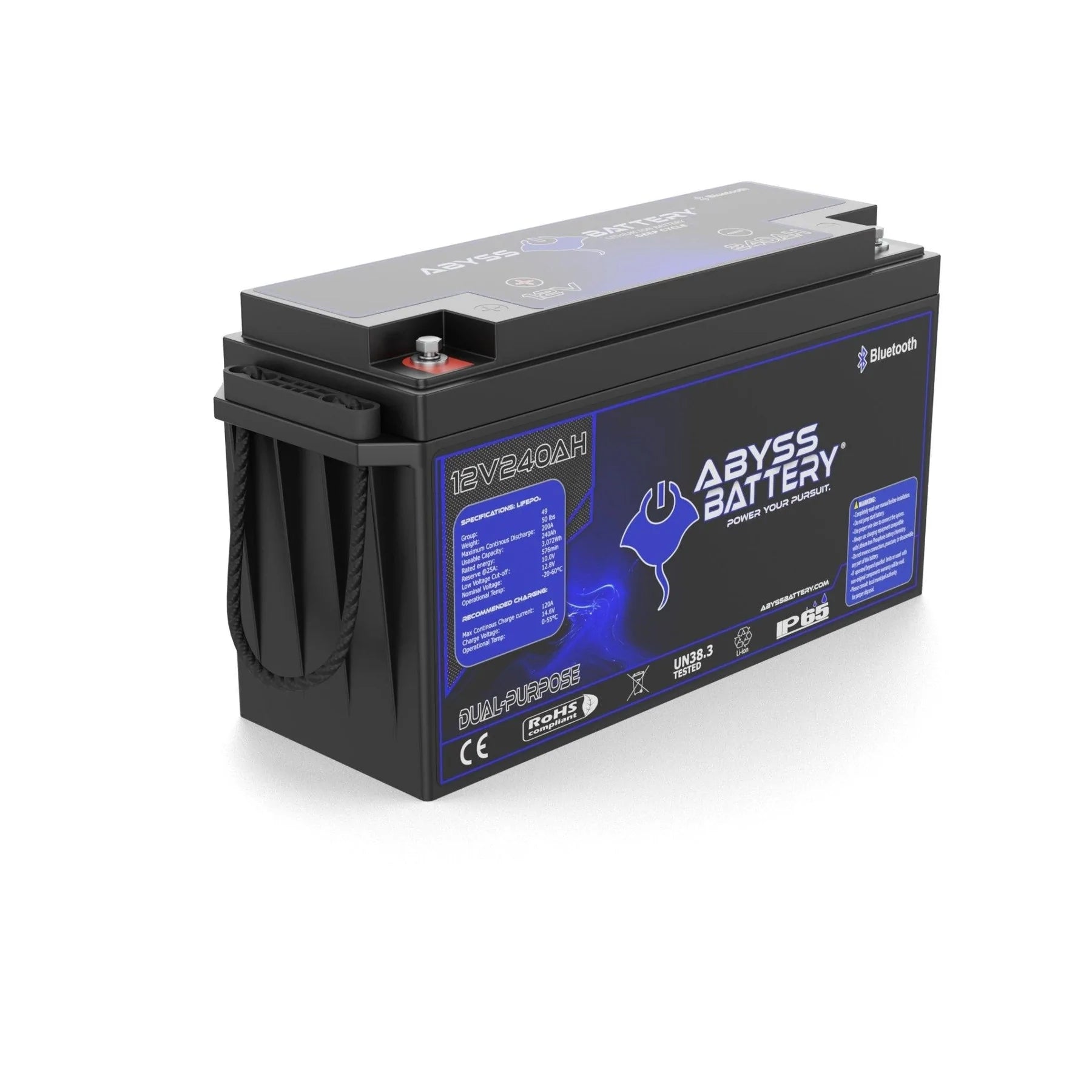

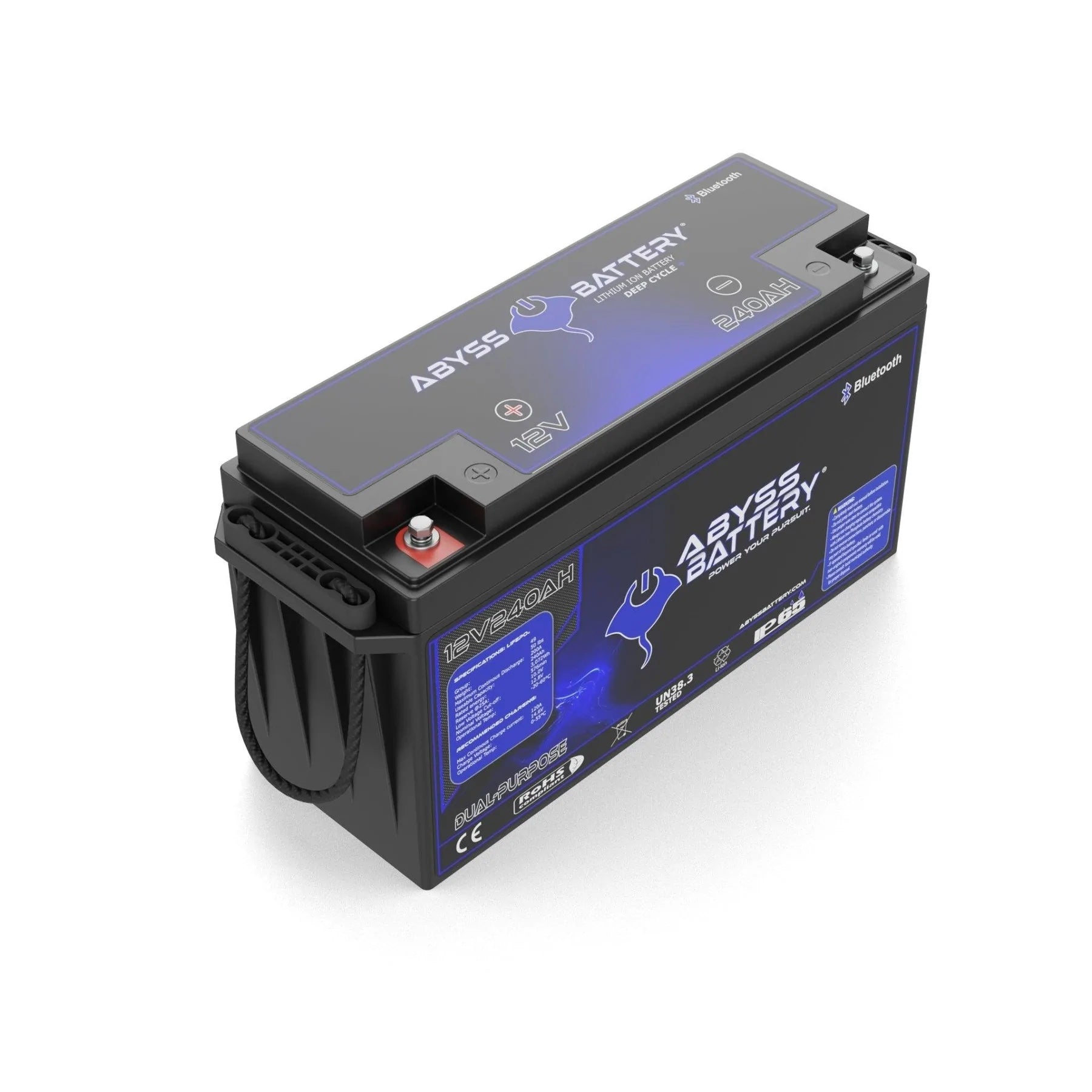

Abyss® | Dual Purpose Lithium Marine Battery | Model AB-12V240-BT | Group 49 | 12V 240Ah | 200A BMS | Bluetooth | Built-In Heating | IP65 Waterproof
DESCRIPTION
Unlock reliable, long-lasting power for your marine adventures with the ABYSS® 12V 240Ah Dual Purpose Lithium Marine Battery. Designed specifically for mid-size center console boats and engineered to meet the demanding power needs of outboard motors and onboard energy storage, this Group 49 lithium iron phosphate battery delivers more runtime, enhanced durability, and lightweight convenience compared to traditional lead-acid alternatives.
Whether you’re starting powerful Mercury Marine outboards, running refrigeration, chill plates, or high-draw Seakeeper systems, this battery offers a dual-purpose solution that powers your vessel with confidence. With an industry-leading 200A Battery Management System (BMS) and seamless Bluetooth® connectivity, you can monitor real-time battery health, charge status, and troubleshoot effortlessly right from your smartphone.
Built tough for marine environments, the ABYSS® battery boasts a rugged IP65-rated case, built-in heating for cold weather operation, and superior vibration resistance. Perfect for weekend warriors and seasoned mariners alike, this battery keeps you powered up and worry-free on every trip, no matter how long or demanding.
Experience the peace of mind that comes from a battery certified for safety and reliability worldwide UL1642, IEC62133, UN38.3, and ABYC compliant making it the smart, safe choice for your marine power needs.
Key Features
- Dual-Purpose Power: Ideal for starting outboard engines and providing reliable deep-cycle energy for onboard systems perfect for marine use.
- Robust 200A Battery Management System (BMS): Ensures optimal performance and safety, protecting against overcharge, over-discharge, and short circuits.
- Bluetooth® Connectivity: Easily monitor charge status, temperature, current, and battery health from your smartphone via Android or iOS apps.
- Cold Weather Ready: Built-in internal heating system provides seamless performance even in freezing conditions without additional equipment.
- Lightweight & Compact: Group 49 size with a slim profile, weighing just 50 lbs for easy installation and space efficiency aboard your boat.
- Marine-Grade Durability: IP65 waterproof rating with ABS plastic case and vibration-resistant internal structure for tough marine environments.
- Long Cycle Life: Over 3000 cycles at 100% Depth of Discharge (DOD), doubling the lifespan of traditional AGM batteries.
- Certified Safety: Complies with UL1642, IEC62133, IEC62619, UN38.3, CE, ROHS, and ABYC standards trusted worldwide for marine applications.
- Easy Wake-Up/Reset Button: Conveniently located on top for quick battery activation and troubleshooting.
Detailed Specifications
| Specification | Details |
|---|---|
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 240 Ah |
| Max Parallel Connection | Up to 6 units |
| Max Serial Connection | Up to 4 units |
| Battery Management System | 4S 200A with Bluetooth (Android/iOS) |
| Charge Voltage | 14.4 ± 0.2 V |
| Standard Charge Current | 48 A |
| Fast Charge Current | 120 A |
| Max Continuous Discharge Current | 200 A |
| Peak Discharge Current (300 ms) | 800 A |
| Discharge Cut-off Voltage | 10 V |
| Cycle Life | 3000 cycles @ 100% DOD / 6000 cycles @ 80% DOD |
| Self Discharge Rate | <3% per month |
| Operating Charge Temp. Range | 0°C to 55°C (32°F to 131°F) |
| Operating Discharge Temp. Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
| Dimensions (LxWxH) | 19.0" x 6.69" x 9.44" (490 x 171 x 240 mm) |
| Weight | Approx. 50 lbs (23 kg) |
| Terminal Type | M8 |
| Case Material | Black ABS Plastic |
| IP Rating | IP65 (Water & Dust Resistant) |
| Cell Type | Grade-A Cylindrical LiFePO4 |
| Certifications | UL1642, IEC62133, IEC62619, UN38.3, CE, ROHS, ABYC |
