Product Description

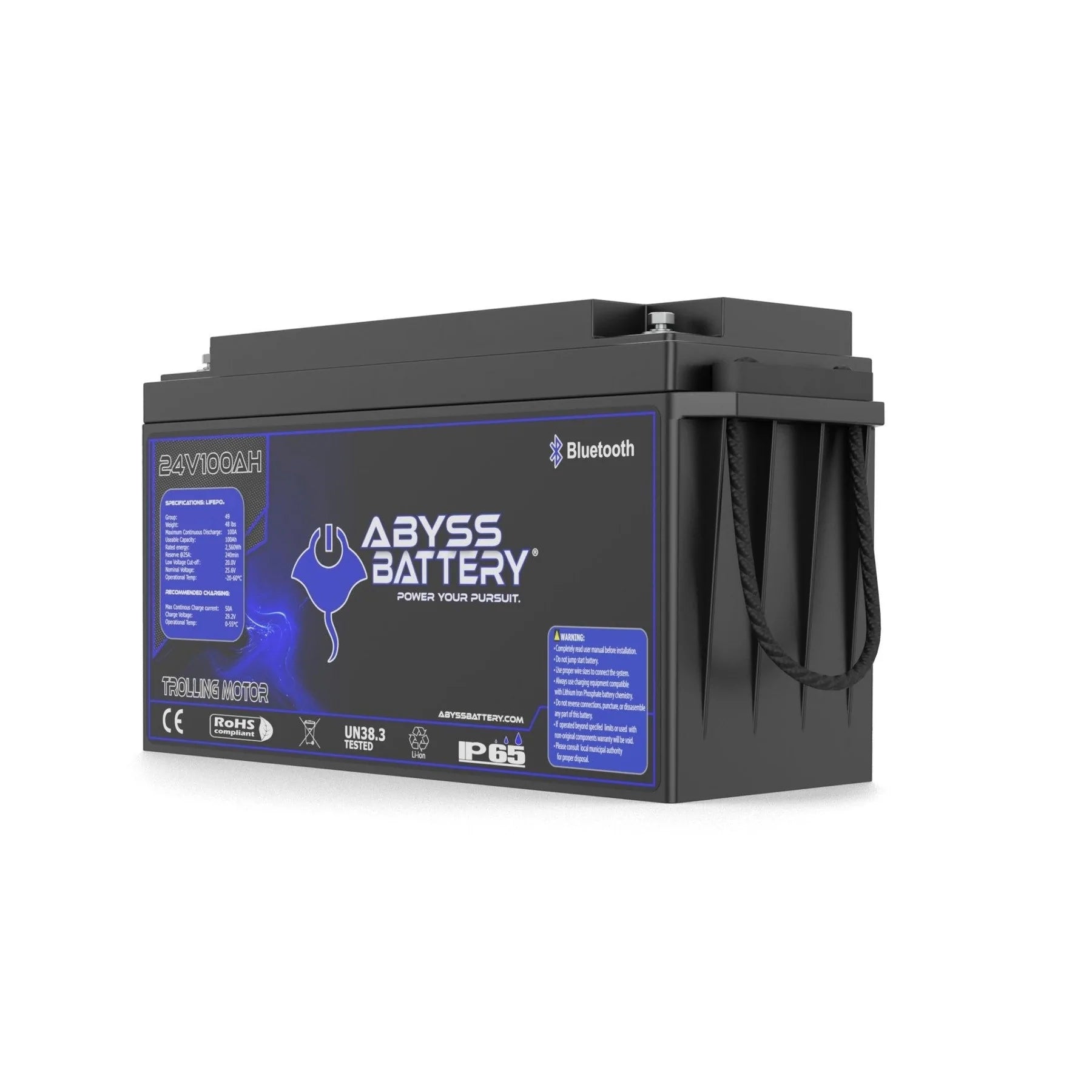

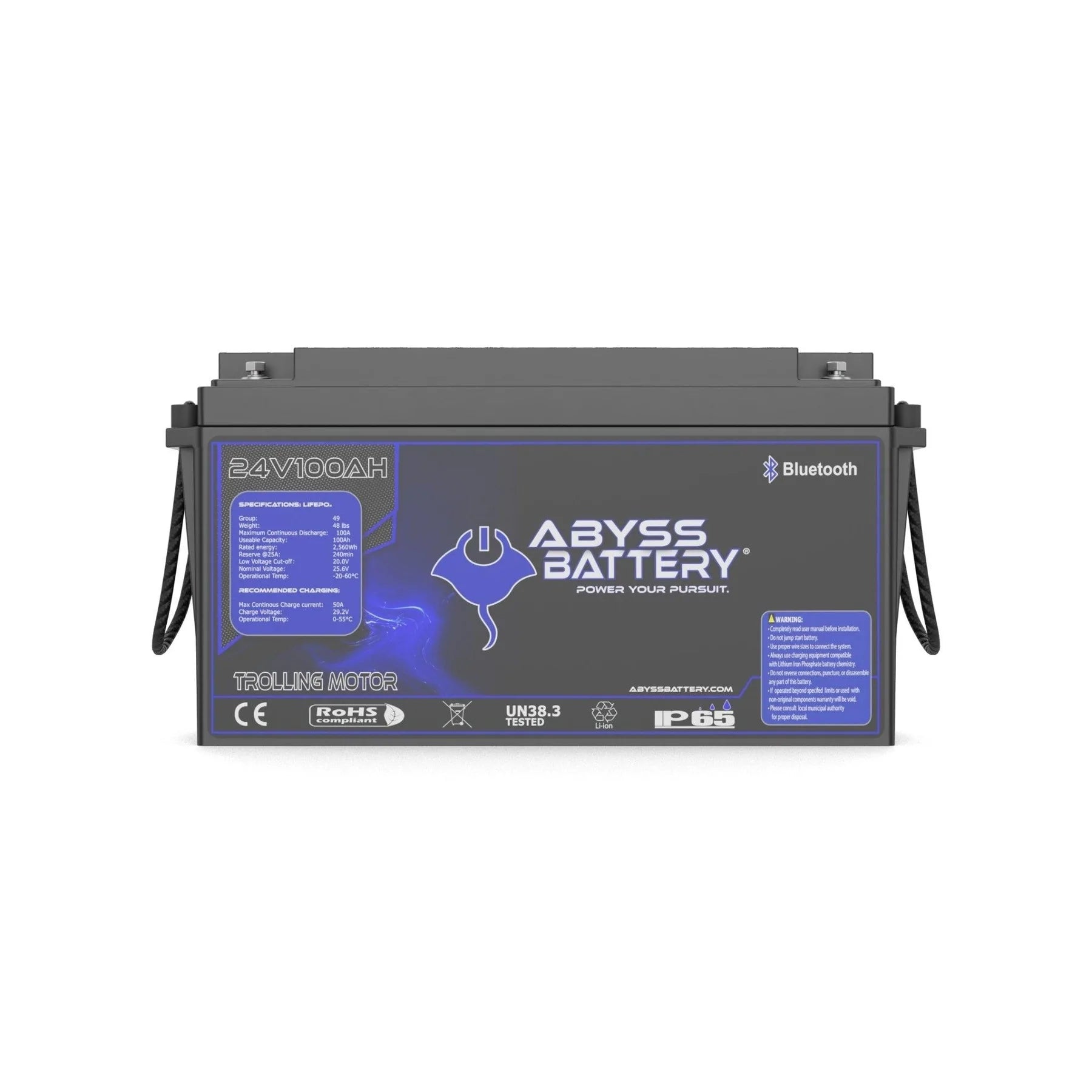

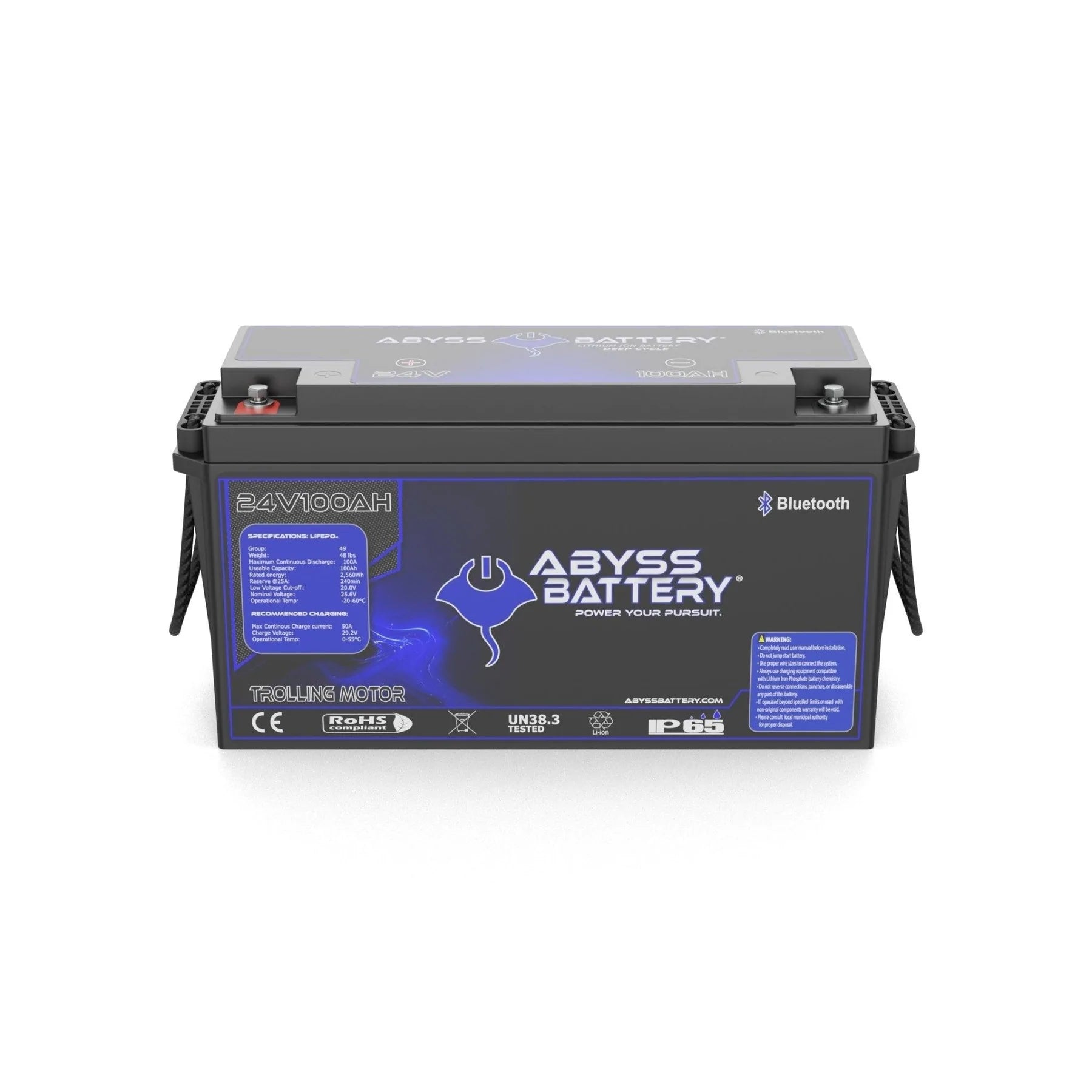

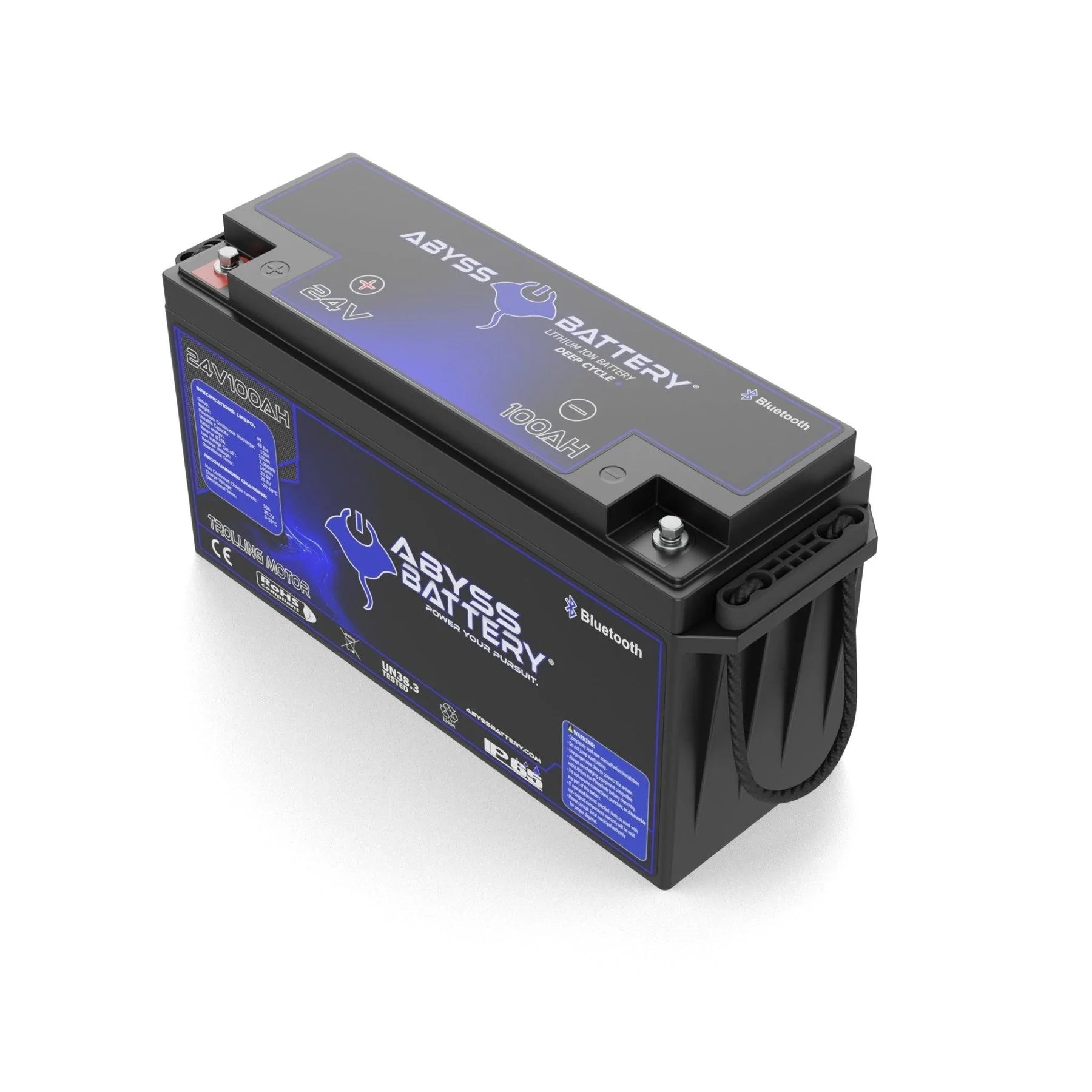

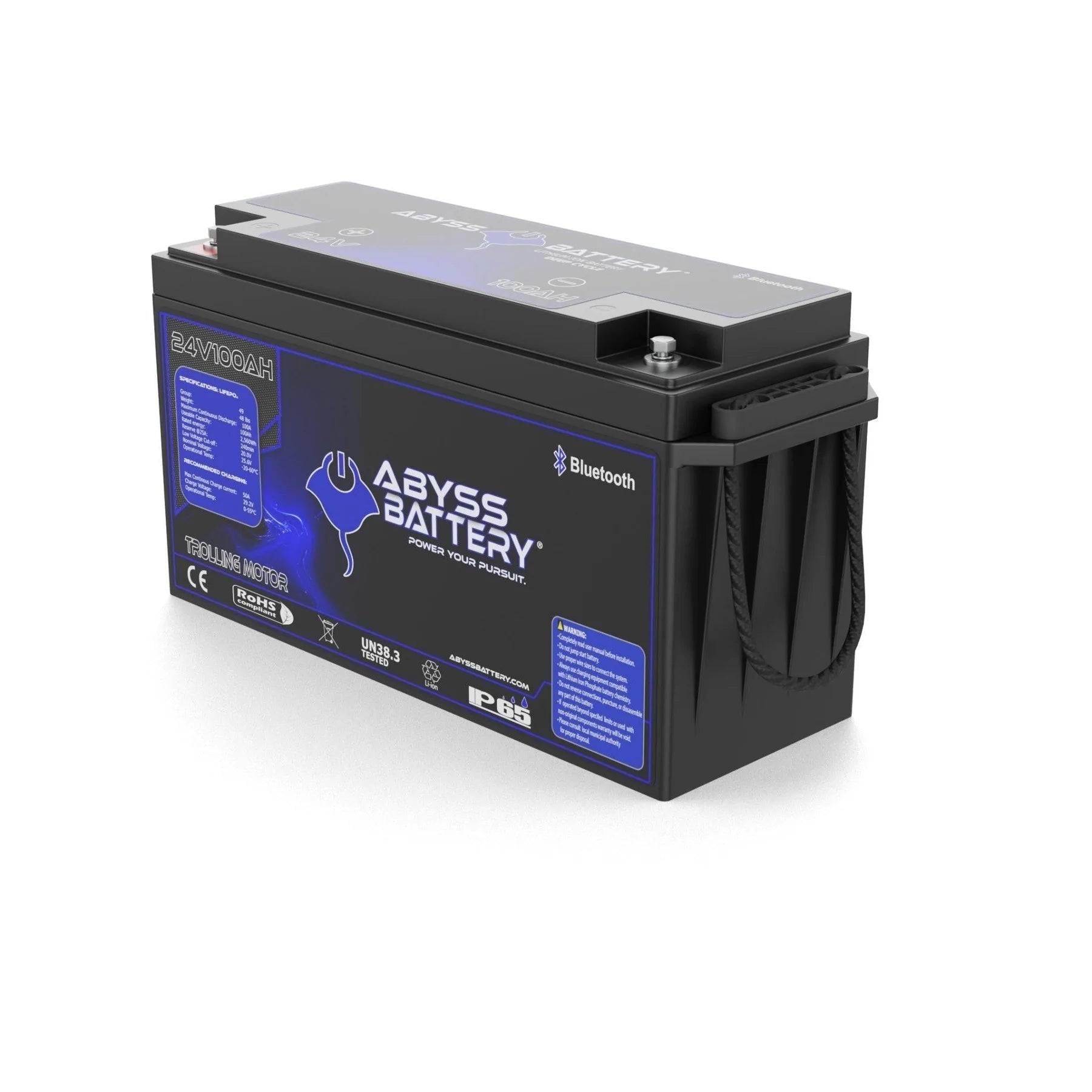

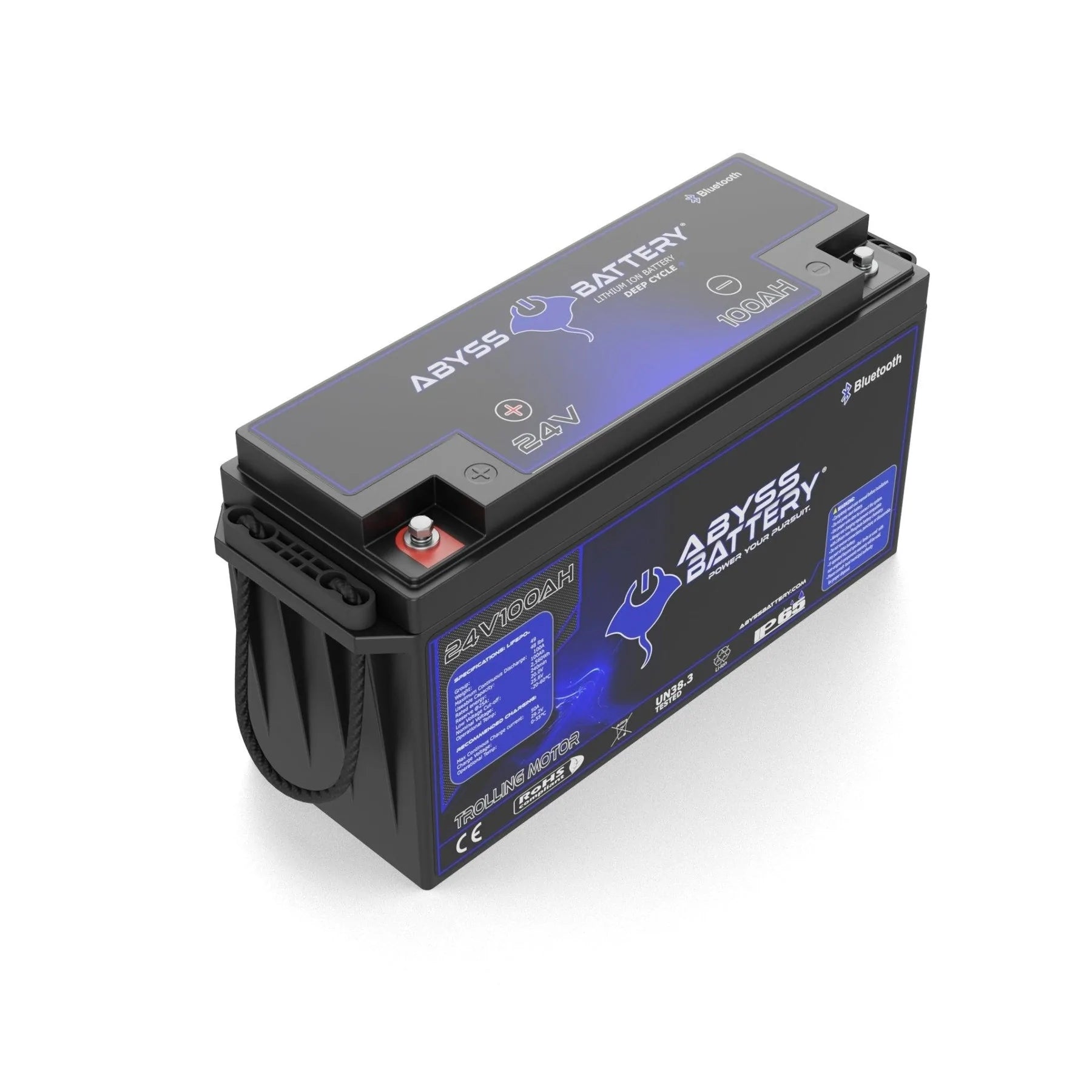

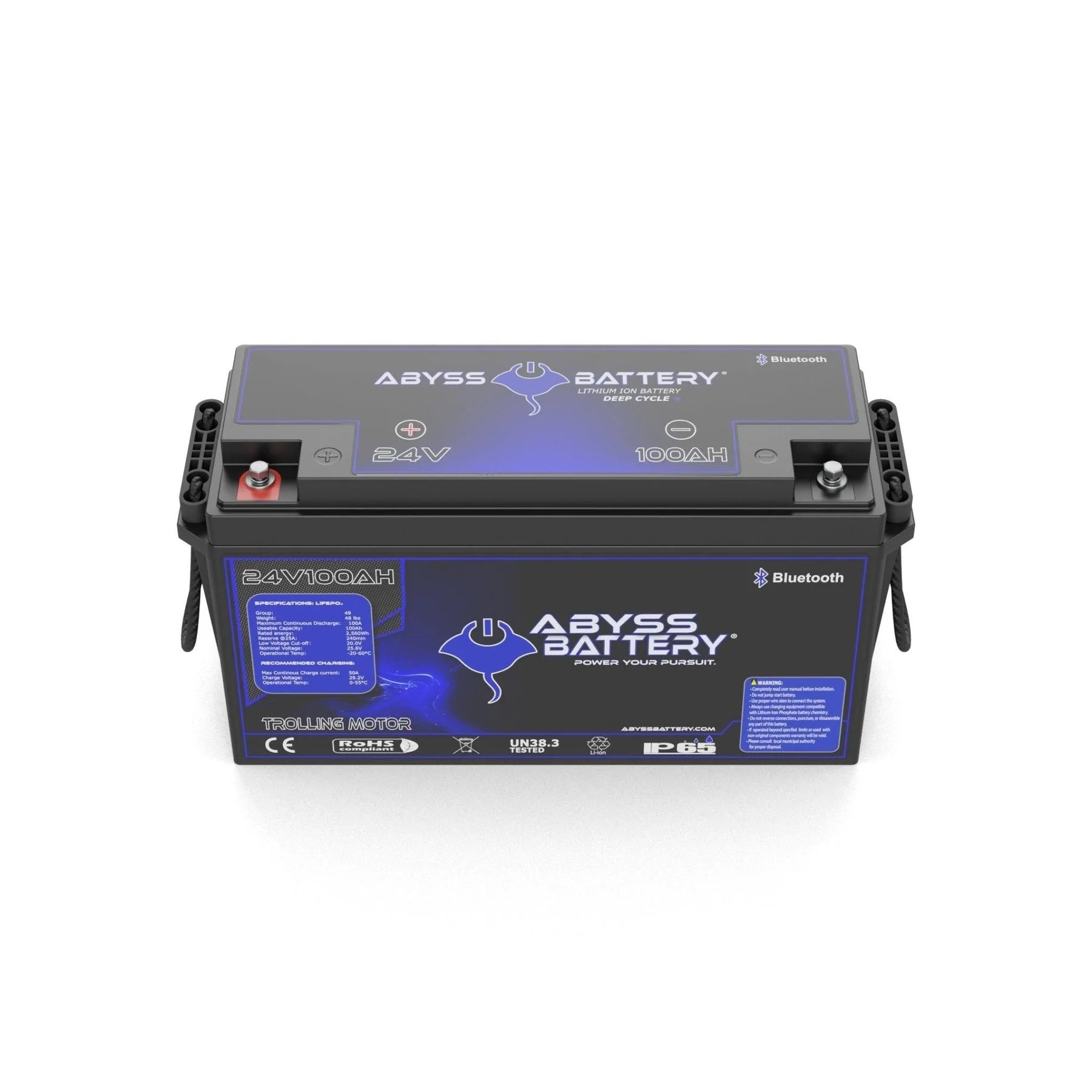

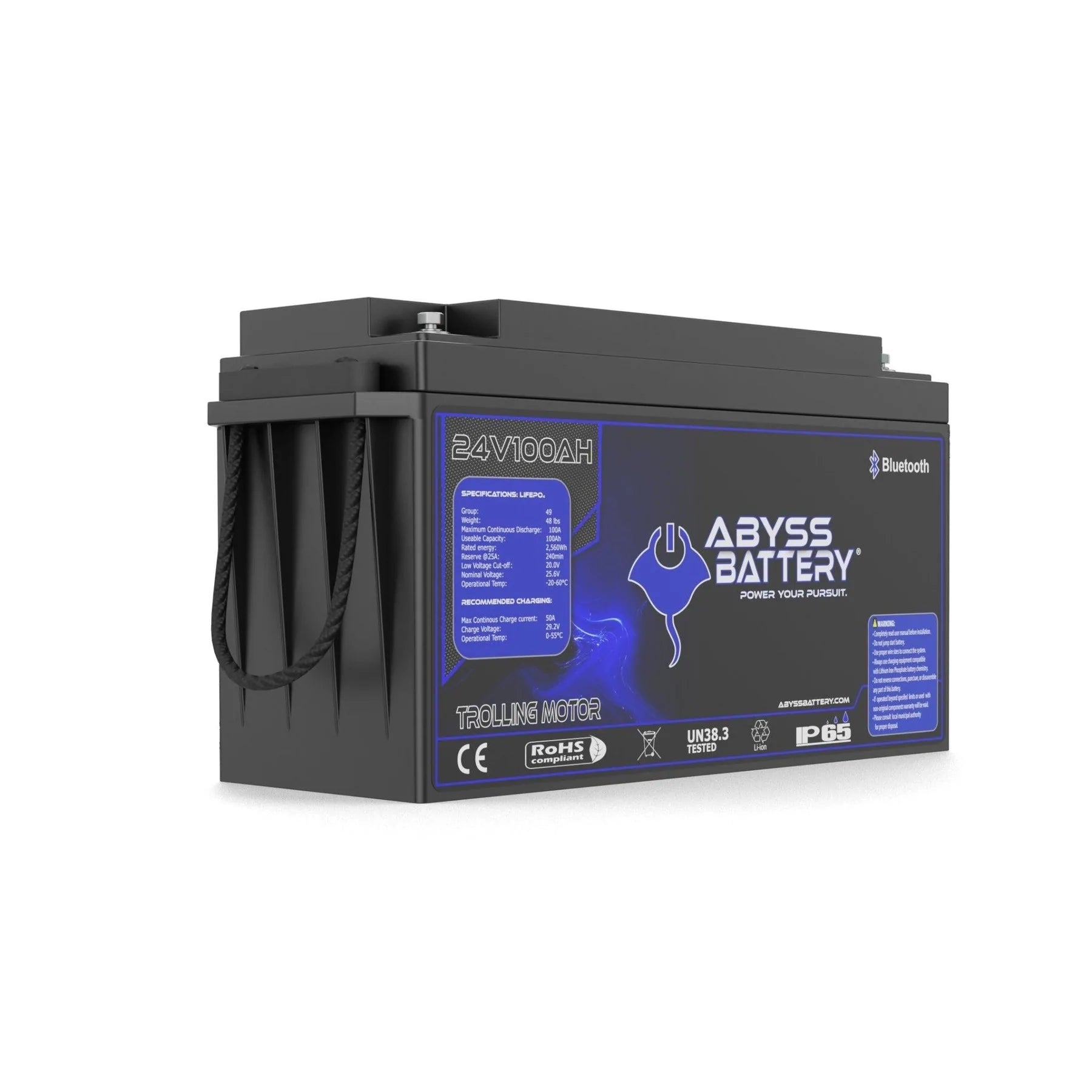

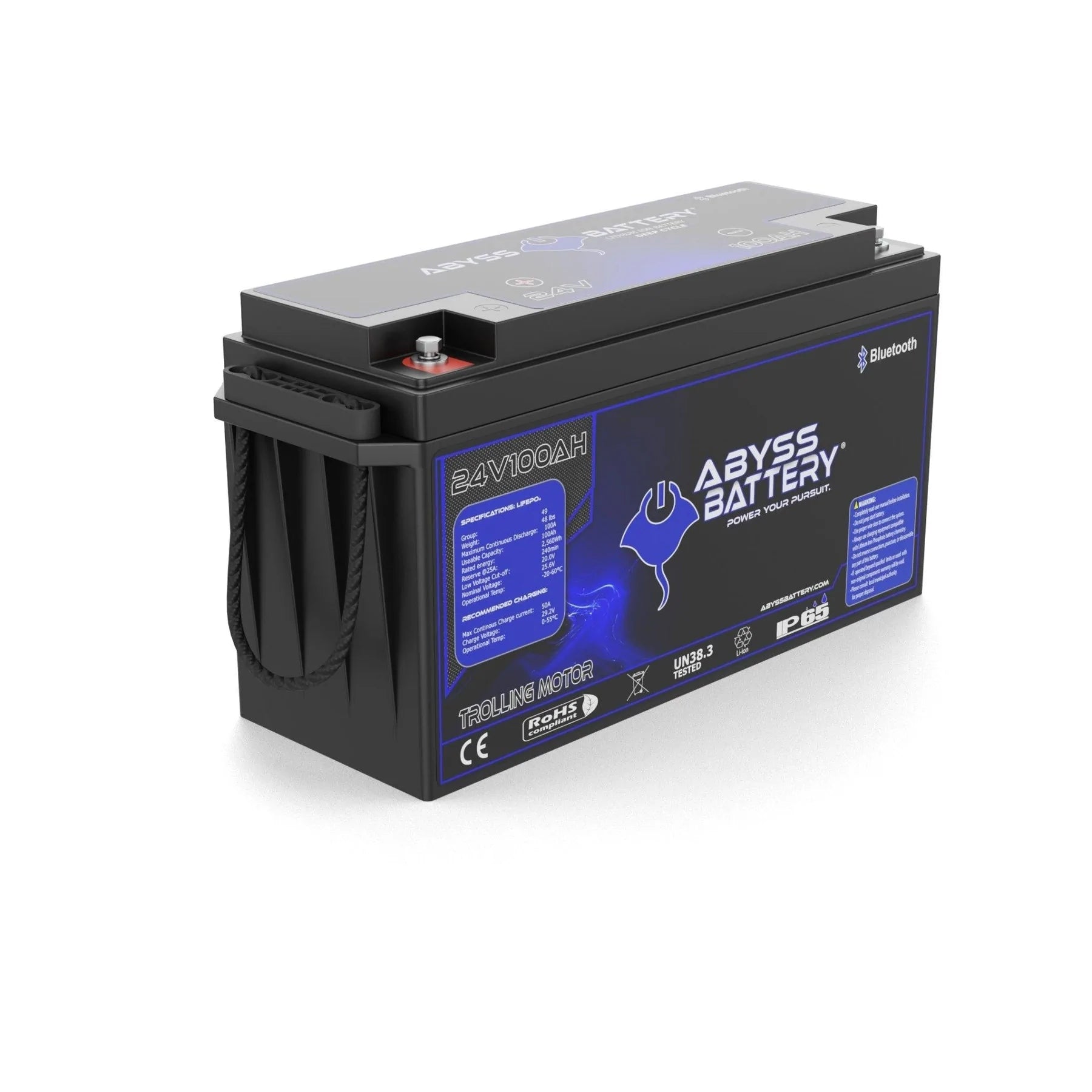

Abyss® | Lithium Trolling Motor Battery | Model AB-24V100-BT | Group 49 | Voltage 24V 100Ah | Bluetooth BMS | Built-In Heating | IP65 Waterproof
DESCRIPTION
Experience unmatched reliability and power on every fishing trip with the ABYSS® 24V 100Ah Lithium Trolling Motor Battery the ultimate upgrade for anglers and marine enthusiasts alike. Say goodbye to the anxiety of battery failure mid-trip or frequent recharging. This compact, lightweight lithium battery replaces two bulky 12V lead-acid or AGM batteries, freeing up valuable space and reducing weight on your boat.
Designed for deep cycle performance, this Group 49 lithium battery delivers steady, long-lasting power that withstands harsh marine environments, extreme temperatures, and continuous heavy loads. Whether you’re cruising calm lakes or battling strong winds, the ABYSS® 24V battery ensures your trolling motor performs optimally day after day, trip after trip.
With built-in Bluetooth® connectivity, easily monitor battery health, charge status, temperature, and cycle life from your smartphone (Android/iOS), giving you full control and peace of mind. Plus, the advanced built-in heating system guarantees reliable cold-weather performance without the need for bulky external blankets.
Trusted by serious anglers and boating professionals, the ABYSS® 24V 100Ah Lithium Trolling Motor Battery is UL-listed, ABYC-compliant, and engineered with safety and longevity at its core. Upgrade your marine power solution today and never let battery limitations hold you back.
Key Features
- Powerful 24V 100Ah Deep Cycle Marine Lithium Battery replaces two 12V lead-acid batteries, saving space and reducing weight on your boat
- Bluetooth® Smart Battery Management System (BMS) monitor charge, discharge, temperature, and cycle life from your phone (Android & iOS compatible)
- Long Cycle Life & High Performance over 3000 cycles at 100% depth of discharge for extended use on multi-day fishing trips
- Built-in Heating System ensures reliable operation in cold weather without extra heating blankets or equipment
- Lightweight & Compact Design (Group 49) easy to install and handle, with IP65-rated rugged ABS case for water and dust resistance
- Safe & Certified UL 1642, IEC62133, IEC62619, UN38.3 DOT Hazmat approved, and compliant with ABYC lithium battery safety standards
- Compatible with Top Trolling Motors works flawlessly with Minn Kota®, MotorGuide®, Garmin Force®, Lowrance Ghost®, Power-Pole®, and Rhodan Marine HD GPS Anchor® trolling motors
- High Discharge & Fast Charging Capability supports peak discharge currents up to 700A and fast charging up to 50A
- Robust Internal Cell Holder System protects cells from vibration and impact, enhancing durability and heat dissipation during use
Detailed Specifications
| Specification | Details |
|---|---|
| Model | AB-24V-100-BT |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 24V |
| Nominal Capacity | 100Ah |
| Dimensions (L×W×H) | 19.0" × 6.69" × 9.44" (490×171×240mm) |
| Weight | 48 lbs (22 kg) |
| Terminal Type | M8 |
| Battery Size Group | Group 49 |
| Charge Voltage | 28.8 ± 0.4 V |
| Standard Charge Current | 20A |
| Fast Charge Current | 50A |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 700A (300ms) |
| Cycle Life | 3000 cycles @ 100% DOD; 6000 cycles @ 80% DOD |
| Self Discharge Rate | < 3% per month |
| Operating Temp. (Charge) | 0°C to 55°C (32°F to 131°F) |
| Operating Temp. (Discharge) | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
| IP Rating | IP65 |
| Bluetooth® Connectivity | Yes (Android/iOS App Compatible) |
| Certifications | UL 1642, IEC62133, IEC62619, UN38.3, ABYC compliant |
