Product Description

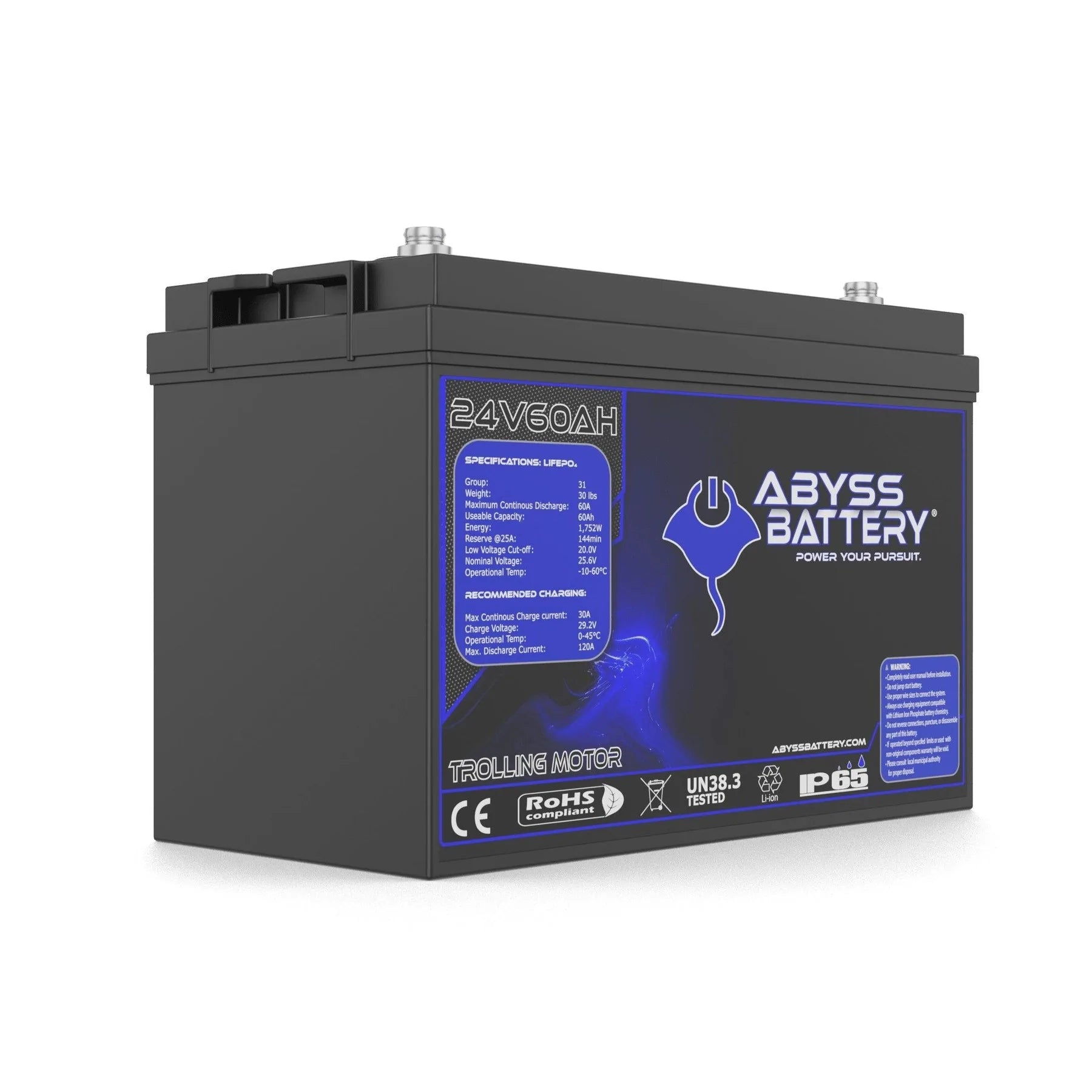

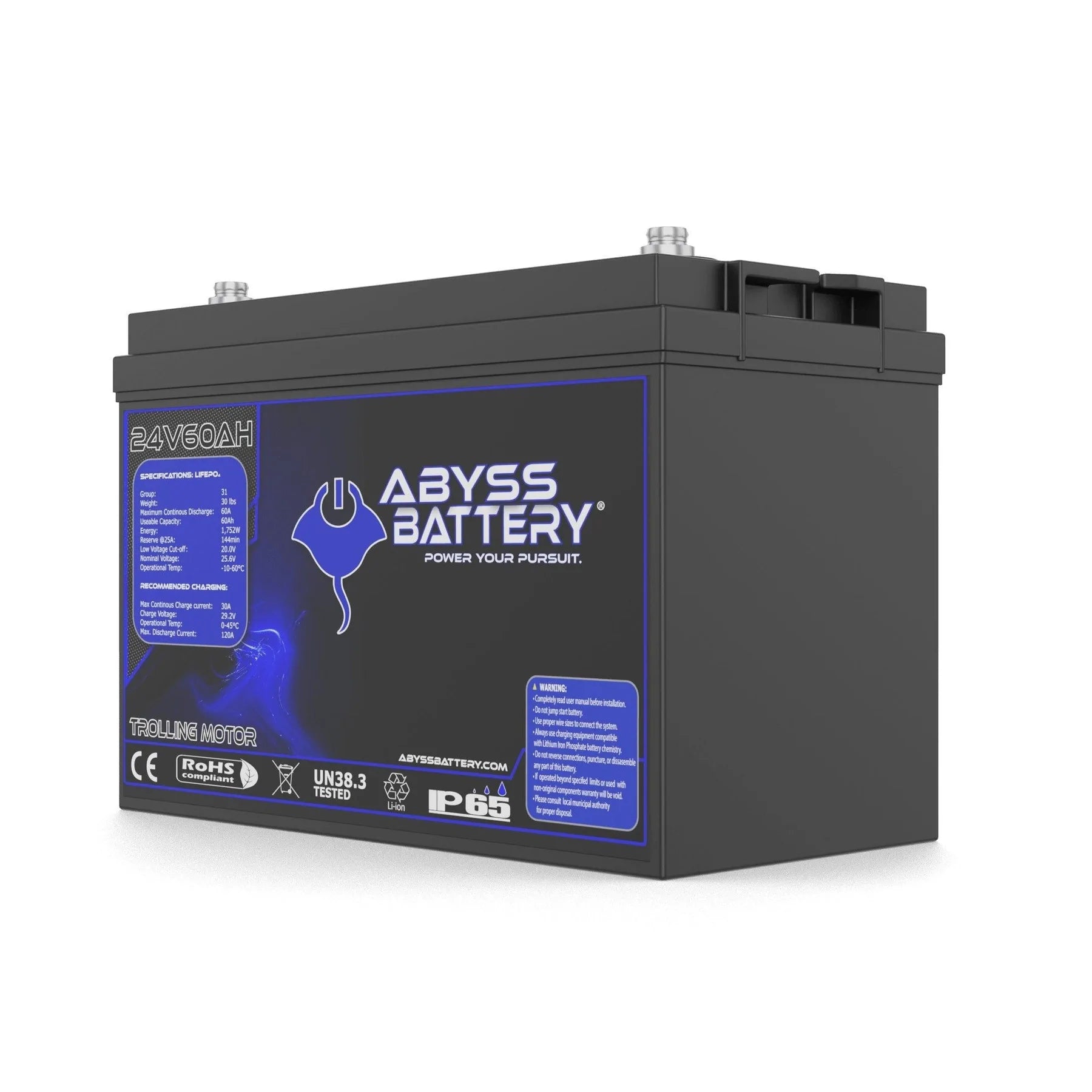

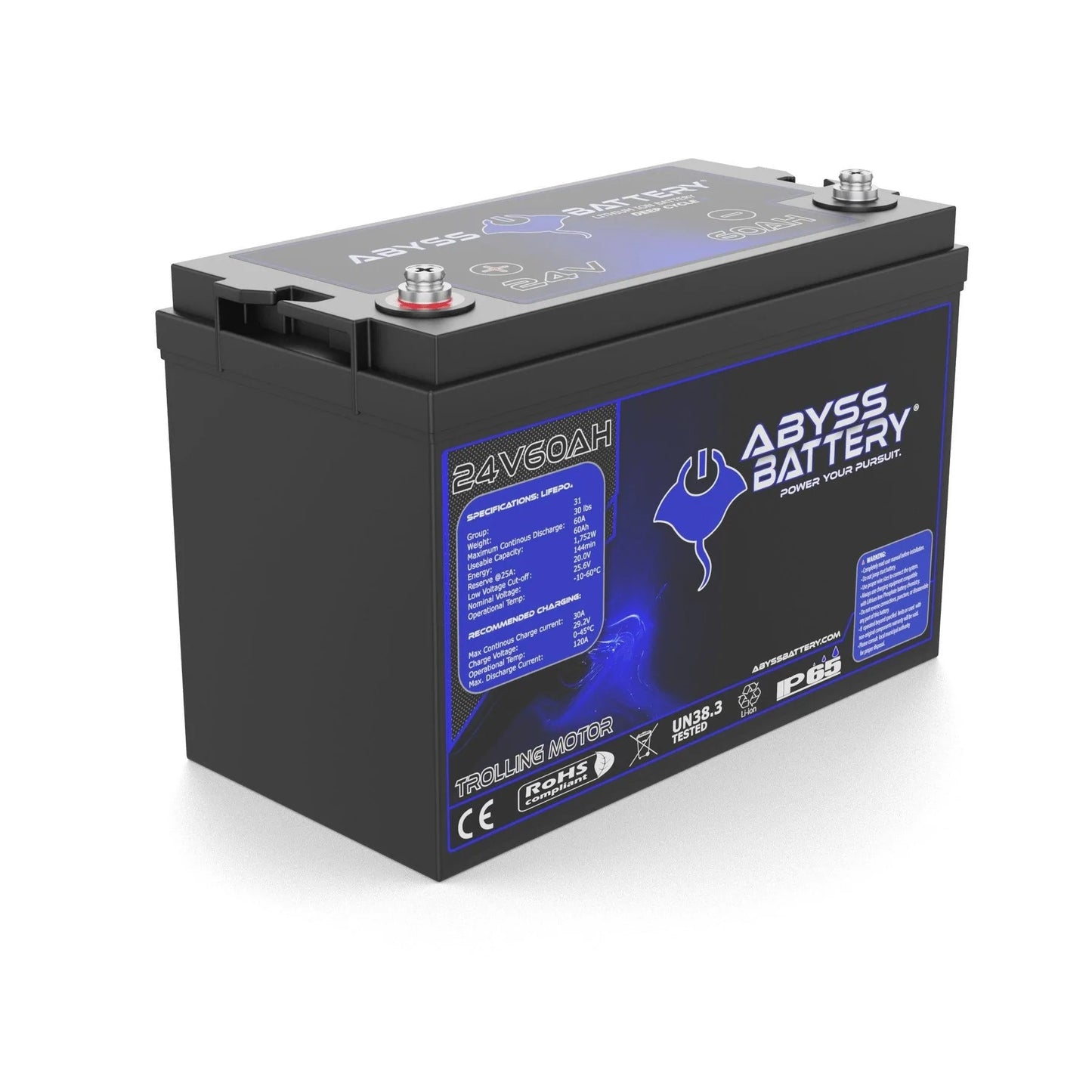

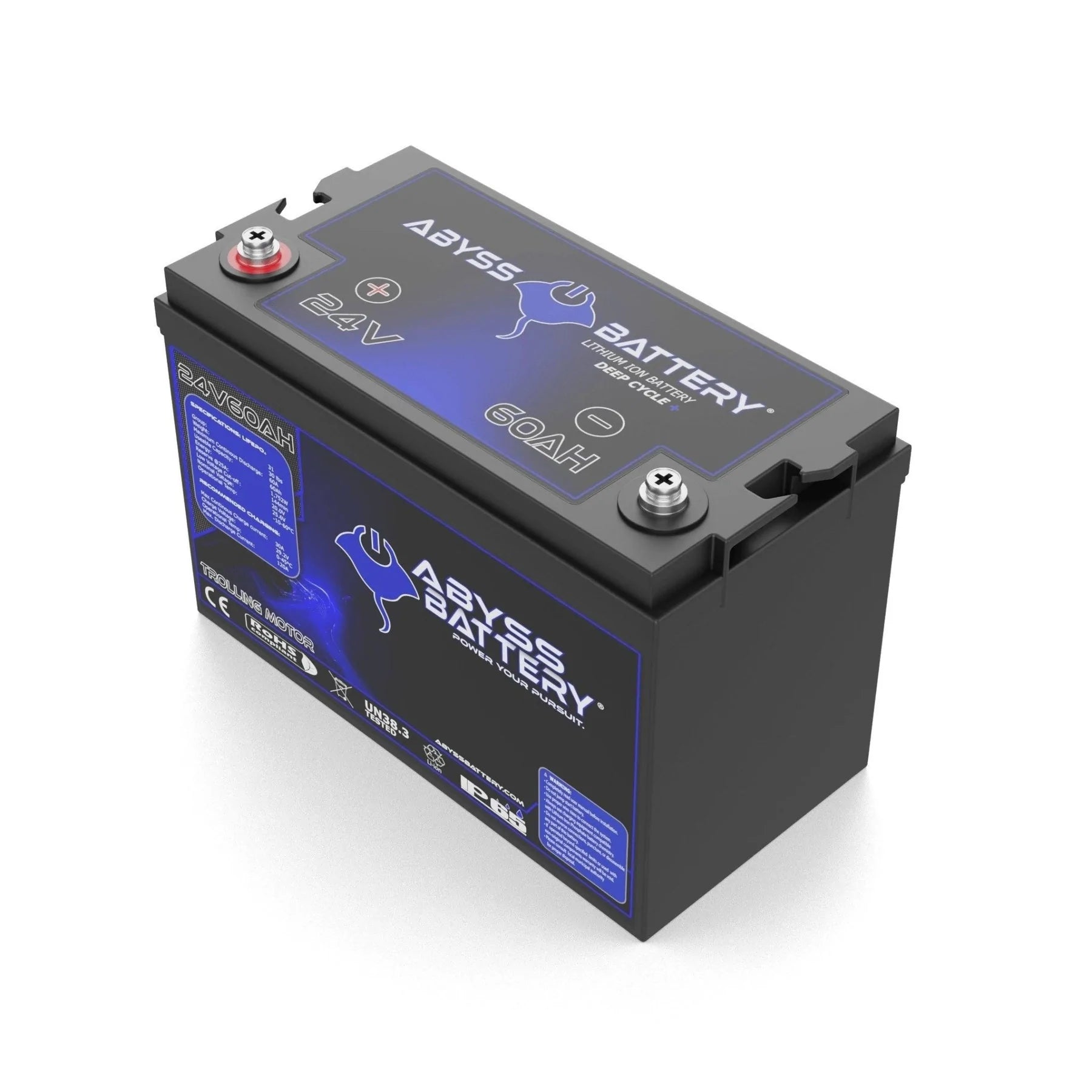

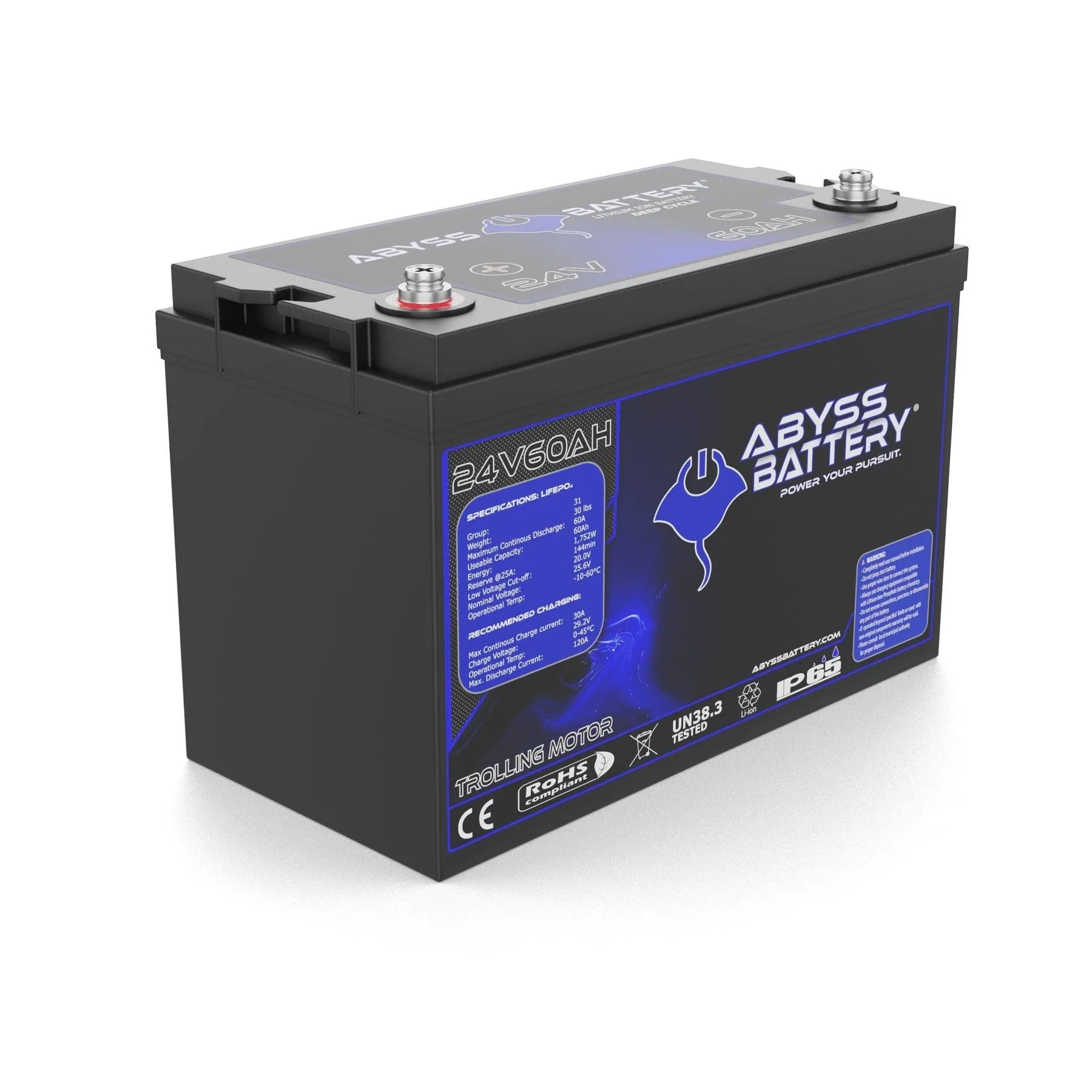

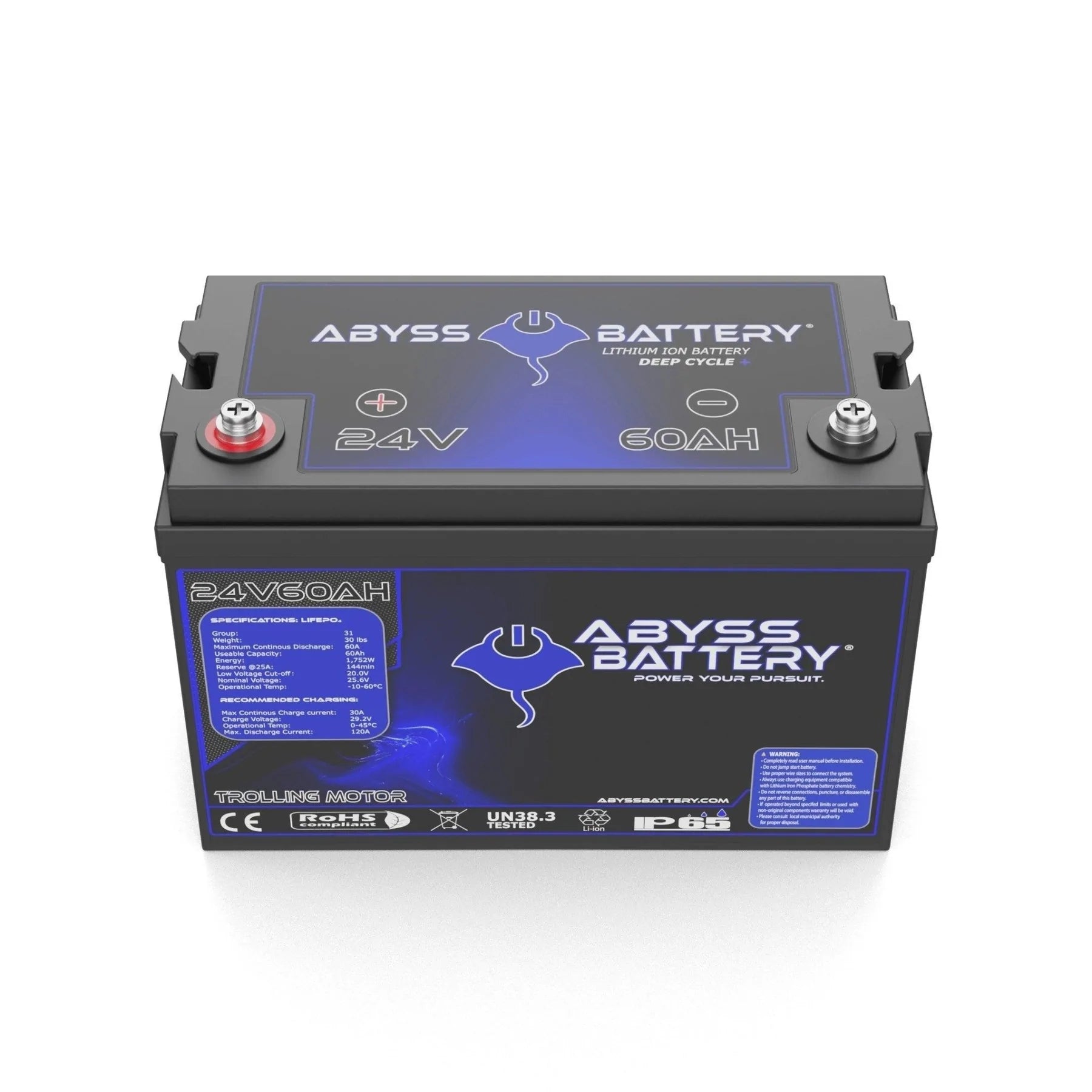

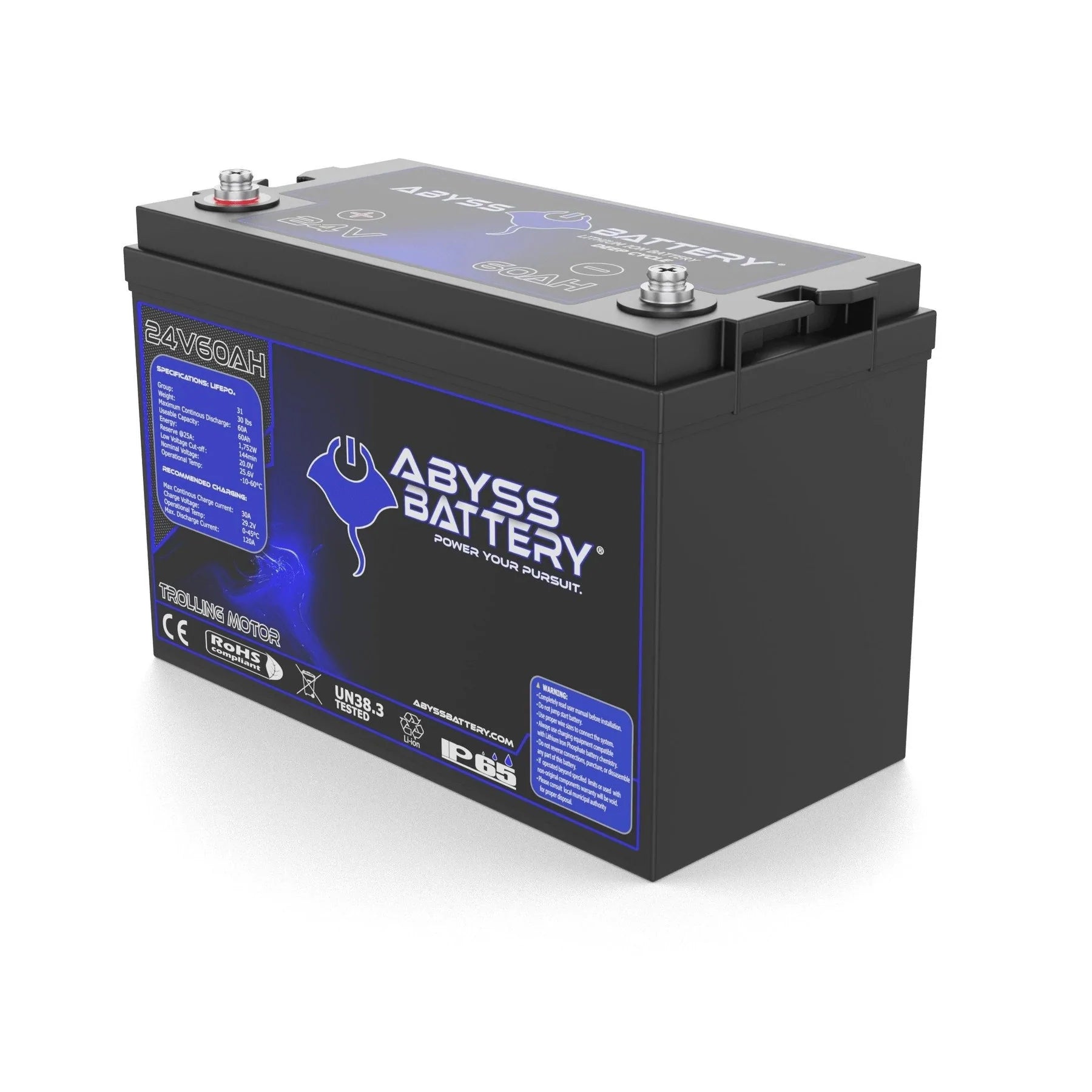

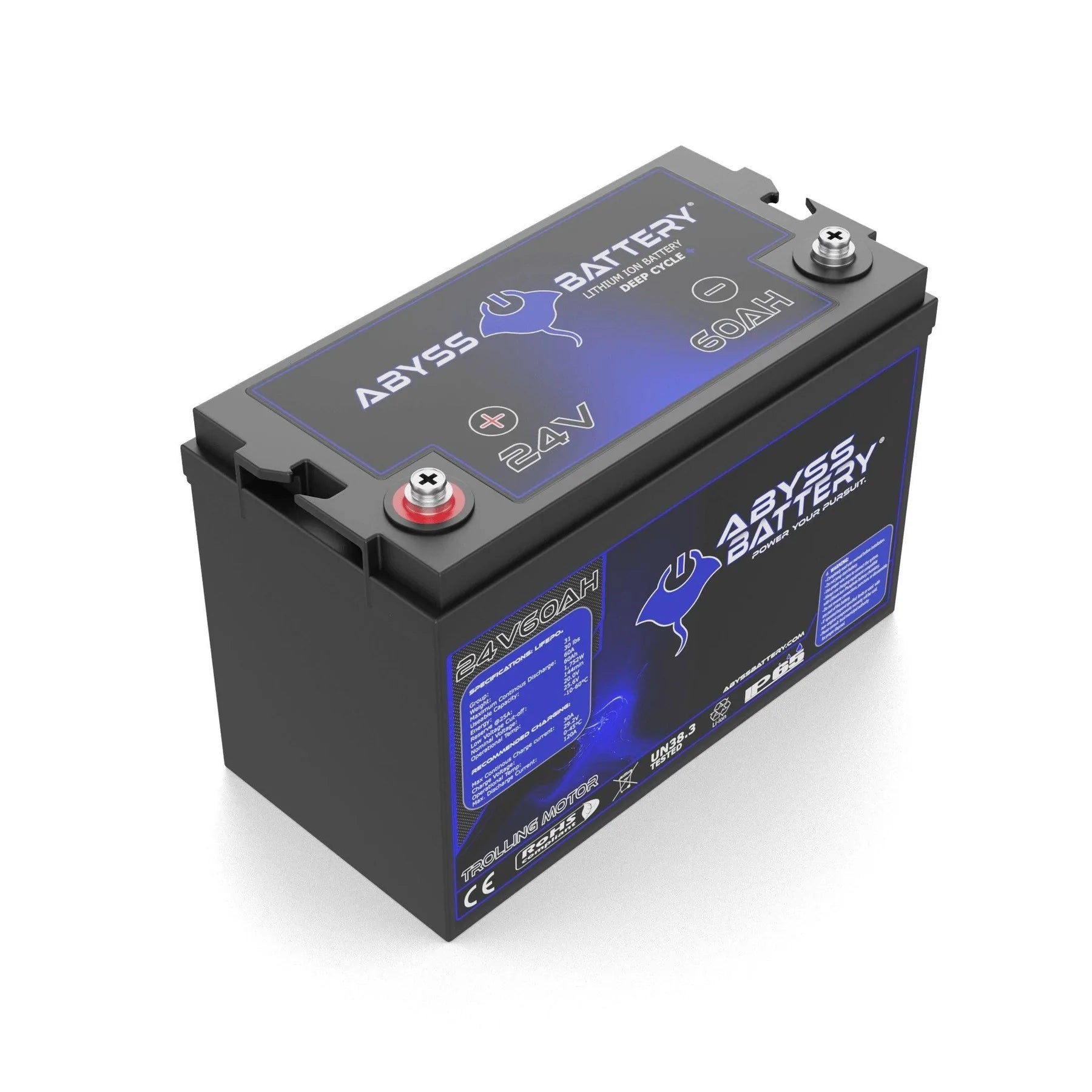

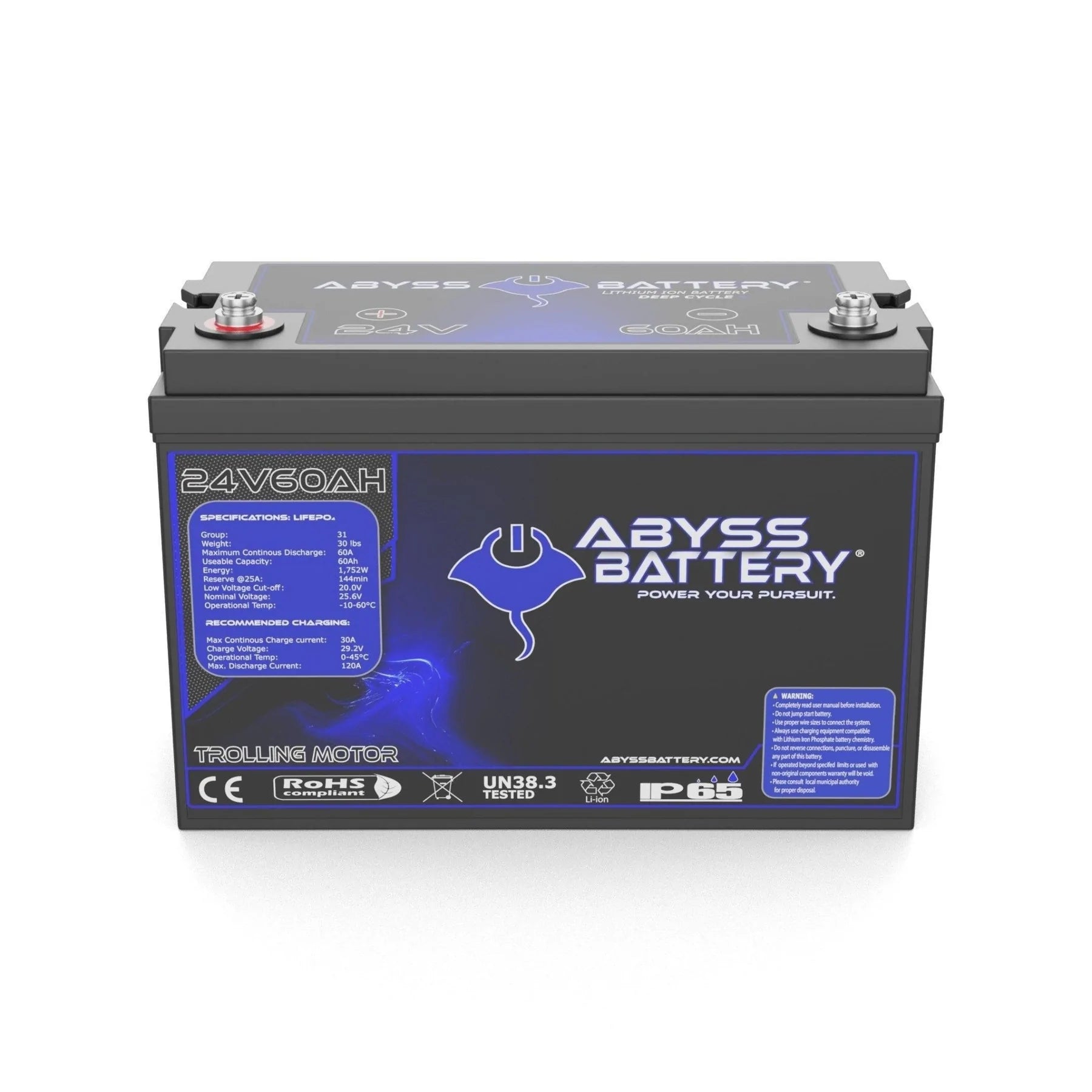

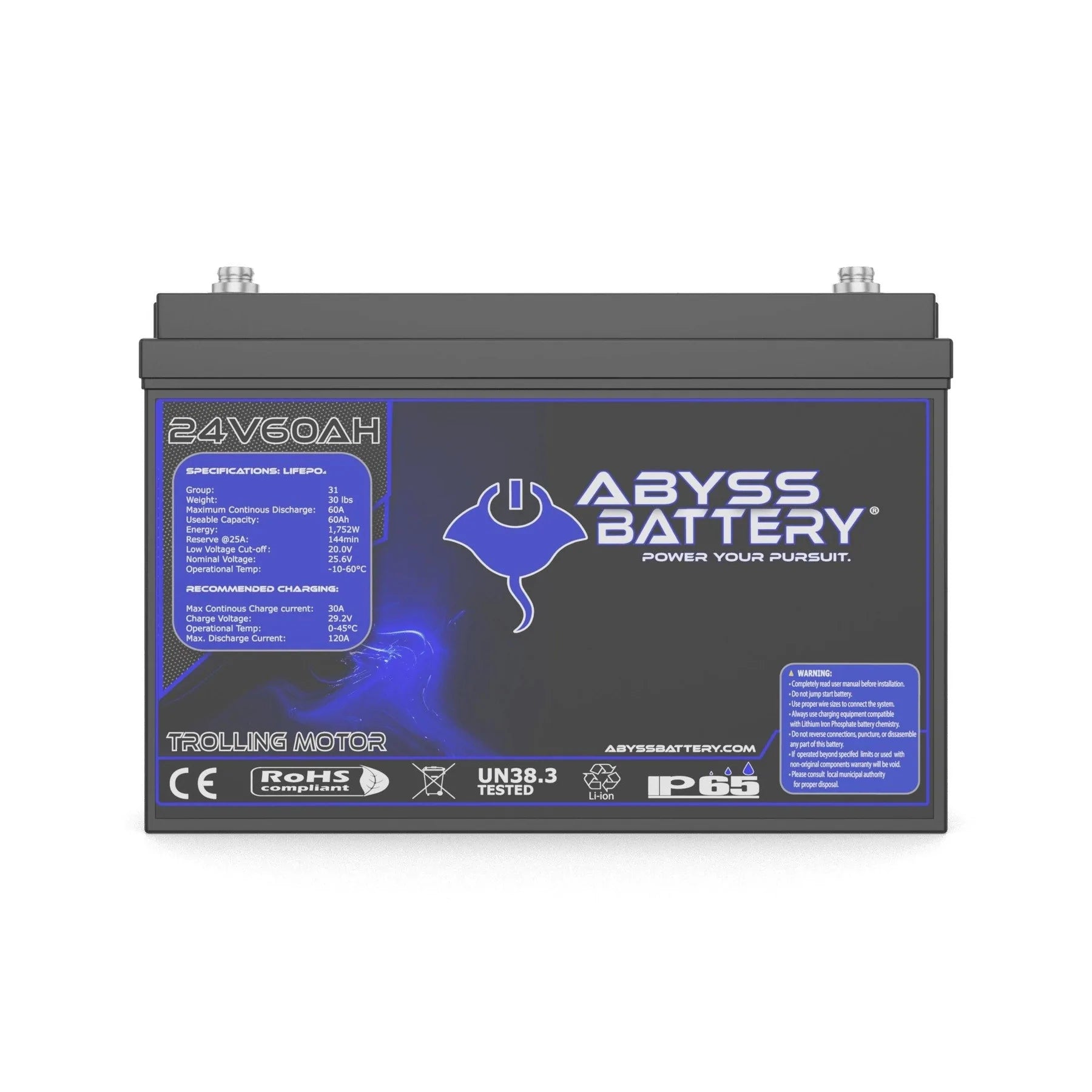

ABYSS® | Lithium Trolling Motor Battery | Model AB-24V60-BT | Voltage 24V 60Ah | Group 24 | Bluetooth BMS | Built-In Heating | IP65 Waterproof
DESCRIPTION
When you're on the water, reliability isn’t optional it’s everything. The ABYSS® 24V 60Ah Lithium Trolling Motor Battery delivers premium performance in a compact, lightweight Group 24 footprint perfect for anglers who demand long-lasting power without the bulk.
Replacing two traditional 12V lead-acid or AGM Group 31 batteries, this 24V lithium deep cycle battery gives you more energy, faster recharge times, and zero maintenance. Whether you’re silently tracking fish at dawn or powering through wind and current, the ABYSS® 60Ah ensures consistent voltage and smooth operation for your trolling motor.
Designed for all-weather fishing and challenging marine environments, it features Bluetooth® connectivity, built-in heating, and a push-button reset for hassle-free monitoring and operation. Perfectly suited for saltwater and freshwater use, it pairs seamlessly with top trolling motor brands like Minn Kota®, Garmin Force®, Lowrance Ghost®, MotorGuide®, and Rhodan Marine®.
Key Features
- 60Ah Deep Cycle Marine Lithium Power Long-lasting 24V lithium battery optimized for trolling motors, kayak rigs, and compact boat builds.
- Bluetooth® Battery Management System Monitor charge levels, temperature, and battery health directly from your iOS or Android device.
- Compact & Lightweight Group 24 Design Weighs just 26 lbs half the weight of two Group 31 AGM batteries freeing up boat space and reducing drag.
- Cold Weather Ready with Built-In Heating Proprietary internal heating system enables seamless operation in freezing temperatures no external heaters required.
- Push-Button Reset & Wake Feature Instantly wake or reset your battery with a simple top-mounted button, even after deep discharge.
- Compatible with Leading Trolling Motors Works with Minn Kota®, Garmin Force®, MotorGuide®, Power-Pole®, Rhodan Marine®, and Lowrance® Ghost.
- Certified Safe & Saltwater Durable UL1642, IEC62619, and UN38.3 tested for vibration, shock, short circuit, and overcharge safety. IP65-rated rugged ABS case resists water and corrosion.
- Ultra-Long Life Cycle 3,000+ charge cycles at 100% depth of discharge engineered to outlast traditional batteries 5–10x over.
Detailed Specifications
| Technical Specification | Details |
|---|---|
| Model Number | AB-24V60-BT |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 24V |
| Nominal Capacity | 60Ah |
| Battery Group Size | Group 24 |
| Bluetooth® Monitoring | Yes (iOS/Android App) |
| Dimensions (L×W×H) | 10.2" × 6.69" × 8.18" (260×170×208 mm) |
| Weight | 26 lbs (12 kg) |
| Terminal Type | M8 |
| Standard Charge Current | 12A |
| Max Fast Charge Current | 30A |
| Max Continuous Discharge | 60A |
| Peak Discharge Current | 500A (300ms) |
| Discharge Cut-off Voltage | 20V |
| Cycle Life | 3,000 @ 100% DOD / 6,000 @ 80% DOD |
| Charge Efficiency | 100% @ 0.2C |
| Discharge Efficiency | 98–100% @ 1C |
| Charge Temp Range | 0°C to 55°C (32°F to 131°F) |
| Discharge Temp Range | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp Range | -5°C to 45°C (23°F to 113°F) |
| IP Rating | IP65 |
| Certifications | UL1642, IEC62133, IEC62619, UN38.3, CE |
| Parallel/Series Connections | Max 6 (Parallel) / Max 2 (Series) |
| Cell Configuration | Cylindrical Grade-A with internal holders |
| Built-in Heating System | Yes (Integrated with Lithium Charger) |
| Safety Features | Short Circuit, Overcharge, Thermal Protection |
