Product Description

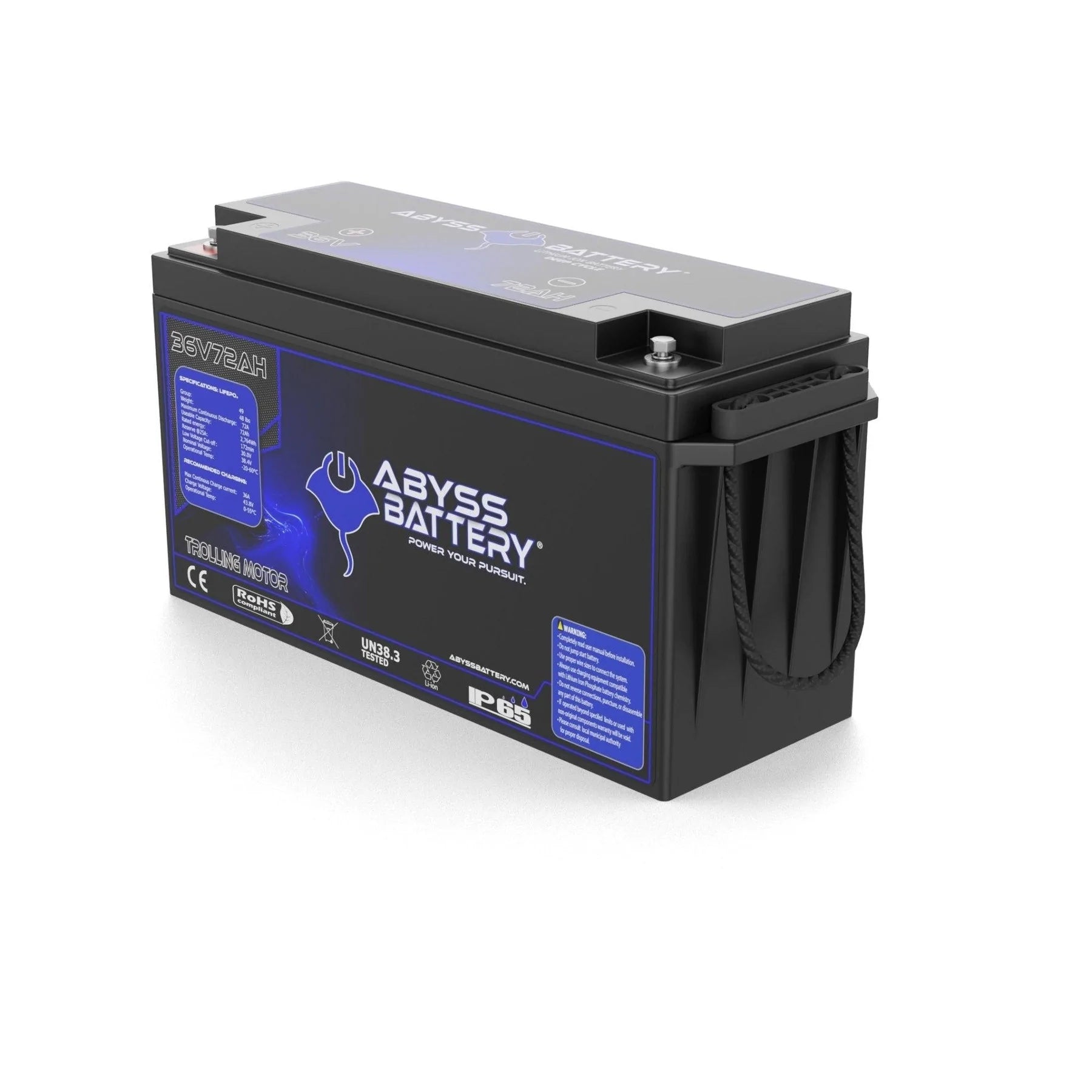

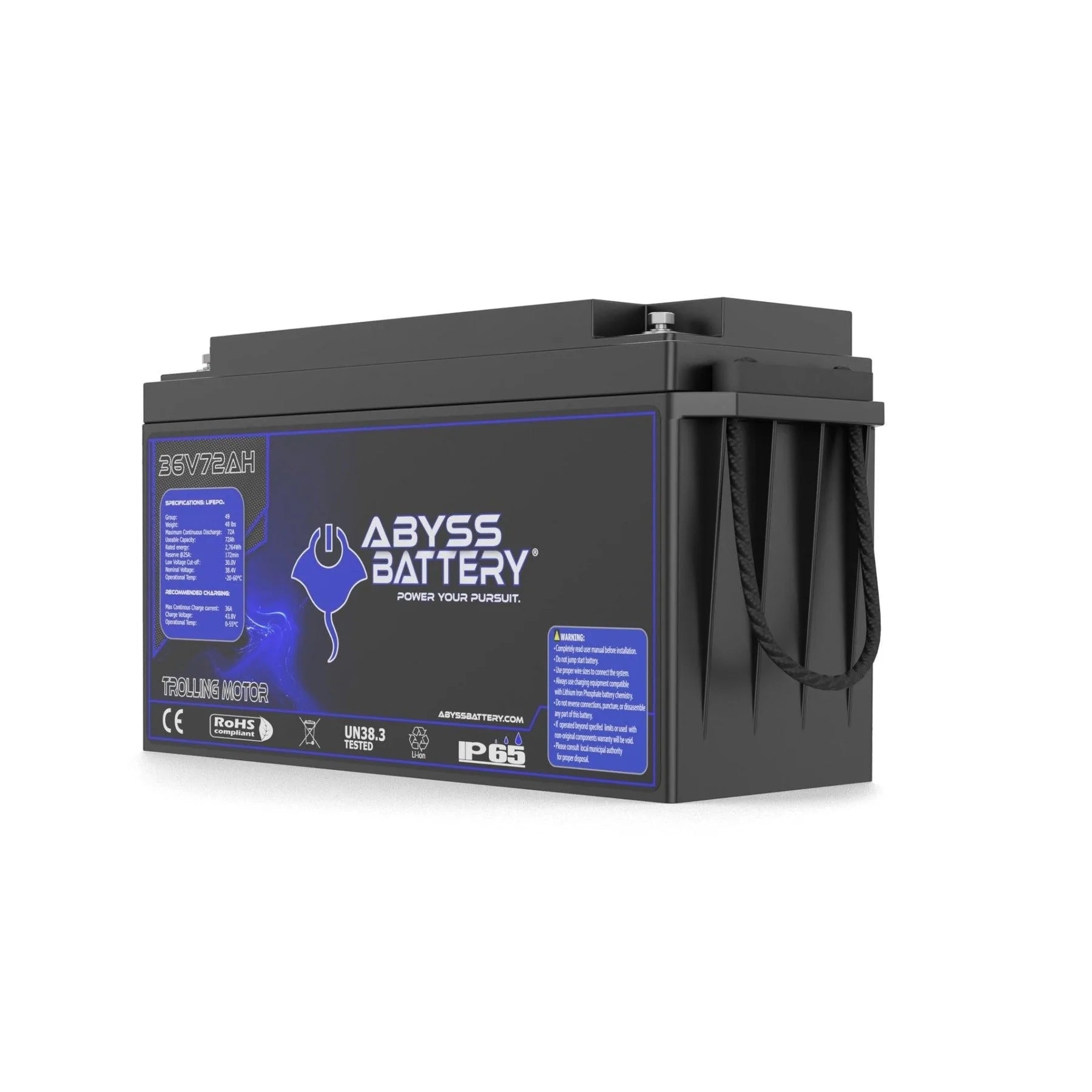

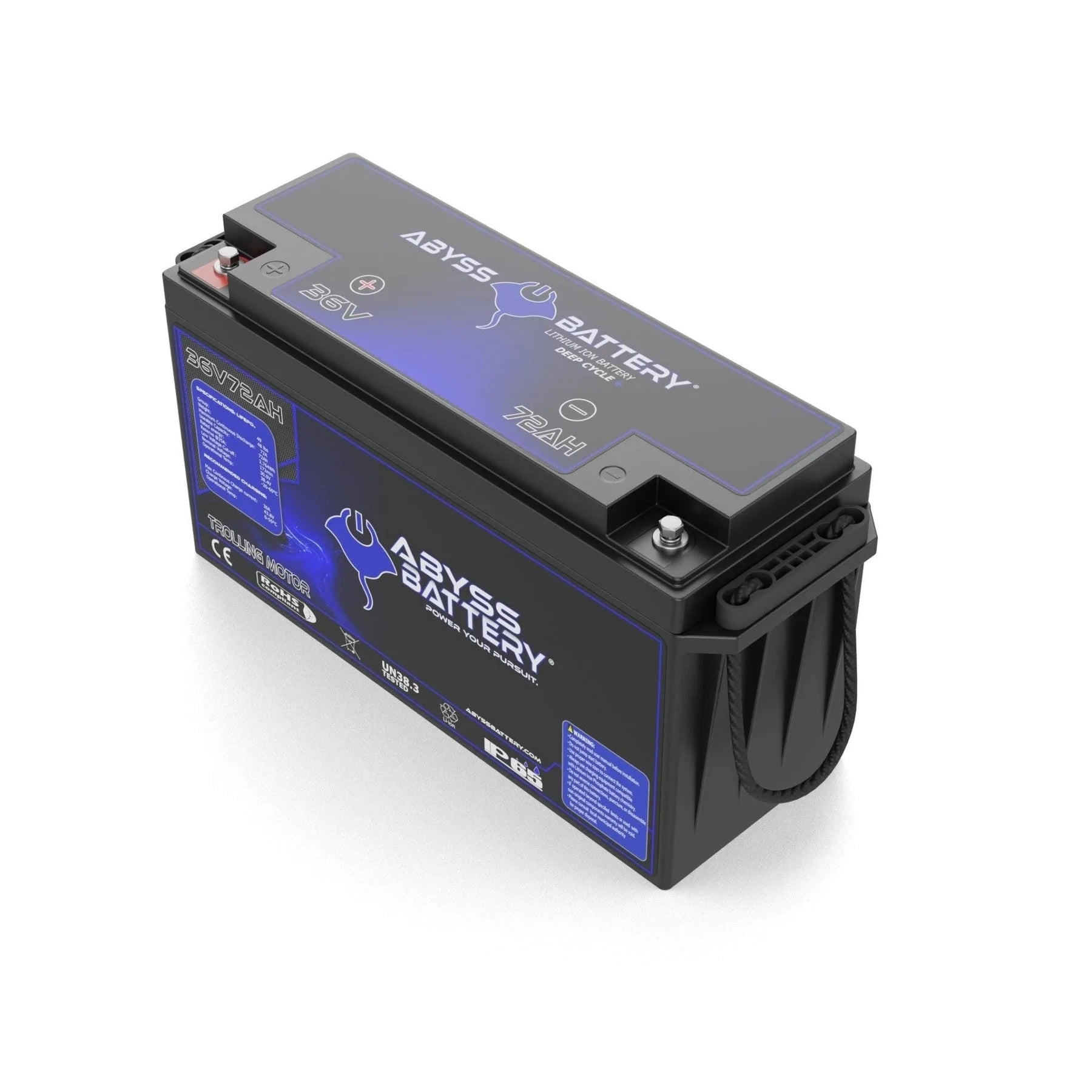

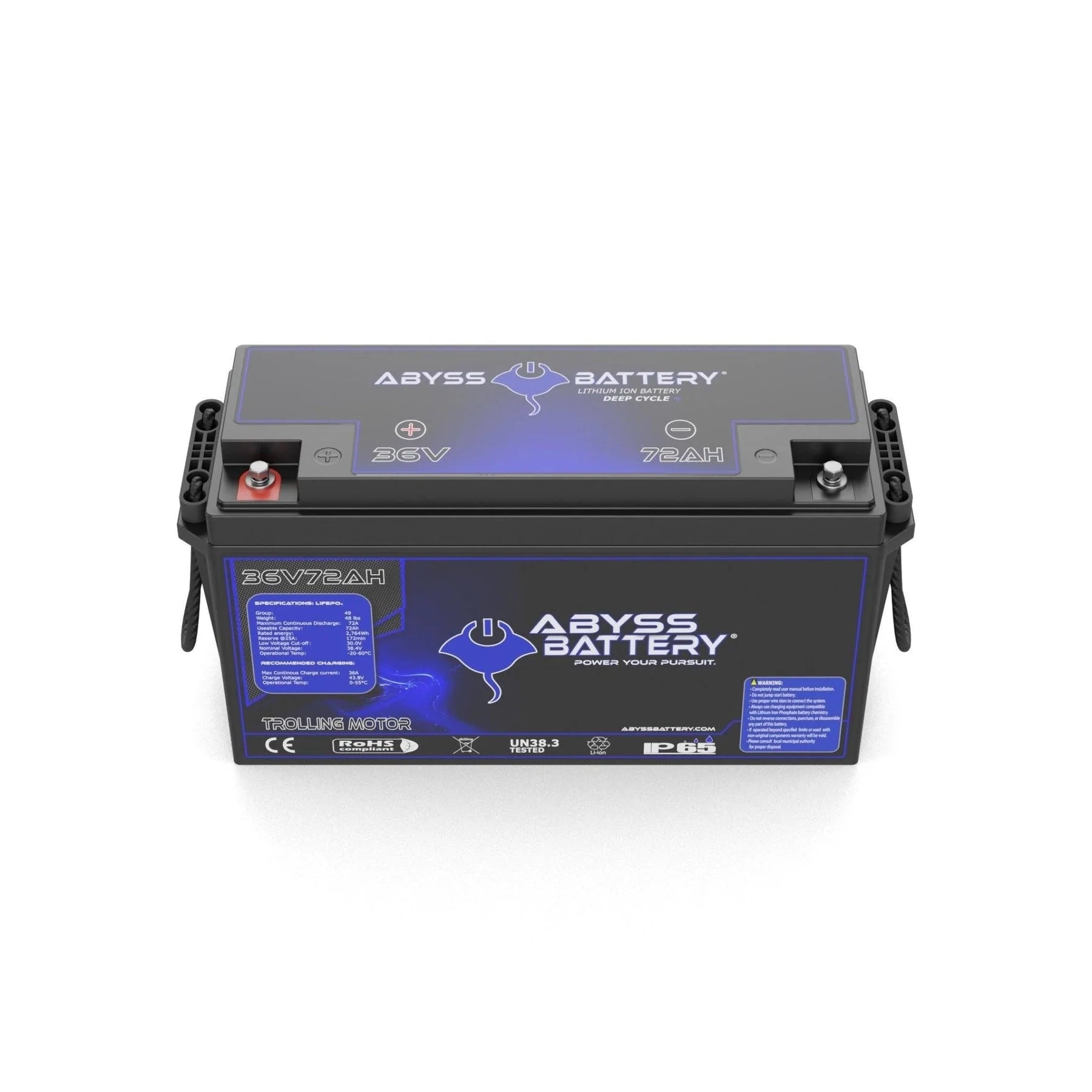

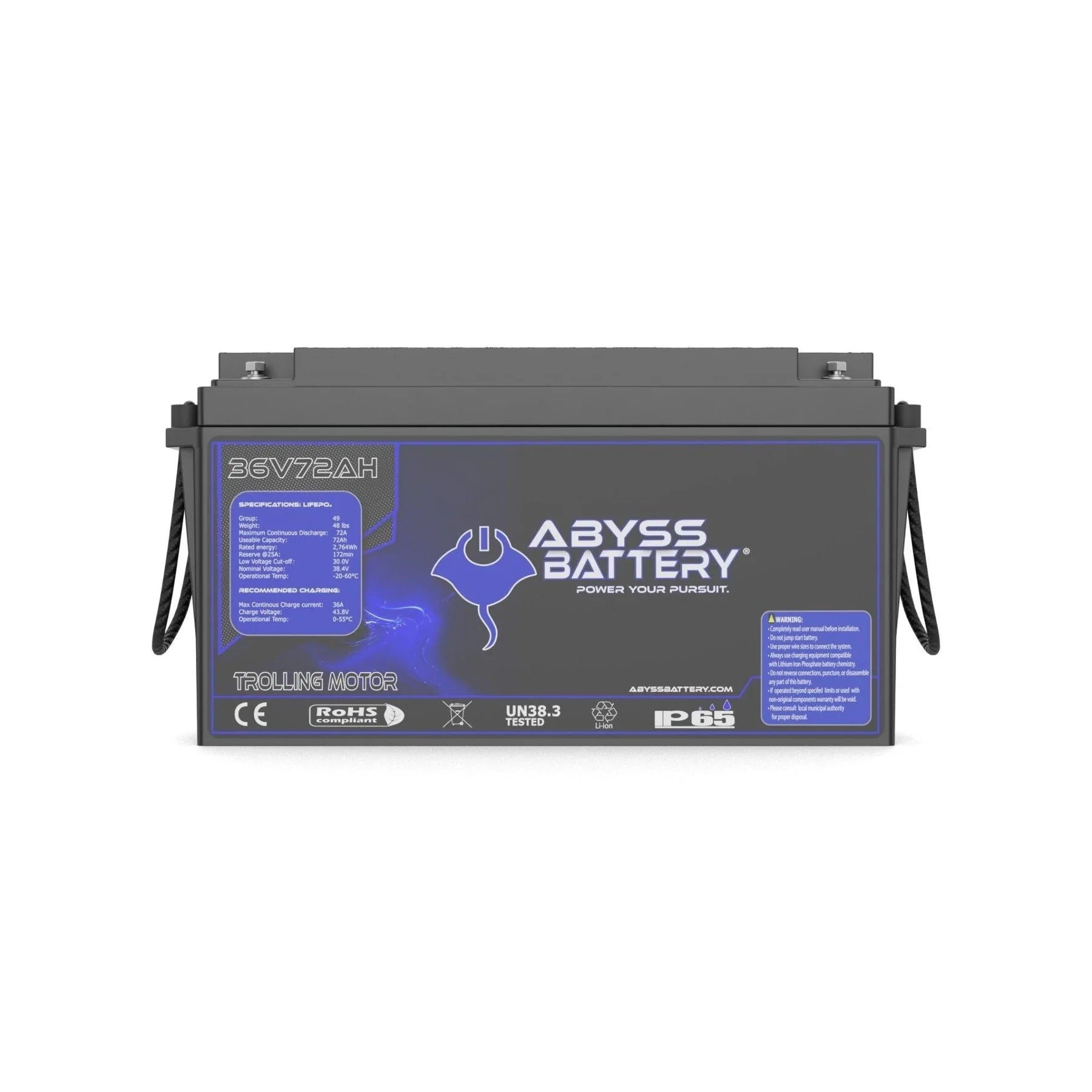

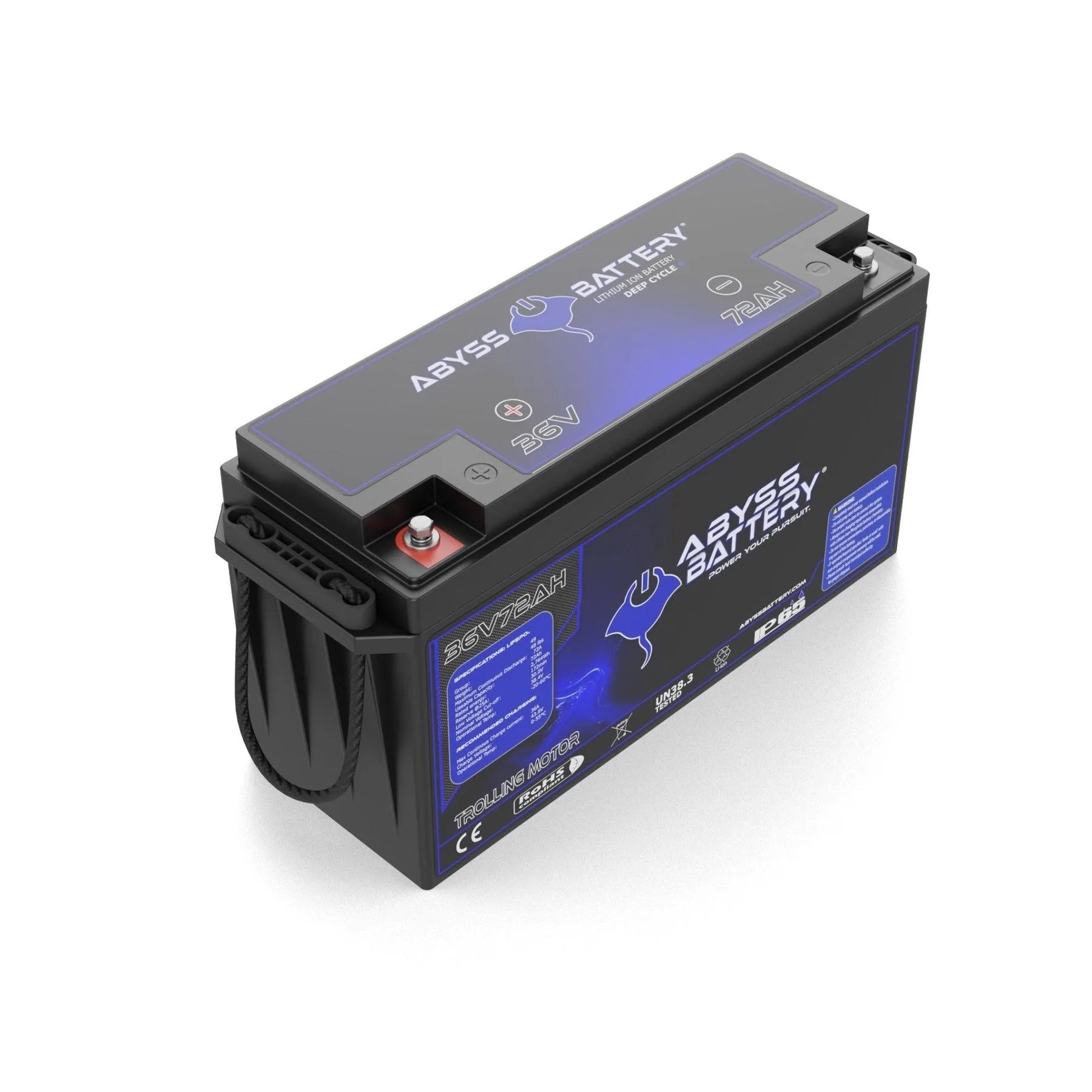

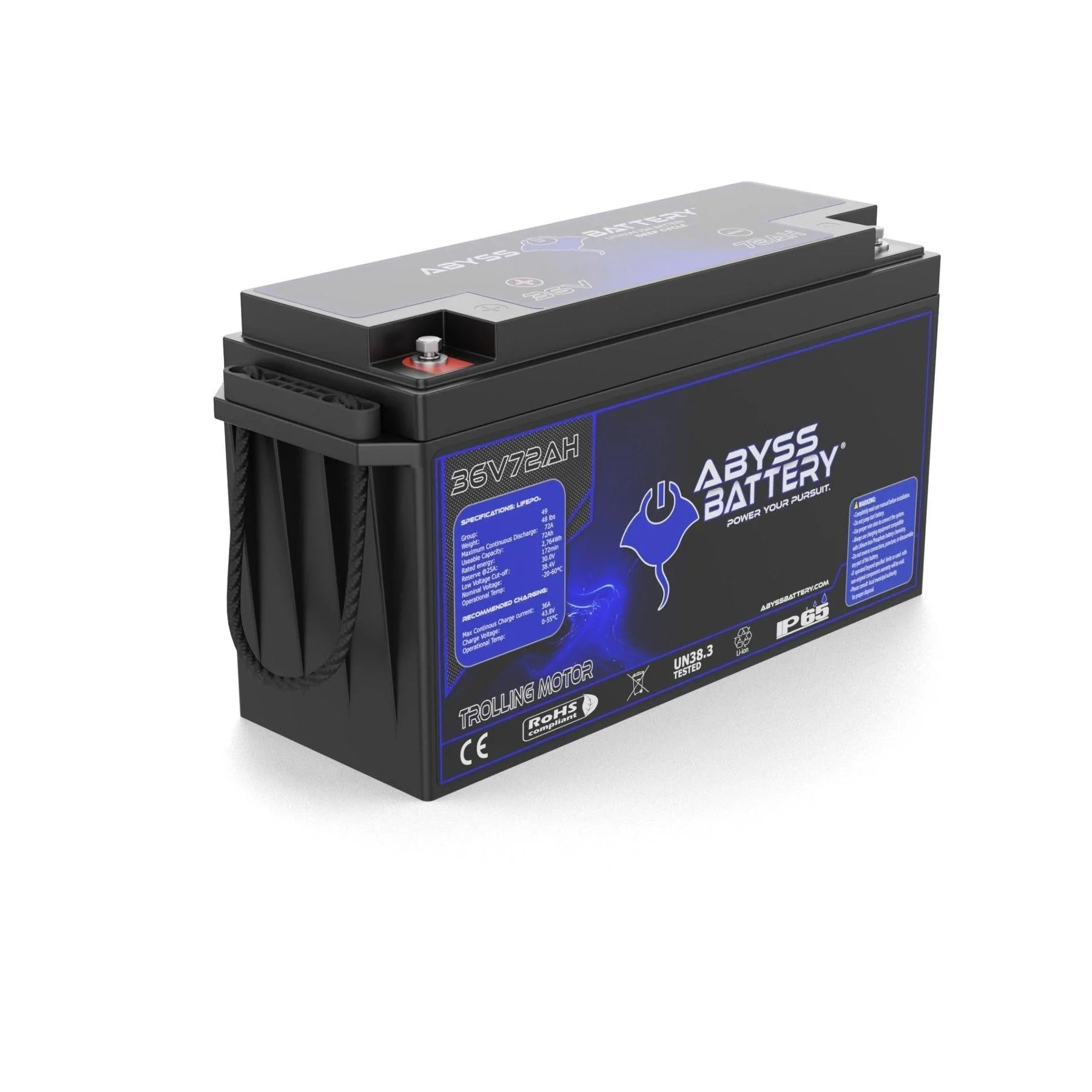

Abyss® | Lithium Trolling Motor Battery | Model AB-36V72-BT | Voltage 36V 72Ah | Group 49 | Bluetooth BMS | Built-In Heating | IP65 Waterproof
DESCRIPTION
Upgrade your fishing adventures with the ABYSS® 36V 72Ah Lithium Trolling Motor Battery the reliable power solution that keeps your trolling motor running longer and stronger. Designed for serious anglers who refuse to cut trips short, this high-performance lithium battery replaces bulky, heavy lead-acid batteries with a compact, lightweight powerhouse that delivers sustained, dependable energy for multi-day fishing expeditions.
Whether you’re battling choppy waters or navigating calm lakes, this Group 49 deep cycle trolling motor battery provides steady voltage and outstanding cycle life, ensuring your electric motor operates at peak efficiency throughout your journey. With advanced Bluetooth® connectivity, you can easily monitor battery health, charge status, and performance in real-time via your smartphone so you’re always in control.
Built tough with IP65 water resistance and rugged ABS casing, the ABYSS® 36V 72Ah battery is engineered to withstand harsh marine environments, from vibration and impact to temperature extremes. Compatible with top trolling motor brands including Minn Kota®, MotorGuide®, Garmin Force®, and Lowrance®, this lithium battery is the ultimate upgrade for center console boats and larger fishing vessels.
Don’t let power issues cut your fishing trips short invest in the ABYSS® 36V 72Ah Lithium Trolling Motor Battery for long-lasting, lightweight, and worry-free energy on the water.
Key Features
- Long-Lasting Lithium Power: 36V 72Ah capacity offers extended run-time to support all-day and multi-day trolling, outperforming traditional lead-acid batteries.
- Bluetooth® Smart Monitoring: Real-time battery management and diagnostics via Android/iOS apps keeps you informed of charge level, temperature, cycle count, and more.
- Lightweight & Compact Design: Weighing just 48.5 lbs, this Group 49 lithium battery frees up valuable boat space and reduces weight for improved fuel efficiency and handling.
- Marine-Grade Durability: IP65 rated waterproof casing and robust ABS construction ensure reliable performance in wet, salty, and rugged marine environments.
- Cold Weather Ready: Built-in heating technology guarantees optimal battery operation in low temperatures without extra accessories or manual intervention.
- High Discharge Capacity: Delivers up to 600A peak current for motor startup and powerful bursts, ideal for trolling motors on larger boats.
- Safe & Certified: Exceeds ABYC standards, UL1642, IEC62133, and UN38.3 certifications for marine lithium batteries, ensuring your safety and peace of mind.
- Wide Compatibility: Designed to work seamlessly with leading trolling motors such as Minn Kota®, MotorGuide®, Garmin Force®, Lowrance®, Rhodan Marine HD GPS, and Power-Pole®.
Detailed Specifications
| Specification | Details |
|---|---|
| Model Number | AB-36V72-BT |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 72Ah |
| Battery Size | Group 49 |
| Dimensions (L x W x H) | 19.0" x 6.69" x 9.44" (490 x 171 x 240 mm) |
| Weight | 48.5 lbs (22 kg) |
| Terminal Type | M8 |
| Case Material | Black ABS Plastic |
| IP Rating | IP65 |
| Cell Type | Cylindrical LiFePO4 |
| Bluetooth Management System | 12S80A with Android/iOS App |
| Charge Voltage | 43.2 ± 0.6 V |
| Standard Charge Current | 15A |
| Fast Charge Current | 36A |
| Max Continuous Discharge | 72A |
| Peak Discharge Current | 600A (300 ms) |
| Discharge Cut-off Voltage | 30V |
| Cycle Life | 3000 cycles @ 100% DOD; 6000 cycles @ 80% DOD |
| Self Discharge Rate | <3% per month |
| Operating Temp Range (Charge) | 0°C to 55°C (32°F to 131°F) |
| Operating Temp Range (Discharge) | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range | -5°C to 45°C (23°F to 113°F) |
| Certifications | ABYC, UL1642, IEC62133, IEC62619, CE, UN38.3, ROHS |
