Product Description

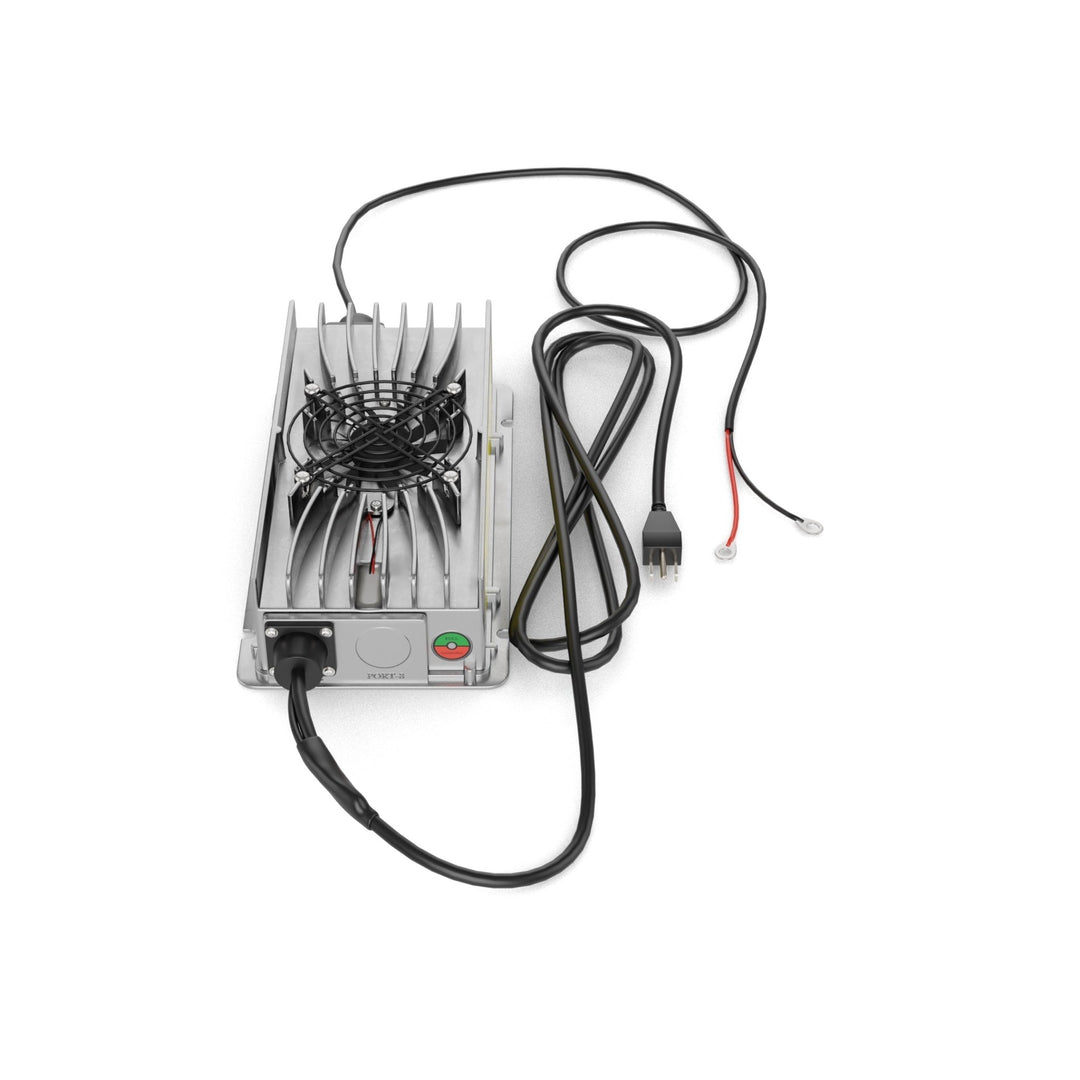

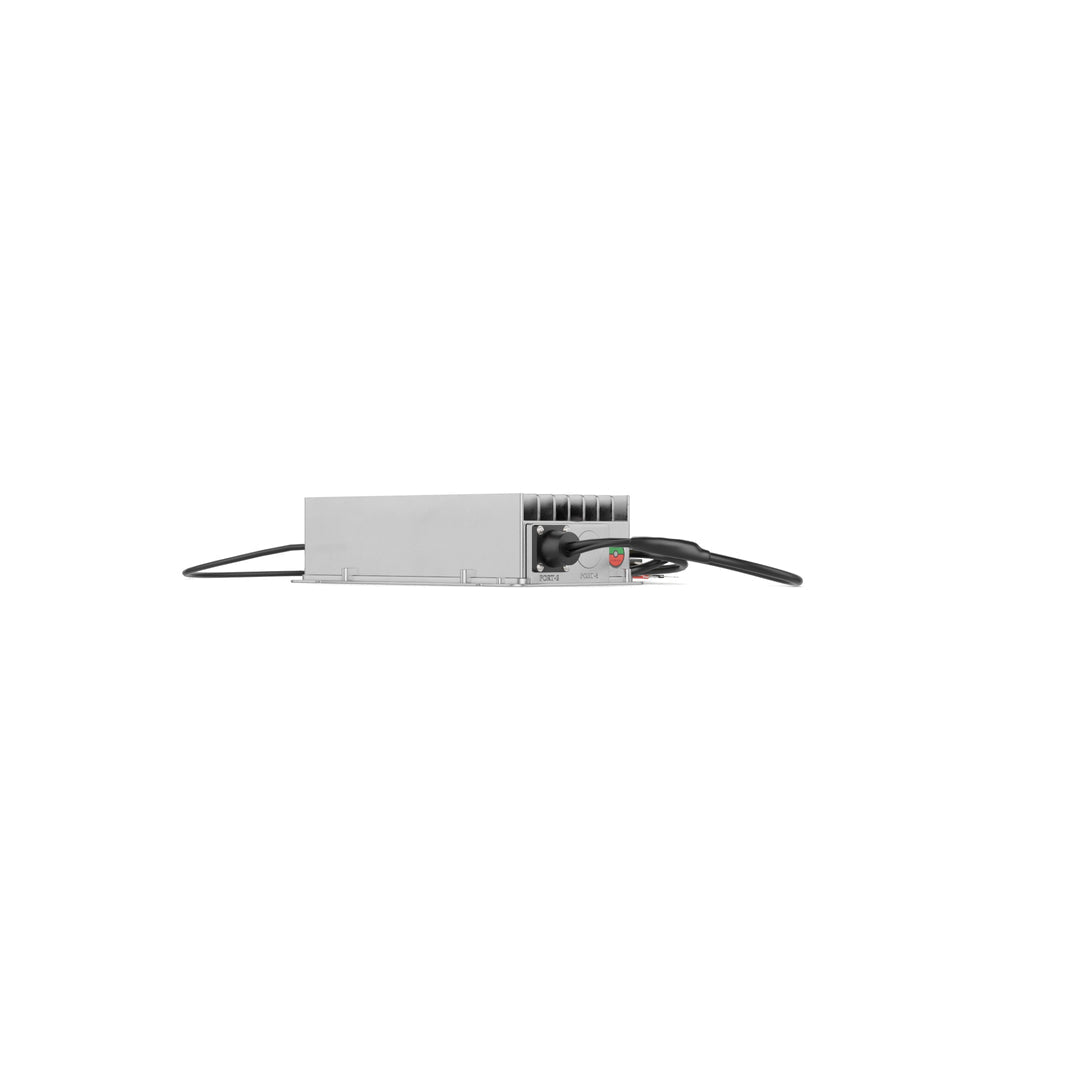

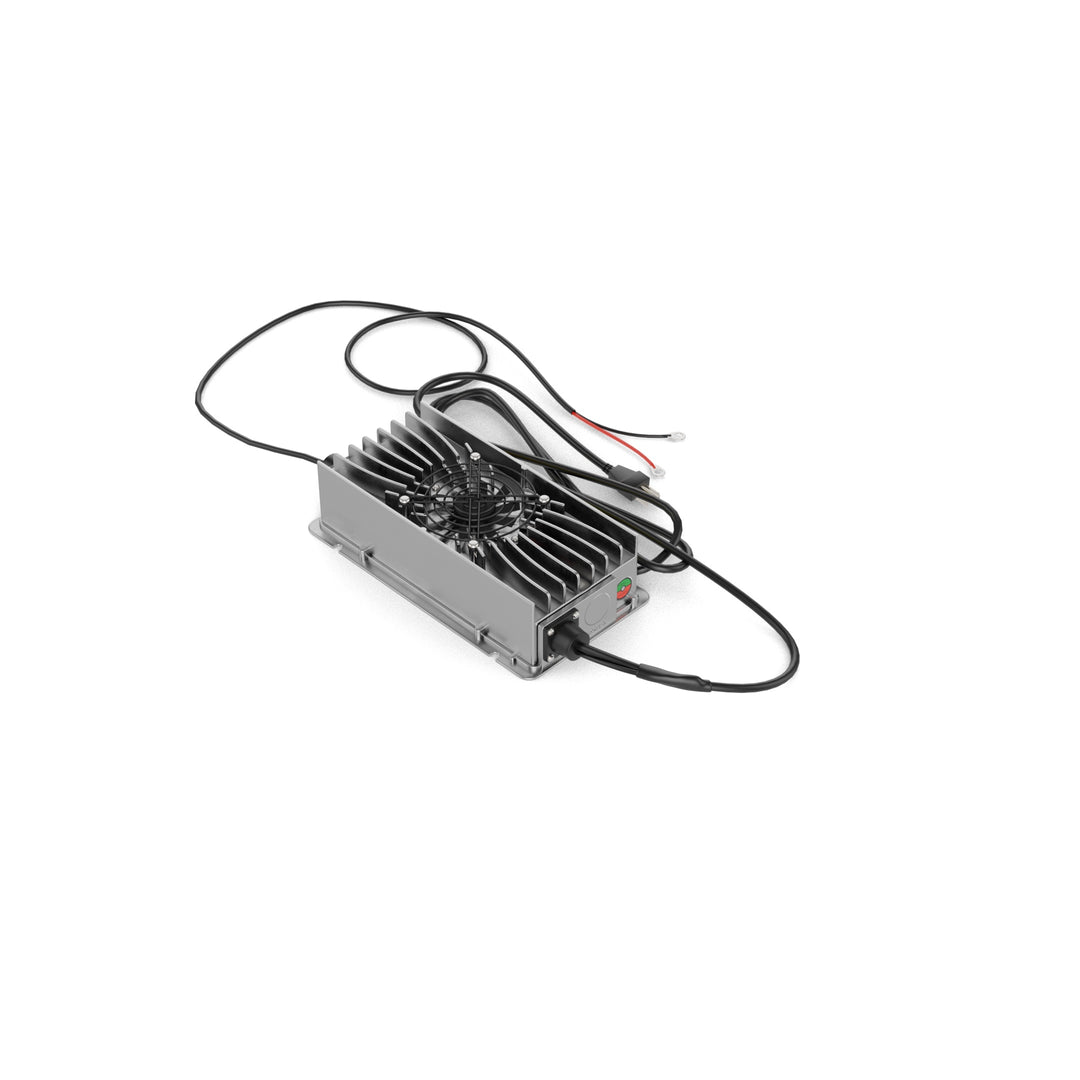

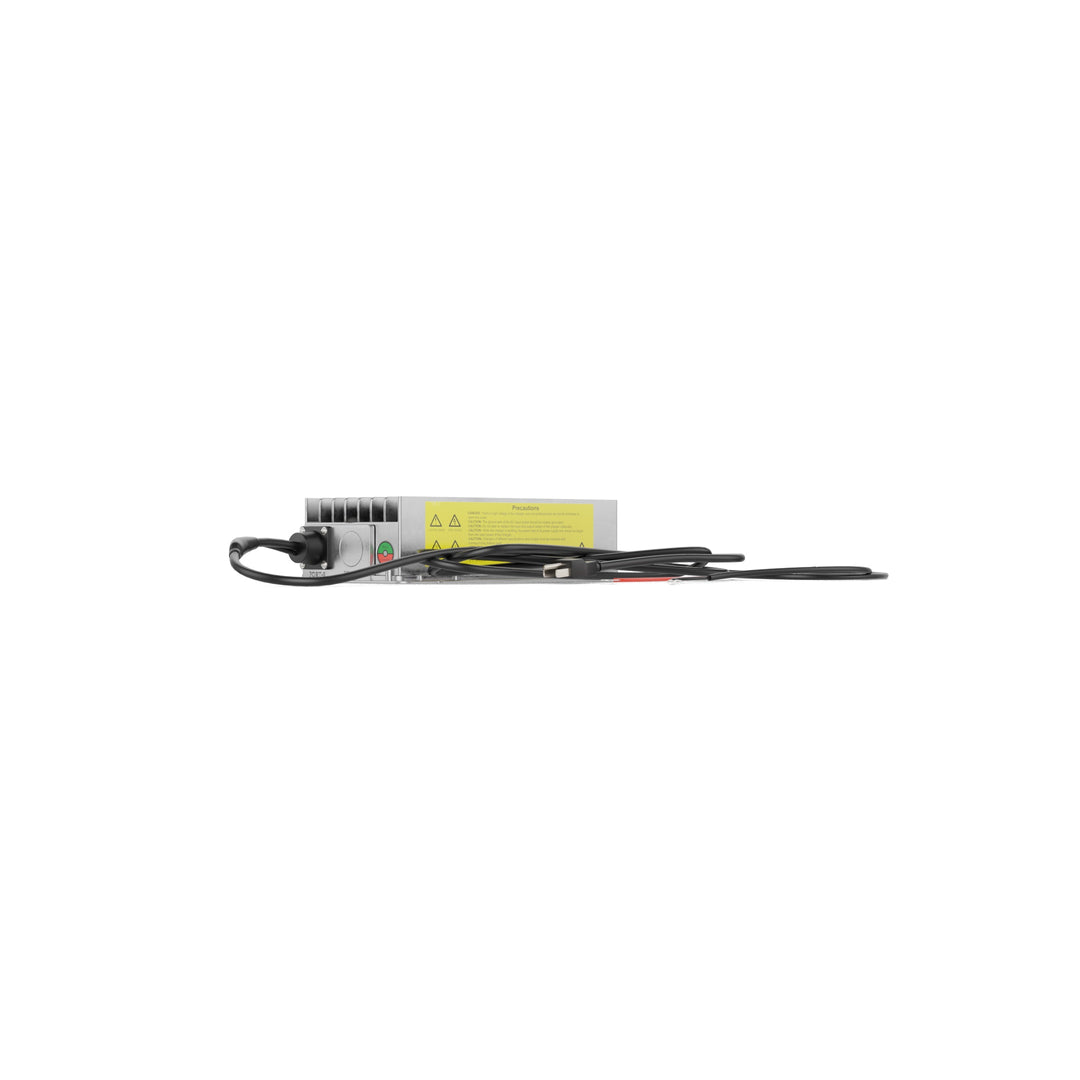

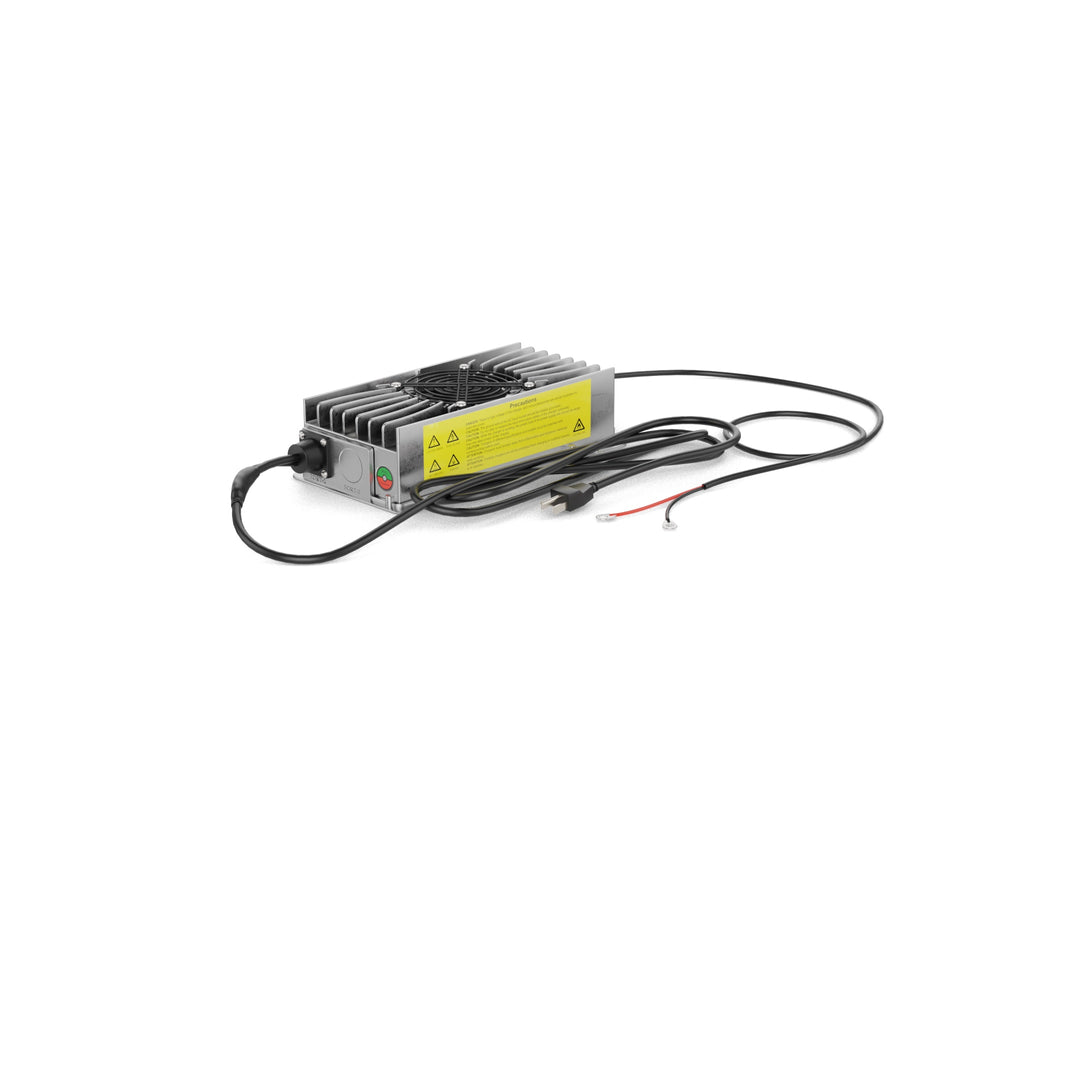

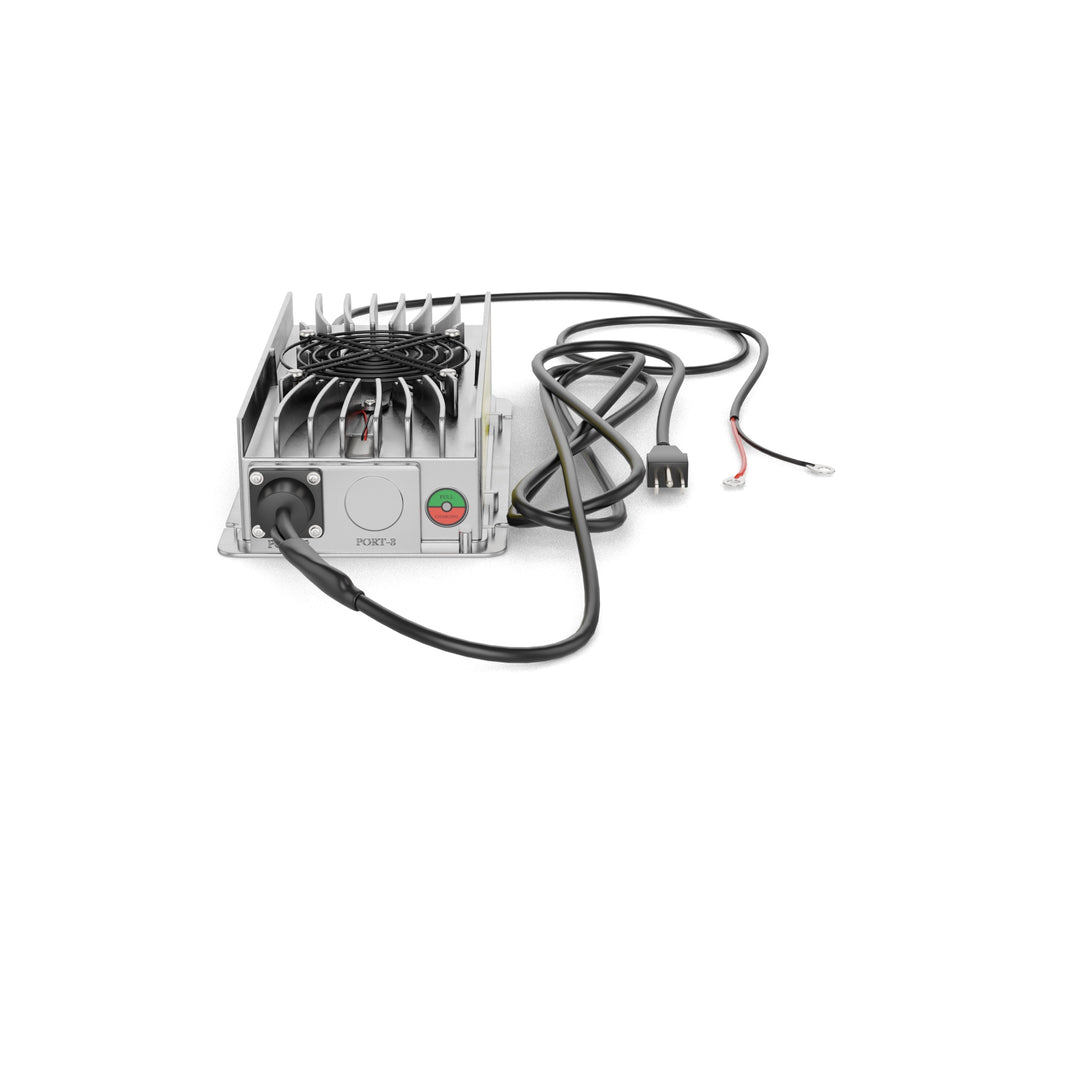

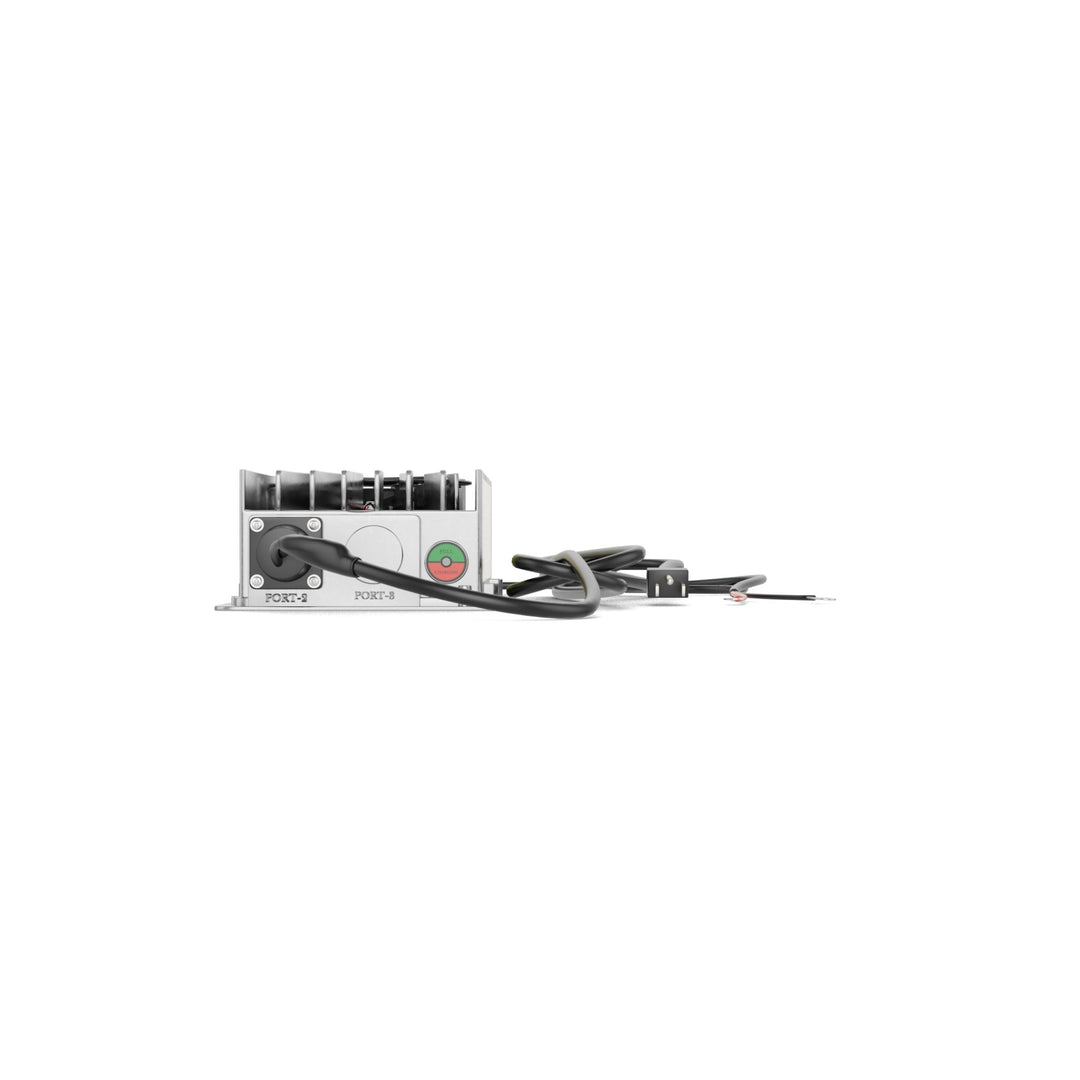

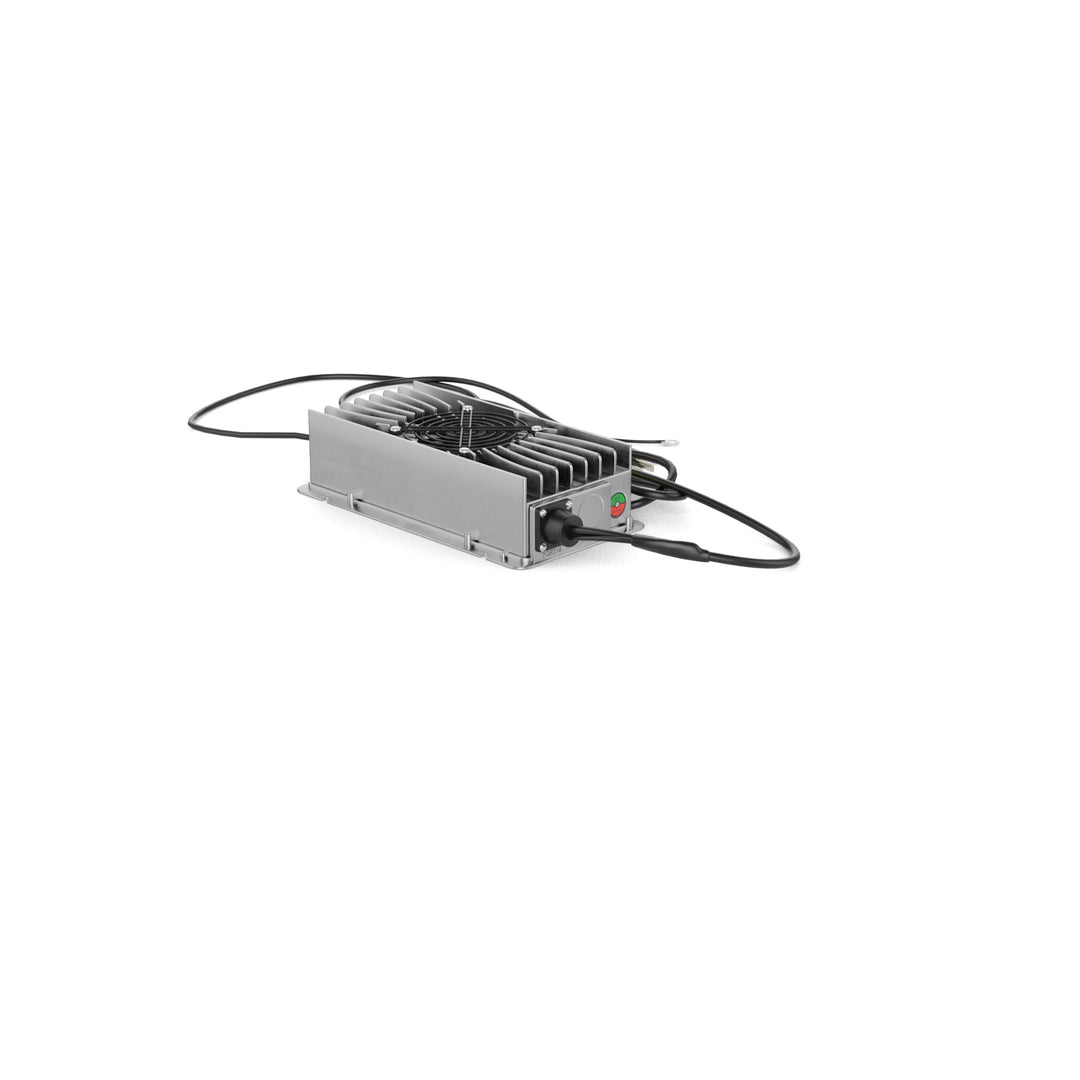

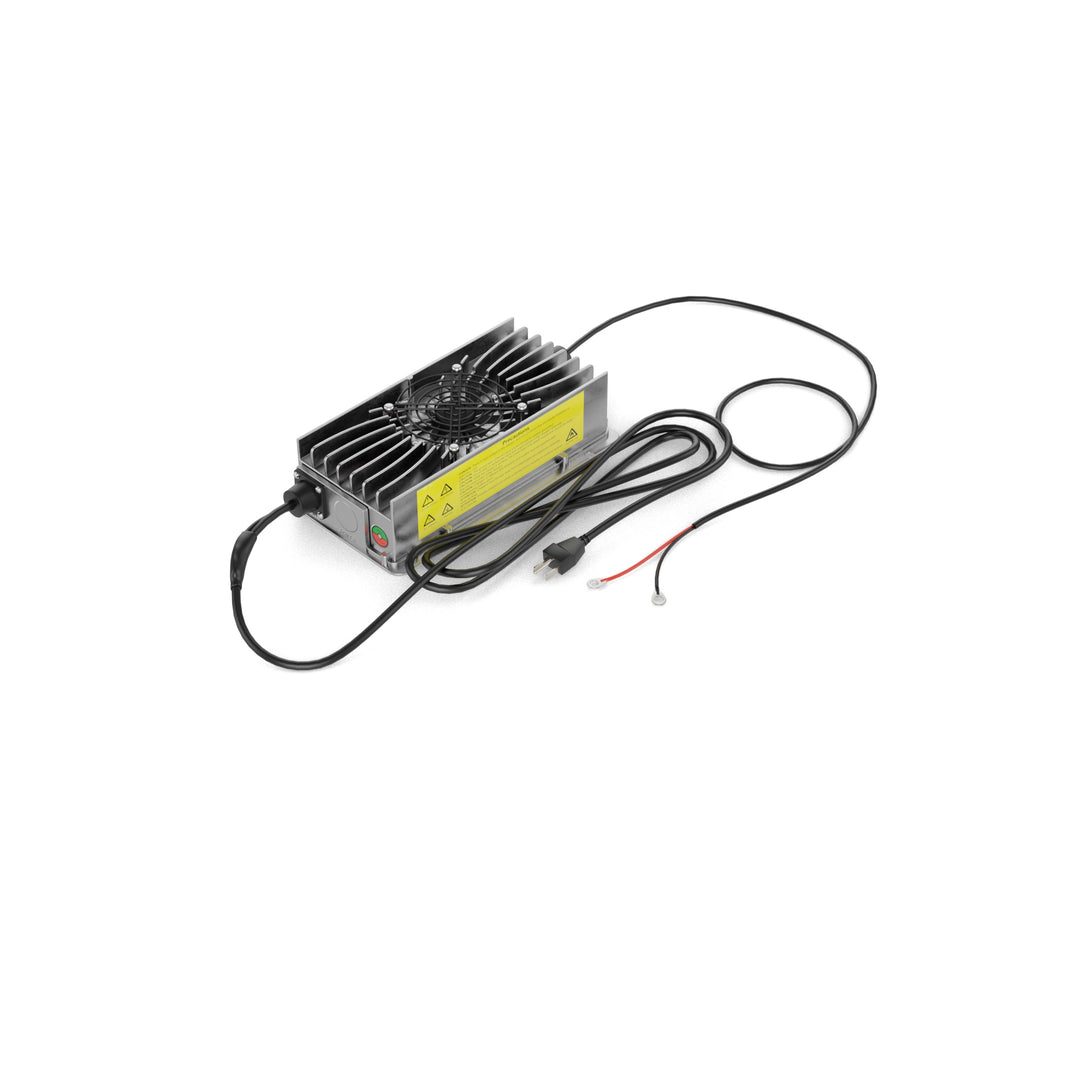

ABYSS® | On-Board High-Precision Marine Lithium Battery Charger | Model AB-CRG-36V10A | Voltage 36V | 10A Output | For 36V LiFePO4 Trolling Motor Batteries
DESCRIPTION
Stay longer on the water and charge faster between adventures with the ABYSS® 36V 10A High-Precision On-Board Marine Lithium Battery Charger. Purpose-built for serious anglers, boaters, and marine professionals, this smart charger delivers clean, safe, and efficient charging to 36V LiFePO4 battery systems, including the ABYSS® 36V 60Ah and 72Ah lithium batteries, as well as compatible models from other leading brands.
Whether you're prepping for tournament day or a weekend on the lake, this charger reduces downtime and extends battery life through its intelligent charging profile and full-auto timing shutdown. With advanced safety protocols, rugged IP67 waterproof construction, and ignition protection, it’s ready for the most demanding marine environments.
Key Features
- High-Speed Charging Delivers a full 10 amps of charging power to your 36V lithium battery system, reducing downtime dramatically.
- Designed for Marine Use Built to thrive in wet, rugged marine environments with IP67 waterproof housing and ignition protection.
- Wide Compatibility Optimized for ABYSS® 36V 60Ah/72Ah LiFePO4 batteries but also compatible with other 36V lithium marine batteries.
- Advanced Safety Protections Includes short-circuit, reverse polarity, overcharge, overtemp, and spark-proof safeguards.
- Smart Thermal Management Works in harsh environments with operational range from -4°F to 104°F.
- LED Charging Status Indicators Real-time feedback on charge progress, battery status, and fault conditions.
- Plug-and-Play On-Board Design Easy to install and integrates seamlessly with your boat’s power system.
- Auto Shutoff Timing Extends battery life by automatically ending the charge cycle at full capacity.
- Optional CAN Communication & 12V Auxiliary Power For advanced power systems needing more control and flexibility.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | ABYSS® |
| Model Name | 36V 10A High-Precision Marine Lithium Battery Charger |
| Model Number | AB-CRG-36V10A |
| Output Voltage | 36V |
| Output Current | 10A |
| Charging Type | High-Precision, Fully Automatic |
| Battery Compatibility | 36V LiFePO4 Lithium Batteries |
| Compatibility Example | ABYSS® 36V 60Ah & 72Ah, Other 36V Lithium Marine Batteries |
| Safety Features | Short-Circuit, Overcharge, Reverse Polarity, Overtemp, Spark-Proof |
| Ignition Protection | Yes |
| Waterproof Rating | IP67 Marine-Grade Housing |
| Cooling Type | Passive heat dissipation + sealed enclosure |
| LED Indicators | Charging Process, Error, Battery Status |
| Optional Functions | CAN Communication, 12V 5A Auxiliary Power Supply |
| Dimensions (L x W x H) | 7.5" x 5" x 2.5" (190 x 127 x 63 mm) |
| Weight | 3.3 lbs (1.5 kg) |
| Input Voltage (AC) | 120V to 240V AC |
| Input Frequency | 50–60Hz |
| Operating Temperature | -4°F to 104°F (-20°C to 50°C) |
| Storage Temperature | -22°F to 140°F (-30°C to 60°C) |
| Relative Humidity | 0% to 95% Non-Condensing |
| AC Cable Length | 4 ft. (48 in. / 122 cm) |
| AC Cable Size | 18 AWG |
| DC Cable + Eyelet Length | 4 ft. (48 in. / 122 cm) |
| DC Cable Size | 16 AWG |
| DC Fuse Size | 7.5A MINI Blade Fuse |
| Cable Durability | Resistant to oil, gas, grease, UV, abrasion, chemicals, and water |
| Wiring Colors | Red = Negative, Yellow/Green = Ground, Purple = Neutral |
Multi-Bank 12V/24V/36V Marine & RV Chargers
3-Bank 12V/24V & 3-Bank 12V/36V Marine Chargers
| Specification | 3-Bank 12V/24V Marine Charger | 3-Bank 12V/36V Marine Charger |
|---|---|---|
| Model | AB-CRG-12V24V-3B | AB-CRG-12V36V-3B |
| Voltage | 12V/24V | 12V/36V |
| Output | 2x12V/10A + 24V/10A | 2x12V/10A + 36V/10A |
| Product Size | 11.9" x 9.6" x 3.8" | 14.2" x 9.6" x 3.8" |
| Weight | 16.5 lbs (7.5 kg) | 19 lbs (8.6 kg) |
| Lead Length | 6' (72 in.) | 6' (72 in.) |
| Charging Battery Type | 2 banks: 12V LiFePO4, AGM, Wet 3rd bank: 24V LiFePO4 |
2 banks: 12V LiFePO4, AGM, Wet 3rd bank: 36V LiFePO4 |
4-Bank 12V & 4-Bank 12V/36V Marine Chargers
| Specification | 4-Bank 12V Marine Charger | 4-Bank 12V/36V Marine Charger |
|---|---|---|
| Model | AB-CRG-12V-4B | AB-CRG-12V/36V-4B |
| Voltage | 12V | 12V/36V |
| Output | 4x12V/10A | 3x12V/10A + 36V/10A |
| Product Size | 11.9" x 9.6" x 3.8" | 16.6" x 9.6" x 3.8" |
| Weight | 17 lbs (7.7 kg) | 26.8 lbs (12.1 kg) |
| Lead Length | 6' (72 in.) | 6' (72 in.) |
| Charging Battery Type | Each bank: 12V LiFePO4, AGM, Wet | 3 banks: 12V LiFePO4, AGM, Wet 4th bank: 36V LiFePO4 |
36V Alternator & 12V 50A DC Converter
| Specification | 36V Alternator Charger | 30V–90V to 12V 50A Converter |
|---|---|---|
| Model | AB-36V-DC | AB-DC-SD |
| Voltage | 36V | 30V–90V |
| Output | 43.8V/10A | 12V/50A DC |
| Product Size | 6" x 5" x 2" | 6" x 5" x 2" |
| Weight | 3.1 lbs (1.4 kg) | 3.1 lbs (1.4 kg) |
| Lead Length | 7 in. | N/A |
| Charging Battery Type | 36V LiFePO4 | 12V LiFePO4 |
36V 10A & 36V 20A High-Precision Chargers
| Specification | 36V 10A High-Precision Charger | 36V 20A High-Precision Charger |
|---|---|---|
| Model | AB-CRG-36V10A | AB-CRG-36V20A |
| Voltage | 36V | 36V |
| Output | 36V/10A DC | 36V/20A |
| Product Size | 7.5" x 5" x 2.75" | 10.5" x 6" x 3" |
| Weight | 3.5 lbs (1.6 kg) | 7.1 lbs (3.2 kg) |
| Lead Length | 4' (48 in.) | 4' (48 in.) |
| Charging Battery Type | 36V LiFePO4 | 36V LiFePO4 |
24V 10A & 24V 20A High-Precision Chargers
| Specification | 24V 10A High-Precision Charger | 24V 20A High-Precision Charger |
|---|---|---|
| Model | AB-CRG-24V10A | AB-CRG-24V20A |
| Voltage | 24V | 24V |
| Output | 24V/10A | 24V/20A |
| Product Size | 7.5" x 5" x 2.5" | 7.75" x 5" x 3" |
| Weight | 3.3 lbs (1.5 kg) | 3.3 lbs (1.5 kg) |
| Lead Length | 3' (36 in.) | 3' (36 in.) |
| Charging Battery Type | 24V LiFePO4 | 24V LiFePO4 |
24V Alternator Charger
| Specification | 24V Alternator Charger |
|---|---|
| Model | AB-24V-DC |
| Voltage | 24V |
| Output | 24V |
| Product Size | 4.75" x 3.25" x 1.25" |
| Weight | 0.95 lbs (0.43 kg) |
| Lead Length | 7 in. (17.8 cm) |
| Charging Battery Type | 24V LiFePO4 |
